Citroen C4 Picasso (2017 year). Instruction

303

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

Fitting the "space-saver"
spare wheel

If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel. The wheel
is secured by the conical surface of
each bolt.

After changing a wheel

To correctly store the punctured wheel
in the boot (not in the location for the
space-saver wheel

), first remove the

central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.

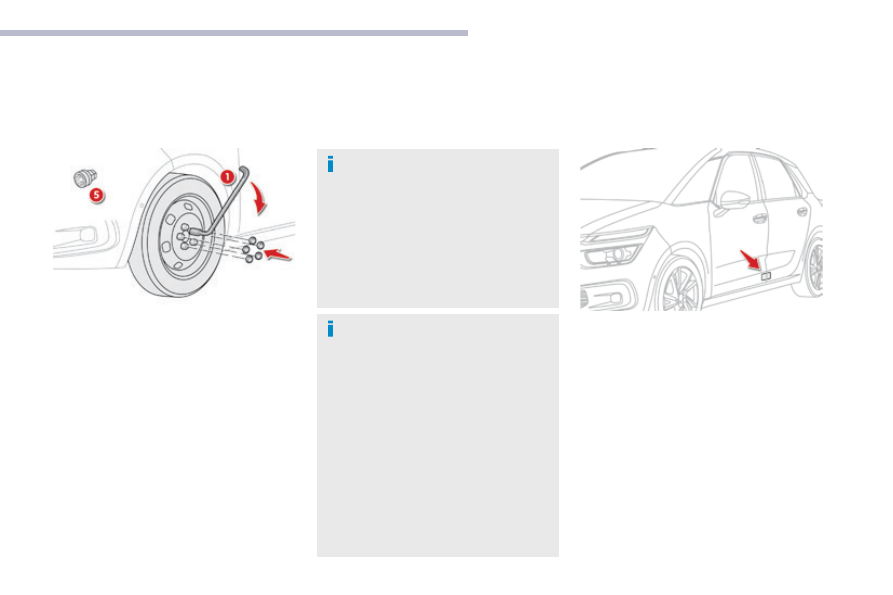

Tighten the security bolt using the

wheelbrace 1

fitted with the security

socket 5 (depending on equipment).

Tighten the other bolts using the

wheelbrace 1

only.

Refit the wheel bolt cover(s) (depending on

equipment).

Stow the tools in the box.

The tyre inflation pressures are given on this
label.

304

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

Changing a bulb

For H7 type bulbs with lugs... take care
to observe their correct installation
so as to ensure the best lighting
performance.

Risk of electrocution

Xenon bulbs (D5S-25W) must be
replaced by a CITROËN dealer or a
qualified workshop.

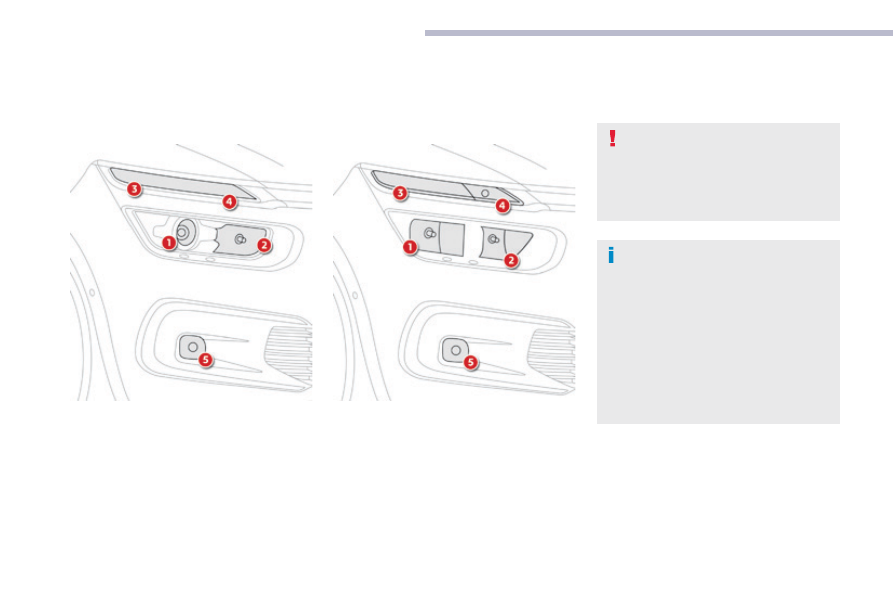

Front lamps

Directional dipped beam headlamps

(D5S-25W).

Main beam headlamps (H7-55W).

Daytime running lamps / sidelamps

(6 light emitting diodes - LEDs).

Direction indicators

(6 light emittng diodes - LEDs).

Front foglamps (H11-55W).

Dipped beam headlamps (H7-55W).

Main beam headlamps (H7-55W).

Daytime running lamps/sidelamps

(4 light emitting diodes - LEDs).

Direction indicators (PWY24W).

Foglamps (H11-55W).

In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.

Light-emitting diodes - LEDs

For replacement, contact a CITROËN dealer or
qualified workshop.

Model with xenon headlamps

Model with halogen headlamps

305

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

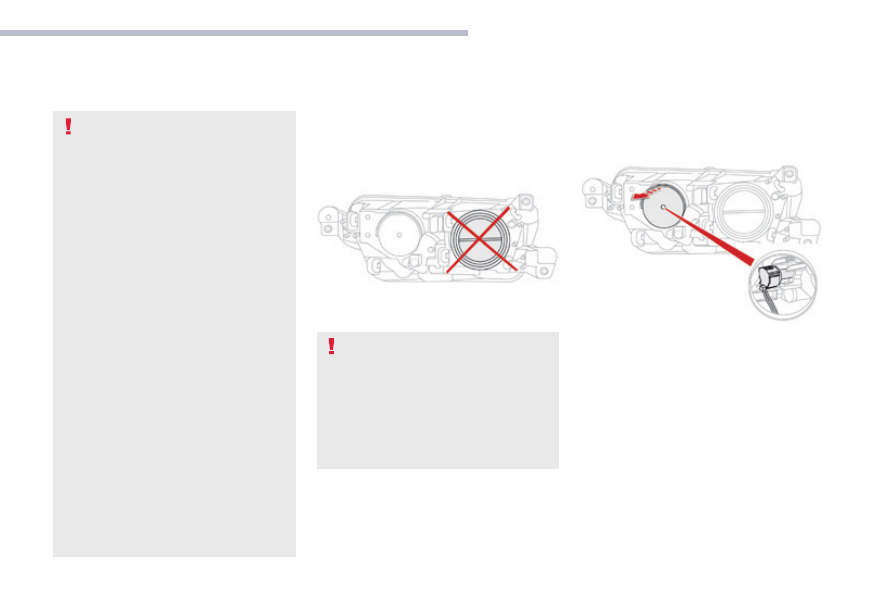

Directional dipped beam
headlamps (xenon model)

Main beam headlamps (xenon model)

Remove the protective plastic cover by

pulling the tab.

Push the connector.

Remove the bulb and change it.

For reassembly, carry out these operations in
reverse order.

D5S xenon bulbs must be changed
by a CITROËN dealer or a qualified
workshop, as there is a risk of
electrocution.
In the event of failure of one of
the D5S bulbs, it is recommended that
the bulb on the other side be changed
at the same time.

The headlamps have polycarbonate
lenses with a protective coating:
F do not clean them using a dry

or abrasive cloth, nor with a
detergent or solvent product,

use a sponge and soapy water or

a pH neutral product,

when using a high pressure washer

on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.

Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

Do not touch the bulb directly with

your fingers, use a lint-free cloth.

It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.

306

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

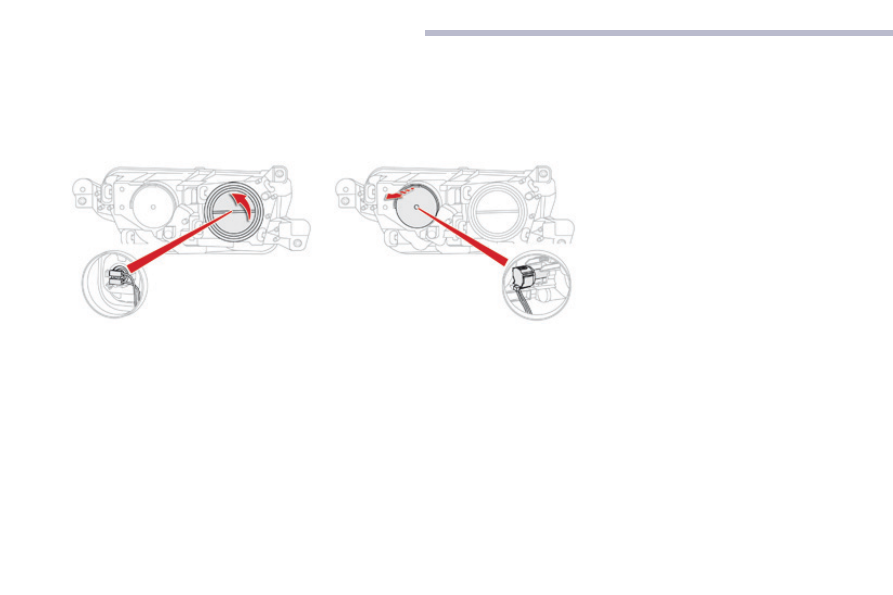

Dipped beam headlamps
(halogen model)

Remove the protective plastic cover by

pulling the tab.

Push the connector.

Remove the bulb and change it.

For reassembly, carry out these operations in
reverse order.

Main beam headlamps
(halogen model)

F Turn the protective plastic cover to

remove it.

Disconnect the connector.

Release the clips.

Remove the bulb and change it.

For reassembly, carry out these operations in
reverse order.

307

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

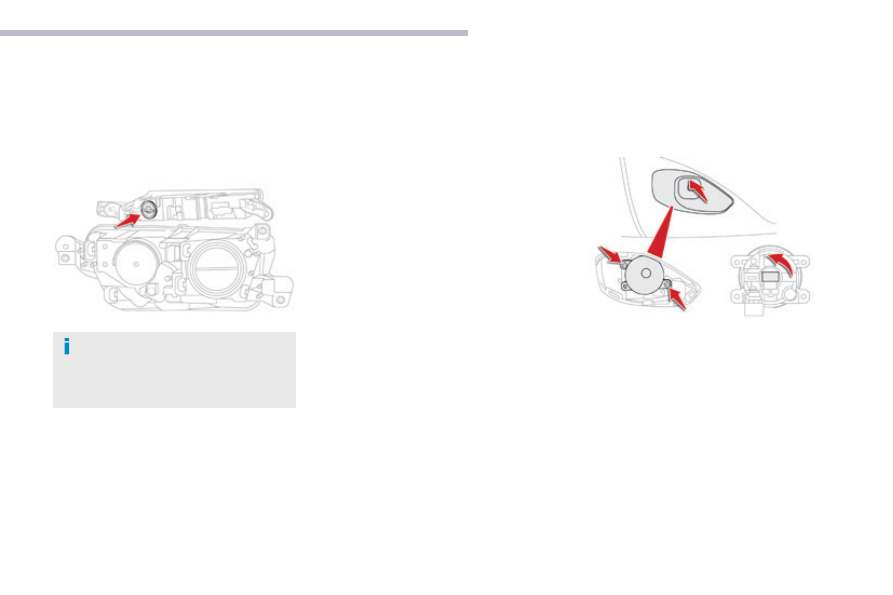

The direction indicator bulb is located below
the front lamp.
F

Turn the bulb holder a quarter turn anti-

clockwise.

Remove the bulb holder.

Change the failed bulb.

For reassembly, carry out these operations in
reverse order.

Direction indicators

Front foglamps

Unclip the finisher by pulling at the top.

Remove the two screws to remove the unit.

Turn the bulb holder a quarter turn.

Remove the bulb holder.

Change the failed bulb.

For reassembly, carry out these operations in
reverse order, pressing on the finisher to refit it.

Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.

Direction indicators
(light-emitting diodes - LED)

For the replacement of this type of lamp,
contact a CITROËN dealer or a qualified
workshop.

308

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

You should contact a CITROËN dealer or a
qualified workshop for the replacement of the
light-emitting diode - LED.

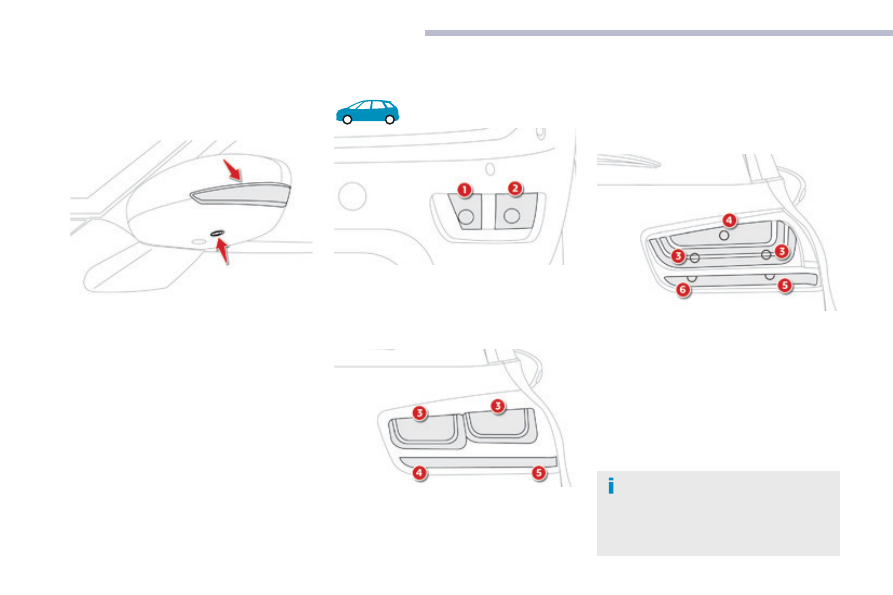

Door mirror spotlamps

Integrated direction indicator
side repeaters

You should contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

Direction indicators (PY21W amber).

Sidelamps / foglamps (P21/5W).

Rear lamps

Light-emitting diodes -
LEDs

For replacement, contact a CITROËN
dealer or qualified workshop.

Brake lamps / sidelamps (light-emitting

diodes - LEDs).

Reversing lamps (W16W).

Direction indicators (PY21W).

Model with LED lamps

Sidelamps (5W5).

Brake lamps (P21/W).

Direction indicators (WY16W).

Reversing lamps (W16W).

Model with conventional bulb lamps

309

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

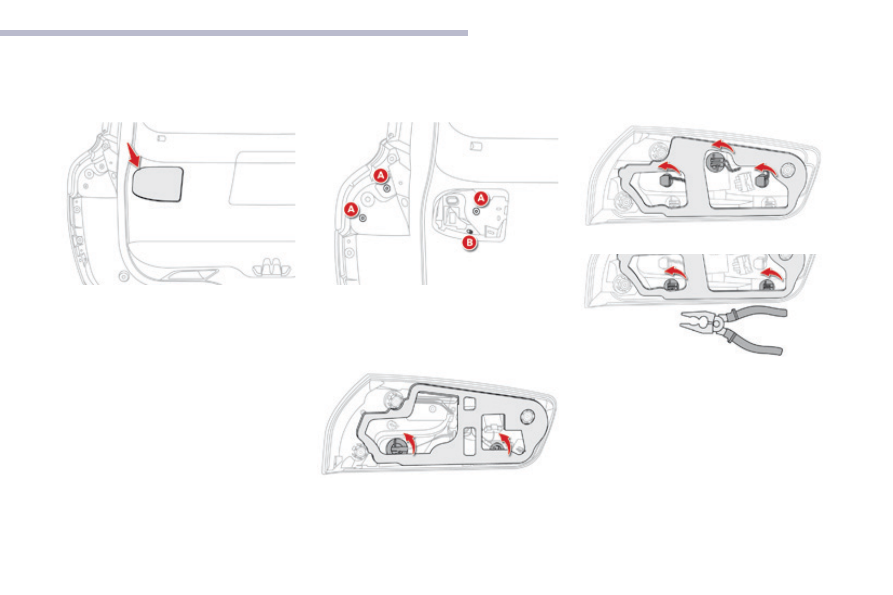

Lamps on the tailgate

To change a sidelamp and brake lamp bulb:
F

Turn the bulb holder a quarter of a turn

anti-clockwise and pull the bulb out.

Change the bulb.

Identify the failed bulb.
F

Open the boot.

Remove the access cover.

Remove the three lamp fixing screws A.

Disconnect the lamp connector.

Carefully remove the lamp from the outside

by pressing the retaining clip B.

To change a reversing lamp or direction
indicator bulb:
F

Use a standard pair of pliers to turn the

bulb holder a quarter turn anticlockwise,
and pull it out.

Change the bulb.

For reassembly, carry out these operations in
reverse order.

Model with LED lamps

Model with conventional bulb lamps

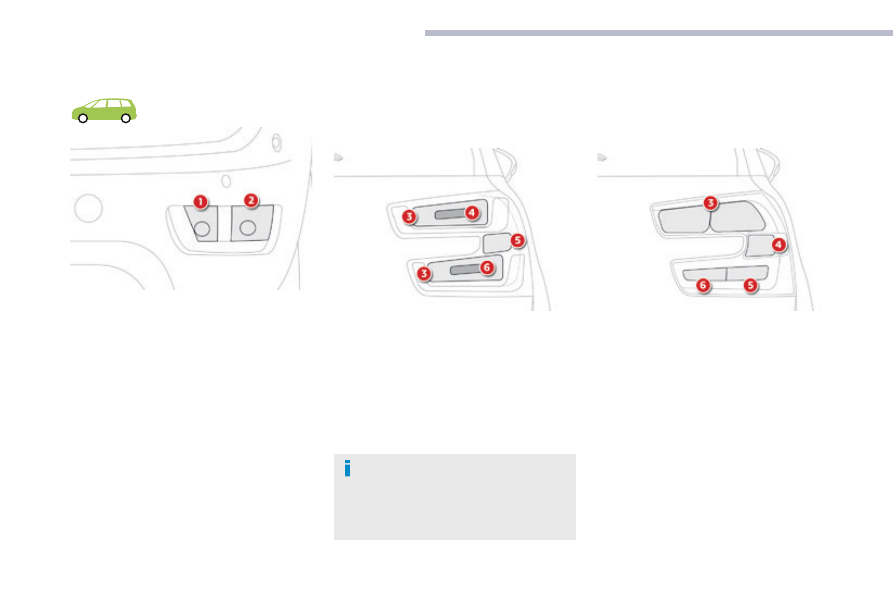

310

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

Direction indicators (PY21W amber).

Sidelamps / foglamps (P21/5W).

Rear lamps

Sidelamps (light-emitting diodes - LEDs).

Brake lamps (light-emitting diodes - LEDs).

Direction indicators (PY21W).

Reversing lamps (light-emitting diodes -

LEDs).

Model with LED lamps

Sidelamps (W5W).

Brake lamps / sidelamps (P21W).

Direction indicators (WY16W).

Reversing lamps (W16W).

Model with conventional bulb lamps

Light-emitting diodes -
LEDs

For replacement, contact a CITROËN
dealer or qualified workshop.

311

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

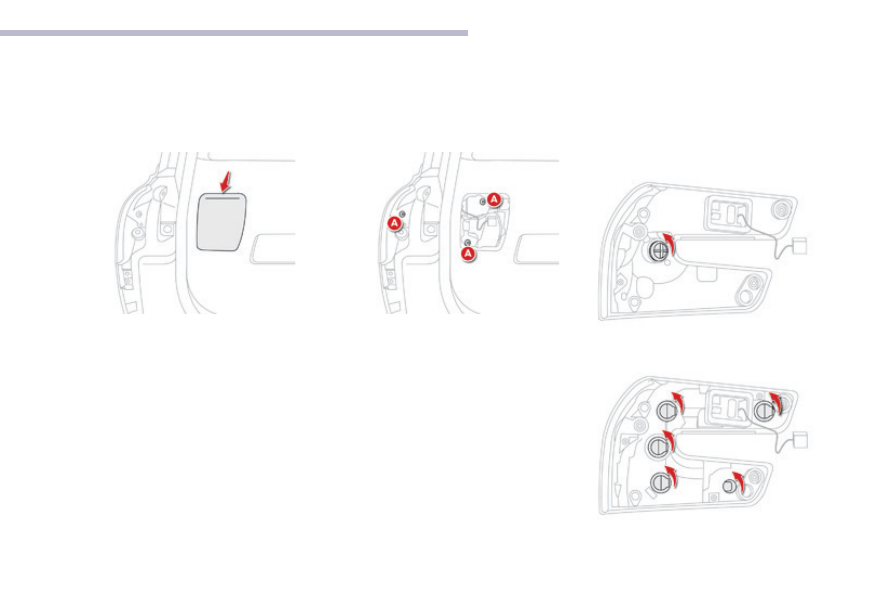

Lamps on the tailgate

Model with LED lamps

Model with conventional bulb lamps

Identify the failed bulb.
F

Open the boot.

Remove the access cover.

Remove the three lamp fixing screws A.

Disconnect the lamp connector.

Carefully remove the lamp from its housing.

Turn the bulb holder a quarter of a turn

anti-clockwise and pull the bulb out.

Change the bulb.

For reassembly, carry out these operations in
reverse order.

312

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

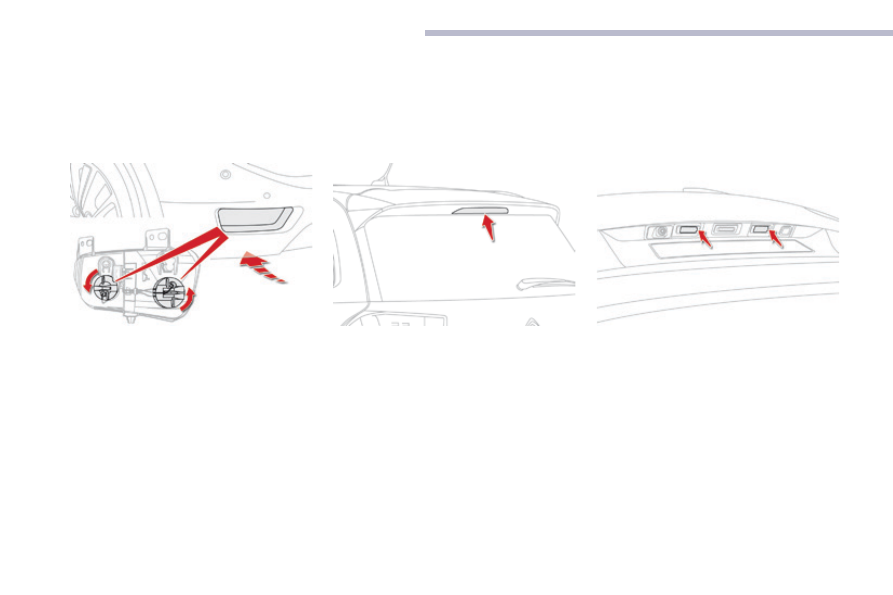

Direction indicator, sidelamp and
foglamp

Access is by passing a hand under the bumper.
F

Turn the bulb holder a quarter of a turn and

pull it out.

Change the bulb.

For reassembly carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

For the replacement of this type of lamp,
contact a CITROËN dealer or a qualified
workshop.

Third brake lamp (light-emitting
diodes-LED)

Number plate lamps
(W5W)

To refit, press on the lens to clip it in place.

Insert a thin screwdriver into one of the cut-

outs in the lens.

Push it outwards to unclip it.

Remove the lens.

Change the faulty bulb.

313

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

Before changing a fuse:
F

the cause of the failure must be identified

and rectified,

all electrical consumers must be

switched off,

the vehicle must be immobilised with the

ignition off,

identify the failed fuse using the tables and

layout drawings in the following pages.

Changing a fuse

Good

Failed

The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a CITROËN dealer or a qualified
workshop.

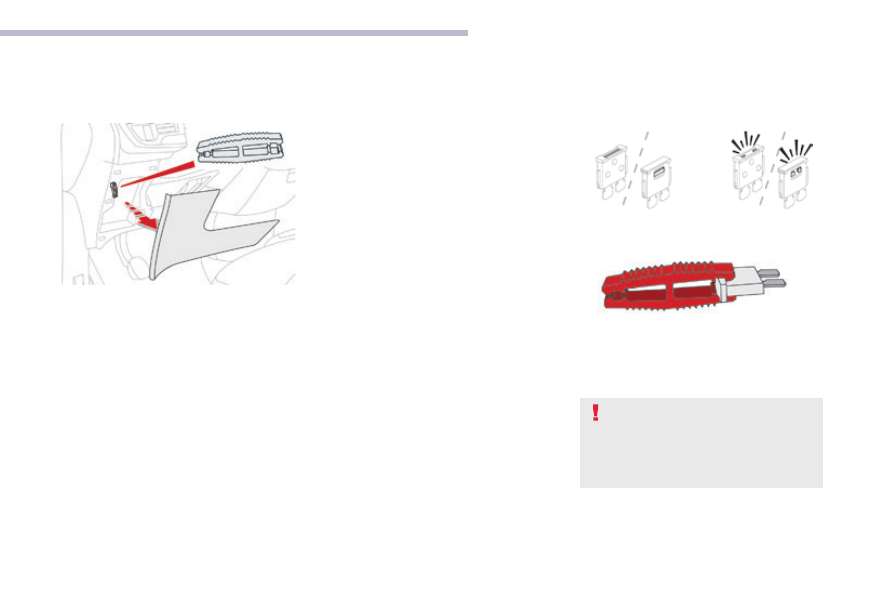

Tweezer

Changing a fuse

The extraction tweezer is located in the
dashboard fusebox compartment.
For access to it:
F

unclip the cover by pulling at the top right,

then left,

disengage the cover completely, by

carefully pulling in the direction indicated
by the arrow,

remove the tweezer.

Access to the tools

To replace a fuse, you must:
F

use the special tweezer to extract the fuse

from its housing and check the condition of
its filament.

always replace the failed fuse with a fuse of

the same rating (same colour); using a fuse
of a different rating could cause faults (risk
of fire).

If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a CITROËN dealer or a qualified workshop.

314

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.

Installing electrical
accessories

Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.

315

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

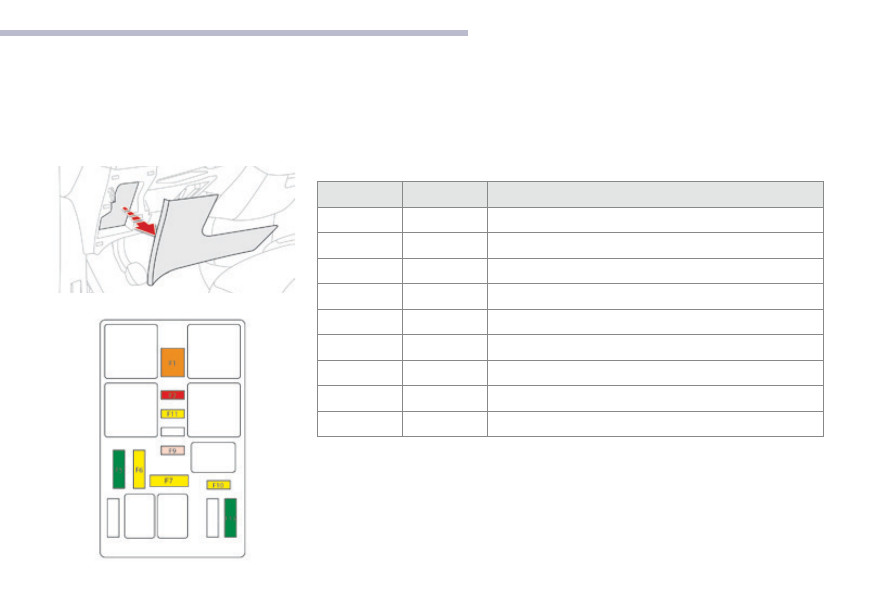

Dashboard fuses

The two fuseboxes are located in the lower dashboard (left-hand side).

Refer to "Access to the tools".

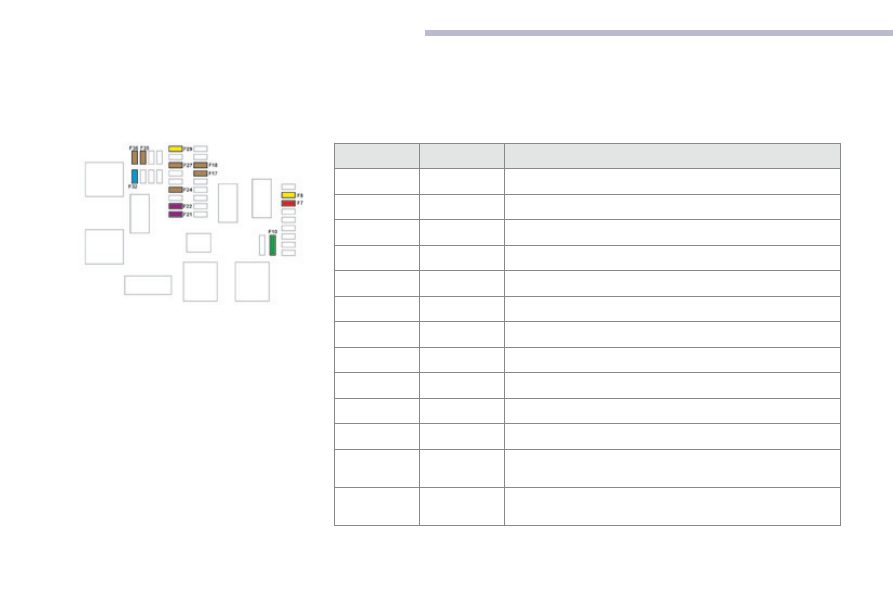

Fuse tables

Fusebox 1

Fuse N°

Rating

Functions

40 A

Heated rear screen.

20 A

Electric door mirrors.

30 A

Panoramic sunroof blind

20 A

12 V socket, rear multimedia.

20 A

230 V socket.

25 A

Heated seats.

F10

20 A

Trailer interface unit.

F11

20 A

Air conditioning fan.

F12

30 A

Electric window motors.

Access to the fuses

316

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

Fusebox 2

Fuse N°

Rating

Functions

10 A

Boot 12 V socket, rear multimedia.

20 A

Rear wiper.

F10

30 A

Locks.

F17

5 A

Instrument panel.

F18

5 A

Automatic gearbox gear selector.

F21

3 A

START/STOP button.

F22

3 A

Rain and sunshine sensor, windscreen camera.

F24

5 A

Parking sensors, panoramic visual aid.

F27

5 A

Automatic gearbox.

F29

20 A

Audio and telematic systems.

F32

15 A

12 V sockets.

F35

5 A

Headlamp beam height adjustment, heated rear screen, radar.

F36

5 A

Interior lighting: glove box, central storage, reading lamps,
courtesy lamps.

317

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery.

Fuse N°

Rating

Functions

F16

20 A

Headlamp wash.

F18

10 A

Right hand main beam.

F19

10 A

Left hand main beam.

F29

40 A

Wipers.

Fuse table

Unclip the cover, by pushing the two red

latches towards the rear of the vehicle.

Change the fuse.

When you have finished, close the cover

carefully to ensure correct sealing of the
fusebox.

Access to the fuses

318

In the event of a breakdown

C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

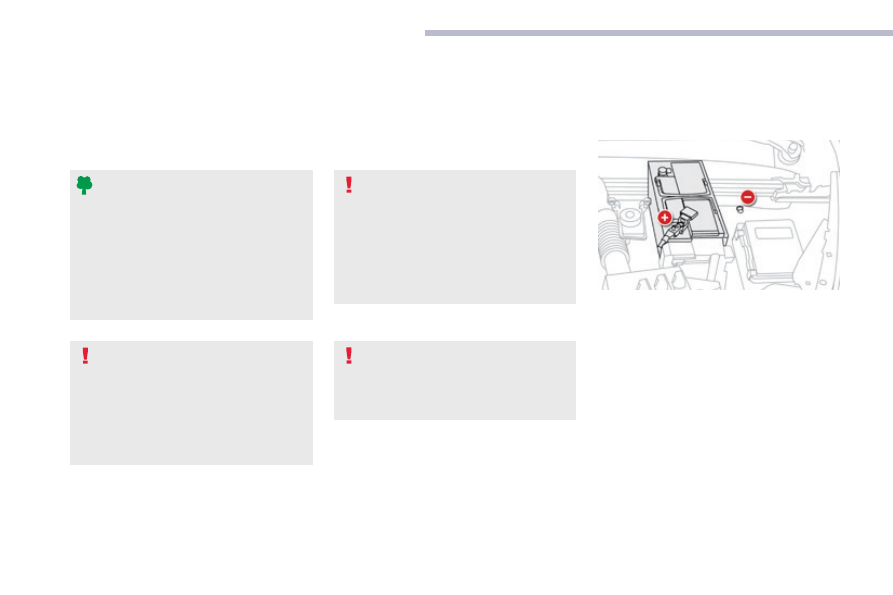

12 V battery

The battery is located under the bonnet.
For access to the (+) terminal:
F

release the bonnet using the interior lever,

then the exterior safety catch,

raise the bonnet and secure it with its stay,

F lift the plastic cover for access to the (+)

terminal.

Access to the battery

Procedure for starting the engine using another battery or charging a discharged battery.

Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.

Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only by a CITROËN dealer or a qualified
workshop.

Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

General points

Lead-acid starter batteries

If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.

The (-) battery terminal is not accessible.
A remote earth point is located in the upper
section under the bonnet (alongside the
battery).

Citroen C4 Picasso (2017 year). Instruction - part 20
