Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

When the USB port is used, the
portable device charges automatically.
A message is displayed if the power
consumption of the portable device
exceeds the current supplied by the
vehicle.

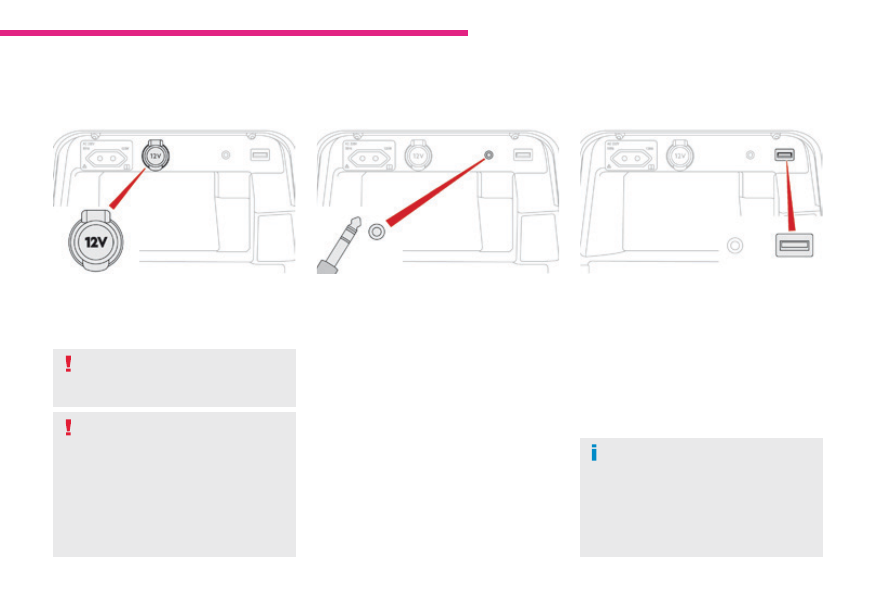

12 V socket

The auxiliary socket is located in the central
storage box.
It permits the connection of a portable device,
such as a digital audio player of the iPod

type,

to listen to your music files using the vehicle's
speakers.
The management of the files is done using your
portable device.

The USB port is located in the central storage
compartment.
It allows the connection of a portable device or
a USB memory stick.
It plays the audio files transmitted to your audio
system and heard via the vehicle's speakers.
You can manage these files using the steering
mounted or touch screen controls.

Auxiliary socket

USB port

For more information on the use of this
equipment, refer to the "Audio and telematics"
supplement.

To connect a 12 V accessory (maximum

power: 120 Watts), lift the cover and
connect a suitable adaptor.

Do not exceed the maximum power
rating of the socket (otherwise there is a
risk of damaging your portable device).

The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.

112

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

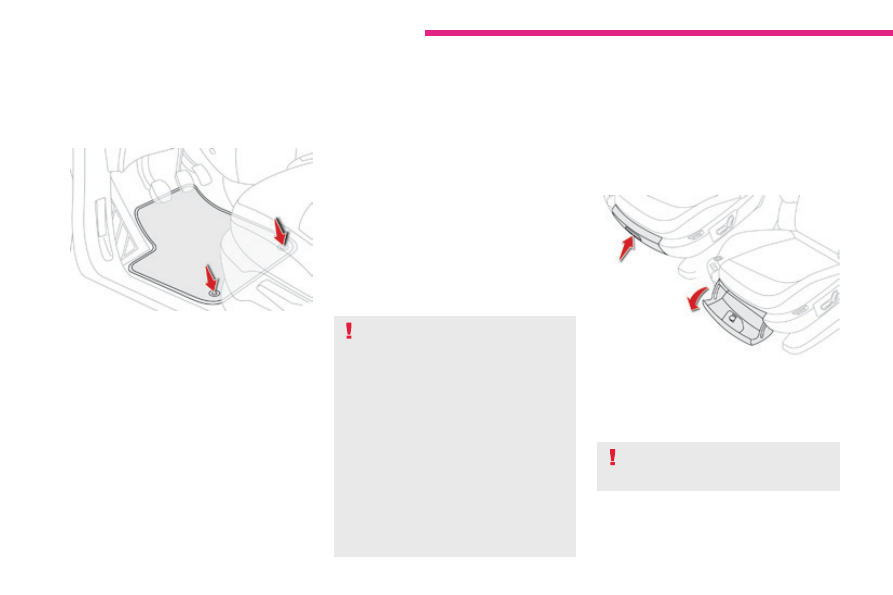

To remove the mat on the driver's side:
F

move the seat as far back as possible,

unclip the fixings,

remove the mat.

Mats

When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.

To avoid any risk of jamming of the
pedals:
- only use mats which are suited to

the fixings already present in the
vehicle; these fixings must be used,

- never fit one mat on top of another.
The use of mats not approved by
CITROËN may interfere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by CITROËN have
two fixings located below the seat.

To refit the mat on the driver's side:
F

position the mat correctly,

refit the fixings by pressing,

check that the mat is secured correctly.

Fitting

Removal

Refitting

Storage boxes

Raise the grip and lower the storage box

cover.

Opening

Do not place heavy objects in the
boxes.

Depending on equipment, storage boxes are
located under the front seats.

113

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

Storage below

the steering wheel

This storage compartment below the steering
wheel is intended for stowing your vehicle's
handbook pack.

Rear fittings

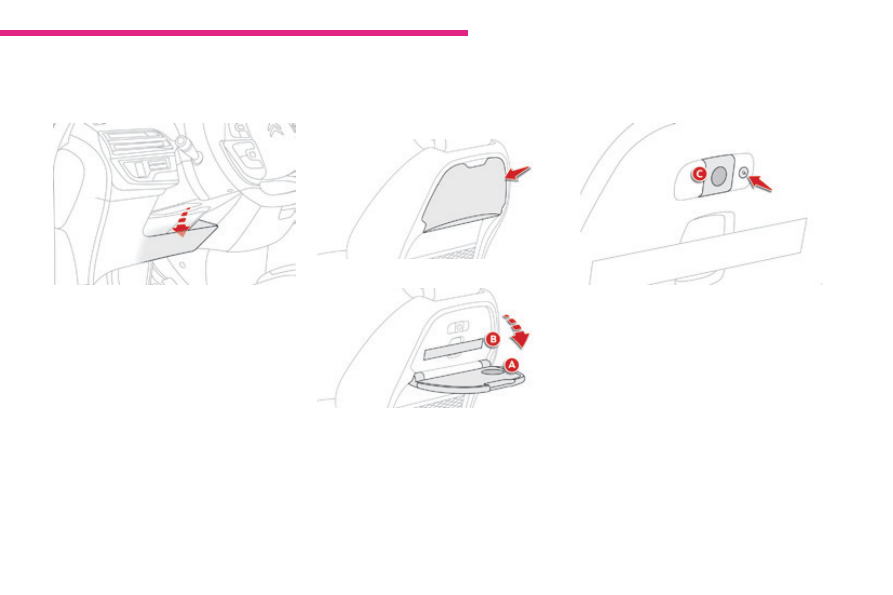

Aircraft-style rear tables

These tables, fitted to the backs of the front
seats, incorporate a cup-holder recess A and a
retaining strap B.
F

Pull the table downwards to open.

F To stow the table, raise it until the latch

locks.

For safety reasons, these tables collapse
downwards if excessive pressure is exerted on
them.

Reading lamps C may be fitted in the front seat
backrests, behind the tables. They illuminate
the surface of the tables without disturbing the
other passengers.
They can be used only while the table is down.
F Press the "O

n/Off" button to turn the lamp

on or off.

Individual reading lamps

Rear table stowed

Rear table opened

114

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

Side blinds

Storage wells

There are two storage wells under the rear
passengers' feet.
To open them, lift the cover at the cut-out.

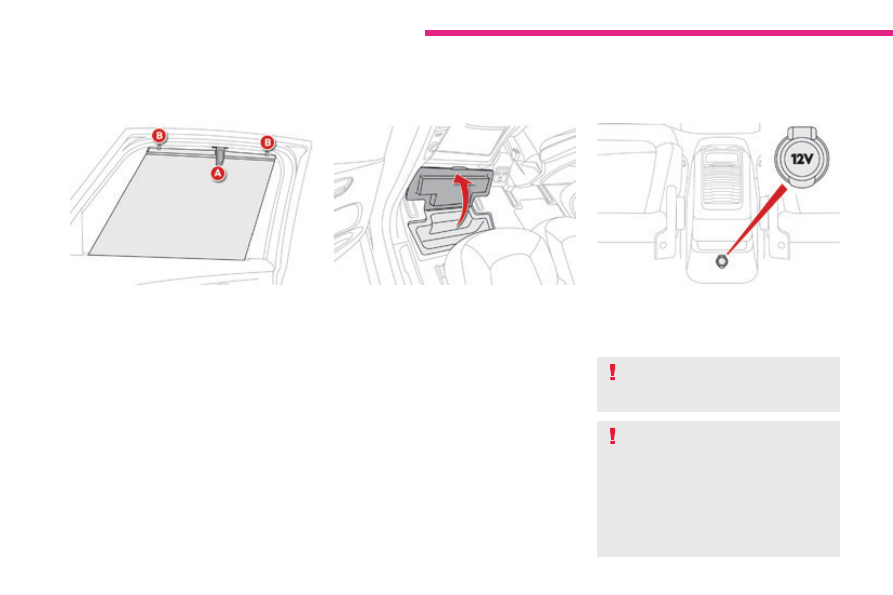

Fitted to the windows for the 2

row seats, they protect

the passenger compartment from the sun's rays.

F Pull the tab A

and anchor the blind on the

hook B.

12 V socket

To connect a 12 V accessory (maximum

power: 120 Watts), lift the cover and
connect a suitable adaptor.

Do not exceed the maximum power
rating of the socket (otherwise there is a
risk of damaging your portable device).

115

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

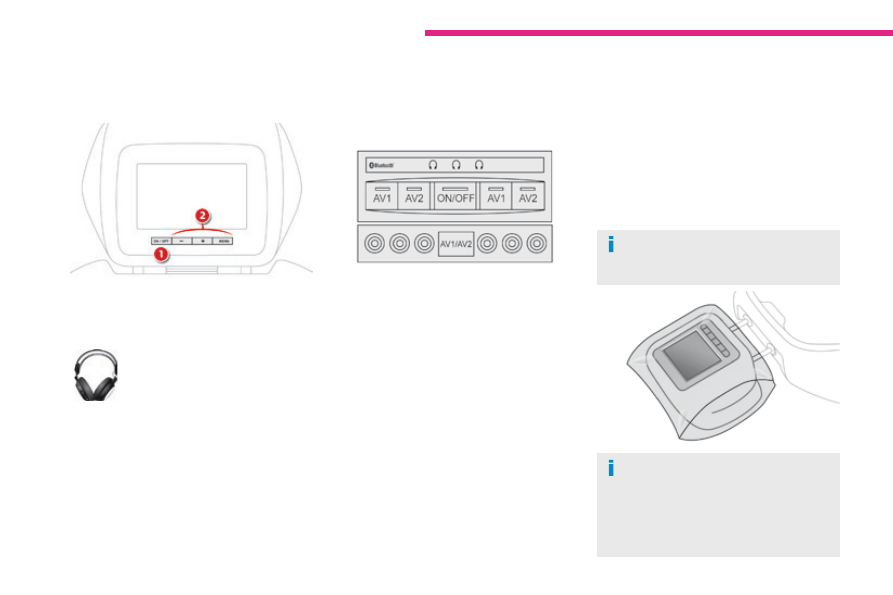

Rear multimedia

This multimedia system allows rear passengers
to connect one or two external portable
systems (audio or video player, games
consoles, DVD player...). The sound is played
through two Bluetooth

wireless headphone

sets, while the video content is displayed in
two 7-inch screens built into the backs of the
front seat head restraints.

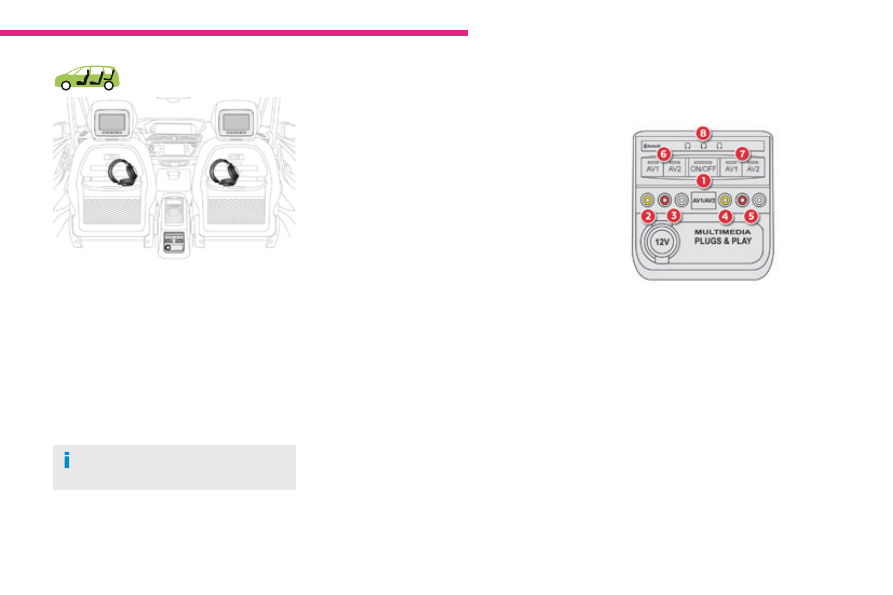

Description

This system operates only with the
engine running.

The pack includes:
- the connection and control panel fitted on

the rear face of the centre console,

- two 7-inch screens built into the front head

restraints (with protective covers),

- two wireless Bluetooth technology

headphone sets with rechargeable
batteries,

- a 12 V charger with two outlets allowing the

simultaneous charging of two headphones.

1. Power switch
2.

AV1 video input (yellow RCA socket)

Stereo audio input A (red and white

RCA sockets)

AV2 video input (yellow RCA socket)

Stereo audio input B (red and white

RCA sockets)

Selection of display in the left-hand screen

(AV1 or AV2)

Selection of display in the right-hand

screen (AV1 or AV2)

Connection indicator lamps for the

Bluetooth audio headphones (blue)

116

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

1. Screen power switch
2.

Display adjustment buttons

Each headphone set has a switch,
a connection indicator lamp (blue)
and a channel selector (A or B).

With the engine running, connect your

portable system to the RCA connectors
(e.g. with AV1 on the left).

F Press the switch on the control panel, the

indicator lamp comes on and
the AV1 indicator lamps come on.

Make a long press on the switch, its

indicator lamp flashes in blue.

Make a long press on the control panel

switch, the pairing with the headphone set
is complete when the blue indicator lamps
on the headphones and on the system are
on continuously.

F Repeat the operation for the other

headphone set.

Press the screen switch if you have a video

source.

Start playing your portable system.

Operation

The Multimedia system allows the
connection of a third Bluetooth
headphone set, not supplied.

If your seat is in the table position,
position a cover to avoid damaging the
screen.
These covers also conceal each
screen.

It is possible at any time to modify the

source for the video display (using button 6
or 7

on the control panel: the indicator lamp

for the source selected comes on) as well
as the audio channel (using the selector on
the headphones).

117

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

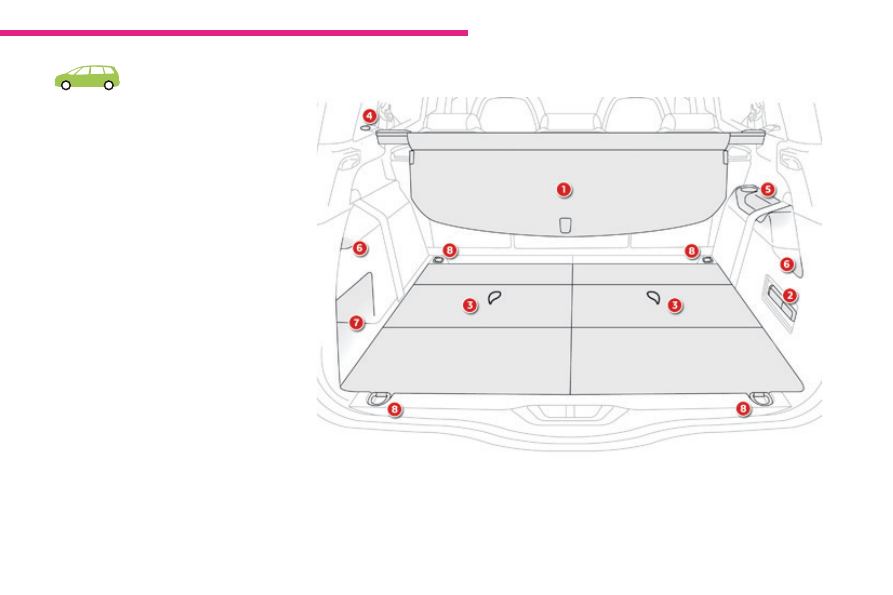

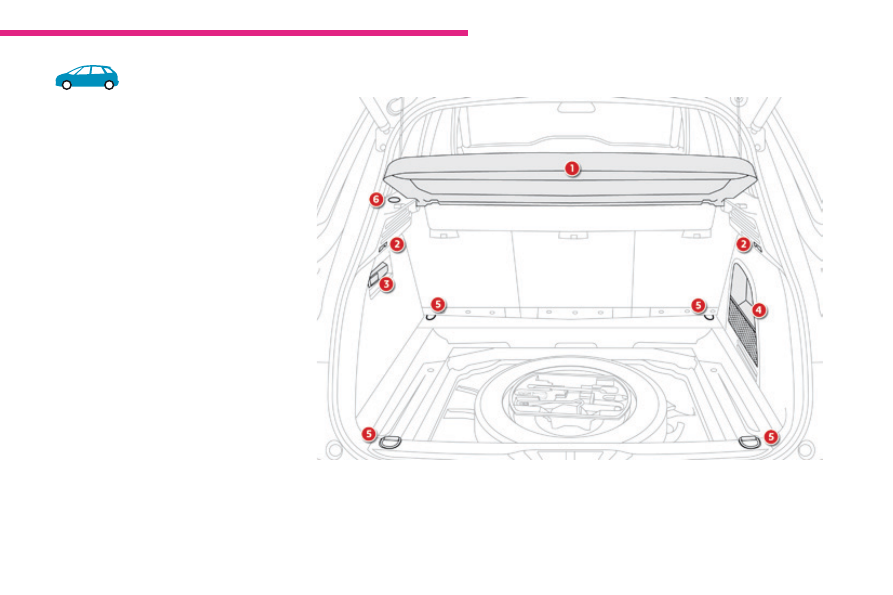

Boot fittings

1. Rear parcel shelf

(see details on a following page)

Hooks

(see details on a following page)

3. Torch

(see details on a following page)

Storage net

Lashing eyes

12 V socket (maximum power: 120 Watts)

118

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

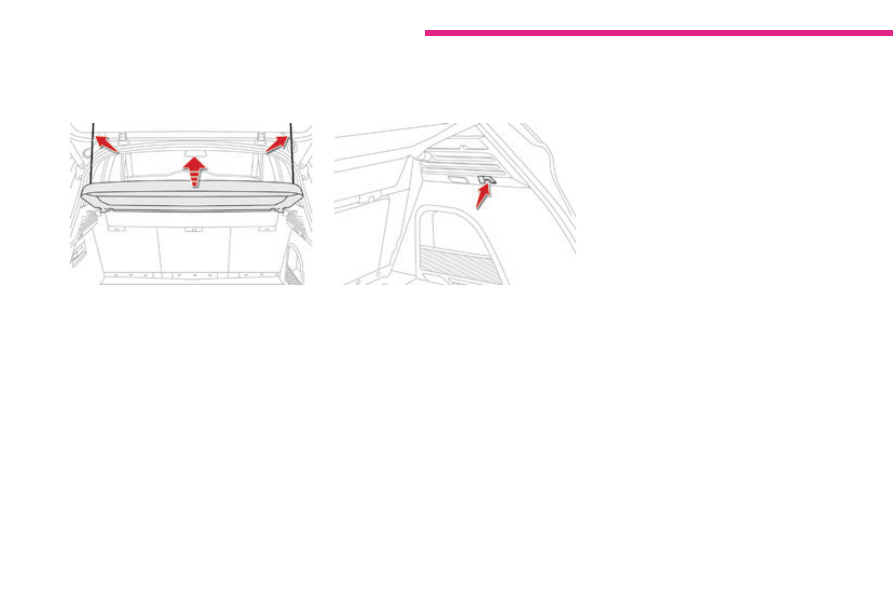

To remove the shelf:
F

unhook the two cords,

raise the shelf slightly, then remove it.

Rear parcel shelf

There are several options for storing the shelf:
- either upright behind the front seats,
- or flat at the base of the boot.

The hooks can be used to secure shopping
bags.

Hooks

119

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

Boot fittings

Luggage cover blind

(see details on a following page)

2. Torch

(see details on a following page)

Concertina boards

12 V socket (maximum power: 120 Watts)

Armrest with cup holder and storage space

Location for stowing the luggage cover

blind

Open storage

Lower lashing eyes

120

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

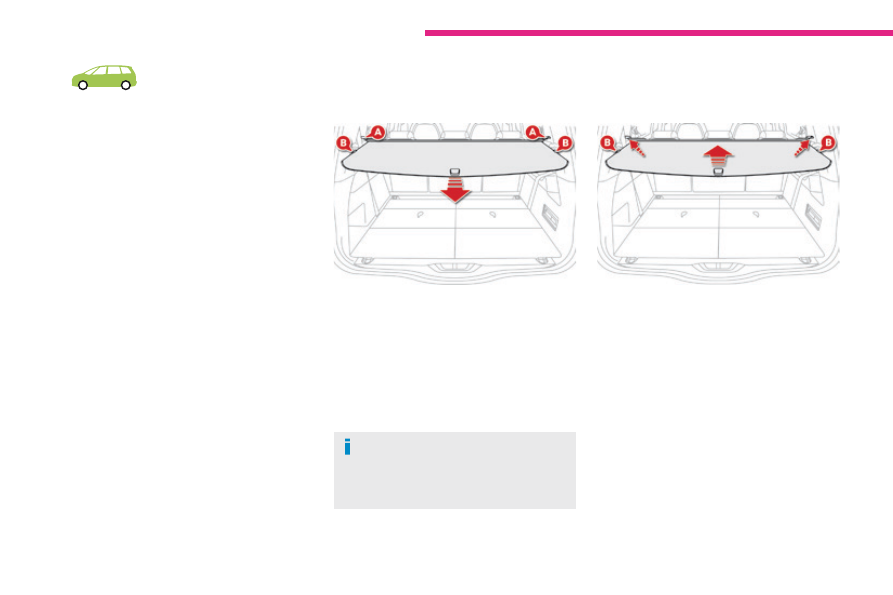

Luggage cover roller

In the 5-seat configuration, it is installed behind
the second-row seats, with the third-row seats
folded away.
In the 7-seat configuration, it is stowed behind
the third row seats.

Position the left and right hand ends of the

roller in cut-out A

, with the mobile flap at

the front.

Pull out the blind until it reaches the boot

pillars.

Insert the guides of the blind into the rails

on the pillars B

Disengage the roller guides from the rails

in the pillars B

Guide the blind as it is reeled in.

Unlock the roller by pressing one of

the grips located at the ends of the reel
support.

The mobile flap allows passengers in
the second row to place their seats in
the "comfort" position.

Installation

Removal

121

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

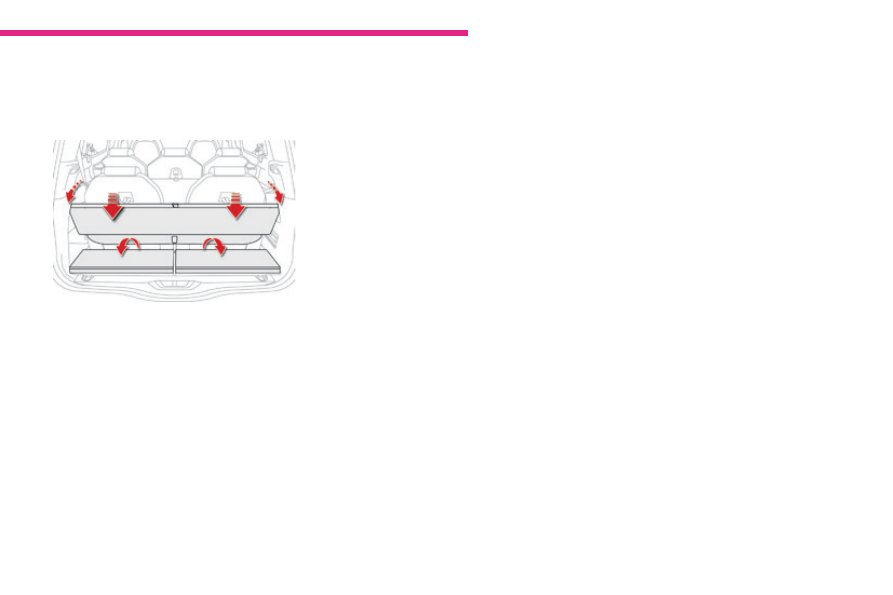

Stowing behind the 3

row seats

To fold the 3

row seats with the roller

stowed at the rear, it is necessary to raise the
concertina boards in order to allow access to
the seat locking controls (red straps).

Ensure that the 3

row seats are folded.

Fold the first two concertina boards.

Install the roller in the space above the arm

rest, one side after the other, inclining it
slightly.

Slide the roller as far as it will go, up to the

cut-outs provided at the back of the boot,
with the two flaps directed downwards.

Unfold the third row seats.

The folded concertina boards can be
positioned horizontally or vertically.

122

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

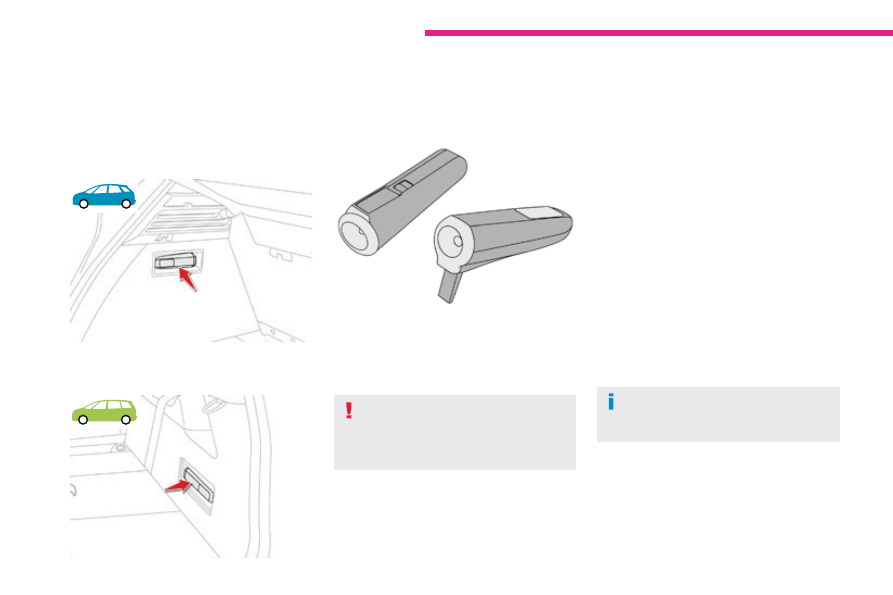

Torch

This is a removable lamp, fitted in the side of
the boot, which can be used to illuminate the
boot or as a torch.

This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.

Use

Extract the torch from its location by pulling

it from the front.

Press the switch, located on the back, to

switch the torch on or off.

Unfold the support, located on the back, to

set down and raise the torch; for example,
when changing a wheel.

Storing

Put the torch back in place in its location

starting with the rear.

If you have forgotten to switch off the torch,
this switches it off automatically.

If the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.

Observe the polarities when fitting the
batteries.
Never replace the rechargeable
batteries with single-use batteries.

Operation

123

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

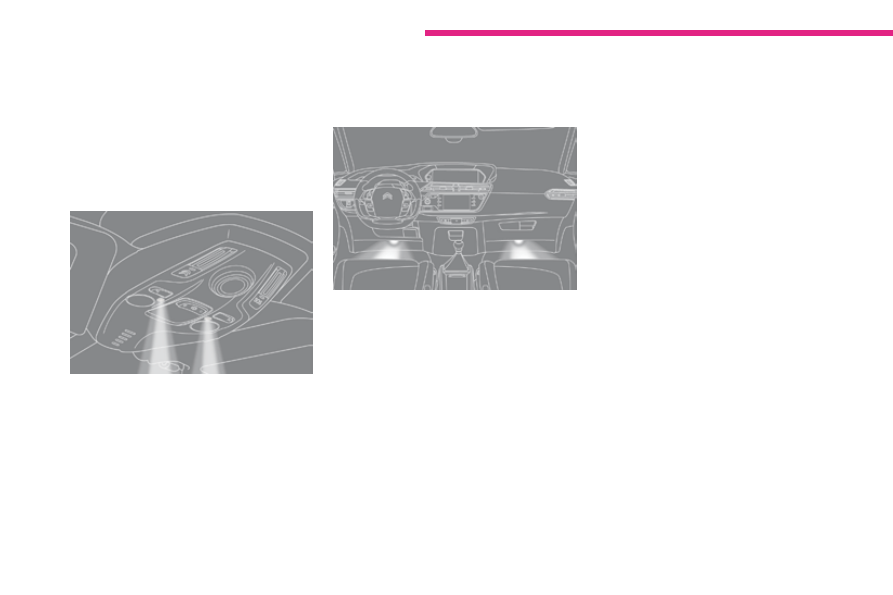

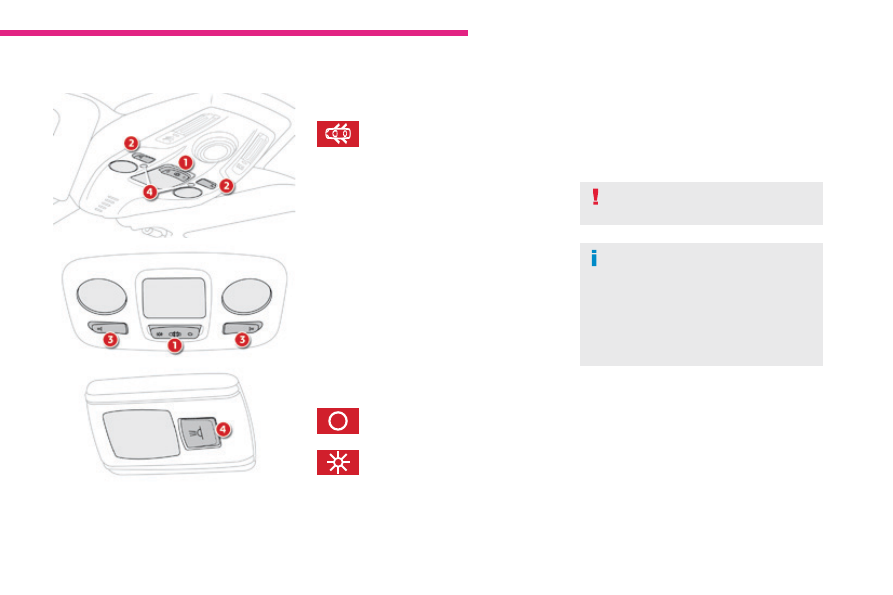

Courtesy lamps

Front courtesy lamp

Front map reading lamps

Rear courtesy lamp

Rear map reading lamps

Front - rear courtesy lamps

With the ignition on, press the

corresponding switch.

Front - rear map reading
lamps

With the "permanent lighting" mode,

the lighting time varies according to the

circumstances:

- with the ignition off, approximately

ten minutes,

- in energy economy mode,

approximately thirty seconds,

- with the engine running, unlimited.

In this position, the courtesy lamp
comes on gradually:

Permanently off.

Permanent lighting.

- when the vehicle is unlocked,
- when the electronic key is removed from

the reader,

- when opening a door,
- when the remote control locking button is

used, in order to locate your vehicle.

Illumination of the door mirror spot lamps is
only possible if the courtesy lamp is in this
position.
It switches off gradually:
-  when the vehicle is locked,
-  when the ignition is switched on,
-  30 seconds after the last door is closed.

Take care to avoid leaving anything in
contact with the courtesy lamps.

124

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

Interior mood

lighting

The dimmed passenger compartment lighting
improves visibility in the vehicle when the light
is poor.

The interior mood lighting can be activated or
deactivated in the Driving menu, by selecting
the "Vehicle settings" tab, then "Comfort"
and "Mood lighting".

The soft lighting provided by the footwell lamps
improves visibility in the vehicle when the light
is poor.

At night, the illumination of the dashboard,
centre console and courtesy lamp comes
on automatically when the sidelamps are
switched on.
The interior mood lighting switches off
automatically when the sidelamps are
switched off.

Switching on

Footwell lighting

Switching on

Its operation is identical to that of the courtesy
lamps. The lamps come on when one of the
doors is opened.

125

Driving

C4-Picasso-II_en_Chap04_conduite_ed02-2016

Driving recommendations

Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.

Driving on flooded roads

We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.

If you are obliged to drive through water:

- check that the depth of water does not

exceed 15 cm, taking account of waves
that might be generated by other users,

- deactivate the Stop & Start system,
- drive as slowly as possible without

stalling. In all cases, do not exceed 6 mph
(10 km/h),

- do not stop and do not switch off the

engine.

On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a CITROËN dealer or a qualified workshop.

Important!

Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Risk of fire!
As the exhaust system of your vehicle
is very hot, even several minutes after
switching off the engine, do not park
or run the engine over areas where
inflammable substances and materials
are present: grass, leaves, etc.

Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position N or P

, depending on the type

of gearbox.

126

Driving

C4-Picasso-II_en_Chap04_conduite_ed02-2016

When towing

Distribution of loads

Distribute the load in the trailer so that the

heaviest items are as close as possible to
the axle and the nose weight approaches the
maximum permitted without exceeding it.

Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.

Side wind

Take into account the increased sensitivity

to side wind.

For more information on Weights, refer
to the corresponding section.

The rear parking sensors will be
deactivated automatically to avoid the
audible signal if a genuine CITROËN
towbar is used.

Cooling

Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F

To lower the engine speed, reduce your

speed.

The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.

If the warning lamp and the

STOP

warning lamp come on,

stop the vehicle and switch off
the engine as soon as possible.

Braking

Towing a trailer increases the braking distance.
To avoid overheating of the brakes, the use of
engine braking is recommended.

Tyres

Check the tyre pressures of the towing

vehicle and of the trailer, observing the
recommended pressures.

Lighting

Check the electrical lighting and signalling

on the trailer and the headlamp beam
height of your vehicle.

For more information on Adjusting the
headlamp beam height, refer to the
corresponding section.

Content .. 6 7 8 9 ..
