Citroen C4 Dag (2013 year). Instruction - part 1

OWNER'S HANDBOOK

On-line owner's handbook

Referring to the owner's handbook on-line also gives you ac-

cess to the latest information available, easily identifi ed by the

bookmark, associated with this symbol:

If the "MyCitroën" function is not available on the CITROËN public web-

site for your country, you can fi nd your handbook at the following address:
http://service.citroen.com

Select:

You can fi nd your handbook on the CITROËN website, under

"MyCitroën".

This personal and customisable space allows you to establish direct

and special contact with CITROËN.

The Vehicle documentation link in the home page (no registration is

needed),
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration

of your vehicle.

You have access to your handbook on line, together with the latest

information, identifi ed by the symbol:

Your vehicle is fi tted with only some of the
equipment described in this document,
depending on the trim level, version and the
specifi cations for the country in which it is
sold.

The fi tting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of your
vehicle's electronic system. Please note this
specifi c warning and contact a CITROËN
dealer to be shown the recommended
equipment and accessories.

CITROËN has a presence on every continent,

a complete product range,

bringing together technology and a permanent spirit of innovation,

for a modern and creative approach to mobility.

We thank you and congratulate you on your choice.

Happy motoring!

Key

safety warning

We draw your attention to the following...

  contributes to the protection of the
environment
  programming a function with the
confi guration menu

At the wheel of your new vehicle,

getting to know each system,

each control, each setting,

makes your trips, your journeys

more comfortable and more enjoyable.

additional information

refer to the page indicated

C O N T E N T S

Monochrome screen A

Monochrome screen C

Colour screen

Trip computer

2 - MULTIFUNCTION

SCREENS 49



Ventilation 61
Manual air conditioning

Dual-zone digital air conditioning 65
Front demist - defrost

Rear screen demist - defrost

Front seats

Rear seats

Mirrors 76
Steering wheel adjustment

3 - COMFORT

61  78

Remote control key

Alarm 88
Doors 90
Boot 91
Electric windows

Panoramic sunroof

Fuel tank

Misfuel prevention (Diesel)

4 - ACCESS

79  97

Lighting controls

Automatic illumination of headlamps 102
Welcome lighting

103

Headlamp adjustment

104

Directional lighting

105

Wiper controls

107

Automatic rain sensitive wipers

108

Courtesy lamps

110

Interior mood lighting

111

Boot lamp

111

5 - VISIBILITY

98  111

Interior fi ttings

112

Centre consoles

115

Front armrest

116

Boot fi ttings

121

Luggage cover

(enterprise version)

124

6 - FITTINGS 112



124

Instrument panels

Rev counter

Warning and indicator lamps

Indicators 43
Time and units

Customisation 48

FAMILIARISATION 4



1 - MONITORING

28  48

Child seats

125

Deactivating the passenger's front

airbag 127

ISOFIX child seats

134

Child lock

138

7 - CHILD SAFETY 125  138

ECO-DRIVING 26



C O N T E N T S

Direction indicators

139

Hazard warning lamps

139

Horn 139
Braking assistance systems

140

Trajectory control systems (ESP) 141
Emergency or assistance call

142

Front seat belts

143

Airbags 146

8 - SAFETY

139  149

Electric parking brake

150

Manual parking brake

157

Manual gearbox

157

Electronic gearbox

158

Automatic gearbox

161

Hill start assist

164

Gear effi ciency indicator

165

Tyre under-infl ation detection

166

Stop & Start

168

Lane departure warning system 171
Blind spot sensors

172

Speed limiter

176

Cruise control

178

Parking space sensors

180

Parking sensors

182

9 - DRIVING

150  183

Bonnet 185
Running out of fuel (Diesel)

186

Petrol engines

187

Diesel engines

188

Checking levels

189

Checks 191

10 - CHECKS 184



192

Temporary puncture repair kit

193

Changing a wheel

198

Snow chains

202

Changing a bulb

203

Changing a fuse

209

12 V battery

213

Energy economy mode

216

Changing a wiper blade

216

Fitting roof bars

217

Very cold climate screen

217

Towing the vehicle

218

Towing a trailer

220

Audio pre-equipment

221

Accessories 222

11 - PRACTICAL

INFORMATION 193



223

Petrol engines

224

Petrol weights

225

Diesel engines

226

Diesel weights

227

Dimensions 230
Identifi cation markings

231

12 - TECHNICAL

DATA 224



232

Emergency or assistance

233

eMyWay 235
Audio system

289

AUDIO and

TELEMATICS 233



322

ALPHABETICAL

INDEX 327



331

VISUAL SEARCH

323  326

E X T E R I O R

Parking sensors
This system measures the size of a

free parking space between two ve-

hicles or obstacles.
 180

Stop & Start system
This system puts the engine temporar-

ily on standby during stops in the traf-

fi c (traffi c lights, traffi c jams, etc...). The

engine restarts automatically as soon

as you want to move off. The Stop &

Start system allows reductions of fuel

consumption and exhaust emissions,

as well as noise levels when stationary.
 168

Welcome lighting
This additional exterior and interior

lighting, controlled remotely, makes

your approach to the vehicle easier

when the light is poor.
 103

Directional lighting
This lighting automatically provides

additional visibility when cornering.
 105

Cornering lighting
At low speed, this lighting automati-

cally provides additional visibility

when cornering, at junctions, when

parking... making use of the corre-

sponding front foglamp.
 106

AMILIARISA

TION

E X T E R I O R

Blind spot sensors
In certain conditions, this system de-

tects the presence of a vehicle in the

blind spot. It informs you by means of a

warning lamp in the corresponding door

mirror.
 172

Under-infl ation detection
This system continuously monitors the

pressures in the tyres and alerts you in

the event of under-infl ation.
 166

Panoramic sunroof
This roof provides incomparable visibility

and light in the passenger compartment.
 94

Temporary puncture repair kit
This kit is a complete system, consisting

of a compressor and a sealant cartridge,

for the temporary repair of a tyre.
 193

O P E N I N G

2-button remote control

3-button remote control

Welcome lighting

A. Unfolding / Folding the key

(fi rst press this button).

 79, 81

A. Folding/unfolding the key

(fi rst press this button).

 80, 81

When a sensor detects a low level of

light, the remote switching on of the

dipped beam headlamps, the side-

lamps and the side spotlamps makes

your approach to the vehicle easier.

Complete or selective unlock-

ing of the vehicle
(rapid fl ashing of the direction

indicators).

Normal locking
(press once; fi xed lighting of

the direction indicators).

Complete or selective unlocking

of the vehicle
(rapid fl ashing of the direction

indicators).

Opening the windows
(hold until the desired level is reached).

Selective unlocking of the boot.

Normal locking
(press once; fi xed lighting of

the direction indicators).
Closing the windows

(hold until the desired level is reached).

In the same way, the passenger compart-

ment lighting, such as the courtesy lamps

and the footwell lamps, comes on.

 103

AMILIARISA

TION

O P E N I N G

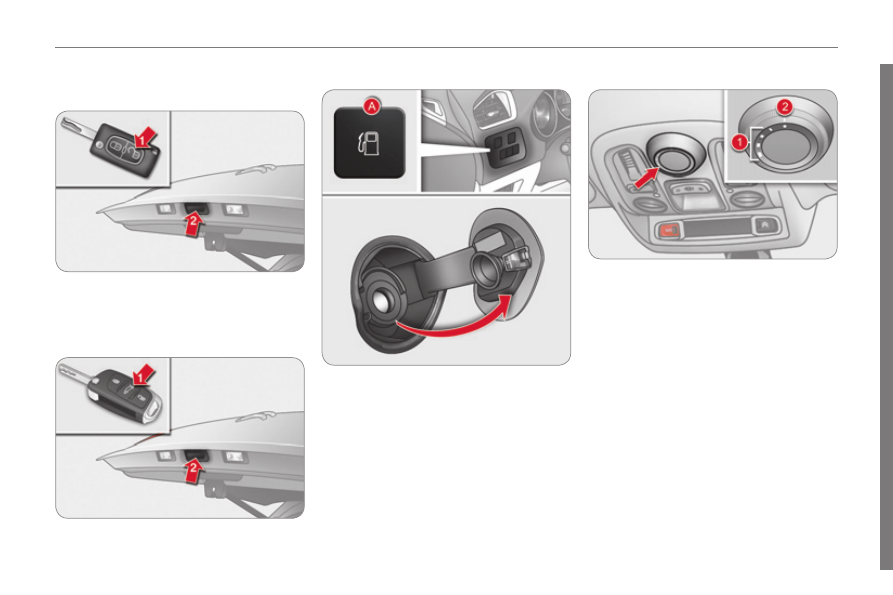

Boot

2-button remote control

3-button remote control

Fuel tank

Panoramic sunroof

   1.   Unlocking the vehicle.
  2.   Opening the boot.
     79, 91

   1.   Selective unlocking of the boot.
  2.   Opening the boot.
     80, 91

A. Opening the fuel fi ller fl ap.
Capacity of the fuel tank: approximately

60 litres.

1. Opening the blind (four positions

possible).

2. Closing the blind (initial position).

 95

 94

I N T E R I O R

Interior mood lighting
This dimmed lighting of the passenger

compartment improves visibility inside

the vehicle when the light is poor.
 111

Electronic gearbox
This system offers driving combining

a fully automatic mode and a manual

mode.
 158

Electric parking brake
It combines the functions of auto-

matic application on switching off the

engine and automatic release when

moving off.
Manual application and release re-

mains possible.
 150

Audio and communication systems
These systems benefi t from the following

technologies: radio, CD player, USB player,

Bluetooth system, satellite navigation sys-

tem with colour screen, auxiliary sockets.
  Radio
     289
eMyWay  satellite navigation system
     235

Massage system
This system provides a lumbar

massage for a period of 60 minutes.

The massage is done in 6 cycles of

10 minutes duration each.
 73

AMILIARISA

TION

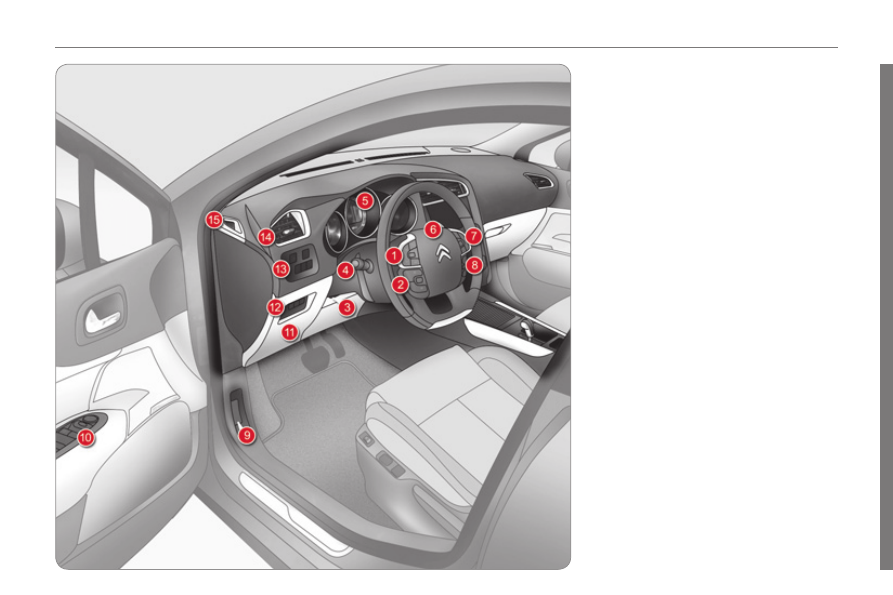

I N S T R U M E N T S A N D C O N T R O L S

    1.   Cruise control / speed limiter switches.
  2.   Controls for optional functions.
  3.   Steering wheel adjustment control.
  4.   Lighting and direction indicator con-

trol stalk.

5. Instrument panel.
6. Driver's airbag.

Horn.
7. Controls for audio and telematic

system.

8. Controls for Bluetooth system or

telephone.

9. Bonnet release.
10. Door mirror controls.

Electric window controls.

11. Fusebox.
12. Manual headlamp height adjustment

Lower side switch panel.

13. Fuel fi ller fl ap opening button.

Upper side switch panel.

14. Side adjustable air vent.
15. Front side window demisting vent.

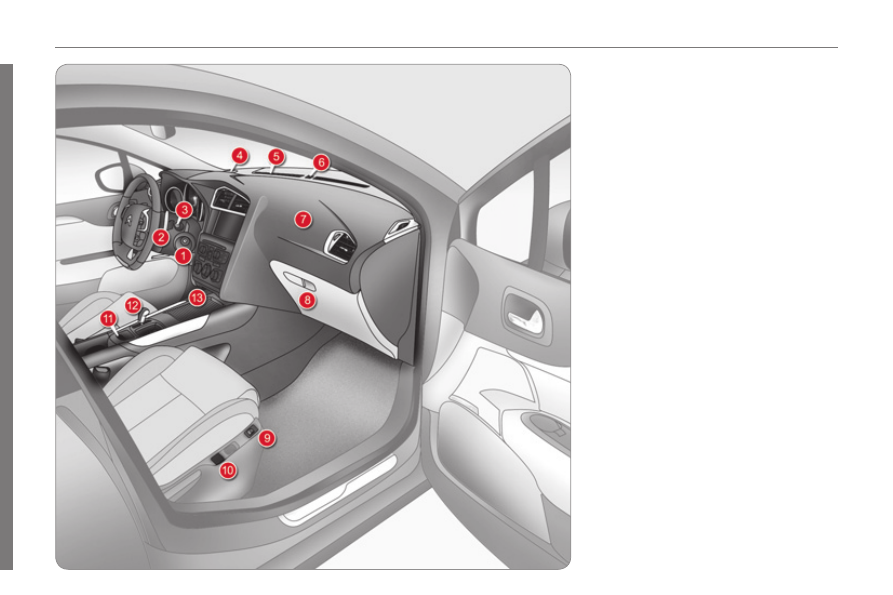

I N S T R U M E N T S A N D C O N T R O L S

1. Steering lock and ignition.
2. Steering mounted control paddles

for the electronic gearbox.

3. Wiper / screenwash / trip computer

control stalk.

  4.  Speaker (tweeter).
  5.   Windscreen demisting vent.
  6.  Sunshine sensor.
  7.  Passenger's airbag.
  8.   Glove box / Audio/video sockets /

Passenger's airbag deactivation

switch.

  9.   Heated seat control.
  10.  Lumbar massage control.
  11.  Electric parking brake.
  12.  Gear lever, electronic gearbox.
  13.  Large multifunctional storage unit.

AMILIARISA

TION

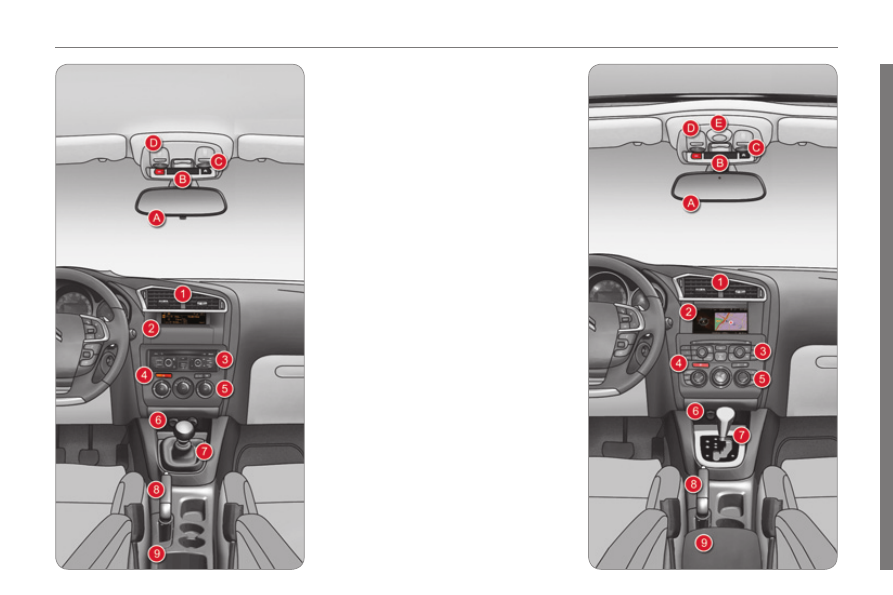

R O O F C O N S O L E S - C E N T R E C O N S O L E S

A. Rear view mirror.
B. Emergency call / Warning lamps

display for front passenger's airbag

and seat belt / Assistance call.

C. Courtesy lamp / Map reading

lamps / Interior mood lighting.

D. Microphone for audio and telematic

system.

E. Panoramic sunroof blind control.

1. Central adjustable air vents.
2. Monochrome screen and small storage

box with fl ap or colour screen.

3. Audio system or eMyWay satellite

navigation system.

  4.   Central switch panel.
  5.   Heating / air conditioning controls.
  6.   USB port / auxiliary Jack socket /

12 V accessory socket.

7. Gear lever, manual or automatic

gearbox.

8. Manual parking brake
9. Large open storage or front armrest.

S I T T I N G C O M F O R T A B L Y

Driver's seat

Forwards-backwards

Height

Manual adjustment

 70

Electric adjustment

 71

Seat backrest angle

AMILIARISA

TION

S I T T I N G C O M F O R T A B L Y

Front seats

Head restraint height and angle

Lumbar

Other functions

available...
Lumbar massage.
Storing driving positions (driver's

electric seat).
Heated seats.

Steering wheel adjustment

Front armrest

 73

   1.   Release the adjustment mechanism.
  2.   Adjust for height and reach.
  3.   Lock the adjustment mechanism.

 78

For your comfort, the front armrest can

be adjusted for longitudinal position

and for height, depending on version.
It also has a storage compartment; this

may be equipped with a 230 V / 50 Hz

socket.

 116, 117

 72

As a safety precaution, these

operations must only be carried

out when stationary.

S I T T I N G C O M F O R T A B L Y

Door mirrors

Adjustment

A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the

mirror in the four directions.

C. De-selection of the mirror.

Rear view mirror

Manual day/night model

1. Selection of the "day" position of the

mirror.

2. Adjustment of the mirror.
 78

Automatic day/night model
A. Brightness detection in automatic

day/night mode.

B. Adjustment of the mirror.
 78

Front seat belts

1. Fastening the buckle.
2. Height adjustment.

 143

Other functions

available...
Folding / Unfolding.
Automatic tilting of the mirror in

reverse gear for parking.
Blind spot sensors.

 76

Content .. 1 2 ..
