Citroen C4 Cactus (2016 year). Instruction - part 5

Ease of use and comfort

In cold weather with the engine cold,
the air flow is increased gradually until
the system has warmed up, in order
to limit the delivery of cold air into the
passenger compartment.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value setting, there
is no need to alter the value displayed
in order to reach more quickly the
required level of comfort. The system
compensates automatically and
corrects the temperature difference as
quickly as possible.

This setting is associated with AUTO mode
only. However, on deactivation of AUTO mode,
the last setting used remains on.
Changing the setting does not reactivate AUTO
mode if deactivated.

To change the current setting, press the button
for the desired mode:

"Soft

": provides soft and quiet

operation by limiting air flow.

"Normal

": offers the best

compromise between a comfortable
temperature and quiet operation
(default setting).

"Fast

": provides strong and effective

air flow.

Automatic programme mode
setting

Go to the secondary page by

pressing this button to vary the
automatic comfort programme,
choosing one of the modes
offered.

Ease of use and comfort

You can vary the distribution of air in the passenger
compartment using these three buttons.

Air flow adjustment

Avoid driving for too long with the
ventilation off (risk of misting and
deterioration of air quality).

Air distribution adjustment

F Press one of these buttons to

increase or decrease the air flow.

The symbol for air flow (a fan) fills progressively
according to the air flow setting made.
By reducing the air flow to minimum, you are
stopping ventilation.
"OFF

" is displayed alongside the fan.

Windscreen.

Central and side vents.

Footwells.

Each press on a button activates or deactivates
the function.

Resuming manual control

You can manually adjust the air flow and
distribution.

F Press the "AUTO" button to

activate the automatic comfort
programme again.

As soon as you modify a setting, the automatic
comfort programme is deactivated.

For a uniform distribution in the
passenger compartment, all three
buttons can be activated simultaneously.

Ease of use and comfort

Avoid the prolonged use of interior
air recirculation (risk of misting and
deterioration of air quality).

It allows you:
- in summer, to lower the temperature,
- in winter, above 3 °C, to improve demisting.

Press this button again to switch

off the air conditioning.

F Press this button to switch on the

air conditioning.

Air conditioning On/Off

The air conditioning is designed to operate
efficiently in all seasons, with the windows closed.

The intake of exterior air avoids and eliminates
misting of the windscreen and side windows.

Air intake/Air recirculation

The recirculation of interior air prevents exterior
odours and smoke from entering the passenger
compartment.

F Press this button to recirculate

the interior air.

Press this button again to allow

the intake of exterior air.

The air conditioning cannot operate
when the air flow is set to off.

This function also allows faster heating
or cooling of the air in the passenger
compartment.

Ventilation with "ignition on"
function

With the ignition on, you can use the ventilation
system and access the "Air conditioning"
menu to adjust the air flow and air
distribution

in the passenger compartment.

This function is available for a few minutes,
depending on the state of charge of the battery
of your vehicle.

This function does not activate the air
conditioning.
You can make use of the residual heat in the
engine to warm the passenger compartment
using the temperature setting buttons.

Switching on

Switching off

Ease of use and comfort

Front demist - Defrost

Switching on

With Stop & Start, when demisting has
been activated, the STOP mode is not
available.

Press this button to demist or

defrost the windscreen and side
windows as quickly as possible.
The indicator lamp in the button
comes on.

The system automatically manages the air
conditioning (depending on version), air
flow and air intake, and provides optimum
distribution towards the windscreen and side
windows.

Switching off

To switch off demisting, press

this button again, the indicator
lamp goes off.

Ease of use and comfort

Rear screen demist - Defrost

Switching on

Switching off

Press this button to demist/

defrost the rear screen and
(depending on version) the door
mirrors. The indicator lamp in the
button comes on.

The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.

The rear screen demist - defrost
can only operate when the engine is
running.

Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption.

F It is possible to stop the

demisting/defrosting operation
before it is switched off
automatically by pressing this
button again. The indicator lamp
in the button goes off.

Ease of use and comfort

Courtesy lamp

Map reading lamps

With the ignition on, press the

corresponding switch.

Map reading lamps

With the "permanent lighting" mode,

the lighting time varies according to the

circumstances:

- with the ignition off, approximately

ten minutes,

- in energy economy mode,

approximately thirty seconds,

- with the engine running, unlimited.

In this position, the courtesy lamp
comes on gradually:

Permanently off.

Permanent lighting.

-  when the vehicle is unlocked,
-  when the key is removed from the ignition,
-  when opening a door,
-  when the remote control locking button is

pressed, in order to locate your vehicle.

Take care to avoid leaving anything in
contact with the courtesy lamp.

Courtesy lamp

It switches off gradually:
-  when the vehicle is locked,
-  when the ignition is switched on,
-  30 seconds after the last door is closed.

Ease of use and comfort

This comes on automatically when the boot is
opened and switches off automatically when
the boot is closed.
Different lighting times are provided:
- when the ignition is off, approximately

ten minutes,

- in energy economy mode, approximately

thirty seconds,

- when the engine is running, no limit.

Boot lamp

Panoramic sunroof

This glazed roof provides increased visibility
and light in the passenger compartment, while
maintaining normal temperatures thanks to its
"high thermal protection" coating.

Advice on care

In order to preserve the properties of the
glazed roof, we recommend wiping or cleaning
the inner glass using a clean, soft and dry
cloth.
For stubborn stains, the glass should be
cleaned using screenwash fluid, rinsed with
clean water, then dried with a clean, soft cloth.

Do not use soapy water, abrasive
products, detergents (particularly those
with an ammonia base), solvents,
solutions with a high concentration of
alcohol, petrol, ...

Ease of use and comfort

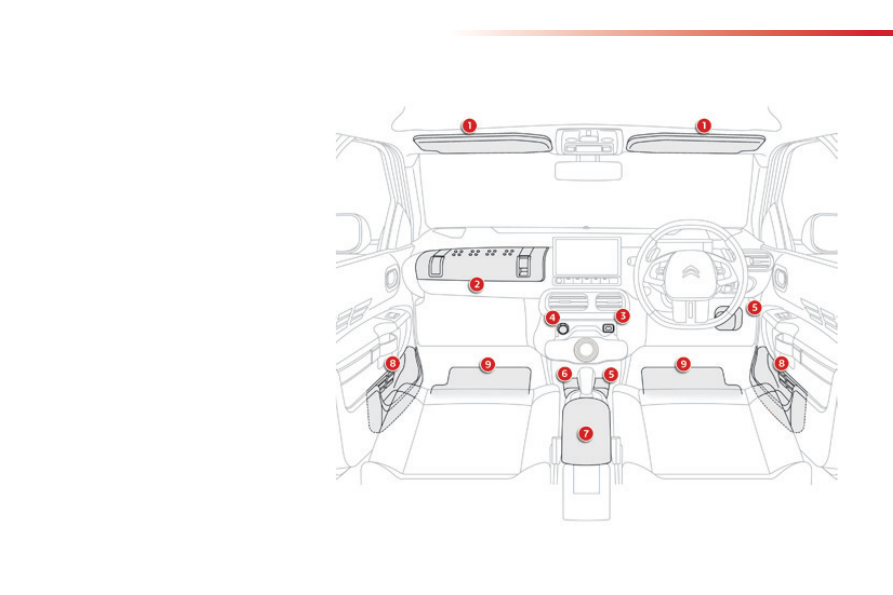

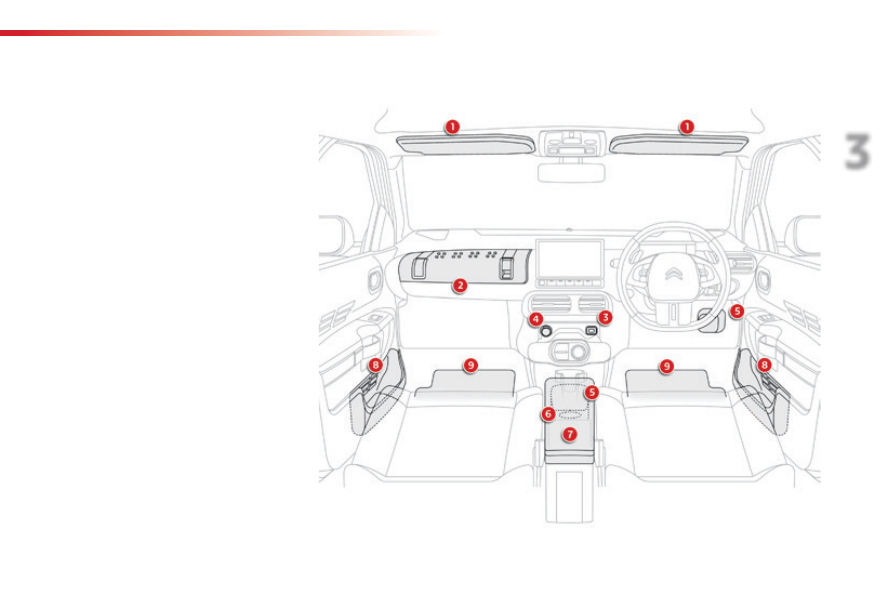

Interior fittings with a manual gearbox

1. Sun visor.
2. Glove box.

It houses an auxiliary socket.

3.  12 V accessory socket (max. 120 W).
4.  USB port.
5.  Open storage.
6.  Cup holder.
7.  Front armrest with storage.

(depending on version).

8. Front door pockets.
9. Mat.

Ease of use and comfort

Interior fittings with an electronic gearbox

1. Sun visor.
2. Glove box.

It houses an auxiliary socket.

3.  12 V accessory socket (max. 120 W).
4.  USB port.
5.  Open storage.
6.  Cup holder.
7.  Front armrest.
8.  Front door pockets.
9. Mat.

Ease of use and comfort

Glove box

Sun visor

The driver's sun visor is fitted with a vanity
mirror, with concealing flap and a document
(or ticket) holder.

It can be used to hold a water bottle, the
vehicle's handbook pack...

To connect a 12 V accessory (maximum

power: 120 Watts), lift the cover and
connect a suitable adaptor.

12 V accessory socket

To open the glove box, raise the lid.

Do not exceed the maximum power
rating of the socket (risk of damage to
your device).

It houses an auxiliary socket and the
passenger's front airbag deactivation
switch.

Do not attach or stick anything to the
passenger's sun visor; this could cause
injuries if the front airbag (fitted in the
roof) is deployed.

The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.

Ease of use and comfort

Auxiliary socket

USB port

When the USB port is used, the
portable device charges automatically.

For more information on the use of
this equipment, refer to the "Audio and
telematics" section.

For more information on using this
equipment, refer to the "Audio and
telematics" section.

It permits the connection of a portable device
to listen to your music files via the vehicle's
speakers.
The management of the files is done using your
portable device.

It allows the connection of a portable device or
a USB memory stick.
It reads the audio files which are sent to your
audio system and played via the vehicle's
speakers.
You can manage these files using the steering
mounted or audio system controls.

A message is displayed if the power
drawn by the portable device exceeds
the current supplied by the vehicle.

Ease of use and comfort

Coat hooks

They are located above each rear door.

Electronic gearbox

The armrest can be inclined forwards to
benefit from its comfort or folded completely
backwards.

Front armrest

Manual gearbox
(depending on equipment)

These storage spaces can be used to
house portable devices (mobile phone,
MP3 player...) which can be connected
to the USB port / auxiliary socket or
charged from the 12 V socket in the
centre console.

For access to the closed storage box, lift

the lever to open the lid.

For access to the open storage box below

the armrest, lift the complete armrest
towards the rear.

Ease of use and comfort

Mats

Fitting

When fitting the mat for the first time, on the
driver's side use only the fixings provided.
The other mats are simply placed on the
carpet.

Removal

To remove the mat on the driver's side:
F

move the seat as far back as possible,

unclip the fixings,

remove the mat.

To avoid any risk of jamming of the
pedals:
- only use mats which are suited to

the fixings already present in the
vehicle; these fixings must be used,

- never fit one mat on top of another.
The use of mats not approved by
CITROËN may interfere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by CITROËN have
two fixings located below the seat.

Refitting

To refit the mat on the driver's side:
F

position the mat correctly,

refit the fixings by pressing,

check that the mat is secured correctly.

Ease of use and comfort

Boot fittings

Rear parcel shelf.

Hook.

Storage box.

Storage net (accessory).

Storage net fixing rings.

The storage net fixing rings are not
intended to secure loads or restrain
baggage.

Ease of use and comfort

To remove the shelf:
F

unhook the two cords,

raise the shelf slightly, then remove it.

Rear parcel shelf

There are several options for storing the shelf:
- either upright behind the front seats,
- or flat at the base of the boot.

It can be used to secure shopping bags.

Hook

Storage box

For versions with storage box: it must
be in place before loading the boot.

Remove the boot carpet for access to the

storage box.

Depending on the configuration, it is laid out for
storing:
-  a towing eye,
-  a temporary puncture repair kit,
-  a warning triangle,
-  ...

Ease of use and comfort

Rear parcel shelf (enterprise version)

This conceals the interior of the vehicle in
combination with the existing shelf.

Do not place objects above the load
stop.

Do not place hard or heavy objects on
the rear parcel shelf.
They could become dangerous
projectiles in the event of sudden
braking or a collision.

Content .. 3 4 5 6 ..
