Citroen C4 Aircross (2017 year). Instruction - part 3

Instruments

C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016

Screen 1

Screen 2

System

Cause

Observations

Solution - Action

Prevention messages

Service indicator

Informs the driver that the
next service is overdue.

This is displayed for a few
seconds when the ignition is
switched on.

Contact a CITROËN dealer
or a qualified workshop.

Rest reminder

Informs the driver that they
should stop to take a break.

This is displayed when the
driving time that you set
previously is reached.
An audible signal sounds
3 times and then every
5 minutes until the vehicle
stops.

You are advised to take a
break approximately every
two hours.

Instruments

Trip computer

With the ignition on, each press on the INFO
button displays the following screens in
succession:
-  distance recorder and trip recorder A,
-  distance recorder and trip recorder B,
-  service indicator,
-  coolant temperature,
-  range,
-  average fuel consumption,
-  average speed,
-  current fuel consumption,
-  setting menu,
-  any alert messages.

Information display

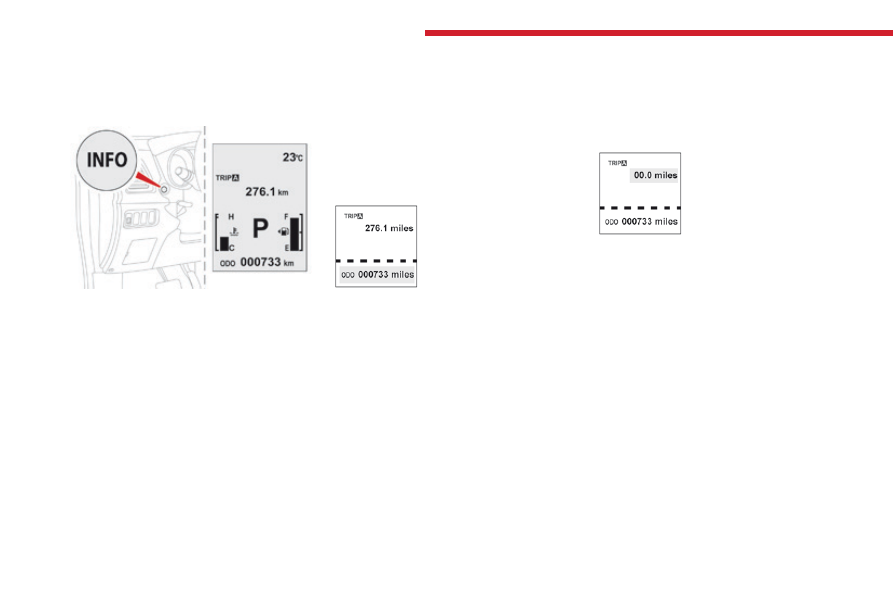

Distance recorder

System for measuring the total distance
travelled by the vehicle during its life.

The total distance is
displayed in the lower part of
the screen.

Trip distance recorder
(Trip A or B)

Reset to zero

With the ignition on and either trip A or B
displayed, press the INFO button for more than
2 seconds. Only the trip displayed will be reset.

Each of these trip recorders
indicates the distance
travelled since the last reset.
Press the INFO button to
display the desired trip.

Instruments

C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016

Service indicator

System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
The point at which the next service is due is
calculated from the last service indicator zero
reset.
It is determined by two parameters:
- the distance travelled (in miles (km)),
- the time elapsed since the last service

(in months).

The distance remaining to be travelled may be
weighted by the time factor, depending on the
use made of the vehicle.

Example:

the screen indicates that 7300 miles

(kilometres) remain before the next service is
due.

Service overdue

Example:

the screen indicates that the service

is overdue. This service must be carried out by
a CITROËN dealer or a qualified workshop.

Operation

The symbol "--" remains displayed until
the first service of a new vehicle has
been carried out.

Each time the ignition is switched on, the
"ROUTINE MAINTENANCE REQUIRED"

symbol

is displayed for a few seconds to indicate that the
service must be carried out without delay.

When the ignition is switched on, you must press
the INFO

button several times in succession

until the service indicator is displayed. The
distance recorder display line indicates the
number of miles or kilometres remaining and
the time elapsed line indicates the number of
months remaining before the next service is due.

Instruments

Resetting the service indicator to
zero

After a certain distance and a certain
time, the display of "---" is reset
automatically and the display indicates
the time remaining before the next
service is due.

Your CITROËN dealer or a qualified workshop
carries out this operation after each service.
If you have carried out your vehicle's service
yourself, the zero reset procedure is the
following:
F

switch off the ignition,

F press the INFO

button several times in

succession until the service indicator is
displayed,

press and hold the INFO button for a few

seconds until the spanner flashes,

F press the INFO button while the spanner

is flashing to change the display "---" to
"CLEAR"

then the time remaining before

the next service is due is displayed.

Instruments

C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016

When the engine is
running, this indicates the
temperature of the coolant.

Range

When the engine is
running

, this indicates

the distance which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over the
last few miles/kilometres
travelled.

This value may vary following a change
in the style of driving or the relief,
resulting in a large variation in the
current fuel consumption.
If you only add a few litres, the value
displayed will be incorrect. Therefore,
you must fill the tank whenever
possible.

Coolant temperature
gauge

If the bar is close to the critical

position located

on the right, the temperature is too high.
The symbol flashes when your engine is
overheating.

You must stop your vehicle as soon as it is
safe to do so.
Wait a few minutes before switching off the
engine.

When the range is less than 30 miles (50 km),
dashes are displayed.
Refuel as soon as possible. The display of the
range is updated.

Wait for the engine to cool before
topping up the level. The cooling system
is pressurised.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the
pressure to drop.
When the pressure has dropped,
remove the cap and top up the level,
if necessary.
Contact a CITROËN dealer or a
qualified workshop.

When you disconnect the battery,
the previous fuel consumption data
is lost and the value displayed will be
different from that displayed before the
battery was disconnected. The distance
displayed must be considered an
approximate indication.

Instruments

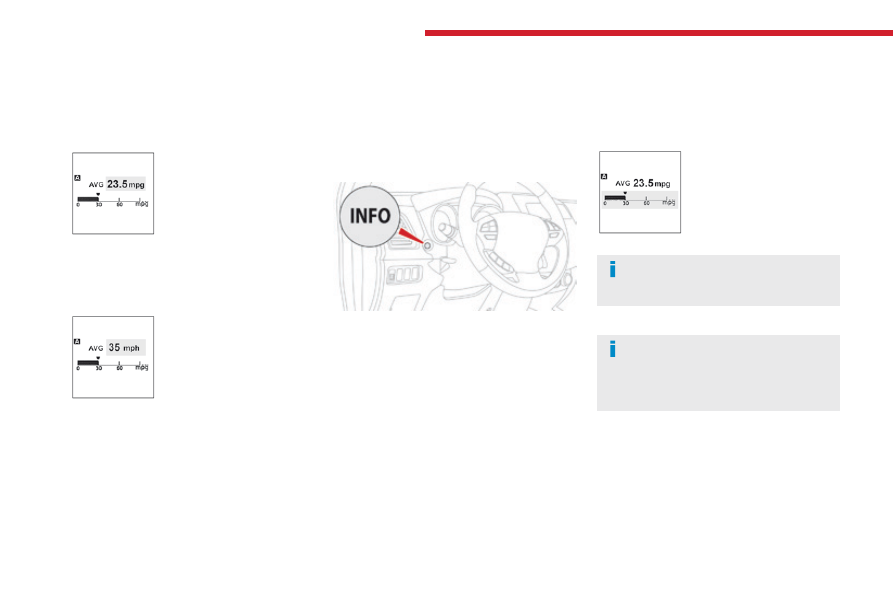

Average fuel consumption
(l/100 km or km/l or mpg)

This is the average fuel
consumption calculated
since the trip computer was
last reset.

Average speed
(km/h or mph)

This is the average speed
calculated since the trip
computer was last reset.

Current fuel consumption
(l/100 km or km/l or mpg)

This is the average fuel
consumption calculated over
the last few seconds.

This value may change following a
change in the style of driving or the relief.

If dashes "---" are displayed for long
periods in place of the digits while
driving, contact a CITROËN dealer or a
qualified workshop.

Resetting the information to zero

When the required information is displayed,
press the INFO

button for more than

two seconds to reset all of the information to
zero.
When the ignition is switched on, the zero reset
switches automatically from manual mode to
automatic mode.

Automatic

If the ignition key remains in the OFF position
for more than 4 hours, the information is reset
to zero automatically.

Instruments

C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016

Adjusting vehicle settings

When the vehicle is
stationary

, this menu allows

the user to change the
following settings:
-

The reinitialisation
mode for average
fuel consumption and
average speed.

Press and hold the INFO button for a few

seconds to display the menu screen.

In the menu screen, press the INFO button

to select a function from the list:

-  The fuel consumption units.
-  The temperature display unit.
-  The display language.
-  The activation/deactivation of the sound

when pressing the INFO button.

- The break (rest) reminder display interval.
- The reinitialisation of the under-inflation

alert threshold.

For more information on Under-inflation
detection

, refer to the corresponding section.

- Choose a set of tyres.
For more information on Under-inflation
detection

, refer to the corresponding section.

- Restore the factory settings.

To change the settings, you must stop
the vehicle and the ignition must be on.
Apply the parking brake and place the
gear lever in neutral.

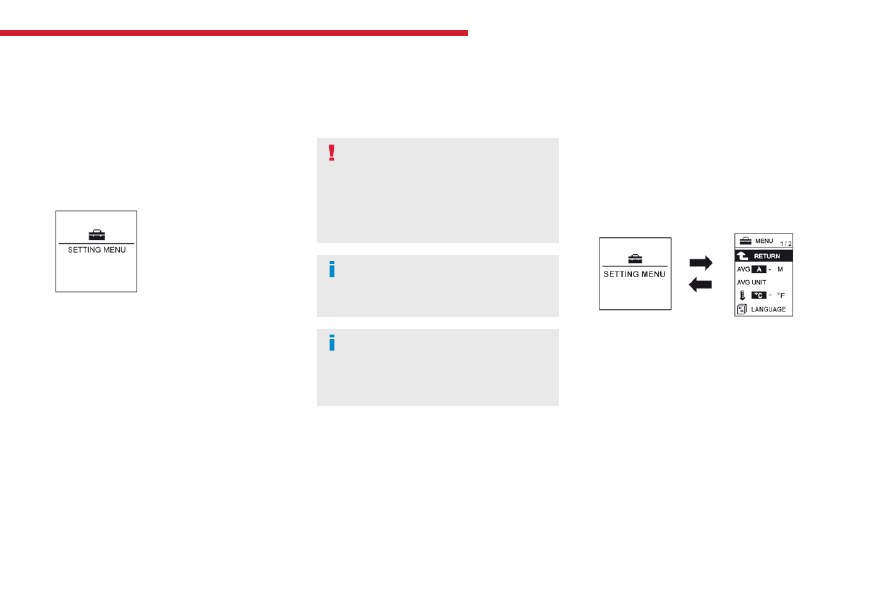

With the ignition on, press the INFO button,
located on the dashboard to the left of the
instrument panel several times until the
"SETTING MENU" screen is displayed.

Operation

MENU 1/3:
-

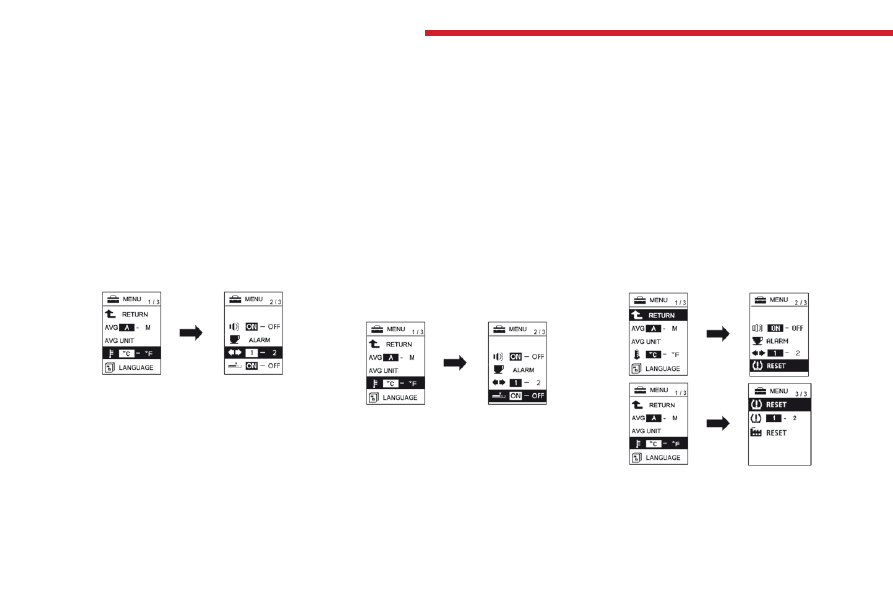

1 - 2, A - M, A - P

* (choice of the resetting

of average fuel consumption and average
speed),

UNIT

(choice of the fuel consumption

units),

choice of the temperature display unit,

LANGUAGE

(choice of the display

language).

* Depending on display language.

There are some differences in the
content of the menus of the type 1 and
type 2 display screens.

For your safety, when the vehicle is
moving

, the function settings are not

displayed when you press the INFO
button.

Instruments

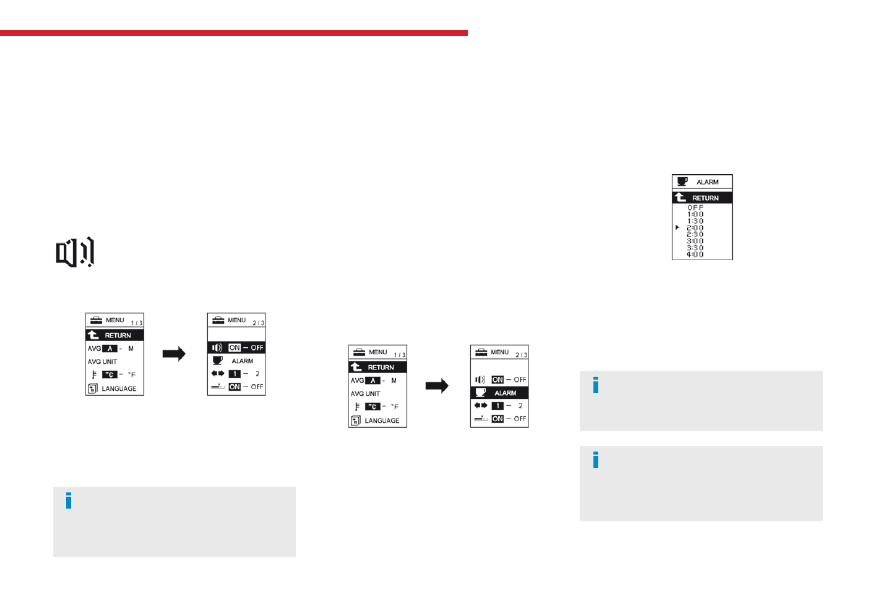

MENU 2/3:
-

activation / deactivation of the INFO
button sound,

ALERT

(changing of the "REST

REMINDER" display interval),

selection of the sound

for the direction

indicators,

activation / deactivation of the current
fuel consumption

Press and hold the INFO button for a
few seconds to return to the previous
screen.
When the menu screen is displayed,
if no operation is carried out within
15 seconds, the Setting Menu screen is
displayed.

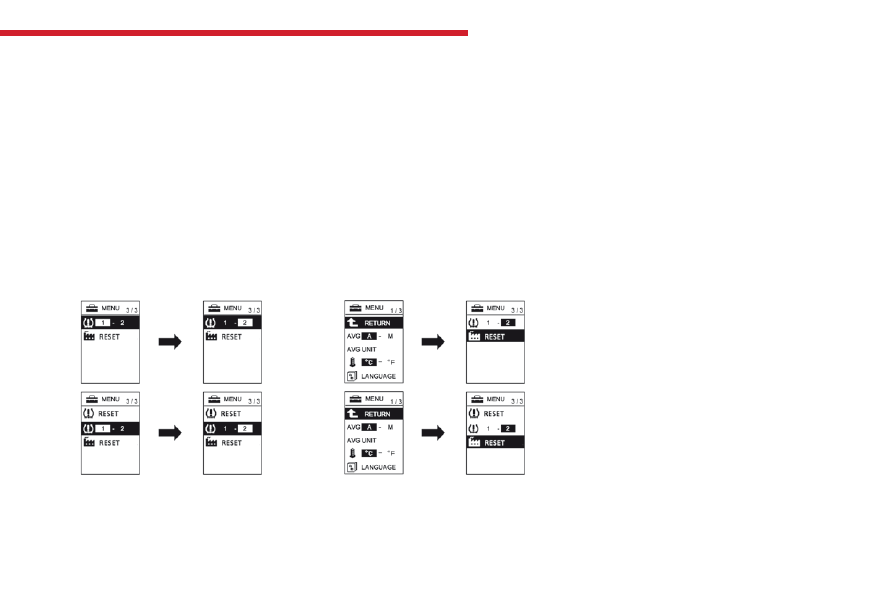

MENU 3/3:
-

REINITIALISE

(reinitialise the under-

inflation alert threshold),

choice of set of tyres,

REINITIALISE

(restore factory settings).

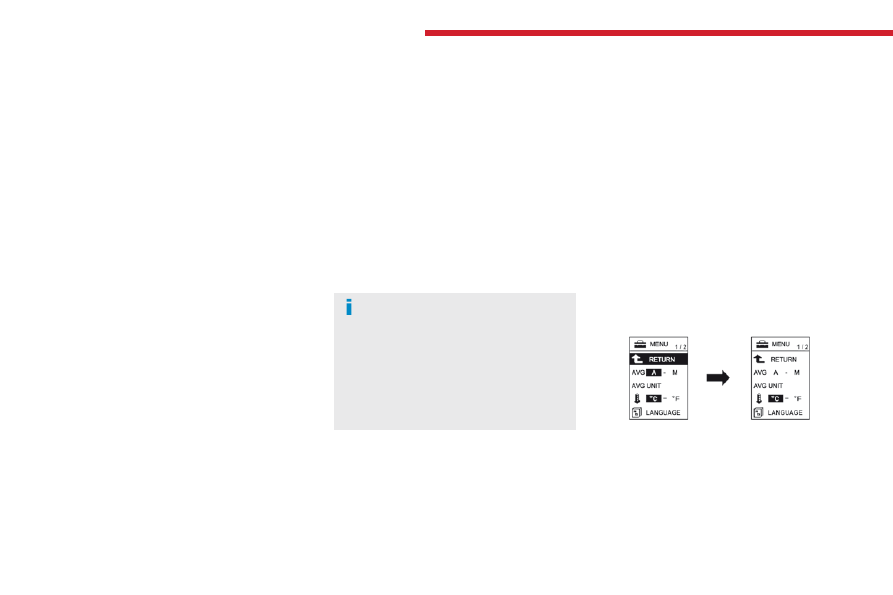

Choice of the reset mode for
average fuel consumption and
average speed

You can choose between two average fuel
consumption and average speed reset modes:
- automatic reset,
- manual reset.

In the menu screen:
F press the INFO

button to select:

press and hold the INFO button for a

few seconds to switch in succession from
reset mode 1 - A (automatic)* to reset
mode 2 - M - P (manual)*.

The mode selected is confirmed.

* According to display language.

Instruments

C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016

If the battery is disconnected, the
settings memory is cleared and
the default unit (km/L) is restored
automatically.

If the battery is disconnected, the
settings memory is cleared and
the default unit (°C) is restored
automatically.

F press the INFO

button to scroll through the

units (km/L, L/100km, mpg (US), mpg (UK)
and RETURN) in succession.

press and hold the INFO button for a few

seconds to confirm your selection.

Choice of the temperature
display unit

press and hold the INFO button for a few

seconds to scroll the units (°C and °F) in
succession.

The mode selected is confirmed.

In the menu screen:
F press the INFO button to select the

temperature unit setting symbol
(thermometer):

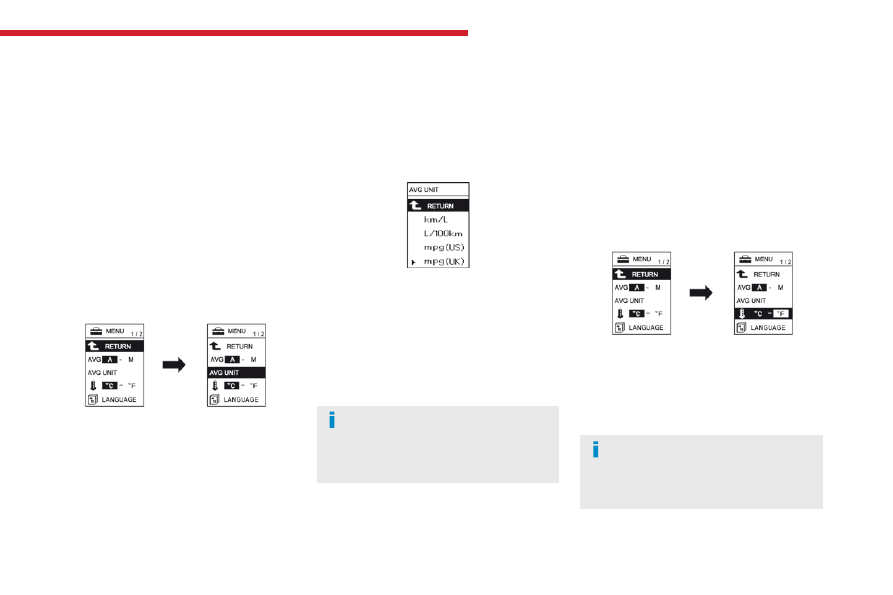

Choice of the fuel consumption
unit

The distance, speed and quantity of fuel units
will also be changed in accordance with your
choice of fuel consumption unit.

In the menus screen:
F press the INFO button to select "UNIT"

press and hold the INFO button for a few

seconds to display the "UNIT" screen.

Instruments

If you select the "---" setting, no
message will be displayed in message
display situations.

If the battery is disconnected, the
settings memory is cleared and the
default language (ENGLISH) is restored
automatically.

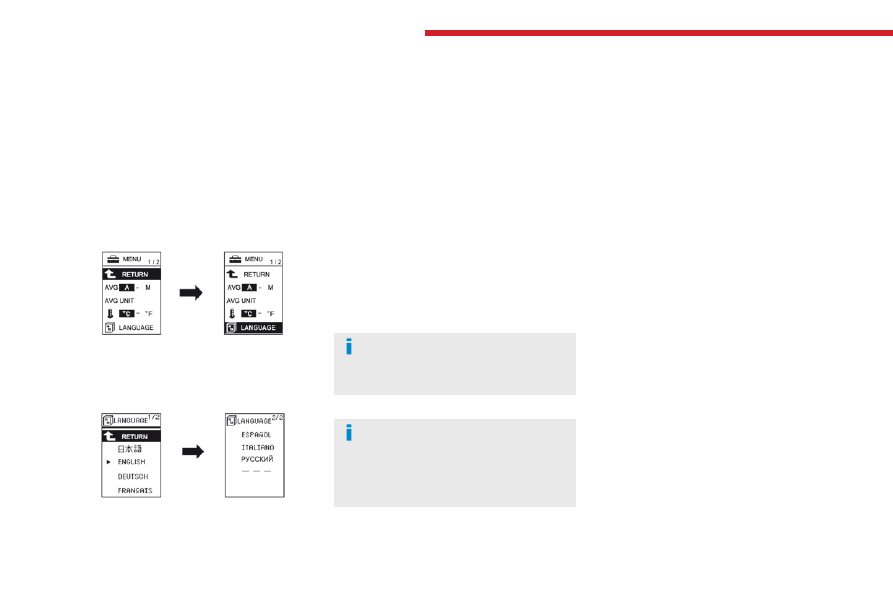

F press the INFO button to scroll the

languages (Japonais, English, Deutsch,
Français, Espanol, Italiano, Russe "---" and
RETURN) in succession,

press and hold the INFO button for a few

seconds to confirm your selection.

Choice of the display LANGUAGE

In the menu screen:
F press the INFO button to

select "LANGUAGE"

press and hold the INFO button for a few

seconds to display the "LANGUAGE"
screen:

Instruments

C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016

If the battery is disconnected, the
settings memory is cleared and
the default choice (ON) is restored
automatically.

As a safety measure, it is
recommended that you stop for a break
every two hours.

You can activate or deactivate the sound
associated with the INFO button.

Activation / deactivation of the
"INFO" button sound

In the menu screen:

F press the INFO button to select

the INFO

button sound activation /

deactivation symbol (located in
menu 2/3)

press and hold the INFO button for a few

seconds to scroll the choices (ON, OFF) in
succession.

The mode selected is confirmed.

Changing the display interval of
the "REST REMINDER" message

The "REST REMINDER" function allows you to programme
an alert message reminding you to take a break.
The "REST REMINDER"

message appears accompanied

by an audible signal.
You can change the display interval of the "REST
REMINDER"

message.

In the menu screen:
F press the INFO button to select "ALARM"

(located in menu 2/3)

press and hold the INFO button for a few

seconds to display the "ALARM" screen,

F press the INFO

button to select the display

interval of the "REST REMINDER"
message,

press and hold the INFO button for a

few seconds to confirm.

If the battery is disconnected, the
settings memory is cleared and
the default value (OFF) is restored
automatically.

Instruments

In the menu screen:
F press the INFO button to select "REINITIALISE"

(located in menu 2/3 or 3/3 depending on the
instrument panel)

Reinitialising the under-inflation

detection system (REINITIALISE)

You must reinitialise the under-inflation
detection system after adjusting one or more
tyre pressures or replacing one or more
wheels.

press and hold the INFO button for at least

3 seconds

There is an audible signal and the under-
inflation warning lamp flashes slowly until
reinitialisation is complete.

In the menu screen:
F press the INFO button to select the current

fuel consumption activation / deactivation
symbol (located in menu 2/3):

Activation / deactivation of the
current fuel consumption*

You can activate or deactivate the display
of the current fuel consumption, with the
type 2 instrument panel only.

press and hold the INFO button for a few

seconds to scroll through the choices in
succession (ON, OFF).

* Depending on equipment.

In the menu screen:
F press the INFO

button to select sound 1 or

2 (located in menu 2/3)

Selection of the sound
for the direction indicators

You can select the sound for the direction
indicators, with the type 2 instrument panel only.

Instruments

C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016

Choice of the set of tyres fitted

If you have previously registered a second set
of tyres with sensors, you must select the set in
use in the display screen after every change.

Restoring factory settings
(RESET)

You can restore the factory settings for all
functions (except the under-inflation alert
threshold and the choice of a set of tyres).

In the menu screen:
F press the INFO button to select the set of

tyres 1 or 2 (located in menu 3/3)

On the menu screen:
F press the INFO button to select "RESET"

(located in menu 3/3)

press and hold the INFO button for at least

3 seconds

press and hold the INFO button for at least

5 seconds

There is an audible signal and all of the factory
settings are restored for all functions.

Instruments

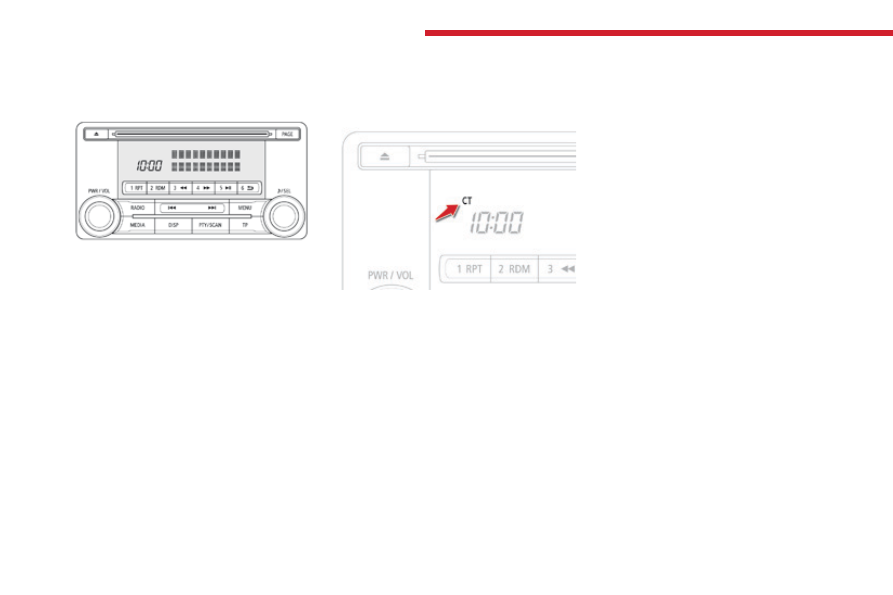

Audio-CD system screen

Associated with the Audio-CD system, this
screen displays the following information:
- the time,
- audio system information.
For more information on the Audio and
telematics

, refer to the corresponding section.

Setting the time

Selecting the adjustment mode

The digital clock can be set in automatic
mode or in manual mode

Manual mode
This mode permits manual setting of the time
using the audio system buttons.
It can also be used when the "Automatic mode"
displays an inaccurate time, when the local
RDS stations are broadcasting from a different
time zone.

Automatic mode
This mode permits automatic setting of the
local time using the signal from RDS stations.
The symbol "CT" appears in the screen.

Instruments

C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016

If no action is carried out within
10 seconds, the selection menu closes
automatically.

To select the mode:
F Press the "PWR/VOL" button to switch on

the audio system.

F Press the MENU

button.

F Press the SEL

knob to scroll through the

menus and select "RDS setting - CT ON -
CT OFF

" (clock time).

F Turn the SEL

knob to the left or to the right

to select "CT OFF"

(manual mode) or "CT

ON"

(automatic mode).

F Press the SEL

knob to confirm.

The digital clock does not display
seconds.
The time setting is lost if the battery is
disconnected.

Manual adjustment

F Press the PWR/VOL button to switch on

the audio system.

F Press the MENU

button.

F Press the SEL

knob to scroll through the

menus and select "Time Setting Adjust".

F Turn the SEL

knob to select "ON" for

access to the time setting.

F Press the SEL

knob to confirm.

F Turn the SEL

knob to adjust the time.

F Press the SEL

knob to confirm.

Instruments

Audio-CD system touch screen

Associated with the touch screen Audio-CD
system, this screen can display:
- the time,
- information related to the audio system.
For more information on the Audio and
telematics

, refer to the corresponding section.

For safety reasons, the driver should
only carry out operations that require
close attention with the vehicle
stationary.

Do not use pointed objects on the touch
screen.
Do not touch the screen with wet hands.

Use a clean soft cloth to clean the
screen.

Use the buttons arranged on the screen to
operate the system.

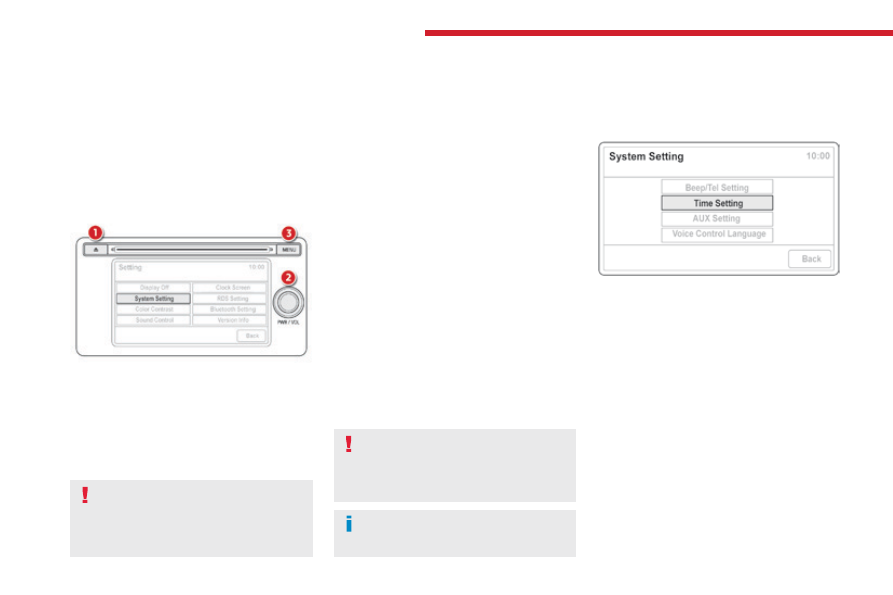

F Press the MENU

button to display the main

menu.

F Press "Setting

F Press "System Setting

F Press "Time Setting

Setting the time

General operation

CD eject.

System On / Off.

Volume adjustment.

Access to the different menus in the

system.

Content .. 1 2 3 4 ..
