Citroen C1 Dag (2010 year). Instruction - part 6

PRACTICAL INFORMATION

DIRECTION INDICATOR
SIDE REPEATERS (WY 5 W
AMBER)



Push the repeater forwards or

rearwards and detach it by pull-
ing towards you.



Disconnect the bulb holder and

change it.

CHANGING A FUSE

The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.

Good

Removing and fitting a fuse

Before changing a fuse, the cause of
the incident must be found and recti-

ﬁ ed.
 Use the tweezer A located in the

fusebox under the bonnet.

Failed

Tweezer A

Instrument panel fuseboxes

These are located on each side of
the instrument panel under the trim.
 Turn the steering wheel to the

left, remove bolt B .

 Turn the steering wheel to the

right (do not forget to release the
steering wheel using the key), re-
move bolt C .

Always replace a faulty fuse
with a fuse of the same rating
(same colour).

PRACTICAL INFORMATION

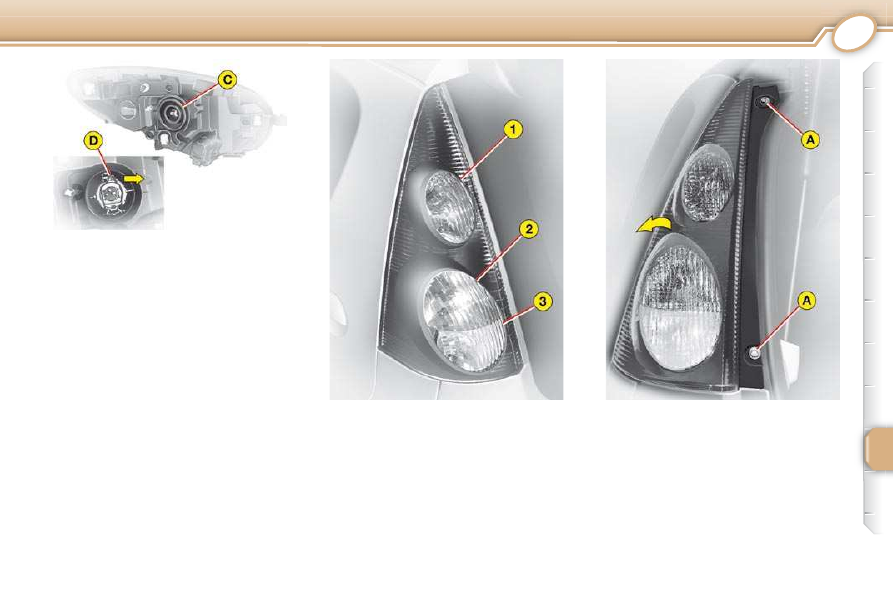

3. Dipped/Main beam headlamps

(H4 - 60/55W)

      Disconnect the connector.
     Remove the rubber cap  C .
     Push the side of the tongue  D .
     Remove  the  bulb  holder  and

change the bulb.



Reﬁ t the bulb holder, the tongue

then the rubber cap.

If you encounter any difﬁ culties, con-

tact a CITROËN dealer or a qualiﬁ ed

workshop.

Rear lamps

1. Brake/sidelamps

(P 21/5 W)

2. Direction indicators

(P 21 W)

3. Reversing lamp (P 21 W),

right side

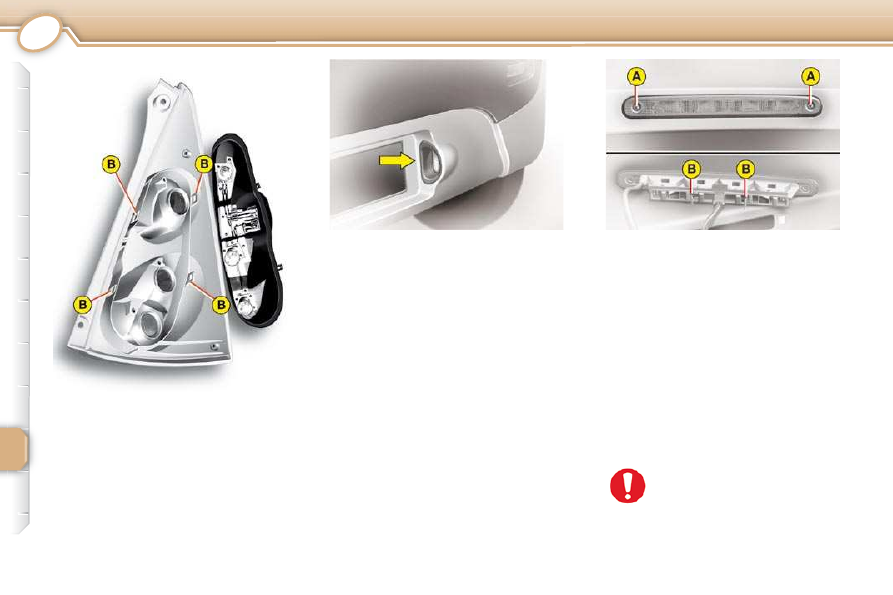

These  3  bulbs  are  changed  by  re-
moving the lamp unit:
      open the boot,
  

unscrew the two lamp ﬁ xing nuts A ,

 remove the lamp unit by pulling

outwards,

 unclip the harness,

Foglamp (P 21 W), left side

PRACTICAL INFORMATION

Third brake lamp
(Four W 5 W bulbs)



Unscrew the 2 ﬁ xing bolts A .

 Release the lamp unit by pushing

the two tabs B inwards.

 Disconnect the connector and the

rear wash-wipe pipe.

 Remove the bulb holder.
 Remove the bulb and change it.
When reﬁ tting, proceed in the reverse

order and ensure that the lamp unit
seal and the rear wash-wipe pipe have
been put back in place correctly.

Number plate lamps (W 5 W)

 Pass your hand under the bumper.
 Remove the bulb holder turning it

one quarter of a turn.

 Remove the bulb and change it.

Do not tighten the bolts more
than is necessary at the risk
of breaking the light.

 remove the bulb holder by spread-

ing the four tongues B ,

 remove the bulb and change it.

Note:

when reﬁ tting, proceed in the

reverse order and take care to posi-
tion the bulb holder, the tongues and
the lamp unit correctly.

PRACTICAL INFORMATION

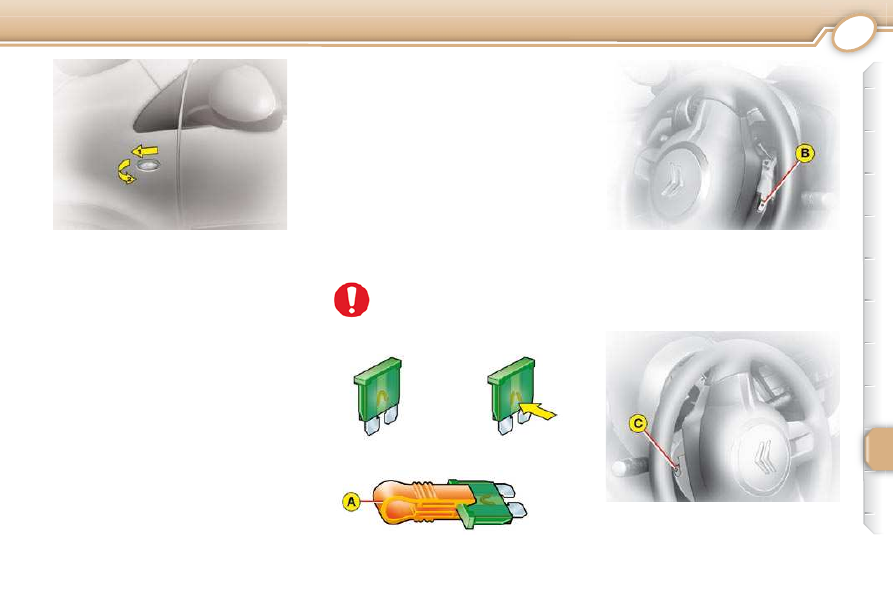

DIRECTION INDICATOR
SIDE REPEATERS (WY 5 W
AMBER)



Push the repeater forwards or

rearwards and detach it by pull-
ing towards you.



Disconnect the bulb holder and

change it.

CHANGING A FUSE

The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.

Good

Removing and fitting a fuse

Before changing a fuse, the cause of
the incident must be found and recti-

ﬁ ed.
 Use the tweezer A located in the

fusebox under the bonnet.

Failed

Tweezer A

Instrument panel fuseboxes

These are located on each side of
the instrument panel under the trim.
 Turn the steering wheel to the

left, remove bolt B .

 Turn the steering wheel to the

right (do not forget to release the
steering wheel using the key), re-
move bolt C .

Always replace a faulty fuse
with a fuse of the same rating
(same colour).

PRACTICAL INFORMATION

DIRECTION INDICATOR
SIDE REPEATERS (WY 5 W
AMBER)



Push the repeater forwards or

rearwards and detach it by pull-
ing towards you.



Disconnect the bulb holder and

change it.

CHANGING A FUSE

The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.

Good

Removing and fitting a fuse

Before changing a fuse, the cause of
the incident must be found and recti-

ﬁ ed.
 Use the tweezer A located in the

fusebox under the bonnet.

Failed

Tweezer A

Instrument panel fuseboxes

These are located on each side of
the instrument panel under the trim.
 Turn the steering wheel to the

left, remove bolt B .

 Turn the steering wheel to the

right (do not forget to release the
steering wheel using the key), re-
move bolt C .

Always replace a faulty fuse
with a fuse of the same rating
(same colour).

PRACTICAL INFORMATION

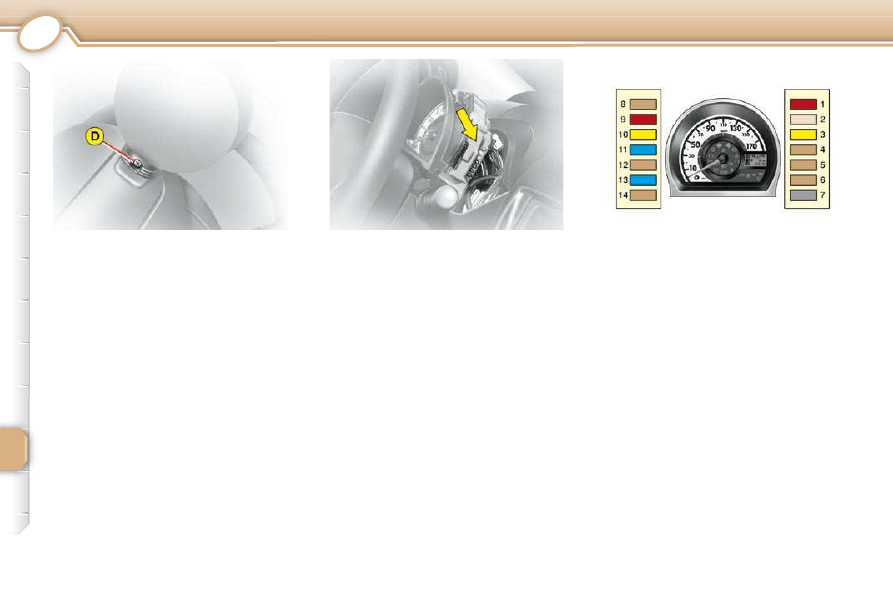

 Raise the instrument panel trim,

and the rev counter trim if neces-
sary, to gain  access  to the  fuses
located  on  the  left  and  on  the
right.

 For the rev counter, partially un-

screw bolt D located behind it.

PRACTICAL INFORMATION

* Fuses located behind the instrument panel. To change them, contact a CITROËN dealer or a qualiﬁ ed workshop.

Fuse N°

Rating (A)

Functions

Brake lamps - ABS - "SensoDrive" gearbox

Central locking/unlocking

Rear screen demisting

7.5

Rear lamps - Number plate lamps - Instrument panel - Screen

7.5

Diagnostic socket

7.5

Rear foglamp - Instrument panel - "SensoDrive" gearbox

Not used

7.5

ABS - Power steering - Air conditioning - Fan assembly

Rear lamps - Central locking/unlocking - Electric windows - Rear screen demisting -
Speedometer - Air conditioning - Heating - Rev counter

Front and rear wipers

Audio equipment - Electronic engine immobiliser - 12 V socket (120 W max)

7.5

Rear screen demisting - ABS - Fan assembly - Front and rear wipers - Power steering -
Central locking/unlocking - Air conditioning - Electric windows - Speedometer - Rev counter

Airbag - Engine control unit - Electronic engine immobiliser - "SensoDrive" gearbox -
Instrument panel

7.5

Air conditioning

15 *

Accessories - Demisting - ABS - Fan assembly relay - Front and rear wipers

16 *

Electric windows

17 *

Heating - Air conditioning

PRACTICAL INFORMATION

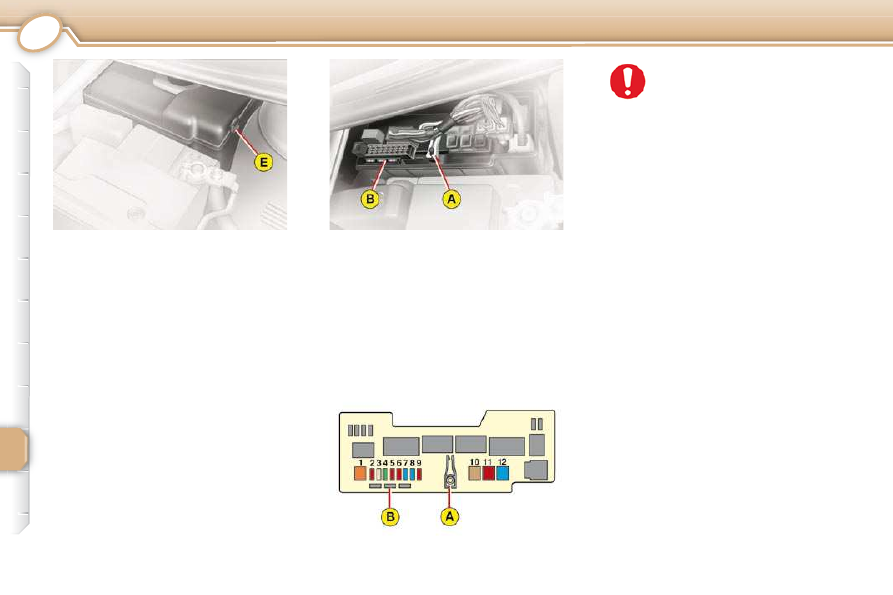

Engine compartment fusebox

 Unclip the cover, pressing on the

right on lug E , to gain access to
the fuses.

  Your  vehicle's  electrical  cir-
cuit  is  designed  to  operate
with  standard  or  optional
equipment.

Before installing

other electrical

equipment or accessories on your
vehicle, contact a CITROËN dealer

or a qualiﬁ ed workshop.

The tweezer A and the replacement
fuses B

are ﬁ xed at the front of the

box.
When you have ﬁ nished, close the

cover very carefully.

Some electrical accessories or the

way in which they are ﬁ tted may

have an adverse effect on the opera-
tion of your vehicle (audio circuits,
control circuit and electrical charging
circuit).

CITROËN  will  not  accept  any  re-
sponsibility  for  the  costs  incurred  in
repairing your vehicle or for the mal-
functions  resulting  from  the  installa-
tion  of  auxiliary  accessories  which
were  not  supplied  or  recommended
by CITROËN and which were not in-
stalled in accordance with its instruc-
tions, in particular in the case of any
equipment the consumption of which
exceeds 10 milliamps.

PRACTICAL INFORMATION

Fuse N°

Rating (A)

Functions

"SensoDrive" gearbox

Headlamps

Headlamps with daytime running lamps

ABS/ESP control unit

Ignition switch supply

Hazard warning lamps - Instrument panel warning lamps - Direction indicators

Headlamps

Courtesy lamp - Speedometer - Audio equipment - Instrument panel - Rev counter

15/25

Petrol/Diesel engine control unit

Horn

Fan assembly (petrol)

ABS/ESP

Power steering

PRACTICAL INFORMATION

BATTERY

Do not push the vehicle to
start the engine if you have a
"SensoDrive" gearbox.

Before

disconnecting

the

battery,  you  must  wait  for
2 minutes  after  switching  off
the ignition.

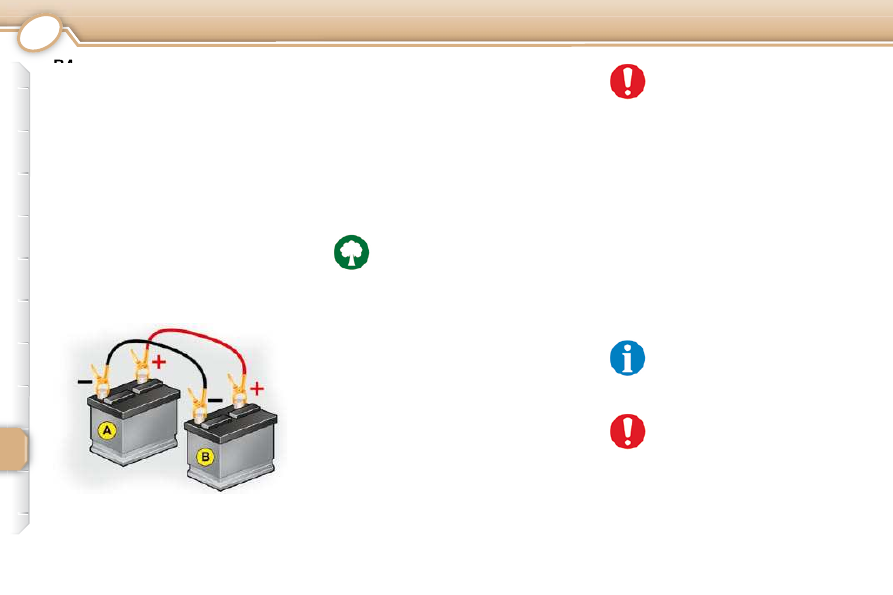

Starting the vehicle from
another battery

Connect the red cable to the positive
(+) terminals of the two batteries,

connect the green or black cable to
the negative (-) terminals of the two
batteries,

operate the starter, let the engine
run,

wait for the engine to return to idle,
then disconnect the cables.

  It  is  advisable  to  disconnect
the  battery  if  the  vehicle  is
not to be used for a period of
more than one month.

  The  batteries  contain  harm-
ful  substances  such  as  sul-
phuric  acid  and  lead.  They
must  be  discarded  in  accor-

dance with the provisions of the law
and must not, in any circumstances,
be discarded with household waste.
Take used batteries to an authorised
waste disposal site.

Charging the battery using a
battery charger

Disconnect the battery,

follow the instructions for use giv-
en by the battery charger manu-
facturer,

reconnect starting with the nega-
tive (-) terminal,

check that the terminals and con-
nectors are clean. If they are
covered with sulphate (white or
greenish

deposit),

disconnect

them and clean them.

A. Failed battery

B. Slave battery

Never disconnect a terminal when
the engine is running.
Never charge a battery without ﬁ rst

disconnecting the terminals.
Close the windows and doors before
disconnecting the battery.
After  every  reconnection  of  the  bat-
tery,  switch  on  the  ignition  and  wait
1 minute  before  starting  to  allow  the
electronic systems to be initialised. If

some difﬁ culties are experienced af-

ter this, please contact a CITROËN

dealer or a qualiﬁ ed workshop.

PRACTICAL INFORMATION

Your vehicle is equipped with certain

factory-ﬁ tted audio equipment:
-

roof aerial,

coaxial aerial cable,

basic interference suppression,

wiring for front speakers,

two 8-way connectors.

FITTING SPEAKERS

The factory-ﬁ tted equipment allows

the ﬁ tting of 100 mm diameter speak-

ers on the dashboard.
As accessories, you can ﬁ t 165 mm

diameter speakers on the rear shelf.

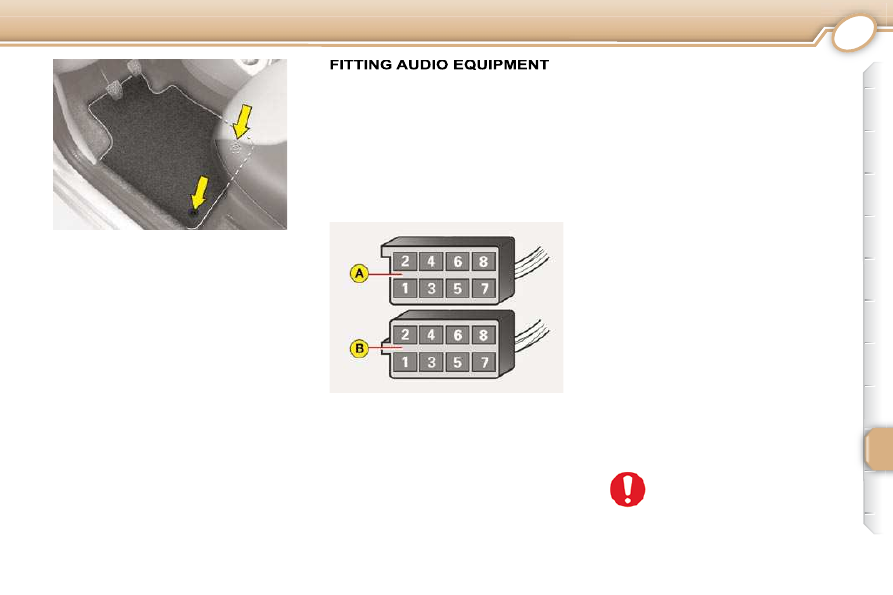

Making the connections

  A1:  -
  A2:  -
  A3:  -
  A4:  (+)

Accessories

  A5:  -
  A6:  (+ve)  Sidelamps
  A7:  (+ve)  Permanent
  A8:  Earth

Consult a CITROËN dealer

or a qualiﬁ ed workshop be-

fore  installing  audio  equip-
ment  or  speakers  in  your
vehicle.

MAT *

When removing the mat on the driv-
er's side, push the seat as far back as

possible and remove the two ﬁ xings.
When reﬁ tting, position the mat cor-

rectly on the pins and clip the ﬁ xings.

Check that the mat is secured cor-
rectly.
To prevent the mat from becoming
caught under the pedals:

- only use mats suited to the ﬁ xings

already present in the vehicle. It

is imperative that these ﬁ xings be

used.

- never ﬁ t one mat on top of another.

* According to version.

  B1:  (+)  Rear right speaker
  B2:  (-)  Rear right speaker
  B3:  (+)  Front right speaker
  B4:  (-)  Front right speaker
  B5:  (+)  Front left speaker
  B6:  (-)  Front left speaker
  B7:  (+)  Rear left speaker
  B8:  (-)  Rear left speaker

PRACTICAL INFORMATION

TOWING THE VEHICLE

Your vehicle can only be towed at
the front.

Lifting (2 wheels only
on the road)

Never use the radiator crossmember.
Towing with fours wheels on the road
must be carried out at very low speed
over a very short distance (in accor-
dance with the legislation in force).
In all other cases, your vehicle must
be transported on a trailer.

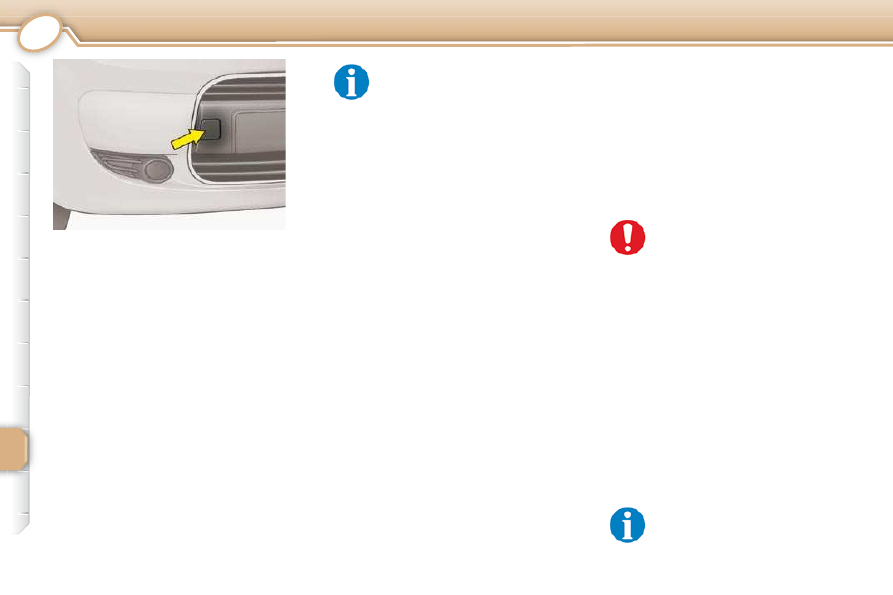

Without lifting
(4 wheels on the road)

The  removable  towing  eye  is  stored
in  the  spare  wheel,  under  the  boot
carpet.
      Unclip the bottom of the cover,
     Screw in the towing eye until it locks.

Place the gear lever in posi-
tion N for the "SensoDrive"
gearbox.

FITTING ROOF BARS

  Please refer to national legis-
lation  in  order  to  comply  with
the regulations concerning the
transportation of objects which
are longer than the vehicle.

Vehicles fitted with a manual
gearbox

In the case of vehicles ﬁ tted with a

manual gearbox, the gear lever must
be in the neutral position.
Failure  to  observe  this  special  con-
dition  may  result  in  damage  to  cer-
tain  braking  components  and  the
absence  of  braking  assistance  the
next time the engine is started.

When ﬁ tting transverse roof bars,

use the accessories recommended
by CITROËN and follow the manu-

facturer's ﬁ tting instructions.
For more information, contact a

CITROËN dealer or a qualiﬁ ed work-

shop.
  Maximum  weight  authorised  on
the  bars,  for  a  loading  height  not
exceeding  40  cm  (except  bicycle
carrier): 50 kg.
  If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-

ﬁ le of the road to avoid damaging

the roof bars.

General
recommendations

Observe the legislation in
force in your country.

Ensure  that  the  weight  of  the  tow-
ing vehicle is higher than that of the
towed vehicle.
The driver must stay at the wheel of
the towed vehicle.
Driving on motorways and fast roads
is prohibited when towing.
When  towing  a  vehicle  with  all  four
wheels on the ground, always use an
approved towing bar; rope and straps
are prohibited.
When  towing  a  vehicle  with  the  en-
gine off, there is no longer any power
assistance for braking or steering.
In  the  following  cases,  you  must  al-
ways call on a professional recovery
service:
   -

vehicle broken down on a motor-
way or fast road,

when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,

towing with only two wheels on
the ground,

where there is no approved towing
bar available...

PRACTICAL INFORMATION

ACCESSORIES

A  wide  range  of  accessories  and
genuine  parts  is  available  from  the
CITROËN dealer network.
These  accessories  and  parts  have
been  tested  and  approved  for  reli-
ability and safety.
They are all adapted to your vehicle

and beneﬁ t from CITROËN's recom-

mendation and warranty.

Installation of radio
communication transmitters

Before installing any after-market
radio

communication

transmitter,

you can contact a CITROËN dealer

for the speciﬁ cation of transmitters

which can be ﬁ tted (frequency, maxi-

mum power, aerial position, speciﬁ c

installation requirements), in line with
the Vehicle Electromagnetic Compat-
ibility Directive (2004/104/EC).

  Depending  on  the  legisla-
tion in force in the country, it
may  be  compulsory  to  have
a  high  visibility  safety  vest,

warning triangle and spare bulbs and
fuses available in the vehicle.
The ﬁ tting of electrical equipment or

accessories  which  are  not  recom-
mended  by  CITROËN  may  result  in
a  failure  of  your  vehicle's  electronic
system and excessive electrical con-
sumption.
Please note this precaution. You are
advised  to  contact  a  CITROËN  rep-
resentative  to  be  shown  the  range
of recommended equipment and ac-
cessories.

* France only.

"Comfort": front and rear parking
sensors, portable ashtray, glove box
lid, insulated module, centre armrest,

baby bag, reading lamp, door deﬂ ec-

tors, sun blinds, ...

"Transport solutions": boot liner,
roof bars, bicycle carrier, ski carrier,

rigid and ﬂ exible roof boxes, boot di-

viders, canoe carrier, ...
You  can  obtain  "Van"  conversion
kits  to  convert  a  private  vehicle  to  a
van * .

   "Styling":   wheel  trims,  14  inch  alloy
wheels,  15  inch  alloy  wheels,  spoiler,
exterior  "aluminium  look"  and  "car-

bon ﬁ bre look" styling kits, aluminium

interior trim kit, "aluminium look" and

"carbon ﬁ bre look" door mirror shells,

chromed exhaust tailpipe, leather

steering wheel, chrome grille ﬁ nisher...

   "Security and safety":  anti-theft alarm,
wheel  security  bolts,  snow  chains  and
non-slip  covers,  high  visibility  vest,
warning  triangle,  breathalyzer,  child

seats, ﬁ rst aid kit, ﬁ re extinguisher, fo-

glamp kit, ...

"Protection": mats, seat covers,

mud ﬂ aps, side protection rubbing

strips,  door  sill  protectors,  boot  sill
protectors, vehicle cover, ...
To  prevent  the  mat  from  becoming
caught under the pedals:
   -

ensure that the mat is positioned
and secured correctly,

- never ﬁ t one mat on top of another.

   "Multimedia":   semi-integral  navi-
gation  system,  portable  satellite
navigation  system,  USB  Box,  audio
systems, speakers, rear parcel shelf
with  speakers,  Bluetooth  hands-free
system,  speed  camera  detectors,
DVD  player,  mapping  update  CD,
auxiliary  cable  for  audio  equipment,
CD storage, ...

TECHNICAL DATA

PETROL ENGINES

Model codes PM, PN

CFB0/CFB4

CFB0/P

Engines

1.0 litre (≈ 68 hp)

Cubic capacity (cc)

998

Bore x stroke (mm)

71 x 84

EU standard maximum power (kW)

Max power engine speed (rpm)

6 000

EU standard max torque (Nm)

Max torque engine speed (rpm)

3 600

Fuel

Unleaded

Catalytic converter

Yes

Gearbox

Manual (5-speed)

"SensoDrive" (5-speed)

Oil capacity (in litres)

Engine (with ﬁ lter replacement)

3.2

TECHNICAL DATA

PETROL WEIGHTS (IN KG)

The design of your vehicle does not permit the ﬁ tting of a towbar.

Engines

1.0 litre

Gearbox

Manual

" SensoDrive "

Versions

3-door

5-door

3-door

5-door

Model codes

PMCFB0/

PMCFB4

PNCFB0 /

PNCFB4

PMCFB0 /P

PNCFB0/P

Kerb weight

800

805

830

840

Gross vehicle weight

1 180

1 190

1 180

1 190

TECHNICAL DATA

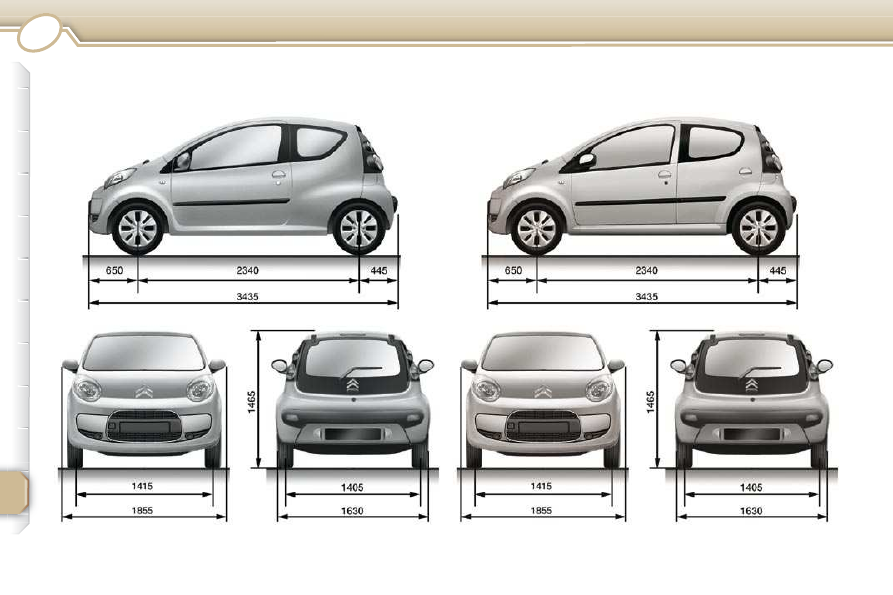

DIMENSIONS (IN MM)

Content .. 4 5 6 7 ..
