Citroen SpaceTourer (2016 year). Instruction

As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the vehicle stationary
and the ignition on.

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

First steps

With the engine running, a press
mutes the sound.
With the ignition off, a press turns the
system on.

Volume.

Use the buttons either side of or below the
touch screen for access to the menus, then
press the virtual buttons in the touch screen. All
of the touch areas of the screen are white.
Press in the grey zone to go back a level or
confirm.
Press the back arrow to go back a level or
confirm.

The touch screen is of the "capacitive"
type.
To clean the screen, use a soft, non-
abrasive cloth (spectacles cloth) with
no additional product.
Do not use sharp objects on the
screen.
Do not touch the screen with wet
hands.

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Select the audio source (depending on
version):
- FM / DAB* / AM* stations.
- Telephone connected by Bluetooth* and

using Bluetooth* audio streaming.

-  CD player.
-  USB memory stick.
-  Media player connected to the auxiliary

socket (Jack, cable not supplied).

* Depending on equipment.

Certain information is displayed permanently in
the upper band of the touch screen:
- Reminder of the air conditioning

information, and direct access to the
corresponding menu.

- Reminder of the Radio Media and

Telephone menu information.

- Access to the Settings of the touch screen

and digital instrument panel.

In very hot conditions, the volume may
be limited to protect the system. It may
go into standby (screen and sound off)
for at least 5 minutes
The return to normal takes place when
the temperature in the passenger
compartment has dropped.

In the "Settings" menu you can create
a profile for just one person or a group
of people with common points, with the
possibility of entering a multitude of
settings (radio presets, audio settings,
ambiences, ...); these settings are
taken into account automatically.

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Steering mounted controls - Type 1

Radio

Short press: display the list of radio
stations.
Long press: update the list.
Media

Short press: display the list of folders.
Long press: display the sorting
options.

Decrease volume.

Radio:
Select the previous / next preset
radio station.
Select the previous / next item in a
menu or a list.
Media:
Select of the previous / next track
Select the previous / next item in a
menu or a list.

Mute / Restore sound by
simultaneously pressing the increase
and decrease volume buttons.

Change audio source (Radio; USB;
AUX (if a device is connected); CD;
Streaming)

Confirm a selection.

Increase volume.

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Media

(short press): change the

multimedia source.
Telephone

(short press): call.

Call in progress

(short press):

access to telephone menu.
Telephone

(long press): reject an

incoming call, end call, access to
telephone menu.

Decrease volume.

Voice commands

Short press, smartphone voice
commands via the system.

Mute/ Restore the sound.
Or
Mute by pressing the volume
increase and decrease buttons
simultaneously.
Restore the sound by pressing one of
the two volume buttons.

Radio

(rotate): previous / next preset.

Media

(rotate): previous / next track,

move in a list.
Short press

: confirm a selection;

other than selection, access to
presets.

Radio

: display the list of stations.

Media

: display the list of tracks.

Radio

(press and hold): update the

list of stations received.

Increase volume.

Steering mounted controls - Type 2

100

21,5

18,5

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

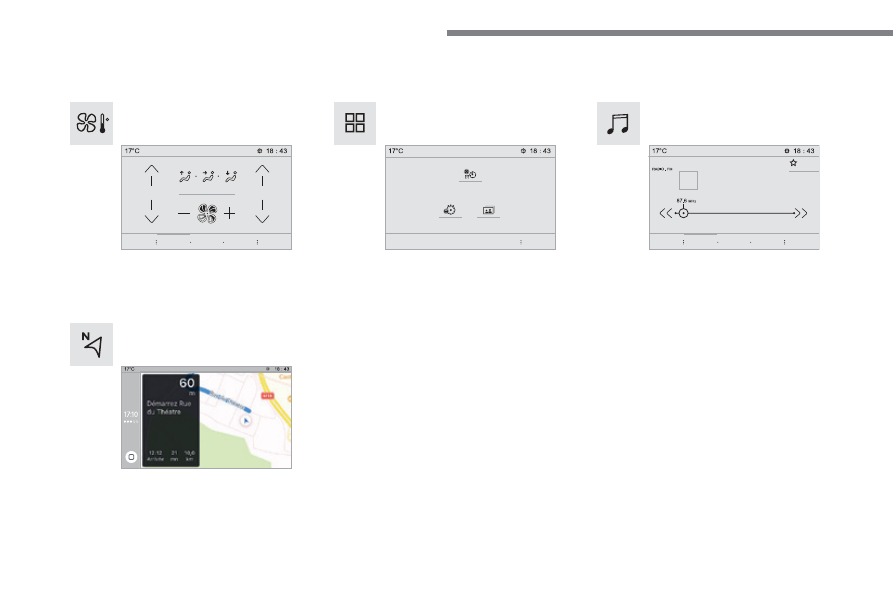

Menus

Radio Media

Applications

Select an audio source or radio station.

Access configurable equipment.

Air conditioning

Manage the different temperature and air flow
settings.

Navigation

Configure the guidance and select your
destination via MirrorLink

or CarPlay

According to version.

101

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

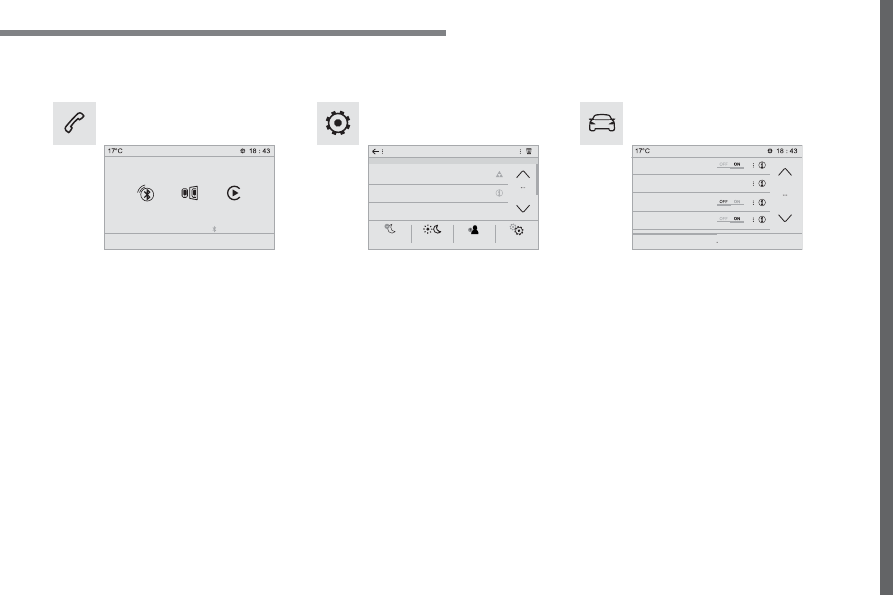

Settings

Driving

Telephone

Configure a personal profile and/or configure
the sound (balance, ambience, ...) and the
display (language, units, date, time, ...).

Activate, deactivate or configure certain vehicle
functions.

Connect a telephone by Bluetooth

Operate certain applications on a smartphone
connected via MirrorLink

or CarPlay

102

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Applications

According to version / according to equipment

Level 1

Level 2

Level 3

103

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Level 1

Level 2

Level 3

Comments

Applications

Temperature
conditioning

State

Activate / deactivate the temperature conditioning.

Settings

Configure the pre-conditioning.

Save the parameters.

Confirm the settings.

Applications

Trip computer

Instant

System providing information about the current
journey (range, consumption…).

Trip 1

Trip 2

Go back to the Applications page.

Applications

Photos

Photo gallery

Photos

Go to the photo gallery.

Go back a level.

Applications

OPTIONS

Bluetooth connection

Search

Start the search for a device to be connected.

Delete

Delete one or more devices.

105

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Insert a USB memory stick in the USB port.

The system can read folders and image files in
the formats: .tiff; .gif; .jpg/jpeg; .bmp; .png.

Viewing photos

Press Applications to display the
primary page.

Press "Photos".

Select a folder.

Press this button to display the
details of the photo.

Press the back arrow to go back a
level.

Select an image to view.

To protect the system, do not use a
USB hub.

106

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Radio Media

According to version

Level 1

Level 2

107

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Level 1

Level 2

Comments

Radio Media

SOURCES

Radio

Select change of source.

Bluetooth

AUX

USB

iPod

Radio Media

Frequency

FM / DAB / AM

Display the current radio station.

Radio Media

List

Update the list according to the stations received.

Preset

Make a short press to preset the station.

Radio Media

Preset

Select a preset station or preset a station.

Radio Media

OPTIONS

AM band / DAB band / FM band

Press the Band button to change waveband.

Audio settings

Configure the audio settings.

News

Activate or deactivate the options.

RDS

FM-DAB Follow-up

Radio Media

87.5 MHz

Enter a frequency of the FM and AM bands on the
virtual keypad.

108

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Level 1

Level 2

Level 3

109

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Level 1

Level 2

Level 3

Comments

Radio Media

SOURCES

Radio

Frequency

Display the current radio station.

List

Display the list of stations received.

Preset

Select a preset station or preset a station.

OPTIONS

FM band / DAB band /
AM band

Press the band button to change band.

Audio settings

Configure the audio settings.

News

Activate or deactivate the options.

RDS

FM-DAB Follow-up

Radio Media

SOURCES

Bluetooth

OPTIONS

Audio settings

Configure the audio settings.

Radio Media

SOURCES

Display the details of the music being played.

OPTIONS

Audio settings

Configure the audio settings.

110

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Level 1

Level 2

Level 3
