Citroen Berlingo First (2012 year). Instruction - part 6

PRACTICAL INFORMATION -

CHANGING A WHEEL

Parking the vehicle
-

If possible, park the vehicle on level,

stable and non-slippery ground.

- Apply the handbrake, switch off

the ignition and engage fi rst or

reverse gear.

Removing a wheel

- Chock the rear of the wheel di-

agonally opposite the wheel to be

changed, using the chock 2 .

- Remove the wheel trim using the

wheelbrace

1 , by pulling at the

valve passage hole.

Slacken the wheel bolts.

- Place the jack under the locat-

ing point on the sub-frame

that is closest to the wheel to be

changed. Ensure that the entire

surface of the jack base plate is

in contact with the ground.

- Extend the jack, completely un-

screw the bolts and remove the

wheel.

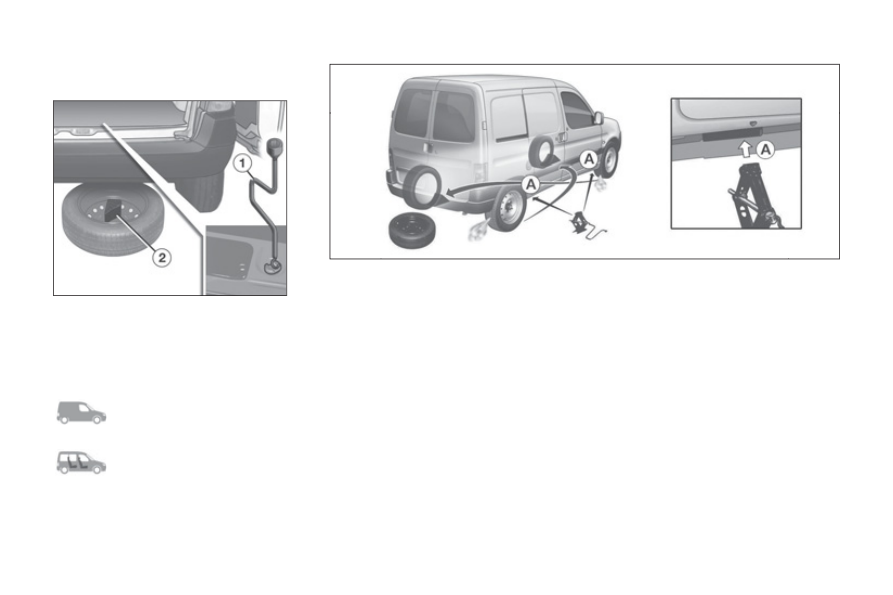

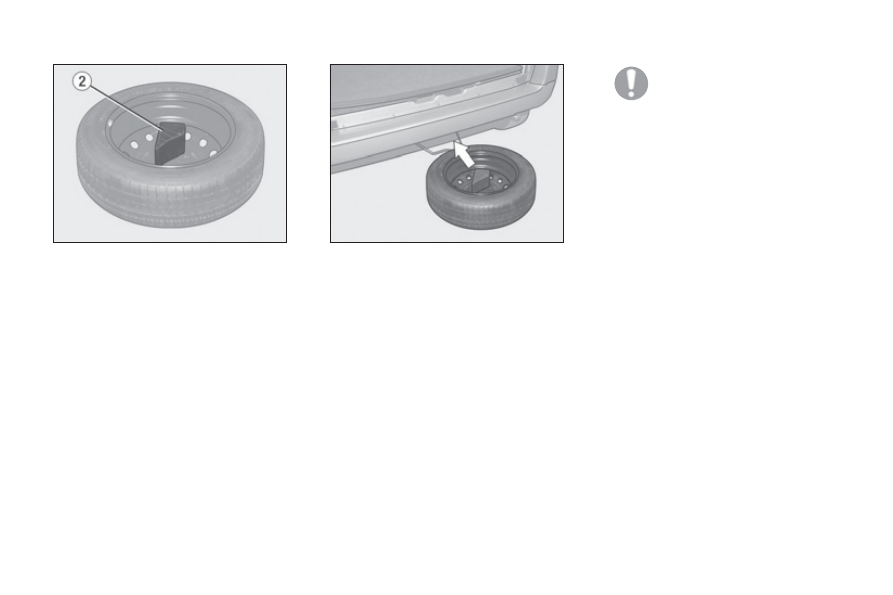

Access to the spare wheel and

the jack
The wheel is located outside the ve-

hicle, under the rear fl oor, supported

by a metal carrier.

Remove the jack and the wheelbrace 1 , secured behind the driv-

er's seat.

Remove the jack and the wheelbrace 1 secured in an interior hous-

ing above the rear right wheel.

- Using the wheelbrace

1 , slacken the spare wheel carrier retaining bolt,

located on the inside near the closing system.

Lift the carrier to release the hook rearwards, then lower it.

Remove the chock 2 located in the spare wheel.

PRACTICAL INFORMATION

80 -

For your safety, always

change a wheel:

Refitting the wheel

After positioning the wheel, lightly

pre-tighten the bolts using the

wheelbrace.

Compress the jack and release it.

- Fully tighten the bolts using the

wheelbrace.

- Replace the trim, starting at the

valve passage hole, and press it

on using the palm of the hand.

Replacing the wheel in the

carrier

Replace the chock 2 in the wheel.

Replace the wheel in the carrier.

Lift the wheel then the carrier and

reposition the hook.

- Do not forget to fully tighten the

spare wheel carrier retaining bolt.

Stow the wheelbrace 1 and the jack.

After changing the wheel
- Have the tightening of the bolts

and the pressure of the spare tyre

checked as soon as possible by a

CITROËN dealer.

Have the punctured tyre repaired

and replace it on the vehicle as

soon as possible.

on level, stable and non slippery

ground,

with the handbrake applied,

- with

rst or reverse gear en-

gaged,

with the vehicle chocked,

- making absolutely sure that the

occupants get out of the vehicle

and wait in a safe location.

Never go underneath the vehicle

when it is raised using the jack only.
The jack and the tool kit are specifi c

to your vehicle. Do not use them for

other purposes.

PRACTICAL INFORMATION -

SPECIAL FEATURES

OF ALLOY WHEELS

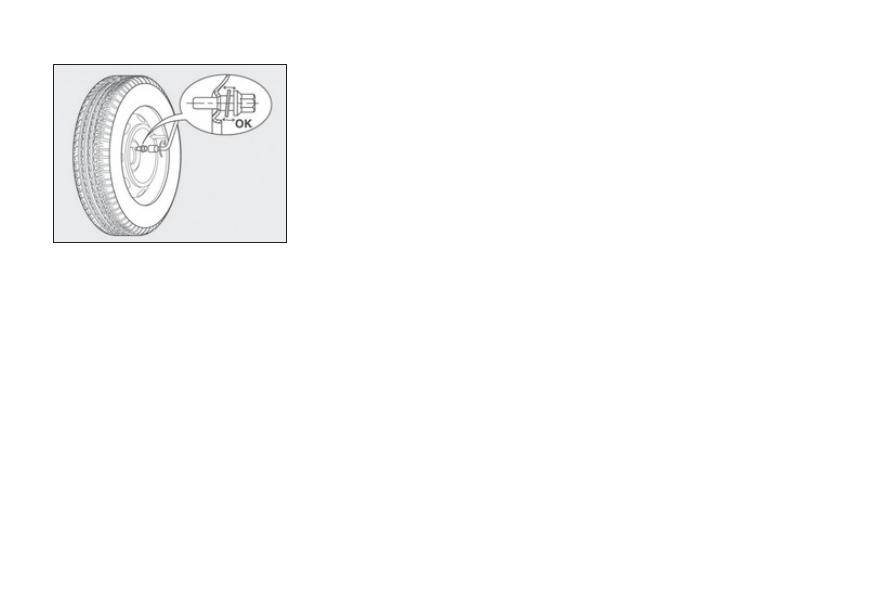

Fitting the spare wheel
If your vehicle is equipped with a

steel spare wheel, when fi tting it, it is

normal to notice that the bolt wash-

ers do not come into contact with the

rim. The spare wheel is secured by

the cone-shape of each bolt.

Fitting snow tyres
If you fi t snow tyres that are mounted

on steel rims onto your vehicle, it is

essential that you use special bolts

available from your CITROËN dealer.

* According to model and country.

ANTI-THEFT BOLT *

If your wheels are fi tted with an anti-

theft bolt (one per wheel), it must be

unscrewed using an anti-theft socket

(which was given to you on delivery

of your vehicle along with the dupli-

cate keys and the confi dential card)

and the wheelbrace.

Note: make a careful note of the

code number engraved on the top of

the anti-theft socket. This will enable

you to obtain a duplicate anti-theft

socket from your CITROËN dealer.

PRACTICAL INFORMATION

82 -

CHANGING A BULB

Front lamps

To replace a dipped/main beam

headlamp or sidelamp bulb:

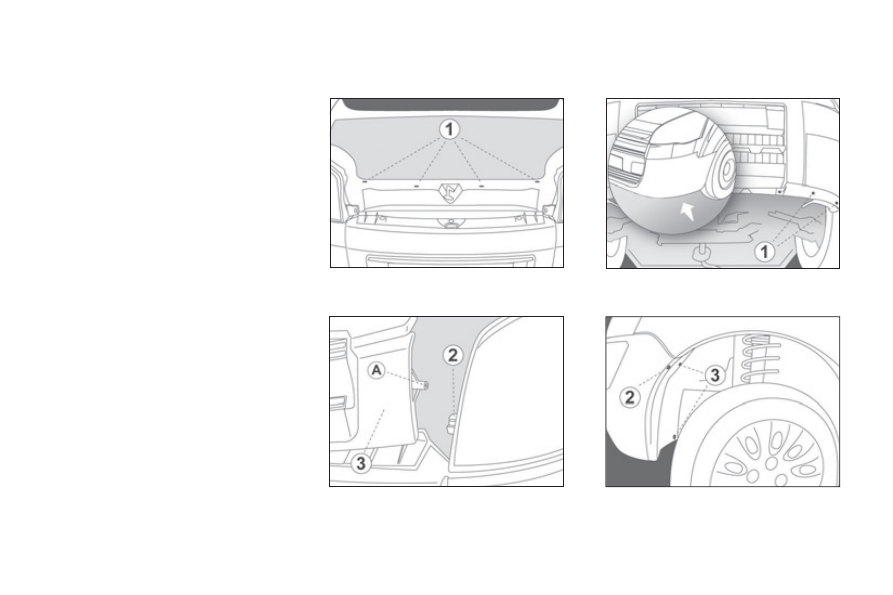

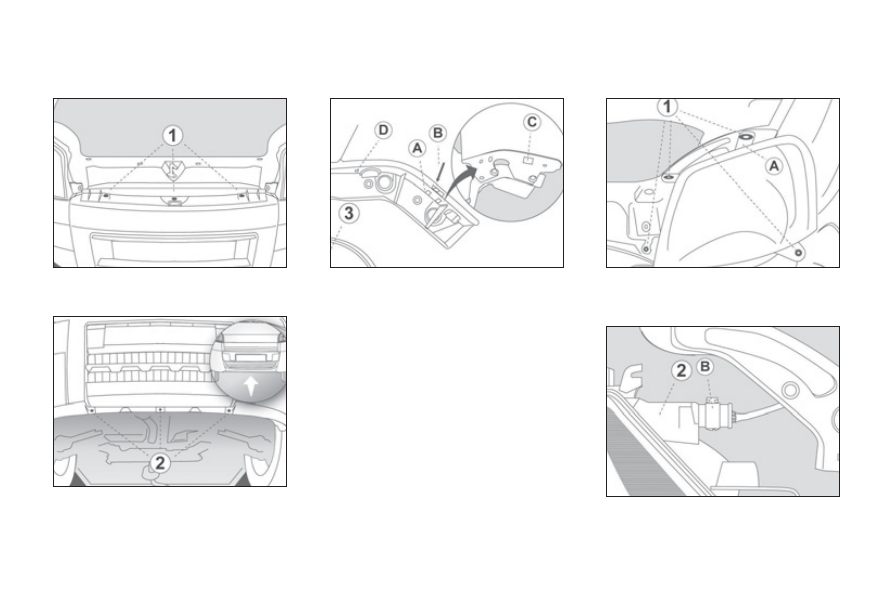

Remove the grille

Remove the screw ( 1 ).

Unclip the lug ( A ) of carrier ( 2 ) on

each side.

Remove the grille ( 3 ).

Partially remove the wheelarch liner

Remove the screws ( 1 ),

Remove the screw ( 2 ),

Remove the plastic pins ( 3 ).

PRACTICAL INFORMATION -

Partially remove the bumper

Remove the screws ( 1 ),

Remove the screws ( 2 ),

- Pull lightly on the side of the

bumper ( 3 ),

- Push in the direction of the ar-

row ( B ), on the latch ( A ), via the

opening ( C ),

- Maintain a light sideways pull on

the bumper,

- Push the bumper sharply for-

wards to release the clips at ( D ).

Remove the headlamp

Remove the screws ( 1 ),

Unclip the index pin on the head-

lamp ( A ),

- Disconnect the connector ( B ) on

the back of the headlamp,

Remove the headlamp ( 2 ).

PRACTICAL INFORMATION

84 -

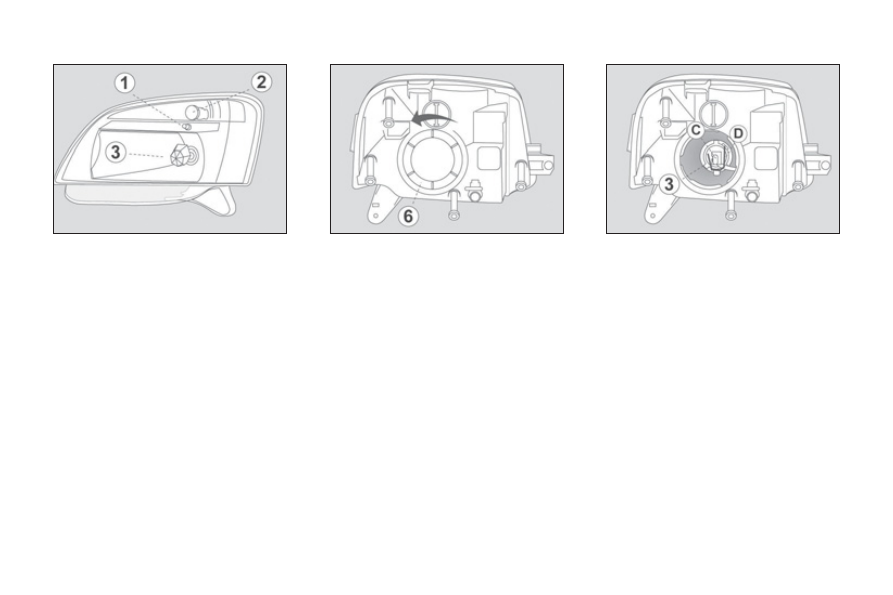

Dipped/Main beam headlamps

(H4-60/55W)
After following the procedure for re-

moval of the headlamp:

Turn and remove the protector ( 6 ),

Disconnect the connector ( C ),

Unclip the spring ( D ),

- Remove and replace the

bulb ( 3 ).

PRACTICAL INFORMATION -

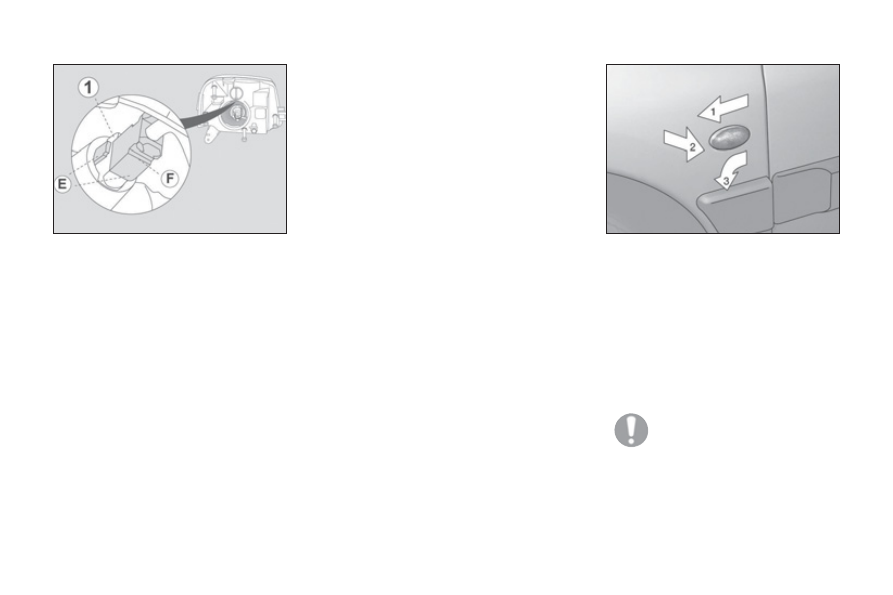

Sidelamps (W 5 W)
After following the procedure for re-

moval of the headlamp:
- Turn and remove the protec-

tor ( 6 ).

Unclip the the bulb holder ( E ).

Disconnect the connector ( F ).

- Remove and replace the

bulb ( 1 ).

Reassembly
Carry out the operations in reverse

order to reassemble. Check that the

lamps are working correctly.

Direction indicator side

repeaters (WY 5 W amber)

- Push the lens to the front or rear

and pull it out.

- Turn the bulb holder a quarter

turn.

Replace the bulb.

Amber coloured bulbs (di-

rection indicators and side

repeaters) must be replaced

by bulbs of the same rating

and colour.

PRACTICAL INFORMATION

86 -

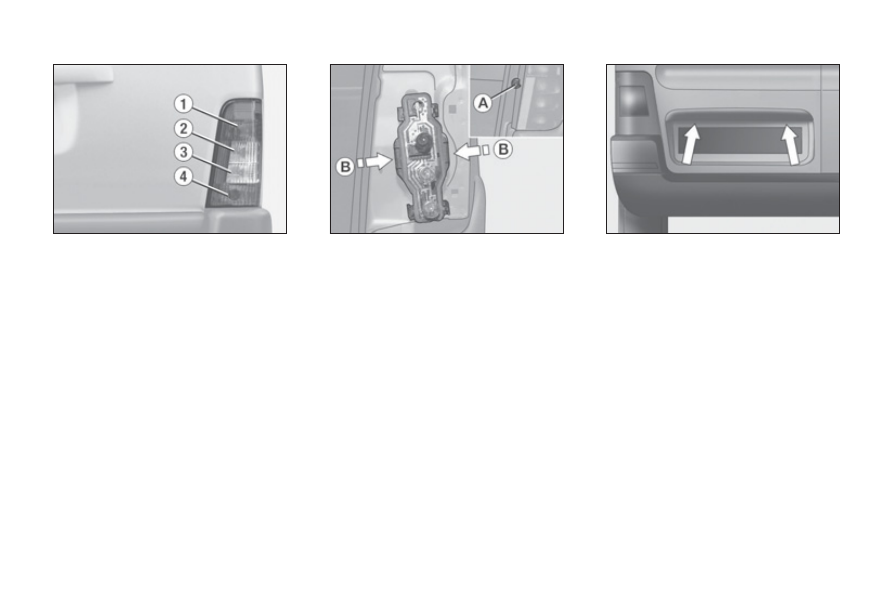

Open the rear door.

Unscrew the nut A .

Push the lamp unit gently towards

the interior of the vehicle to unclip

the two side retaining clips.

- Remove the lamp unit and dis-

connect it.

- Unclip the bulb holder by press-

ing the tabs B .

Change the faulty bulb.

Number plate lamps (W 5 W)

) Insert a thin screwdriver into one

of the external holes of the lens.

  )   Push it outwards to unclip it.
  )   Remove the lens.
  )   Change the failed bulb.

Rear lamps

   1.    Foglamp (P 21 W).
  2.    Direction indicators (P 21 W).
  3.    Reversing lamps (P 21 W).
  4.    Brake lamps/Sidelamps

(P 21/5 W).

High pressure washing: when us-

ing this type of washing on stubborn

dirt, do not persist on the headlamps,

the lamps and their edges to avoid

damaging their coating and seals.

PRACTICAL INFORMATION -

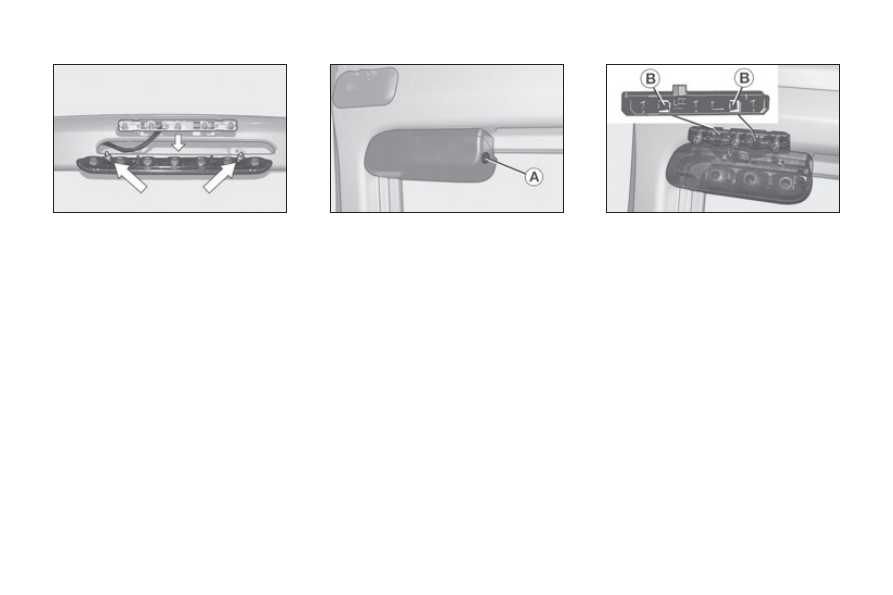

Third brake lamp (tailgate)

(W 5 W)

) With the tailgate open, unscrew

the two nuts.

) Unclip the carrier for access to

the bulbs.

) Change the failed bulb.

Third brake lamp (left rear

door) (W5W)

) Remove the housing cover by

pressing the tab A (round section)

at the end of the lamp.

) Pull the housing cover rear-

wards.

) Squeeze the two tabs

B to re-

move the bulb holder.

) Pull out the failed bulb and change it.
To refi t, proceed in the reverse order.

PRACTICAL INFORMATION

88 -

Removing and fi tting a fuse
Before changing a fuse, the cause

of the fault must be found and reme-

died. The fuse numbers are indicated

on the fusebox.
Use the tweezer B .

CHANGING A FUSE

The fuseboxes are located under the

dashboard and in the engine com-

partment.

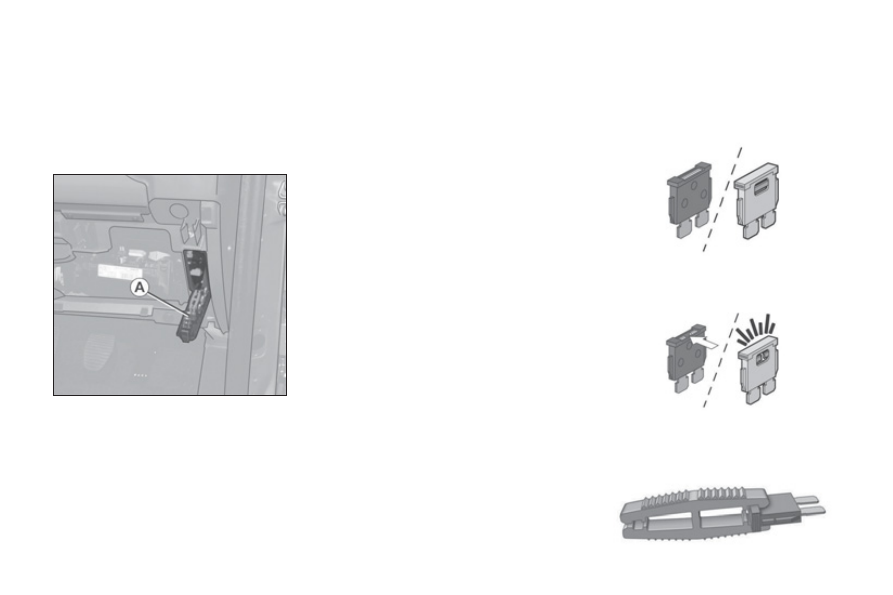

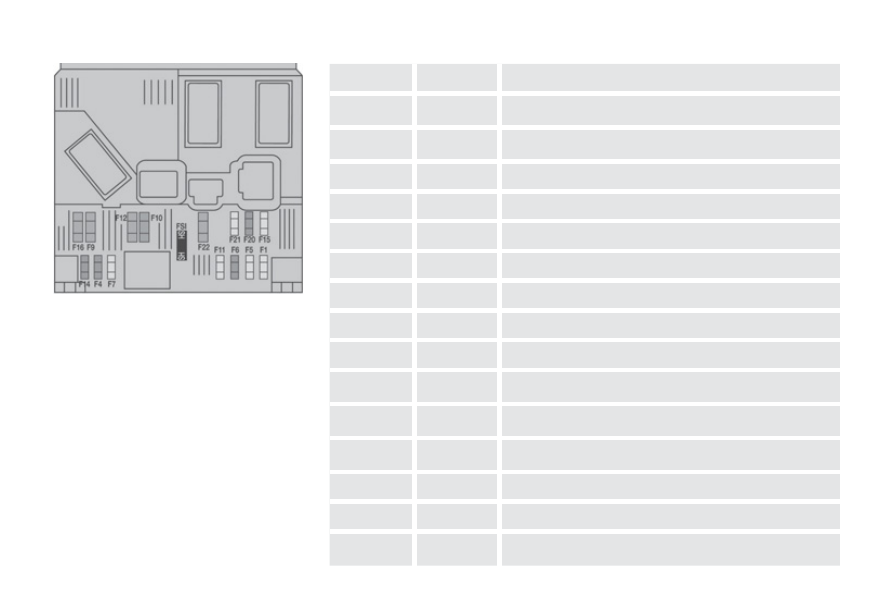

Dashboard fusebox

Unclip the cover to gain access to the

fuses.
The spare fuses and the tweezer B

are fi tted to the inside of the cover A .

Good

Failed

Tweezer B

Always replace a failed fuse with a fuse

of the same rating (two fuse types ac-

cording to manufacturer - see images).

PRACTICAL INFORMATION -

Fuse N°

Rating

Functions

15A

Rear wiper.

20A

Multifunction screen - Instrument panel -

Audio system - Steering mounted controls.

Not used.

10A

Diagnostic socket.

Not used.

30A

Heated seats.

40A

Rear window and door mirrors demisting.

15A

Rear wiper (tailgate).

30A

Front electric windows.

10A

Engine fusebox - Steering mounted controls.

15A

Instrument panel - Multifunction screen -

Audio system.

30A

Locking/unlocking controls for doors,

bonnet and boot.

10A

Right-hand brake lamp.

15A

Left-hand brake lamp.

20A

Front courtesy lamp - Map reading lamp -

Cigarette lighter - Electric mirror.

PRACTICAL INFORMATION

90 -

The electrical system of your vehicle is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories in your vehicle, consult a CITROËN dealer.
Some electrical accessories or the way in which they are fi tted may have an adverse effect on the operation of your

vehicle (its electronic control circuits, the audio system and the electrical charging circuit).
CITROËN declines any responsibility for expenses incurred through the repair of your vehicle or for any malfunctions

resulting from the installation of auxiliary accessories, not supplied and not recommended by CITROËN and not installed in

accordance with its instructions, in particular for any equipment the power consumption of which exceeds 10 milliamps.
The maxi fuses provide additional protection for the electrical systems. Any work on these fuses must be carried out by a

CITROËN dealer.

PRACTICAL INFORMATION -

Fuse N°

Rating

Functions

10A

Pre-heater unit (Diesel) - Brake and clutch

switches - Reversing lamps.

15A

Fuel pump.

10A

ABS control unit.

10A

Engine control unit.

Not used.

15A

Front foglamps.

20A

Headlamp wash pump.

20A

Fan assembly relay -

Engine control unit.

15A

Left-hand dipped beam.

15A

Right-hand dipped beam.

10A

Left-hand main beam.

10A

Right-hand main beam.

15A

Horn.

10A

Front and rear screen wash pumps.

30A

Oxygen sensor - Air fl ow sensor.

30A

Air pump relay.

30A

Front windscreen wiper.

40A

Air conditioning fan.

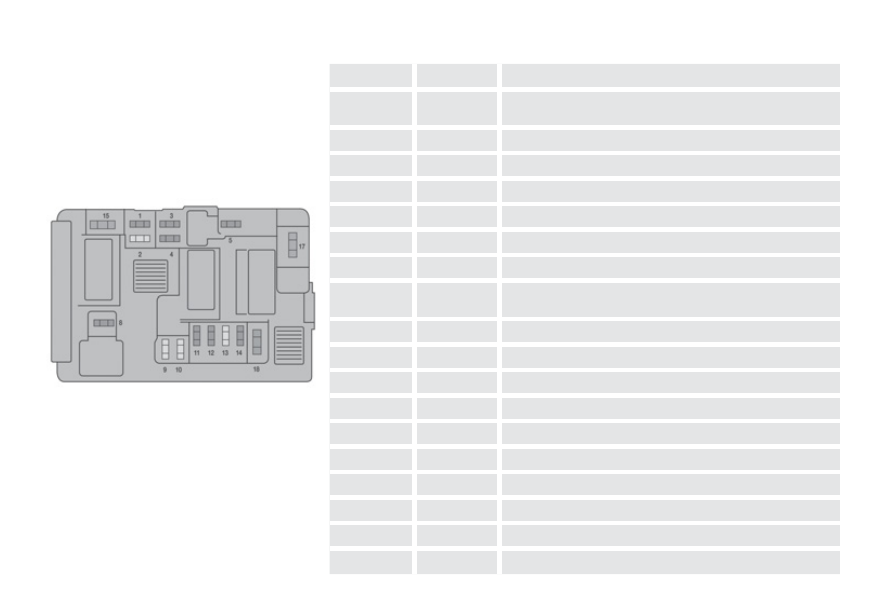

Engine compartment fusebox

To gain access to the box in the en-

gine compartment (next to the bat-

tery), unclip the cover.
After carrying out work, close the

cover carefully to ensure its sealing.

PRACTICAL INFORMATION

92 -

ECONOMY MODE FUNCTION

After the engine has stopped, with

the key in the "accessories" position,

certain functions (windscreen wiper,

electric windows, courtesy lights,

audio equipment, etc.) can only be

used for a combined duration of ap-

proximately thirty minutes, to prevent

discharging the battery.
Once the thirty minutes are over, a

switching to economy mode mes-

sage appears on the multi-function

display and the active functions are

put on standby.
These functions are reactivated au-

tomatically next time the vehicle is

driven.
In order to resume the use of these

functions immediately, the engine

must be started and left to run for a

few minutes.
The time available to you will then

be double the duration for which the

engine is left running. However, this

period will always be between fi ve

and thirty minutes.

BATTERY

It is advisable to disconnect the

battery if the vehicle is not to be

used for a period of more than

one month.

Before disconnecting the bat-

tery, you must wait 2 minutes

after switching off the ignition.
Never disconnect a terminal

when the engine is running.

Never charge a battery without fi rst

disconnecting the terminals.
Close the windows and the roof before

disconnecting the battery.
After every reconnection of the bat-

tery, switch on the ignition and wait

1 minute before starting to allow the

electronic systems to be initialised. If

slight diffi culties are experienced af-

ter this, please contact a CITROËN

dealer.

A fl at battery prevents the

engine from starting.

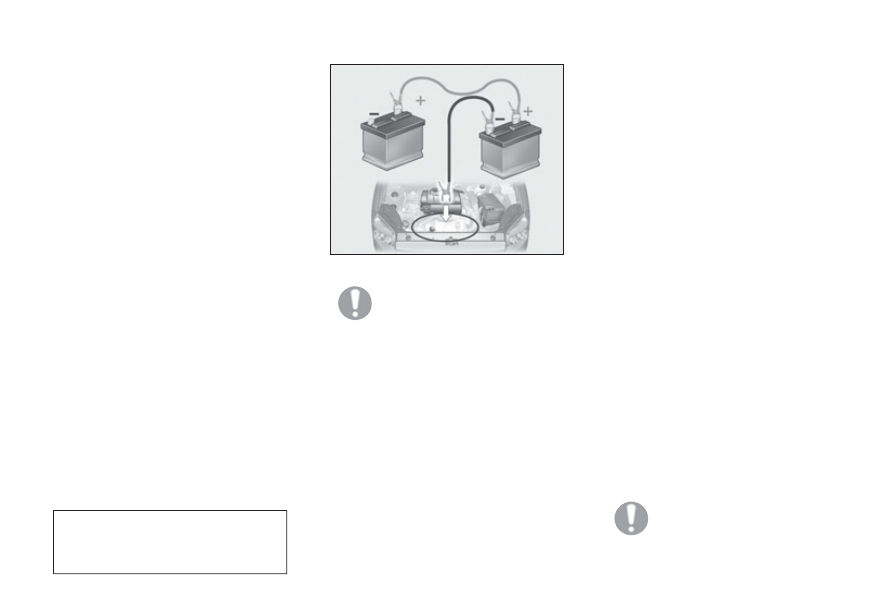

To start the vehicle from

another battery:

Connect the red cable to the posi-

tive (+) terminals of the two bat-

teries,

- Connect one end of the green or

black cable to the negative (-) ter-

minal of the slave battery,

- Connect the other end of the

green or black cable to an earth

point on the broken down vehi-

cle as far as possible from the

battery (for example, right-hand

engine mounting).

Operate the starter, let the engine run.
Wait for the engine to return to idle,

then disconnect the cables.

To charge the battery using a

battery charger:

Disconnect the battery,

- Follow the instructions for use

given by the battery charger man-

ufacturer,

Reconnect starting with the nega-

tive (-) terminal,

- Check that the terminals and

connectors are clean. If they are

covered with sulphate (white or

greenish deposit), disconnect

them and clean them.

PRACTICAL INFORMATION -

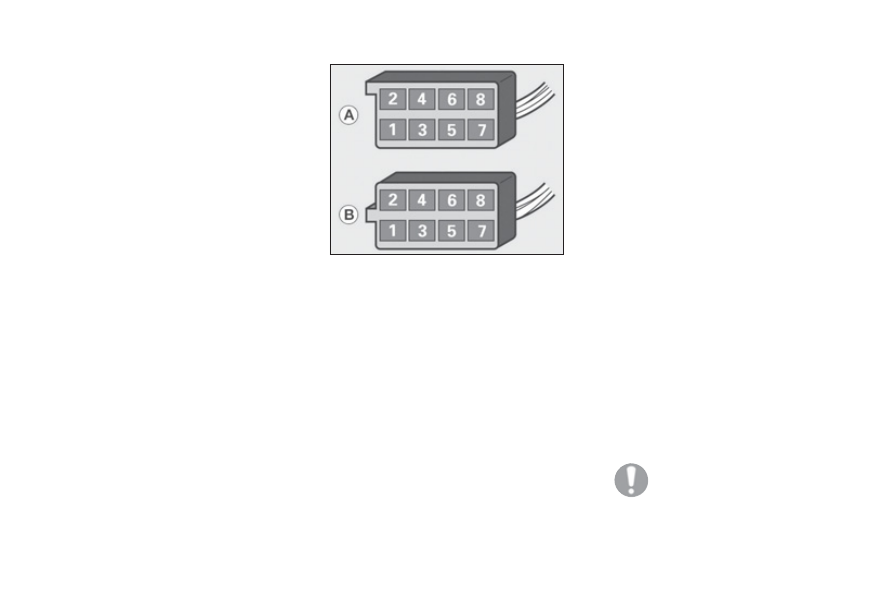

Making the connections
A1: -
A2: - Digital control (manufacturer)
A3: - Digital control (manufacturer)
A4: - Audio equipment multiplexing

(manufacturer)

A5: -
A6: (+) Accessories
A7: (+) Permanent
A8: (-) Earth
B1: (+) -
B2: (-) -
B3: (+) Front right speaker and

tweeter

B4: (-) Front right speaker and tweeter
B5: (+) Front left speaker and tweeter
B6: (-) Front left speaker and tweeter
B7: (+)
B8: (-)

FITTING SPEAKERS

The factory-fi tted equipment allows

the fi tting of:
- 35 mm diameter tweeters in the

fascia,

165 mm diameter speakers in the

front doors.

FITTING AUDIO EQUIPMENT

Your vehicle is equipped with certain

factory-fi tted audio equipment:
- roof

aerial,

coaxial aerial cable,

basic interference suppression,

- supply to front speakers and

tweeters,

two 8-way connectors.

Contact a CITROËN dealer

before fi tting audio equipment

or speakers in your vehicle.

PRACTICAL INFORMATION

94 -

SNOW SCREEN *

The snow screen is installed on the

lower part of the front bumper to pre-

vent the accumulation of snow at the

radiator cooling fan.
Remove the snow screen:
- when the exterior temperature is

higher than 10 °C,

- when

towing,

- for speeds higher than 75 mph

(120 km/h).

FITTING

) Offer up the snow screen facing

the front bumper.

) Put it in place positioning the lower

clips A in the bumper.

) Press the snow screen at each

upper clip B .

REMOVAL

) Press the two upper clips B and

pull the snow screen.

* As an accessory or according to country.

Content .. 4 5 6 7 ..
