Citroen Berlingo Dag (2011 year). Instruction

9.9

NAVIGATION - GUIDANCE

SELECTING A DESTINATION

Press the NAV button again or select

the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Destination input"

function and press the dial to

conﬁ rm.

Press the NAV button.

Select the letters of the town one

by one conﬁ rming each time by

pressing the dial.

Once the country has been selected,
turn the dial and select the town

function. Press the dial to conﬁ rm.

Insert the SD card in the front panel reader and leave it there to use the

Navigation functions.

The navigation SD card data must not be modiﬁ ed.
Map data updates are available from CITROËN dealers.

A pre-set list (by entering the ﬁ rst few letters) of the towns in the

country selected can be accessed via the LIST button on the virtual
keypad.

Select the "Address input" function

and press the dial to conﬁ rm.

The list of the last 20 destinations appears under the Navigation

Menu function.

Navigation Menu

Destination input

Address input

9.10

To clear a destination; from steps 1 to 3, select "Choose from last destinations".
A long press on one of the destinations displays a list of actions from which you can select:

Delete entry

Delete list

Repeat steps 5 to 7 for the "Street"

and "House number" functions.

Turn the dial and select OK.

Press the dial to conﬁ rm.

Select the "Save to address book" function to record the address

entered in a directory ﬁ le. Press the dial to conﬁ rm the selection.

MyWay allows up to 500 contact ﬁ les to be recorded.

To speed up the process, the post code can be entered directly

after selecting the "Postal code" function.

Use the virtual keypad to enter the letters and digits.

Then select "Start route guidance"

and the press the dial to conﬁ rm.

During guidance, pressing the end

of the lighting stalk repeats the last

guidance instruction.

Map settings
You can zoom in/zoom out on the map using the dial.
It is possible to move the map or select its orientation via the short-

cut menu of the FULL SCREEN MAP.

Press MODE until the map is displayed full screen. Press the dial

then select "Map settings". Select "2.5D Map" or "2D Map" and in

the latter case, select "North Up" or "Heading Up".

Select the route type:
"Fast route", "Short route" or "Optimized route" and press the dial

to conﬁ rm.
It is also possible to select a destination via "Choose from address
book" or "Choose from last destinations".

Choose from last destinations

Choose from address book

Start route guidance

NAVIGATION - GUIDANCE

9.11

NAVIGATION - GUIDANCE

SETTING AND NAVIGATING TO MY
"HOME ADDRESS"

Press the NAV button twice to display

the Navigation Menu.

To be set as the "Home address", an address must ﬁ rst be

entered in the address book, for example from "Destination

input"/"Address input" then "Save to address book".

Select "Address book" and conﬁ rm.

Then select "Search entry (complete

address book)" and conﬁ rm.

Select "Destination input" and conﬁ rm.

Then select "Choose from address

book" and conﬁ rm.

Select "Set as home address" and

conﬁ rm to save.

Select your home address and conﬁ rm.

Then select "Edit entry" and conﬁ rm.

To start navigation towards "Home address", press NAV twice

to display the Navigation Menu, select "Destination input" and

conﬁ rm.

Then select "Navigate HOME" and conﬁ rm to start guidance.

Navigation Menu

Destination input

Address book

Edit entry

Set as "Home address"

9.12

NAVIGATION - GUIDANCE

ROUTE OPTIONS

Select the "Route dynamics"
function.
This function gives access to the

"Trafﬁ c independent" or "Semi-

dynamic" options.

Select the "Avoidance criteria"
function. This function provides

access to the AVOID options

(motorways, toll roads, ferries).

Turn the dial and select the
"Recalculate" function to take into
account the route options selected.

Press the dial to conﬁ rm.

Press the NAV button.

Press the NAV button again or select

the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Route type" function

and press the dial to conﬁ rm. This

function allows you to change the

route type.

Select the "Route options" function

and press the dial to conﬁ rm.

Recalculate

Avoidance criteria

Route dynamics

Route type

Route options

Navigation Menu

The route selected by the MyWay system depends directly on the route
options.
Changing these options may change the route completely.

9.13

ADDING A STOPOVER

Once the new address has been

entered, select OK and press the dial

to conﬁ rm.

Select "Recalculate" and press the

dial to conﬁ rm.

Press the NAV button.

Press the NAV button again or select

the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Add stopover" function

(5 stopovers maximum) and press

the dial to conﬁ rm.

Select the "Stopovers" function and

press the dial to conﬁ rm.

Address input

Add stopover

Stopovers

Navigation Menu

Recalculate

The stopover must be completed or deleted in order for the

guidance to continue to the next destination. Otherwise, the

MyWay will always return you to the previous stopover.

Stopovers can be added to the route once the destination has been
selected.

NAVIGATION - GUIDANCE

9.14

NAVIGATION - GUIDANCE

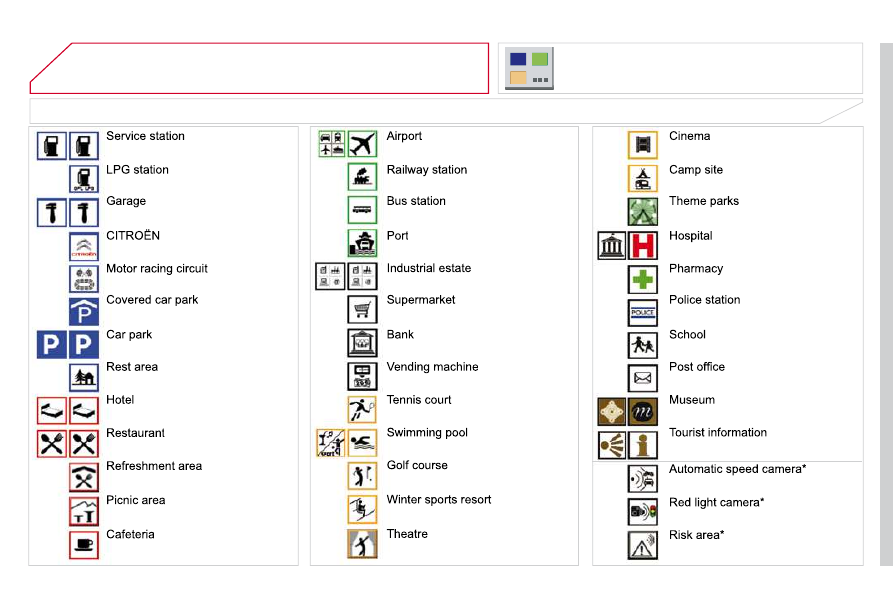

SEARCHING FOR POINTS OF INTEREST
(POI)

Press the NAV button.

Press the NAV button again or select

the Navigation Menu function and

press the dial to conﬁ rm.

Select the "POI nearby" function to

search for POIs around the vehicle.

Select the "POI search" function and

press the dial to conﬁ rm.

Navigation Menu

POI search

POI nearby

Select the "POI in city" function to

search for POIs in the city required.

Select the country then enter the

name of the city using the virtual

keypad.

Select the "POI near route" function

to search for POIs near the route.

Select the "POI in country" function

to search for POIs in the country

required.

Select the "POI near destination"

function to search for POIs near the

point of arrival of the route.

POI near destination

POI near route

POI in country

POI in city

A list of cities present in the country selected can be accessed via
the LIST button on the virtual keypad.

The points of interest (POI) indicate all of the service locations in the

vicinity (hotels, various businesses, airports...).

9.16

NAVIGATION SETTINGS

Select "Set parameters for risk

areas" for access to the "Display

on map", "Visual alert" and "Sound
alert" functions.

Select the "POI categories on Map"

function to select the POIs to be

displayed on the map by default.

Press the NAV button.

Press the NAV button again or select

the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Settings" function and

press the dial to conﬁ rm.

POI categories on Map

Settings

Set parameters for risk areas

Navigation Menu

NAVIGATION - GUIDANCE

Select the "Navi volume" function
and turn the dial to set the volume

of each voice synthesiser (trafﬁ c

information, alert messages…).

Navi volume

The adjustment of the volume for the Risk Areas POIs is used only

during the transmission of an alert.

UPDATING THE RISK AREAS POIs
(Speed camera information)

Contact a CITROËN dealer for the procedure to follow to obtain

the RISK AREA POIs.

This requires an SDHC (High Capacity) compatible reader.

To activate or deactivate vocal guidance, with guidance active and

the map displayed on the screen, press the dial and then select or
deselect "Voice advice".

Voice advice

9.17

TRAFFIC INFORMATION

CONFIGURE THE FILTERING AND
DISPLAY OF TMC MESSAGES

Then select the radius of the ﬁ lter in

miles (km) required in accordance

with the route, press the dial to

conﬁ rm.

When all of the messages on the

route are selected, the addition of a

geographical ﬁ lter is recommended

(within a radius of 3 miles (5 km) for

example) to reduce the number of

messages displayed on the map.

The geographical ﬁ lter follows the

movement of the vehicle.

The ﬁ lters are independent and their results are cumulative.

We recommend a ﬁ lter on the route and a ﬁ lter around the vehicle

of:
- 2 miles (3 km) or 3 miles (5 km) for a region with heavy trafﬁ c,

- 6 miles (10 km) for a region with normal trafﬁ c,

- 30 miles (50 km) for long journeys (motorway).

Press the TRAFFIC button again or

select the Trafﬁ c Menu function and

press the dial to conﬁ rm.

Press the TRAFFIC button.

TMC (Trafﬁ c Message Channel) messages contain information on

trafﬁ c and weather conditions, received in real time and transmitted to

the driver in the form of audible announcements and symbols on the

navigation map.

The navigation system can then suggest an alternative route to avoid a

trafﬁ c problem.

Select the "Geo. Filter" function and

press the dial to conﬁ rm.

Messages on route

The list of TMC messages appears under the Trafﬁ c Menu sorted

in order of proximity.

All warning messages

Trafﬁ c Menu

Select the ﬁ lter of your choice:

Only warnings on route

All messages

The messages appear on the map

and on the list.
To exit, press ESC.

Geo. Filter

9.18

PRINCIPAL TMC SYMBOLS

With the current audio source
displayed on the screen, press the
dial.

The shortcut menu for the source appears and gives access to:

Select Trafﬁ c Announcements (TA)

and press the dial to conﬁ rm and go

to the associated settings.

- the station transmits TA messages.

RECEIVING TA MESSAGES

Red and yellow triangle: trafﬁ c information, for example:

Black and blue triangle: general information, for example:

TRAFFIC INFORMATION

The TA (Trafﬁ c Announcement) function gives priority to TA alert

messages. To operate, this function needs good reception of a

radio station transmitting this type of message. When a trafﬁ c

report is transmitted, the current audio source (Radio, CD, ...) is

interrupted automatically to play the TA message. Normal playback

of the audio source resumes at the end of the transmission of the

message.

- the station does not transmit TA messages.
- TA messages are not activated.

9.19

SELECTING A STATION

When the current radio station is
displayed on the screen, press the
dial.

The radio source short-cuts menu appears and provides access to

the following short-cuts:

Select the function required and

press the dial to conﬁ rm to gain

access to the corresponding settings.

RDS, if displayed, allows you to continue listening to the same

station by automatic retuning to alternative frequencies. However,

in certain conditions, coverage of an RDS station may not be

assured throughout the entire country as radio stations do not

cover 100 % of the territory. This explains the loss of reception of

the station during a journey.

The external environment (hill, building, tunnel, underground car park...)

may interfere with the reception, including in RDS following mode. This

phenomenon is a normal result of the way in which radio waves are
transmitted and does not in any way indicate a failure of the audio equipment.

RDS - REGIONAL MODE

Press the RADIO button to display

the list of stations received locally
sorted in alphabetical order.
Select the station required by turning

the dial and press to conﬁ rm.

Regional prog.

Radiotext

RDS

While listening to the radio, press one of the

buttons to select the previous or next station on
the list.

Press one of the buttons on the numeric keypad for more than

2 seconds to store the current station.
Press the button on the numeric keypad to recall the stored radio

station.

A long press of one of the buttons starts the

automatic search for a station with a lower or

higher frequency.

RADIO

9.20

07 MUSIC MEDIA PLAYERS

CD, MP3/WMA CD
INFORMATION AND ADVICE

In order to be able to play a recorded CDR or CDRW, when

recording it is preferable to select the ISO 9660 level 1, 2 or Joliet

standard.
If the disc is recorded in another format it may not be played
correctly.
It is recommended that the same recording standard is always

used for an individual disc, with as low a speed as possible

(4x maximum) for optimum sound quality.

In the particular case of a multi-session CD, the Joliet standard is

recommended.

The MyWay will only play audio ﬁ les with the extension ".mp3"

with a speed of between 8 Kbps and 320 Kbps and the extension

".wma" with a speed of between 5 Kbps and 384 Kbps.

It also supports the VBR (Variable Bit Rate) mode.

No other type of ﬁ le (.mp4, .m3u...) can be played.

The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio Layer 3

and the WMA format, an abbreviation of Windows Media Audio and
the property of Microsoft, are audio compression standards which

permit the recording of several tens of music ﬁ les on a single disc.

It is advisable to restrict ﬁ le names to 20 characters, without using

special characters (e.g.: " " ? ; ù) to avoid any play or display

problems.

9.21

SELECTING/PLAYING MUSIC
CD, MP3/WMA CD

The playing and displaying of an MP3/WMA compilation may

depend on the recording programme and/or the settings used. We

recommend the ISO 9660 ﬁ le standard.

Press the MUSIC button.

Select the "Select music" function

and press the dial to conﬁ rm.

Press the up or down button to select

the next/previous folder.

Select the music source required:

CD, MP3/WMA CD. Press the dial to

conﬁ rm. Play begins.

Select music

Press the MUSIC button again or

select the Music Menu function and

press the dial to conﬁ rm.

Press one of the buttons to select a

music track.
Press and hold one of the buttons for

fast forward or rewind play.

Music Menu

The list of tracks or MP3/WMA ﬁ les appears under Music Menu.

MUSIC MEDIA PLAYERS

9.22

MUSIC MEDIA PLAYERS

Connect the portable device (MP3/

WMA player…) to the audio sockets

(white and red, RCA type) using a

JACK/RCA audio cable.

Press the MUSIC button then

press it again or select the Music

Menu function and press the dial to

conﬁ rm.

Select the AUX music source and

press the dial to conﬁ rm. Play begins

automatically.

Select the "External device" function

and press the dial to activate it.

External device

The display and management of the controls is on the portable

device.

USING THE EXTERNAL INPUT (AUX)
AUDIO JACK-RCA CABLE NOT SUPPLIED

Music Menu

9.23

* The services available depend on the network, the SIM card and the

compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you. A list of mobile telephones with the best level of
compatibility is available from the dealer network.

BLUETOOTH TELEPHONE

CONNECTING A TELEPHONE

For reasons of safety and because they require prolonged attention

on the part of the driver, the operations for pairing the Bluetooth

mobile telephone to the hands-free system of the MyWay must be

carried out with the vehicle stationary. The ignition must be on.

Activate the telephone's Bluetooth function.
The last telephone connected is reconnected
automatically.

Enter the authentication code on the telephone.

The code to be entered is displayed on the
screen.

To change the telephone connected,

press the PHONE button, then select

Phone Menu and press the dial to

conﬁ rm.

Once the telephone has been connected, MyWay can synchronise
the address book and the call list. This synchronisation may take a

few minutes * .

Select "Connect phone". Select the

telephone and press to conﬁ rm.

The list of telephones connected previously (4 maximum) appears

on the multifunction screen. Select the telephone required for a new
connection.

Press the PHONE button.

For a ﬁ rst connection, select

"Search phone" and press the dial to

conﬁ rm. Then select the name of the

telephone.

Search phone

Connect phone

9.24

to refuse and conﬁ rm by pressing

the dial.

RECEIVING A CALL

MAKING A CALL

An incoming call is announced by a ring and a superimposed

display on the multifunction screen.

Yes

To hang up, press the PHONE button

or press the dial and select "End call"

then conﬁ rm by pressing the dial.

End call

Press the PHONE button.

Select "Dial number", then dial the

telephone number using the virtual

keypad.

Select the Phone Menu function and

press the dial to conﬁ rm.

The list of the last 20 calls made and received in the vehicle

appears under Phone Menu. You can select a number and press

the dial to make the call.

It is also possible to select a number from the address book. You

can select "Dial from address book". The MyWay can record up to

4 000 entries.
Press the end of the steering mounted control for more than two

seconds to gain access to the address book.

Phone Menu

Dial number

To delete a number, press the PHONE button then press and hold

on a call number to display a list of actions including:

Delete entry

Delete list

BLUETOOTH TELEPHONE

Press the end of the steering mounted control to

accept the call or end the call in progress.

Citroen Berlingo Dag (2011 year). Instruction - part 12
