Steering wheel controls

Switching the function off

Place the dial in position 0 or switch off
the ignition to switch the system off.

The last programmed speed remains in the
memory.

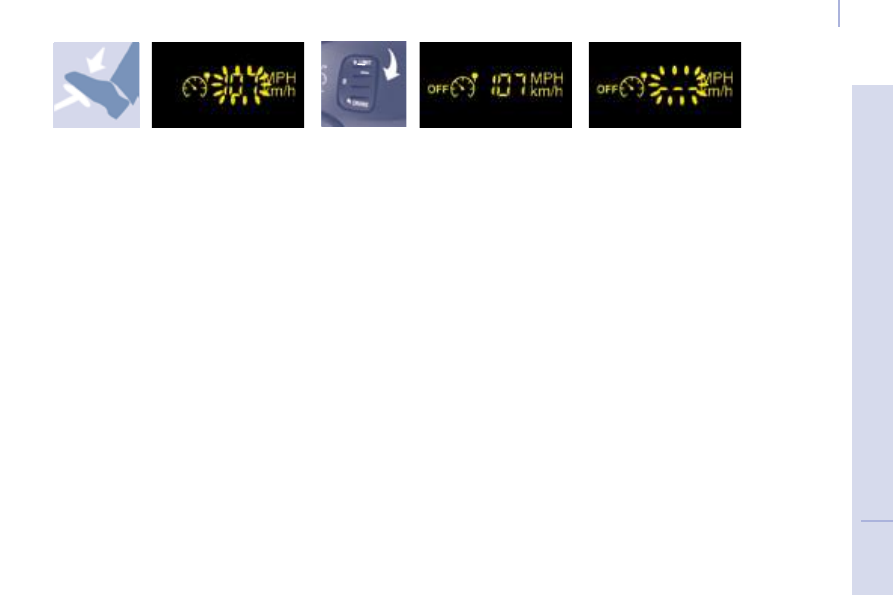

Exceeding the programmed speed

Pressing the accelerator pedal in order to
exceed the programmed speed will have
no effect unless you press the pedal firmly
beyond the point of resistance .

The limiter is deactivated temporarily and
the programmed speed flashes.

Good practice

Operating fault

The programmed speed is cleared then
replaced by three dashes.

Contact a CITROËN dealer to have the
system checked.

Flashing of the speed

The speed flashes:

following forcing of the accelerator point
of resistance,

when the limiter cannot prevent an
increase in the vehicle speed due to the
profile of the road or on a steep descent,

in the event of sharp acceleration.

To return to the limiter function, reduce your
speed to below the programmed speed.

In any event, the speed limiter cannot
replace the need to observe speed limits,
nor can it replace the need for vigilance and
responsibility on the part of the driver.

Always pay attention to the profile of the
road and sharp acceleration and stay in
complete control of your vehicle.

To avoid any jamming under the pedals:

ensure that the mat and its fixings on the
floor are positioned correctly,

never place one mat on top of another.

Ventilation

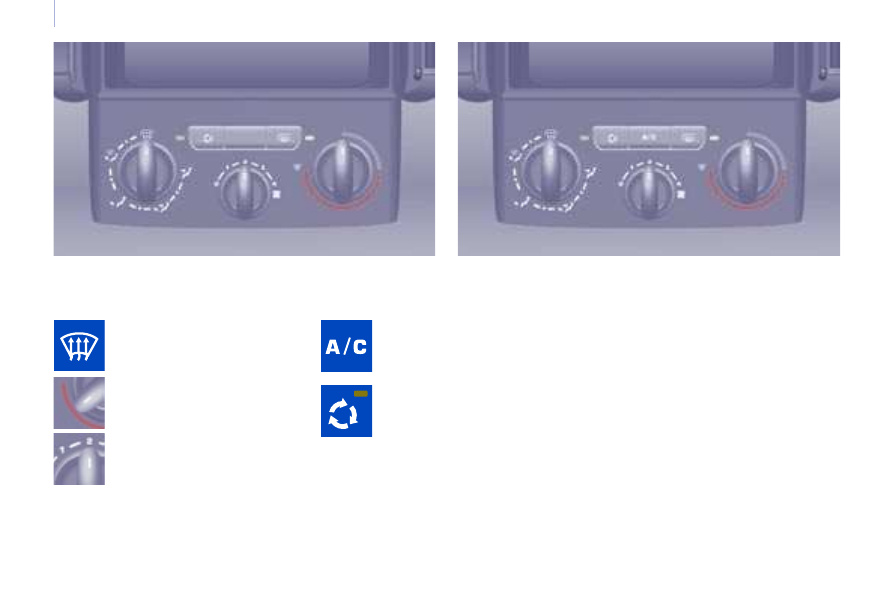

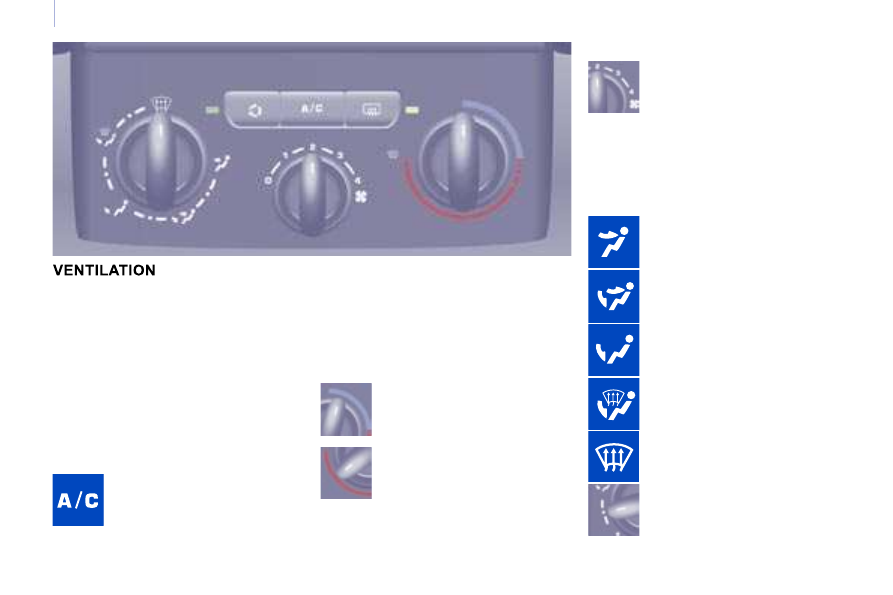

WITH MANUAL ADJUSTMENT

If your vehicle is fitted with these controls,
they are located on the control panel of the
fascia centre console.

Air distribution

The air supply distribution is directed by the
control turned towards:

the side vents and the central
vents,

the side vents, the central vents
and the footwells,

the footwells,

the windscreen and the footwells,

Air flow

The air conditioning does not operate if the
air flow is set to 0 .

The air distribution can be
modulated by placing the control
in the intermediate positions,
marked " ".

Air conditioning A/C

If fitted on your vehicle, the air conditioning
can only operate with the engine running.

Pressing the button triggers the
operation of the air conditioning,
the diode is lit. Pressing the
button again switches the function
off and the diode is switched off.

Temperature adjustment

Control positioned:

- in the blue zone, triggers cool

air,

- in the red zone, triggers

heating of the interior ambient
air.

The force of the blown air, from the
vents, varies from 1 to the strongest
4 . Position 0 switches it off.

Remember to adjust this control in

order to reach the ambient air comfort level.

the windscreen.

Ventilation

Intake of exterior air

Recommended settings

For optimum operation of the manual system, the settings below are recommended:

The diode on the button is off.
This is the preferred operating

The diode on the button is lit.
Recirculation temporarily prevents
exterior odours and smoke
from entering the passenger

compartment.

Used with the air conditioning switched on
and setting of the force of blown air (from
1 to 4), recirculation enables you to obtain
the required ambient air comfort level more
quickly with both hot or cold settings.

This position should only be temporary.

When your ambient air comfort level has
been reached, return to the intake of exterior
air position to permit renewal of the air in the
passenger compartment and avoid misting.
This operating mode is preferable.

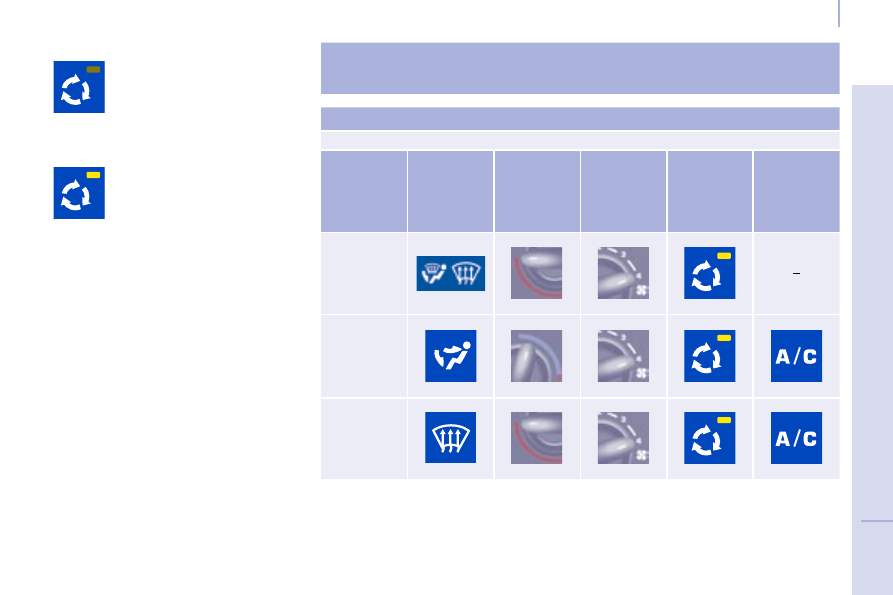

If I require...

Air

distribution

Temperature

Air flow

Air

recirculation

Air

conditioning

A/C

Heating

–

Cooling

De-icing

Demisting

Recirculation of interior air

Ventilation

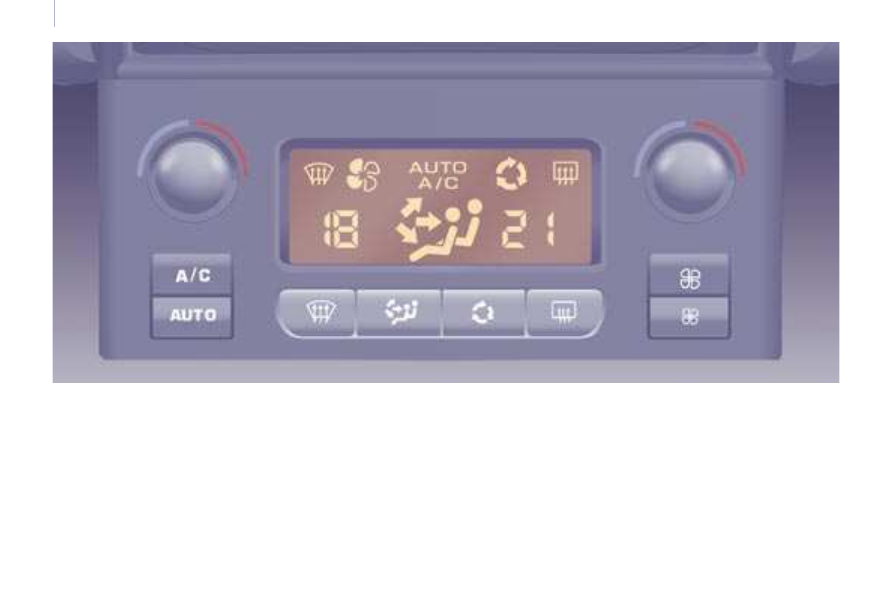

AUTOMATIC AIR CONDITIONING WITH SEPARATE ADJUSTMENTS

Good practice

For maximum cooling or heating of the
passenger compartment, it is possible to exceed
the value 15 by turning until LO is displayed or
the value 27 by turning until HI is displayed.

For optimum comfort, the difference between
the value displayed for the driver and for the
passenger should not be greater than 3.

If your vehicle is fitted with this control
panel, it is located on the centre console.

On entering the vehicle, the inside
temperature may be much colder (or
warmer) than is comfortable. There is no
advantage in changing the value displayed
in order to quickly reach the level of comfort
required. The system will use its maximum
performance to reach the comfort value set.

Ventilation

Driver or passenger side comfort value

The value indicated on the display
corresponds to a level of comfort and not a
temperature in degrees Celsius or Fahrenheit.

Automatic operation

Do not cover the sunshine sensor,
located on the windscreen behind the

mirror, it is used for regulation of the air
conditioning.

AUTO comfort programme

This is the normal air conditioning system
operating mode.

Press this button, the AUTO
symbol is displayed.
In accordance with the comfort
value selected, the system controls

the distribution, the ﬂ ow and the intake of air to

guarantee comfort and a sufﬁ cient circulation
of air in the passenger compartment. No
further action on your part is required.

When the engine is cold, to prevent an
excessive diffusion of cold air, the ventilation
will reach its optimum level gradually.

For your comfort, the settings are stored when
the ignition is switched off and are reinstated
the next time the vehicle is started, if the
temperature in the passenger compartment
has not changed signiﬁ cantly; otherwise,
operation resumes in automatic mode.

Turn this control to the left or to
the right to decrease or increase
the value. A setting around the
value 21 provides optimum

comfort. However, depending on your
requirements, a setting between 18 and 24
is usual.

Ventilation

Air flow

Press the small fan button to
reduce the flow or the large fan
button to increase the flow.

On the display, the blades of the

fan darken when the flow is increased.

Manual operation

You can, according to your requirements,
make a different selection from that offered
by the system by changing a setting.
The other functions will still be controlled
automatically. Pressing the AUTO button
restores fully automatic operation.

Intake of exterior air/
Recirculation of interior air

Press this button to recirculate
the interior air. The recirculation
symbol is displayed.

Recirculation prevents exterior odours
and smoke from entering the passenger
compartment. Avoid prolonged operation
in interior air recirculation mode (risk of
condensation, odour and humidity).

Pressing this button again activates the
intake of exterior air.

Air distribution

Pressing this button several times
in succession directs the air flow
towards:

the windscreen,

the windscreen and footwells,

the footwells,

the side vents, central vents and
footwells,

the side vents and central vents.

Deactivating the system

Press the air flow small fan button
until the fan symbol disappears.

This action deactivates all of the

system's functions, with the exception of the
air recirculation and rear screen demisting (if
fitted on your vehicle). Your comfort setting
is no longer maintained and is switched off.

For your comfort, do not deactivate the
system for long periods.

Pressing the  large fan  button or
the  AUTO  button reactivates the
system with the values set before
it was deactivated.

Switching the air conditioning
On/Off

Press this button, the A/C symbol is
displayed and the air conditioning
is activated.

Pressing this button again switches off the
air cooling.

Ventilation

CORRECT USE OF THE
VENTILATION AND AIR
CONDITIONING

Vents

"Leave them open"

For optimum distribution and diffusion of hot
or cool air in the passenger compartment,
there are adjustable central and side vents
which can be directed sideways (right or
left) towards the top of the body. For your
comfort while driving, do not close them,
direct the flow of air towards the windows
instead.

The air vents directed towards the floor of
the vehicle complete the equipment.

Passenger compartment filter,
carbon filter

Ensure that this filter is in good condition
and have all of the filter elements replaced
regularly.

Refer to the "Checks" section of chapter 7.

Air conditioning

In all seasons, if ﬁ tted on your vehicle, the
air conditioning should only be used with
the windows closed. However, if the interior
temperature remains high after a prolonged
period parked in the sun, do not hesitate to
ventilate the passenger compartment for a few
minutes.

If your vehicle is fitted with automatic
air conditioning, use the AUTO

mode as much as possible as it permits
optimised control of all of the functions:
air flow, passenger compartment comfort
temperature, air distribution, air intake
mode or air recirculation in the passenger
compartment.

Operate the air conditioning system for 5 to
10 minutes, once or twice a month, to keep
it in perfect working order.

It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.

If the system does not produce cold air, do
not use it and consult a CITROËN dealer .

Ventilation

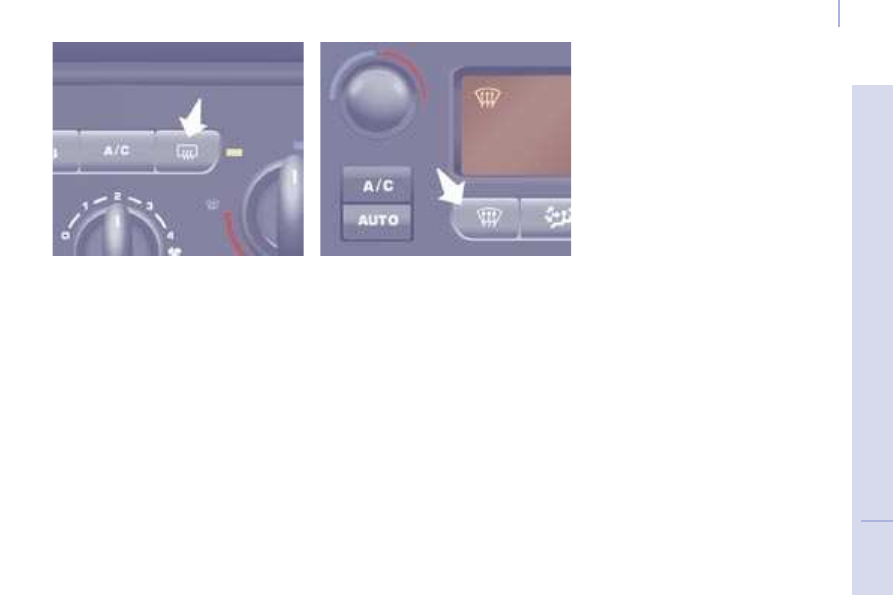

Pressing this button, with the engine running,
activates the rapid demisting - de-icing of the
rear screen and/or electric mirrors.

This function switches off:

when the button is pressed,

when the engine is switched off,

automatically to prevent excessive
energy consumption.

De-icing the rear screen and/or
mirrors

Automatic air conditioning: visibility
programme

The comfort programme (AUTO) may not
be sufficient to quickly demist or de-ice the
windows (humidity, several passengers, ice).

In this case, select the visibility programme.
The visibility programme indicator light
comes on.

It activates the air conditioning, the air flow,
the de-icing of the rear screen and provides
optimum distribution of the ventilation to the
windscreen and side windows.

It deactivates the air recirculation.

Ventilation

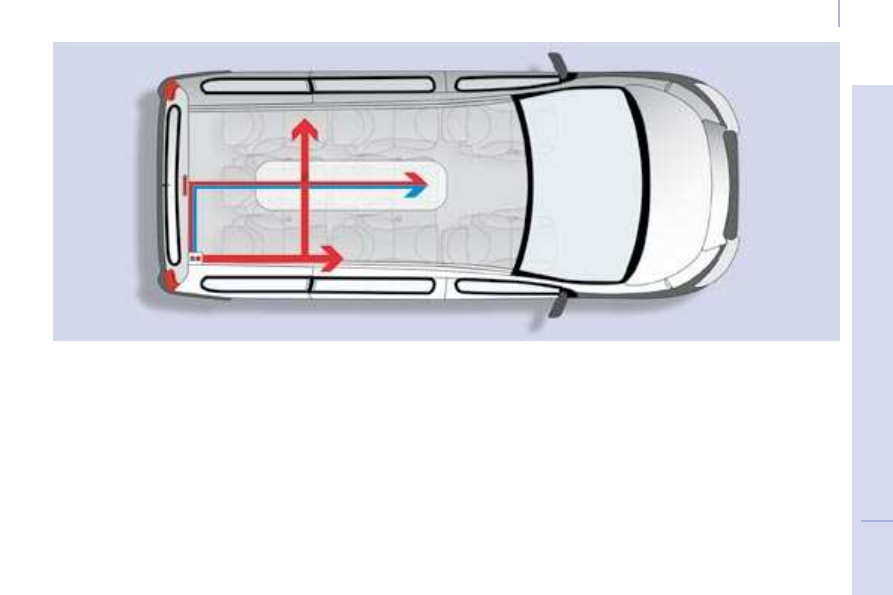

REAR VENTILATION

If your vehicle is fitted with an additional air
conditioning unit, located in the rear of the
vehicle. The distribution rail located in the
roof and the 6 individualised diffusion vents
provide a perfect diffusion of the ambient air
selected.

The warm air diffused at the floor, from the
front air conditioning unit, is distributed
at the feet of the rear passengers of the
2nd row.

A warm air diffusion vent, located on the
specific unit, completes the assembly for the
feet of the rear passengers of the 3rd row.

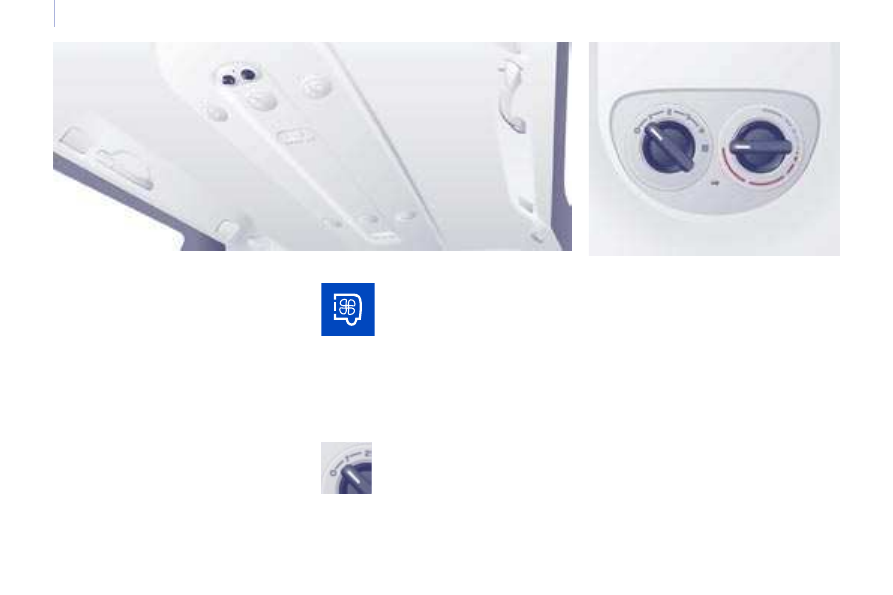

Temperature adjustment

Control positioned:

on the blue, triggers cool air,

on the red, triggers heating of the
ambient air.

Activation/Deactivation

Air flow

The force of the blown air, via
the vents, varies from 1 to the
strongest 4 .

To obtain a comfortable level of

ambient air, remember to adjust this control.

To deactivate the blower, place the control in
position 0 .

This button, located on the
overhead storage unit, enables
you to activate/deactivate the
operation of the rear controls from

the driver's seat or the front passenger seat.

The first press activates (green diode lit).

A second press deactivates (diode off).

Ventilation

ADDITIONAL HEATING

Vehicles fitted with an HDi engine may be
fitted with a heater. When the engine is at
idle or the vehicle is stationary, it is normal
to notice a high-pitched whistling noise and
a slight emission of smoke and odour.

Rear ventilation

Coolant circuit heater

This is an additional and autonomous
system which heats the diesel engine hot
coolant loop to make starting easier.

It improves the de-icing and demisting
performance.

Ventilation

Have the heater checked at least
once a year at the beginning of winter.

Maintenance and repairs should only be
carried out by a CITROËN dealer.
Use recommended replacement parts only.

Good practice

To avoid any risk of poisoning or
asphyxiation, the heater must not be used,
even for short periods, in an enclosed space
such as a garage or workshop which is not
fitted with an exhaust gas extraction system.

Do not park the vehicle on an inflammable
surface (dry grass, dead leaves, paper…),
there is a risk of fire.

The temperature near the heater must not
exceed 120 °C. A temperature higher than
this (for example in the case of painting in
an oven) could damage the components of
the electronic circuits.

The heater is supplied by the vehicle's fuel
tank. Ensure that the fuel gauge indicator
light is not at reserve.

Seats

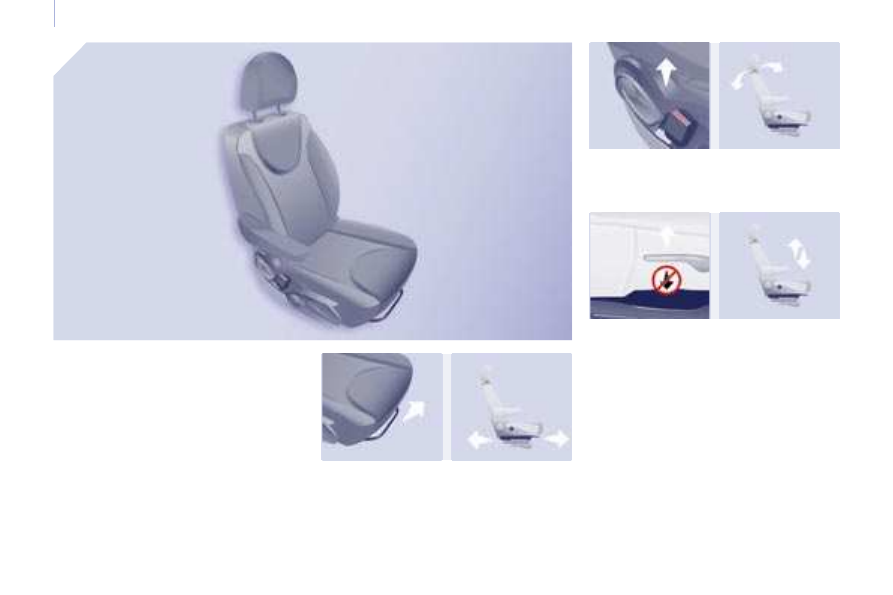

FRONT SEATS

Depending on the version and configuration
of your vehicle, different front seats are
fitted, either:

a driver's seat and a passenger seat,

an individual driver's seat and a two-
seat passenger bench.

3 - Driver's seat height adjustment

Depending on the version and configuration
of your vehicle, you have either:

a passive adjustment: pull the handle
upwards then take your weight off the
seat to raise, or push on the seat to
lower,

2 - Seat back angle adjustment

Pull the lever upwards and set the required
angle.

1 - Forwards/backwards adjustment

Lift the bar and slide the seat forwards or
backwards.

Depending on the models, the following
adjustments are available:

Seats

an active adjustment: manoeuvre the
handle upwards or downwards until the
desired position is reached.

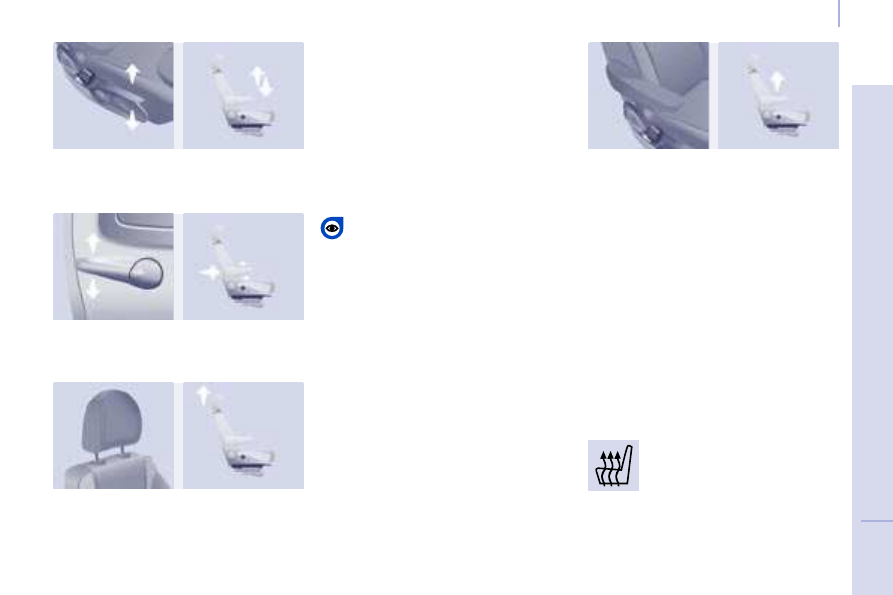

Head restraint height adjustment

To raise or lower the restraint, pull it
forwards, then slide it.

The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.

Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

Front heated seat controls

Adjustable armrest

To place the armrest in its rest position:

raise it until it is in the centreline of the
seat back.

4 - Driver's seat lumbar adjustment

Move the lever up or down to obtain the
required position.

To remove it, set it in the high position, press
the tabs and pull upwards and forwards at
the same time.

To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back.

To place the armrest in a position for use:

fold it down fully,

raise it slowly to the required position,

if you pass the required position, raise it
fully then repeat the operations above.

Press the corresponding control,
located on the overhead storage
unit.

The temperature is controlled

automatically.

Pressing a second time stops operation.

Seats

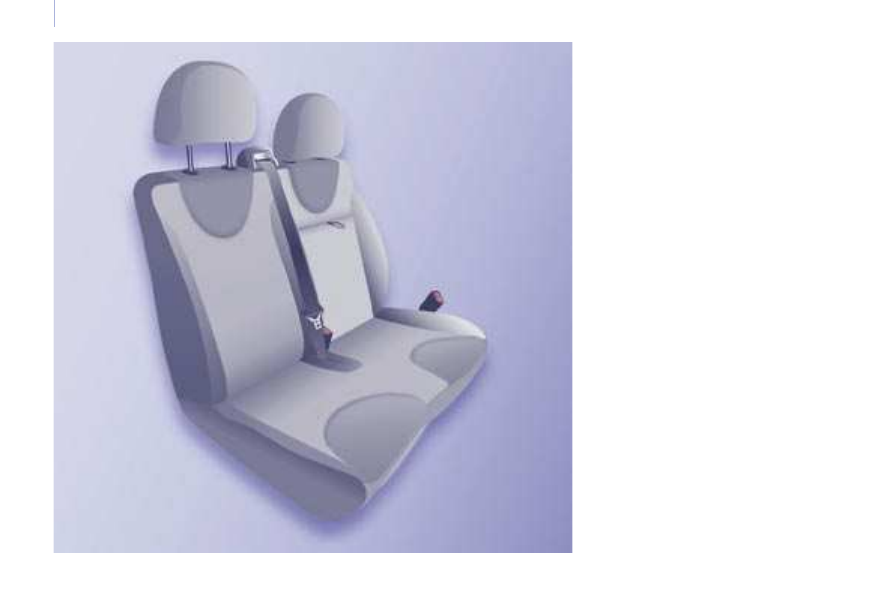

2-SEAT FRONT BENCH

If your vehicle is fitted with this bench seat,
it is fixed and has a 3rd seat belt.

Head restraint

Press the tab to adjust the height of the
head restraint.

To remove the head restraint, press the tabs
and raise the head restraint.

The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.

Never drive with the head restraints
removed; they must be in place and
adjusted correctly.

Storage basket

This is located under the seat.

Seat back pockets

If your vehicle is fitted with these, they are
located on the backs of the front seats.

Seats

Writing table

The back of the centre seat of the bench
(Row 1) folds to form a writing table with two
cup holder recesses.

Pull the handle located at the top of the seat
back cushion.

Citroen Jumpy Multispace Dag (2008 year). Instruction - part 4
