PRESENTATION

Within the chapters symbols draw your attention to specific
information:

This document is designed to familiarise you with the new vehicle from the
moment you get behind the wheel and to describe the operating features.

Reading the handbook is made easy by a content consisting of
10 identified chapters which can be located by means of a colour
code specific to each one. Its sections cover, by theme, all of the
functions of the vehicle in its most complete specification.

Chapter 9 indicates all of the technical data relating to your
vehicle. At the end of the document, diagrams of the outside
and inside of the vehicle will assist you in locating equipment or
functions and page numbers refer you to the relevant section of
the handbook.

directs you to the chapter and section which contains detailed
information concerning a function,

indicates important information relating to use of the equipment,

alerts you to the safety of individuals and equipment on board.

Exterior

ISA

182

Key

: chapter identification

: page identification

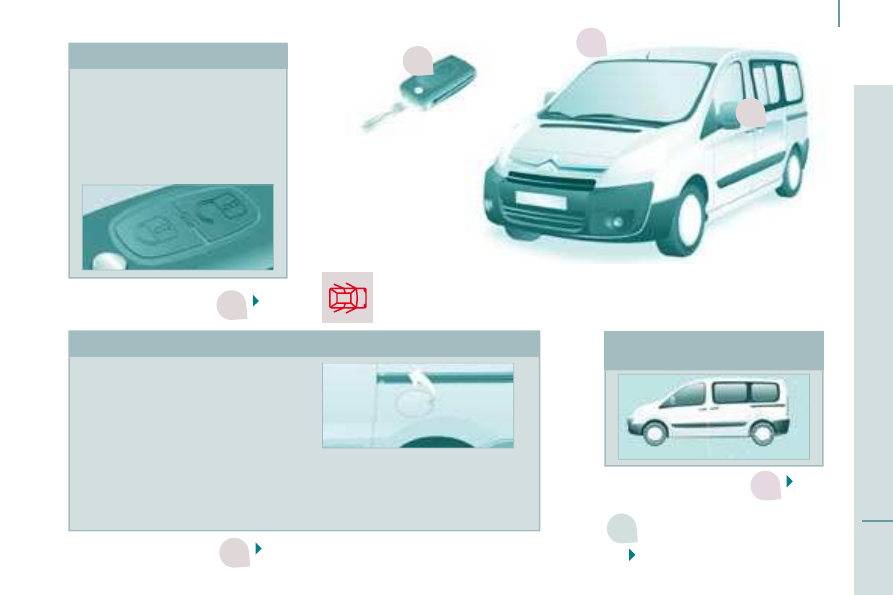

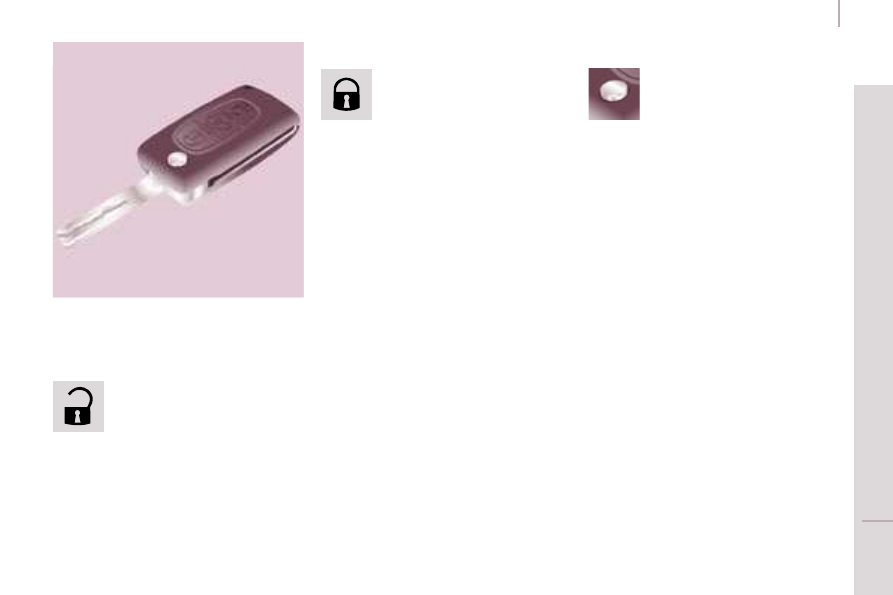

Key - Remote control

Complete locking of the vehicle, cab
and rear doors.

Complete unlocking of the vehicle,
cab and rear doors.

Sliding side door

Pull the handle towards you then
towards the rear and open the door
guiding the rearward sliding until the
point of resistance has been passed.

If fitted on your vehicle, do not open the
left-hand side door while filling with fuel
as this could damage the fuel filler flap.

Usable dimensions

Door open warning light

If this comes on, a door has not been
closed correctly.

Exterior

134

131

Hinged rear doors

This control permits opening to
approximately 180°.

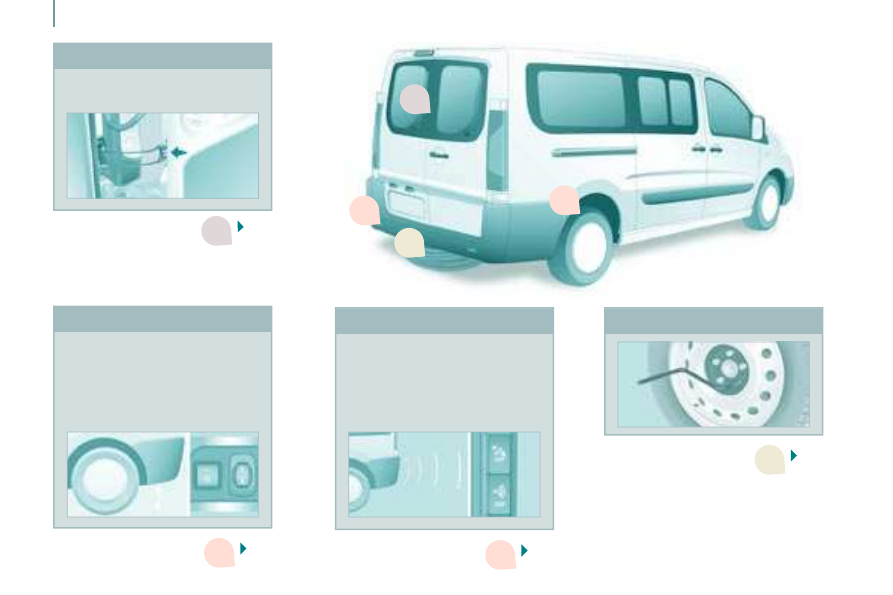

Parking assistance

Rear suspension

Two functions:

Automatic correction.

Manual correction.

165

Changing a wheel

In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.

ISA

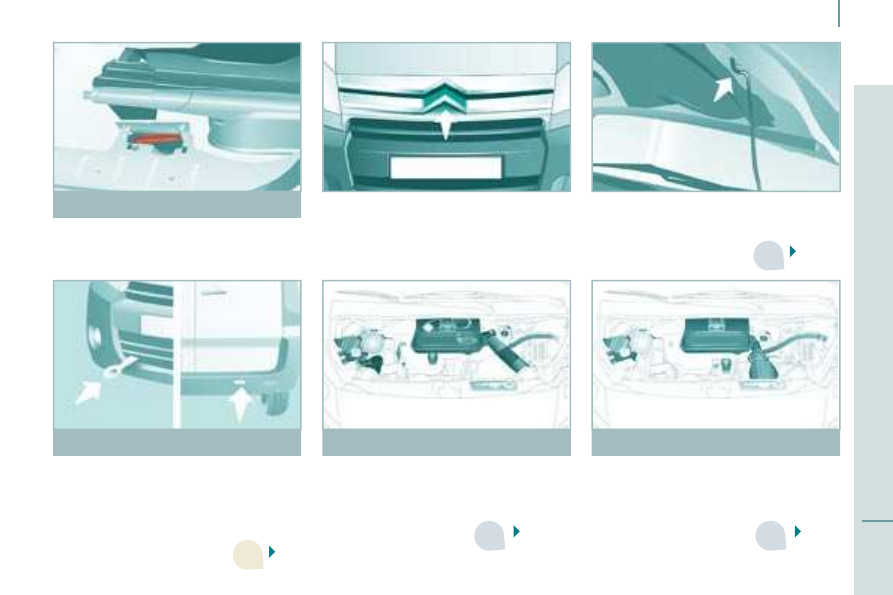

Opening the bonnet

156

Diesel engines

Petrol engine

157

180

Towing eye

155

Partially open the bonnet, lift the control and
raise the bonnet.

Secure the strut in one of the two notches,
according to the height required, to hold the
bonnet open.

Lift the cover at the foot of the left-hand
seat and pull the control upwards.

At the front, unclip the cover by pressing it
at the bottom.

At the rear, unclip the cover using a coin or
the flat part of the towing eye.

Take care when working under the bonnet.

Refer to the "Levels" section of chapter 7 for advice on use of the fluids.

Exterior

Interior

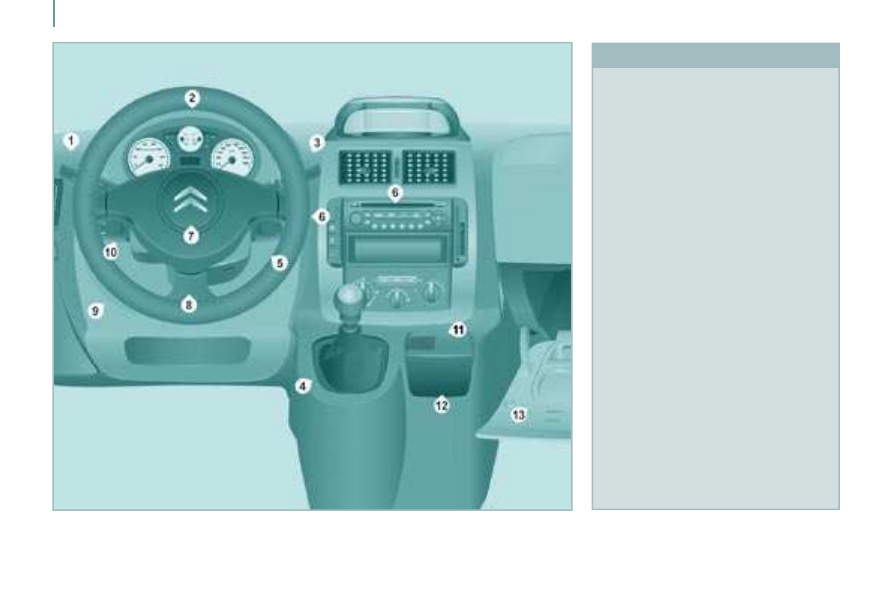

INSTRUMENTS AND CONTROLS

1. Lights and direction indicators stalk.

2. Instrument panel with display.

3. Wipers, wash-wipe, trip computer

controls.

4. Gear lever.

5. Ignition.

6. Audio equipment controls.

7. Driver's air bag, horn.

8. Steering wheel height and depth

adjustment.

9. Headlamp beam adjustment.

10. Cruise control, speed limiter switch.

11. 12 volt accessories socket

(120 W max) of the lighter type.

12. Ashtray.

13. Glove box, auxiliary socket,

passenger air bag disarming switch.

ISA

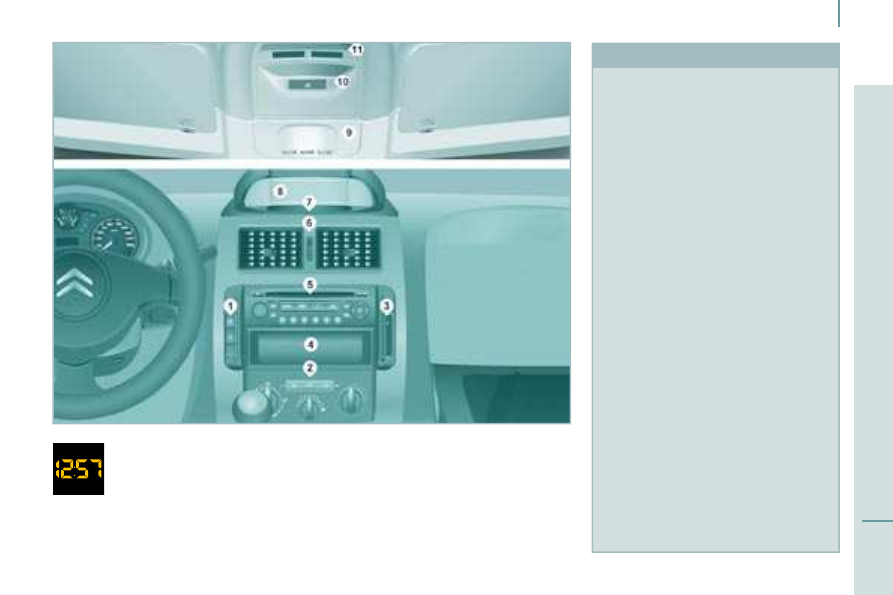

CENTRE CONSOLE AND OVERHEAD STORAGE UNIT

1. Location of the controls:

- locking of the electric child lock,

- central locking/unlocking.

2. Heating and/or air conditioning

controls.

3. Location of the ticket/card storage or

controls:

- deactivation of the ESP,

- disarming of the interior protection

alarm, alarm diode,

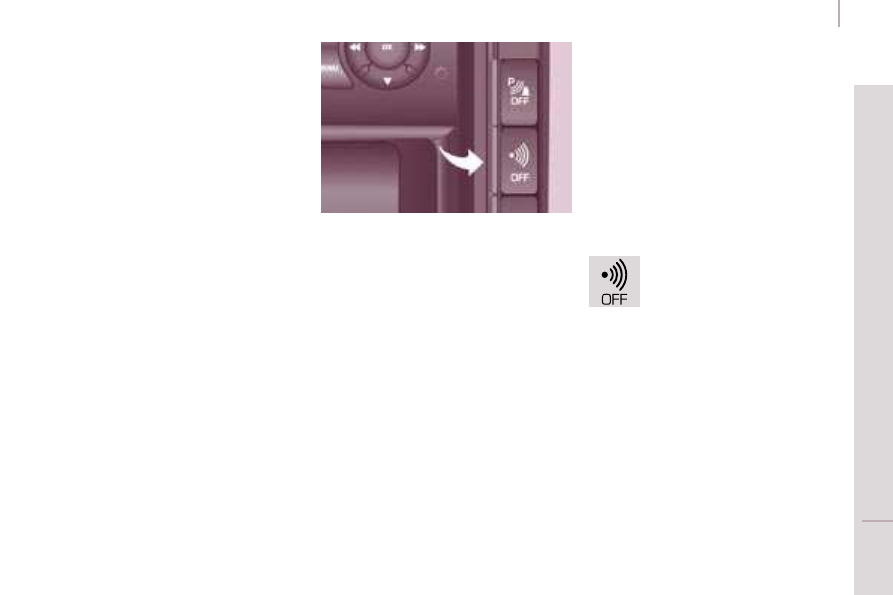

- deactivation of the parking assistance.

4. CD changer or storage compartment.

5. Audio equipment or storage

compartment.

6. Central adjustable vents.

7. Hazard warning lights button.

8. Display or storage compartment.

9. Courtesy light.

10. Warning lights:

- passenger air bag disarmed.

11. Location of the ticket/card storage,

rear ventilation deactivation switch,
heated seat controls.

ADJUSTING THE TIME

a centre console with display: refer
to the "Adjusting the date and time"
section of chapter 4,

a centre console without display:
refer to the "Instruments and controls"
section of chapter 2.

Depending on the configuration of your
vehicle, you have either:

Interior

Interior

Driver's seat

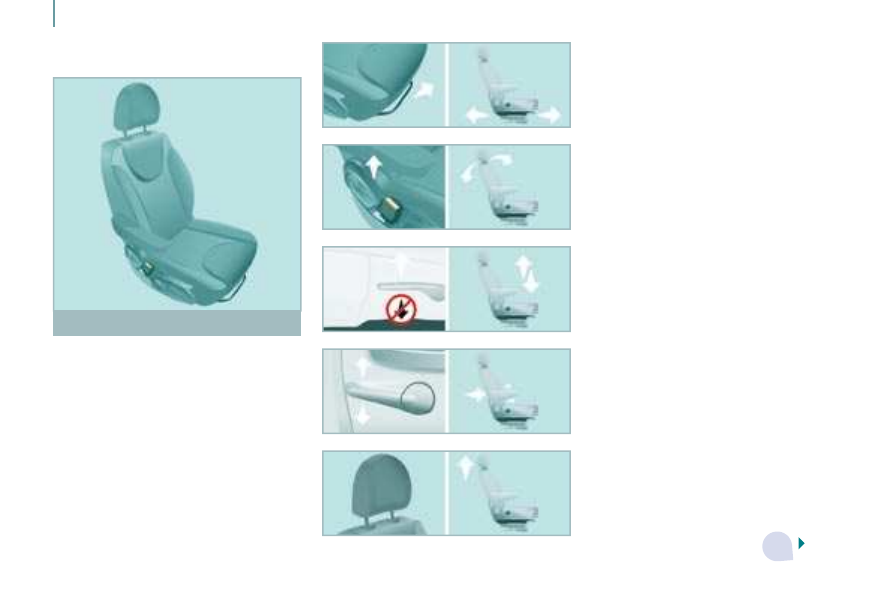

SIT COMFORTABLY

1. Forwards-backwards adjustment.

2. Angle.

3. Height.

4. Lumbar.

5. Head restraint height.

ISA

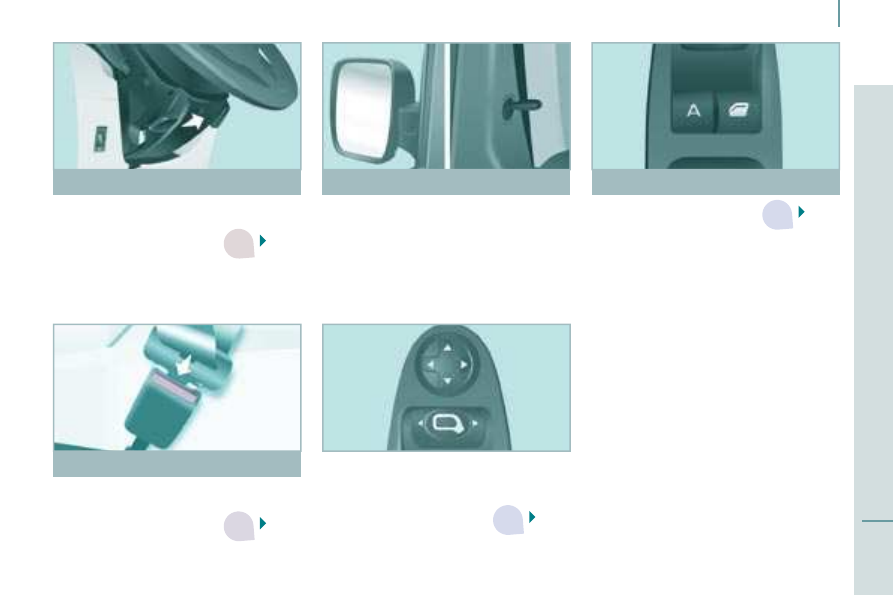

Steering wheel

Electric windows

Mirrors

Seat belts

138

Adjust the height and depth of the steering
wheel.

Manual adjustments.

Electric adjustments, electric folding/
unfolding.

Height adjustment.

Fastening.

Interior

Interior

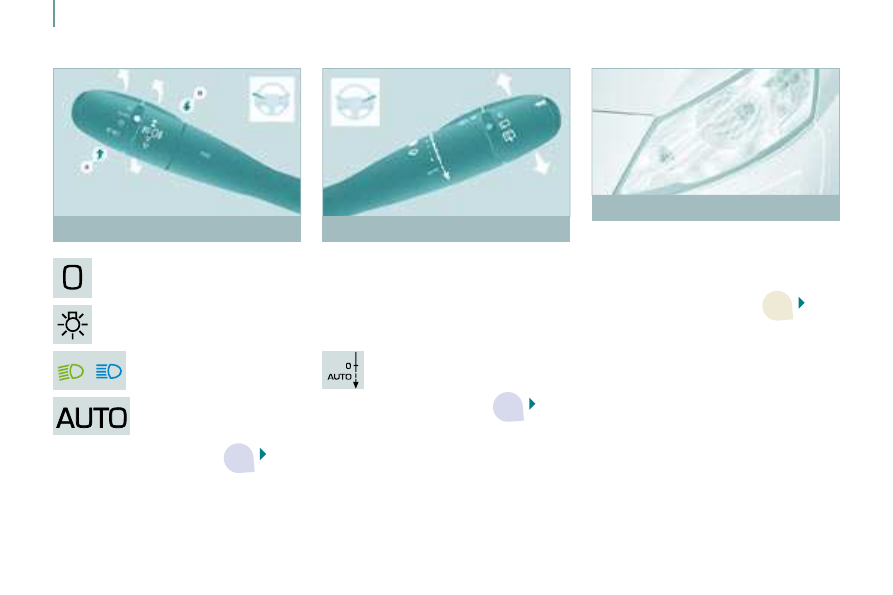

SEE CLEARLY

Lights off.

Side lights.

Main beam headlamps (blue).

Dipped headlamps (green).

Wipers stalk

fast.

normal.

intermittent.

off.

 single wipe.

AUTO, press the stalk down.

AUTO, automatic switching
on of the lights.

Lights stalk

Changing bulbs

170

In bad weather or in winter, check that the
lights are not covered with mud or snow.

ISA

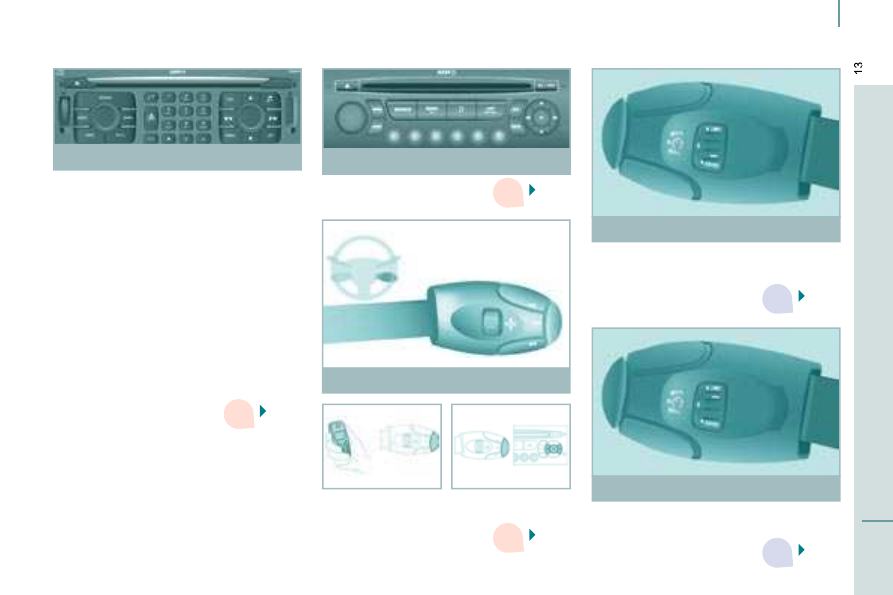

GPS multimedia audio equipment

DRIVE SAFELY

116

Cruise control

Hands-free kit

123

The vehicle speed must be higher than
25 mph (40 km/h) with at least 4th gear
engaged.

Receive a call.

Make a call.

Speed limiter

The minimum speed which can be
programmed is 18 mph (30 km/h).

This audio equipment incorporates a hard
disc with a capacity of 10 Gb, reserved for
your music.

The Jukebox function permits the selective
playing of up to 10 hours of music. The
detailed map of Europe is stored on this
hard disc, without the addition of a CD. It is
displayed on the 7 inch 16/9 colour screen
and offers a 3D view.

Via your SIM card, the hands-free GSM
telephone also provides access to the
CITROËN emergency team (subject to
conditions).

Audio equipment - hands-free kit

Interior

Interior

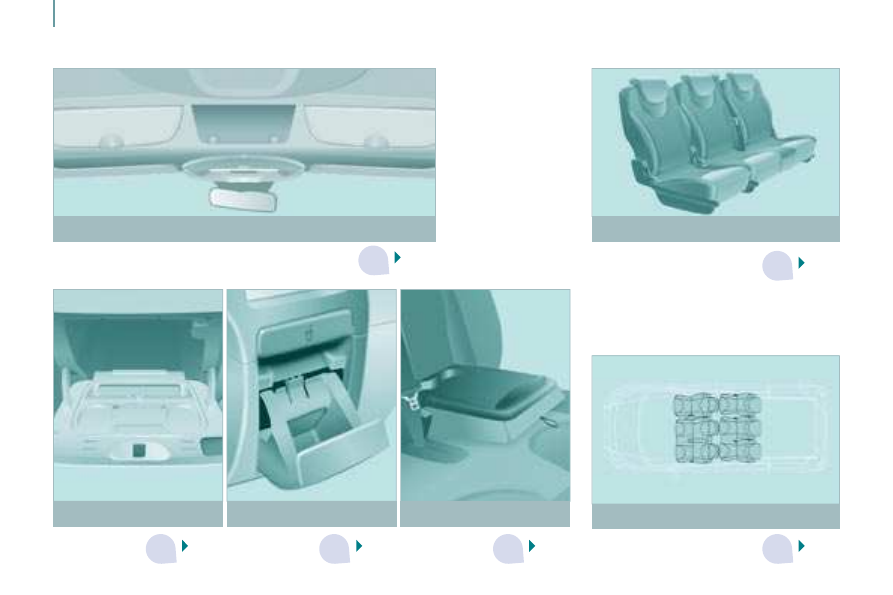

Overhead storage unit

CAB LAYOUT

Glove box

Storage compartment

Rear seats

Seating area layout

REAR LAYOUT

Writing table

ISA

Configurations of the seats/bench seats

Rear windows

Safety auto-reverse

Electric child lock

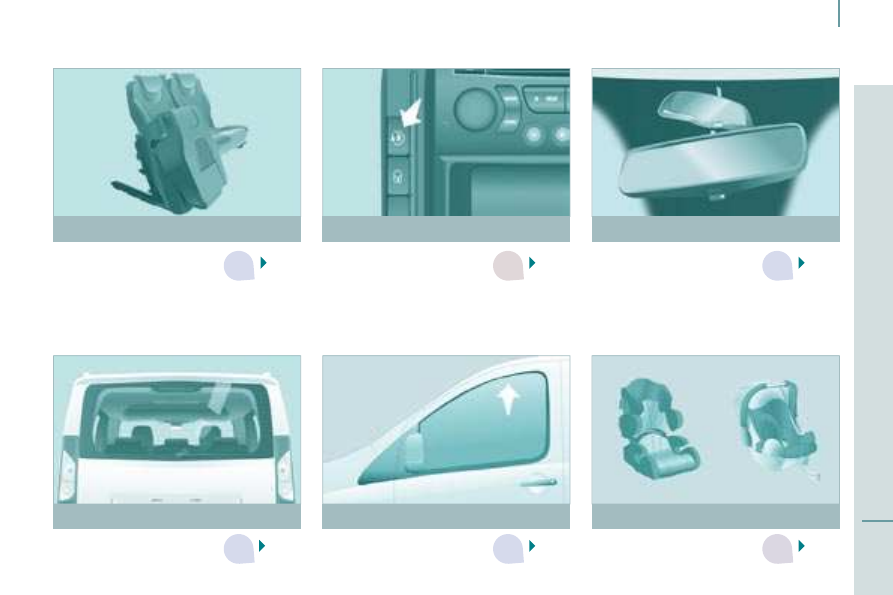

CHILD SAFETY

Monitoring mirror

Child seats

145

Interior

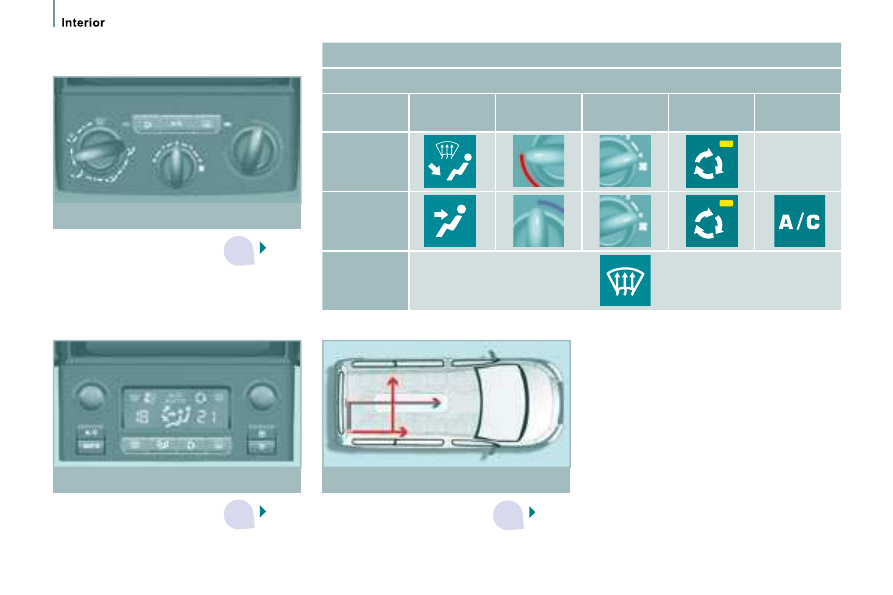

Recommended settings

For optimum use of the system, we recommend:

If I require...

Air

distribution

Temperature

Air flow

Air

recirculation

Heating

Cooling

De-icing

Demisting

Manual

Automatic

Rear

VENTILATION

Accesses

Central locking

REMOTE CONTROL

ACCESSES

Central unlocking

Press this button to unlock your
vehicle, cab and rear doors.

The direction indicators flash
twice and the exterior mirrors

unfold (unless folding was selected using
the interior control, refer to the "Mirrors and
windows" section of chapter 3).

Press this button to lock your
vehicle, cab and rear doors.

The direction indicators flash
once and the exterior mirrors fold.

If one of the doors is open or is not closed
correctly, the central locking will not work.

Deadlocking

If your vehicle is fitted with deadlocking, a
second press on the closed padlock on
the remote control within five seconds after
locking changes the locking to deadlocking.

This is confirmed by fixed lighting of the
direction indicators for approximately two
seconds.

Deadlocking renders the exterior and interior
door opening handles inoperative: do not
leave anyone inside the vehicle when it is
deadlocked.

If deadlocking is activated from inside the
vehicle, it will change to normal locking
when the vehicle is started.

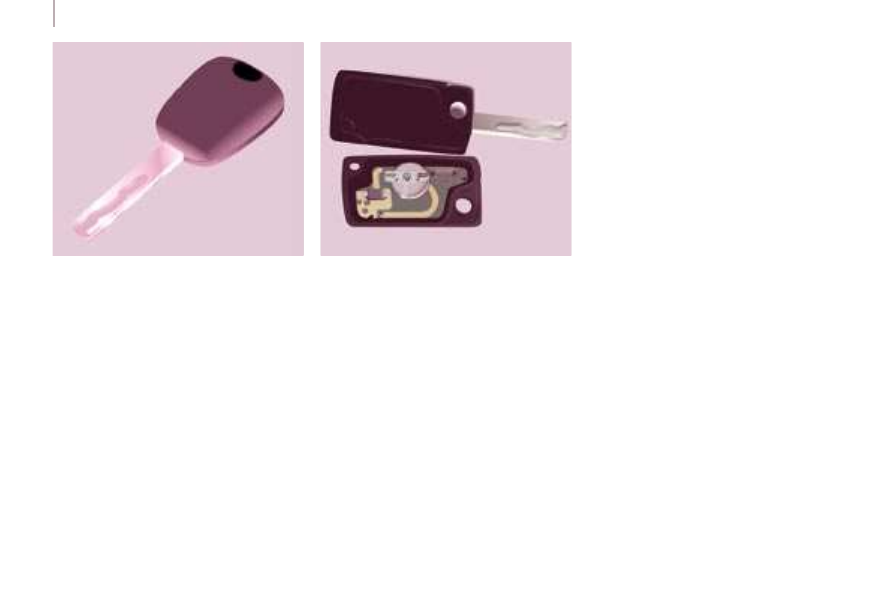

Folding/unfolding the key

Press this button to release the
key from its housing.

To fold the key, press the
chromed button then fold the key

into the housing. If you do not press the
button, the mechanism may be damaged.

Good practice

Take care not to allow the remote control to
come into contact with grease, dust, rain or
a damp environment.

A heavy object attached to the key (keyring, ...)
weighing on the shaft of the key in the switch,
may cause a malfunction.

Accesses

KEY

This locks and unlocks the locks on the
vehicle and starts the engine.

REMOTE CONTROL

ELECTRONIC IMMOBILISER

All of the keys contain an electronic
immobiliser device.

This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.

After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.

The metal part of the key must be unfolded
correctly for correct dialogue to take place.

Programming the remote control

Following changing of the remote control
battery or disconnection of the vehicle
battery, the remote control must be
reprogrammed.

Wait at least one minute before using the
remote control.

Switch on the ignition.

Press one of the two padlocks for at least
five seconds within the next ten seconds.

Switch off the ignition.

Wait at least one minute before using the
remote control.

The remote control is now working again.

There is a risk of damage if the replacement
battery does not conform.

Use only identical batteries or batteries of an
equivalent type to those recommended by
CITROËN dealers.

Do not discard the remote control batteries,
they contain metals which are harmful to the
environment.

Deposit them at a CITROËN dealership, or
at any other approved collection point.

Changing the battery

Battery ref.: CR1620/3 volts.

The information "battery flat" is given by an
audible signal, accompanied by a message
on the display.

To replace the battery, unclip the casing
using a coin at the ring.

If the remote control does not work after the
battery has been changed, re-programme
the remote control.

If you lose your keys

Visit a CITROËN dealer with the vehicle's V5
registration document and your identification
document.

A CITROËN dealer will be able to retrieve
the key code and the transponder code so
that a replacement key can be ordered.

Accesses

ALARM

If fitted on your vehicle, this provides two
types of protection:

exterior protection: it sounds if a front/
rear door or the bonnet is opened.

interior protection: it sounds if the volume
inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).

Disarming

Unlock the vehicle with the remote
control or switch on the ignition, the red
diode goes out.

Good practice

Do not make any modifications to the
electronic immobiliser system.

Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.

The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.

The remote control does not operate while
the key is in the ignition, even if the ignition
is off.

As a safety precaution (with children on
board), remove the key from the ignition
when leaving the vehicle, even for a short
time.

When purchasing a second-hand vehicle:

have the keys memorised by a
CITROËN dealer to ensure that the keys
in your possession are the only ones
which can start the vehicle.

Locking the vehicle with complete
alarm

Setting the alarm

Switch off the ignition and get out of the
vehicle.

Set the alarm within five minutes of
getting out of the vehicle, by locking or
deadlocking using the remote control.

The red diode, located on the centre
console, flashes once per second.

Locking the vehicle with exterior
protection only

If, while you are away from the vehicle, you
wish to leave a window partially open or a
pet inside the vehicle, you should choose
exterior protection only.

Switch off the ignition.

- In the next ten seconds, press

this button, located on the
centre console, until the red
diode is on continuously.

Get out of the vehicle.

Within the next five minutes, set the
alarm by locking or deadlocking using
the remote control (the red diode flashes
once a second).

Content .. 1 2 ..
