Citroen C-Crosser Dag (2008 year). Instruction - part 1

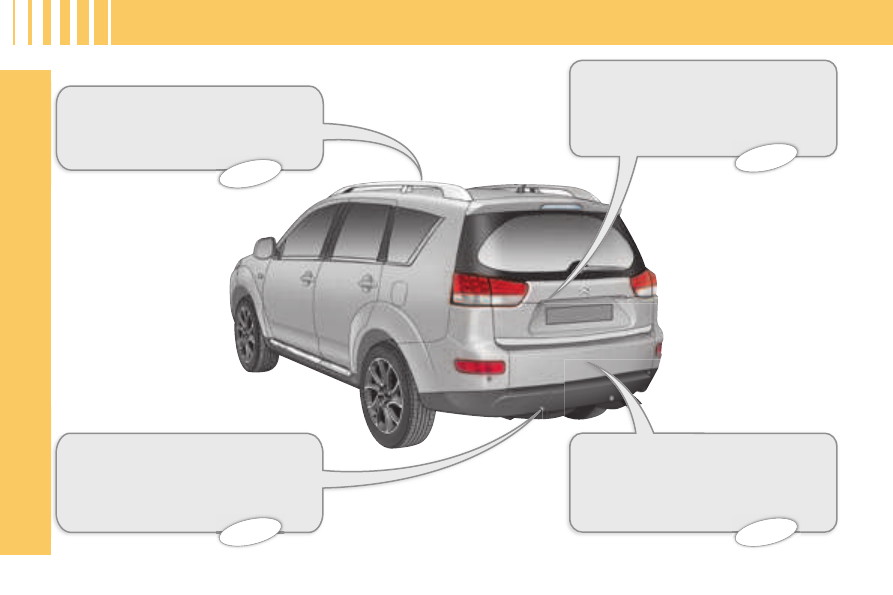

Sunroof

This roof improves the ventilation and
light in the passenger compartment.



116

EXTERIOR

Audible rear parking
assistance

This equipment warns you if an ob-
stacle is detected behind the vehicle
when reversing.

Reversing camera

T h i s

e q u i p m e n t

i s

a c t i v a t e d

automatically when reverse gear is
engaged providing a visual return
on the colour display.

Lower tailgate

This lower tailgate provides remarkable
accessibility and makes the loading of
bulky objects easier.



117

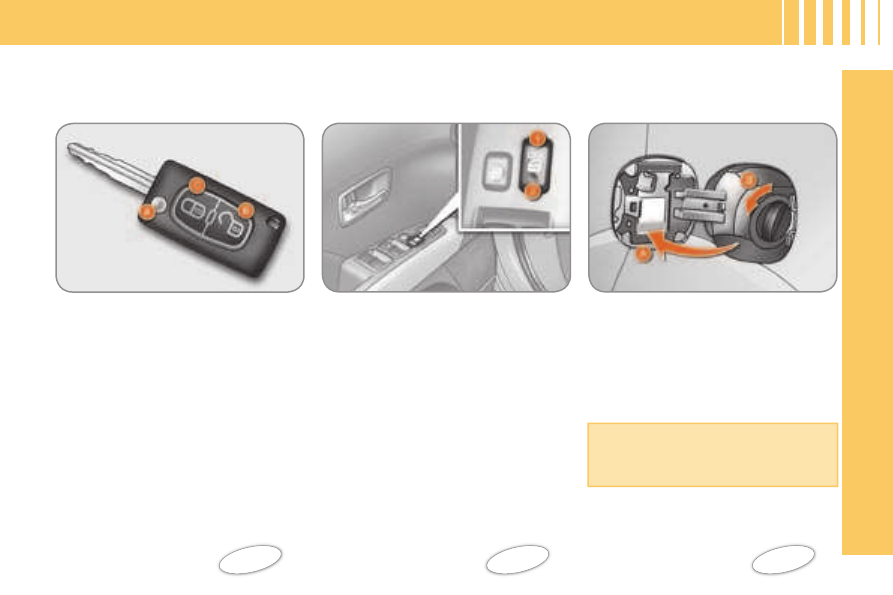

Fuel tank

Opening of the fuel ﬁ ller ﬂ ap.

B. Opening of the fuel tank cap.



1. Locking of the vehicle.
2. Unlocking of the vehicle.

Remote control key

   A.   Unfolding/folding of the key.
  B.   Unlocking of the vehicle.
  C.   Locking of the vehicle.



Manual centralised control



OPENING

When reﬁ tting the cap, insert the

upper part ﬁ rst turning it to the right.

Capacity of the tank: approximately

60 litres.

Opening


After unlocking the vehicle using the

remote control or the key, press the
handle A and raise the tailgate.

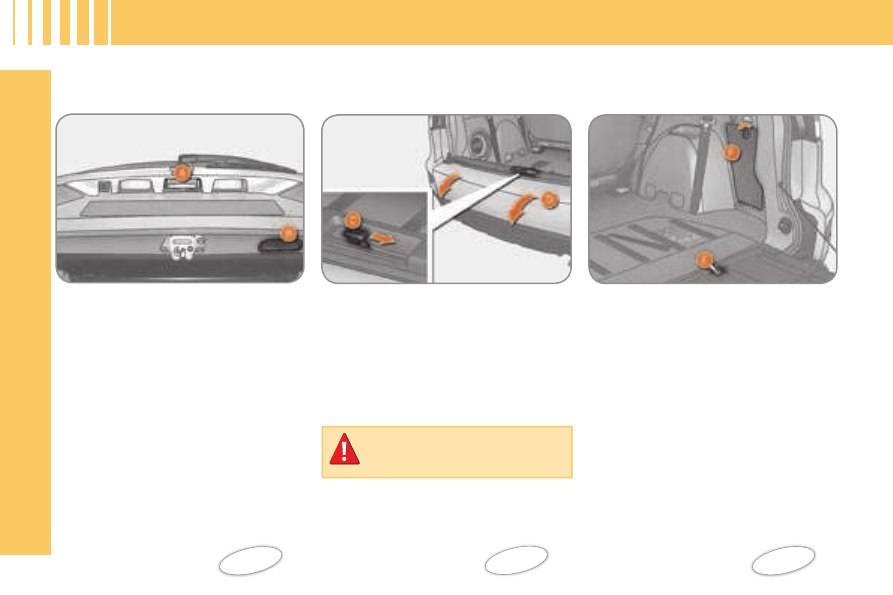

Tailgate

Lower tailgate

Opening


Push the handle C to the right and

tilt the tailgate D gently.

The

maximum

authorised

weight on the lower tailgate
when open is 200 kg .

Spare wheel and tools

Access to the spare wheel


Remove the plastic cover E to gain

access to the spare wheel ﬁ xing

system.

 80

OPENING



124

Closing


Pull the handle B downwards.

Closing


Raise the tailgate D , push it to close

it, then check that it is secured
correctly.

  Access to the tools
The  tools  are  stored  in  the  storage
compartment   F   in  the  boot  right-hand
trim.

CONFIGURING

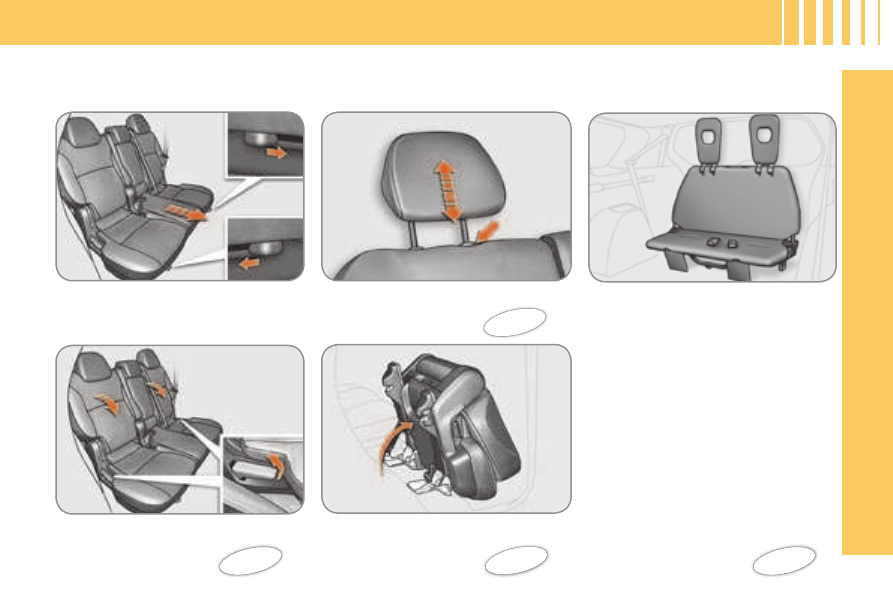

Rear seats (row 2)

Forwards-backwards adjustment

Seat back angle adjustment



Head restraint height adjustment

Access to the third row

(7-seat version)



Rear bench seat (row 3)

The rear bench seat can be folded. It

retracts into a location in the ﬂ oor of the

vehicle.



INTERIOR

Automatic air conditioning

This automatic air conditioning system

guarantees comfort and a sufﬁ cient

circulation of air in the passenger
compartment.

Cruise control

This system automatically maintains
the vehicle speed at the value
programmed by the driver, without the
accelerator pedal being pressed.

Audio and communication
systems

This equipment beneﬁ ts from the latest

technology: MP3 compatible audio
equipment,

Bluetooth

hands-free

telephone, colour display, Rockford

Fosgate audio system, auxiliary sockets.

Four wheel drive system with
electronic control

This system permits the selection of
a transmission mode in relation to the
driving conditions.



114



154



112

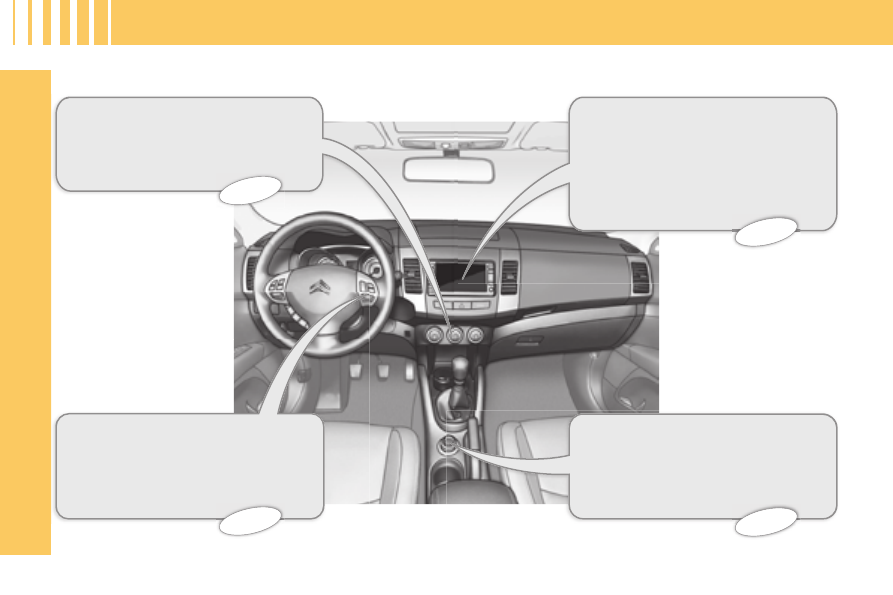

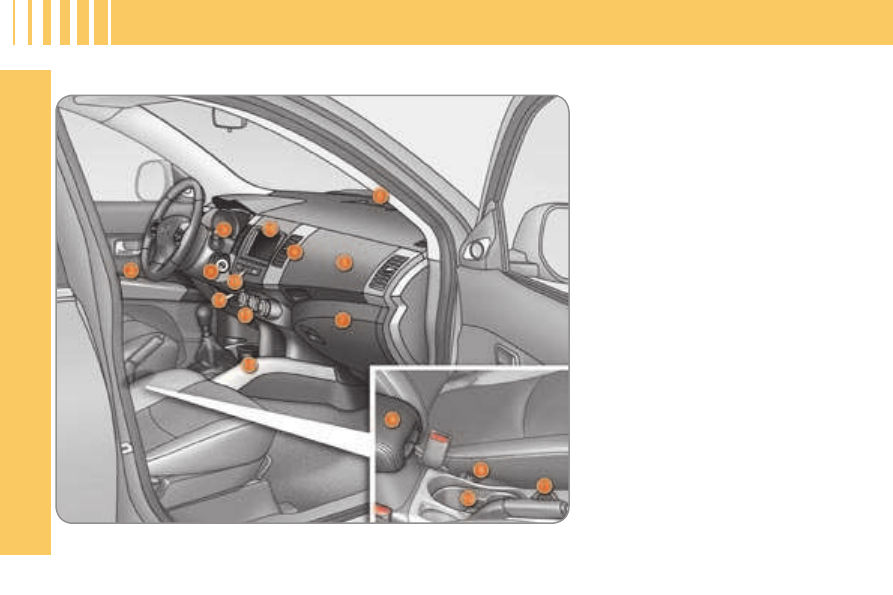

INSTRUMENTS AND CONTROLS

1. Audio equipment controls.

2. Telephone controls.

3. Steering wheel adjustment control.

4. Lights and direction indicators

controls.
Headlamp wash control.

5. Instrument panel.

6. Driver’s air bag.

Horn.

7. Cruise control switches.

8. Gear lever.

9. Handbrake.

10. Bonnet release.

11. Enclosed storage compartment.

Fuse box.

12. Headlamp height adjustment.

Deactivation of the ASC system.
Deactivation of the audible parking
assistance.

13. Cup holder.

14. Side adjustable and closing vent.

15. Information button.

16. Window de-icing and demisting

vent.

17. Windscreen de-icing vent.

INSTRUMENTS AND CONTROLS

1. Steering lock and ignition.

Exterior mirror controls.
Electric window and rear electric
window deactivation controls.

3. Front and rear wipers / wash-wipe

control.

4. Central adjustable and closing

vents.

5. Sunshine sensor.

Upper glove box with air
conditioning.

Lower glove box with lock.
Passenger air bag disarming.

8. Heated seat controls.

9. Armrest with storage compartments.

12 volt socket (120 W max).

10. Cup holder.

11. Four wheel drive system position

selector.

12. Removable ashtray / Lighter /

12 volt socket (120 W max).

13. Automatic air conditioning controls.

14. Temperature sensor.

15. Hazard warning lights switch.

16. Colour display / Audio equipment.

SITTING COMFORTABLY



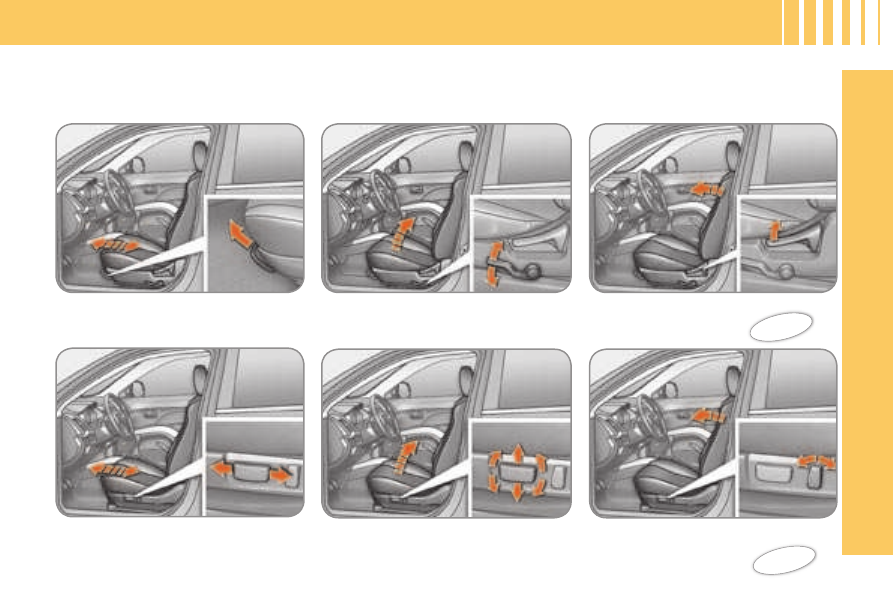

Front seats

Forwards-backwards

Driver’s seat cushion height and angle

Seat back angle

Manual adjustments

Electric adjustments (driver’s seat only)

Forwards-backwards

Seat cushion height and angle

Seat back angle



SITTING COMFORTABLY

   1.   Unlocking of the lever.
  2.   Locking of the lever.
  3.   Adjustment of the height of the

steering wheel.

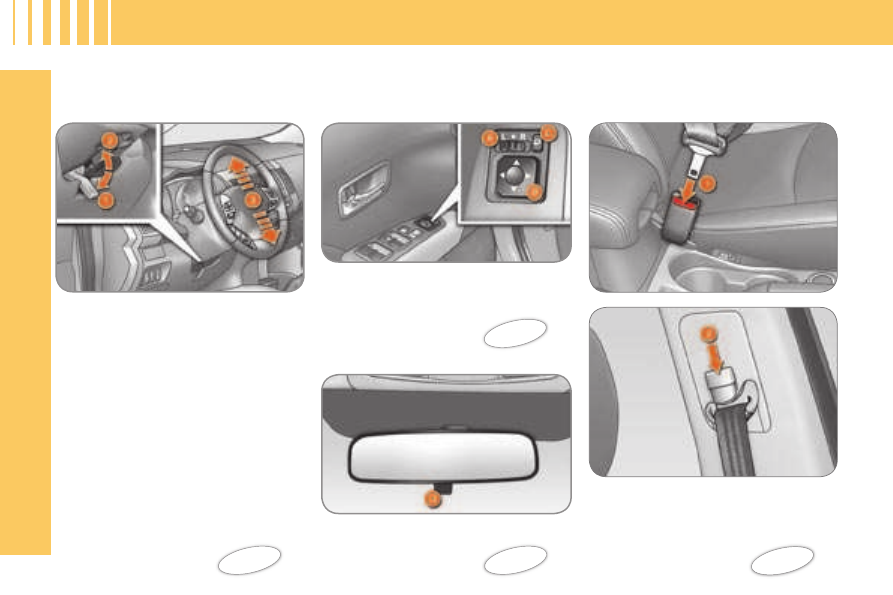

Manual steering wheel height
adjustment

Exterior mirror adjustment

A. Selection of the mirror
B. Adjustment of the position

of the mirror.

C. Folding / Unfolding.



Interior mirror adjustment

D. Control for selection of the “day /

night” position of the mirror.



Front seat belt

1. Fastening.
2. Height adjustment.



102

SITTING COMFORTABLY

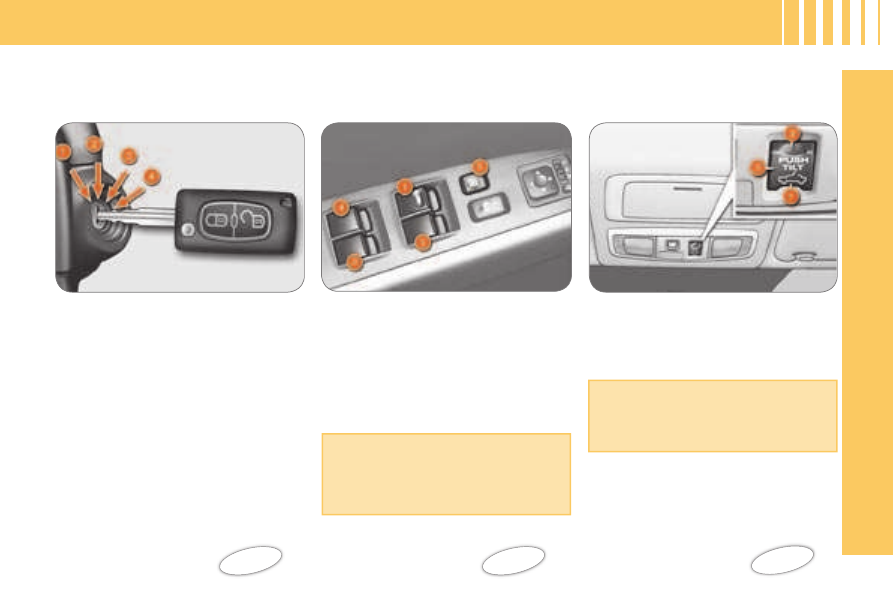

Ignition switch

   1.    LOCK  position.
  2.    ACC  position.
  3.    ON  position.
  4.    START  position.



Electric window controls

  1.  Driver’s electric window control.
  2.  Passenger’s electric window control.
  3.  Rear right electric window control.
  4.  Rear left electric window control.

Also...
5. Deactivation of the front passenger

and rear electric window controls.



Sunroof controls

  1.  Opening control.
  2.  Closing control.
  3.  Partial opening control.

Also...
3. Also permits temporary stopping of

sunroof opening / closing.



SEEING CLEARLY

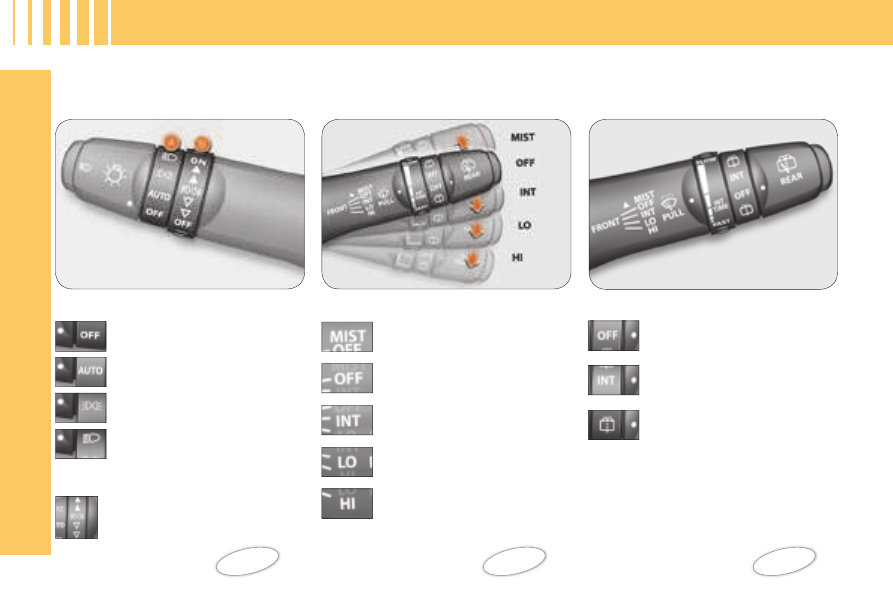

Lighting

Ring A

Ring B

Windscreen wipers

Wipers

Rear wiper

Front fog lamps and rear fog
lamps.

 84



Lights off.

Automatic switching on of the
lights.

Side lights.

Dipped or main beam
headlamps.

Single wipe.

Park.

Intermittent (speed which can
be adjusted manually).

Slow.

Fast.

Park.

Intermittent wipe.

Wiping with screen wash.

VENTILATING

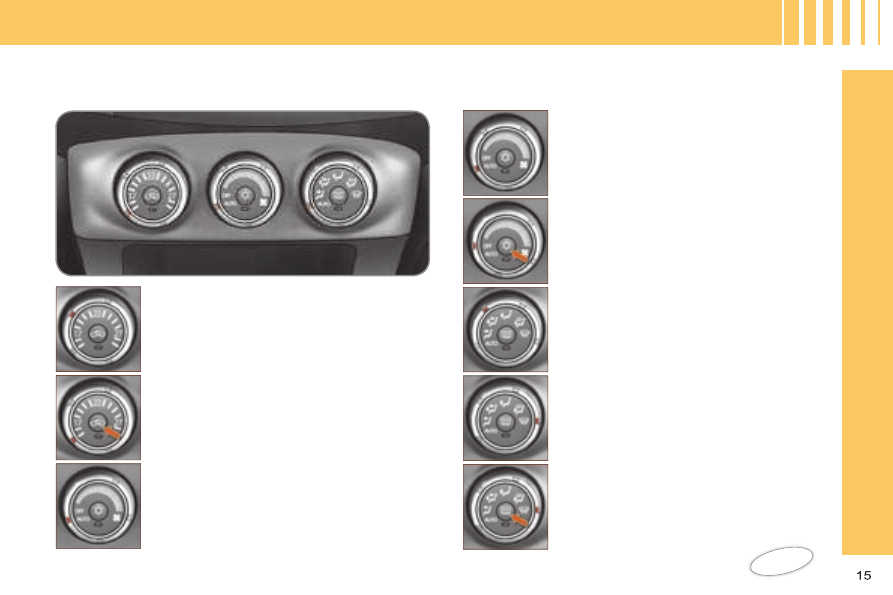

Automatic air conditioning

Temperature adjustment.

Exterior air intake.
Interior air recirculation.

Air ﬂ ow adjustment.

Automatic programme (comfort).

Deactivation of the air conditioning.

Air distribution adjustment.

Front visibility control.

Rear screen de-icing.



MONITORING

Instrument panel

Controls bar

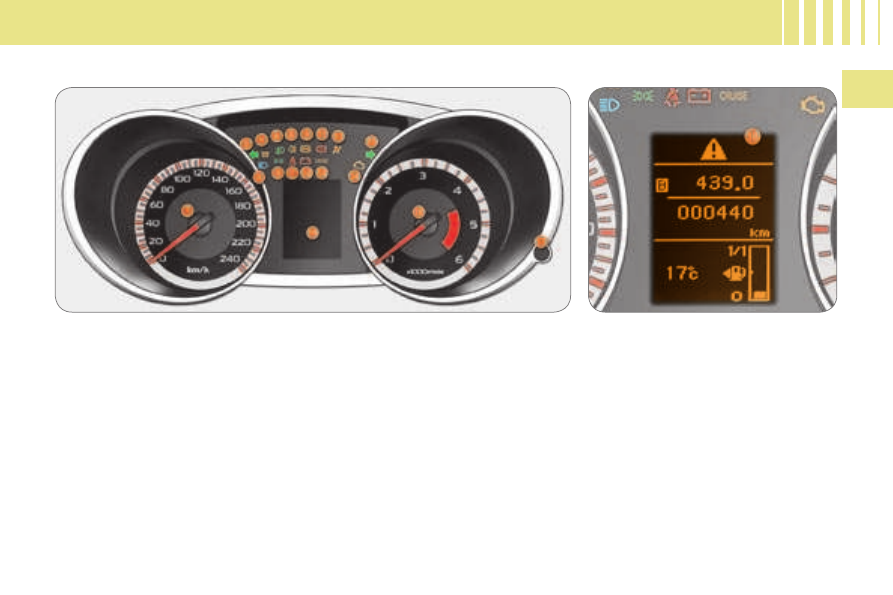

   A.   Speedometer.
  B.   Instrument panel display.
  C.   Rev counter.
  D.   Fascia lighting rheostat.

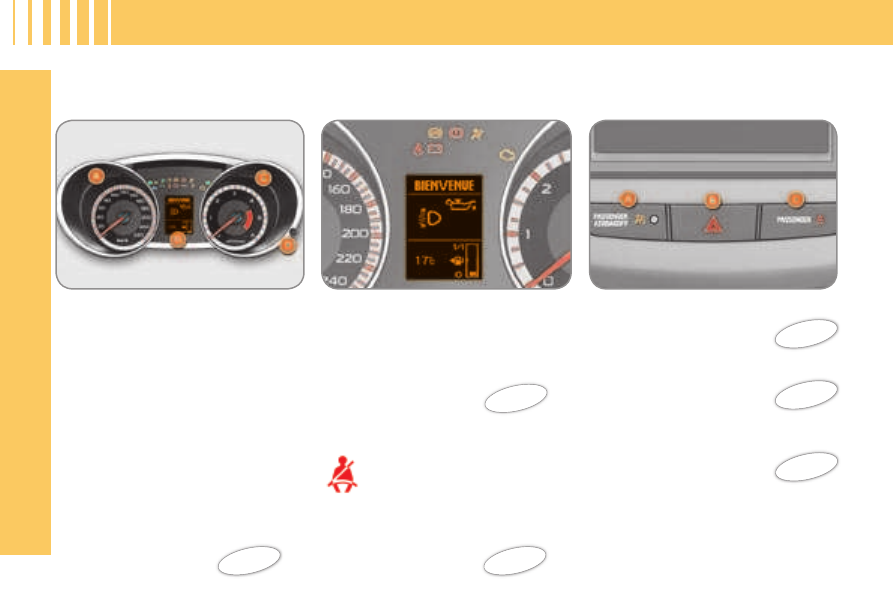

When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If warning lights remain on, refer to the
page concerned.

Warning lights



A. Passenger air bag disarmed

warning light.



106

B. Hazard warning lights switch.



C. Front passenger’s seat belt not

fastened or unfastened warning light.



103



Detection of fastening of the
driver’s seat belt

When the  ignition is switched
on,   the   seat  belt  warning  light
comes  on  accompanied  by  an
audible  signal  if  the  driver  has
not fastened his seat belt.

The warning light switches off when the
seat belt is fastened.



KEEPING YOUR PASSENGERS SAFE

Front passenger air bag

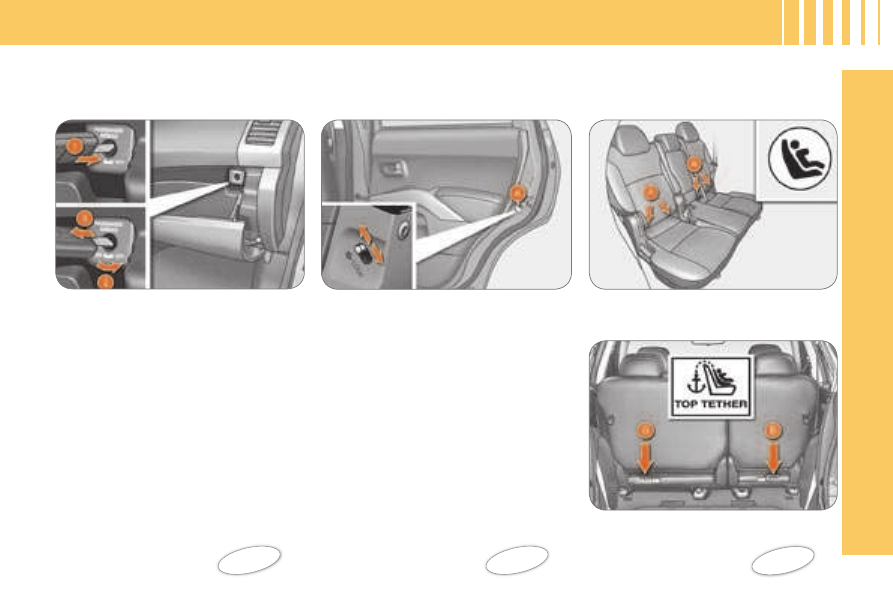

Child lock

   1.   Insertion of the key.
  2.   Selection of the  “OFF”  position.
  3.   Removal of the key.

This prevents opening of the door con-
cerned from the inside.
Lower or raise the control A to lock or
unlock.



106



Isofix mounting

Two rings A , located between the seat
back and seat cushion of the vehicle’s
seat, permit the securing of a child
seat.

A ring B permits securing of the upper
strap referred to as the TOP TETHER .



Cruise control

This maintains a constant vehicle speed
programmed by the driver.
1. “ON/OFF”

button:

activation

deactivation of the cruise control
mode.

2. “COAST SET” button: storing of a

driving speed then decreasing of
the cruising speed.

3. “ACC RES” button: increasing of

the cruising speed and recalling of
the stored speed.

4. “CANCEL” button: switching off of

the cruise control.

In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h) with at least second
gear engaged.

This  detects  any  obstacle  (person,  ve-
hicle,  tree,  gate,...)  located  behind  the
vehicle.
The vehicle is ﬁ tted with four sensors:
  D.  two side sensors.
  E.  two central sensors.

Audible rear parking assistance



114



116

DRIVING SAFELY

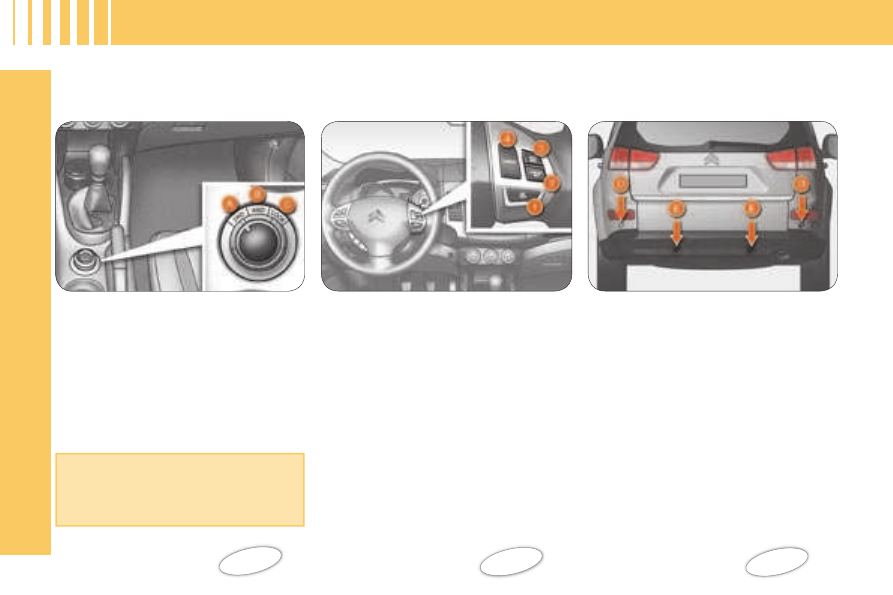

Four wheel drive system

Three  transmission  modes  are  avail-
able  and  can  be  selected  manually  by
the  driver  in  accordance  with  his  re-
quirements:
  A. Two wheel drive (2WD),
  B. Four wheel drive (4WD AUTO),
  C. Four wheel drive (4WD LOCK),



112

Also...
You can change transmission mode
when stationary or when driving at a
speed below 60 mph (100 km/h).

I N S T R U M E N T S a n d C O N T R O L S

1. Speedometer.
2. Left-hand direction indicator and

hazard warning lights indicator
light.

3. Main beam headlamps indicator

light.

  4.   Diesel pre-heating indicator light.
  5.   Side lights indicator light.
  6.   Front fog lamps indicator light.
  7.   Seat belt not fastened / unfastened

warning light.

DIESEL MANUAL GEARBOX INSTRUMENT PANEL

18. Instrument panel display:

   -   Warning and status displays.
  -   Total and trip distance recorders.
  -   Service indicator.
  -   Coolant temperature.
  -   Displaying of the trip computer

information.

- Cruise control reference value.
- Fascia lighting and parameter

settings.

  -   Fuel level.
  -   Exterior temperature.
  -   Transmission mode.

8. Rear fog lamps indicator light.
9. Anti-lock braking system (ABS)

warning light.

10. Battery charge fault warning light.
11.

Handbrake applied and brake ﬂ uid
level warning light.

  12.  Cruise control mode indicator light.
  13.  Air bags warning light.
  14.  Engine management warning light.
  15.  Indicator light for right-hand

direction indicator,
Hazard warning lights indicator
light.

16. Rev counter.
17. Fascia lighting rheostat.

Panel  grouping  together  the  dials  and
warning/indicator  lights.  These  inform
the driver of the activation of a system
(operation  or  deactivation  indicator
lights)  or  of  the  occurrence  of  a  fault
(warning lights).
