Citroen C6 Dag (2008 year). Instruction - part 3

H E A D - U P D I S P L AY

CONTENT OF THE HEAD-UP
DISPLAY

"Fuel low" alert

"STOP" warning lamp

"ESP" warning lamp

Navigation instructions

"SERVICE" warning lamp

Main beams warning lamp

Vehicle speed

To be aware of the signiﬁ cance of

the information projected on the

screen, see "Warning lamps".
Remark:

when navigation is in

operation, direction arrows will

ﬂ ash. See NaviDrive instructions.

To suspend display of a
certain type of information:

Press button 4.
Rotate the control 1 to select

the type of information you

wish to suspend.

Press button 1.

The information ﬂ ashes; it will no

longer be displayed.
To quit the selection mode, press

button 4.
Note: The vehicle speed informa-
tion, the "STOP" warning lamp
and the "ESP" warning lamp can-
not be suspended.

To restore display of a type
of information:

Press button 4.
Rotate the control to select the

information you wish to restore,

which ﬂ ashes.

Press button 1.

The information stops ﬂ ashing: it

will be displayed.
To quit the selection mode, press

button 4.

•
•

•

•
•

•

ADVICE

The windscreen of the vehicle

guarantees that the Head-up

display operates correctly. If you

need a replacement windscreen,

make sure you obtain this within

the CITROËN network.

make sure you obtain this within

No object

must ever be placed

in or over the cavity situated on

top of the dashboard between

the windscreen and the rear of

the dashboard.

To clean the glass, use a non-

abrasive cloth.

•

Note:  All  the  adjustments  and
selections  you  made  before  stop-
ping the engine are retained when
you restart. If there is a change of
driver, check whether these adjust-
ments  are  suitable,  alter  them  if
necessary.

You are advised to adjust
these controls only when
the vehicle is stationary.

M U LT I F U N C T I O N D I S P L AY S

C O L O U R S C R E E N C

1 -

Outside temperature

2 -

Display zone

3 - Date
4 -

Time

When the outside temperature

is between +3 °C and –3 °C, the

temperature display ﬂ ashes (risk

of ice).
Note:  The  outside  temperature
displayed  may  be  higher  than  the
actual temperature if the vehicle is
stationary in bright sunlight.
The  driver  is  advised  not  to  oper-

ate the controls described below

while the vehicle is moving.

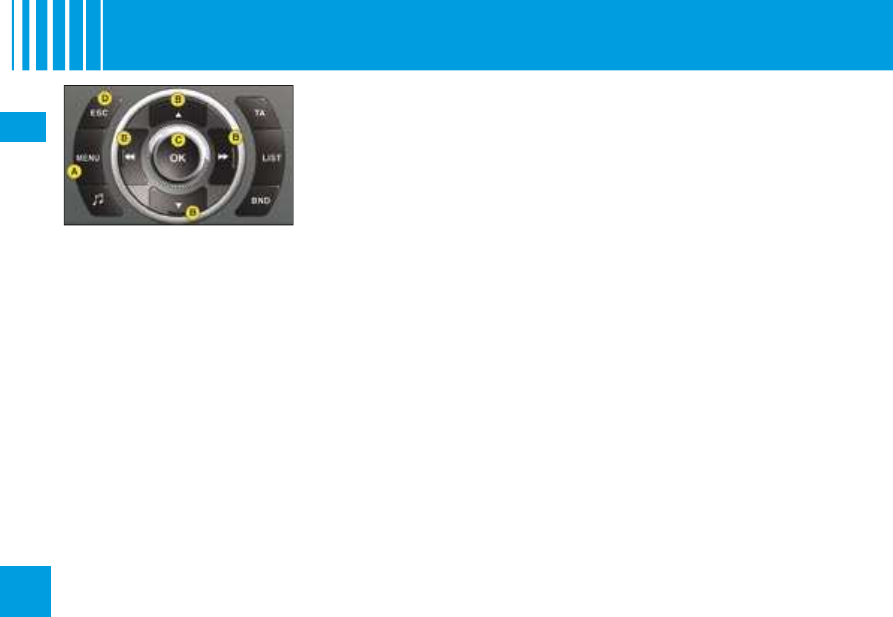

CONTROLS

Access to the "Main menu" of

the display.

Scroll through display menus.

Selection in the menus of the

function chosen or value to

modify.

Cancellation of the operation or

return to the previous display.

Main Menu

Press on button A to bring up the

"Main menu" of the multifunc-

tion display. This menu gives you

access to the following functions:

Radio mono CD

See chapter "RDS Audio

Compact Disc system".

Trip computer

For:

Entering the distance

to the destination.

Access to the log of alerts

(recall of the alerts signalled

previously.
Access to the status of

functions, for example

automatic lighting of

headlamps, ESP, windscreen

wipe.

•

Personalisation/

Conﬁ guration

For:

Activating/deactivating

Automatic lighting of

headlamps.

Automatic guide-me-home

lighting, with choice of

duration.

Daytime-running lamps.

The Xenon dual-function

directional headlamps.

The welcome function.

And choosing:

The brightness and the

colour of the display, time,

date and units.

The display language.

•

Air conditioning

For:

Deactivating the air

conditioning.

Deactivating/activating the

differential adjustment of the

air conditioning on the driver's

side/passenger's side.

•

Bluetooth

hands-

free kit

See chapter "RDS Audio

Compact Disc system".

M U LT I F U N C T I O N D I S P L AY S

C O L O U R S C R E E N C

TRIP COMPUTER

To enter the distance to
be travelled on the trip
computer:

Press on A.

2. Use B to select the icon "Trip

computer", then conﬁ rm with a

press on C.

Select entry of distance

using B. Conﬁ rm your choice

with a press on C.

To choose the distance, select

the ﬁ gure you wish to modify

by using B, then conﬁ rm with a

press on C.

5. Use B

to adjust the value, then

validate by pressing C.

Validate "OK" on the screen.

To access the trip
computer's log of alerts:

Press on A.

2. Use B to select the icon "Trip

computer", then conﬁ rm with a

press on C.

Select the log of alerts.

When the list displays, use B

to scroll through it.

Press D to return to the

permanent display.

To access the status of functions:

proceed in a similar manner.

PERSONALISATION/
CONFIGURATION

To activate/deactivate the
automatic guide-me-home
lighting:

Press on A.

2. Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.

Then select the sub-menu

for the vehicle parameters.

Conﬁ rm your choice with a

press on C.

Using B, select lighting and

signalling. Conﬁ rm your choice

with a press on C.

Press on C to select/deselect

the guide-me-home lighting.

After activation, choose the dura-

tion: press C then use B to select

the duration, then press C.

To activate/deactivate
the automatic lighting of
headlamps:

Repeat stages 1 to 4 described

above.

Press on C to select/deselect

the automatic lighting of

headlamps.

Note: Activation of this function
is immediate while deactivation
requires the ignition to be switched
off.

M U LT I F U N C T I O N D I S P L AY S

C O L O U R S C R E E N C

To activate/deactivate the
daytime-running lamps:

Repeat stages 1 to 4 described

above.

Press on C to select/deselect

daytime-running lamps.

If you activate the daytime-running

lamps, they come on provided the

signalling control stalk is in posi-

tion 0

and the headlamps are off.

If the daytime-running lamps are

active, the sidelamps will also be

on (depending on country speciﬁ -

cation).

To activate/deactivate
the Xenon dual-function
directional headlamps:

Repeat stages 1 to 3 described

above.

Press B to select the driving

assistance. Conﬁ rm your

choice with a press on C.

Press on C to select/deselect

the Xenon dual-function

directional headlamps.

To activer/deactivate the
welcome function

Repeat stages 1 to 3 described

above.

Press B to select the driving

assistance. Conﬁ rm your

choice with a press on C.

Press on C to select/deselect

welcome function.

To adjust the display
brightness:

Press on A.

2. Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.

Select the display conﬁ guration

with a press on B. Conﬁ rm

your choice with a press on C.

Select the brightness

adjustment. Conﬁ rm your

choice with a press on C.

Select with a press on B, then

validate by pressing C, the

normal or alternative display

mode.

To adjust the brightness, select

the symbols "+" or "–" and

conﬁ rm your adjustment by

pressing C.

Validate "OK" on the screen.

To choose the display colour:

proceed in a similar manner.

To adjust the date and the
time:

Press on A.

2. Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.

Select the display conﬁ guration

with a press on B. Conﬁ rm

your choice with a press on C.

Select the adustment for

the date and the time, by

pressing B, then conﬁ rm with a

press on C.

Press B to select the values

you wish to modify. Conﬁ rm

your choice with a press on C.

Do your adjustments with B,

then validate each adjustment

choice with a press on C.

Validate "OK" on the screen.

M U LT I F U N C T I O N D I S P L AY S

C O L O U R S C R E E N C

To choose units (for
temperature, fuel
consumption etc.):

Press on A.

2. Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.

Select the display conﬁ guration

with a press on B. Conﬁ rm

your choice with a press on C.

Then select the sub-menu for

Units. Conﬁ rm your choice with

a press on C.

5. Use B to select the unit you

wish to modify, then validate

with a press on C.

Validate "OK" on the screen.

To choose the language:

Press on A.

2. Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.

Select your choice of

language, via B.

4. Use B

to select the desired

language and validate your

choice by pressing C.

Validate "OK" on the screen.

AIR CONDITIONING

To activate/deactivate the air
conditioning:

Press on A.

Press B to select the air

conditioning icon, then conﬁ rm

your choice by pressing C.

3. Use B to select the

modiﬁ cation you wish to

make to the air conditioning

and validate your choice by

pressing C.

To activate/deactivate
the left/right differential
adjustment of the air
conditioning:

Press on A.

Press B to select the air

conditioning icon, then conﬁ rm

your choice by pressing C.

3. Use B to select the

modiﬁ cation you wish to make

to the differential adjustment

and validate your choice with a

press on C.

M U LT I F U N C T I O N D I S P L AY S

N AV I D R I V E C O L O U R D I S P L AY

Outside temperature.

Folder.

3 Date.
4 Telephone.
5

Time.

When the outside temperature

is between +3 °C and –3 °C, the

temperature display ﬂ ashes (risk

of ice).
Note:  The  outside  temperature
displayed  may  be  higher  than  the
actual temperature if the vehicle is
stationary in bright sunlight.
The  driver  is  advised  not  to  oper-

ate the controls described below

while the vehicle is moving.

CONTROLS

Access to the "Main menu" of

the display.

Scroll through display menus.

Selection in the menus of the

function chosen or value to

modify.

Scroll through display menus.

Cancellation of the operation or

return to the previous display.

Air conditioning

Refer to the explanations

given in the section "Auto-

matic air conditioning".

Trafﬁ c information

See NaviDrive instructions.

Navigation - Trafﬁ c

information

See NaviDrive instructions.

Audio

See NaviDrive instructions.

Main Menu

Press on button A to bring up the

"Main menu" of the multifunc-

tion display. This menu gives you

access to the following functions:

Telephone and
telematic services

See NaviDrive instruc-

tions.

Conﬁ guration, to activate/

deactivate the guide-me-

home lighting, automatic

lighting of headlamps etc.

as well as to adjust the

various parameters (time, date

etc.). See NaviDrive instructions.

Map

See NaviDrive instructions.

Video

See NaviDrive instructions.

Vehicle diagnosis

See NaviDrive instructions.

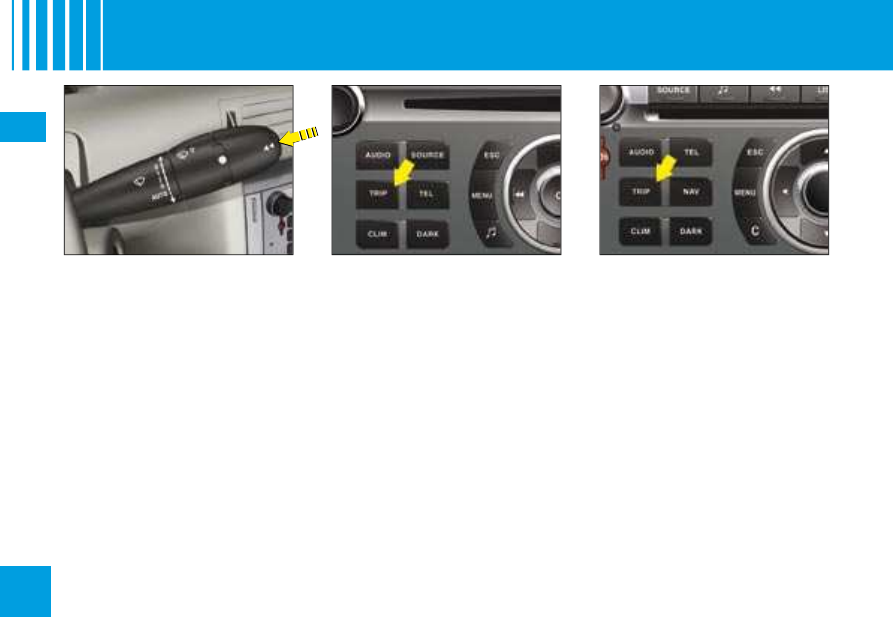

T R I P C O M P U T E R

OPERATION

For selection and display of the

various types of information, give

short presses on the end of the

windcsreen wiper stalk.
Press on the "TRIP" button on the

radio panel, for permanent display

of the trip computer information.
To reset the trip computer infor-
mation to zero,

keep the end of

the control stalk pressed for a few

seconds when you see the relevant

information displayed.

The trip computer gives you access to:

Three types of instantaneous information:

Range.

Instantaneous consumption.

Distance remaining to be travelled.

Three types of information for two Journeys 1 and 2:

The distance travelled.

Average consumption.

Average speed.
The Journeys
Journeys 1

and 2 are independent of each other but identical in use.

For example you can allocate Journey 1 to daily calculations and

Journey 2

to monthly calculations.

Resetting a Journey to zero

When the desired Journey is displayed, give a long press on the end

of the wiper control stalk.

Information concerning your vehicle:

The oil temperature (for NaviDrive display only).

The coolant temperature.
The tyre pressures.

•

T R I P C O M P U T E R

Colour screen C

NaviDrive colour display

Range

This is the distance that can still be travelled on the

amount of fuel remaining in the tank. When the dis-

tance that can still be travelled is less than around

30 km (or 20 miles), only four dashes are displayed.

Instantaneous consumption

This is the result from the consumption recorded within

the last 2 seconds. This function will only display

above 30 km / h (18 mph).

Distance to be travelled

To enter it, see "Multifunction display".

Distance travelled

This is the distance that has been travelled since the

last reset to zero of the Journey selected.

Average consumption

This is the relationship between the fuel consumed

and the distance travelled since the last reset to zero

of the trip computer.

Average speed

This is obtained, from the last reset to zero of the trip

computer, by dividing the distance travelled by the time

taken (with ignition switched on).

T R I P C O M P U T E R

This gauge informs you of the temperature of the oil in your

engine.

OIL TEMPERATURE (NAVIDRIVE COLOUR DISPLAY)

If the temperature is too high, the gauge indicates the maximum

level and the last, red bar ﬂ ashes.
Contact a CITROËN dealer.

This gauge informs you of the temperature of the

coolant ﬂ uid in your engine.

If the temperature is excessive, the gauge indicates

a maximum level, the "STOP" warning lamp comes

on in the instrument panel as well as on the Head-

Up display.
Stop and contact a CITROËN dealer.

COOLANT TEMPERATURE

Colour screen C

NaviDrive colour display

T R I P C O M P U T E R

TYRE DEFLATION DETECTION

This function warns you of tyres that are deﬂ ated or punctured, by means of sensors that continuously monitor the

status of the vehicle's wheels, giving you this information on the screen (press the end of the wiper control stalk or on

the "TRIP"

button for a permanent display).

Colour screen C

NaviDrive colour display

Display of tyres in good condition

Status from the sensors in the course

of initialisation

T R I P C O M P U T E R

Tyre deﬂ ation alert

The SERVICE

warning lamp comes on and a vehicle outline is displayed.

The location of the wheel(s) concerned is clear from the vehicle outline, on which the affected wheel(s) will be ﬂ ash-

ing. Check the tyre pressures as soon as possible.

Colour screen C

NaviDrive colour display

Tyre very deﬂ ated

Tyre deﬂ ated

Stop immediately, avoiding any sudden actions with the steering wheel or the brakes.
Change the wheel with the affected tyre (whether punctured or very deﬂ ated), then have the tyre repaired and

all the pressures checked at the earliest opportunity.
The wheel with a damaged tyre (either in the boot or under repair) can no longer be detected (information
given by the vehicle outline or by a message) nor is the spare wheel able to be detected.

Puncture

The "STOP"

and tyre(s) punctured warning lamps light up, and a vehicle outline is displayed. The location of the

wheel(s) concerned is clear from the vehicle outline, on which the affected wheel(s) will be ﬂ ashing.

Colour screen C

NaviDrive colour display

T R I P C O M P U T E R

Wheel not detected

The SERVICE

warning lamp comes on and a vehicle outline is displayed.

The wheel(s) concerned can be identiﬁ ed from the vehicle outline, on which it (they) will be missing. If you have not

changed a wheel, such information indicates that the system is malfunctioning.
Contact a CITROËN dealer to have the faulty sensor(s) replaced.

Colour screen C

NaviDrive colour display

The deﬂ ation detection system is a driving aid, but which does not absolve the driver from the need to be vigilant and

responsible.
This system does not dispense with the requirement to check the tyres on a regular basis (see "Vehicle identiﬁ ca-

tion"), to make sure that the vehicle is behaving correctly and to avoid premature tyre wear arising from driving too

fast etc.
Do not forget to check the pressure in the spare wheel.

Any repair or replacement of a tyre on a wheel that is equipped with a sensor must be carried out
by a CITROËN dealer.

Any repair or replacement

repair or

The system may suffer from temporary interference caused by radio transmissions on neighbouring
frequencies.

S I G N A L L I N G

DIRECTION INDICATORS

Left

, downwards.

Right

, upwards.

For a change of direction, move

the control stalk beyond the tight

spot. Stops automatically with the

return of the steering wheel.

Visible alert/headlamp ﬂ ash

Pull the control towards you.
The headlamp ﬂ ash can be made

even with the ignition switched off.

Horn

Press at the centre of the steering

wheel.

HAZARD WARNING LAMPS

This operates all the direction indi-

cators simultaneously.
Only use them to indicate dan-
ger

, for an emergency stop or for

driving in abnormal conditions.
The hazard lamps can also be

used with the ignition switched off.

SOUND SIGNAL FOR
HEADLAMPS LEFT ON

This operates when the driver's

door is opened, ignition off, to indi-

cate that the vehicle lamps are still

on.
It stops when you close the door,

switch off the lamps or switch on

the ignition.
This signal does not operate if the

automatic lighting of headlamps

or the guide-me-home lighting are

active.

EMERGENCY OPERATION
OF HAZARD WARNING
LAMPS

A sudden deceleration of the vehi-

cle causes the hazard lamps to

come on automatically.
They will cease to operate auto-

matically, or manually if you press

the hazard lamps button on the

dashboard.

The direction indicators cannot operate if the hazard warning

lamps are on.

S I G N A L L I N G

LIGHTING CONTROL STALK

All vehicle lamps off

Sidelamps on

Dipped beams/main beams on

Dipped beams/main beams dipswitch

Rotate the ring A forwards.

AUTOMATIC LIGHTING OF HEADLAMPS

Sidelamps and dipped beams come on automatically in poor ambient light,

or if the wipers are in continuous operation. They go out as soon as the

ambient light again become sufﬁ cient or when the wipers cease to operate.
Activation/deactivation of this function is possible in the menu "Personalisa-

tion/Conﬁ guration" in the "Main menu".
Note: Activation of this function is immediate while deactivation requires the
ignition to be switched off.
Take care not to cover the brightness sensor, which is visible from out-
side the windscreen, behind the interior rear view mirror.

GUIDE-ME-HOME LIGHTING

This function switches on your

headlamps, to light your way when

you wish to walk from a carpark,

for example.
This function is activated:

Manually by pulling the

control A

towards you, with the

ignition switched off.

Automatically, provided:

The automatic lighting of

headlamps is activated.

To activate the guide-me-

home lighting function,

select in the "Main menu",

then in "Personalisation/

Conﬁ guration", the sub-menu

for lighting and signalling,

then activate the function.

See "Multifunction display".
Note:  It  is  possible  to  modify  the
duration  of  the  guide-me-home
lighting (approx. 60, 30 or 15 sec-
onds)  in  the  menu  "Personalisa-

tion/Conﬁ guration".

•

Pull the control stalk towards you to change between dipped beam and

main beam.

S I G N A L L I N G

Front foglamps on

Front foglamps and rear foglamps on

Rotate the ring C forwards.

Switching off

First action rearwards, rear foglamps off.
Second action rearwards, front and rear foglamps off.
Note: the foglamps should be used only in fog or in other conditions of poor
visibility.

FRONT AND REAR
FOGLAMPS (RING C)

Lighting

With dipped/main beams on:
Rotate the ring C forwards.

DAYTIME-RUNNING LAMPS

These come on automatically when

the engine is running:

If the function is activated

in the Main Menu. See

"Multifunction display".

Provided the lighting control

stalk is on position 0

and all the

headlamps are off.

If the daytime-running lamps are

active, the sidelamps will also be

on (depending on country speciﬁ -

cation).

•

In foggy conditions, if the ambient light is not such that the

headlamps come on automatically, it is up to the driver to switch

on dipped beams, and/or foglamps, manually

FEATURES

With dipped beams or main beams, the Directional headlamps function turns the headlamps in the direction the

road ahead is taking.
Your vision on bends is considerably enhanced.
Note: An automatic correction of the beam height enables you not to dazzle other drivers.

X E N O N D U A L F U N C T I O N D I R E C T I O N A L

H E A D L A M P S

Function activated

Function deactivated

ACTIVATION/DEACTIVATION

Activated by default, this function

can be activated/deactivated in

the "Main menu" on the multifunc-

tion screen. See "Multifunction dis-

play".
The activated/deactivated status
is retained

when you switch off

the engine.
Note:  This  function  is  not  active
when  the  vehicle  is  stationary,
moving  at  very  low  speed,  or  in
reverse gear.

Should there be a malfunction the "Dipped beams" ﬂ ashes. Have the system checked by a CITROËN

dealer.
It is recommended to change both Xenon bulbs at the same time if there is a failure of one of
them.

Content .. 1 2 3 4 ..
