Citroen C-Crosser (2012 year). Instruction - part 2

AMILIARI

ION

VENTILATION

Digital air conditioning

Temperature adjustment.

Exterior air intake.
Interior air recirculation.

Air fl ow adjustment.

Automatic programme (comfort).

Deactivation of the air conditioning.

Air distribution adjustment.

Front visibility setting.

Rear screen demisting/defrosting.

AMILIARI

ION

MONITORING

Instrument panel Switch

panel

When the ignition is on, the orange and

red warning lamps come on.
When the engine is running, these

warning lamps should go off.
If warning lamps remain on, refer to the

page concerned.

Warning lamps

A. Passenger’s airbag deactivated

warning lamp.

109

B. Hazard warning lamps switch.

102

C. Front passenger’s seat belt not

fastened or unfastened warning lamp.

106

Detection of driver’s seat belt

fastening

When the ignition is switched

on, the seat belt warning lamp

comes on accompanied by an

audible signal if the driver has

not fastened their seat belt.

The warning lamp goes off when the

seat belt is fastened.

A.   Speedometer.
B.   Instrument panel screen.
C.   Rev counter.
D.   Dashboard lighting dimmer.

AMILIARI

ION

PASSENGER SAFETY

Front passenger’s airbag

Child lock

1.   Insert the key.
2.   Select the "OFF" position.
3.   Remove the key.

This prevents opening of the door con-

cerned from the inside.
Lower or raise the control A to lock or

unlock.

109

101

ISOFIX mountings

Two rings

A, located between the seat

back and seat cushion of the vehicle’s seat

are used to install an Isofi x child seat.

A ring B is used to secure the upper

strap referred to as the TOP TETHER .

AMILIARI

ION

Cruise control

This maintains a constant vehicle speed

programmed by the driver.
1. "ON/OFF" button: activation/

deactivation of cruise control mode.

2. "COAST SET" button: storing a

driving speed then decreasing the

cruising speed.

3. "ACC RES" button: increasing the

cruising speed and recalling the

stored speed.

4. "CANCEL" button: switching off the

cruise control.

In order to be programmed or activated,

the vehicle speed must be higher than

25 mph (40 km/h) with at least second

gear engaged.

This detects obstacles (person, vehicle,

tree, gate, ...) located behind the vehicle.
The vehicle is fi tted with four sensors:
D. two side sensors.
E. two central sensors.

Audible rear parking sensors

121

123

DRIVING SAFELY

Four wheel drive system

Three transmission modes are avail-

able and can be selected manually by

the driver to suit the circumstances:
A. Two wheel drive (2WD),
B. Four wheel drive (4WD AUTO),
C. Four wheel drive (4WD LOCK).

119

Also...
You can change transmission mode

when stationary or when driving at a

speed below 60 mph (100 km/h).

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emis-

sions.

Optimise the use of your

gearbox

With a manual gearbox, move off gen-

tly, change up without waiting and

drive by changing up quite soon. If

your vehicle has the system, the gear

shift indicator invites you to change up;

it is displayed in the instrument panel,

follow its instructions.

With an automatic or electronic gearbox,

stay in Drive "D" or Auto "A", according

to the type of gearbox, without pressing

the accelerator pedal heavily or sud-

denly.

Drive smoothly

Maintain a safe distance between ve-

hicles, use engine braking rather than

the brake pedal, and press the accel-

erator progressively. These practices

contribute towards a reduction in fuel

consumption and CO

emissions and

also helps reduce the background traf-

fi c noise.

If your vehicle has cruise control,

make use of the system at speeds

above 25 mph (40 km/h) when the

traffi c is fl owing well.

Control the use of your

electrical equipment

Before moving off, if the passenger

compartment is too warm, ventilate it

by opening the windows and air vents

before using the air conditioning.
Above 30 mph (50 km/h), close the

windows and leave the air vents

open.
Remember to make use of equipment

that can help keep the temperature

in the passenger compartment down

(sun roof and window blinds...).
Switch off the air conditioning, unless

it has automatic digital regulation, as

soon as the desired temperature is at-

tained.
Switch off the demisting and defrost-

ing controls, if not automatic.
Switch off the heated seat as soon as

possible.

Switch off the headlamps and front

foglamps when the level of light does

not require their use.

Avoid running the engine before mov-

ing off, particularly in winter; your ve-

hicle will warm up much faster while

driving.

As a passenger, if you avoid connect-

ing your multimedia devices (fi lm, mu-

sic, video game...), you will contribute

towards limiting the consumption of

electrical energy, and so of fuel.
Disconnect your portable devices be-

fore leaving the vehicle.

Limit the causes of excess

consumption

Spread loads throughout the vehicle;

place the heaviest items in the bottom

of the boot, as close as possible to the

rear seats.
Limit the loads carried in the vehicle

and reduce wind resistance (roof bars,

roof rack, bicycle carrier, trailer...). Use

a roof box in preference.
Remove roof bars and roof racks after

use.

At the end of winter, remove snow

tyres and refi t your summer tyres.

Observe the recommendations

on maintenance

Check the tyre pressures regularly,

when cold, referring to the label in the

door aperture, driver's side.
Carry out this check in particular:
-

before a long journey,

at each change of season,

after a long period out of use.

Don't forget the spare wheel and the

tyres on any trailer or caravan.

Have your vehicle serviced regularly

(engine oil, oil fi lter, air fi lter...) and ob-

serve the schedule of operations rec-

ommended by the manufacturer.

When refuelling, do not continue after

the 3 rd cut-off of the nozzle to avoid

any overfl ow.

At the wheel of your new vehicle, it is only

after the fi rst 1 800 miles (3 000 kilometres)

that you will see the fuel consumption set-

tle down to a consistent average.

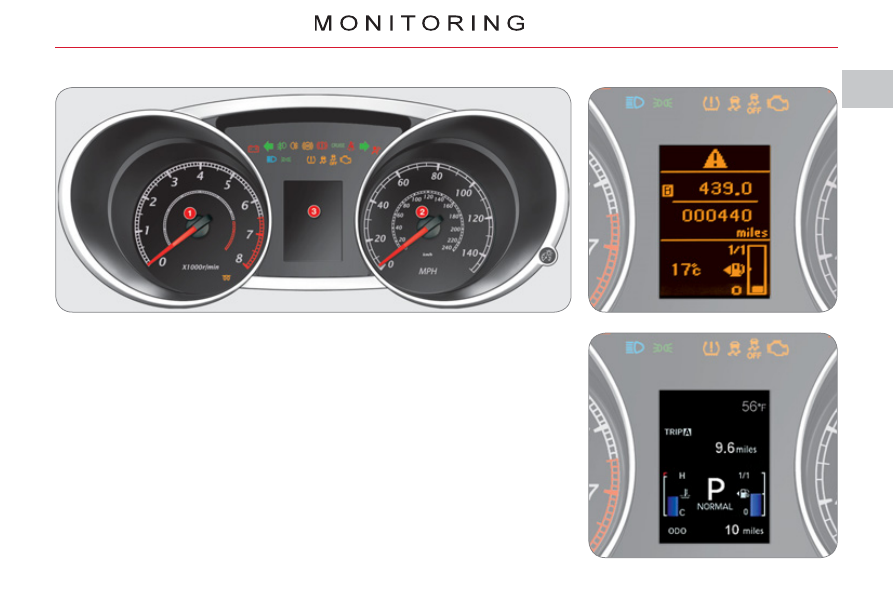

INSTRUMENT PANEL

Panel grouping together the dials and

warning/indicator lamps. These inform

the driver of the activation/deactivation

of a system or of the occurrence of a

fault.

3. Instrument panel screen:

   -   Warning and status displays.
  -   Total and trip distance recorders.
  -  Service indicator.
  -  Coolant temperature.
  -   Trip computer information.
  -   Cruise control setting.
  -   Dashboard lighting and parameter

settings.

  -  Fuel level.
  -  Ambient temperature.
  -  Transmission mode.

Screen type 1

Screen type 2

1. Rev counter.
2. Speedometer.

INSTRUMENT PANEL WARNING LAMPS

Warning lamp

is on

Cause

Actions/ Observations

Left-hand

direction

indicator

Flashing

with

audible

warning

This fl ashes when you

press the lighting stalk

down.

If this indicator lamp fl ashes abnormally quickly, this

could indicate that the bulb of one of the direction

indicators has blown. Change the bulb or contact a

CITROËN dealer or a qualifi ed workshop.

Right-hand

direction

indicator

Flashing

with

audible

warning

This fl ashes when you

push the lighting stalk up.

If this indicator lamp fl ashes abnormally quickly, this

could indicate that the bulb of one of the direction

indicators has blown. Change the bulb or contact a

CITROËN dealer or a qualifi ed workshop.

Main beam

headlamps

Fixed

This comes on when

you pull the lighting stalk

towards you.

Pull the stalk to return to dipped beam

headlamps.

Sidelamps

Fixed

This comes on when the

lighting stalk is in the

"Sidelamps" or "Dipped

beam headlamps"

position.

Turn the stalk to the desired position.

Front foglamps

Fixed

This comes on when you

use the front foglamps.

Turn the ring on the stalk forwards to switch on

the foglamps.

Rear foglamps

Fixed

This comes on when you

use the rear foglamps.

Turn the ring on the stalk forwards to switch on

the foglamps.

Cruise control

Fixed

This comes on when the

mode is active.

Press the "ON/OFF" button to activate/

deactivate the mode.

M O N I T O R I N G

Warning lamp

is on

Cause

Actions/Observations

Diesel

preheating

Fixed

This comes on when the

ignition switch is in the

ON position.

Wait until this goes off before starting.
The duration for which this is on is determined

by the exterior climatic conditions.

Parking brake/

Brake fl uid

level

Fixed

This comes on for a few

seconds when the ignition

is turned to "ON" then

goes off.

It is accompanied by a message on

the instrument panel screen.

The parking brake is

applied or has not been

released fully.

It is accompanied by a message on the

instrument panel screen. Release the parking

brake to switch off the warning lamp.

The brake fl uid level is

too low.

It is accompanied by a message on the

instrument panel screen. Top up with brake fl uid

and contact a CITROËN dealer or a qualifi ed

workshop.

Emission

control system

Fixed or

fl ashing

This comes on or fl ashes

in the event of a fault with

the system.

Contact a CITROËN dealer or a qualifi ed

workshop.
It should go off a few seconds after starting

the engine.

Battery charge

Fixed

This comes on if a

charging circuit fault

occurs.

It should go off when the engine is started.
It is accompanied by a message on

the instrument panel screen. Check the battery

terminals (refer to the "Battery" section).

M O N I T O R I N G

Warning lamp

is on

Cause

Actions/Observations

Driver's

seat belt not

fastened

Fixed

The driver has not

fastened or has

unfastened their seat belt.

This is accompanied by a message on

the instrument panel screen.
Fasten the driver's seat belt.

ABS

Fixed

This comes on if an anti-

lock braking system fault

occurs.

It is accompanied by a message in the

instrument panel screen. The vehicle retains

conventional braking without assistance but

you are advised to stop. Have it checked by

a CITROËN dealer or a qualifi ed workshop.

Airbags and

pretensioners

Fixed

This comes on for a few

seconds when the ignition

is turned to "ON" then

goes off.

It should go off when the engine is started. If it

does not go off, contact a CITROËN dealer or

a qualifi ed workshop.

This comes on if an

airbag or pretensioner

fault occurs.

It is accompanied by a message on

the instrument panel screen. Have the system

checked by a CITROËN dealer or a qualifi ed

workshop without delay.

Dynamic

stability control

system (ASC)

Fixed

This comes on if

a dynamic stability control

system fault occurs.

It is accompanied by a message on

the instrument panel screen. Have the system

checked by a CITROËN dealer or a qualifi ed

workshop without delay.

M O N I T O R I N G

Each time the engine is started: a series of warning lamps and/or messages come on, applying a checking self test. They go

off after a few seconds. Engine running: the warning lamp or the message becomes a warning if it remains on continuously

or fl ashes. This initial warning may be accompanied by an audible signal and a message on the screen. Do not ignore these

warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
When the cause of the appearance of the warning lamp or warning message has been rectifi ed, the warning disappears

from the screen automatically. If the cause of the warning is not rectifi ed, you can return to the previous screen at any time

by pressing the INFO  button on the dashboard.
The symbol "!"  is displayed.
To return to the previous screen (with the "!"  symbol), you must press the INFO  button several times.

Warning messages (ignition at "OFF")

You can close the warning messages which show these symbols in order to move on to the next screen.
To do this, press the INFO button according to the symbol displayed.

Press briefl y .

Press and hold .

Symbols which appear in the top right corner of the screen.

Message

is on

Cause

Solution - action

Observations

Key in

ignition

Fixed

The driver's door is open

and you have forgotten

to remove the key from

the ignition.

Turn the ignition switch

to the LOCK position

and remove the key.

Only if the engine has

been started.
An intermittent audible

signal is heard.

Lighting

left on

Fixed

You have forgotten to

switch off the vehicle

lighting.

Switch off the vehicle

lighting by placing the

stalk at OFF.

An intermittent audible

signal is heard.

M O N I T O R I N G

Warning messages (ignition at "ON")

Message

is on

Cause

Solution - action

Observations

ABS

Fixed

Anti-lock braking system

(ABS) fault.

Contact a CITROËN dealer

or a qualifi ed workshop.

The vehicle retains

conventional braking

without assistance

but you are advised

to stop.

Braking

system

Fixed

Associated warning

lamp.
The level of brake

fl uid in the reservoir is

too low.

Stop and top up, otherwise

contact a CITROËN dealer

or a qualifi ed workshop.

If the message

remains on after

topping up, contact a

CITROËN dealer or

a qualifi ed workshop.

Associated warning

lamp.
Braking system fault.

Contact a CITROËN dealer

or a qualifi ed workshop.

You must stop as

soon as it is safe

to do so.

Parking brake

Fixed

You have moved off with

the parking brake still

applied.

Release the parking brake.

Coolant

temperature

Flashing

High engine temperature.

If the message fl ashes ,

wait for the engine to cool

before topping up the level,

if necessary.

You must stop

your vehicle as

soon as it is safe

to do so.

Flashing

If the message fl ashes

and the service

warning light comes

on , contact a CITROËN

dealer or a qualifi ed

workshop without delay.

Seat belt

Fixed

The driver has not fastened

or has unfastened his seat

belt.

Fasten your seat belt.

There is an

intermittent audible

signal above 5 mph

(8 km/h).

M O N I T O R I N G

Message

is on

Cause

Solution - action

Observations

Airbags

Fixed

Fault in the airbags or

pretensioners.

Contact a CITROËN

dealer or a qualifi ed

workshop.

Service

Fixed

Problem in one of the systems

which does not have a specifi c

message.

Stop the vehicle and

contact a CITROËN

dealer or a qualifi ed

workshop.

To identify the

problem, contact a

CITROËN dealer or

a qualifi ed workshop.

Engine oil

pressure

Fixed

Engine oil pressure too low or

fault in the engine lubrication

system.

Stop the vehicle and

contact a CITROËN

dealer or a qualifi ed

workshop.

Engine oil

level

Fixed

Engine oil level too low.

Stop the vehicle and

check the level using

the dipstick.

If there is a lack of

oil, top up the level.

Low fuel

warning

Fixed

The fuel level is low.

Refuel as soon as

possible.

Fuel system

Fixed

Fuel system fault.

Contact a CITROËN

dealer or a qualifi ed

workshop.

Opening

not closed

correctly

Fixed

One of the doors or the tailgate

is not closed correctly.

Close the door or the

tailgate.

The opening

concerned is

indicated on the

screen.

M O N I T O R I N G

Message

is on

Cause

Solution - action

Observations

Dynamic

stability

control

system (ASC)

Fixed

Dynamic stability control system

(ASC) fault.

Contact a CITROËN

dealer or a qualifi ed

workshop.

Four wheel

drive system

Fixed

Four wheel drive transmission

system fault.

Contact a CITROËN

dealer or a qualifi ed

workshop.

Four wheel

drive system

temperature

Fixed

The temperature of the four

wheel drive transmission

system is too high.

Stop the vehicle and

contact a CITROËN

dealer or a qualifi ed

workshop.

The vehicle switches

to front wheel

drive (2 WD) mode

automatically.

Automatic

headlamp

adjustment

system

Fixed

The automatic headlamp

adjustment is faulty.

Contact a CITROËN

dealer or a qualifi ed

workshop.

Only on vehicle fi tted

with xenon bulbs.

Battery

charge

Fixed

Battery charge fault.

Stop the vehicle and

contact a CITROËN

dealer or a qualifi ed

workshop.

Ambient

temperature

Fixed

The ambient temperature is

3 °C (37 °F) or below.

Road icy.
Take care and drive

slowly.

Caution: The road

may be icy even

when this screen is

not displayed.

Message

is on

Cause

Solution - action

Observations

Saturation of

the particle

emission fi lter

Fixed

Start of saturation of the particle

emission fi lter.

As soon as traffi c

conditions permit,

regenerate the fi lter

by driving at a speed

of at least 35 mph

(60 km/h) until the

message is cleared.

If the message is still

displayed, contact a

CITROËN dealer or

a qualifi ed workshop.

Diesel

additive level

Fixed

Low Diesel additive level.

Have the level

topped up by a

CITROËN dealer or

a qualifi ed workshop

without delay.

Water in the

Diesel fi lter

(according to

country)

Fixed

The presence of water in the

Diesel fi lter is indicated.
Risk of damage to the injection

system on Diesel engines.

Contact a CITROËN

dealer or a qualifi ed

workshop without

delay.

M O N I T O R I N G

Prevention messages

Information messages (ignition at "ON")

Message

is on

Status of the system

2WD two wheel

drive system

Flashing

When the "2WD" (2 wheel drive) mode is selected using the

transmission mode selector.

4WD four wheel

drive system

Flashing

When the "4WD" (4 wheel drive) mode is selected using the

transmission mode selector.
This mode is the default mode.

4WD LOCK four

wheel drive system

Flashing

When the "LOCK" (4 wheel drive) mode is selected using the

transmission mode selector.

Ambient

temperature

Fixed

This indicates the ambient temperature.
When the vehicle is stationary or if the speed is below 12 mph (20 km/h)

the temperature displayed may not be the true temperature.

Display

is on

Cause

Solution - action

Observations

Service

indicator

Fixed

Informs the driver of

the time remaining

before the vehicle's

scheduled service.

Contact a CITROËN

dealer or a qualifi ed

workshop.

This is displayed for a few

seconds when the ignition is

switched on.

Break

advised

Fixed

Informs the driver that

they should stop to

take a break.

You are advised to

take a break.

This is displayed when the

driving time that you set

previously is reached.
An audible signal is heard

3 times and is then heard every

5 minutes until the vehicle stops.

Content .. 1 2 3 ..
