298

IN CASE OF EMERGENCY

If the sealant (white fluid) does flow through the

Sealant Hose:

1. Continue to operate the pump

until sealant is no longer flowing

through hose (typically takes 30 - 70

seconds). As the sealant flows

through the Sealant Hose, the Pressure

Gauge can read as high as 70 psi (4.8 bar).

The Pressure Gauge will decrease quickly

from approximately 70 psi (4.8 bar) to the

actual tire pressure when the Sealant Bottle

is empty.

2. The pump will start to inject air into

the tire immediately after the

Sealant Bottle is empty. Continue to

operate the pump and inflate the tire

to the cold tire inflation pressure found on the

tire and loading information label located in

the driver-side door opening. Check the tire

pressure by looking at the Pressure Gauge.

If the tire does not inflate to at least 26 psi

(1.8 bar) within 15 minutes:



The tire is too badly damaged. Do not attempt to

drive the vehicle further. Call for assistance.

If the tire inflates to the recommended pressure or

is at least 26 psi (1.8 bar) within 15 minutes:

NOTE:

If the tire becomes overinflated, push the Deflation

Button to reduce the tire pressure to the recom

mended inflation pressure before continuing.

1. Push the Power Button to turn the

Tire Service Kit off.

2. Remove the speed limit label from

the Tire Service Kit and place sticker

on the steering wheel.

3. Immediately disconnect the Sealant Hose

from the valve stem, reinstall the cap on the

fitting at the end of the hose, and place the Tire

Service Kit in the vehicle storage location.

Drive Vehicle:

Immediately after injecting sealant and

inflating the tire, drive the vehicle 5 miles

(8 km) or 10 minutes to ensure

distribution of the Tire Service Kit Sealant

within the tire. Do not exceed 50 mph (80 km/h).

After Driving:



Pull over to a safe location and turn on the

vehicle’s Hazard Warning Flashers.



Verify that the valve stem (on the wheel with the

deflated tire) is in a position that is near to the

ground. This will allow the Tire Service Kit Hose

to reach the valve stem and keep the Tire

Service Kit flat on the ground. This will provide

the best positioning of the kit when injecting the

sealant into the deflated tire and running the air

pump. Move the vehicle as necessary to place

the valve stem in this position before

proceeding.



Place the transmission in PARK (P) and cycle the

ignition in the OFF position.



Apply the parking brake.

WARNING!

The Tire Service Kit is not a permanent flat tire

repair. Have the tire inspected and repaired or

replaced after using the Tire Service Kit. Do not

exceed 50 mph (80 km/h) until the tire is

repaired or replaced. Failure to follow this

warning can result in injuries that are serious or

fatal to you, your passengers, and others around

you. Have the tire checked as soon as possible

at an authorized dealer.

IN CASE OF EMERGENCY

299

NOTE:

If tire has improper inflation follow these next

steps:
1. Uncoil the Sealant Hose, and then remove the

cap from the fitting at the end of the hose.

2. Place the Tire Service Kit flat on

the ground next to the deflated tire.

3. Remove the cap from the valve stem, and then

screw the fitting at the end of the Sealant Hose

onto the valve stem.

4. Uncoil the Power Plug and insert

the plug into the vehicle's 12 Volt

power outlet.
5. Uncoil the Hose and screw the

fitting at the end of the hose onto the

valve stem.
6. Turn the Mode Select Knob and

turn to the Air Mode position.

7. Check the pressure in the tire by reading the

Pressure Gauge.

If tire pressure is less than 19 psi (1.3 bar):
The tire is too badly damaged. Do not attempt to

drive the vehicle further. Call for assistance.
If the tire pressure is 19 psi (1.3 bar) or higher:

1. Push the Power Button to turn on

Tire Service Kit and inflate the tire to

the cold tire inflation pressure found

on the tire and loading information

label located in the driver-side door opening.

NOTE:

If the tire becomes overinflated, push the Deflation

Button to reduce the tire pressure to the recom

mended inflation pressure before continuing.
2. Disconnect the Tire Service Kit from the valve

stem, reinstall the cap on the valve stem and

unplug from 12 Volt outlet.

3. Place the Tire Service Kit in its proper storage

area in the vehicle.

4. Have the tire inspected and repaired or

replaced at the earliest opportunity at an

authorized dealer or tire service center.

5. Remove the Speed Limit sticker from the

steering wheel after the tire has been repaired.

6. Replace the Sealant Bottle at an authorized

dealer as soon as possible.

NOTE:

When having the tire serviced, advise the autho

rized dealer or service center that the tire has been

sealed using the Tire Service Kit.

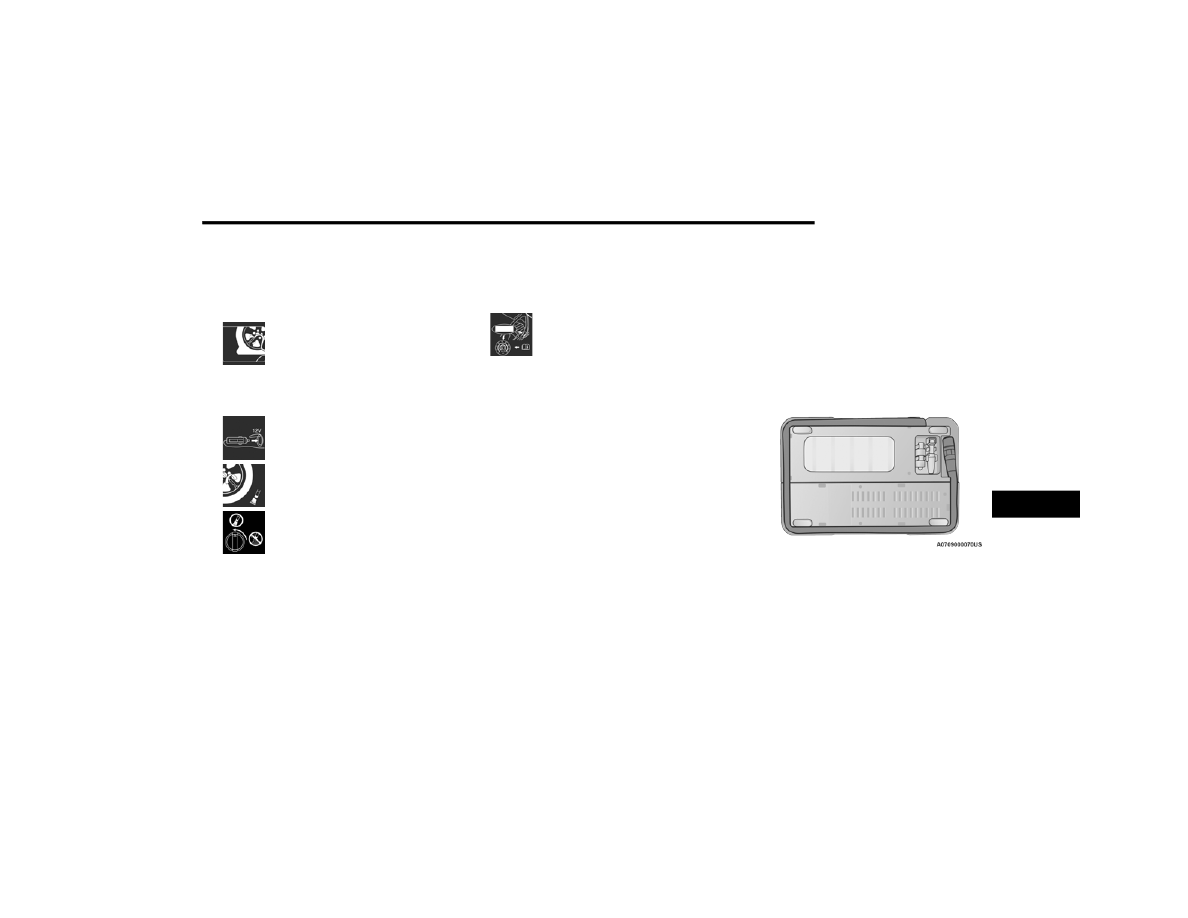

Sealant Bottle Replacement:
1. Unwrap the power cord.
2. Unwrap the hose.

Hose Location

300

IN CASE OF EMERGENCY

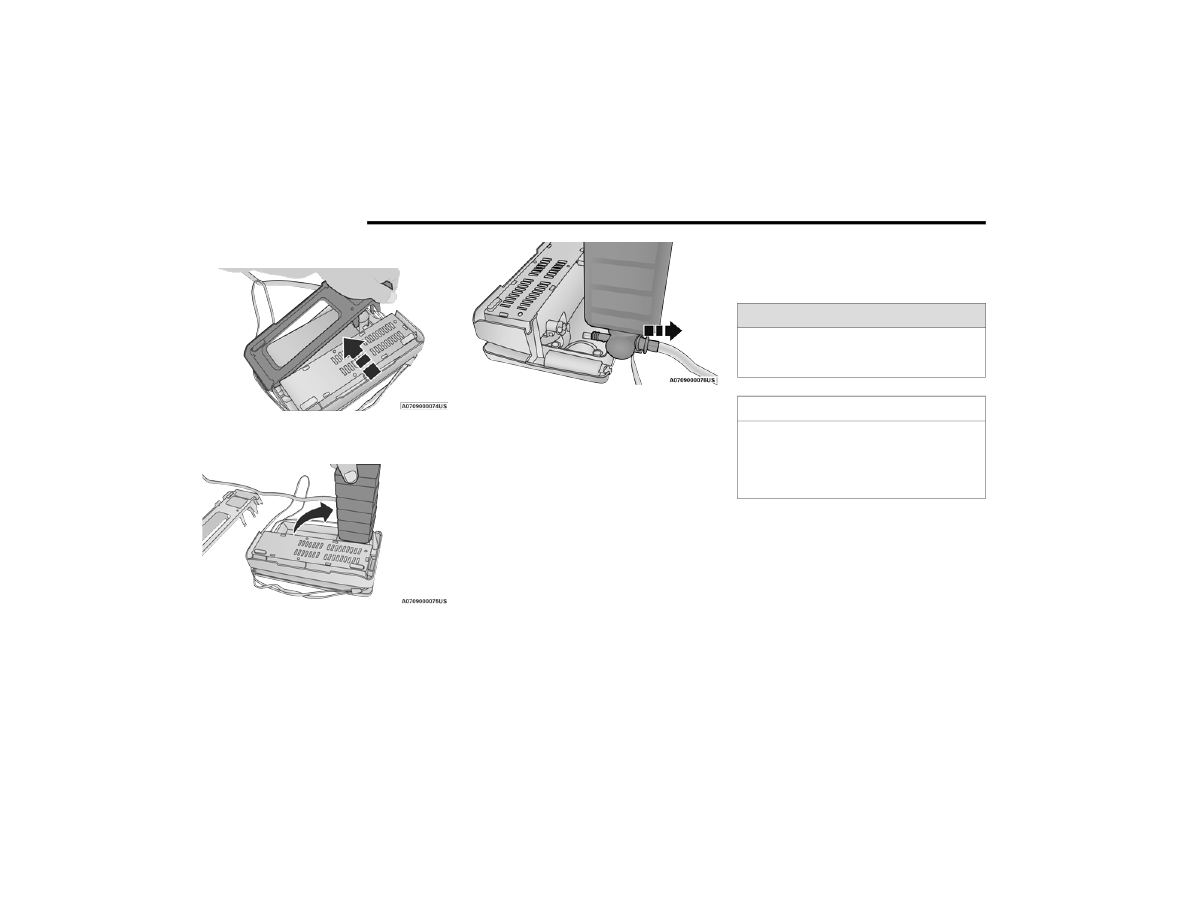

3. Remove the bottle cover.

Remove The Bottle Cover

4. Rotate the bottle up beyond vertical to release.

Rotate The Bottle Up

5. Pull the bottle away from the Compressor.

Remove The Bottle

NOTE:



For sealant bottle installation, follow these

steps reverse order.



Replacement sealant bottles are available at

authorized service centers.

JUMP STARTING

If your vehicle has a discharged battery it can be

jump started using a set of jumper cables and a

battery in another vehicle or by using a portable

battery booster pack. Jump starting can be

dangerous if done improperly so please follow the

procedures in this section carefully.

NOTE:

When using a portable battery booster pack follow

the manufacturer’s operating instructions and

precautions.

WARNING!

Do not attempt jump starting if the battery is

frozen. It could rupture or explode and cause

personal injury.

CAUTION!

Do not use a portable battery booster pack or

any other booster source with a system voltage

greater than 12 Volts or damage to the battery,

starter motor, alternator or electrical system may

occur.

IN CASE OF EMERGENCY

301

REPARATIONS

UMP

TART

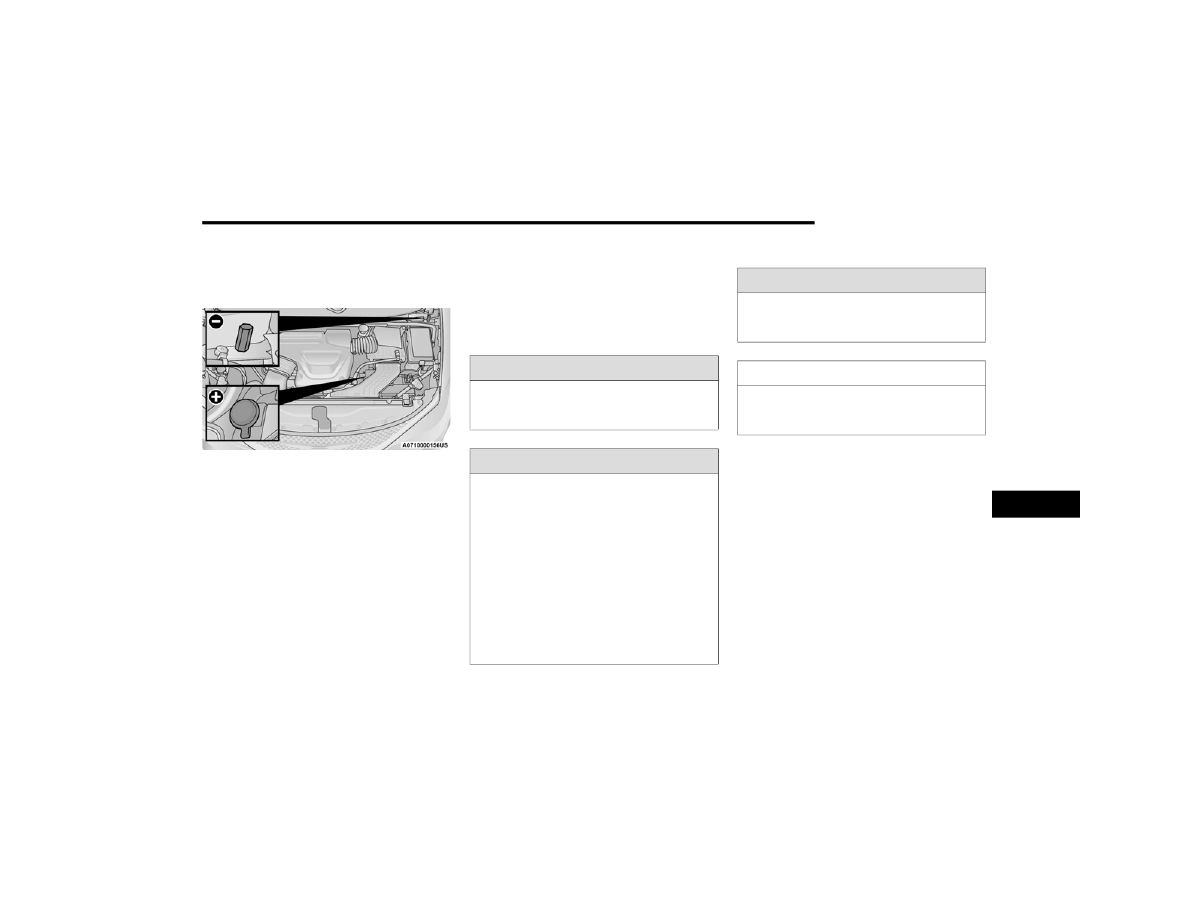

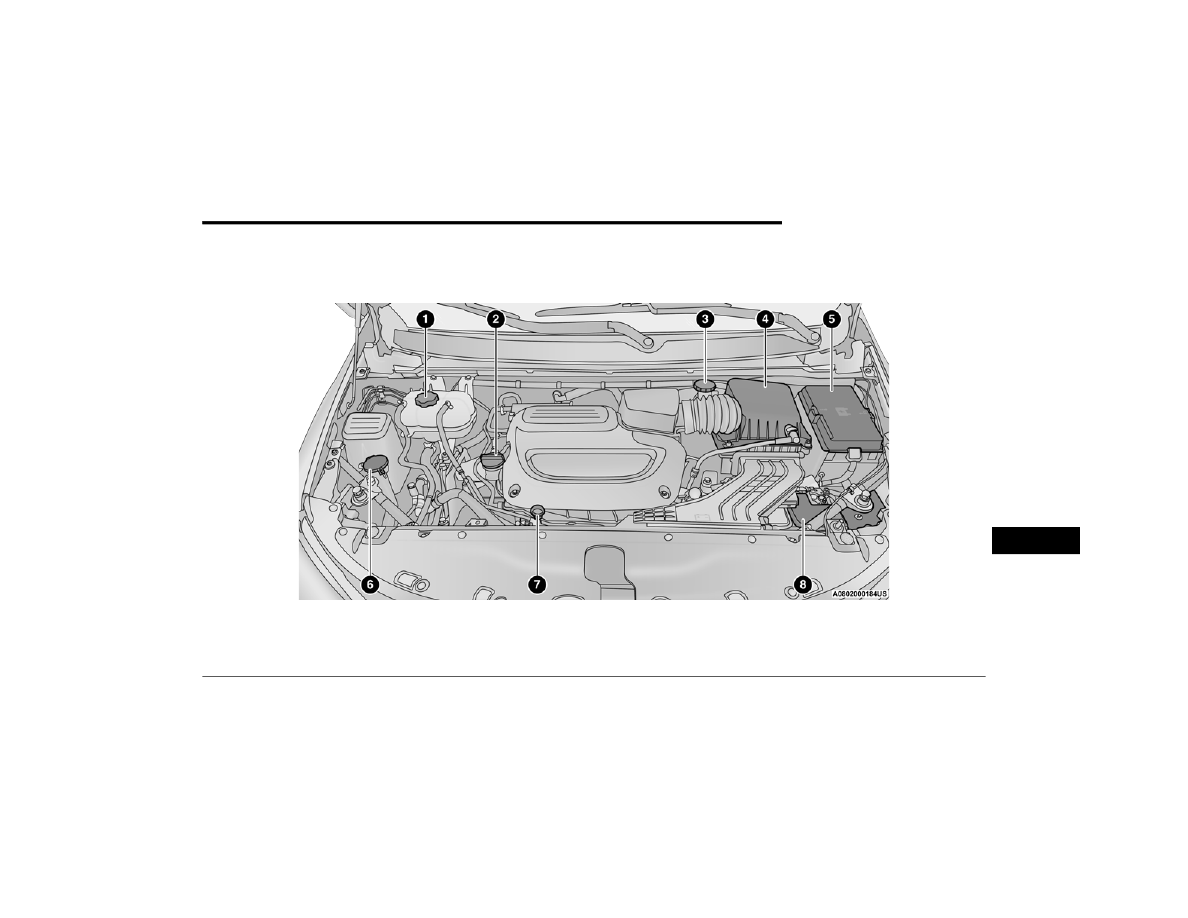

The battery in your vehicle is located on the driver’s

side of the engine compartment.

Battery Location

NOTE:

The positive battery post may be covered with a

protective cap. Lift up on the cap to gain access to

the positive battery post. Do not jump off fuses.

Only jump directly off positive post which has a

positive (+) symbol on or around the post.
See the following steps to prepare for jump

starting:
1. Apply the parking brake, shift the automatic

transmission into PARK (P) and place the

ignition to OFF.

2. Turn off the heater, radio, and all electrical

accessories.

3. Pull upward and remove the protective cap

over the remote positive (+) battery post.

4. If using another vehicle to jump start the

battery, park the vehicle within the jumper

cable’s reach, set the parking brake and make

sure the ignition is OFF.

UMP

TARTING

ROCEDURE

Connecting The Jumper Cables
1. Connect the positive (+) end of the jumper

cable to the remote positive (+) post of the

vehicle with the discharged battery.

2. Connect the opposite end of the positive (+)

jumper cable to the positive (+) post of the

booster battery.

3. Connect the negative (-) end of the jumper

cable to the negative (-) post of the booster

battery.

4. Connect the opposite end of the negative (-)

jumper cable to the remote negative (-) post

near the windshield cowl (exposed metallic/

unpainted post of the discharge vehicle).

WARNING!

Do not allow vehicles to touch each other as this

could establish a ground connection and

personal injury could result.

WARNING!



Take care to avoid the radiator cooling fan

whenever the hood is raised. It can start

anytime the ignition switch is ON. You can be

injured by moving fan blades.



Remove any metal jewelry such as rings,

watch bands and bracelets that could make

an inadvertent electrical contact. You could be

seriously injured.



Batteries contain sulfuric acid that can burn

your skin or eyes and generate hydrogen gas

which is flammable and explosive. Keep open

flames or sparks away from the battery.

WARNING!

Failure to follow this jump starting procedure

could result in personal injury or property

damage due to battery explosion.

CAUTION!

Failure to follow these procedures could result in

damage to the charging system of the booster

vehicle or the discharged vehicle.

302

IN CASE OF EMERGENCY

5. Start the engine in the vehicle that has the

booster battery, let the engine idle a few

minutes, and then start the engine in the

vehicle with the discharged battery.

6. Once the engine is started, see the following

disconnecting procedure for the next steps.

Disconnecting The Jumper Cables
1. Disconnect the negative (-) end of the jumper

cable from the remote negative post of the

vehicle with the discharged battery.

2. Disconnect the opposite end of the negative (-)

jumper cable from the negative (-) post of the

booster battery.

3. Disconnect the positive (+) end of the jumper

cable from the positive (+) post of the booster

battery.

4. Disconnect the opposite end of the positive (+)

jumper cable from the remote positive (+) post

of the vehicle with the discharged battery and

reinstall the protective cap.

If frequent jump starting is required to start your

vehicle you should have the battery and charging

system inspected at an authorized dealer.

REFUELING IN EMERGENCY – IF EQUIPPED

The vehicle is equipped with a refueling funnel for

a Cap-Less Fuel System. If refueling is necessary,

while using an approved gas can, insert the

refueling funnel into the filler neck opening. Take

care to open both flappers with the funnel to avoid

spills.

NOTE:

In certain cold conditions, ice may prevent the fuel

door from opening. If this occurs, lightly push on

the fuel door to break the ice buildup and

re-release the fuel door by pushing at the rear

center edge to unlatch.

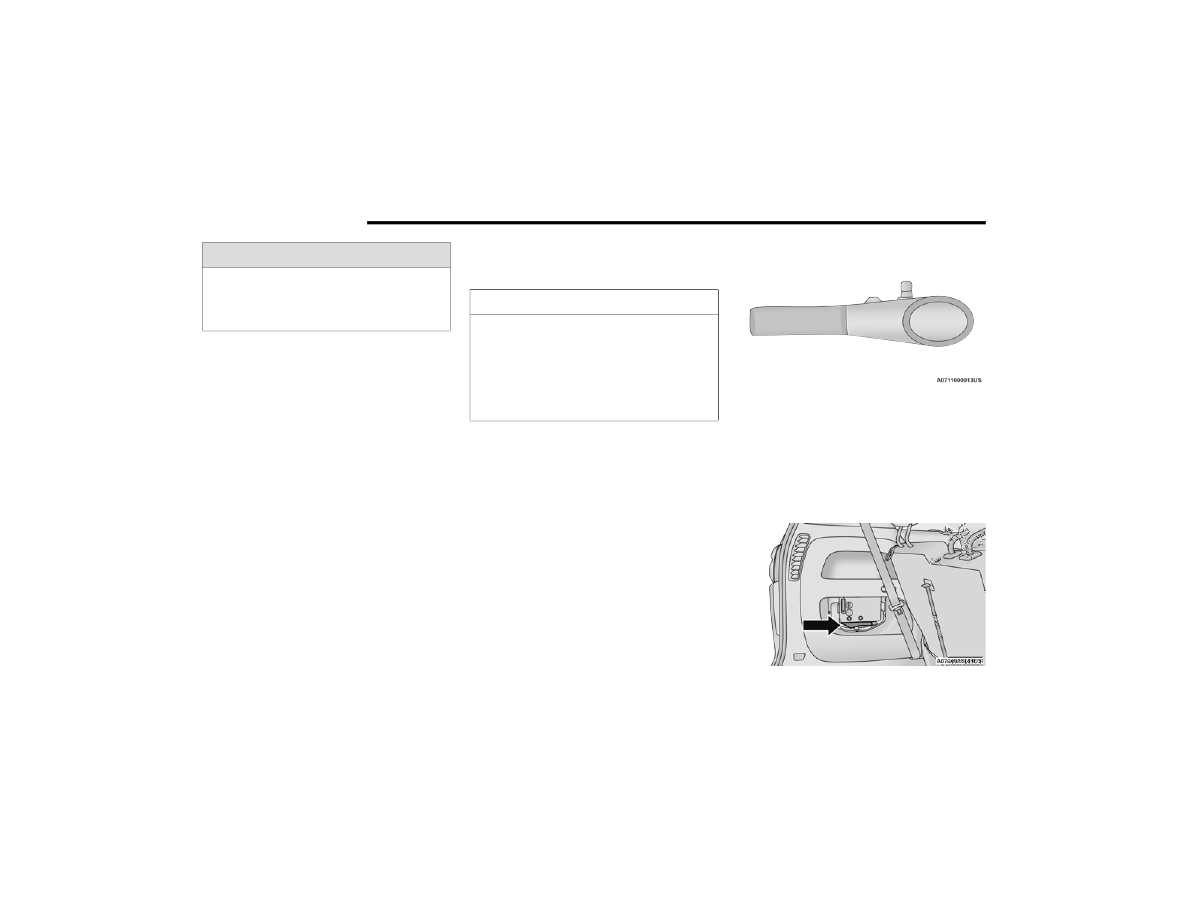

Refueling Funnel

Emergency Gas Can Refueling
Most gas cans will not open the flapper doors. A

funnel is provided to allow emergency refueling

with a gas can.
See the following steps for refueling:
1. Retrieve funnel from the rear storage area.

Fuel Funnel Location

WARNING!

Do not connect the jumper cable to the negative

(-) post of the discharged battery. The resulting

electrical spark could cause the battery to

explode and could result in personal injury.

CAUTION!

Accessories plugged into the vehicle power

outlets draw power from the vehicle’s battery,

even when not in use (i.e., cellular devices, etc.).

Eventually, if plugged in long enough without

engine operation, the vehicle’s battery will

discharge sufficiently to degrade battery life

and/or prevent the engine from starting.

IN CASE OF EMERGENCY

303

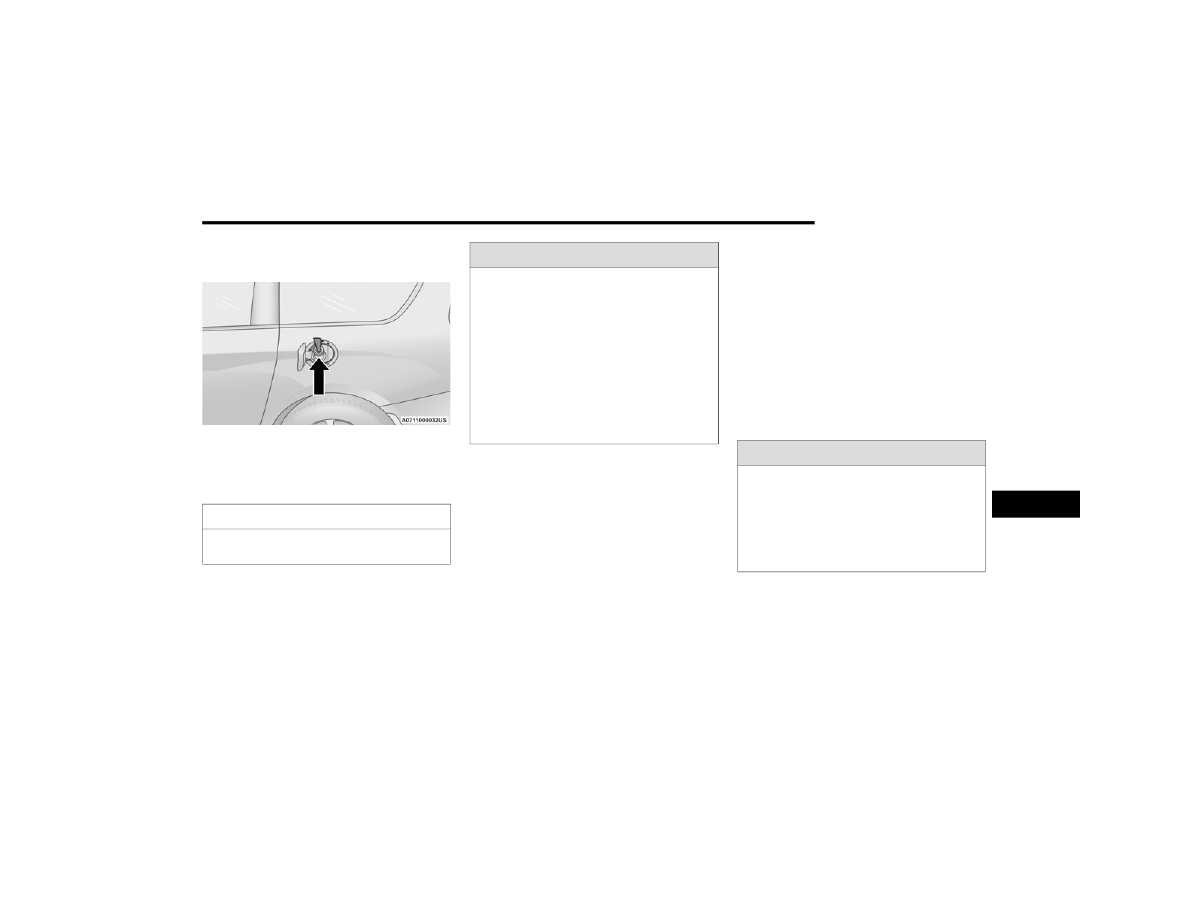

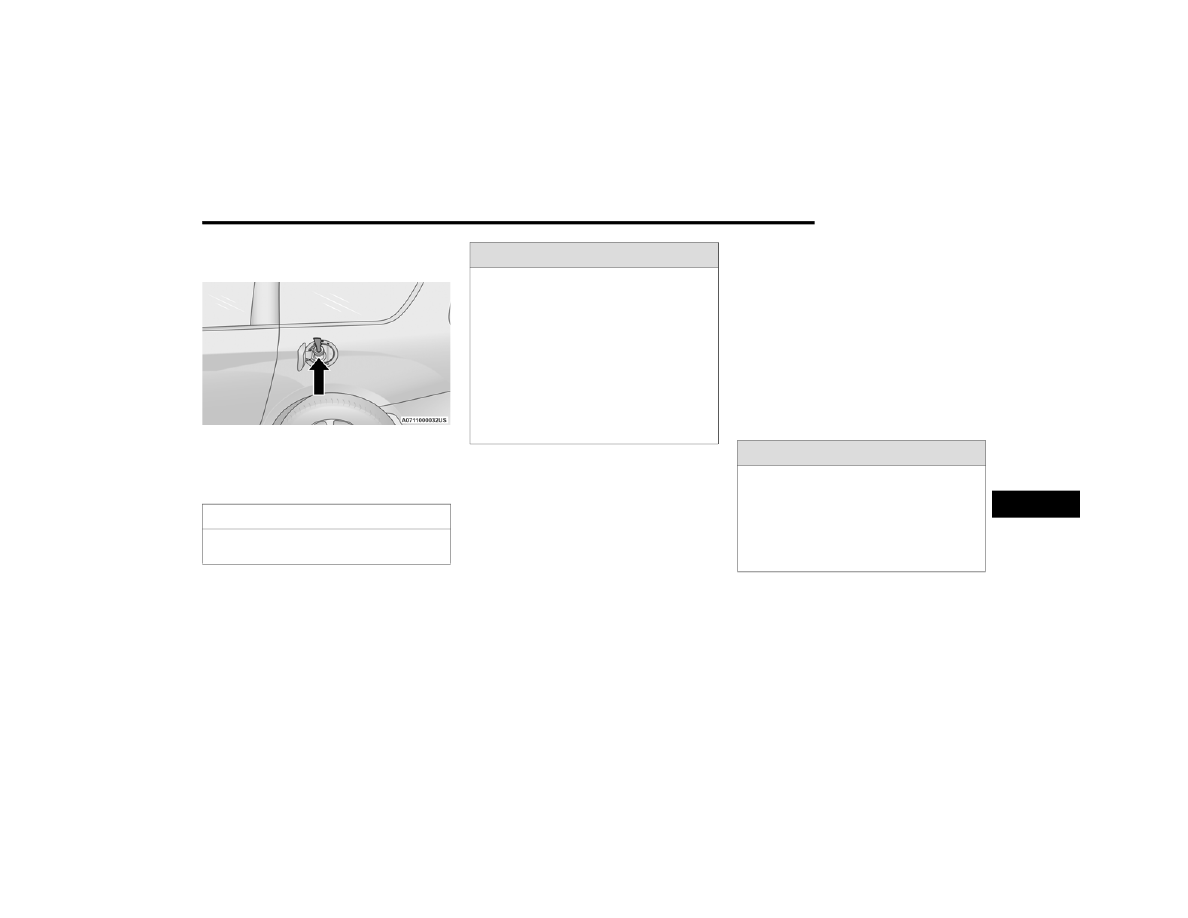

2. Insert funnel into same filler pipe opening as

the fuel nozzle.

Inserting Funnel

3. Ensure funnel is inserted fully to hold flapper

doors open.

4. Pour fuel into funnel opening.

5. Remove funnel from filler pipe, clean off prior

to putting back in the spare tire storage area.

IF YOUR ENGINE OVERHEATS

If the vehicle is overheating, it will need to be

serviced by an authorized dealer.
In any of the following situations, you can reduce

the potential for overheating by taking the

appropriate action.



On the highway — slow down.



In city traffic — while stopped, place the trans

mission in NEUTRAL (N), but do not increase

engine idle speed.

NOTE:

There are steps that you can take to slow down an

impending overheat condition:



If your Air Conditioner (A/C) is on, turn it off. The

A/C system adds heat to the engine cooling

system and turning the A/C off can help remove

this heat.



You can also turn the temperature control to

maximum heat, the mode control to floor and

the blower control to high. This allows the heater

core to act as a supplement to the radiator and

aids in removing heat from the engine cooling

system.

CAUTION!

To avoid fuel spillage and overfilling, do not

“top off” the fuel tank after filling.

WARNING!



Never have any smoking materials lit in or

near the vehicle when the fuel door is open or

the tank is being filled.



Never add fuel when the engine is running.

This is in violation of most state and federal

fire regulations and may cause the Malfunc

tion Indicator Light to turn on.



A fire may result if fuel is pumped into a

portable container that is inside of a vehicle.

You could be burned. Always place fuel

containers on the ground while filling.

WARNING!

You or others can be badly burned by hot engine

coolant (antifreeze) or steam from your radiator.

If you see or hear steam coming from under the

hood, do not open the hood until the radiator

has had time to cool. Never try to open a cooling

system pressure cap when the radiator or

coolant bottle is hot.

304

IN CASE OF EMERGENCY

MANUAL PARK RELEASE

To move the vehicle in cases where the

transmission will not shift out of PARK (P) (such as

a depleted battery), a Manual Park Release is

available.

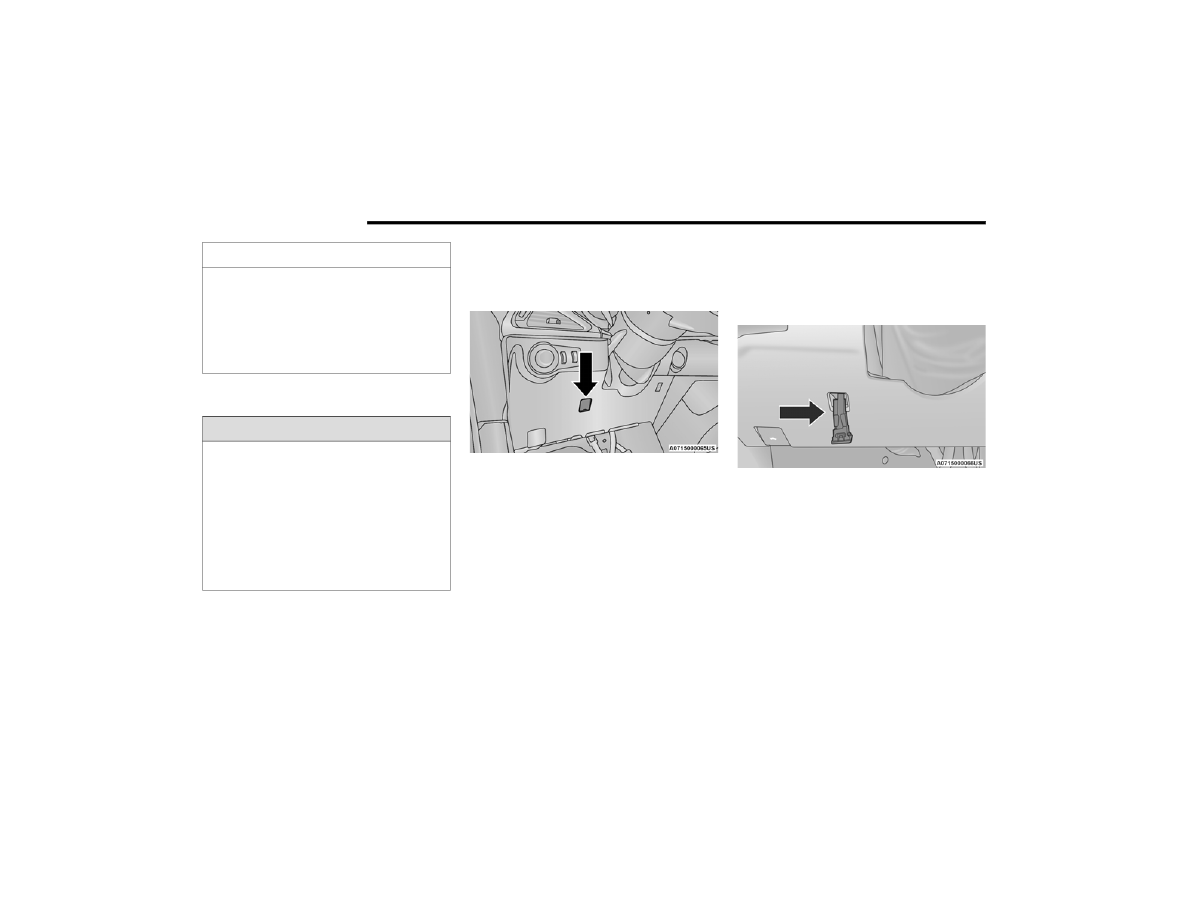

Manual Park Release Access Cover

Follow These Steps To Activate The Manual Park

Release:
1. Apply firm pressure to the brake pedal while

seated in the driver’s seat.

2. Apply the parking brake, if possible.
3. Using a small screwdriver or similar tool,

remove the Manual Park Release access

cover, which is to the lower left of the steering

column.

4. The Manual Park Release access cover is

connected to a red tether strap. Pull the tether

strap out as far as it will go, then release it. The

transmission should now be in NEUTRAL (N),

allowing the vehicle to be moved.

Tether Strap

NOTE:

When the lever is locked in the released position,

the tether will remain outside of the trim panel and

the access cover cannot be reinstalled.
5. Release the parking brake only when the

vehicle is securely connected to a tow vehicle.

CAUTION!

Driving with a hot cooling system could damage

your vehicle. If temperature gauge reads “H”,

pull over and stop the vehicle. Idle the vehicle

with the air conditioner turned off until the

pointer drops back into the normal range. If the

pointer remains on the “H”, turn the engine off

immediately, and call for service.

WARNING!

You should be seated in the driver’s seat with

your foot firmly placed on the brake pedal to

maintain control of the vehicle before activating

the Manual Park Release. If possible, you should

apply the parking brake. Activating the Manual

Park Release will allow your vehicle to roll away if

it is not secured or properly connected to a tow

vehicle. Activating the Manual Park Release on

an unsecured vehicle could lead to serious

injury or death for those in or around the vehicle.

IN CASE OF EMERGENCY

305

To Reset The Manual Park Release:
1. Apply firm pressure to the brake pedal while

seated in the driver’s seat.

2. Pull the tether strap out again, then release it.
3. Allow the tether to retract with the lever back

to its original position.

4. Verify that the transmission is in PARK (P).
5. Confirm that the tether has retracted fully

and reinstall the access cover. If the access

cover cannot be reinstalled, repeat

steps 1 through 4.

FREEING A STUCK VEHICLE

If your vehicle becomes stuck in mud, sand or

snow, it can often be moved using a rocking

motion. Turn the steering wheel right and left to

clear the area around the front wheels. Then shift

back and forth between DRIVE (D) and REVERSE

(R) while gently pressing the accelerator.

NOTE:

Shifts between DRIVE and REVERSE can only be

achieved at wheel speeds of 5 mph (8 km/h) or

less. Whenever the transmission remains in

NEUTRAL (N) for more than two seconds, you must

press the brake pedal to engage DRIVE or

REVERSE.
Use the least amount of accelerator pedal

pressure that will maintain the rocking motion

without spinning the wheels or racing the engine.

NOTE:

Push the ESC OFF button to place the Electronic

Stability Control (ESC) system in “Partial Off”

mode, before rocking the vehicle

page 225.

Once the vehicle has been freed, push the ESC OFF

button again to restore “ESC On” mode.

WARNING!

Fast spinning tires can be dangerous. Forces

generated by excessive wheel speeds may

cause damage, or even failure, of the axle and

tires. A tire could explode and injure someone.

Do not spin your vehicle's wheels faster than

30 mph (48 km/h) or for longer than

30 seconds continuously without stopping when

you are stuck and do not let anyone near a

spinning wheel, no matter what the speed.

CAUTION!



Racing the engine or spinning the wheels may

lead to transmission overheating and failure.

Allow the engine to idle with the transmission

in NEUTRAL for at least one minute after every

five rocking-motion cycles. This will minimize

overheating and reduce the risk of transmis

sion failure during prolonged efforts to free a

stuck vehicle.



When “rocking” a stuck vehicle by shifting

between DRIVE and REVERSE, do not spin the

wheels faster than 15 mph (24 km/h), or

drivetrain damage may result.



Revving the engine or spinning the wheels too

fast may lead to transmission overheating and

failure. It can also damage the tires. Do not

spin the wheels above 30 mph (48 km/h)

while in gear (no transmission shifting

occurring).

306

IN CASE OF EMERGENCY

TOWING A DISABLED VEHICLE

This section describes procedures for towing a disabled vehicle using a commercial towing service.

Proper towing or lifting equipment is required to

prevent damage to your vehicle. Use only tow bars

and other equipment designed for this purpose,

following equipment manufacturer’s instructions.

Use of safety chains is mandatory. Attach a tow bar

or other towing device to main structural members

of the vehicle, not to fascia/bumper or associated

brackets. State and local laws regarding vehicles

under tow must be observed.

NOTE:



You must ensure that the Auto Park Brake

feature is disabled before towing this vehicle (if

rear wheels are on the ground), to avoid inadver

tent Electric Park Brake (EPB) engagement. The

Auto Park Brake feature is enabled or disabled

via the customer programmable features in the

Uconnect Settings.



Vehicles with a discharged battery or total elec

trical failure when the EPB is engaged, will need

a wheel dolly or jack to raise the rear wheels off

the ground when moving the vehicle onto a

flatbed.

FCA US LLC recommends towing your vehicle with

all four wheels OFF the ground using a flatbed.

If flatbed equipment is not available, this vehicle

must be towed with the front wheels OFF the

ground (using a towing dolly, or wheel lift

equipment with the front wheels raised).

NOTE:

Ensure that the Electric Park Brake is released,

and remains released, while being towed.

Towing Condition

Wheels OFF The Ground

FWD MODELS

AWD MODELS

Flat Tow

NONE

NOT ALLOWED

Wheel Lift Or Dolly Tow

Front

ACCEPTABLE METHOD

NOT ALLOWED

Rear

NOT ALLOWED

Flatbed

ALL

BEST METHOD

CAUTION!

Towing this vehicle in violation of the above

requirements can cause severe transmission

damage. Damage from improper towing is not

covered under the New Vehicle Limited

Warranty.

IN CASE OF EMERGENCY

307

Vehicle Recovery Tow Points
Your vehicle is equipped with Vehicle Recovery

Points that can be used to recover a disabled

vehicle, located on the underbody of the vehicle.

NOTE:



Ensure that the towing service tow hooks are

properly seated and secured in the attachment

points.



This recovery tow feature should be used by a

trained professional only.



Use approved receptacle location to free the

disabled vehicle from its environment.

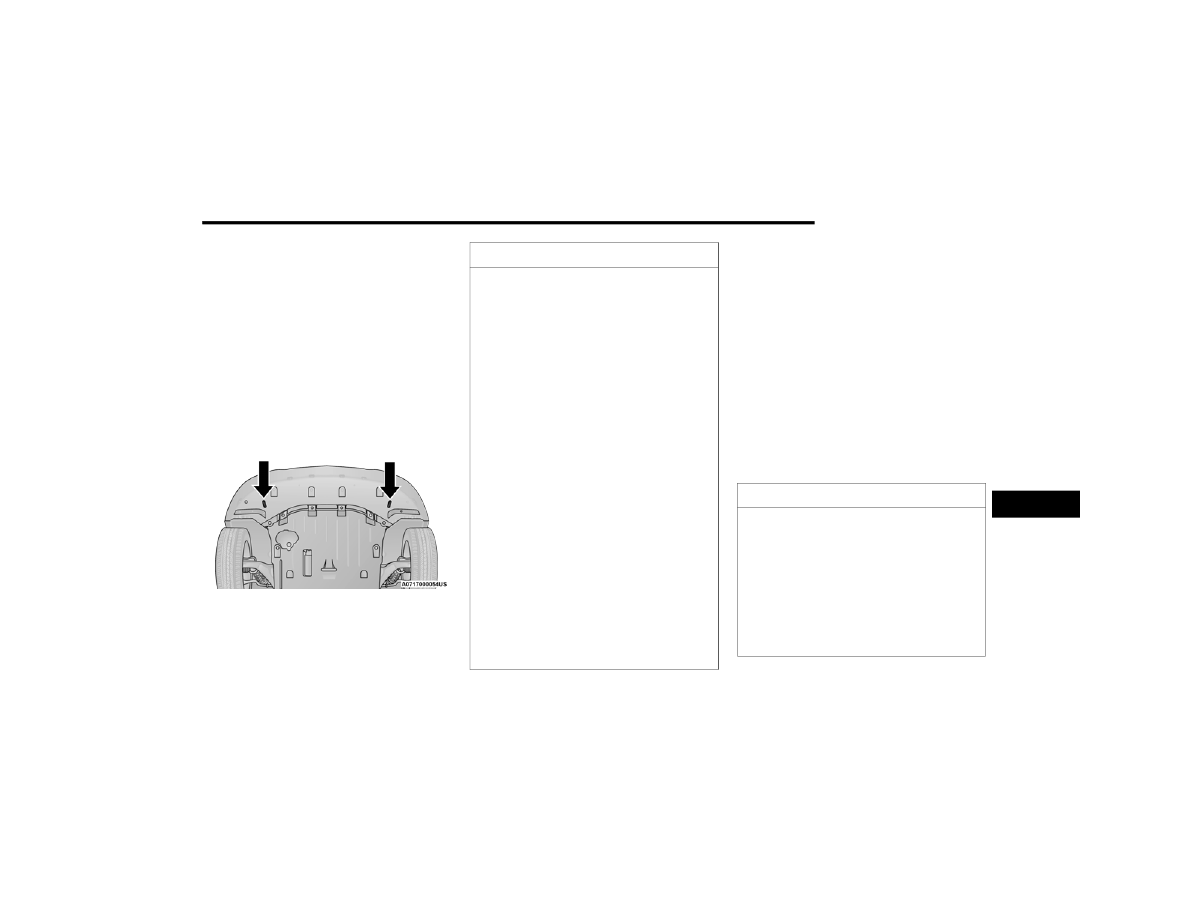

Front Recovery Points

If you must use the accessories (wipers,

defrosters, etc.) while being towed, the ignition

must be in the ON/RUN mode, not the ACC mode.

NOTE:

The Safehold feature will engage the Electric Park

Brake whenever the driver's door is opened (if the

ignition is ON, transmission is not in PARK, and

brake pedal is released). If you are towing this

vehicle with the ignition in the ON/RUN mode, you

must manually disable the Electric Park Brake

each time the driver's door is opened, by pressing

the brake pedal and then releasing the EPB.
If the key fob is unavailable or the vehicle's battery

is discharged, detailed instructions on shifting the

transmission out of PARK in order to move the

vehicle

page 304.

CAUTION!

Recovery feature:



Is to be used by a professional ONLY.



Is used only to provide recovery of the vehicle.



Is NOT to be used to recover secondary

vehicle.



Is NOT to be used for transporting the vehicle

over the road, i.e. “Flat Towing”.



Is to be used by a professional ONLY.



Is used only to provide recovery of the vehicle.



Is NOT to be used to recover secondary

vehicle.



Is NOT to be used for transporting the vehicle

over the road, i.e. “Flat Towing”.

Recovery load should:



Be applied at constant speed.



Be applied parallel to the center line of the

length of the vehicle.



Not be an abrupt acceleration.



Be applied at constant speed.



Be applied parallel to the center line of the

length of the vehicle.



Not be an abrupt acceleration.

CAUTION!



Do not use sling-type equipment when towing.

Vehicle damage may occur.



When securing the vehicle to a flatbed truck,

do not attach to front or rear suspension

components. Damage to your vehicle may

result from improper towing.



Ensure that the Electric Park Brake is

released, and remains released, while being

towed.

308

IN CASE OF EMERGENCY

HEEL

RIVE

(AWD) M

ODELS

FCA US LLC recommends towing your vehicle with

all four wheels OFF the ground using a flatbed.

ENHANCED ACCIDENT RESPONSE SYSTEM

(EARS)

This vehicle is equipped with an Enhanced

Accident Response System.
This feature is a communication network that

takes effect in the event of an impact. Detailed

information can be found on

page 260.

EVENT DATA RECORDER (EDR)

This vehicle is equipped with an event data

recorder (EDR). The main purpose of an EDR is to

record data that will assist in understanding how a

vehicle’s systems performed under certain crash

or near crash-like situations, such as an air bag

deployment or hitting a road obstacle. Detailed

information can be found on

page 261.

CAUTION!



Towing this vehicle using any other method

can cause severe transmission and/or

transfer case damage.



Damage from improper towing is not covered

under the New Vehicle Limited Warranty.

309

SERVICING AND MAINTENANCE

SCHEDULED SERVICING

Your vehicle is equipped with an automatic oil

change indicator system. The oil change indicator

system will remind you that it is time to take your

vehicle in for scheduled maintenance.
Based on engine operation conditions, the oil

change indicator message will illuminate. This

means that service is required for your vehicle.

Operating conditions such as frequent short-trips,

trailer tow, extremely hot or cold ambient

temperatures will influence when the “Oil Change

Required” message is displayed. Have your vehicle

serviced as soon as possible, within the next

500 miles (805 km).

An authorized dealer will reset the oil change

indicator message after completing the scheduled

oil change. If a scheduled oil change is performed

by someone other than an authorized dealer

page 113.

NOTE:

Under no circumstances should oil change

intervals exceed 10,000 miles (16,000 km),

12 months or 350 hours of engine run time,

whichever comes first. The 350 hours of engine

run or idle time is generally only a concern for fleet

customers.

Once A Month Or Before A Long Trip:



Check engine oil level.



Check windshield washer fluid level.



Check tire pressure and look for unusual wear

or damage. Rotate tires at the first sign of irreg

ular wear, even if it occurs before the oil indi

cator system turns on.



Check the fluid levels of the coolant reservoir

and brake master cylinder, fill as needed.



Check function of all interior and exterior lights.

310

SERVICING AND MAINTENANCE

AINTENANCE

LAN

Refer to the Maintenance Plan for required maintenance.

At Every Oil Change Interval As Indicated By Oil Change Indicator System:



Change oil and filter.



Rotate the tires at the first sign of irregular wear, even if it occurs before the oil indicator system turns on.



Inspect battery and clean and tighten terminals as required.



Inspect the CV/Universal joints.



Inspect brake pads, shoes, rotors, drums, hoses and parking brake.



Inspect engine cooling system protection and hoses.



Inspect exhaust system.



Inspect engine air cleaner filter if using in dusty or off-road conditions. If required, replace engine air cleaner filter.

SERVICING AND MAINTENANCE

311

Mileage Or Time Passed (Whichever Comes First)

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

100,000

110,000

120,000

130,000

140,000

150,000

Or Years:

Or Kilometers:

32,000

48,000

64,000

80,000

96,000

112,000

128,000

144,000

160,000

176,000

192,000

208,000

224,000

240,000

Additional Inspections
Inspect the CV/Universal joints

Inspect front suspension, boot seals, tie rod ends, and replace

if necessary

Inspect the brake linings, parking brake function

Inspect front accessory drive tensioner, idler pulley, and

replace if necessary

312

SERVICING AND MAINTENANCE

Additional Maintenance
Replace engine air cleaner filter

Replace cabin air filter

To be replaced every 12,000 miles (19,000 km).

Replace spark plugs

Replace the front accessory drive belt

Flush and replace the engine coolant at 10 years or

150,000 miles (240,000 km) whichever comes first

Replace PCV valve

1. The spark plug change interval is mileage-based only; yearly intervals do not apply.

Mileage Or Time Passed (Whichever Comes First)

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

100,000

110,000

120,000

130,000

140,000

150,000

Or Years:

Or Kilometers:

32,000

48,000

64,000

80,000

96,000

112,000

128,000

144,000

160,000

176,000

192,000

208,000

224,000

240,000

WARNING!



You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If you have

any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.



Failure to properly inspect and maintain your vehicle could result in a component malfunction and affect vehicle handling and performance. This could cause

an accident.

SERVICING AND MAINTENANCE

313

ENGINE COMPARTMENT

3.6L E

NGINE

1 — Engine Coolant Pressure Cap

5 — Power Distribution Center (Fuses)

2 — Engine Oil Fill

6 — Windshield Washer Reservoir Cap

3 — Brake Fluid Reservoir Cap

7 — Engine Oil Dipstick

4 — Engine Air Cleaner Filter

8 — Battery

Content .. 17 18 19 20 ..
