SERVICING AND MAINTENANCE

265

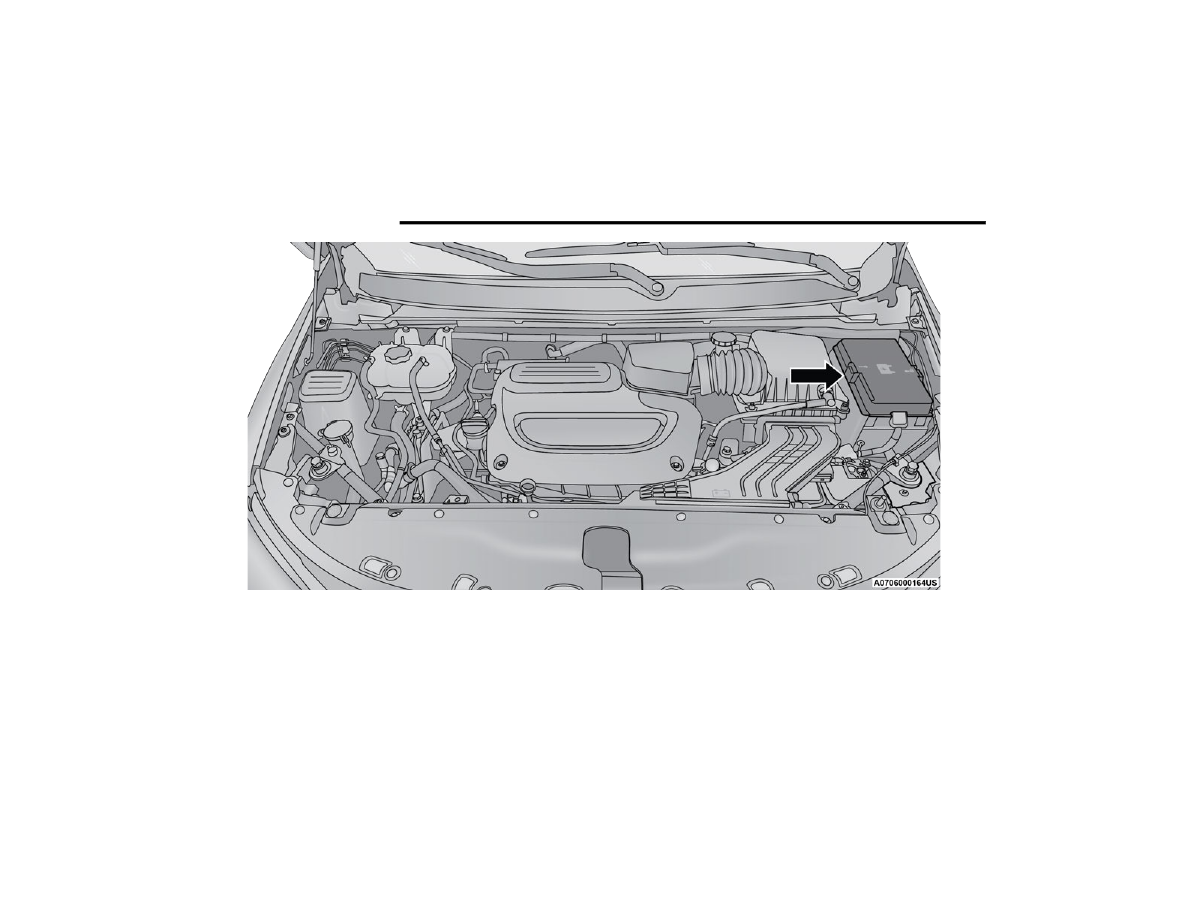

Cavity

Cartridge Fuse

Blade Fuse

Description

* If Equipped

F06

–

Not Used

F07

–

25 Amp Clear

Ignition Coil/Fuel Injector

F08

–

Not Used

F09

–

25 Amp Clear

Amplifier/Active Noise Control *

F10

–

Not Used

F11

–

Not Used

F12

–

5 Amp Tan

Battery Sensor (IBS)

F13

–

10 Amp Red

ECM (ESS Only)

F14

–

10 Amp Red

ECM

F15

40 Amp Green

–

CBC Feed #3 (Power Locks)

F16

–

20 Amp Yellow

ECM

F17

30 Amp Pink

–

Starter

F18

40 Amp Green

–

CBC Feed #4 (Exterior Lighting #1)

F19

25 Amp Clear

–

2nd Row Folding Seats Solenoid LT *

F20

–

10 Amp Red

A/C Compressor Clutch

F21

25 Amp Clear

–

2nd Row Folding Seat Solenoid RT *

F22

–

Not Used

F23

–

Not used

F24

–

20 Amp Yellow

RR Wiper

266

SERVICING AND MAINTENANCE

F25A

–

10 Amp Red

Handsfree LT & RT RR Door Release

Mod *

F25B

–

10 Amp Red

Active Grill Shutter/ PWR Mirror *

F26

40 Amp Green

–

Front HVAC Blower Motor

F27

25 Amp Clear

–

RR Slide Door Module-RT *

F28A

–

10 Amp Red

Diagnostic Report

F28B

–

10 Amp Red

USB + AUX Port / Video USB Port

F29

–

Not Used

F30A

–

15 Amp Blue

Media HUB 1&2 *

F30B

–

15 Amp Blue

PWR Lumbar SW *

F31

–

Not Used

F32

20 Amp Blue

–

ECM

F33

30 Amp Pink

–

Power Liftgate Module *

F34

25 Amp Clear

–

RR Door Module-LT *

F35

25 Amp Clear

–

Sunroof Control Module *

F36

–

Not Used

F37

40 Amp Green

–

CBC Feed #4 (Exterior Lighting #2)

F38

60 Amp Yellow

–

Vacuum Cleaner *

F39

25 Amp Clear

–

Rear HVAC Blower Motor

F40

–

Not Used

Cavity

Cartridge Fuse

Blade Fuse

Description

* If Equipped

SERVICING AND MAINTENANCE

267

F41

–

Not Used

F42

40 Amp Green

–

Folding Seat Module *

F43

–

20 Amp Yellow

Fuel Pump Motor

F44

30 Amp Pink

–

CBC Feed #1 (Interior Lights)

F45

30 Amp Pink

–

Power Inverter *

F46

30 Amp Pink

–

Driver Door Module

F47

30 Amp Pink

–

Passenger Door Module

F48

–

Not Used

F49

25 Amp Clear

–

RR Sliding Door Module-LT *

F50

25 Amp Clear

–

RR Door Module-RT *

F51

30 Amp Pink

–

Front Wiper

F52

30 Amp Pink

–

Brake Vacuum Pump

F53

–

Not Used

F54

40 Amp Green

–

ESP-ECU And Valves

F55A

–

15 Amp Blue

Radio Frequency HUB/ Keyless

Ignition System (KIN) / (Electronic

Steering Lock-BUX ONLY) *

F55B

–

15 Amp Blue

DVD / Video Routing Module (VRM) *

F56A

–

10 Amp Red

Front and Rear HVAC Control Module /

Occupant Classification Module (OCM)/

Electronic Steering Lock (ESL)

Cavity

Cartridge Fuse

Blade Fuse

Description

* If Equipped

268

SERVICING AND MAINTENANCE

F56B

–

10 Amp Red

ESP/ESC

F57

–

Not Used

F58

–

10 Amp Red

Drive Train Control Mod / Power

Transfer Unit *

F59

30 Amp Pink

–

Trailer Tow Receptacle *

F60

–

20 Amp Yellow

Rear Cargo APO

F61

–

20 Amp Yellow

Trailer Tow Right Stop/Turn *

F62

–

20 Amp Yellow

Power Transfer Unit *

F63

–

20 Amp Yellow

Trailer Tow Left Stop/Turn *

F64

–

15 Amp Blue

RT HID Headlamp *

F65

–

Not Used

F66

–

15 Amp Blue

Instrument Panel Cluster (IPC)/SGW

F67

–

10 Amp Red

Haptic Lane Feedback Module (HALF) /

Parktronics System (PTS)/Drivers Assist

System Module (DASM)

F68

–

Not Used

F69

–

Not Used

F70

–

Not Used

F71

–

20 Amp Yellow

Horn

F72

–

10 Amp Red

Heated Mirrors *

F73

30 Amp Pink

–

Rear Defroster (EBL)

Cavity

Cartridge Fuse

Blade Fuse

Description

* If Equipped

SERVICING AND MAINTENANCE

269

F74

20 Amp Blue

–

Trailer Tow Backup *

F75

–

5 Amp Tan

Overhead Console / RR ISC

F76

–

20 Amp Yellow

Uconnect/DCSD/Telematics

F77A

–

10 Amp Red

RR Entertainment Screen 1 & 2/

Media HUB 1 & 2/3rd Row USB

Charge Only/2nd Row USB Charge

Only/Vacuum Cleaner SW/3rd Row

Recline ST SW/LT & RT Stow N Go

SW/LT & RT Sliding Door SW

Backlight

F77B

–

10 Amp Red

Rain Sensor/Sunroof /CRVMM

F78A

–

15 Amp Blue

Transmission Control Module (TCM)/

E-Shifter

F78B

–

15 Amp Blue

Instrument Cluster

F79

–

10 Amp Red

ICS/Front And Rear HVAC/ SCCM/

EPB

F80

–

Not Used

F81

–

Not Used

F82

–

Not Used

F83

20 Amp Blue

–

TT Park Lights *

30 Amp Pink

–

Headlamp Washer Pump *

F84

30 Amp Pink

–

Drive Train Control MOD *

Cavity

Cartridge Fuse

Blade Fuse

Description

* If Equipped

270

SERVICING AND MAINTENANCE

F85

–

20 Amp Yellow

Cigar Lighter

F86

–

Not Used

F87

–

Not Used

F88

–

20 Amp Yellow

Front Heated Seats *

F89

–

20 Amp Yellow

Rear Heated Seats *

F90

–

Not Used

F91

–

15 Amp Blue

Front Ventilated Seats/Heated

Steering Wheel *

F92

–

5 Amp Tan

Security Gateway

F93

–

Not Used

F94

40 Amp Green

–

ESC Motor Pump

F95A

–

10 Amp Red

USB Charge Port — ACC RUN

F95B

–

10 Amp Red

Selectable Fuse Location – USB IP

(Direct) B+

Cavity

Cartridge Fuse

Blade Fuse

Description

* If Equipped

SERVICING AND MAINTENANCE

271

** 30 Amp mini fuse is substituted for 25 Amp Circuit Breaker.

F96

–

10 Amp Red

Occupant Restraint Controller (ORC)

(Airbag)

F97

–

10 Amp Red

Occupant Restraint Controller (ORC)

(Airbag)

F98

–

15 Amp Blue

Left HID Headlamp *

F99

30 Amp Pink

–

Trailer Tow Module *

F100A

–

10 Amp Red

AHLM *

F100B

–

10 Amp Red

Rear Camera/LBSS/RBSS/CVPM/

Humidity Sensor/In Vehicle

Temperature Sensor *

Circuit Breakers

CB1

25 Amp

Power Seats (Driver)

CB2

25 Amp **

Power Seats (Pass)

CB3

25 Amp

FRT PWR Window W/O Door Nodes +

RR PWR Window Lockout

Cavity

Cartridge Fuse

Blade Fuse

Description

* If Equipped

272

SERVICING AND MAINTENANCE

ULB

EPLACEMENT

Replacement Bulbs, Names, And Part Numbers

In the instance a bulb needs to be replaced, this section includes bulb description and replacement part numbers. Some of the inside bulbs are brass or

glass-wedge base. Aluminum base bulbs are not approved.

NOTE:

See an authorized dealer for LED bulb replacement.

Interior Bulbs

Lamps

Bulb Number

Center & Rear Dome Lamp

LED (Serviced at an authorized dealer)

Center & Rear Reading Lamps

LED (Serviced at an authorized dealer)

Front Door Courtesy Lamp

LED (Serviced at an authorized dealer)

Front Header Reading Lamps – If Equipped

LED (Serviced at an authorized dealer)

Instrument Cluster Lamps

LED (Serviced at an authorized dealer)

Liftgate Lamp(s)

LED (Serviced at an authorized dealer)

Overhead Console Reading Lamps

LED (Serviced at an authorized dealer)

Removable Console Lamp – If Equipped

LED (Serviced at an authorized dealer)

Visor Vanity Lamps

6501966

SERVICING AND MAINTENANCE

273

Exterior Bulbs

Lamps

Bulb Number

Halogen Head Lamp

Reflector Low Beam — H11LL

Reflector High Beam — 9005LL

Front Turn Signal Lamp

PWY24WNA

Front Side Marker Lamp

W3W

Front Park Lamp

PWY24WNA

Center High Mounted Stop Lamp (CHMSL)

LED (Serviced at an authorized dealer)

Stop/Turn Signal Lamp

W21/5WLL

Rear Tail/Side Marker Lamp

Rear Tail - Body Side - W21/5WLL

Rear Tail - Liftgate - W5WLL

Rear Side Marker Lamp

W3W

Backup Lamp

W21W

License Lamp

LED (Serviced at an authorized dealer)

274

SERVICING AND MAINTENANCE

Replacing Exterior Bulbs

FRONT TURN SIGNAL LAMP

See below steps to replace:
1. Open the hood.

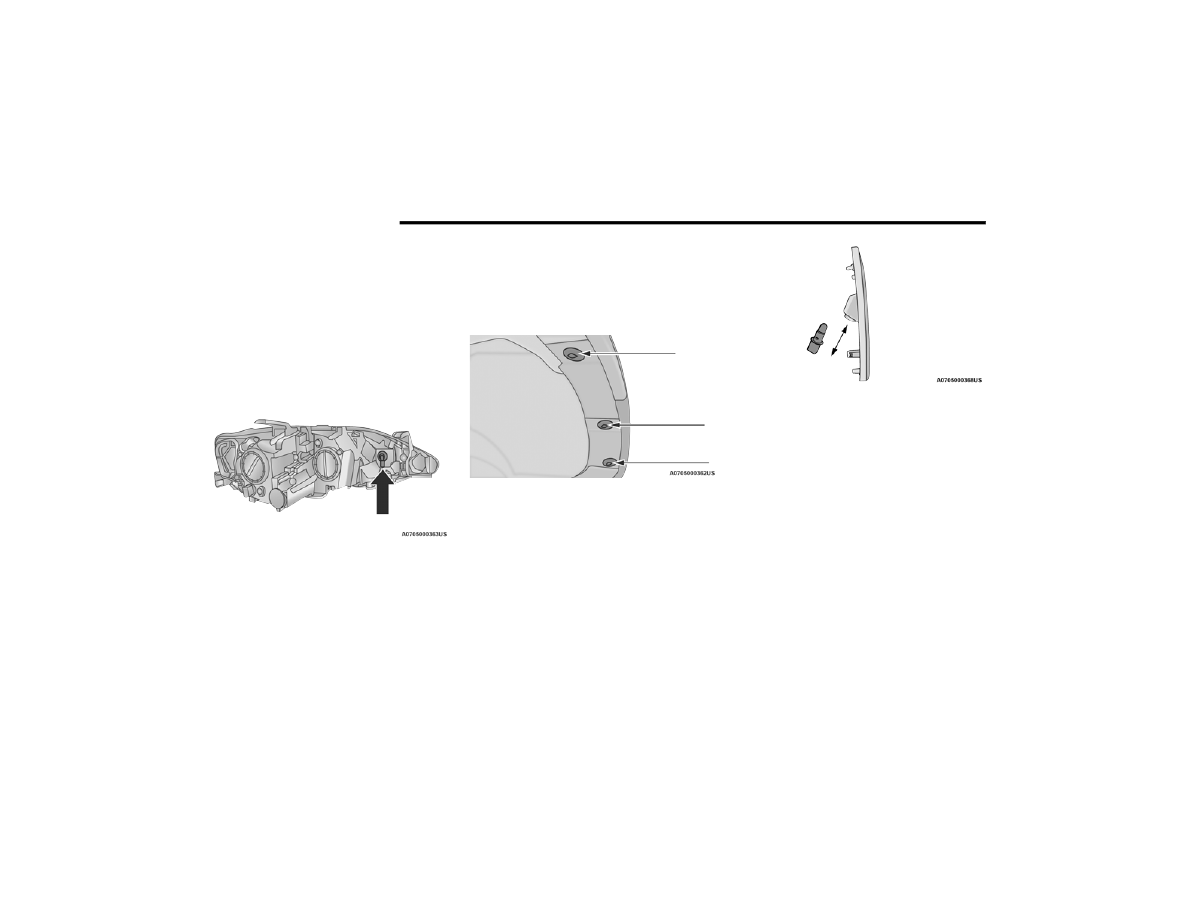

2. Twist the front turn signal lamp socket

assembly counterclockwise, and then remove

the front turn signal lamp assembly from the

lamp housing.

Front Turn Signal Lamp Socket

3. Pull the bulb out of the socket and insert the

replacement bulb.

4. Install the front turn signal lamp socket

assembly into the housing, and rotate the front

turn signal lamp socket clockwise to lock it in

place.

FRONT AND REAR SIDE MARKER LAMPS

See below steps to replace:
1. Remove the three fasteners from the inner

wheel liner and carefully peel back liner for

access.

Inner Wheel Liner Fasteners

2. Firmly grab the front side marker lamp socket

and rotate a quarter turn counterclockwise to

remove it from the lamp assembly.

Front Side Marker Lamp Bulb Removal

3. Remove bulb from the front side marker lamp

socket and replace with a new bulb.

4. Install front side marker lamp socket in lamp

assembly and rotate a quarter turn clockwise

to lock into place.

5. Position the inner wheel liner in place and

install the three fasteners.

SERVICING AND MAINTENANCE

275

TIRES

IRE

AFETY

NFORMATION

Tire safety information will cover aspects of the

following information: Tire Markings, Tire

Identification Numbers, Tire Terminology and

Definitions, Tire Pressures, and Tire Loading.

Tire Markings

NOTE:



P (Passenger) — Metric tire sizing is based on US

design standards. P-Metric tires have the letter

“P” molded into the sidewall preceding the size

designation. Example: P215/65R15 95H.



European — Metric tire sizing is based on Euro

pean design standards. Tires designed to this

standard have the tire size molded into the side

wall beginning with the section width. The letter

"P" is absent from this tire size designation.

Example: 215/65R15 96H.



LT (Light Truck) — Metric tire sizing is based on

US design standards. The size designation for

LT-Metric tires is the same as for P-Metric tires

except for the letters “LT” that are molded into

the sidewall preceding the size designation.

Example: LT235/85R16.



Temporary spare tires are designed for tempo

rary emergency use only. Temporary high pres

sure compact spare tires have the letter “T” or

“S” molded into the sidewall preceding the size

designation. Example: T145/80D18 103M.



High flotation tire sizing is based on US design

standards and it begins with the tire diameter

molded into the sidewall.

Example: 31x10.5 R15 LT.

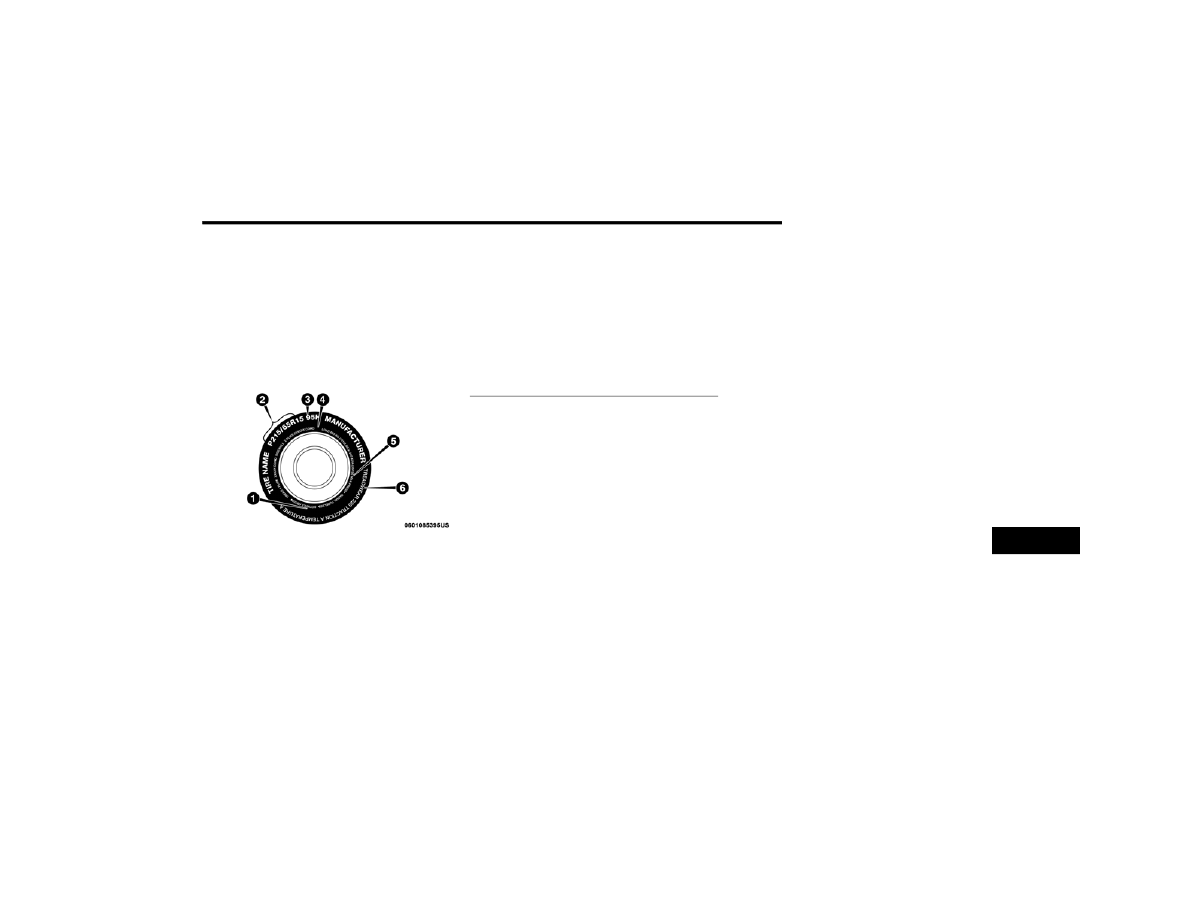

1 — US DOT Safety Standards Code

(TIN)
2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and Tempera

ture Grades

276

SERVICING AND MAINTENANCE

TIRE SIZING CHART

EXAMPLE:

Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)



Ratio of section height to section width of tire, or

10.5 = Section width in inches (in)
R = Construction code



"R" means radial construction, or



"D" means diagonal or bias construction

15, 16, 18 = Rim diameter in inches (in)
Service Description:
95 = Load Index



A numerical code associated with the maximum load a tire can carry

H = Speed Symbol



A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions



The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading,

road conditions, and posted speed limits)

SERVICING AND MAINTENANCE

277

Tire Identification Number (TIN)

The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including

the date code, located on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle. If the TIN is

not found on the outboard side, then you will find it on the inboard side of the tire.

Load Identification:
Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire:



XL = Extra load (or reinforced) tire, or



LL = Light load tire or



C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load – Maximum load indicates the maximum load this tire is designed to carry
Maximum Pressure – Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire

EXAMPLE:

DOT MA L9 ABCD 0301
DOT = Department of Transportation



This symbol certifies that the tire is in compliance with the US Department of Transportation tire safety standards and is approved for highway use

MA = Code representing the tire manufacturing location (two digits)
L9 = Code representing the tire size (two digits)
ABCD = Code used by the tire manufacturer (one to four digits)
03 = Number representing the week in which the tire was manufactured (two digits)



03 means the 3rd week

278

SERVICING AND MAINTENANCE

Tire Terminology And Definitions

01 = Number representing the year in which the tire was manufactured (two digits)



01 means the year 2001



Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured. Example: 031 could

represent the 3rd week of 1981 or 1991

Term

Definition

B-pillar

The vehicle B-pillar is the structural member of the body located behind the front door.

Cold Tire Inflation Pressure

Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been

driven for at least three hours, or driven less than 1 mile (1.6 km) after sitting for a minimum

of three hours. Inflation pressure is measured in units of PSI (pounds per square inch) or kPa

(kilopascals).

Maximum Inflation Pressure

The maximum inflation pressure is the maximum permissible cold tire inflation pressure for

this tire. The maximum inflation pressure is molded into the sidewall.

Recommended Cold Tire Inflation Pressure

The manufacturer recommended cold tire inflation pressure as shown on the tire placard.

Tire Placard

A label permanently attached to the vehicle describing the vehicle’s loading capacity, the

original equipment tire sizes and the recommended cold tire inflation pressures.

EXAMPLE:

SERVICING AND MAINTENANCE

279

Tire Loading And Tire Pressure

NOTE:

The proper cold tire inflation pressure is listed on

the driver’s side B-pillar or the rear edge of the

driver's side door.
Check the inflation pressure of each tire, including

the spare tire (if equipped), at least monthly and

inflate to the recommended pressure for your

vehicle.

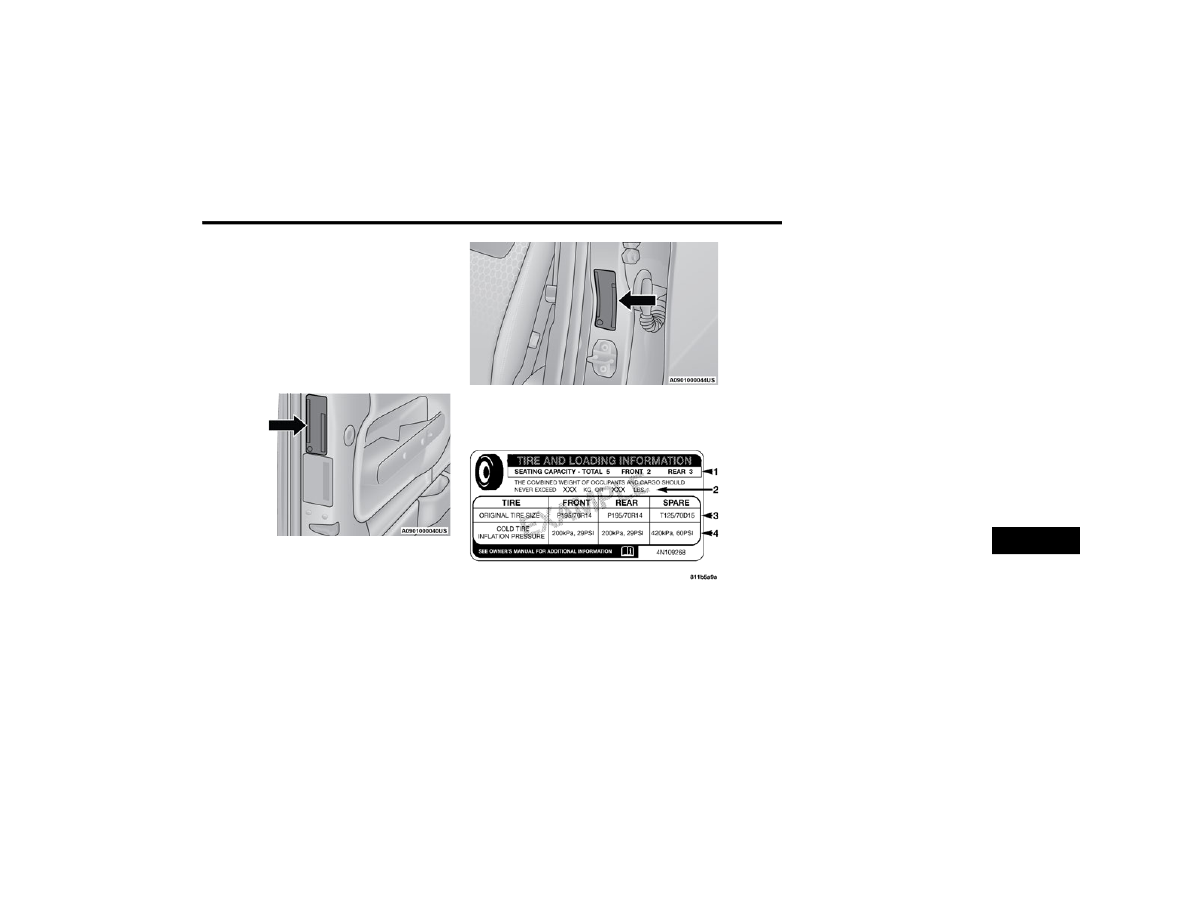

Example Tire Placard Location (Door)

Example Tire Placard Location (B-pillar)

Tire And Loading Information Placard

This placard tells you important information about

the:
1. Number of people that can be carried in the

vehicle.

2. Total weight your vehicle can carry.
3. Tire size designed for your vehicle.
4. Cold tire inflation pressures for the front, rear,

and spare tires.

The vehicle maximum load on the tire must not

exceed the load carrying capacity of the tire on your

vehicle. You will not exceed the tire's load carrying

capacity if you adhere to the loading conditions,

tire size, and cold tire inflation pressures specified

on the Tire and Loading Information placard in this

manual

page 128.

NOTE:

Under a maximum loaded vehicle condition, gross

axle weight ratings (GAWRs) for the front and rear

axles must not be exceeded.
For further information on GAWRs, vehicle loading,

and trailer towing,

page 128.

Chrysler Grand Caravan (2022 year). Manual in english - page 17
