RAM 3500 (2019 year). Manual - part 9





GETTING TO KNOW YOUR VEHICLE

141

2. With  the  side  gates  open,  position  the  divider  so  the

outboard ends align with the intended slots in the sides of

the bed.

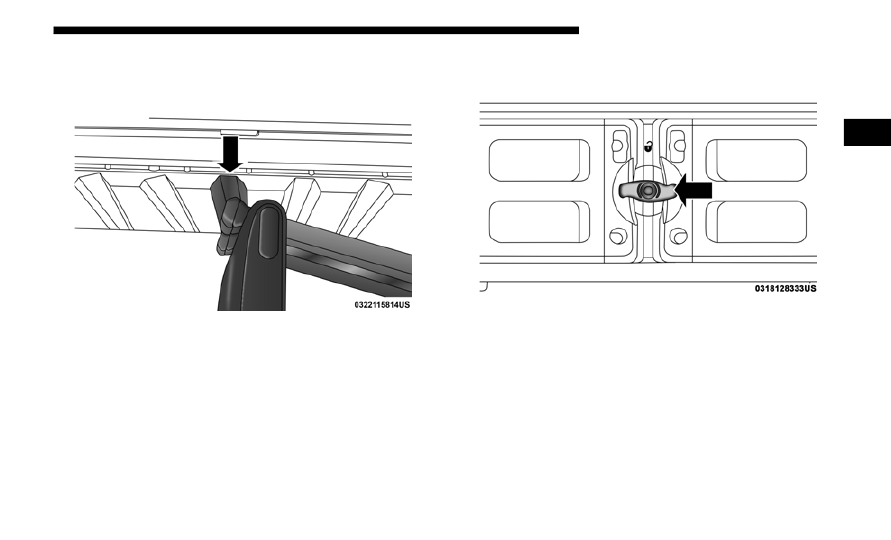

Aligning Gate To Slots

3. Rotate the side gates closed so that the outboard ends are

secured into the intended slots of the bed.

4. Rotate the center handle horizontally to secure the side

gates in the closed position.

Side Gates Closed

5. Lock the center handle to secure the panel into place.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

142 GETTING TO KNOW YOUR VEHICLE

Bed Rail Tie-Down System

NOTE:

This feature is available for vehicles both equipped, or not

equipped, with a RamBox.

There are two adjustable cleats on each side of the bed that

can be used to assist in securing cargo.

Adjustable Cleats

Each cleat must be located and tightened down in one of the

detents,  along  either  rail,  in  order  to  keep  cargo  properly

secure.

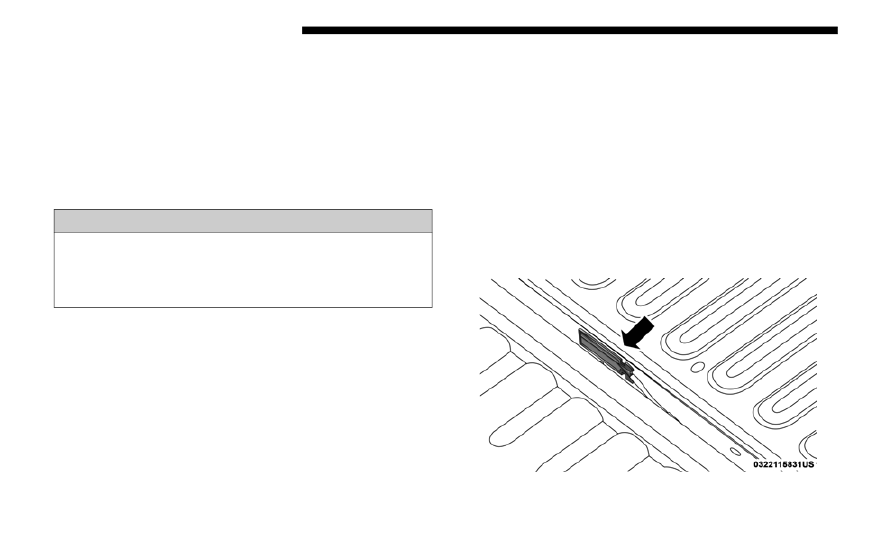

CAUTION!

The maximum load per cleat should not exceed 250 lbs

(113 kg) and the angle of the load on each cleat should

not exceed 45 degrees above horizontal, or damage to the

cleat or cleat rail may occur.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

143

To move the cleat to any position on the rail, turn the nut

counterclockwise, approximately three turns. Then pull out

on the cleat and slide it to the detent nearest the desired loca-

tion. Make sure the cleat is seated in the detent and tighten

the nut.

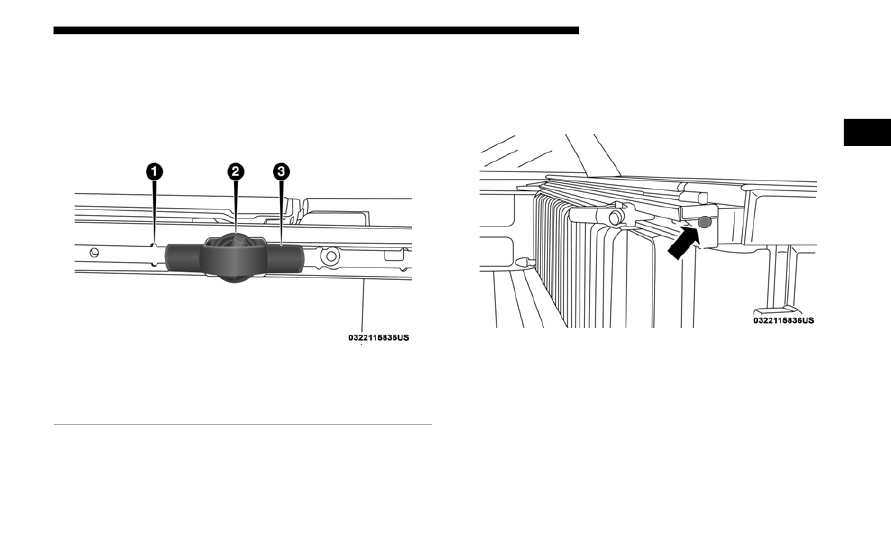

Adjustable Cleat Assembly

To remove the cleats from the utility rail, remove the end cap

screw located in the center of the end cap, using a #T30 Torx

head driver. Remove the end cap and slide the cleat off the

end of the rail.

Utility Rail End Cap

1 — Utility Rail Detent

2 — Cleat Retainer Nut

3 — Utility Rail Cleat

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

144 GETTING TO KNOW YOUR VEHICLE

SLIDE-IN CAMPERS

Camper Applications

Certain  truck  models  are  not  recommended  for  slide-in

campers.  To  determine  if  your  vehicle  is  excluded,  please

refer  to  the  “Consumer  Information  Truck-Camper

Loading”  document  at

www.ramtrucks.com

.  For  safety

reasons, follow all instructions in this important document.

NOTE:

When a cap or pickup camper is installed on a vehicle, an

alternate Center High-Mounted Stop Light (CHMSL) must

be provided.

EASY-OFF TAILGATE

To simplify mounting of a camper unit with an overhang, the

tailgate can be removed.
NOTE:

The electric connector at the bottom of the tailgate must be

disconnected prior to removing the tailgate.

Disconnecting The Rear Camera And Remote Keyless
Entry

1. Open  the  tailgate  to  access  the  rear  camera  or  Remote

Keyless Entry connector bracket located on the rear sill.

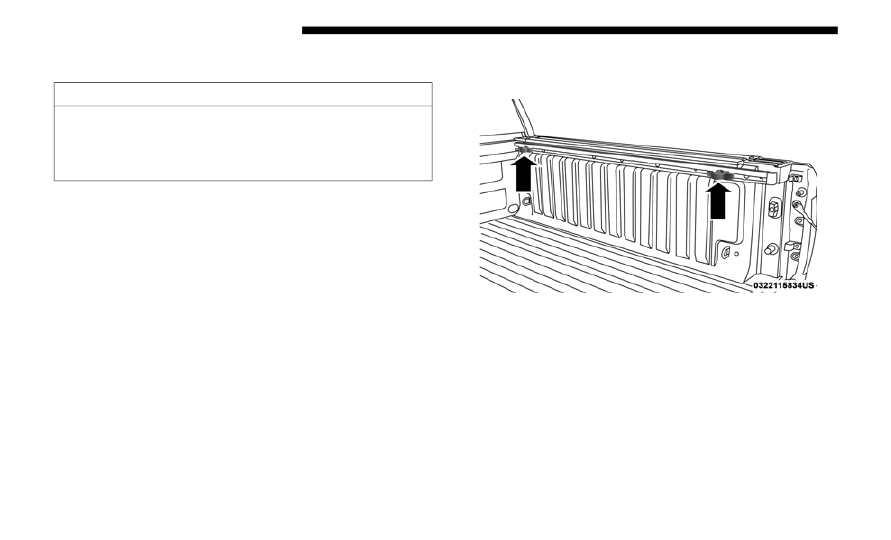

Connector Bracket

WARNING!

  To  avoid  inhaling  carbon  monoxide,  which  is  deadly,

the  exhaust  system  on vehicles  equipped with “Cap  or

Slide-In  Campers”  should  extend  beyond  the

overhanging camper compartment and be free of leaks.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

145

2. Remove the connector bracket from the sill by pushing

inward in the locking tab.

Locking Tab

3. Disconnect  the  chassis  wiring  harness,  ensuring  the

connector bracket does not fall into the sill.

4. Connect  the  chassis  plug  and  bracket  (provided  in  the

glove  compartment)  to  the  chassis  wiring  harness  and

insert the bracket back into the sill.

5. Connect the tailgate plug (provided in the glove compart-

ment)  to  the  tailgate  wiring  harness  to  ensure  that  the

terminals do not corrode.

6. Tape  the  tailgate  harness  and  bracket  against  the

forward-facing surface of the tailgate. This will prevent

damaging  the  connector  and  bracket  when  storing  or

reinstalling the tailgate.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

146 GETTING TO KNOW YOUR VEHICLE

Removing The Tailgate

1. Disconnect the wiring harness for the rear camera and or

power locks (if equipped).

NOTE:

Refer  to  “Disconnecting  The  Rear  Camera  And  Remote

Keyless Entry” in this section.
2. Unlatch  the  tailgate  and  remove  the  support  cables  by

releasing the lock tang from the pivot.

NOTE:

Make sure tailgate is supported when removing support cables.

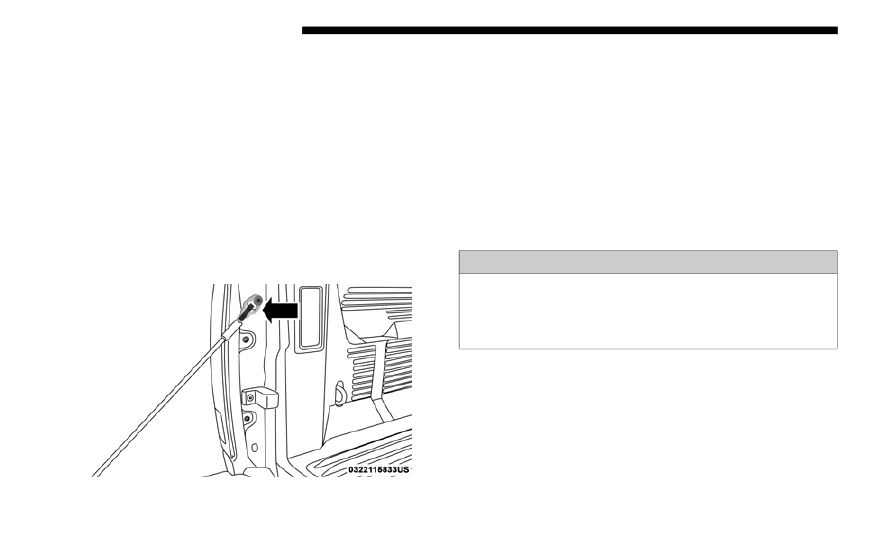

Locking Tang

3. Position the tailgate on a 45 degree angle.
4. Raise the right side of the tailgate until the right side pivot

clears the hanger bracket.

5. Slide the entire tailgate to the right to free the left side

pivot.

6. Remove the tailgate from the vehicle.
NOTE:

Do not carry the tailgate loose in the truck pickup box.

Locking Tailgate

The tailgate can be locked using the key fob lock button.

WARNING!

To avoid inhaling carbon monoxide, which is deadly, the

exhaust  system  on  vehicles  equipped  with  “Cap  or

Slide-In  Campers”  should  extend  beyond  the

overhanging camper compartment and be free of leaks.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

147

TRI-FOLD TONNEAU COVER — IF EQUIPPED

Your  vehicle  may  be  equipped  with  a  Tri-Fold  Tonneau

Cover which consists of different features:
• Easy Tri-Fold cover
• Tonneau fore aft locator
• Crosscar inside bed locator
• Front and rear clamps
• Stowage strap
• Locking capability
NOTE:

The Tonneau Cover can be folded up and secured at the front

of the box without removing it completely.

Tri-Fold Tonneau Cover Removal

To remove the Tonneau Cover, follow the next steps:
1. Open  the  tailgate  to  gain  access  to  the  rear  pair  of

Tonneau Cover clamps located on the underside of the

cover (left and right side).

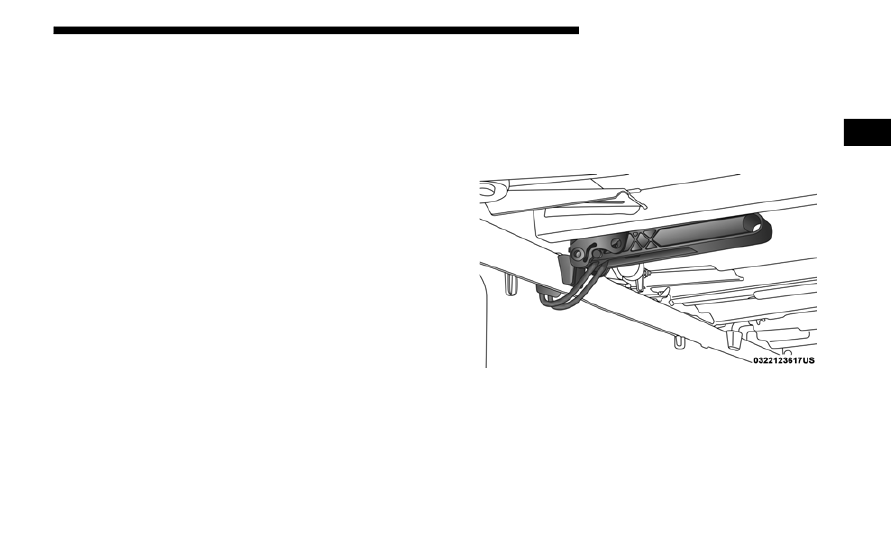

Clamped Position

NOTE:

If clamp wire is damaged replace immediately.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

148 GETTING TO KNOW YOUR VEHICLE

2. Pull  both  clamp  handles  down  to  release  the  Tonneau

Cover’s rear panel.

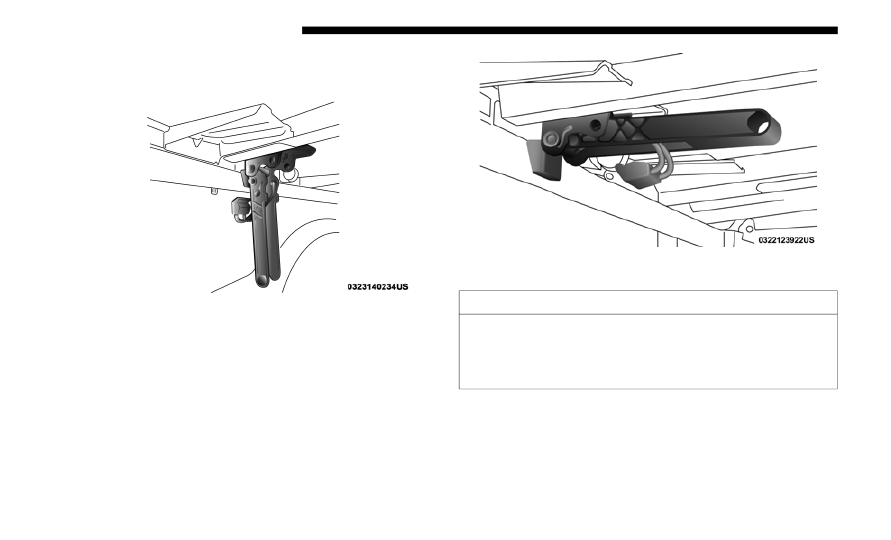

Released Position

3. From  the  released  position,  send  the  clamps  to  the

Stowed Position by pushing from the yellow bumper up.

Listen for a “clicking” sound to  confirm the clamp has

been properly stowed.

Stowed Position

CAUTION!

Make sure the Tonneau Cover clamp and clamp wire are

in  the  proper  stowed  position.  If  the  clamp  and  clamp

wire  are  not  properly  stowed,  damage  to  the  Tonneau

Cover material will result.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

149

4. Fold the rear panel up onto the center panel (intermediate

position).

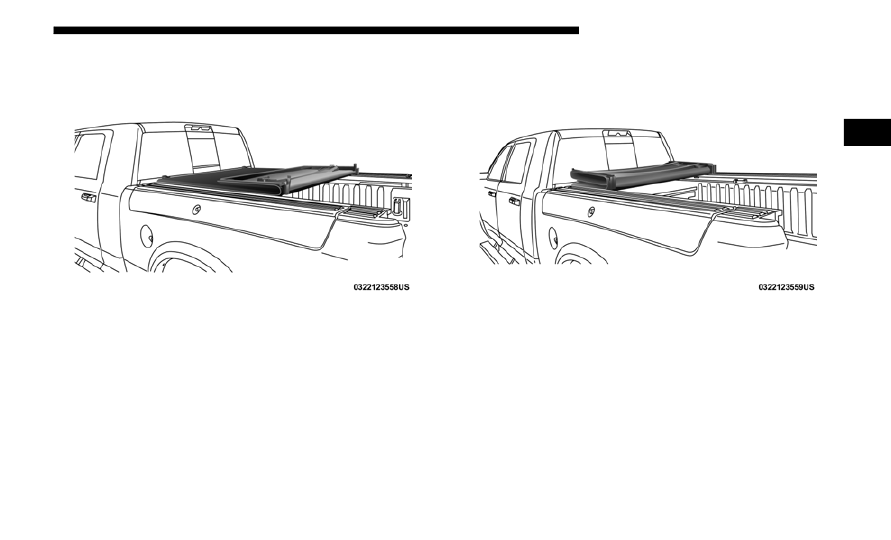

Folded Rear Panel (Intermediate Position)

NOTE:

The vehicle cannot be driven when the Tonneau Cover is in

this position.

5. Fold the rear and center panels up onto the front panel

(Tri-Folded position).

Tri-Folded Position

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

150 GETTING TO KNOW YOUR VEHICLE

NOTE:

•When  folding the center and  rear  panels,  the sections

MUST be held together to avoid damage to the cover

material.

•It  is  not  recommended  to  drive  the  vehicle  with  the

Tonneau Cover in the Tri-Folded position.

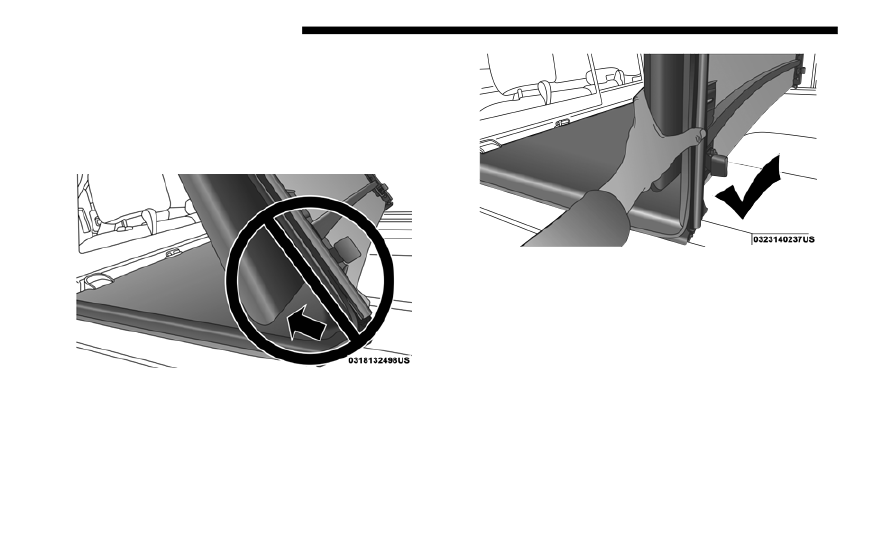

Incorrect Folding — Will Cause Damage

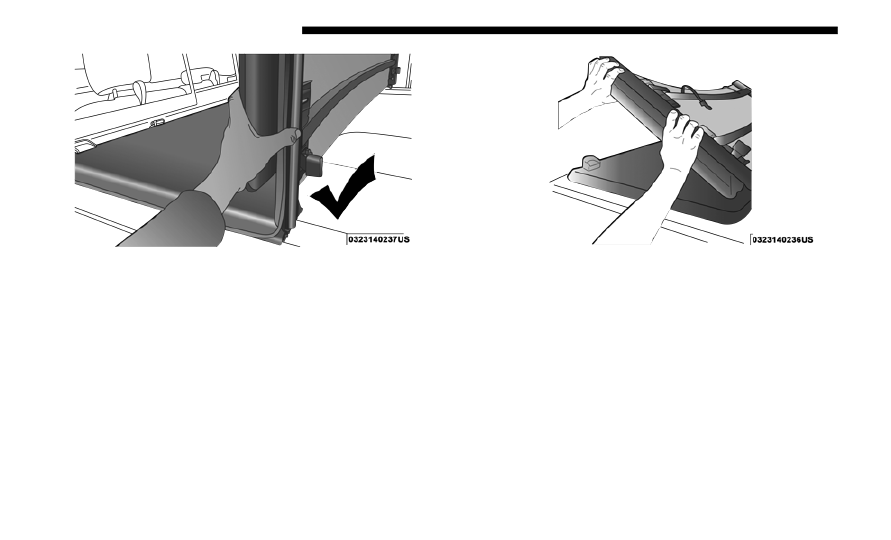

Correct Folding — Hold Panels Together

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

151

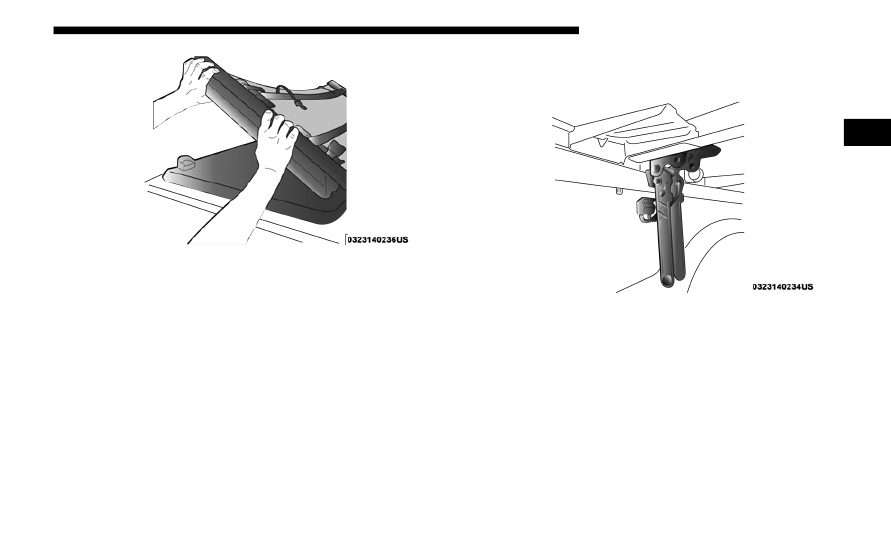

Correct Folding — Hold Panels Together

NOTE:

Fold the panels gently. It is not recommended to allow the

panels to drop under their own weight.

6. Once on the Tri-Folded position, pull  both front clamp

handles down to the Released Position.

Released Position

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

152 GETTING TO KNOW YOUR VEHICLE

7. From  the  Released  Position,  send  the  clamps  to  the

Stowed Position by pushing from the yellow bumper up.

Listen for a “clicking” sound to  confirm the clamp has

been properly stowed.

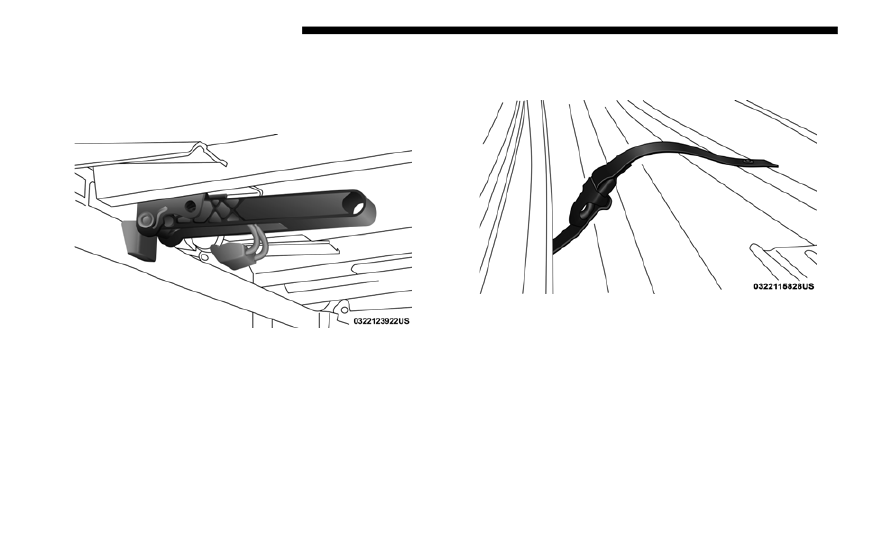

Stowed Position

8. Clip both stowage straps to prevent the Tonneau Cover

panels from unfolding.

Stowage Strap

9. With two people, remove the Tonneau Cover.
NOTE:

Be  sure  the  Tonneau  Cover  has  been  folded  completely

before removing.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

153

Tri-Fold Tonneau Cover Installation

To install the Tonneau Cover follow the following steps:
1. Position the folded Tonneau Cover on the truck bed and

push the cover forward against the front of the truck bed.

The  Tonneau  Cover  centers  itself  when  placed  on  the

vehicle.

2. Pull down on the first set of clamp handles to release the

clamps from the stowed position.

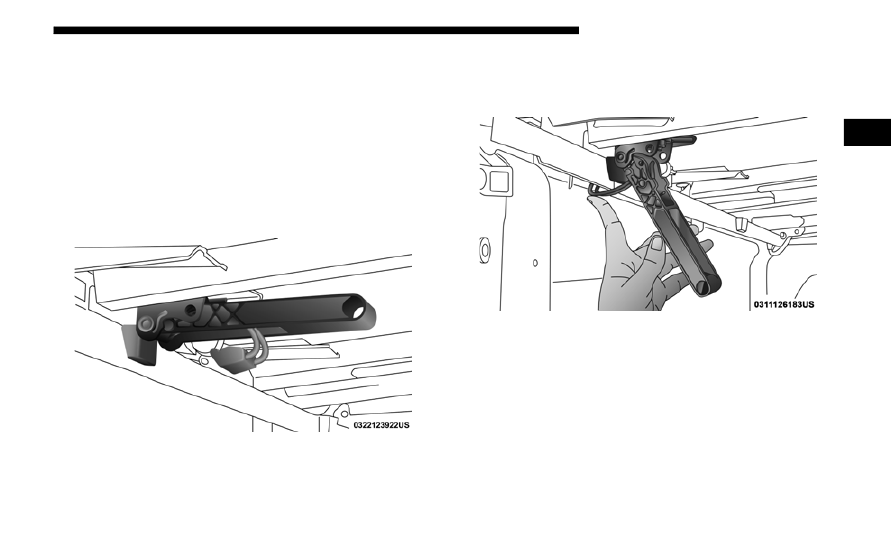

Stowed Position

3. Push clamp wires up and under the flange of the box (or

flange  of  the  Ram  Box  rail,  if  equipped)  to  the  semi

clamped position.

Semi Clamped Position

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

154 GETTING TO KNOW YOUR VEHICLE

4. Push clamp handles upward to the clamped position to

properly engage the clamps.

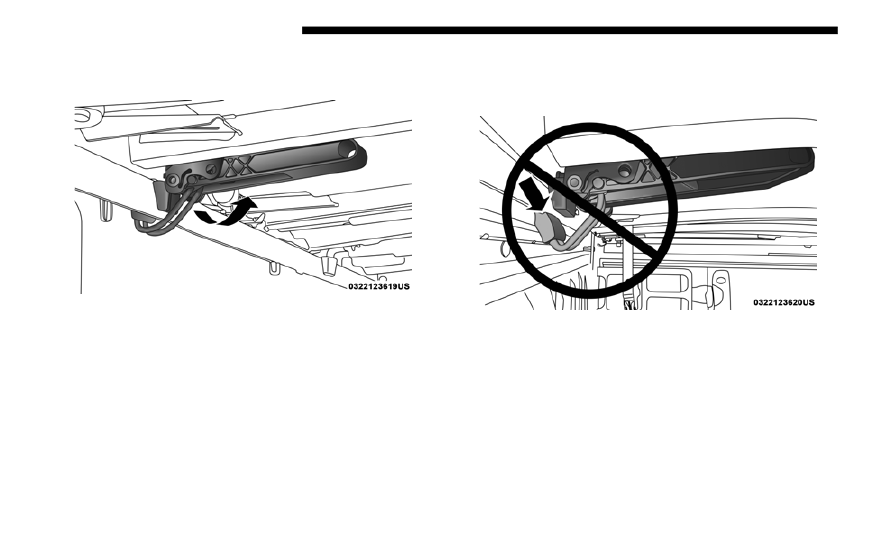

Clamped Position

NOTE:

Once  clamped,  be  sure  the  clamps  are  not  improperly

attached to the truck bed flange.

Improper Clamp Position

5. Disengage the stowage straps.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

155

6. Unfold  the  center  and  rear  panels  to  the  intermediate

position.

NOTE:

The vehicle cannot be driven when the Tonneau Cover is in

this position.

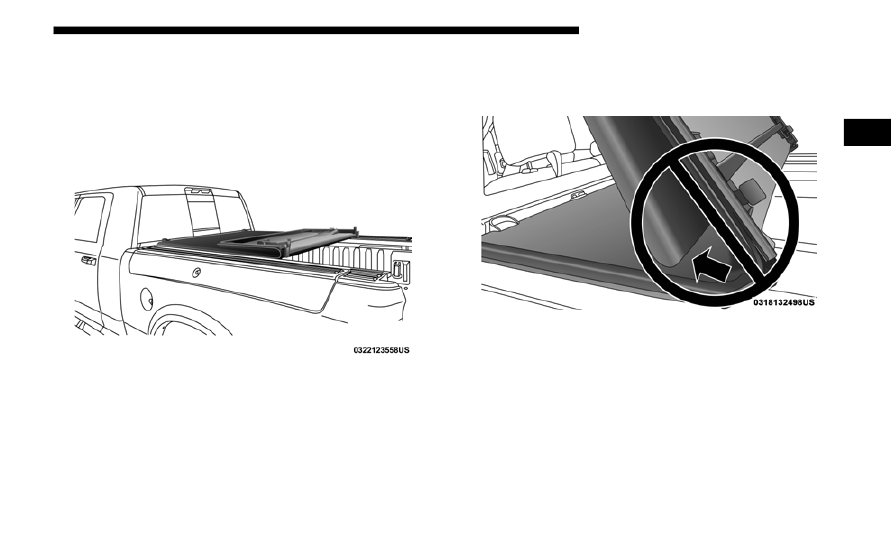

Intermediate Position (Vehicle Cannot Be Driven)

NOTE:

When folding the center and rear panels, the sections MUST

be held together to avoid damage to the cover material.

Incorrect Folding — Will Cause Damage

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

156 GETTING TO KNOW YOUR VEHICLE

Correct Folding — Hold Panels Together

Correct Folding — Hold Panels Together

-------------------------------------------------------------------------------------------------------------------------------------------------------------
