Indiscriminate use of fuel system cleaning agents should be
avoided. Many of these materials intended for gum and
varnish removal may contain active solvents or similar
ingredients. These can harm fuel system gasket and dia-
phragm materials.

Gasoline/Oxygenate Blends
Some fuel suppliers blend unleaded gasoline with oxygen-
ates such as ethanol.

CAUTION!

DO NOT use E-85, gasoline containing methanol, or
gasoline containing more than 15% ethanol (E-15). Use
of these blends may result in starting and drivability
problems, damage critical fuel system components,
cause emissions to exceed the applicable standard,
and/or cause the Malfunction Indicator Light to illu-
minate. Please observe pump labels as they should
clearly communicate if a fuel contains greater than 15%
ethanol (E-15).

Problems that result from using gasoline containing more
than 15% ethanol (E-15) or gasoline containing methanol
are not the responsibility of the manufacturer and may
void or not be covered under New Vehicle Limited War-
ranty.

Do Not Use E-85 In Non-Flex Fuel Vehicles

Non-Flex Fuel Vehicles (FFV) are compatible with gasoline
containing up to 15% ethanol (E-15). Use of gasoline with
higher ethanol content may void the New Vehicle Limited
Warranty.

If a Non-FFV vehicle is inadvertently fueled with E-85 fuel,
the engine will have some or all of these symptoms:
• Operate in a lean mode.
• OBD II Malfunction Indicator Light on.
• Poor engine performance.
• Poor cold start and cold drivability.
• Increased risk for fuel system component corrosion.

CNG And LP Fuel System Modifications

Modifications that allow the engine to run on Compressed
Natural Gas (CNG) or Liquid Propane (LP) may result in
damage to the engine, emissions, and fuel system compo-
nents. Problems that result from running CNG or LP are
not the responsibility of the manufacturer and may void or
not be covered under the New Vehicle Limited Warranty.

TECHNICAL SPECIFICATIONS

409

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MMT In Gasoline

Methylcyclopentadienyl Manganese Tricarbonyl (MMT) is
a manganese-containing metallic additive that is blended
into some gasoline to increase octane. Gasoline blended
with MMT provides no performance advantage beyond
gasoline of the same octane number without MMT. Gaso-
line blended with MMT reduces spark plug life and
reduces emissions system performance in some vehicles.
The manufacturer recommends that gasoline without
MMT be used in your vehicle. The MMT content of
gasoline may not be indicated on the gasoline pump;
therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. MMT is prohibited in Federal
and California reformulated gasoline.

Fuel System Cautions

CAUTION!

Follow these guidelines to maintain your vehicle’s
performance:
• The use of leaded gasoline is prohibited by Federal

law. Using leaded gasoline can impair engine perfor-
mance and damage the emissions control system.

(Continued)

CAUTION! (Continued)

• An out-of-tune engine or certain fuel or ignition

malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune or
malfunctioning and may require immediate service.
Contact an authorized dealer for service assistance.

• The use of fuel additives, which are now being sold

as octane enhancers, is not recommended. Most of
these products contain high concentrations of metha-
nol. Fuel system damage or vehicle performance
problems resulting from the use of such fuels or
additives is not the responsibility of the manufac-
turer and may void or not be covered under the New
Vehicle Limited Warranty.

NOTE:

Intentional tampering with the emissions control

system can result in civil penalties being assessed against
you.

410

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Carbon Monoxide Warnings

WARNING!

Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon mon-
oxide poisoning:
• Do not inhale exhaust gases. They contain carbon

monoxide, a colorless and odorless gas, which can
kill. Never run the engine in a closed area, such as a
garage, and never sit in a parked vehicle with the
engine running for an extended period. If the vehicle
is stopped in an open area with the engine running
for more than a short period, adjust the ventilation
system to force fresh, outside air into the vehicle.

• Guard against carbon monoxide with proper main-

tenance. Have the exhaust system inspected every
time the vehicle is raised. Have any abnormal condi-
tions repaired promptly. Until repaired, drive with
all side windows fully open.

FLEXIBLE FUEL (3.6L ENGINE ONLY)

E-85 General Information

The information in this section is unique for Flexible Fuel
vehicles only. These vehicles can be identified by a unique
fuel filler door label that states Ethanol (E-85) or Unleaded
Gasoline Only

and/or a yellow fuel cap. Please refer to the

other sections of this manual for information on features
that are common between Flexible Fuel and Non-Flexible
Fuel powered vehicles.

CAUTION!

Only vehicles with the E-85 fuel filler door label or a
yellow gas cap can operate on E-85.

Ethanol Fuel (E-85)

E-85 is a mixture of approximately 85% ethanol and 15%
unleaded gasoline.

TECHNICAL SPECIFICATIONS

411

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING!

Ethanol vapors are extremely flammable and could
cause serious personal injury. Never have any smoking
materials lit or products that can cause spark in or near
the vehicle when removing the fuel filler tube cap (gas
cap) or filling the tank. Do not use E-85 as a cleaning
agent and never use it near an open flame.

Fuel Requirements

If your vehicle is E-85 compatible, it will operate on
unleaded gasoline with any octane rating greater than 87
(R+M)/2, or solely E-85 fuel, or any mixture of these fuels.

For best results, avoid fueling patterns alternating be-
tween E-85 and unleaded gasoline.

When switching fuel types:
• Add 5 gallons (19 liters) or more when refueling.
• Drive the vehicle immediately after refueling for at least

5 miles (8 km).

Observing these precautions will avoid possible hard start-
ing and/or driveability problems during warm up.

NOTE:
• Use seasonally adjusted E-85 fuel (ASTM D5798). With

non-seasonally adjusted E-85 fuel, hard starting and
rough idle following start up may be experienced even if
the above recommendations are followed, especially
when the ambient temperature is below 32°F (0°C).

• Some additives used in regular gasoline are not fully

compatible with E-85 and may form deposits in your
engine. To eliminate driveability issues that may be
caused by these deposits, a supplemental gasoline addi-
tive, such as Mopar Injector Cleanup or Techron may be
used.

Selection Of Engine Oil For Flexible Fuel Vehicles
(E-85) And Gasoline Vehicles

FFV vehicles operated on E-85 require specially formulated
engine oils. These special requirements are included in
Mopar engine oils, and in equivalent oils meeting FCA US
Material Standard MS-6395. It is recommended that engine
oils that are API Certified and meet the requirements of
Material Standard MS-6395 be used. MS-6395 contains
additional requirements, developed during extensive fleet
testing, to provide additional protection to FCA US LLC
engines.

412

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Starting

The characteristics of E-85 fuel make it unsuitable for use
when ambient temperatures fall below 0°F (-18°C). In the
range of 0°F (-18°C) to 32°F (0°C), an increase in the time it
takes for your engine to start may be experienced, and a
deterioration in driveability (sags and/or hesitations) until
the engine is fully warmed up. These issues may be
improved with the use of seasonally adjusted E-85 fuel.

NOTE:

Use of the engine block heater (if equipped) may

improve engine start time when using E-85 fuel when the
ambient temperature is less than 32°F (0°C).

Cruising Range

Because E-85 fuel contains less energy per gallon/liter than
gasoline, an increase in fuel consumption will be experi-
enced. The miles per gallon (mpg)/kilometers per liter and
the driving range will decrease by approximately 30%,
compared to gasoline operation.

Replacement Parts

All fuel and engine components in your Flexible Fuel
Vehicle (FFV) are designed to be compatible with ethanol.
Ethanol compatible service components are required.

CAUTION!

Replacing fuel system components with non-ethanol
compatible components can damage your vehicle.

Maintenance

CAUTION!

Do not use ethanol mixture greater than 85% in your
vehicle. It will cause difficulty in cold starting and may
affect drivability.

TECHNICAL SPECIFICATIONS

413

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FLUID CAPACITIES

U.S.

Metric

Fuel (Approximate)
3.6L Engine (87 Octane, 0-15% Ethanol or up to 85% Ethanol for Flex
Fuel (E-85) Engine)

18.5 Gallons

70 Liters

5.7L Engine (89 Octane Recommended – 87 Octane Acceptable, 0-15%
Ethanol)

18.5 Gallons

70 Liters

Engine Oil With Filter
3.6L Engine (SAE 5W-20, API Certified)

6 Quarts

5.6 Liters

5.7L Engine (SAE 5W-20, API Certified)

7 Quarts

6.6 Liters

Cooling System*
3.6L Engine (Mopar Antifreeze/Engine Coolant 10 Year/150,000 Mile
Formula or equivalent)

10 Quarts

9.5 Liters

5.7L Engine – without Severe Duty II Cooling System (Mopar Antifreeze/
Engine Coolant 10 Year/150,000 Mile Formula or equivalent)

14.5 Quarts

13.9 Liters

5.7L Engine – with Severe Duty II Cooling System (Mopar Antifreeze/
Engine Coolant 10 Year/150,000 Mile Formula or equivalent)

15 Quarts

14.3 Liters

* Includes heater and coolant recovery bottle filled to MAX level.

414

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FLUIDS AND LUBRICANTS

Engine

Component

Fluid, Lubricant, or Genuine Part

Engine Coolant

We recommend you use Mopar Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology).

Engine Oil

We recommend you use API Certified SAE 5W-20 Engine
Oil, meeting the requirements of FCA Material Standard
MS-6395 such as Mopar, Pennzoil, and Shell Helix Ultra.
Refer to your engine oil filler cap for correct SAE grade.

Engine Oil Filter

We recommend you use a Mopar Engine Oil Filter.

Spark Plugs

We recommend you use Mopar Spark Plugs.

Fuel Selection – 3.6L Engine

87 Octane, 0-15% Ethanol.

Fuel Selection – 3.6L Flex Fuel (E-85) Engine

87 Octane, Up to 85% Ethanol.

Fuel Selection – 5.7L Engine

89 Octane Recommended – 87 Octane Acceptable, 0-15%
Ethanol.

TECHNICAL SPECIFICATIONS

415

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION!

• Mixing of engine coolant (antifreeze) other than

specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine dam-
age and may decrease corrosion protection. Organic
Additive Technology (OAT) engine coolant is differ-
ent and should not be mixed with Hybrid Organic
Additive Technology (HOAT) engine coolant (anti-
freeze) or any “globally compatible” coolant (anti-
freeze). If a non-OAT engine coolant (antifreeze) is
introduced into the cooling system in an emergency,
the cooling system will need to be drained, flushed,

(Continued)

CAUTION! (Continued)

and refilled with fresh OAT coolant (conforming to
MS.90032), by an authorized dealer as soon as pos-
sible.

• Do not use water alone or alcohol-based engine

coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.

• This vehicle has not been designed for use with

propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.

416

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Chassis

Component

Fluid, Lubricant, Or Genuine Part

Automatic Transmission — 8-Speed Transmission

Use only Mopar ZF 8&9 Speed ATF Automatic Transmis-
sion Fluid, or equivalent. Failure to use the correct fluid
may affect the function or performance of your transmis-
sion.

Brake Master Cylinder

We recommend you use Mopar DOT 3 and SAE J1703. If
DOT 3 brake fluid is not available, then DOT 4 is accept-
able.

Front Axle – AWD (If Equipped)

We recommend you use Mopar Synthetic Gear Lubricant
SAE 75W90 (API GL-5).

Rear Axle

We recommend you use Mopar OD Synthetic Gear Lu-
bricant SAE 75W85 (API GL-5).

Transfer Case – AWD (If Equipped)

We recommend you use Mopar Transfer Case Lubricant
for BorgWarner 44–40.

TECHNICAL SPECIFICATIONS

417

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UCONNECT SYSTEMS

For detailed information about your Uconnect system,
refer to your Uconnect Owner’s Manual Supplement.

NOTE:

Uconnect screen images are for illustration pur-

poses only and may not reflect exact software for your
vehicle.

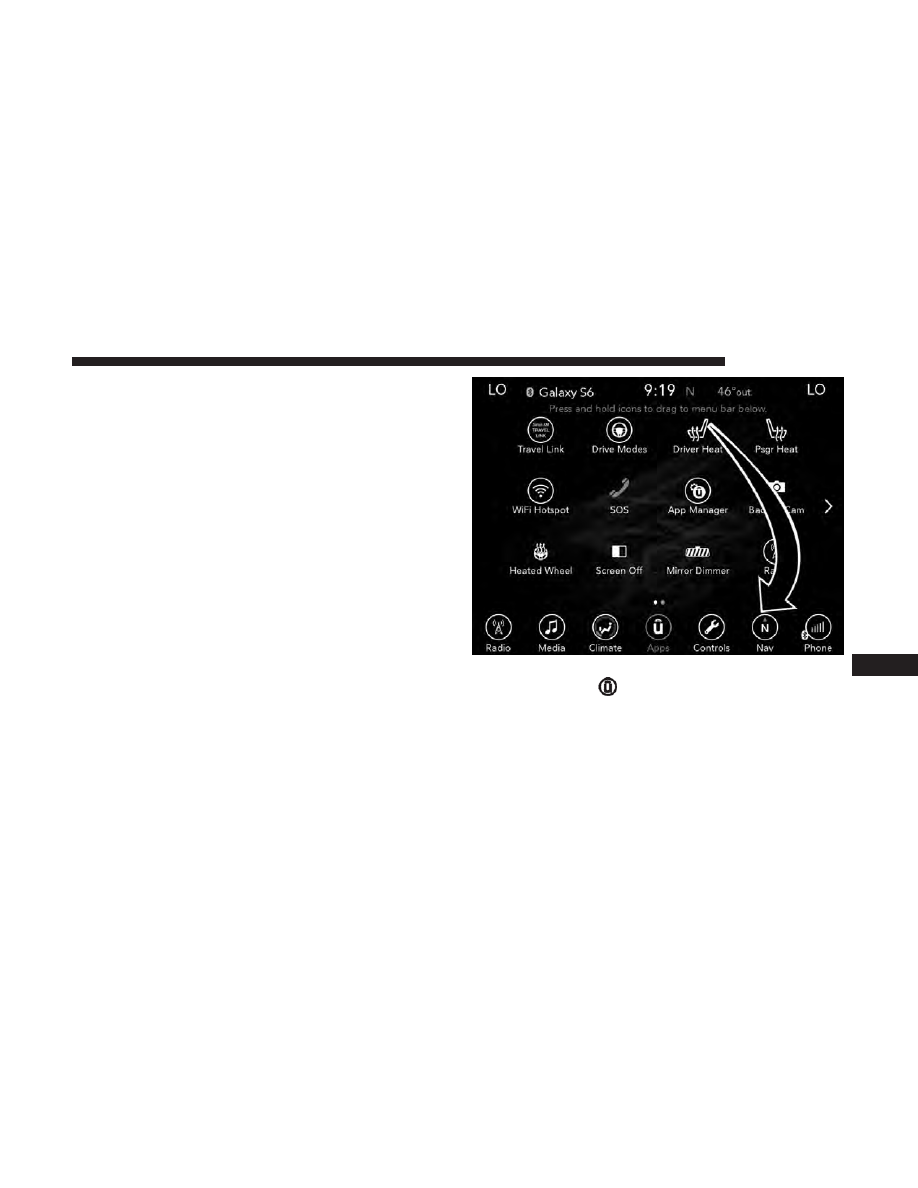

DRAG & DROP MENU BAR

The Uconnect features and services in the main menu bar
are easily changed for your convenience. Simply follow
these steps:

1. Press the “Apps

” button to open the App screen.

2. Press and hold, then drag the selected App to replace an

existing shortcut in the main menu bar.

The new app shortcut, that was dragged down onto the
main menu bar, will now be an active App/shortcut.

NOTE:

This feature is only available if the vehicle is in

PARK.

Uconnect 4C/4C NAV Main Menu

MULTIMEDIA

421

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CYBERSECURITY

Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive informa-
tion. This information allows systems and features in your
vehicle to function properly.

Your vehicle may be equipped with certain security fea-
tures to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.
Vehicle software technology continues to evolve over time
and FCA US LLC, working with its suppliers, evaluates
and takes appropriate steps as needed. Similar to a com-
puter or other devices, your vehicle may require software
updates to improve the usability and performance of your
systems or to reduce the potential risk of unauthorized and
unlawful access to your vehicle systems.

The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software) is
installed.

WARNING!

• It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be impaired
or a loss of vehicle control could occur that may
result in an accident involving serious injury or
death.

• ONLY insert media (e.g., USB, SD card, or CD) into

your vehicle if it came from a trusted source. Media
of unknown origin could possibly contain malicious
software, and if installed in your vehicle, it may
increase the possibility for vehicle systems to be
breached.

• As always, if you experience unusual vehicle behav-

ior, take your vehicle to your nearest authorized
dealer immediately.

422

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:
• FCA US LLC or your dealer may contact you directly

regarding software updates.

• To help further improve vehicle security and minimize

the potential risk of a security breach, vehicle owners
should:

• Routinely check www.driveuconnect.com (U.S. Resi-

dents) or www.driveuconnect.ca (Canadian Residents)
to learn about available Uconnect software updates.

• Only connect and use trusted media devices (e.g.

personal mobile phones, USBs, CDs).

Privacy of any wireless and wired communications cannot
be assured. Third parties may unlawfully intercept infor-
mation and private communications without your consent.
For further information, refer to “Data Collection & Pri-
vacy” in your Uconnect Owner’s Manual Supplement or
“Onboard Diagnostic System (OBD II) Cybersecurity” in
“Getting To Know Your Instrument Panel”.

UCONNECT SETTINGS

The Uconnect system uses a combination of buttons on the
touchscreen and buttons on the faceplate located on the
center of the instrument panel that allows you to access
and change the customer programmable features.

CAUTION!

Do NOT attach any object to the touchscreen, doing so
can result in damage to the touchscreen.

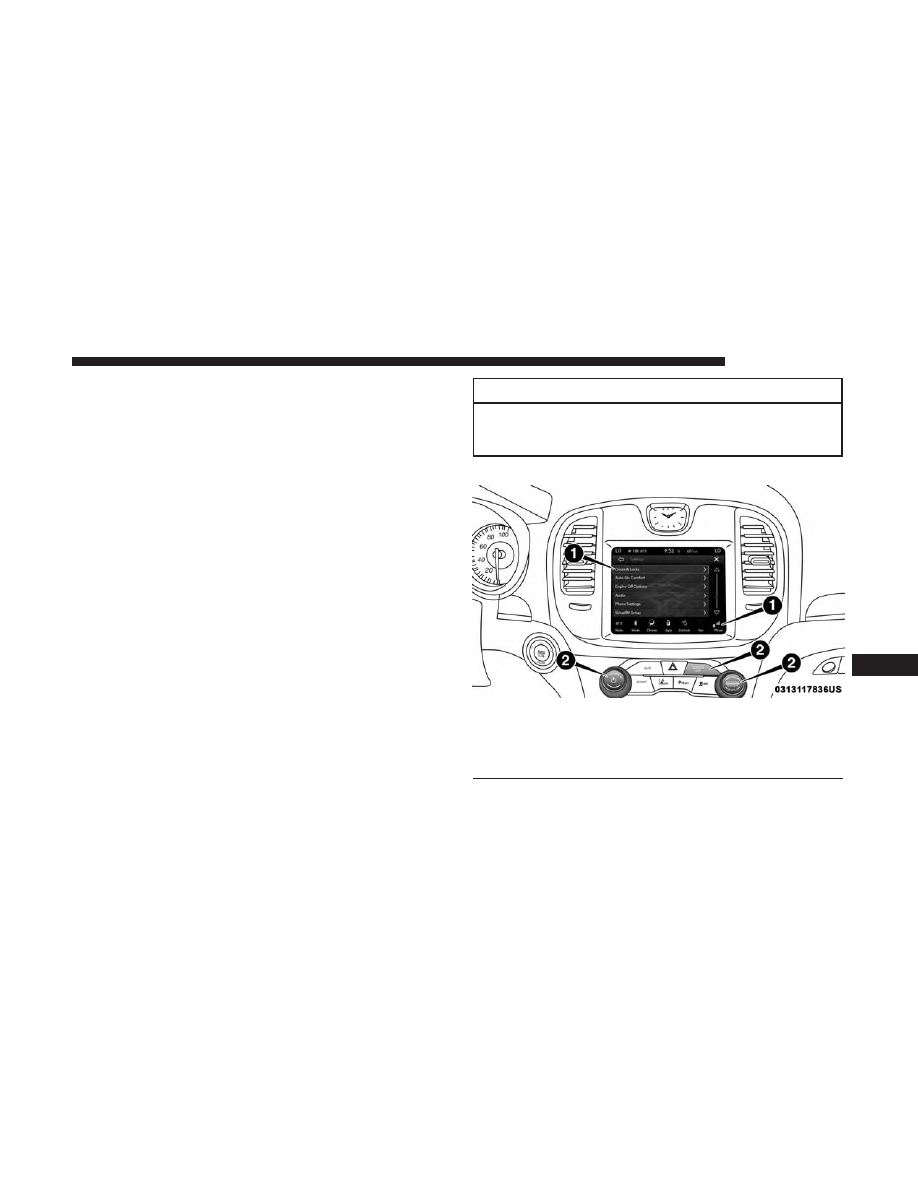

Uconnect 4C/4C NAV Buttons On The Touchscreen And

Buttons On The Faceplate

1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate

MULTIMEDIA

423

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Customer Programmable Features — Uconnect
4C/4C NAV Settings

Press the “Apps

” button (if equipped), and then

press the “Settings” button on the touchscreen to dis-
play the menu setting screen. In this mode, the
Uconnect system allows you to access programmable
features that may be equipped such as Language, Dis-
play, Units, Voice, Clock & Date, Safety & Driving
Assistance, Mirrors & Wipers, Lights, Doors & Locks,
Auto-On Comfort, Key Off Options, Audio, Phone/
Bluetooth, SiriusXM Setup, Reset, and System Informa-
tion.

NOTE:

Depending on the vehicle’s options, feature set-

tings may vary.

When making a selection, press the button on the touch-
screen to enter the desired mode. Once in the desired
mode, press and release the preferred setting “option” until
a check-mark appears next to the setting, showing that
setting has been selected. Once the setting is complete,
press the “X” button on the touchscreen to close out of the
settings screen. Pressing the up or down arrow button on
the right side of the screen will allow you to toggle up or
down through the available settings.

Language

After pressing the “Language” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Set Language

English

Français

Español

424

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Chrysler 300 (2019 year). Manual - part 26
