WARNING!

• Take care to avoid the radiator cooling fan when-

ever the hood is raised. It can start anytime the
ignition switch is ON. You can be injured by
moving fan blades.

• Remove any metal jewelry such as watch bands or

bracelets that might make an inadvertent electrical
contact. You could be seriously injured.

• Batteries contain sulfuric acid that can burn your

skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.

1. Set the parking brake, shift the automatic transmission

into PARK and turn the ignition to LOCK.

2. Turn off the heater, radio, and all unnecessary electri-

cal accessories.

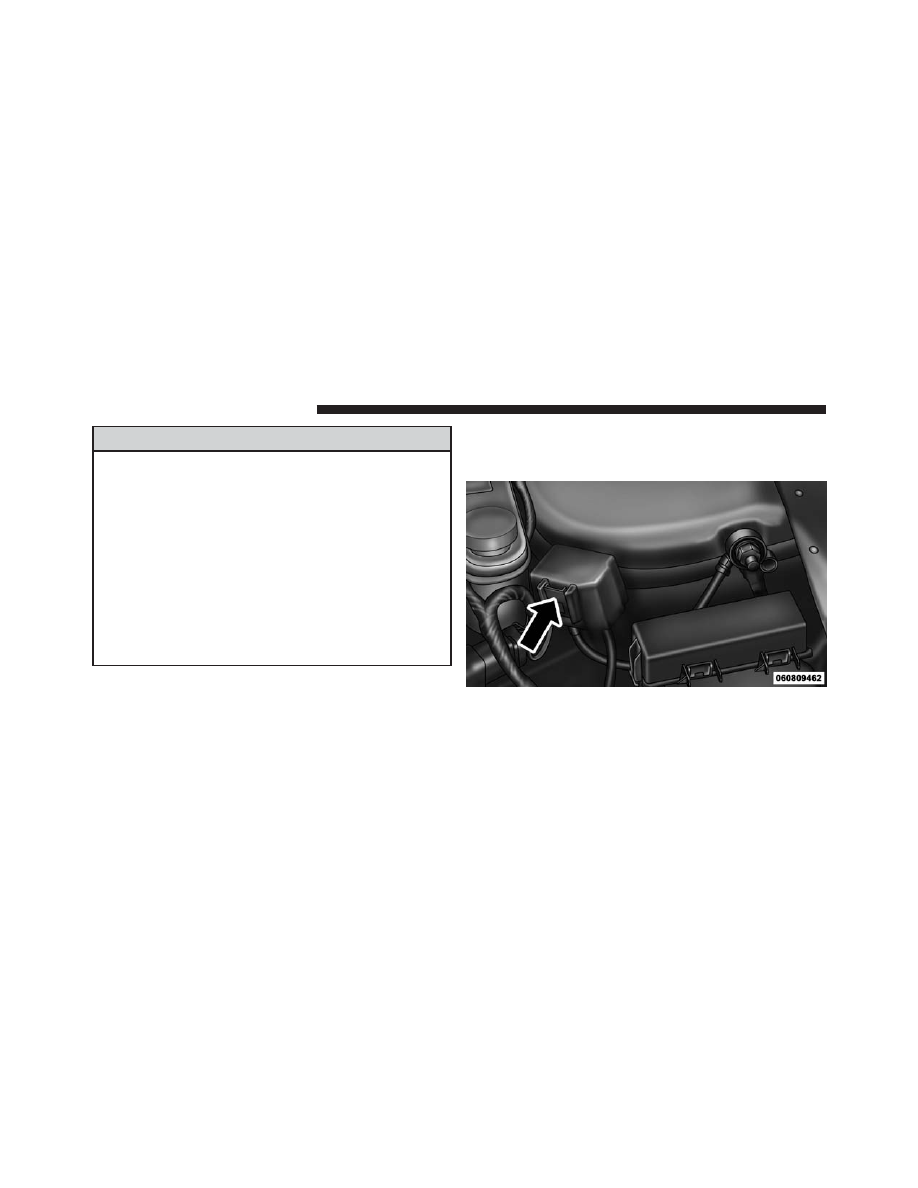

3. Remove the protective cover over the remote positive

(+)

battery post. To remove the cover, press the locking

tab and pull upward on the cover.

Locking Tab

412

WHAT TO DO IN EMERGENCIES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. If using another vehicle to jump-start the battery, park

the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.

WARNING!

Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.

Jump-Starting Procedure

WARNING!

Failure to follow this procedure could result in per-
sonal injury or property damage due to battery ex-
plosion.

CAUTION!

Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.

1. Connect the positive (+) end of the jumper cable to the

remote positive (+) post of the discharged vehicle.

2. Connect the opposite end of the positive (+) jumper

cable to the positive (+) post of the booster battery.

3. Connect the negative end (-) of the jumper cable to the

negative (-) post of the booster battery.

4. Connect the opposite end of the negative (-) jumper

cable to the remote negative (-) post of the vehicle with
the discharged battery.

WHAT TO DO IN EMERGENCIES

413

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING!

Do not connect the cable to the negative post (-) of the
discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury.

5. Start the engine in the vehicle that has the booster

battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery.

Once the engine is started, remove the jumper cables in
the reverse sequence:

6. Disconnect the negative (-) jumper cable from the

remote negative (-) post of the vehicle with the dis-
charged battery.

7. Disconnect the negative end (-) of the jumper cable

from the negative (-) post of the booster battery.

8. Disconnect the opposite end of the positive (+) jumper

cable from the positive (+) post of the booster battery.

9. Disconnect the positive (+) end of the jumper cable

from the remote positive (+) post of the discharged
vehicle.

10. Reinstall the protective cover over the remote posi-

tive (+) battery post of the discharged vehicle.

If frequent jump-starting is required to start your vehicle,
you should have the battery and charging system in-
spected at your authorized dealer.

CAUTION!

Accessories that can be plugged into the vehicle
power outlets draw power from the vehicle’s battery,
even when not in use (i.e., cellular phones, etc.).
Eventually, if plugged in long enough, the vehicle’s

(Continued)

414

WHAT TO DO IN EMERGENCIES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION! (Continued)

battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.

FREEING A STUCK VEHICLE

If your vehicle becomes stuck in mud, sand, or snow, it
can often be moved using a rocking motion. Turn the
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between DRIVE
and REVERSE, while gently pressing the accelerator. Use
the least amount of accelerator pedal pressure to main-
tain the rocking motion, without spinning the wheels, or
racing the engine.

CAUTION!

Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the en-
gine to idle with the shift lever in NEUTRAL for at
least one minute after every five rocking-motion
cycles. This will minimize overheating and reduce
the risk of transmission failure during prolonged
efforts to free a stuck vehicle.

NOTE:

Press the

⬙ESC Off⬙ switch, to place the Electronic

Stability Control (ESC) system in

⬙Partial Off⬙ mode,

before rocking the vehicle. Refer to “Electronic Brake
Control” in “Starting And Operating” for further infor-
mation. Once the vehicle has been freed, press the

⬙ESC

Off

⬙ switch again to restore ⬙ESC On⬙ mode.

WHAT TO DO IN EMERGENCIES

415

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION!

• When “rocking” a stuck vehicle by shifting be-

tween DRIVE and REVERSE, do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.

• Revving the engine or spinning the wheels too fast

may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no trans-
mission shifting occurring).

WARNING!

Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could

(Continued)

WARNING! (Continued)

explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.

SHIFT LEVER OVERRIDE

If a malfunction occurs and the shift lever cannot be
moved out of the PARK position, you can use the
following procedure to temporarily move the shift lever:

1. Turn the engine OFF.

2. Firmly apply the parking brake.

3. Remove the rubber cupholder liner. Squeeze one side

of the liner’s center to expose its edge and facilitate
removal.

416

WHAT TO DO IN EMERGENCIES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Turn the ignition to the ACC or ON/RUN position,

but do not start the engine.

5. Press and maintain firm pressure on the brake pedal.

6. Insert a screwdriver or similar tool into the access hole

(at the front of the cupholder) and push and hold the
override release lever forward.

7. Move the shift lever to the NEUTRAL position.

8. The vehicle may then be started in NEUTRAL.

9. Reinstall the cupholder liner.

TOWING A DISABLED VEHICLE

This section describes procedures for towing a disabled vehicle using a towing service.

Towing Condition

Wheels OFF the Ground

All Models

Flat Tow

NONE

If transmission is operable:

• Transmission in NEUTRAL

• 25 mph (40 km/h) max speed

• 15 mi (24 km) max distance

Wheel Lift Or Dolly Tow

Rear

Front

Flatbed

ALL

BEST METHOD

WHAT TO DO IN EMERGENCIES

417

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.

If your vehicle’s battery is discharged, see

⬙Shift Lever

Override

⬙ in ⬙What To Do In Emergencies⬙ for instruc-

tions on shifting the automatic transmission out of PARK
for towing.

CAUTION!

• Do not use sling type equipment when towing.

Damage to the fascia will occur.

• When securing the vehicle to a flatbed truck, do not

attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.

• Do not push or tow this vehicle with another

vehicle as damage to the bumper fascia and trans-
mission may result.

The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed.

If flatbed equipment is not available, and the transmis-
sion is operable, the vehicle may be flat towed (with all
four wheels on the ground) under the following condi-
tions:

418

WHAT TO DO IN EMERGENCIES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• The transmission must be in NEUTRAL.
• The towing distance must not exceed 15 mi (24 km).
• The towing speed must not exceed 25 mph (40 km/h).

If the transmission is not operable, or the vehicle must
be towed faster than 25 mph (40 km/h) or farther than
15 mi (24 km), it must be towed with the front wheels
OFF the ground (using a flatbed truck, towing dolly, or
wheel lift equipment with the front wheels raised).

CAUTION!

Towing faster than 25 mph (40 km/h) or farther than
15 mi (24 km) with front wheels on the ground can
cause severe transmission damage. Such damage is
not covered by the New Vehicle Limited Warranty.

Without The Ignition Key

Special care must be taken when the vehicle is towed
with the ignition in the LOCK/OFF position. Flatbed
towing is the preferred towing method. However, if a
flatbed towing vehicle is not available, wheel lift towing
equipment may be used. Rear towing (with the front
wheels on the ground) is not allowed, as transmission
damage will occur. If rear towing is the only alternative,
the front wheels must be placed on a towing dolly. Proper
towing equipment is necessary to prevent damage to the
vehicle.

CAUTION!

Failure to follow these towing methods can cause
severe transmission damage. Such damage is not
covered by the New Vehicle Limited Warranty.

WHAT TO DO IN EMERGENCIES

419

-------------------------------------------------------------------------------------------------------------------------------------------------------------

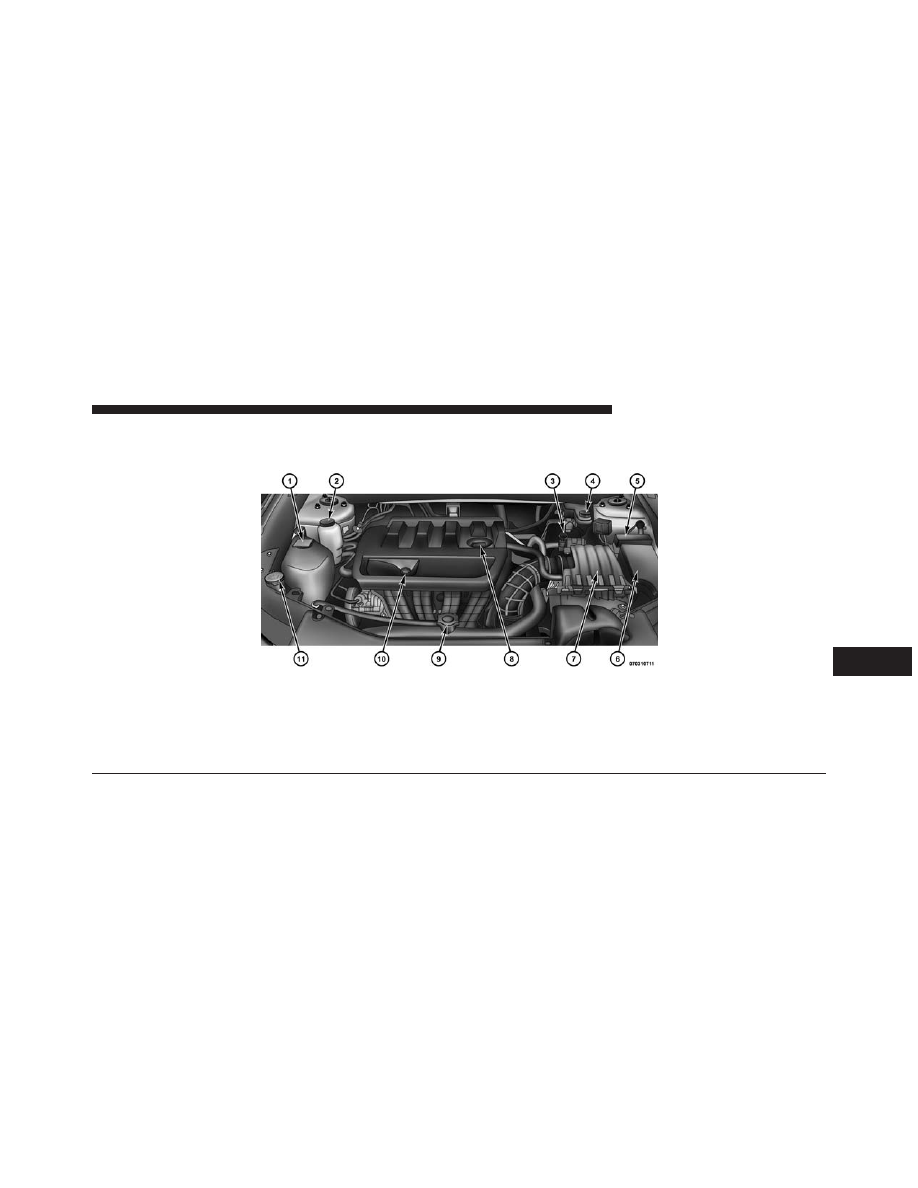

ENGINE COMPARTMENT — 2.4L

1 — Engine Coolant Reservoir

7 — Air Cleaner Filter

2 — Power Steering Fluid Reservoir

8 — Engine Oil Fill

3 — Automatic Transmission Dipstick

9 — Coolant Pressure Cap

4 — Brake Fluid Reservoir

10 — Engine Oil Dipstick

5 — Integrated Power Module (Fuses)

11 — Washer Fluid Reservoir

6 — Power Distribution Center (Fuses)

MAINTAINING YOUR VEHICLE

423

-------------------------------------------------------------------------------------------------------------------------------------------------------------

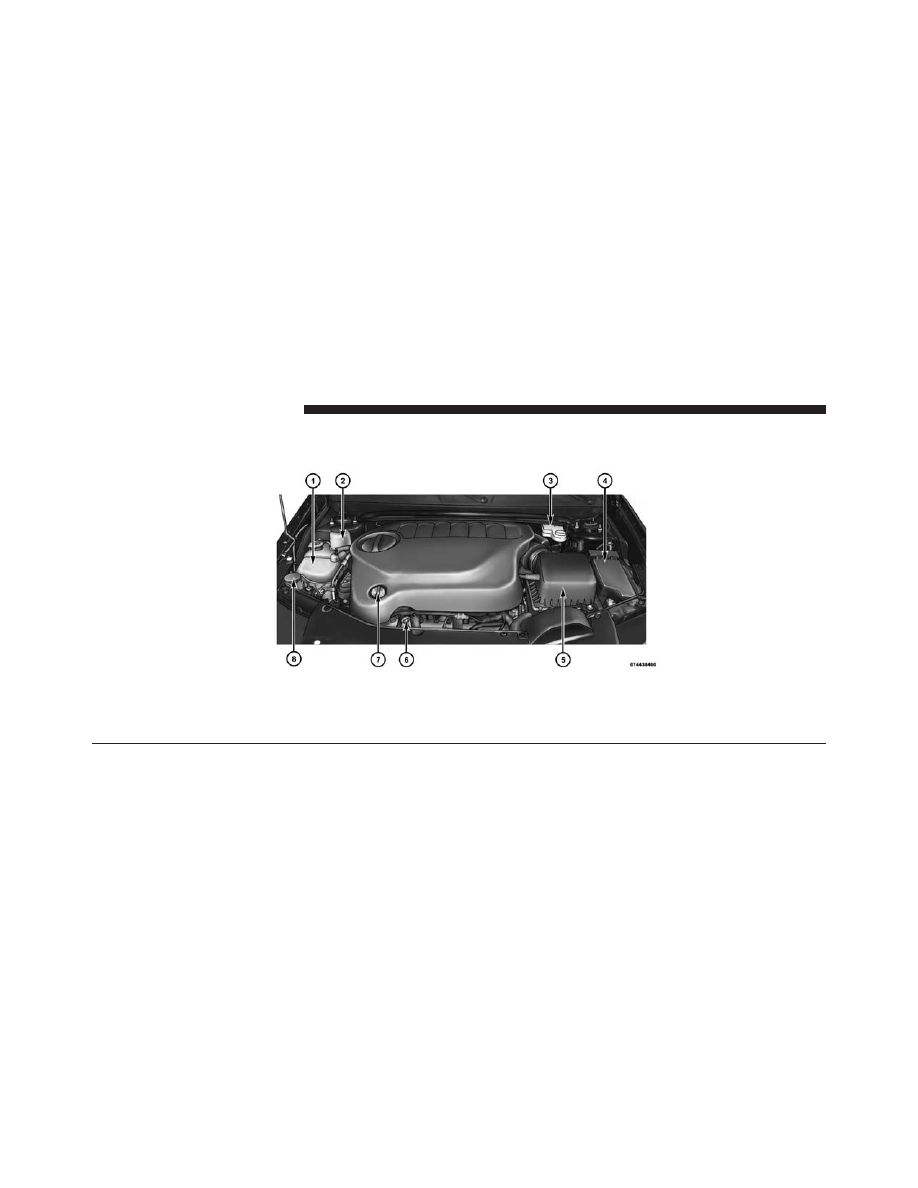

ENGINE COMPARTMENT — 3.6L

1 — Engine Coolant Reservoir

5 — Air Cleaner Filter

2 — Power Steering Fluid Reservoir

6 — Engine Oil Dipstick

3 — Brake Fluid Reservoir

7 — Engine Oil Fill

4 — Integrated Power Module (Fuses)

8 — Washer Fluid Reservoir

424

MAINTAINING YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ONBOARD DIAGNOSTIC SYSTEM — OBD II

Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.

If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.

CAUTION!

• Prolonged driving with the MIL on could cause

further damage to the emission control system. It
could also affect fuel economy and drivability. The
vehicle must be serviced before any emissions tests
can be performed.

• If the MIL is flashing while the engine is running,

severe catalytic converter damage and power loss
will soon occur. Immediate service is required.

Loose Fuel Filler Cap Message

After fuel is added, the vehicle diagnostic system can
determine if the fuel filler cap is possibly loose or
improperly installed. A “GASCAP” message will be
displayed in the instrument cluster. Tighten the gas cap
until a

⬙clicking⬙ sound is heard. This is an indication that

the gas cap is properly tightened. Press the trip odometer
“Reset” button to turn off the message. If the problem

MAINTAINING YOUR VEHICLE

425

-------------------------------------------------------------------------------------------------------------------------------------------------------------

persists, the message will appear the next time the
vehicle is started. This might indicate a damaged cap. If
the problem is detected twice in a row, the system will
turn on the “Malfunction Indicator Light (MIL).” Resolv-
ing the problem will turn the MIL light off.

EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS

In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.

For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not

on when the engine is running, and that the OBD II
system is ready for testing.

Normally, the OBD II system will be ready. The OBD II
system may not be ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.

Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:

1. Turn the ignition switch to the ON position, but do not

crank or start the engine.

2. If you crank or start the engine, you will have to start

this test over.

3. As soon as you turn the ignition switch to the ON

position, you will see the MIL symbol come on as part
of a normal bulb check.

426

MAINTAINING YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Approximately 15 seconds later, one of two things will

happen:

• The MIL will flash for about 10 seconds and then

return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not ready and you should
not

proceed to the I/M station.

• The MIL will not flash at all and will remain fully

illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is ready and you can proceed to the I/M station.

If your OBD II system is not ready, you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready.

Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.

REPLACEMENT PARTS

Use of genuine MOPAR

威 parts for normal/scheduled

maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR

威 parts for maintenance

and repairs will not be covered by the manufacturer’s
warranty.

DEALER SERVICE

Your authorized dealer has the qualified service person-
nel, special tools, and equipment to perform all service
operations in an expert manner. Service Manuals are

MAINTAINING YOUR VEHICLE

427

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Chrysler 200 Convertible (2013 year). Manual - part 26
