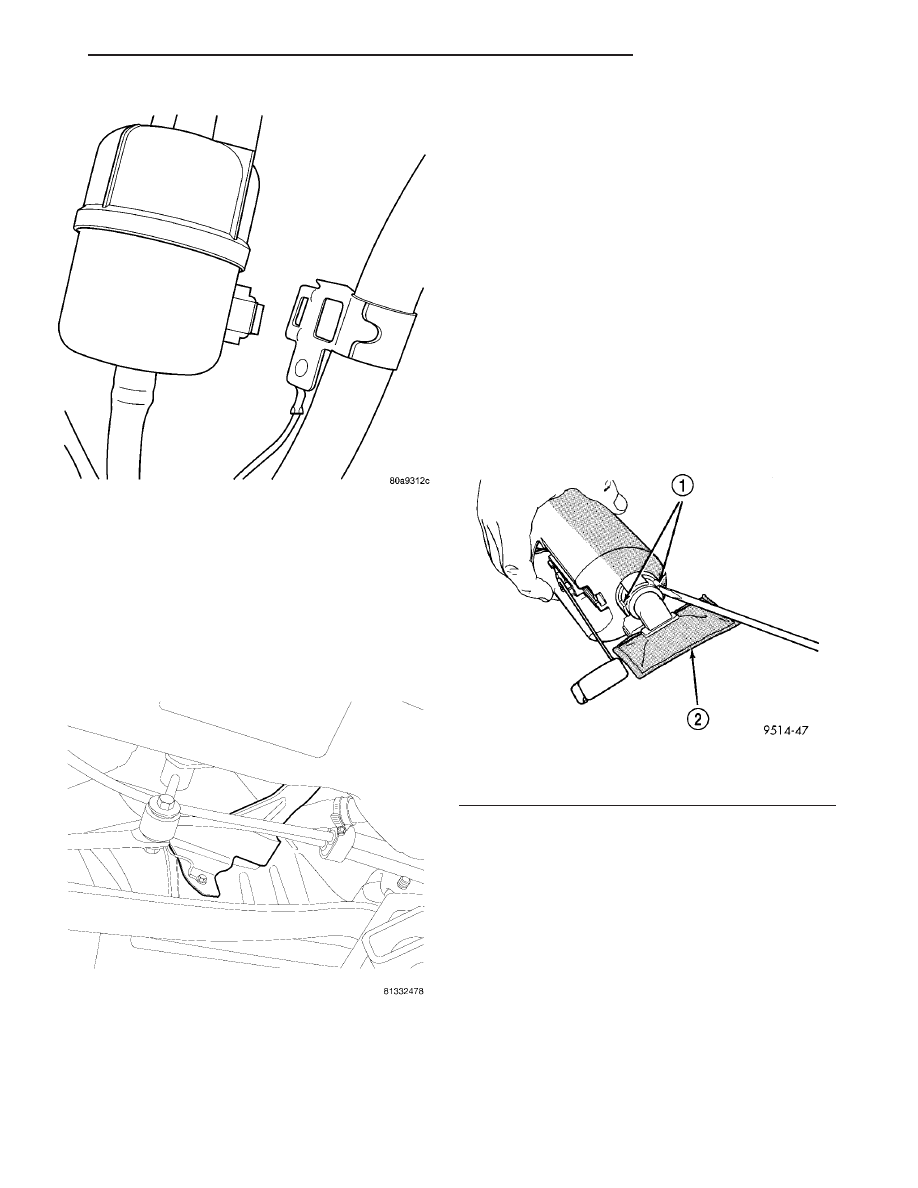

(8) For RGDisconnect the vent at the top of the filler tube. (9) Remove the ground strap. INSTALLATION (1) Install filler tube to tank (Fig. 32). (3) Install the ground strap. tube. (5) Install the 3 screws at the filler door. (6) For RGInstall the canister from filler tube (Fig. 33). (7) Install the splash shield. INLET FILTER REMOVAL (1) Remove fuel pump module. Refer to Fuel Pump Module Removal in this section. (2) Using a thin straight blade screwdriver, pry back the locking tabs on fuel pump reservoir and (3) Remove strainer O-ring from the fuel pump reservoir body. (4) Remove any contaminants in the fuel tank by washing the inside of the fuel tank. INSTALLATION (1) Lubricate the strainer O-ring with clean engine oil. (2) Insert strainer O-ring into outlet of strainer so that it sits evenly on the step inside the outlet. (3) Push strainer onto the inlet of the fuel pump reservoir body. Make sure the locking tabs on the (4) Install fuel pump module. Refer to Fuel Pump Module Installation in this section. Fig. 33 FUEL TUBE VENT CANISTER (RG) Fig. 34 FILLER TUBE SHIELD Fig. 35 Inlet 1 - TABS RS FUEL DELIVERY 14 - 17 FUEL TANK FILLER TUBE (Continued) |
