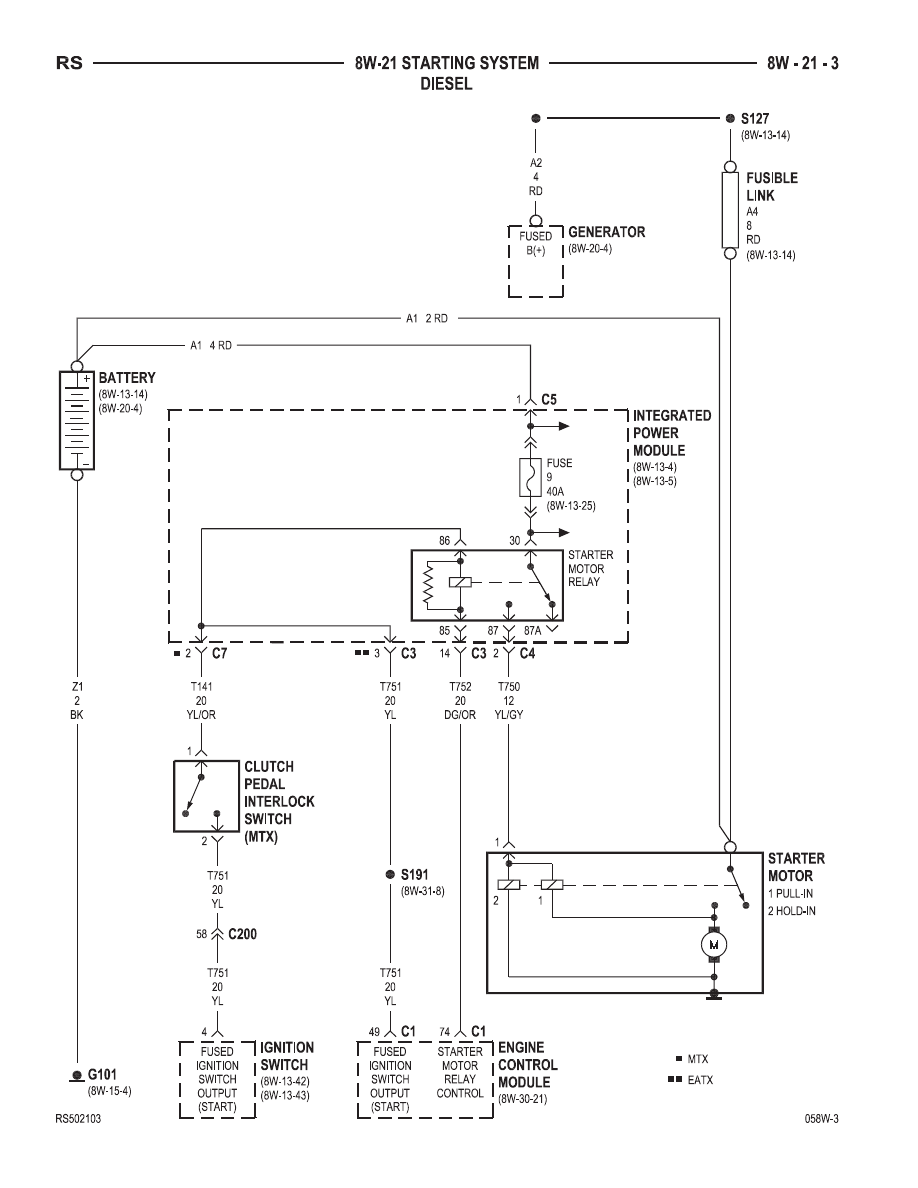

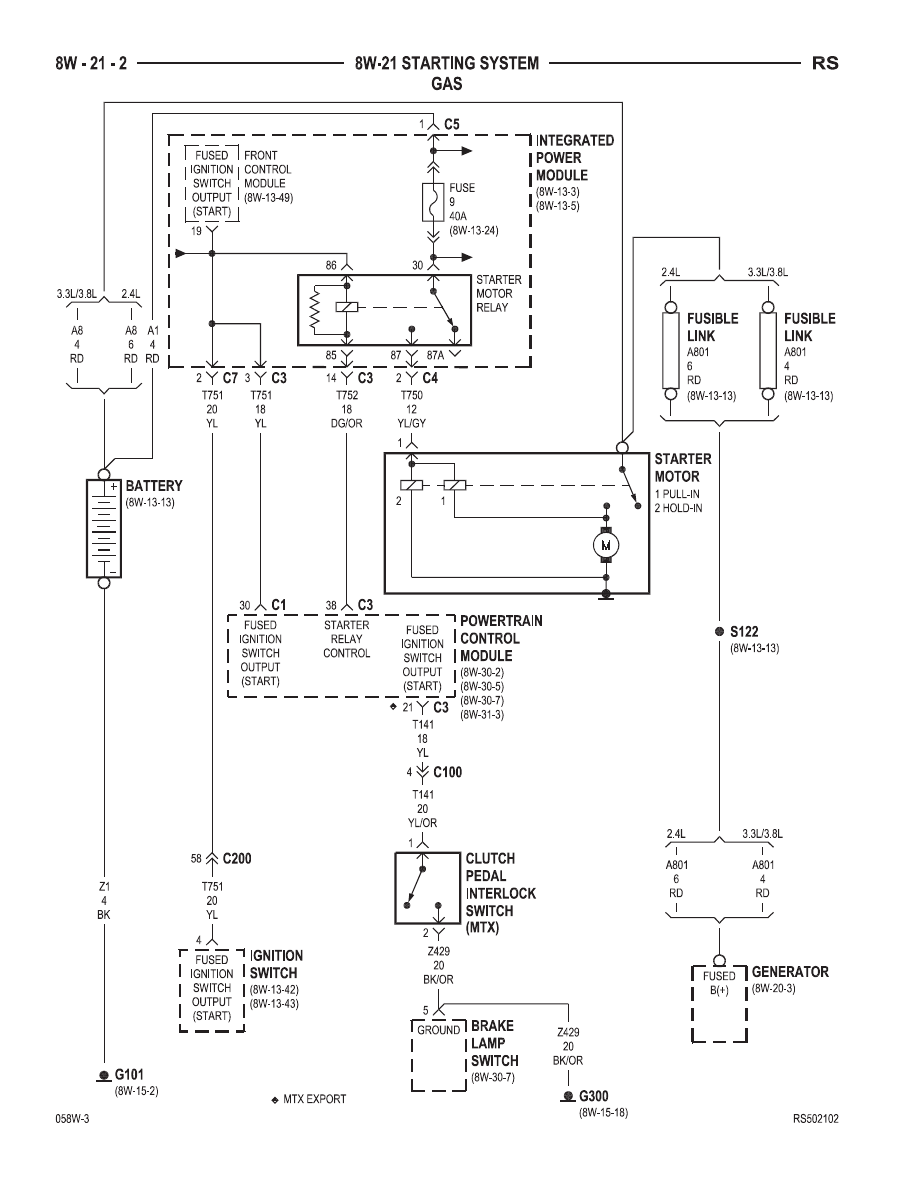

8W-21 STARTING SYSTEM
Component
Page
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-21-2, 3
Brake Lamp Switch . . . . . . . . . . . . . . . . . . 8W-21-2
Clutch Pedal Interlock Switch . . . . . . . . 8W-21-2, 3
Engine Control Module . . . . . . . . . . . . . . . . 8W-21-3
Front Control Module . . . . . . . . . . . . . . . . . 8W-21-2
Fuse 9 . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-21-2, 3
Fusible Link . . . . . . . . . . . . . . . . . . . . . . 8W-21-2, 3
G101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-21-2, 3
Component
Page
G300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-21-2
Generator . . . . . . . . . . . . . . . . . . . . . . . . 8W-21-2, 3
Ignition Switch . . . . . . . . . . . . . . . . . . . . 8W-21-2, 3
Integrated Power Module . . . . . . . . . . . . 8W-21-2, 3
Powertrain Control Module . . . . . . . . . . . . 8W-21-2
Starter Motor . . . . . . . . . . . . . . . . . . . . . 8W-21-2, 3
Starter Motor Relay . . . . . . . . . . . . . . . . 8W-21-2, 3
RS
8W-21 STARTING SYSTEM
8W - 21 - 1
