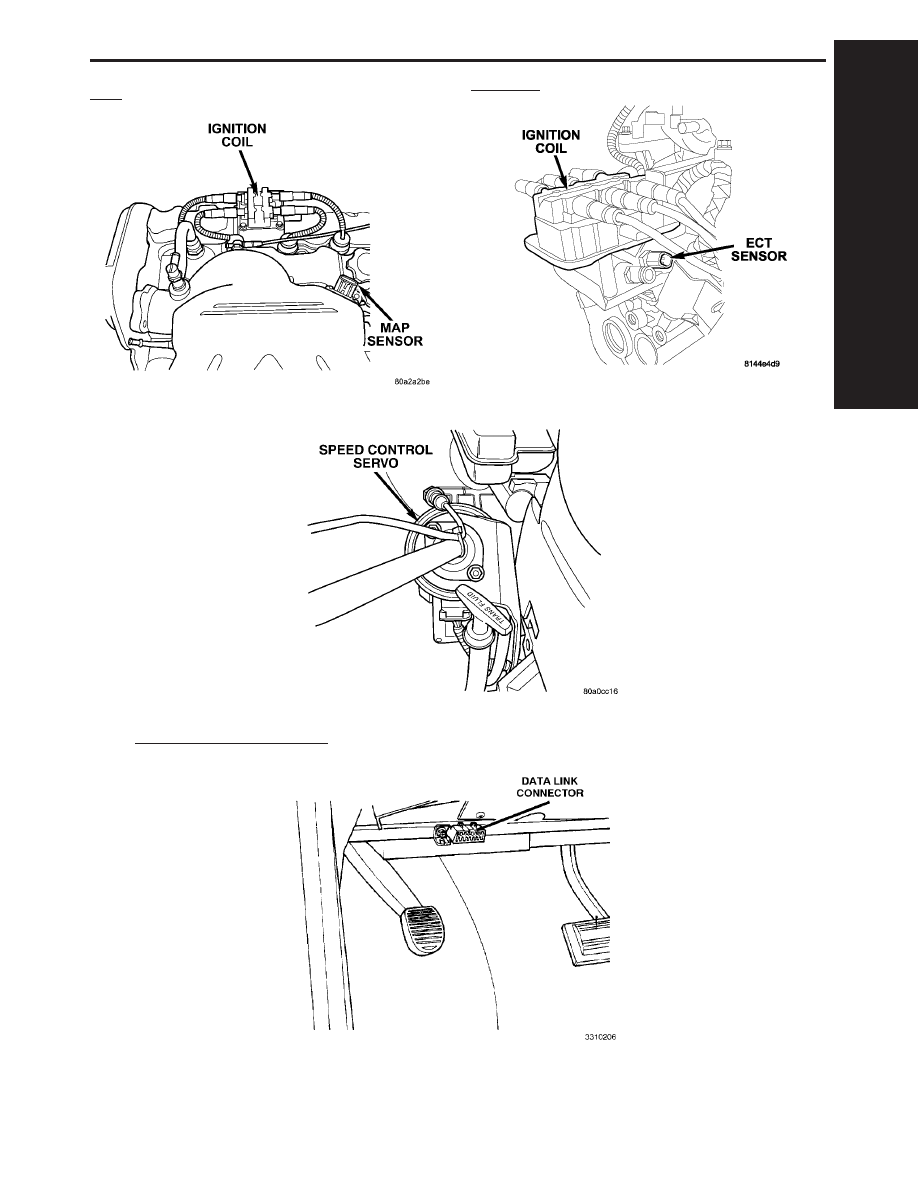

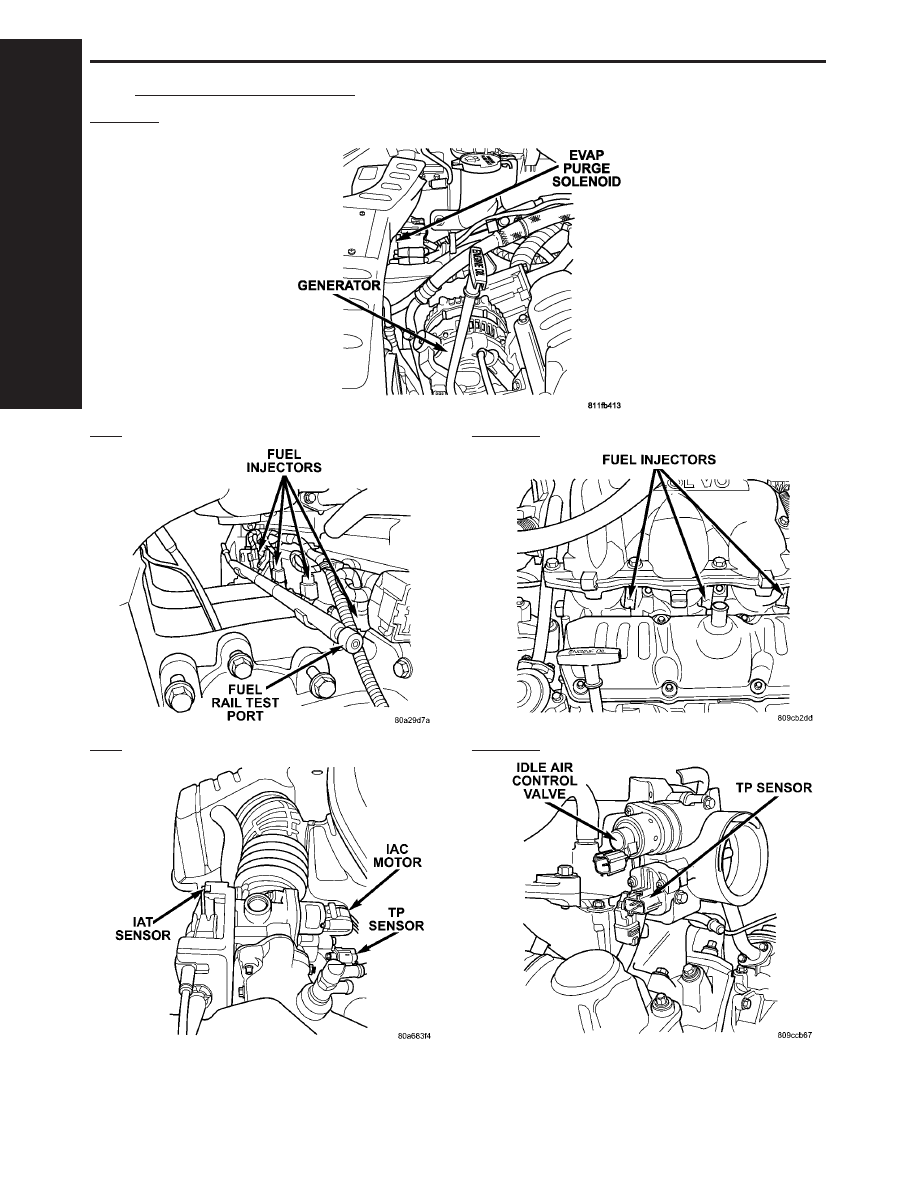

POWERTRAIN VERIFICATION TEST VER - 6
APPLICABILITY
1. Install the Miller Tool #8404 Evaporative Emission Leak Detector (EELD). according to the
instructions in the pervious DTC table.
2. Set the smoke/air control switch to AIR.
3. Insert the tester’s AIR supply tip (clear hose) into the appropriate calibration orifice on the
tester’s control panel (based on DTC leak size).
4. Press the remote smoke/air start button.
5. Position the red flag on the air flow meter so it is aligned with the indicator ball.
6. When the calibration is complete, release the remote button. The EELD is now calibrated the
flow meter in liters per minute to the size leak indicated by the DTC set in the PCM.
7. Install the service port adapter #8404-14 on the vehicle’s service port.
8. Connect the Air supply hose from the EELD to the service port.
9. Press the remote button to activate AIR flow.
10. NOTE: Larger volume fuel tanks, lower fuel levels or if the vehicle is equipped
with a Flow Management Valve may indicate high flow and will require 4 to 5
minutes to fill.
11. Compare the flow meter indicator ball reading to the red flag.
12. ABOVE the red flag indicates a leak present.
13. BELOW the red flag indicates a sealed system.
14. If the indicator ball shows a leak present, perform the smoke test indicated in the previous
test and identify the leak and repair. Perform this verification test when the repair is complete.
Did the indicator ball indicate the a leak is present??
All
Yes
→ Repeat the DTC test to identify the leak and repair.
No
→ Repair is complete.

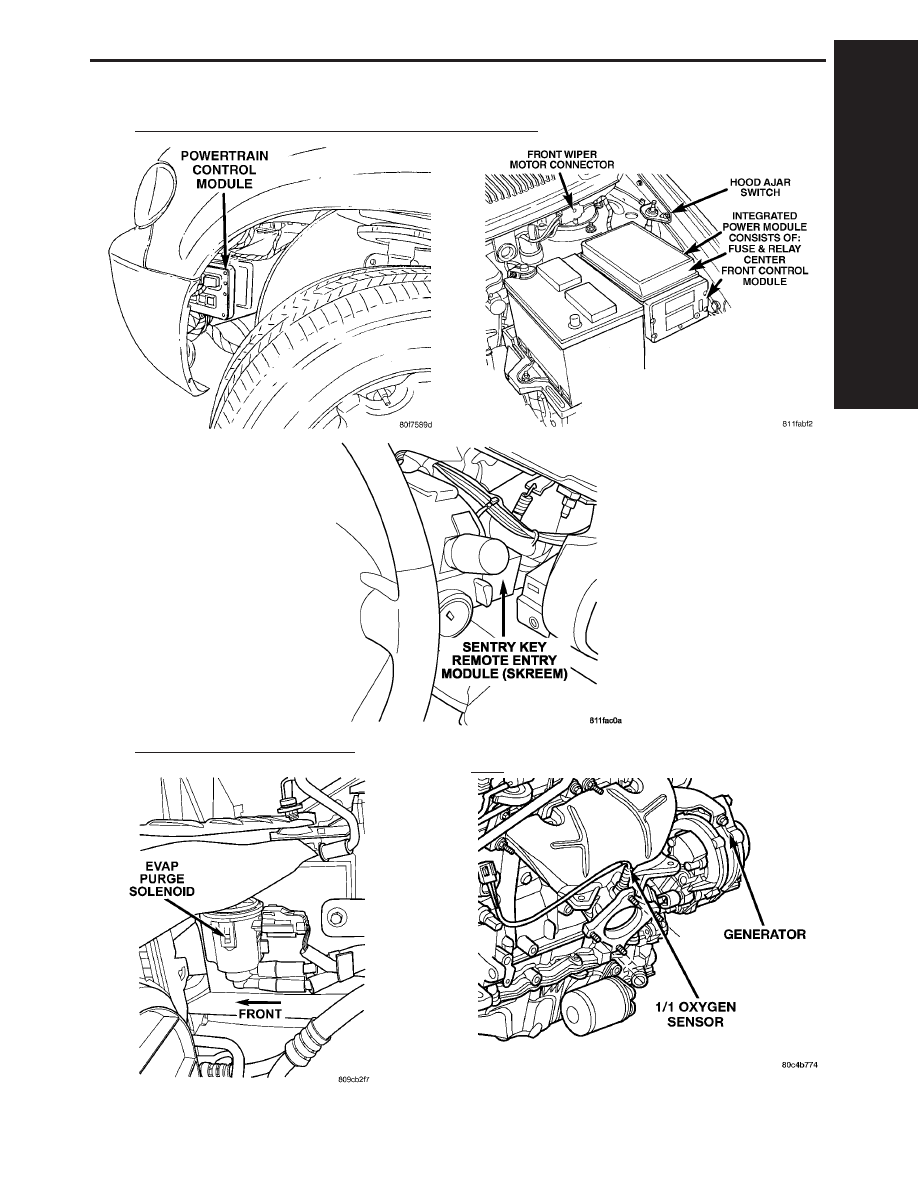

SKREEM VERIFICATION TEST - VER 1A
APPLICABILITY
1. Reconnect all previously disconnected components and connectors.
2. Obtain the vehicle’s unique Personal Identification Number (PIN) assigned to it’s original
SKREEM. This number can be obtained from the vehicle’s invoice or Chrysler’s Customer
Center (1-800-992-1997).
3. NOTE: When entering the PIN, care should be taken because the SKREEM will only
allow 3 consecutive attempts to enter the correct PIN. If 3 consecutive incorrect
PIN’s are entered the SKREEM will Lock Out the DRB III for 1 hour.
4. To exit Lock Out mode, the ignition key must remain in the Run position continually for 1
hour. Turn off all accessories and connect a battery charger if necessary.
5. With the DRB III, select Theft Alarm, SKREEM and Miscellaneous. Then select desired
procedure and follow the steps that will be displayed.
6. If the SKREEM has been replaced, ensure all of the vehicle ignition keys are programmed to
the new SKREEM.
7. NOTE: Prior to returning vehicle to the customer, perform a module scan to be sure
that all DTC’s are erased. Erase any DTC’s that are found.
8. With the DRB III erase all DTC’s. Perform 5 ignition key cycles leaving the key on for at least
90 seconds per cycle.
9. With the DRB III, read the SKREEM DTC’s.
Are there any SKREEM DTC’s?
All
Yes
→ Repair is not complete, refer to appropriate symptom.
No
→ Repair is complete.
326
VERIFICATION TESTS
Verification Tests —
Continued
