Chrysler RG Voyager. Manual - part 1155
SPECIFICATIONS
ITEM
LOCATION
GAP
FLUSH
A
HOOD TO FASCIA
(VOYAGER ONLY)
8.0 ± 2.0
PARALLEL WITHIN 2.0 RIGHT TO
LEFT
2.5 OVER FLUSH TO HOOD ±
1.5 CONSISTENT WITHIN 2.0
B
HEADLAMP MODULE TO
HOOD
8.0 ± 2.0
PARALLEL WITHIN 2.0 RIGHT TO
LEFT
C
HOOD TO FENDER (FORE &
AFT)
0.0 ± 1.5
LEFT TO RIGHT WITHIN 1.5
D
HOOD TO FENDER
4.0 ± 1.5
PARALLEL WITHIN 2.5 AND
WITHIN 1.5 LEFT TO RIGHT
UNDER FLUSH ± 2.0
E
FENDER TO DOOR
5.0 ± 1.5
PARALLEL WITHIN 2.0
UNDER FLUSH 0.5 ± 1.5
CONSISTENT WITHIN 2.0
F
FRONT DOOR TO
9
A
9
PILLAR
COVER
UNDER FLUSH 0.5 ± 2.0
G
9
A
9
PILLAR COVER TO
SLIDING DOOR
5.0 ± 2.0
PARALLEL WITHIN 1.0
1.0 UNDER FLUSH ± 2.0
CONSISTENT WITHIN 1.0
H
FRONT DOOR APPLIQUE TO
SLIDING DOOR GLASS
5.0 ± 2.0
PARALLEL WITHIN 2.0
1.0 OVER FLUSH ± 2.0
CONSISTENT WITHIN 3.0
I
FRONT DOOR TO SLIDING
DOOR
5.0 ± 2.0
PARALLEL WITHIN 2.0
± 2.0 CONSISTENT WITHIN
2.0
J
SLIDING DOOR TO REAR
APERTURE GLASS
5.0 ± 2.0
PARALLEL WITHIN 1.5
± 3.0 CONSISTENT WITHIN
3.0
K
SLIDING DOOR TO REAR
APERTURE
5.0 ± 1.5
PARALLEL WITHIN 2.0
± 1.5 CONSISTENT WITHIN
1.5
L
TAIL LAMP TO BODY SIDE
APERTURE
1.0 ± 1.0
PARALLEL WITHIN 1.5
OVER FLUSH
M
TAIL LAMP TO LIFTGATE
4.0 ± 2.0
OVER FLUSH
N
LIFTGATE TO BODY SIDE
APERTURE
4.0 ± 1.5
UNDER FLUSH 1.0 ± 2.5
CONSISTENT WITHIN 2.0
O
LIFTGATE TO ROOF
8.0 ± 2.0
UNDER FLUSH ± 1.5
P
LIFTGATE TO FASCIA
8.0 ± 2.5
PARALLEL WITHIN 3.0
OVER FLUSH
Q
LIFTGATE TO REAR FASCIA
2.0 ± 0.5
UNDER FLUSH TO 1.0
MAXIMUM
R
FUEL FILLER DOOR TO BODY
SIDE APERTURE
UNDER FLUSH 0.5 ± 1.0
NOTE: All measurements are in mm.
RS

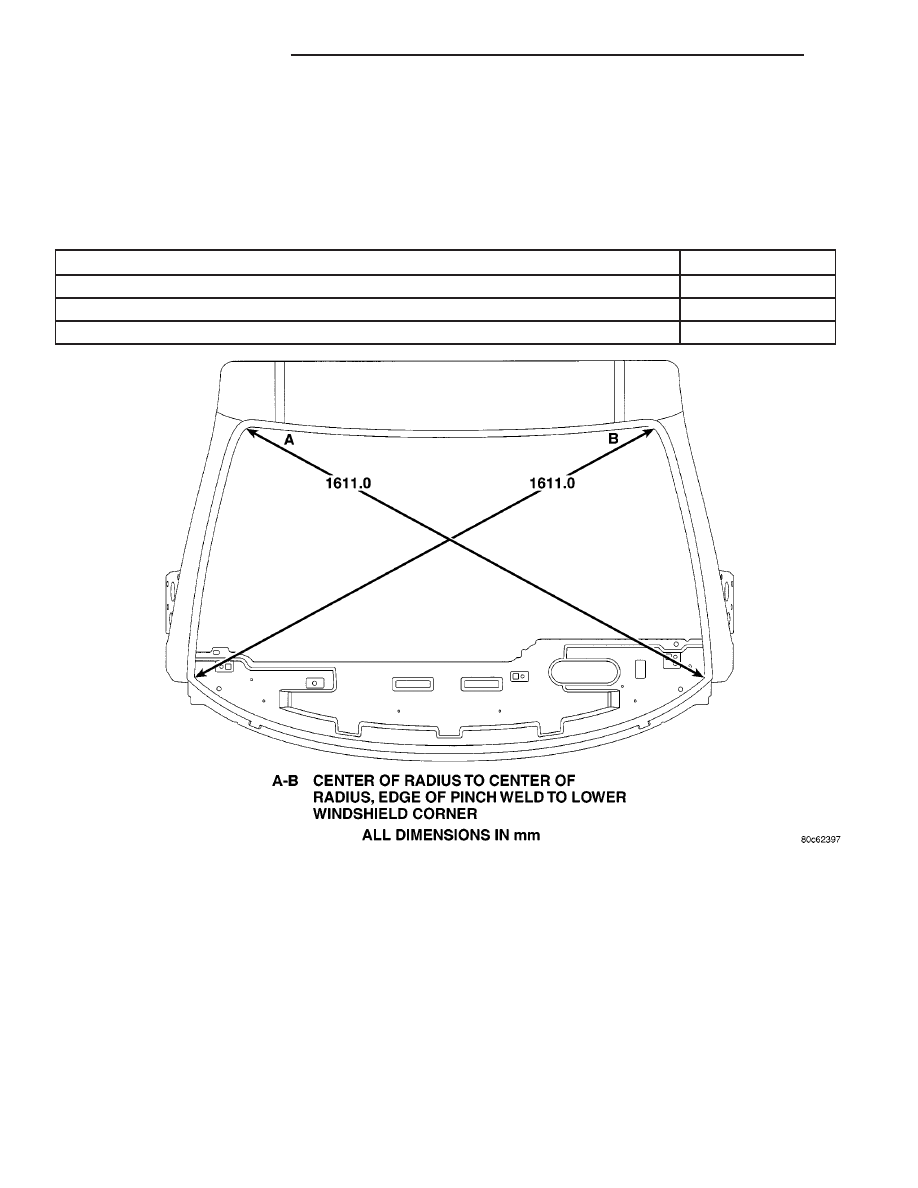

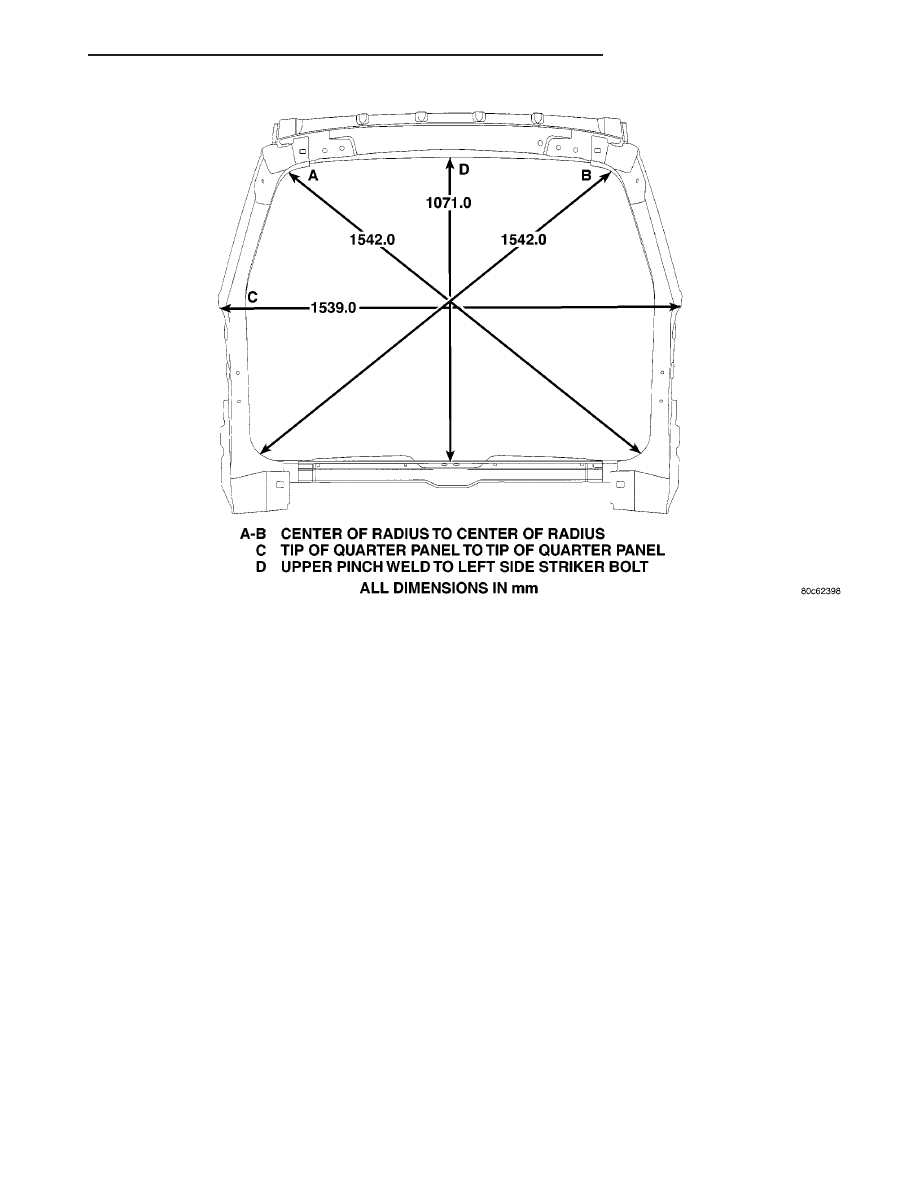

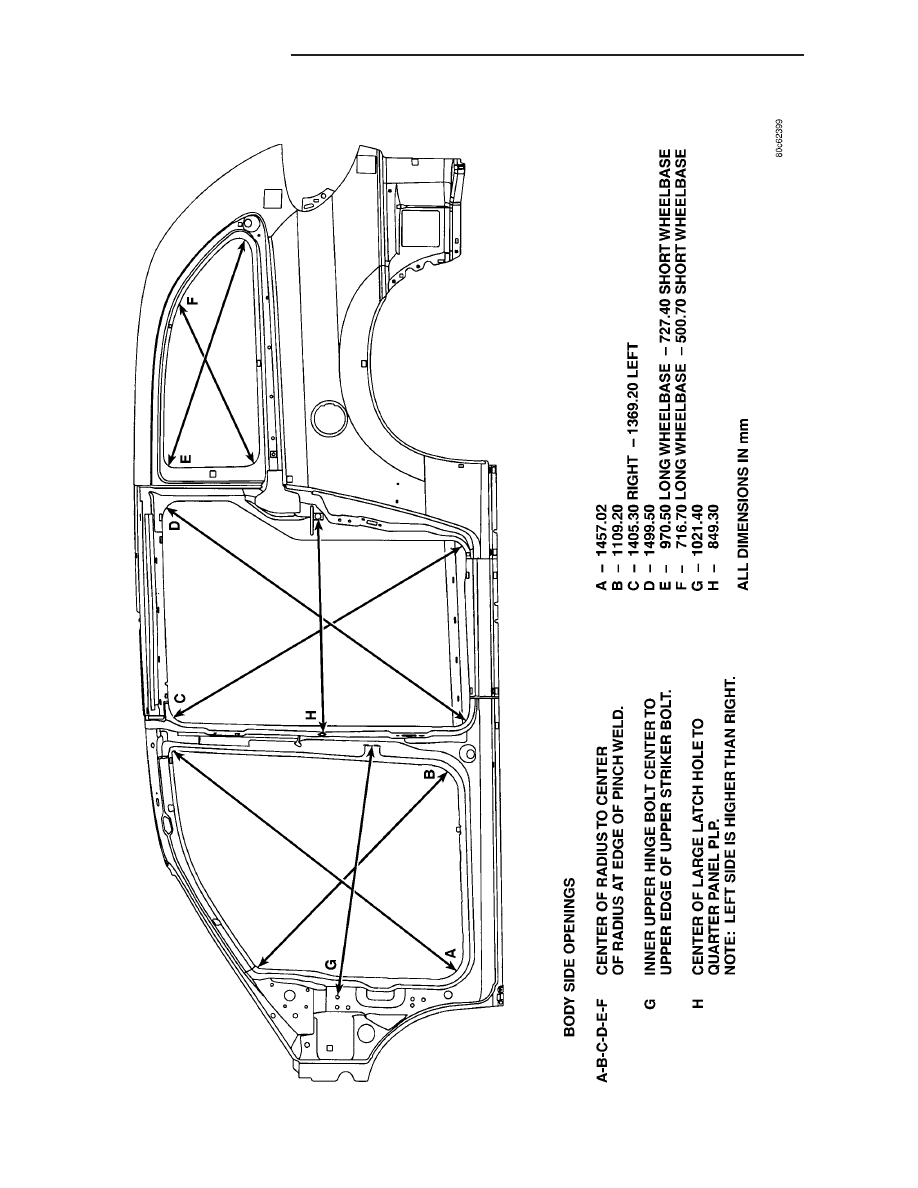

BODY STRUCTURE
23 - 199
GAP AND FLUSH (Continued)
