Chrysler RG Voyager. Manual - part 1120





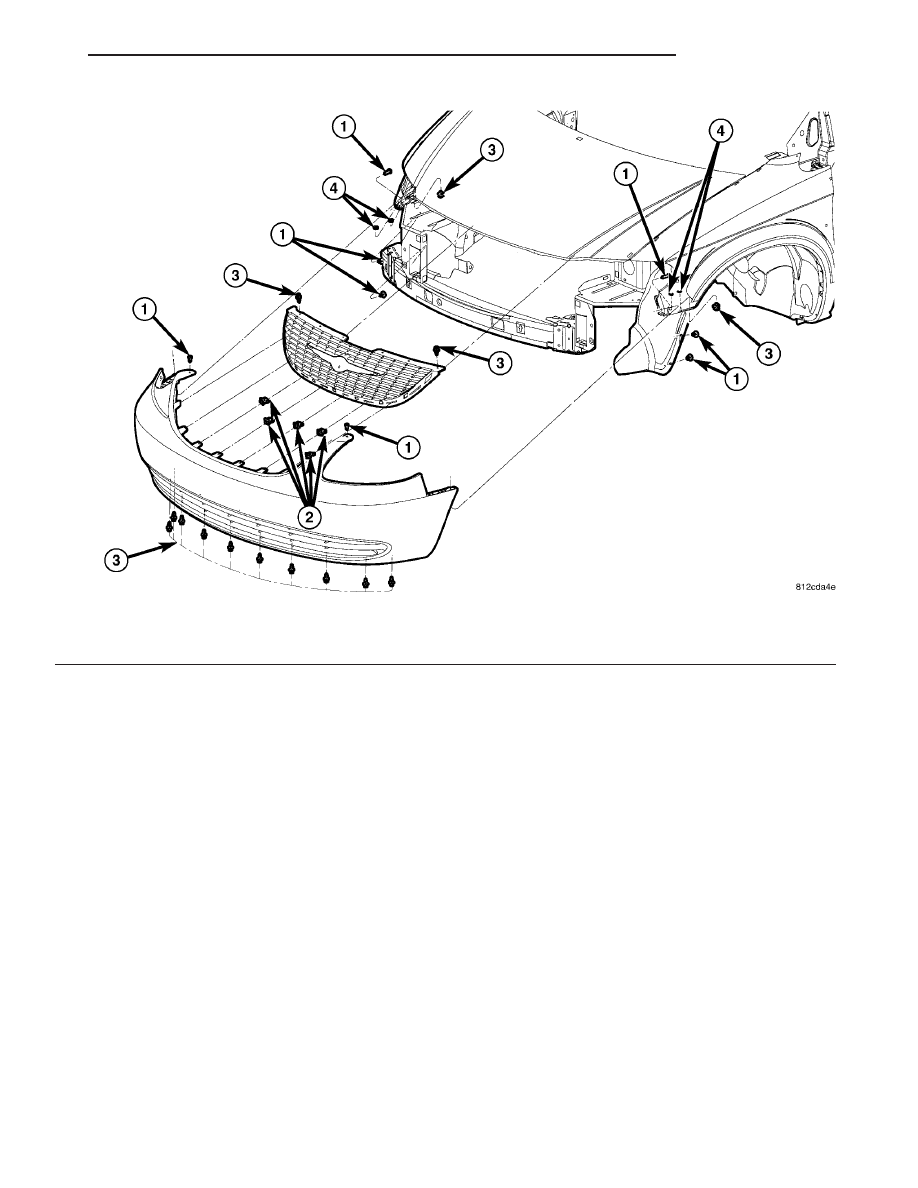

Fig. 14 GRILLE

1 - SCREW(S)
2 - SPRING CLIP(S)

3 - PUSH PIN FASTENER(S)
4 - RETAINER(S)

RS

EXTERIOR

23 - 59

GRILLE (Continued)

UPPER RADIATOR
CROSSMEMBER

REMOVAL

(1) Release hood latch and open hood.
(2) Remove radiator sight shield.
(3) Remove engine air inlet resonator.
(4) Unclip hood cable from upper radiator cross-

member.

(5) Remove bolts attaching hood latch to cross-

member and position latch out of the way.

(6) Remove hood prop rod.
(7) Remove screw attaching coolant recovery bottle

to crossmember.

(8) Remove bolts attaching radiator isolators to

crossmember.

(9) Remove bolts attaching ends of crossmember to

radiator closure panel (Fig. 16).

(10) Lift crossmember upward and away from

radiator closure panel.

(11) Remove crossmember from vehicle.

INSTALLATION

(1) Place radiator closure panel crossmember in

position on vehicle.

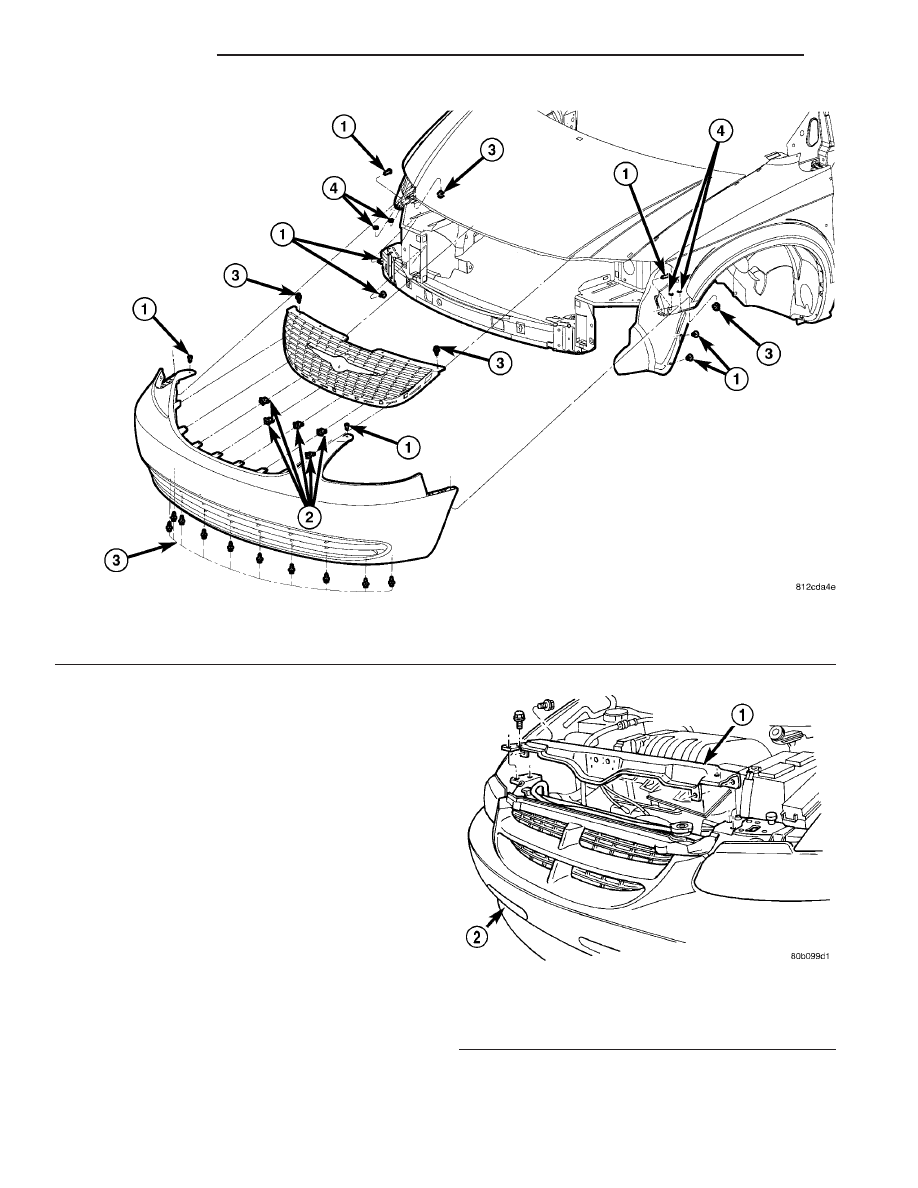

Fig. 15 GRILLE

1 - SCREW(S)
2 - SPRING CLIP(S)

3 - PUSH PIN FASTENER(S)
4 - RETAINER(S)

Fig. 16 RADIATOR CLOSURE PANEL

CROSSMEMBER

1 - RADIATOR CLOSURE PANEL CROSSMEMBER
2 - FRONT FASCIA

23 - 60

EXTERIOR

RS

GRILLE (Continued)

(2) Insert ends of crossmember between layered

metal sections of radiator closure panel at each side
of radiator.

(3) Align with paint breaks around bolt heads.
(4) Install bolts attaching ends of crossmember to

radiator closure panel (Fig. 16). Tighten bolts to 19
N·m (14 ft. lbs.) torque.

(5) Install bolts attaching radiator isolators to

crossmember.

(6) Install screw attaching coolant recovery bottle

to crossmember.

(7) Install bolt attaching air cleaner housing to

crossmember.

(8) Install engine air inlet resonator.
(9) Install hood prop rod.
(10) Align hood latch by placing latch over net

pierce tabs. If alignment is required, flatten tabs.

(11) Install bolts attaching hood latch to cross-

member and clip cable. Tighten bolts to 13.5 N·m (10
ft. lbs.) torque.

(12) Install radiator sight shield.
(13) Verify hood latch operation and hood align-

ment.

FRONT WHEELHOUSE
SPLASH SHIELD

REMOVAL

(1) Hoist and support vehicle on safety stands.

(Refer to LUBRICATION & MAINTENANCE/HOIST-
ING - STANDARD PROCEDURE).

(2) Remove front wheel.
(3) Remove push pin fasteners attaching splash

shield to frame rail forward of suspension.

(4) Remove push pin fasteners attaching splash

shield to frame rail rearward of suspension.

(5) Remove screws attaching wheelhouse splash

shield to front fender and front bumper fascia.

(6) Remove splash shield from vehicle (Fig. 17).

INSTALLATION

(1) Place splash shield in position on vehicle (Fig.

17).

(2) Install push pin fasteners attaching splash

shield to frame rail forward of suspension.

(3) Install push pin fasteners attaching splash

shield to frame rail rearward of suspension.

(4) Install screws attaching wheelhouse splash

shield to front fender.

(5) Install front wheel.
(6) Lower vehicle.

LUGGAGE RACK RISER

REMOVAL

(1) Remove two fasteners from the front riser.

Gently pull up on the luggage rack side rail and
detach the riser snap to remove riser from the rail
(Fig. 18).

(2) Repeat for the opposite side, if necessary.
(3) Remove front riser(s) from vehicle (Fig. 19).

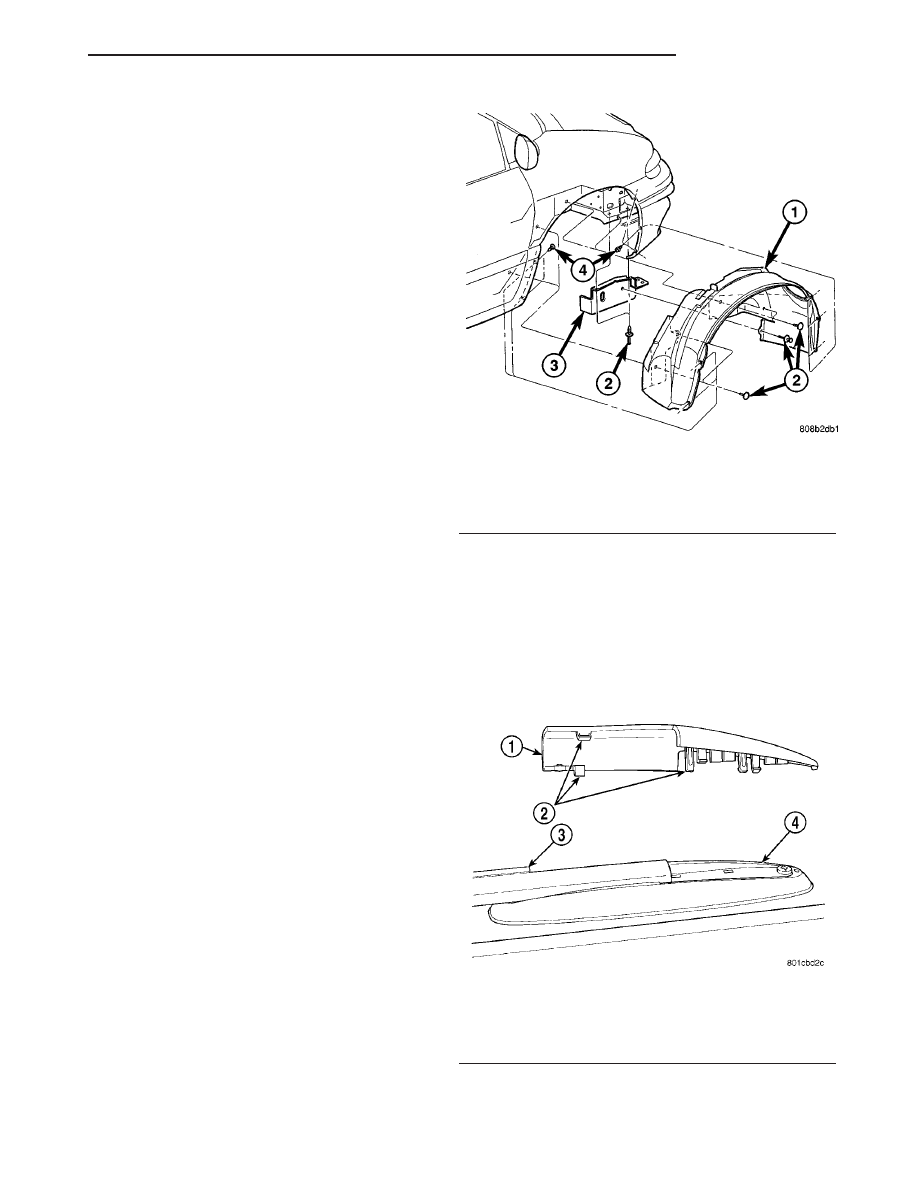

Fig. 17 FRONT WHEELHOUSE SPLASH SHIELD

1 - FRONT FENDER WHEELHOUSE SPLASH SHIELD
2 - PUSH PIN FASTENERS
3 - ACCESSORY DRIVE SPLASH SHIELD
4 - SCREWS

Fig. 18 LUGGAGE RACK RISER COVER

1 - FRONT RISER COVER
2 - LOCK TABS
3 - LUGGAGE RACK SIDE RAIL
4 - FRONT RISER

RS

EXTERIOR

23 - 61

UPPER RADIATOR CROSSMEMBER (Continued)

INSTALLATION

(1) Place front riser into position on luggage rack

side rail.

(2) Install two fasteners into the riser.
(3) Repeat for the opposite side, if necessary.

LUGGAGE RACK CROSSBAR

REMOVAL

(1) Remove luggage rack front risers.
(2) Depress stanchion levers down until they click

into the unlock position. (Fig. 20). Work from side to
side sliding the crossbar assembly forward moving a
little at a time to ensure it remains perpendicular to
the side rails.

(3) Remove crossbar from vehicle.

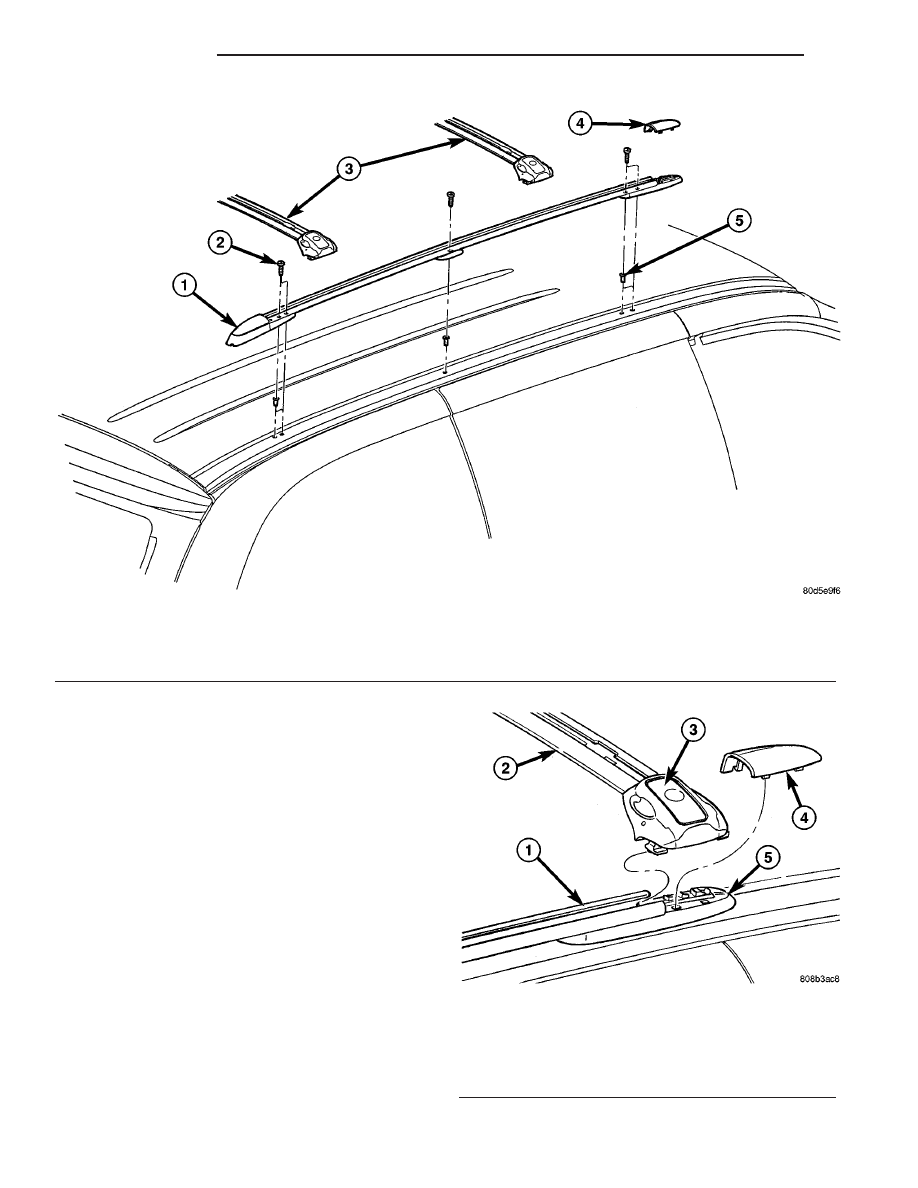

Fig. 19 LUGGAGE RACK, CROSSBARS AND RISER COVER

1 - LUGGAGE RACK SIDE RAILS
2 - SCREWS
3 - CROSSBARS

4 - FRONT RISER COVER
5 - RIV-NUTS

Fig. 20 LUGGAGE RACK CROSSBAR

1 - LUGGAGE RACK
2 - CROSSBAR
3 - SLIDE LOCK
4 - FRONT RISER COVER
5 - FRONT RISER

23 - 62

EXTERIOR

RS

LUGGAGE RACK RISER (Continued)
