Chrysler PT Cruiser. Manual - part 669

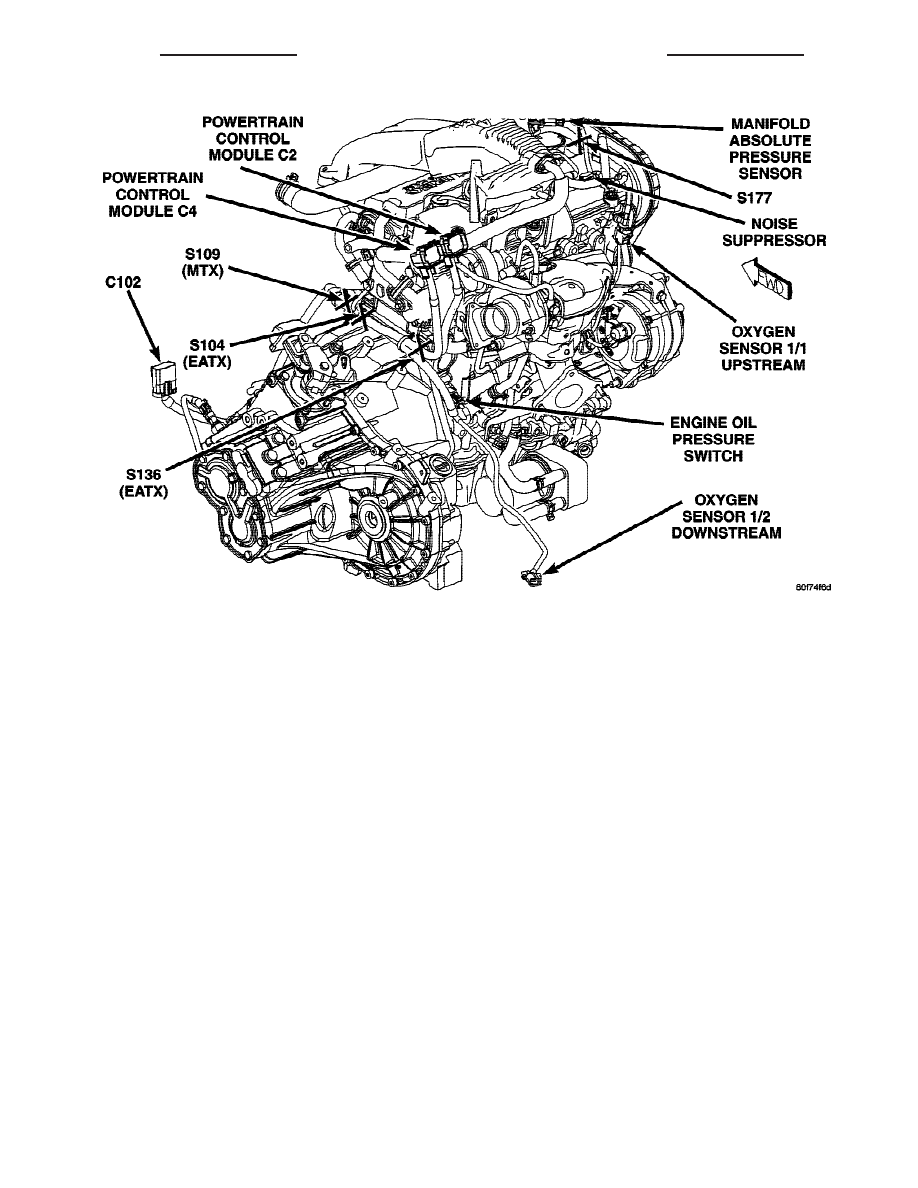

Fig. 25 2.4L TURBO ENGINE (REAR)

8W - 91 - 36

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PT

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

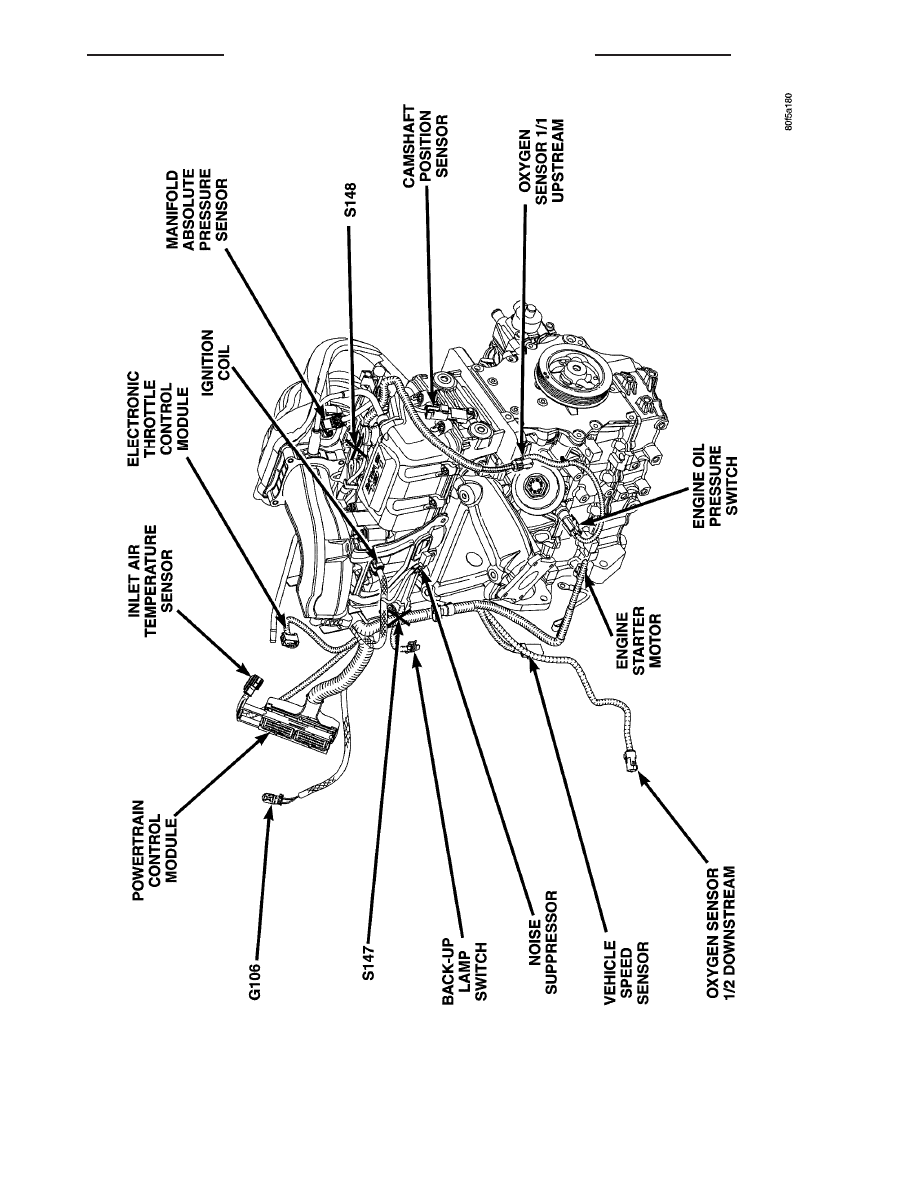

Fig.

26

ENGINE

1.6L

(RIGHT

SIDE)

PT

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 37

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

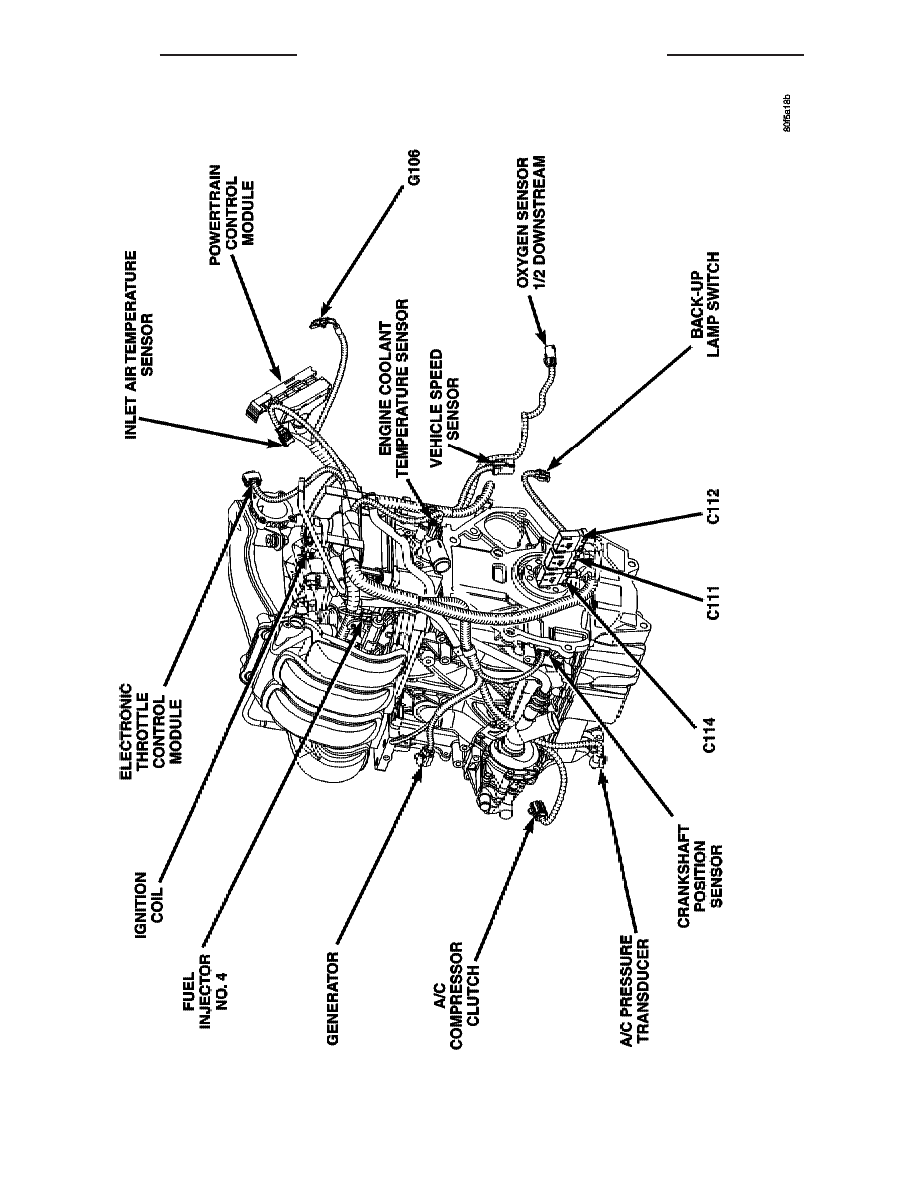

Fig.

27

ENGINE

1.6L

(LEFT

SIDE)

8W - 91 - 38

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PT

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

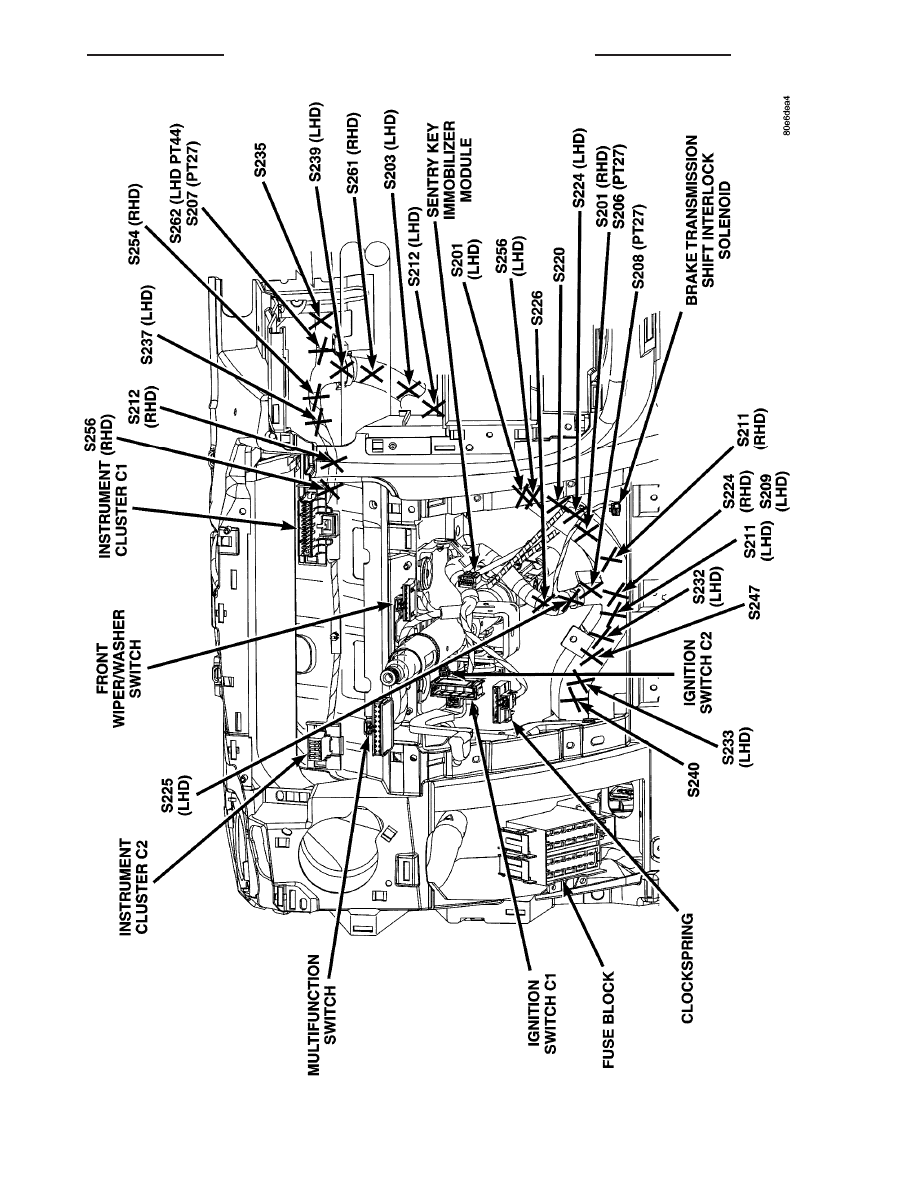

Fig.

28

LEFT

SIDE

INSTRUMENT

P

ANEL

(LHD)

(RHD

TYPICAL)

PT

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 39

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
