Chrysler Pacifica. Manual - part 656

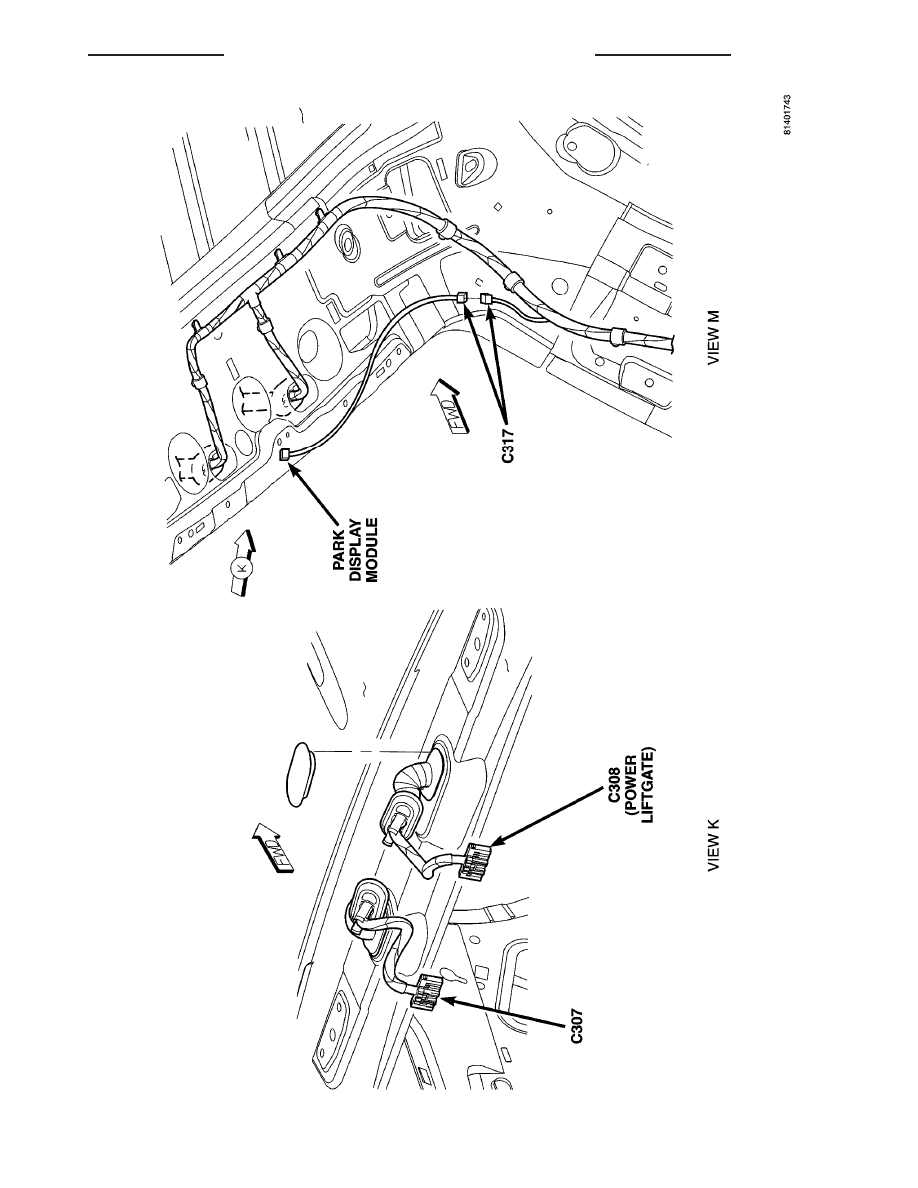

Fig.

30

BODY

-

LEFT

CS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 41

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

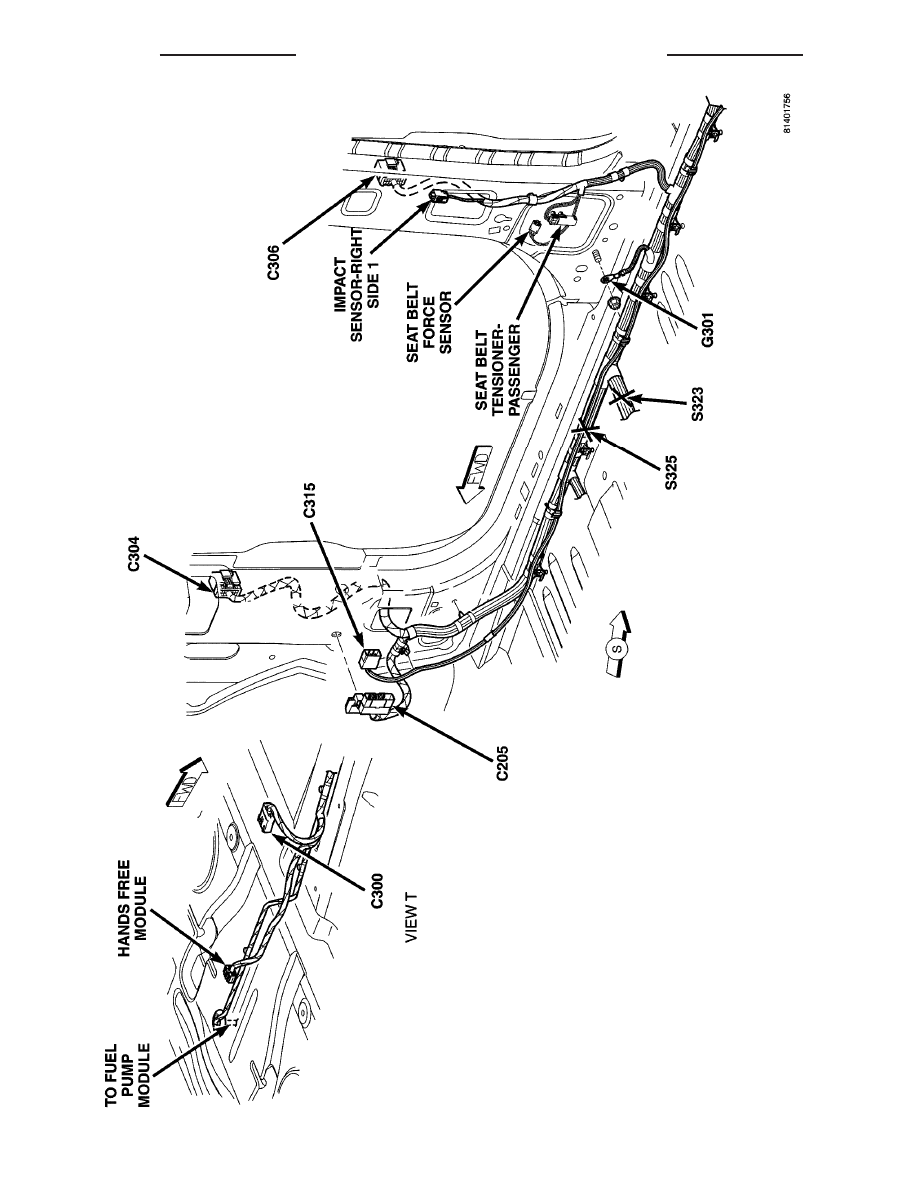

Fig.

31

BODY

-

LEFT

REAR

8W - 91 - 42

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

CS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

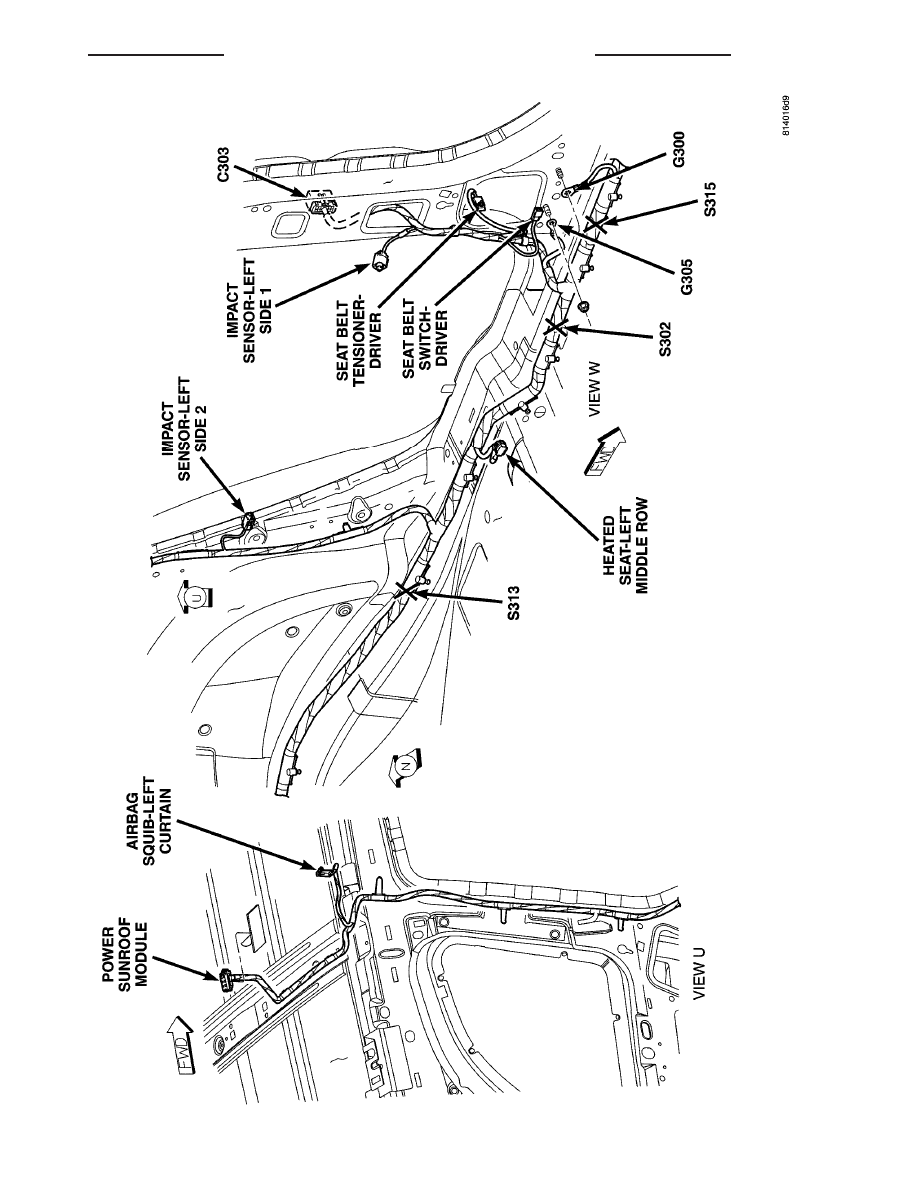

Fig.

32

BODY

-

REAR

CS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 43

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

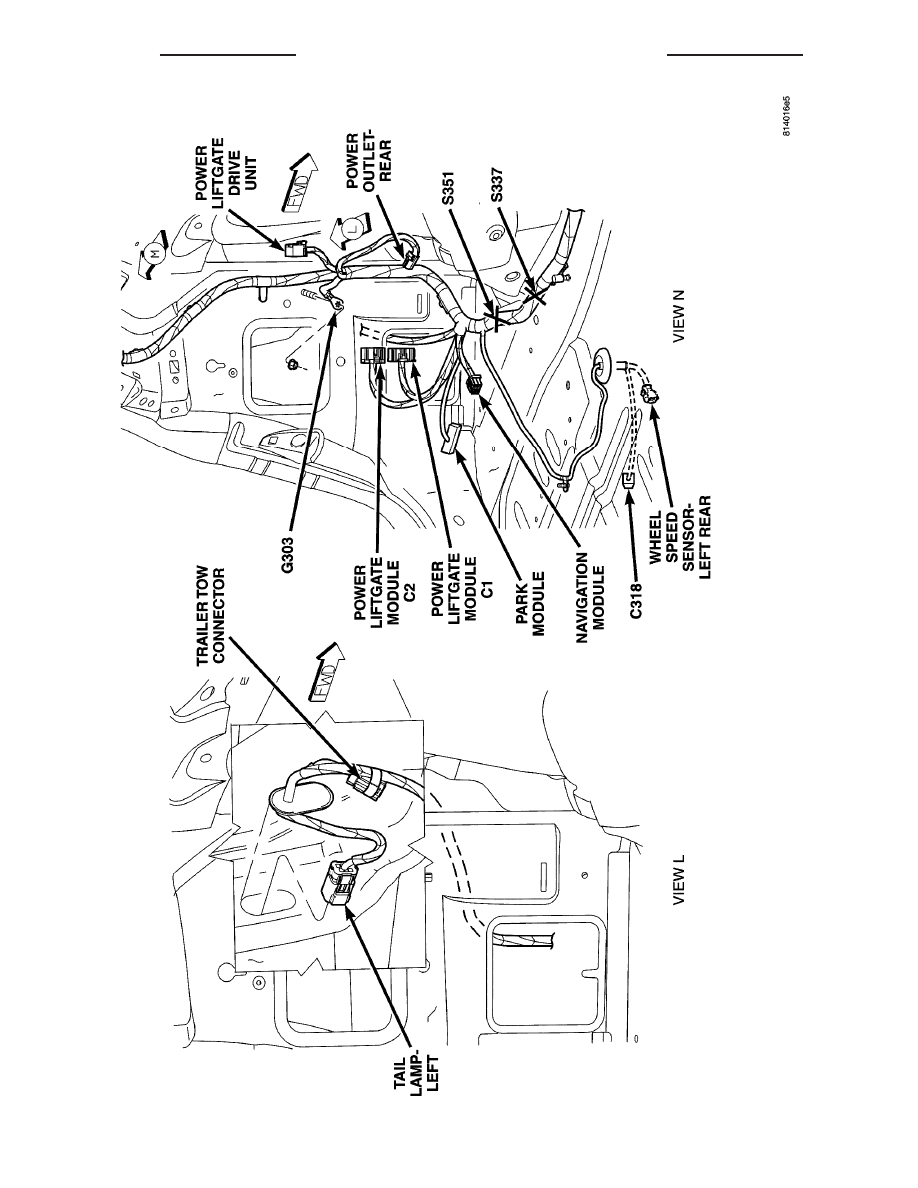

Fig.

33

BODY

-

LEFT

SIDE

8W - 91 - 44

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

CS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
