cooler that is mounted on the front of the radiator
and in front of the of the A/C condenser.The trans-
mission oil cooler is equipped with quick connect fit-
tings for the transmission oil cooler lines. Use only
approved transmission oil cooler hoses that are
molded to fit the space available (Fig. 1).

OPERATION

Transmission oil is supplied to the oil-to-air- trans-

mission cooler mounted on front side of the radiator.
Oil is then returned to the transmission from the
external oil cooler (Fig. 1).

STANDARD PROCEDURE - TRANSMISSION
COOLER LINE QUICK CONNECT FITTING
DISASSEMBLY/ASSEMBLY

DISCONNECT

(1) Remove dust cap by pulling it straight back off

of quick connect fitting. (Fig. 2)

(2) Place disconnect tool Special Tool 8875A onto

transmission cooler line with the fingers of the tool
facing the quick connect fitting.

(3) Slide disconnect tool down the transmission

line and engage the fingers of the tool into the
retaining clip. When properly engaged in the clip, the
tool will fit flush against the quick connect fitting.

(4) Rotate the disconnect tool 60° to expand the

retaining clip.

(5) While holding the disconnect tool against the

quick connect fitting, pull back on the transmission
cooler line to remove.

CONNECT

(1) Align transmission cooler line with quick con-

nect fitting while pushing straight into the fitting.

(2) Push in on transmission cooler line until a

“click” is heard or felt (Fig. 3).

(3) Slide dust cap down the transmission cooler

line and snap it over the quick connect fitting until it
is fully seated and rotates freely (Fig. 3). Dust cap
will only snap over quick connect fitting when the
transmission cooler line is properly installed.

NOTE: If dust cap will not snap into place, repeat
assembly step #2.

INSPECTION

Inspect all hoses, tubes, clamps and connections for

leaks, cracks, or damage. Replace as necessary. Use
only approved transmission oil cooler hoses that are
molded to fit the space available.

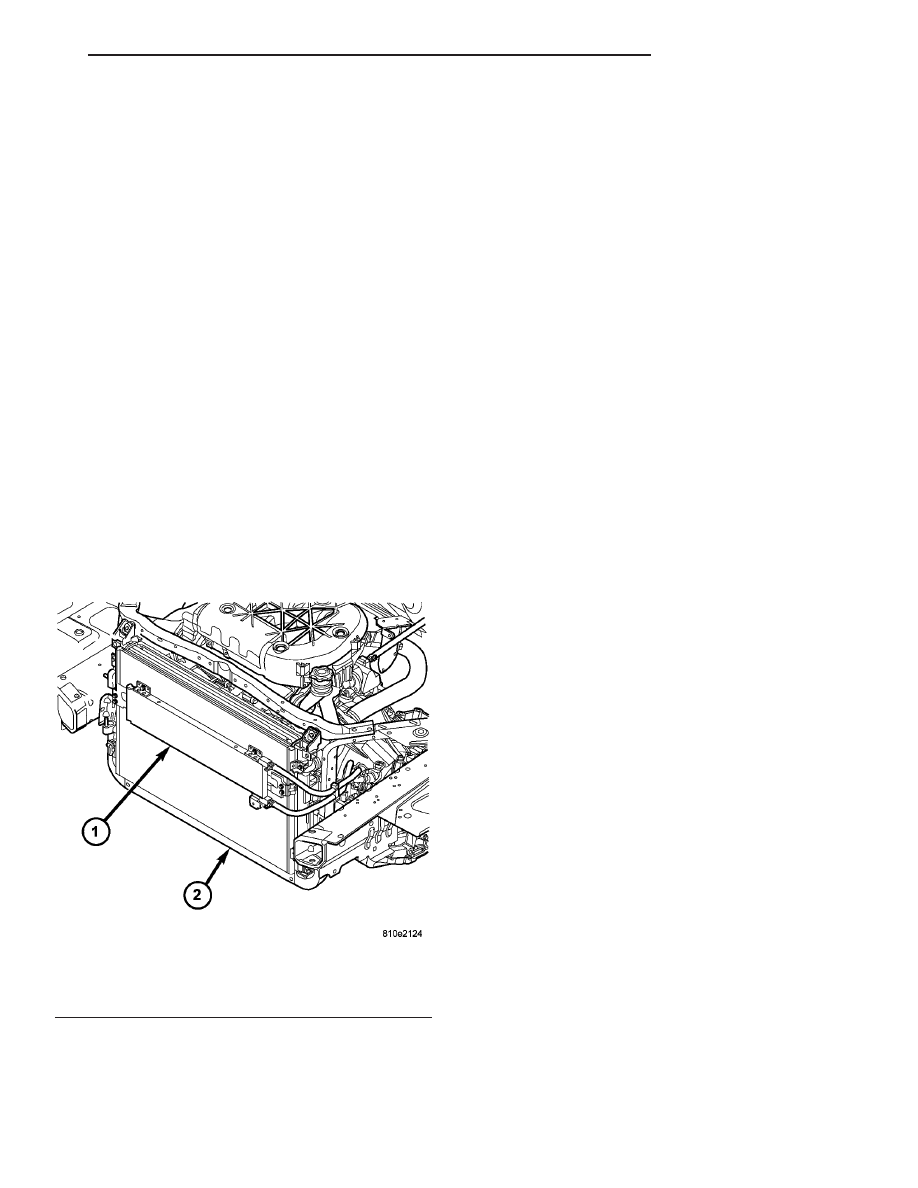

Fig. 1 Auxiliary Transmission Oil Cooler

1 - TRANSMISSION OIL COOLER
2 - COOLING MODULE

TRANSMISSION

7 - 27

Inspect the air-to-oil cooler for leaks, loose mounts,

or damage. Replace as necessary.

TRANS COOLER

REMOVAL

(1) Remove the upper radiator closure panel (Refer

BODY/EXTERIOR/CLOSURE

PANEL

REMOVAL).

(2) Disconnect lines from oil cooler (Refer to 7 -

COOLING/TRANSMISSION - STANDARD PROCE-
DURE).

(3) Remove oil cooler attaching screws.
(4) Remove the oil cooler.

INSTALLATION

(1) Position the tranmission cooler on the radiator

and install the mounting bolts.Tighten to 5 N·m (45
in. lbs.)

(2) Connect the cooler hoses to the transmission

cooler (Refer to 7 - COOLING/TRANSMISSION -
STANDARD PROCEDURE).

(3) Install the cowl plenum grille (Refer to 23 -

BODY/EXTERIOR/COWL

GRILLE

INSTALLA-

TION).

(4) Start engine and check transmission oil level.

Adjust level as necessary.

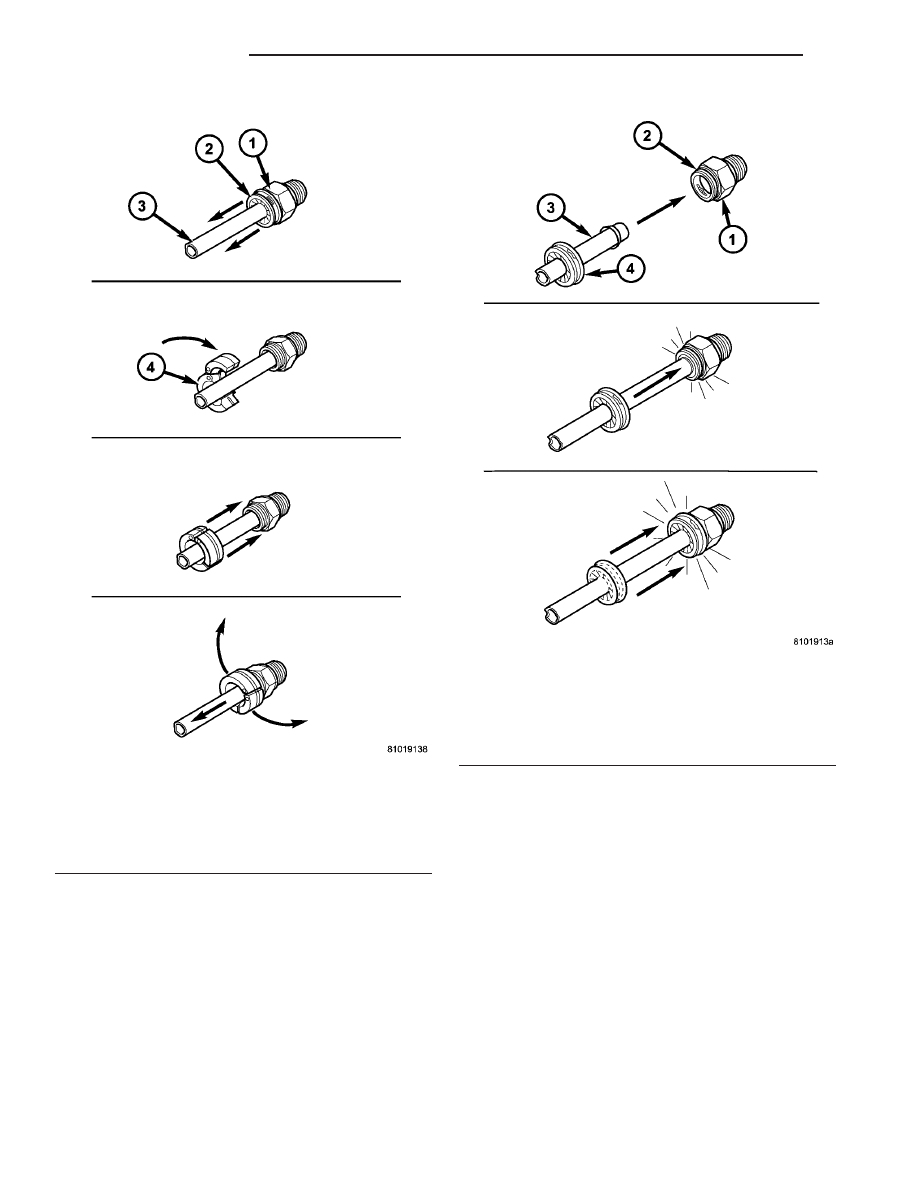

Fig. 2 Oil Cooler Line Quick Connect Fitting -

Disassembly

1 - QUICK CONNECT FITTING
2 - DUST CAP
3 - OIL COOLER LINE
4 - SPECIAL TOOL 8875A

Fig. 3 Oil Cooler Line Quick Connect Fitting -

Assembly

1 - QUICK CONNECT FITTING
2 - CLIP
3 - OIL COOLER LINE
4 - DUST CAP

7 - 28

TRANSMISSION

TRANSMISSION (Continued)
