information regarding the vehicles wiring content. In order to effectively use Chrysler wiring diagrams to diagnose and repair a Chrysler vehicle, it is impor- tant to understand all of their features and charac- teristics.

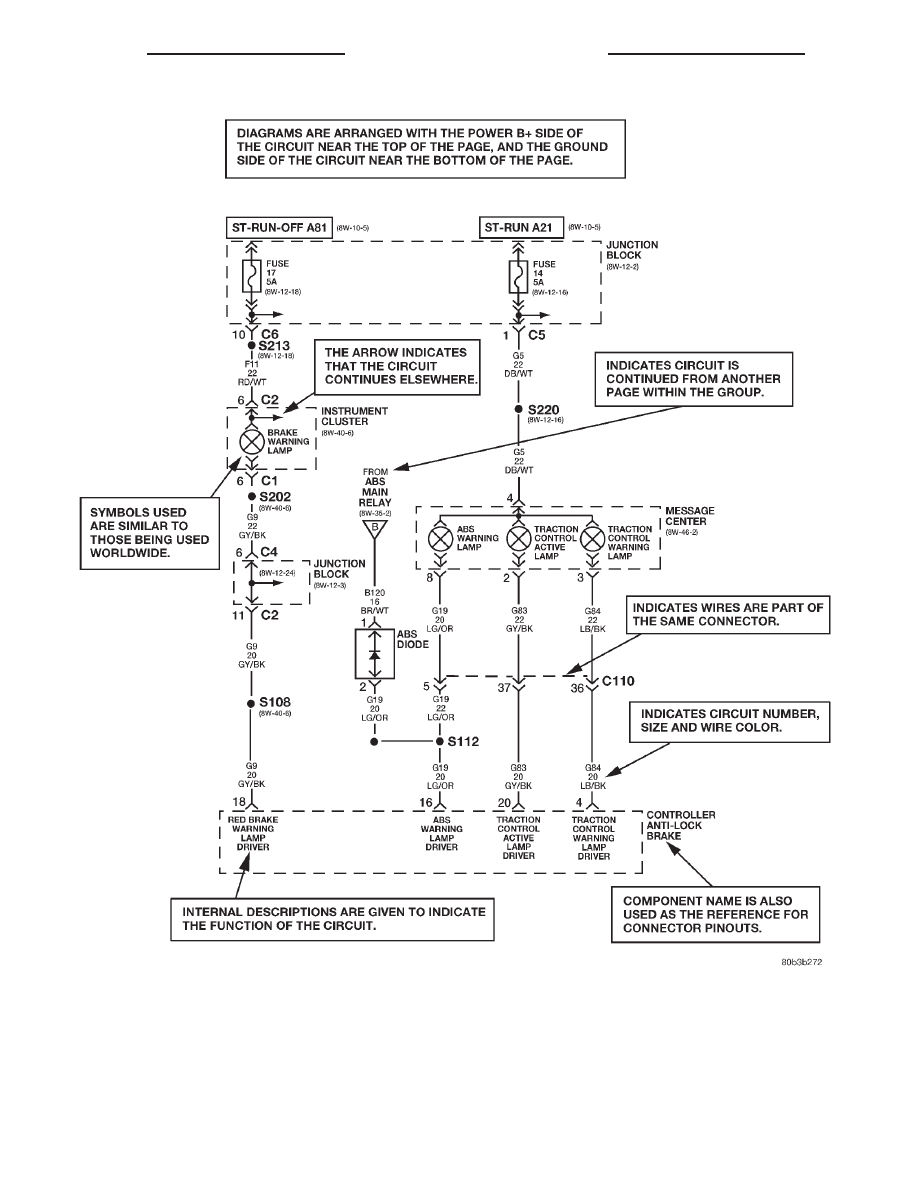

Diagrams are arranged such that the power (B+)
side of the circuit is placed near the top of the page, and the ground (B-) side of the circuit is placed near the bottom of the page.
All switches, components, and modules are shown
in the at rest position with the doors closed and the key removed from the ignition.

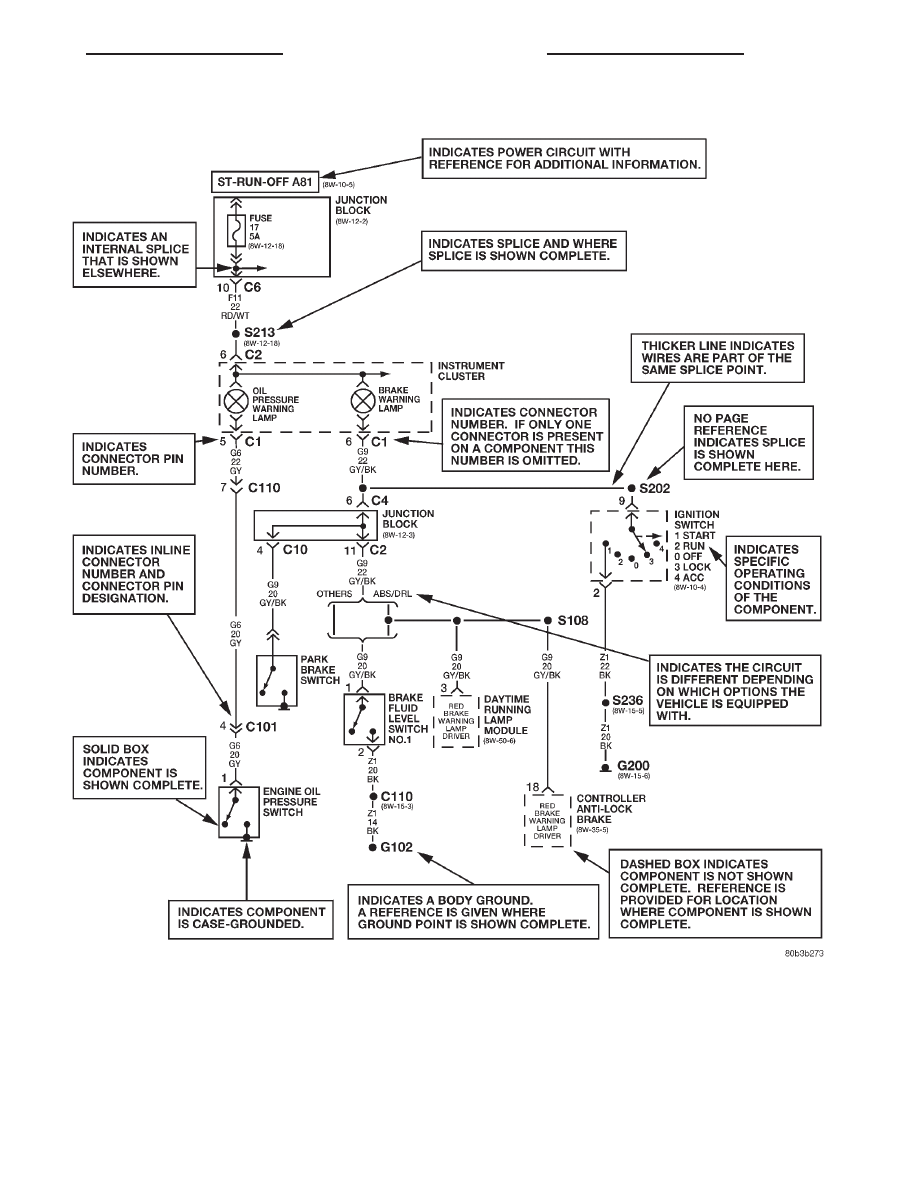

Components are shown two ways. A solid line
around a component indicates that the component is complete. A dashed line around a component indi- cates that the component being shown is not com- plete.
Incomplete
components
have
a
reference
number to indicate the page where the component is shown complete.
It is important to realize that no attempt is made
on the diagrams to represent components and wiring as they appear on the vehicle. For example, a short piece of wire is treated the same as a long one. In addition, switches and other components are shown as simply as possible, with regard to function only.
