SPECIFICATIONS

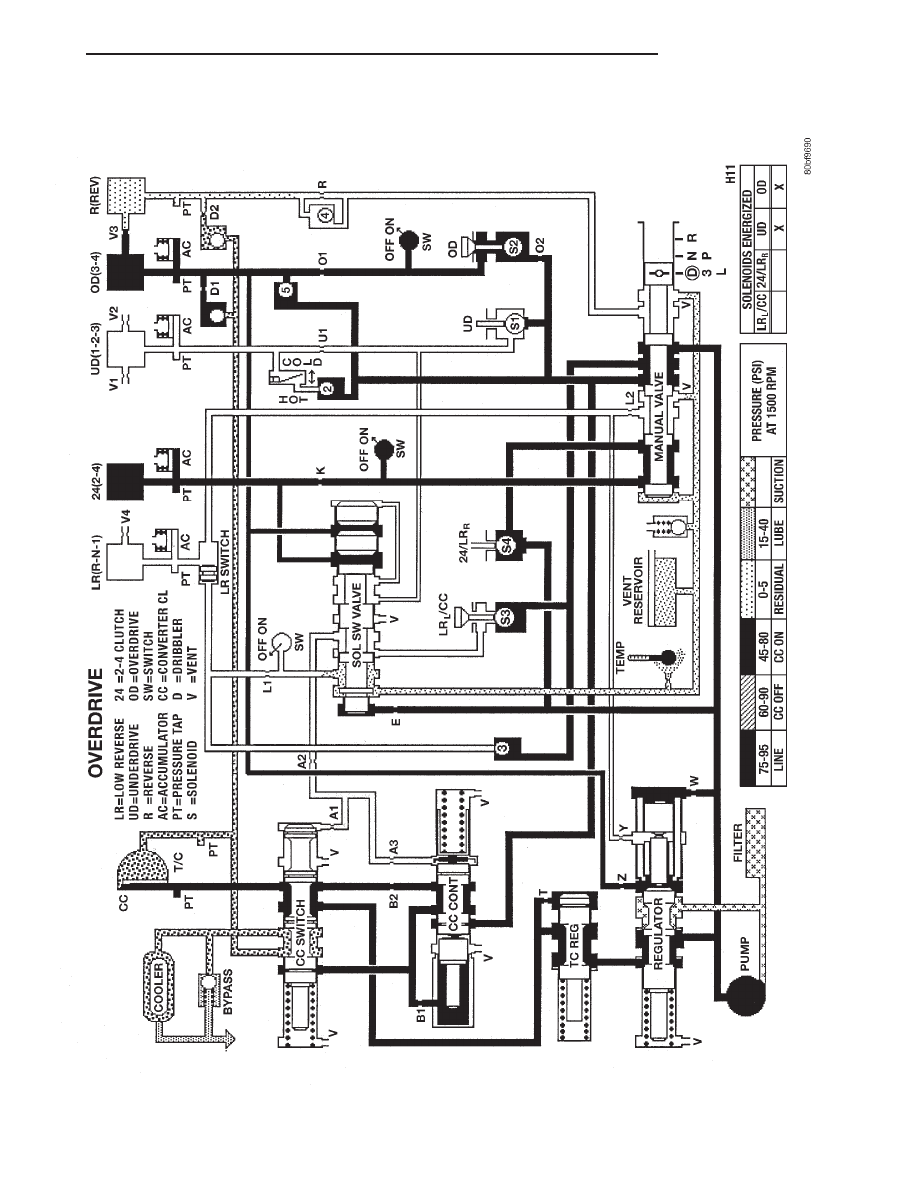

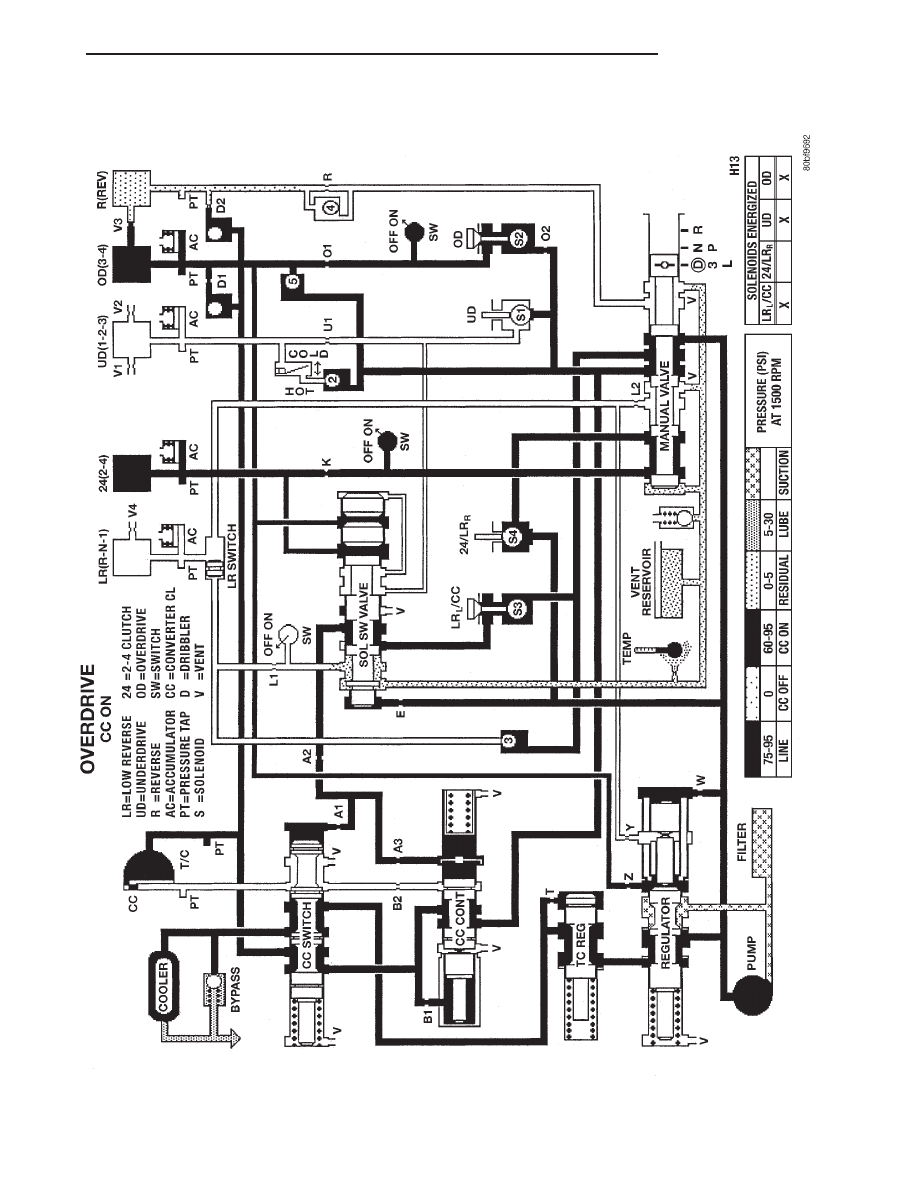

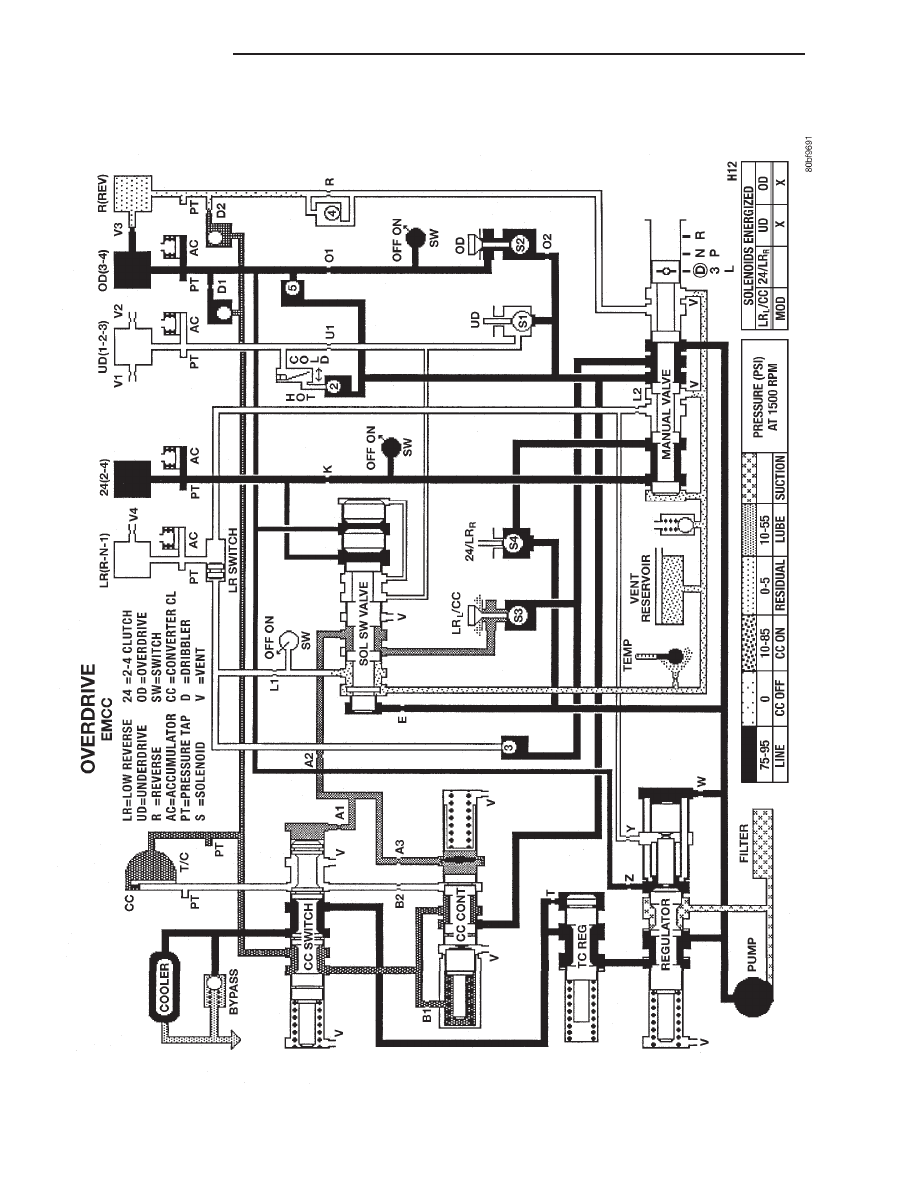

41TE AUTOMATIC TRANSAXLE

Type . Fully adaptive, electronically controlled, four

speed automatic with torque converter and

integral differential

Torque Converter Diameter . . . . . . 241 millimeters

(9.48 in.)

Oil Capacity . . . . . . . . . . . . 8.6 Liters (18.25 pints)
Oil Type . . . . . . . . . . . . . Mopar

t ATF+4 Type 9602

Cooling Method . Water Heat Exchanger and/or air

to oil heat exchanger

Lubrication . . . . Pump (internal-external gear-type

Gear Ratios

Transmission
First Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.84
Second Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.57
Direct Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.00
Overdrive Gear . . . . . . . . . . . . . . . . . . . . . . . . 0.69
Reverse Gear . . . . . . . . . . . . . . . . . . . . . . . . . . 2.21

Overall Top Gear Ratio
2.5 Liter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.69

Bearing Preload
Differential Assembly . 5 to 18 in. lbs. Drag Torque
Output Hub . . . . . . . . . . 3 to 8 in. lbs. Drag Torque
Transfer Shaft . . . . . . . 0.002 to 0.004 in. End Play
Overall Drag At Output Hub . . . . . . 3 to 16 in. lbs.

Drag Torque

Clutch Pack Clearances
Low/Rev Clutch

(Select Reaction Plate) . . . . . . . . . . 0.86-1.52 mm

(0.034-0.060 in.)

Two/Four Clutch (No Selection) . . . . . 0.76-2.64 mm

(0.030-0.104 in.)

Reverse Clutch (Select Snap Ring) . . 0.89-1.37 mm

(0.035-0.054 in.)

Overdrive Clutch (No Selection) . . . . 1.07-3.25 mm

(0.042-0.128 in.)

Underdrive Clutch

(Select Pressure Plate) . . . . . . . . . 0.94-1.50 mm

(0.037-0.059 in.)

Input Shaft End Play . . . . . . . . . . . . 0.12-0.63 mm

(0.005-0.025 in.)

Input Shaft
End Play . . . . . . . 0.127–0.635mm (0.005–0.025 in.)

Pump Clearances
Outer Gear To Pocket . . . . . . . . . . 0.045-0.141 mm

(0.0018-0.0056 in.)

Outer Gear Side Clearance . . . . . . 0.020-0.046 mm

(0.0008-0.0018 in.)

Inner Gear Side Clearance . . . . . . 0.020-0.046 mm

(0.0008-0.0018 in.)

41TE TORQUE SPECIFICATIONS

DESCRIPTION

TORQUE

Cooler Line Fittings . . . . . . . . 12 N·m (105 in. lbs.)
Differential Cover . . . . . . . . . . 19 N·m (165 in. lbs.)
Differential Ring Gear . . . . . . . . 95 N·m (70 ft. lbs.)
Differential Bearing Ret. . . . . . . 28 N·m (21 ft. lbs.)
Driveplate To Crank. Bolts . . . . 95 N·m (70 ft. lbs.)
Driveplate To Torque Conv. . . . . 75 N·m (55 ft. lbs.)
Eight Way Solenoid Conn. . . . . . 4 N·m (35 in. lbs.)
Extension Housing . . . . . . . . . . 28 N·m (21 ft. lbs.)
Input Speed Sensor . . . . . . . . . . 27 N·m (20 ft. lbs.)
L/R Clutch Retainer . . . . . . . . . . 5 N·m (45 in. lbs.)
Oil Pan To Trans. Case . . . . . . 19 N·m (165 in. lbs.)
Output Gear Bolt . . . . . . . . . 271 N·m (200 ft. lbs.)
Output Gear Stirrup Ret. . . . . . 23 N·m (17 ft. lbs.)
Output Speed Sensor . . . . . . . . 27 N·m (20 ft. lbs.)
Pressure Taps . . . . . . . . . . . . . . . 5 N·m (45 in. lbs.)
Pump To Case Bolts . . . . . . . . . 27 N·m (20 ft. lbs.)
Reaction Shaft Bolts . . . . . . . . . 27 N·m (20 ft. lbs.)
Rear End Cover . . . . . . . . . . . 20 N·m (125 in. lbs.)
Sixty-Way Connector . . . . . . . . . 4 N·m (35 in. lbs.)
Solenoid Assembly To Case . . . 12 N·m (110 in. lbs.)
Transmission Range Sensor . . . . 5 N·m (45 in. lbs.)
Transfer Gear Nut . . . . . . . . . 271 N·m (200 ft. lbs.)
Transfer Plate To Case . . . . . . 12 N·m (105 in. lbs.)
Valve Body To Case Bolts . . . . 12 N·m (105 in. lbs.)
Valve Body Bolts . . . . . . . . . . . . 5 N·m (45 in. lbs.)
Vent Assembly . . . . . . . . . . . . 12 N·m (105 in. lbs.)

21 - 142

TRANSAXLE
