TEST 17D

REPAIRING PARK BRAKE WARNING LAMP OPERATING IMPROPERLY

Perform TEST 17A Before Proceeding

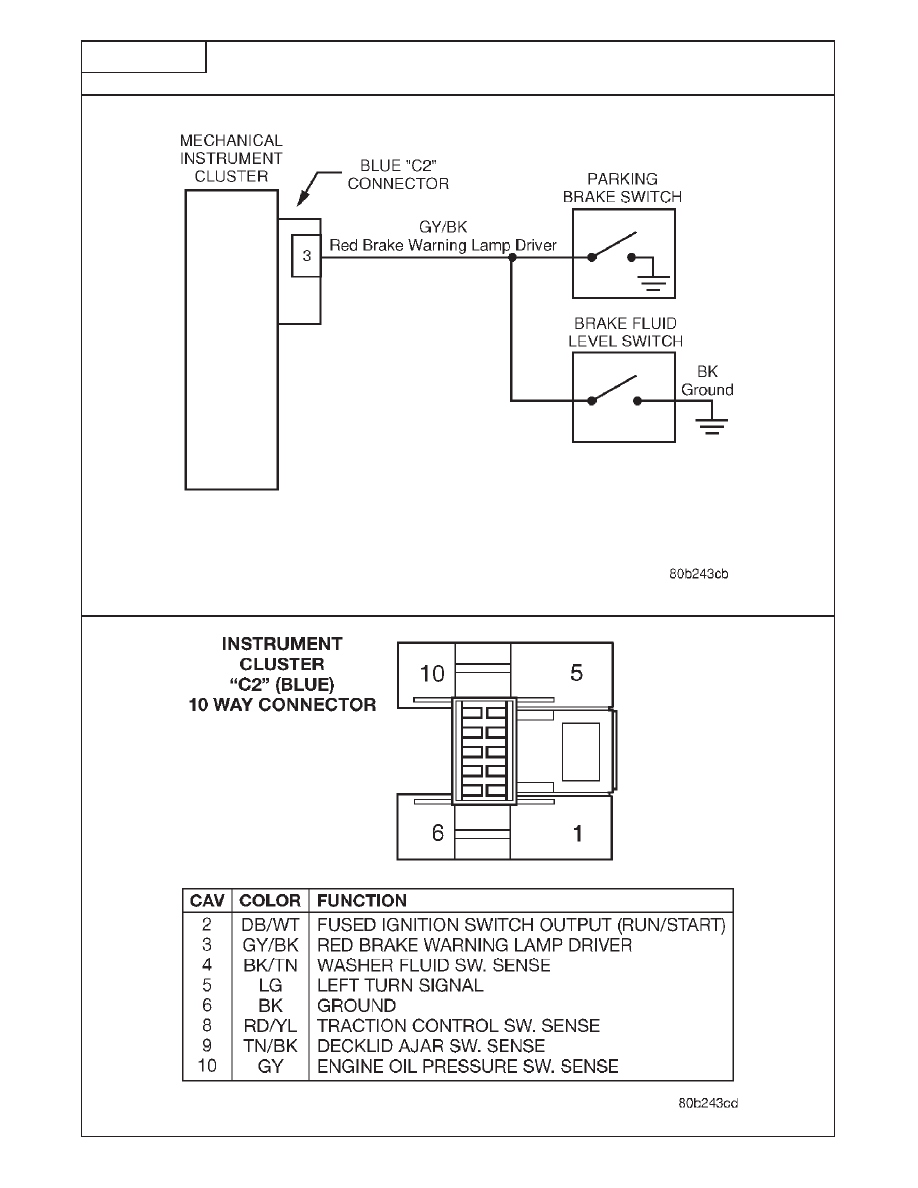

FIG. 1

I

N

S

T

R
U

M

E

N

T

C

L

U

S

T

E

R

358

TEST 17D

REPAIRING PARK BRAKE WARNING LAMP OPERATING IMPROPERLY

Perform TEST 17A Before Proceeding

*Perform Verification TEST VER-2A.

**Check connectors - Clean / repair as necessary.

CHECK THE BRAKE

IS THE RESERVOIR

NO

ADJUST THE BRAKE

START TEST 17D. FLUID LEVEL IN

THE

FULL?

FLUID LEVEL AS

RESERVOIR. NECESSARY.*

YES

DISCONNECT THE

PARKING BRAKE LAMP DID THE BRAKE

YES

REPLACE THE PARK

SWITCH HARNESS

WARNING LAMP GO

BRAKE SWITCH.*

CONNECTOR.** OUT?

NO

DISCONNECT THE

BRAKE FLUID LEVEL

DID THE BRAKE

YES

REPLACE THE BRAKE

SWITCH HARNESS

WARNING LAMP GO

FLUID LEVEL

CONNECTOR.** OUT?

SWITCH.*

NO

TURN IGNITION OFF.

USING AN OHMMETER,

DISCONNECT THE

MEASURE BETWEEN

IS THE RESISTANCE

NO

REPLACE THE

INSTRUMENT CLUSTER

GROUND AND THE RED

BELOW 5.0 OHMS?

INSTRUMENT

C2 HARNESS

BRAKE WARNING LAMP

CLUSTER.*

CONNECTOR.**

DRIVER CKT. FIG. 1

YES

REPAIR THE RED

BRAKE WARNING LAMP
DRIVER CIRCUIT FOR

A SHORT TO

GROUND.*

I

N

S

T

R
U

M

E

N

T

C

L

U

S

T

E

R

359

TEST 18A

REPAIRING LOW WASHER FLUID INDICATOR OPERATING IMPROPERLY

Perform TEST 1A Before Proceeding

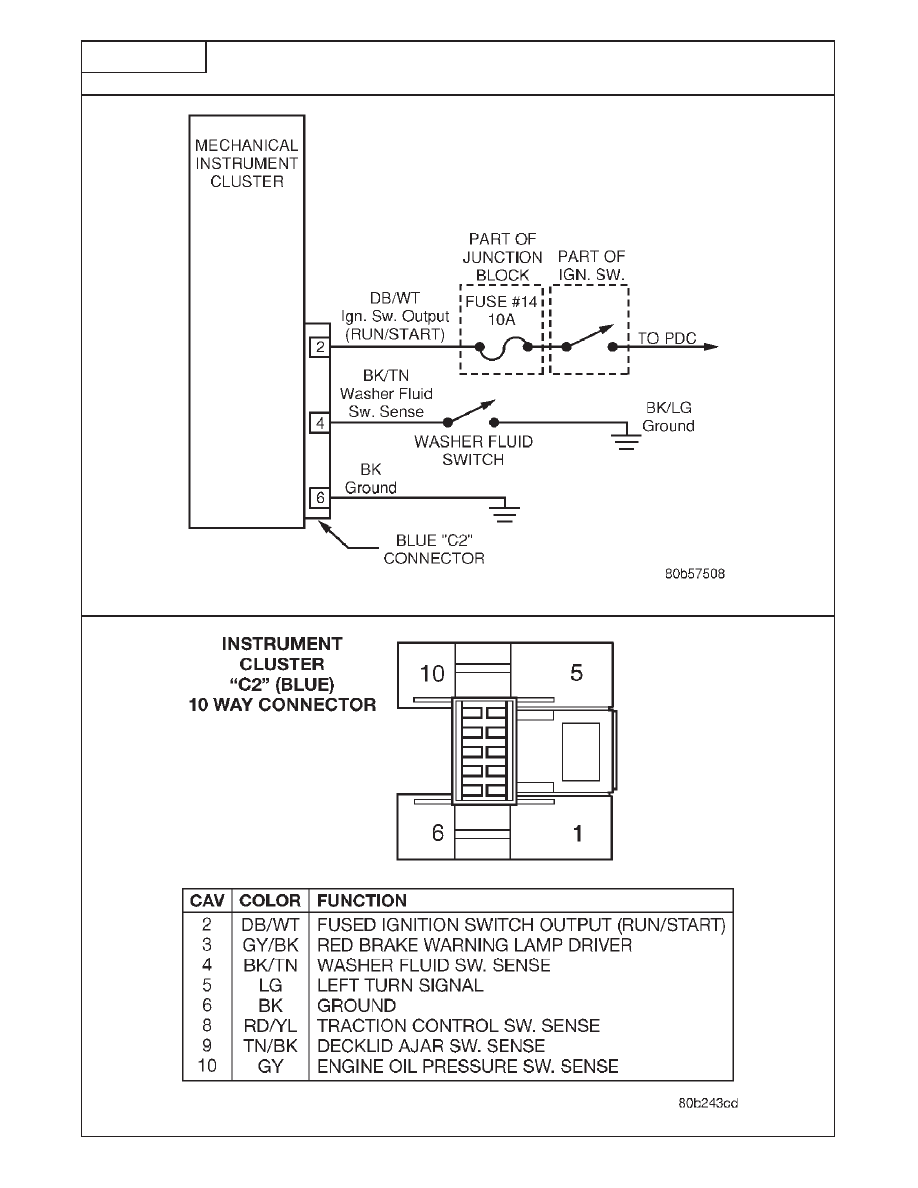

FIG. 1

I

N

S

T

R
U

M

E

N

T

C

L

U

S

T

E

R

360

TEST 18A

REPAIRING LOW WASHER FLUID INDICATOR OPERATING IMPROPERLY

Perform TEST 1A Before Proceeding

*Perform Verification TEST VER-2A.

**Check connectors - Clean / repair as necessary.

TURN IGNITION OFF

IS THE WASHER NO

ADD WASHER

FLUID

START TEST 18A.

AND WAIT 60

FLUID RESERVOIR

AS NECESSARY.*

SECONDS. FULL?

YES

DID THE LOW WASHER
FLUID LAMP FAIL TO

YES

PERFORM TEST

COME ON WHEN

18B.

RESERVOIR WAS LOW?

NO

TURN IGNITION ON

MONITOR THE

IS THE LOW WASHER

NO

SYSTEM IS

(ENGINE OFF).

INSTRUMENT FLUID INDICATOR

OPERATING PROPERLY

WAIT 60 SECONDS.

CLUSTER.

ON?

AT THIS TIME.*

YES

DISCONNECT THE

WASHER FLUID LEVEL

DID THE LOW WASHER  YES

REPLACE THE WASHER

SWITCH HARNESS

FLUID INDICATOR

FLUID LEVEL

CONNECTOR.** TURN

OFF?

SWITCH.*

NO

KEY OFF.

USING AN OHMMETER,

REPAIR THE WASHER

DISCONNECT THE

MEASURE BETWEEN

IS THE RESISTANCE

YES

FLUID SWITCH SENSE

INSTRUMENT CLUSTER

GROUND AND THE

BELOW 5.0 OHMS?

CIRCUIT FOR A

C2 HARNESS

WASHER FLUID SWITCH

SHORT TO GROUND.*

CONNECTOR.**

SENSE CKT. FIG. 1

NO

REPLACE THE

INSTRUMENT
CLUSTER.*
