DESCRIPTION
TORQUE
Connecting Rod Cap
Nuts . . . . . . . . . 27 N·m (20 ft. lbs.) Plus 1/4 turn
Crankshaft Main Bearing Cap
Tie Bolts . . . . . . . . . . . . . . . . 28 N·m (250 in. lbs.)
Inner Cap Bolts . 20 N·m (15 ft. lbs.) Plus 1/4 turn
Outer Cap Bolts (Windage Tray) . . . . . . . . 27 N·m
(20 ft. lbs.) Plus 1/4 turn
Crankshaft Damper
Bolt . . . . . . . . . . . . . . . . . . . 170 N·m (125 ft. lbs.)
Cylinder Head Bolts—M 11
(Refer
to
Cylinder
Head
procedure
for
torque
sequence.)
Step 1 . . . . . . . . . . . . . . . . . . 47.5 N·m (35 ft. lbs.)
Step 2 . . . . . . . . . . . . . . . . . . . 75 N·m (55 ft. lbs.)
Step 3 . . . . . . . . . . . . . . . . . . . 75 N·m (55 ft. lbs.)
Step 4 . . . . . + 90° turn; Do not use torque wrench
Cylinder Head Bolts—M 8
(Refer
to
Cylinder
Head
procedure
for
torque
sequence.)
Bolts . . . . . . . . . . . . . . . . . . . 28 N·m (250 in. lbs.)
Cylinder Head Cover
Bolts . . . . . . . . . . . . . . . . . . . 12 N·m (105 in. lbs.)
Exhaust Manifold to Cylinder Head
Bolts . . . . . . . . . . . . . . . . . . . 23 N·m 200 in. lbs.)
Exhaust Manifold Heat Shield
Bolts . . . . . . . . . . . . . . . . . . . . 12 N·m 105 in. lbs.
Exhaust Manifold to Catalytic
Converter V-Band Clamp
. . . . . . . . . . . . . . . . . . . . . . . 11 N·m (100 in. lbs.)
Engine Mount Bracket to Block
Bolts . . . . . . . . . . . . . . . . . . . . 61 N·m (45 ft. lbs.)
Engine Mount Isolator
Nuts . . . . . . . . . . . . . . . . . . . . 61 N·m (45 ft. lbs.)
Intake Manifold—Upper and Lower
(Refer to Group 11, Exhaust System and Intake
Manifold for torque sequence.)
Bolts . . . . . . . . . . . . . . . . . . . 12 N·m (105 in. lbs.)
Generator Bracket
Bolts . . . . . . . . . . . . . . . . . . . 41 N·m (30 ft. lbs.)
Oil Pan
Bolts . . . . . . . . . . . . . . . . . . . 28 N·m (250 in. lbs.)
Nuts . . . . . . . . . . . . . . . . . . . 12 N·m (105 in. lbs.)
Oil Pan Drain
Plug . . . . . . . . . . . . . . . . . . . . 35 N·m (25 ft. lbs.)
Oil Filter . . . . . . . . . . . . . . . . . 20 N·m (15 ft. lbs.)
Oil Pump to Block
Bolts . . . . . . . . . . . . . . . . . . . 28 N·m (250 in. lbs.)
Oil Pump Cover
Bolts . . . . . . . . . . . . . . . . . . . 12 N·m (105 in. lbs.)
Oil Pump Pick Up Tube
Bolt . . . . . . . . . . . . . . . . . . . . 28 N·m (250 in. lbs.)
PCV Valve
Valve . . . . . . . . . . . . . . . . . . . . 7 N·m (60 in. lbs.)
DESCRIPTION
TORQUE
Rear Crankshaft Seal Retainer
Bolts . . . . . . . . . . . . . . . . . . . 12 N·m (105 in. lbs.)
Spark Plugs
Spark Plugs . . . . . . . . . . . . . . 20 N·m (15 ft. lbs.)
Starter Mounting
Bolts . . . . . . . . . . . . . . . . . . . . 41 N·m (30 ft. lbs.)
Structural Collar
(Refer
to
procedure
for
torque
sequence
and
specification.)
Thermostat Housing/Water Inlet Connector
Bolts . . . . . . . . . . . . . . . . . . . 12 N·m (105 in. lbs.)
Throttle Body
Bolts . . . . . . . . . . . . . . . . . . . 12 N·m (105 in. lbs.)
Timing Chain Cover Bolts
M6 . . . . . . . . . . . . . . . . . . . . 12 N·m (105 in. lbs.)
M10 . . . . . . . . . . . . . . . . . . . . . 54 N·m (40 ft. lbs.)
Timing Chain Tensioner (Primary)
Tensioner . . . . . . . . . . . . . . . . 54 N·m (40 ft. lbs.)
Timing Chain Guide
Bolts . . . . . . . . . . . . . . . . . . . 28 N·m (250 in. lbs.)
Timing Chain Guide Access Plug
Plugs . . . . . . . . . . . . . . . . . . . . 20 N·m (15 ft. lbs.)
Water Pump
Bolts . . . . . . . . . . . . . . . . . . . 12 N·m (105 in. lbs.)
Water Outlet Housing Bleed
Screw . . . . . . . . . . . . . . . . . . . . 8 N·m (70 in. lbs.)
Water Outlet Housing
Bolts . . . . . . . . . . . . . . . . . . . 12 N·m (105 in. lbs.)

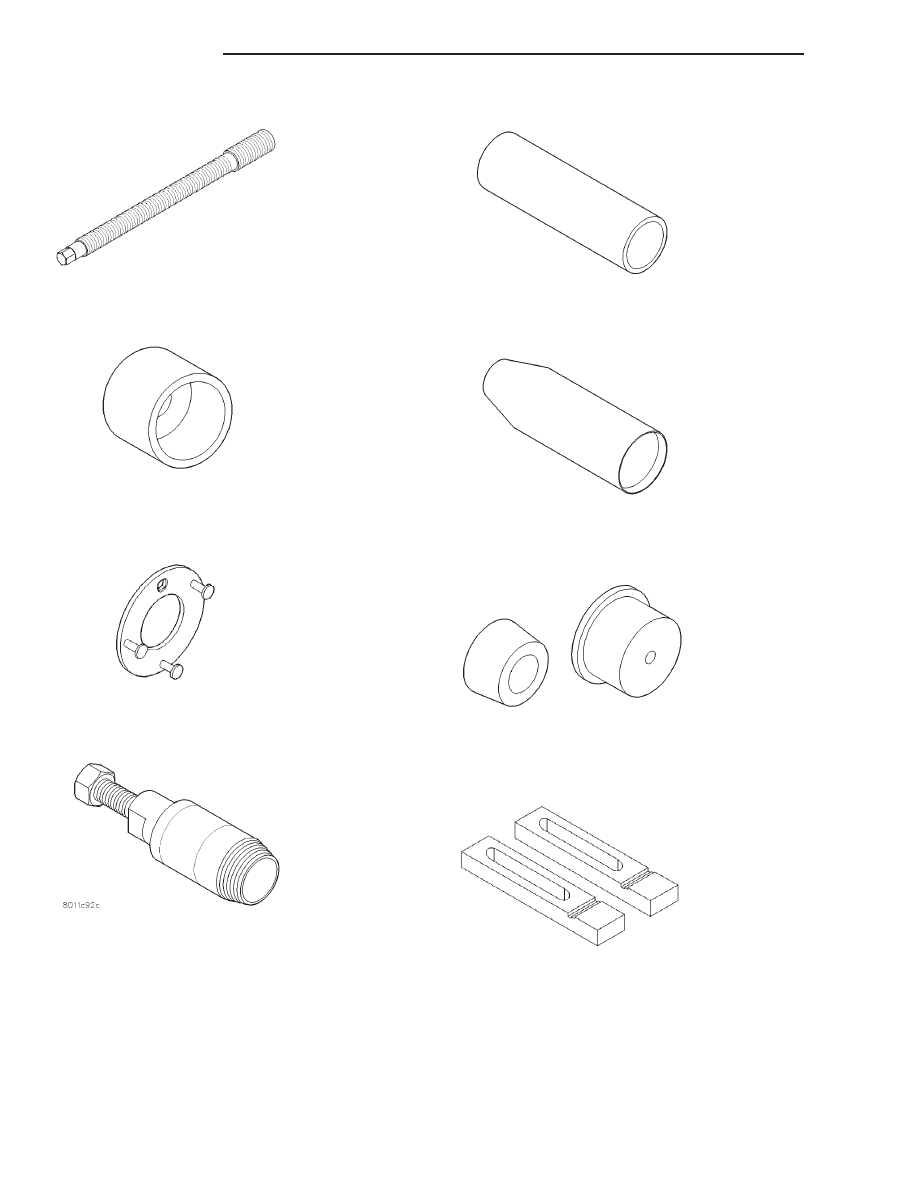

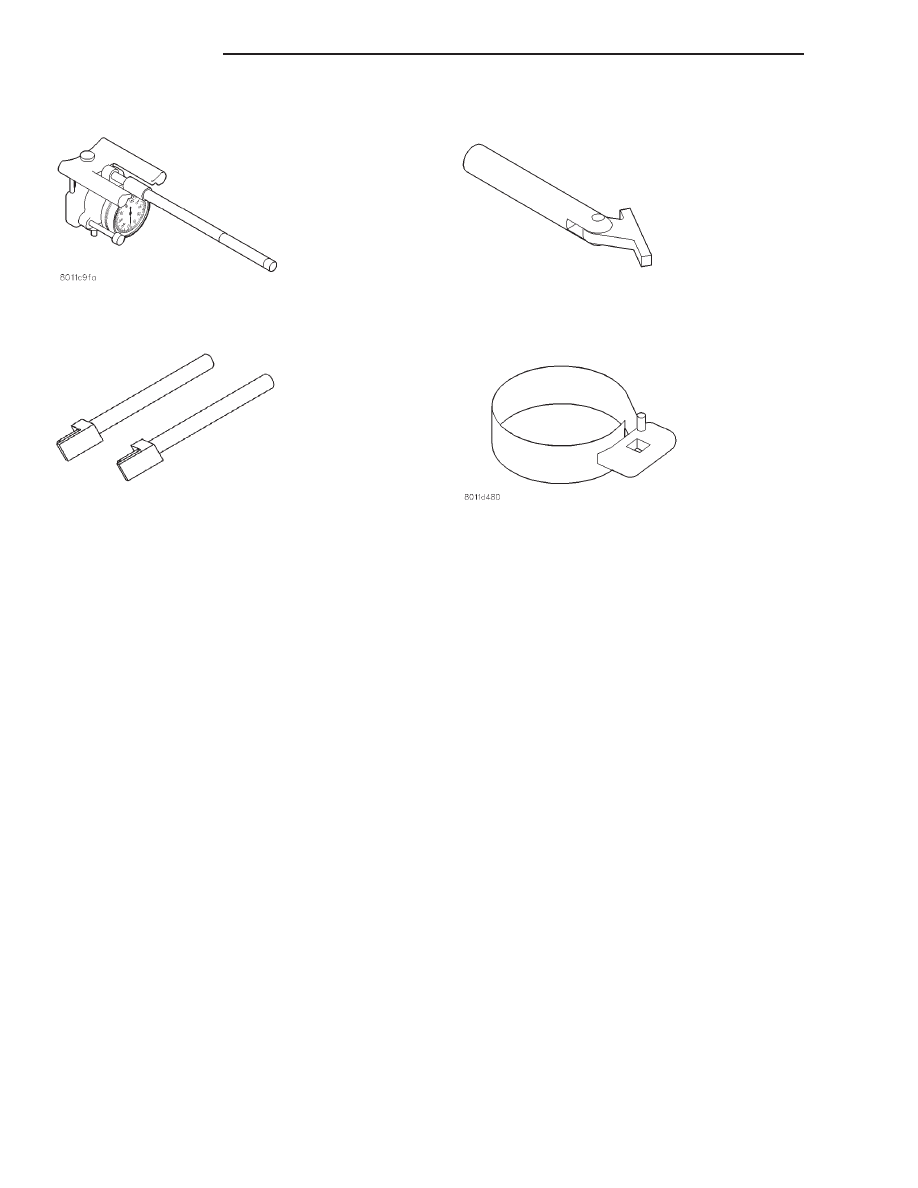

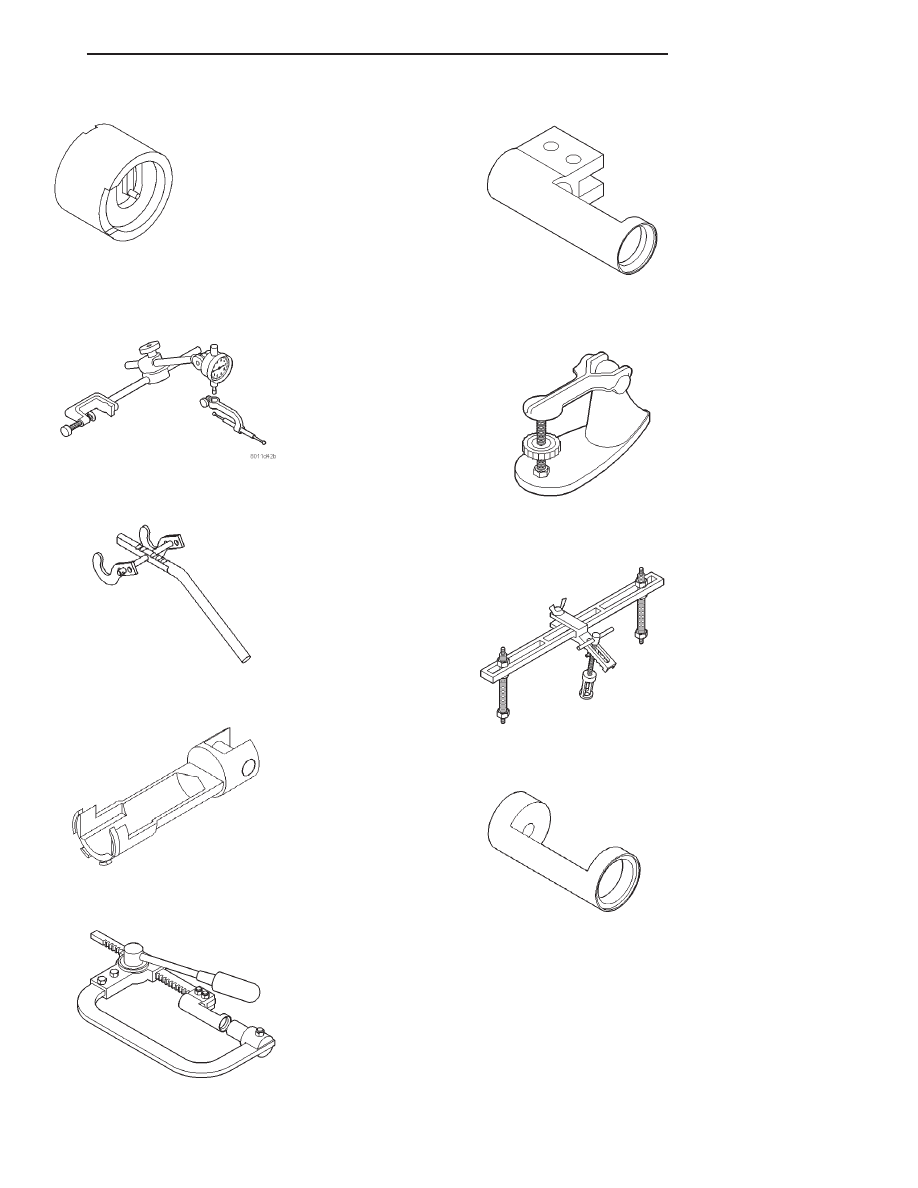

SPECIAL TOOLS
2.7L ENGINE

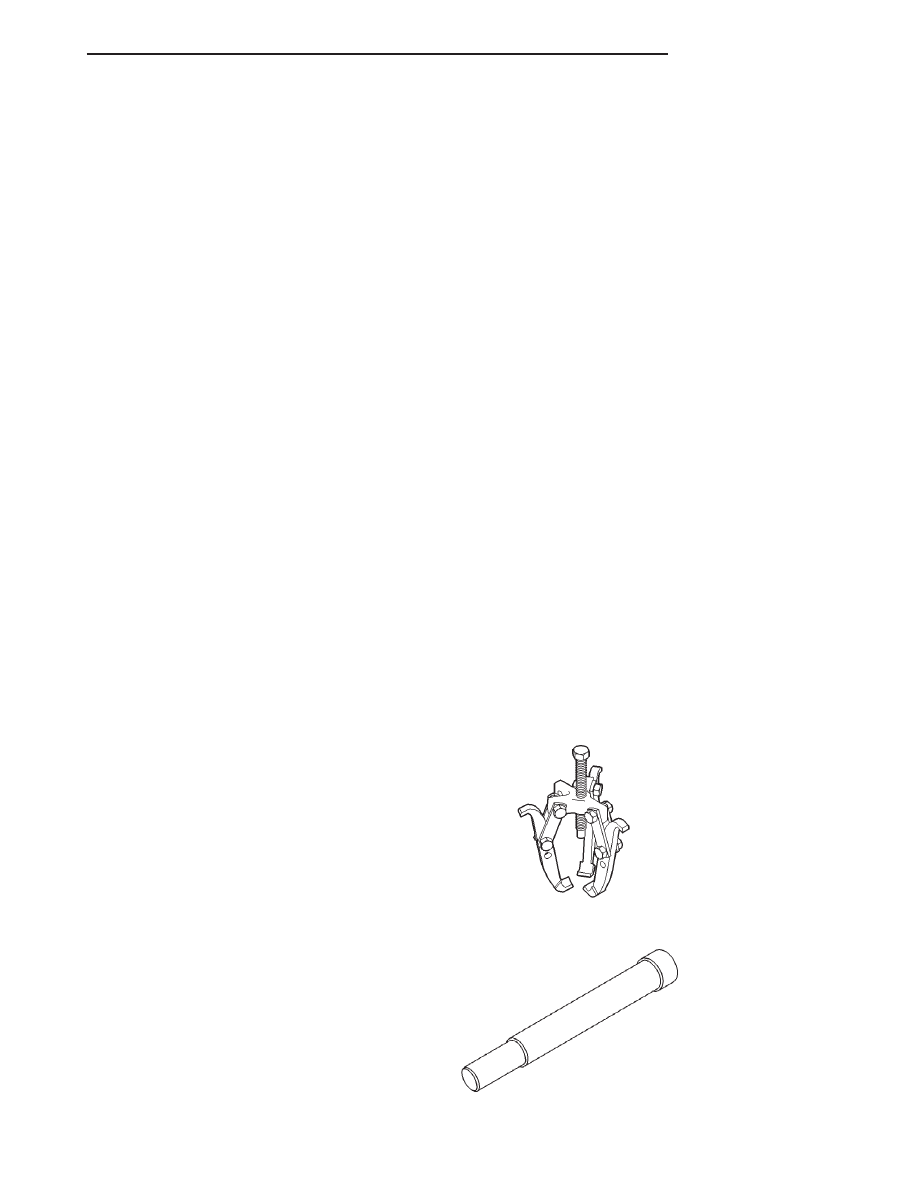

Puller 1023
