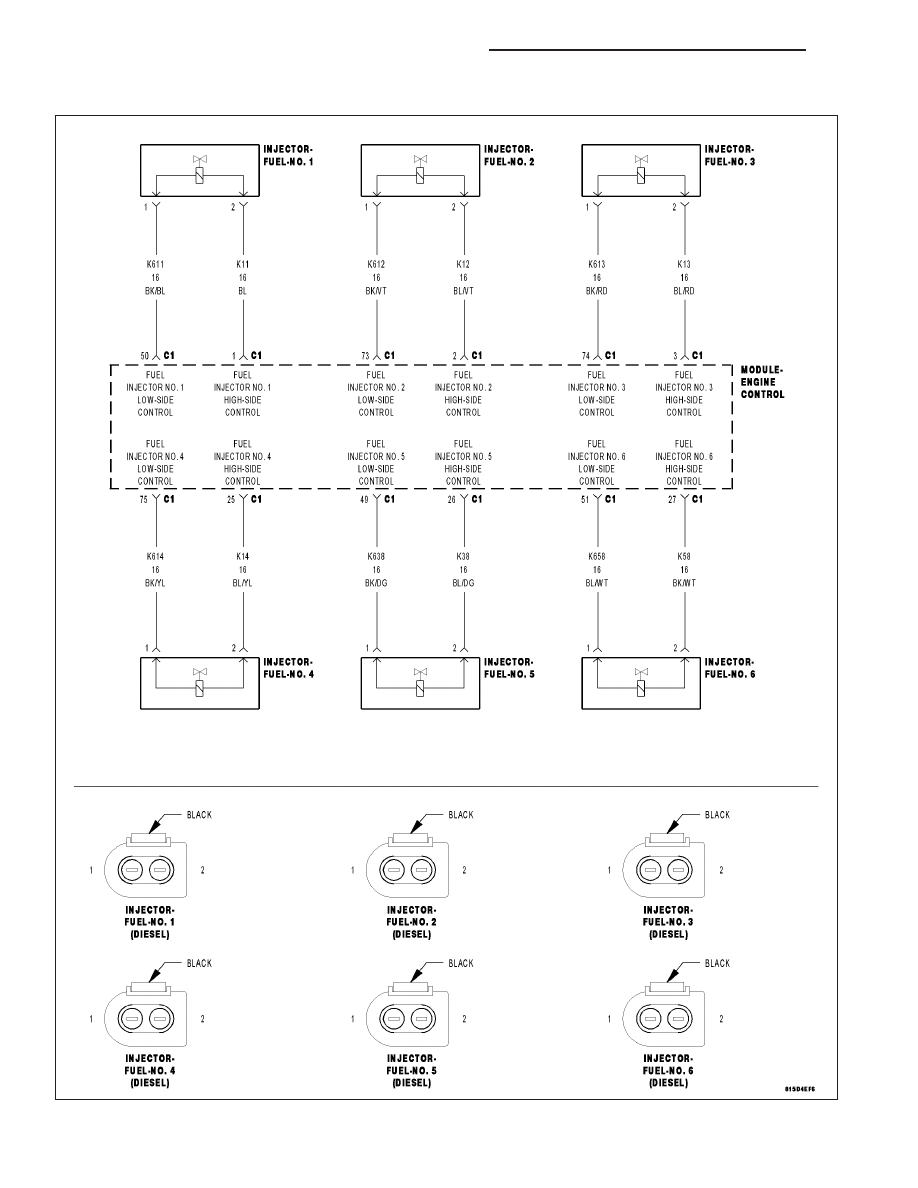

5. (K38) FUEL INJECTOR NO. 5 HIGH-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE Measure the resistance of the (K38) Fuel Injector No. 5 High-Side Con- Is the resistance below 10.0 ohms? Yes >> Go to 6 No >> Repair the (K38) Fuel Injector No. 5 High-Side Control cir- cuit for an open circuit or high resistance. Perform the ECM Verification Test Ver. 1. (Refer to 9 - 6. (K638) FUEL INJECTOR NO. 5 LOW-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE Measure the resistance of the (K638) Fuel Injector No. 5 Low-Side Con- Is the resistance below 10.0 ohms? Yes >> Go to 7 No >> Repair the (K638) Fuel Injector No. 5 Low-Side Control cir- cuit for an open circuit or high resistance. Perform the ECM Verification Test Ver. 1. (Refer to 9 - 9 - 1328 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL LX |
