Remove P.T.U. remote vent from left engine

mount.

Remove P.T.U. assembly from vehicle.
To Install, Reverse Removal Procedure.

POWER TRANSFER UNIT END COVER—RESEAL

The Power Transfer Unit must be removed from the

vehicle to perform this operation. Refer to Power
Transfer Unit Removal in this section for procedures.

(1) Remove P.T.U. end cover bolts (Fig. 13).
(2) Gently tap on end cover ears with a hammer to

separate end cover from the case (Fig. 14).

(3) Clean and inspect sealer surfaces.
(4) Apply Mopar

t Gasket Maker, Loctite Gasket

Eliminator No.518 or equivalent to sealing surfaces.

(5) Reinstall cover and tighten bolts to 28 N

Im (250

in. lbs.) in the sequence shown in figure 15. Retighten
first bolt after all others are tight.

CAUTION: When end cover is installed be careful not
to damage the P.T.U. Input Shaft Cover Seal.

(6) Reinstall P.T.U. into vehicle.
(7) Check and fill fluids as required.

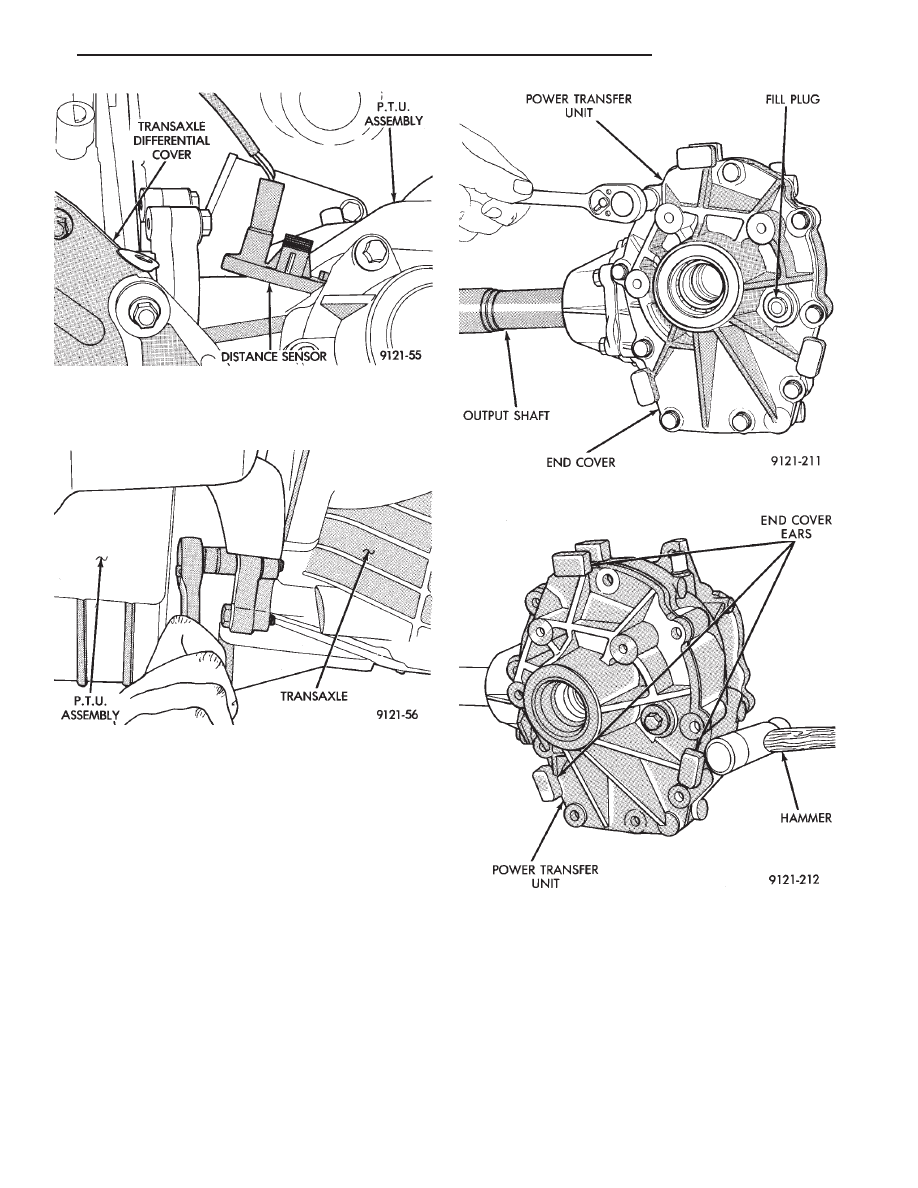

Fig. 11 Remove Distance Sensor from P.T.U.

Fig. 12 Remove P.T.U. Mounting Bolts (4)

Fig. 13 P.T.U. End Cover Bolts

Fig. 14 End Cover Removal

.

TRANSAXLE

21 - 145

POWER TRANSFER UNIT INPUT SHAFT SEAL

The Power Transfer Unit must be removed from the

vehicle to service this seal. Refer to Power Transfer
Unit Removal in this section for procedures.

REMOVAL

(1) Remove P.T.U. end cover bolts (Fig. 1).

(2) Gently tap on end cover ears to separate cover

from case (Fig. 2).

(3) Remove ring gear oil slinger (Fig. 3).

(4) Remove input shaft and ring gear from case (Fig.

4).

(5) Use Special Tool No. 7794-A (seal puller) to

remove seal (Fig. 5).

INSTALLATION

(1) Clean and inspect seal area.
(2) Lay housing on bench and install new seal with

seal driver C-4657 and handle C-4171 (Fig. 6). The seal
must be installed with the spring side facing to-

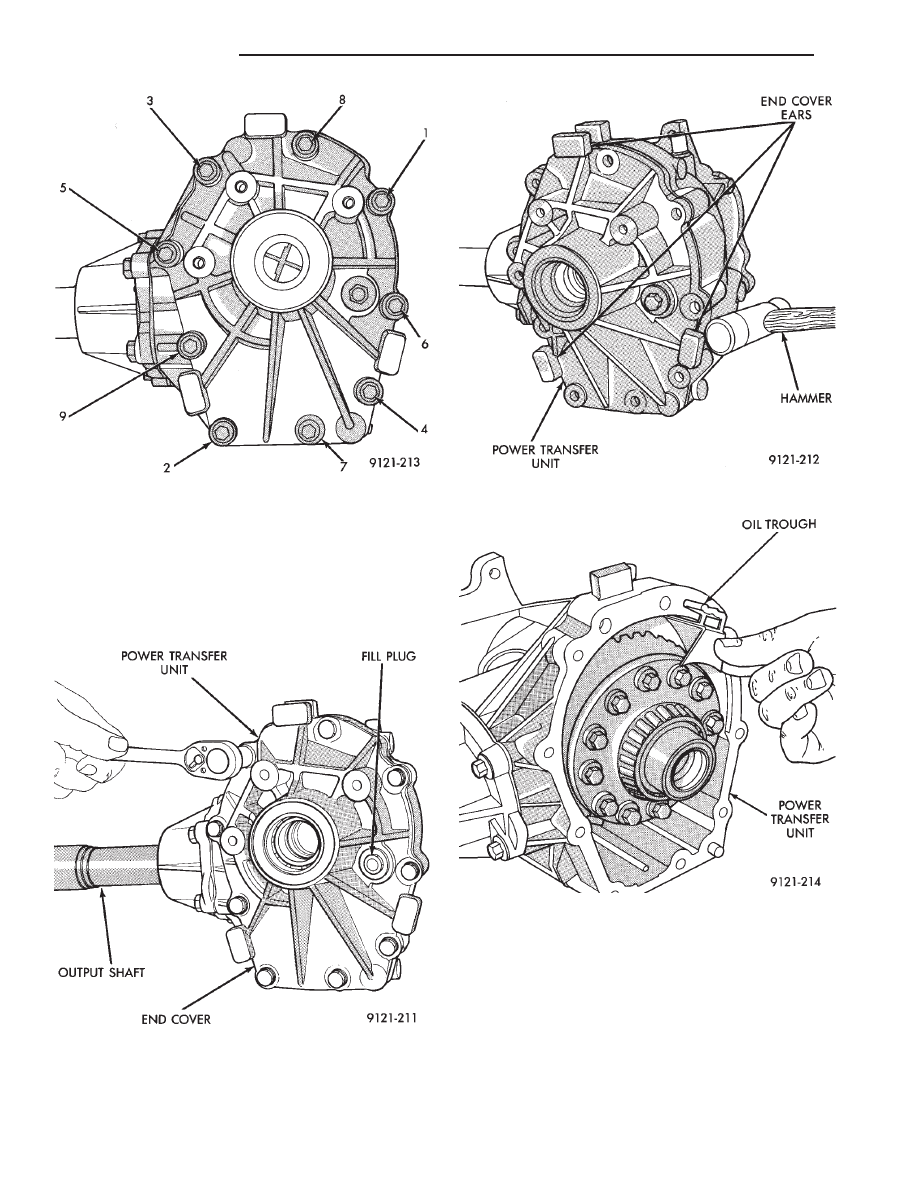

Fig. 15 Bolt Tightening Sequence

Fig. 1 P.T.U. End Cover Bolts

Fig. 2 End Cover Removal

Fig. 3 Oil Trough

21 - 146

TRANSAXLE

.

wards the ring gear. Drive the seal in until it bottoms
against the case shoulder.

(3) Install input shaft.
(4) Install oil trough.
(5) Apply Mopar

t Gasket Maker, Loctite Gasket

Eliminator No. 518 or equivalent to sealing surfaces of
end cover and reinstall. Tighten bolts to 28 N

Im (250

in. lbs.)

CAUTION: When end cover is installed be careful not
to damage the P.T.U. Input Shaft Cover Seal.

(6) Reinstall P.T.U. assembly into vehicle.
(7) Check and fill fluids as required.

TRANSAXLE DIFFERENTIAL CARRIER SEAL

The Power Transfer Unit must be removed from the

vehicle to replace this seal.

REMOVAL

(1) Remove P.T.U. from vehicle.

(2) Use a pry bar to remove seal from retainer plate

(Fig. 7). Be careful not to damage seal journal when
removing seal.

INSTALLATION

(1) Using a large socket, carefully install new seal.

The spring side of the seal must face the transaxle
differential.

(2) Reinstall the P.T.U. into the vehicle.
(3) Check and fill fluids as required.

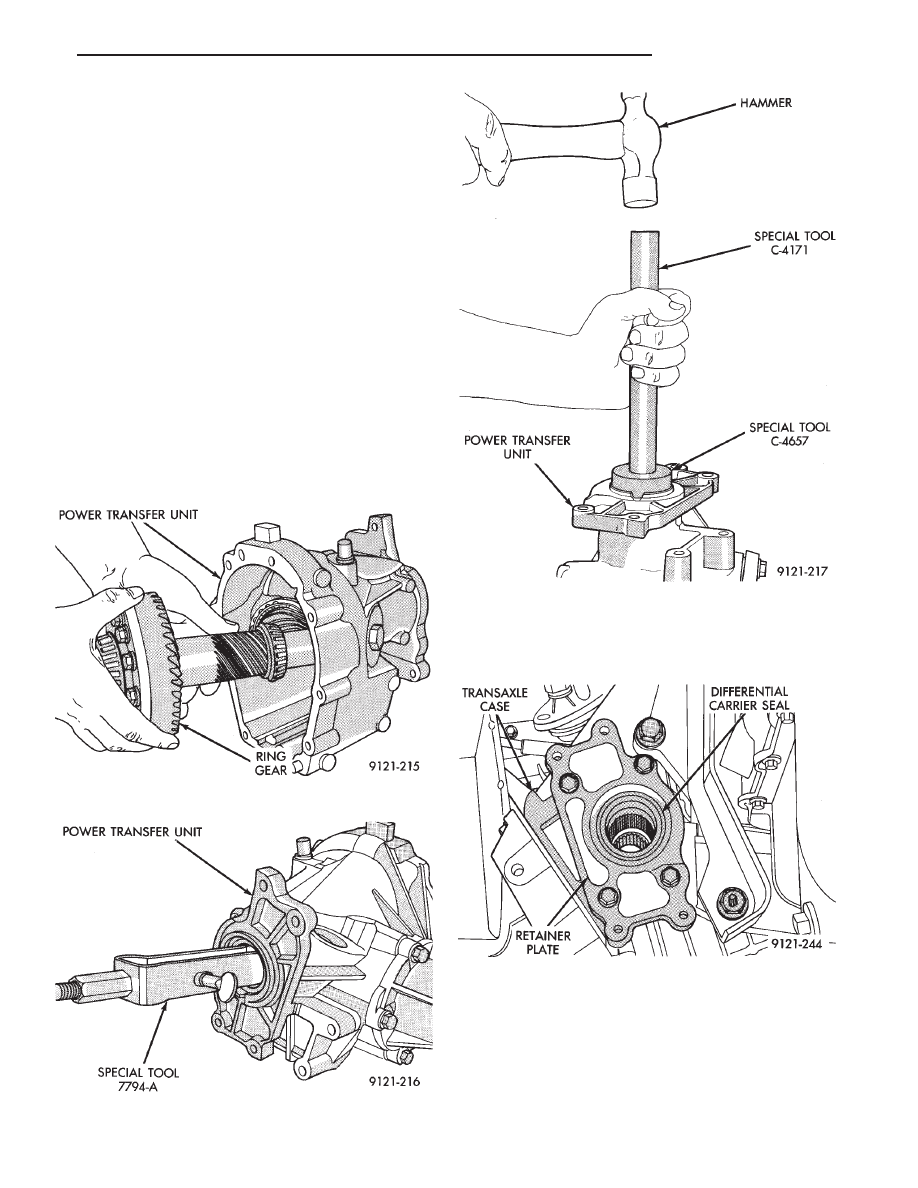

Fig. 7 Transaxle Differential Carrier Seal

Fig. 4 Input Shaft and Ring Gear Removal

Fig. 5 Seal Removal

Fig. 6 Seal Installation

.

TRANSAXLE

21 - 147

POWER TRANSFER UNIT REAR COVER O-RING

REMOVAL

(1) Raise vehicle on hoist.
(2) Remove rear cover retaining bolts (Fig. 1).

(3) Index rear cover to the case for later reassembly

(Fig. 2).

(4) Pull rear cover out of the P.T.U. case (Fig. 3).
(5) Remove rear cover O-Ring (Fig. 4).
(6) To Install, Reverse Removal Procedure.

POWER TRANSFER UNIT OUTPUT SEAL

The power transfer unit must be removed from the

vehicle to replace this seal.

REMOVAL

(1) Raise vehicle on hoist.
(2) Remove propeller shaft.
(3) Remove rear cover retaining bolts (Fig. 5).
(4) Index rear cover to the case for later reassembly

(Fig. 6).

(5) Pull rear cover out of the P.T.U. case (Fig. 7).

(6) Remove output flange nut (Fig. 8).
(7) Index the pinion to the flange (Fig. 9).
(8) Using a hydraulic press, press off output flange

from pinion.

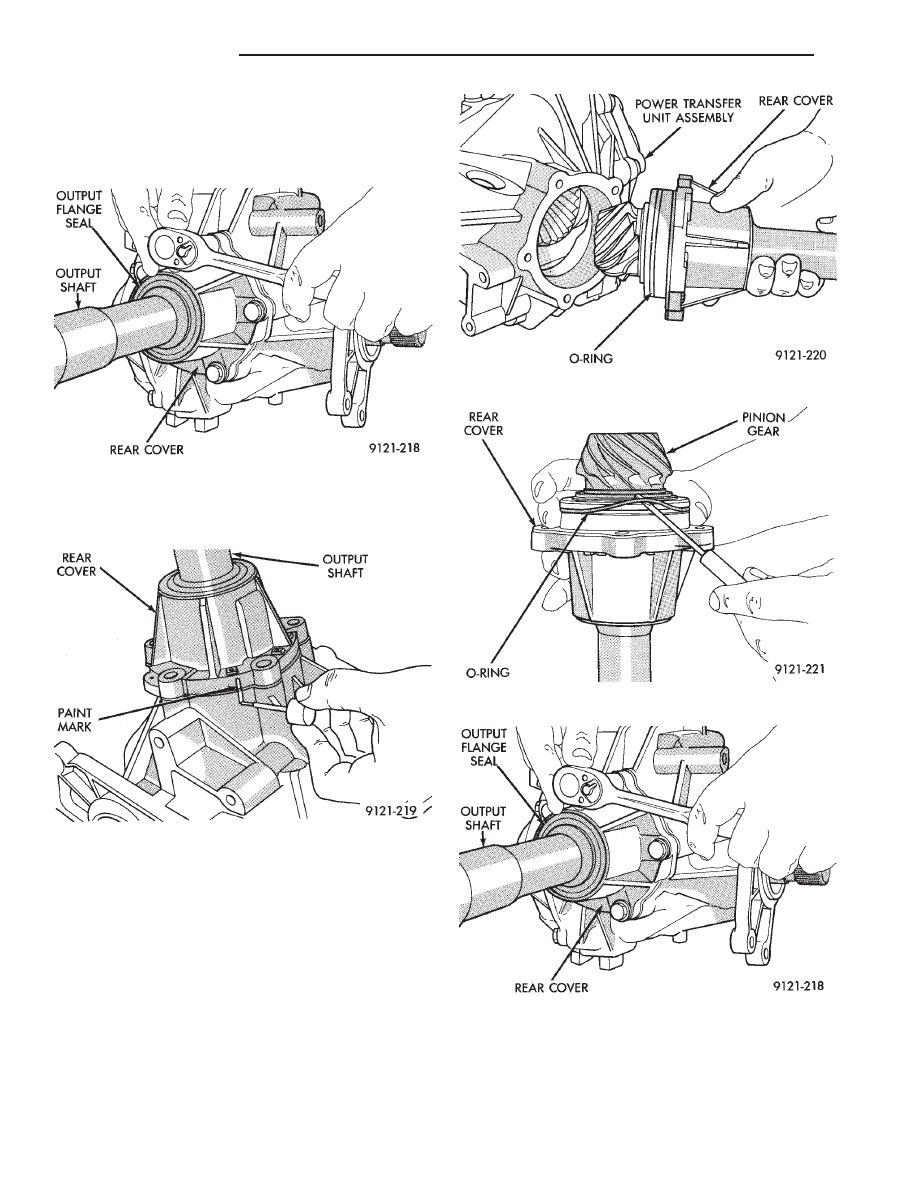

Fig. 1 Rear Cover Bolts

Fig. 2 Mark Rear Cover

Fig. 3 Rear Cover Removal

Fig. 4 O-Ring Removal

Fig. 5 Rear Cover Bolts

21 - 148

TRANSAXLE

.
