Chevrolet Silverado / GMC Sierra. Manual - part 3003

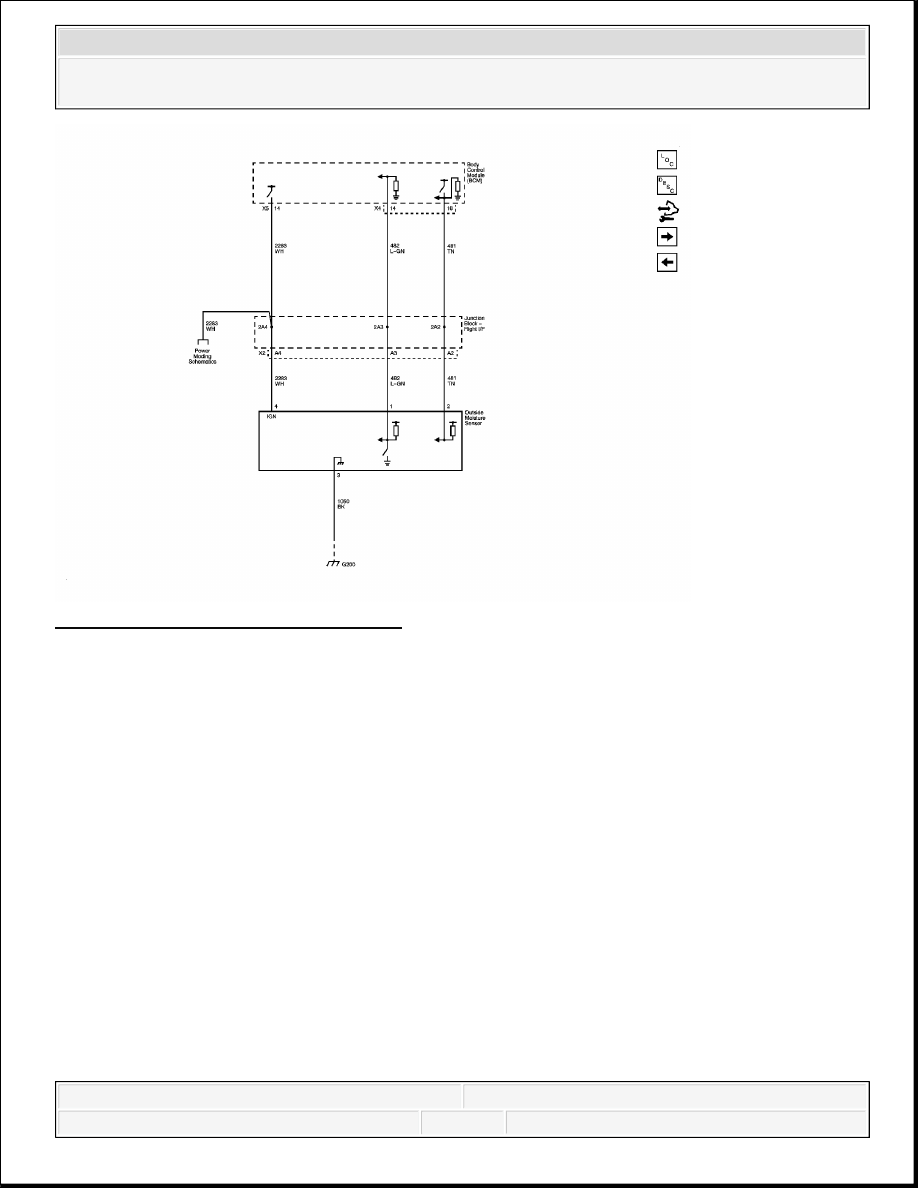

Fig. 3: Outside Moisture Sensor (CE1)
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Wipers and Washers - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

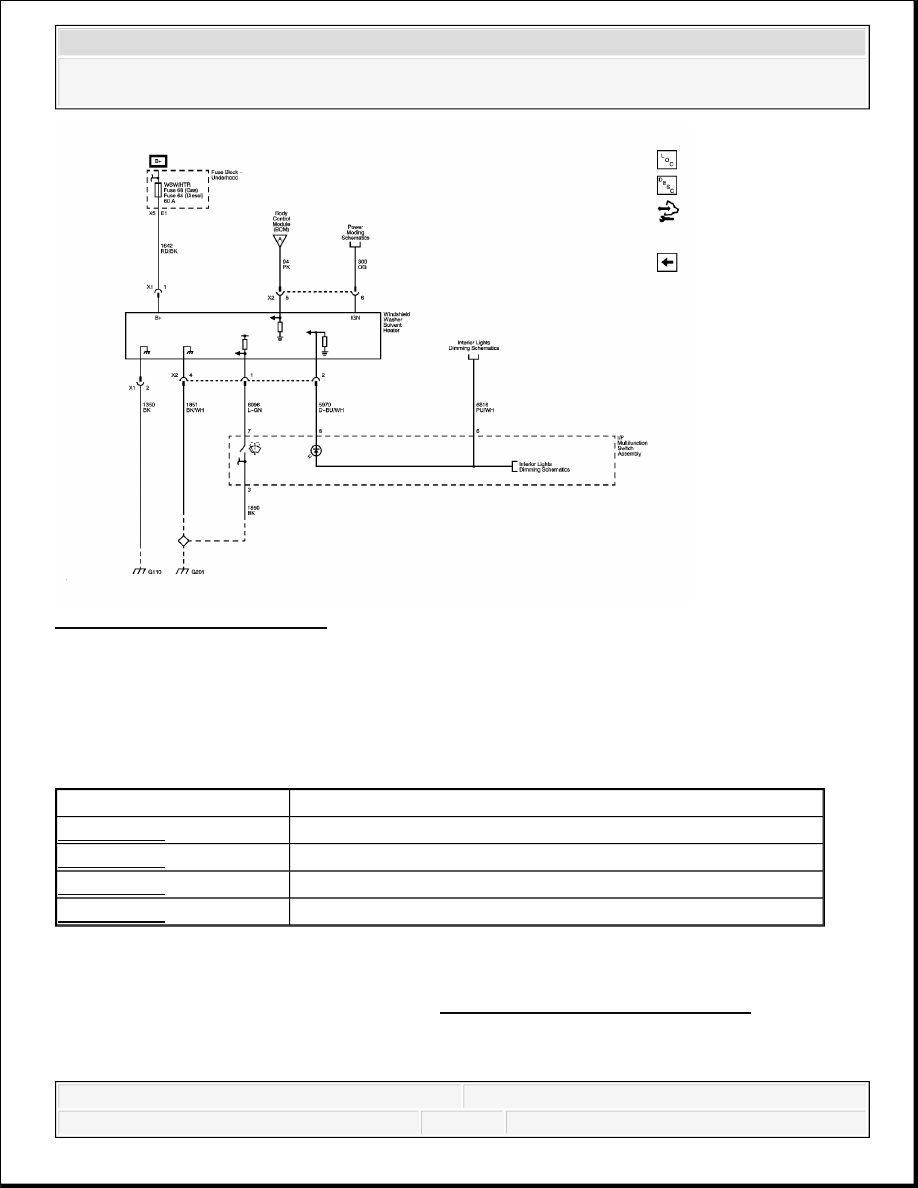

Fig. 4: Heated Washers (XA7)
Courtesy of GENERAL MOTORS CORP.
DIAGNOSTIC INFORMATION AND PROCEDURES
DIAGNOSTIC CODE INDEX
DIAGNOSTIC CODE INDEX
DIAGNOSTIC STARTING POINT - WIPER/WASHER SYSTEMS
Begin the wiper washer system diagnosis with Diagnostic System Check - Vehicle . The
Diagnostic System Check will provide the following information:
The identification of the control modules which command the system
DTC
Description
DTC B3715
B3715 02: Front Wiper Relay Drive Circuit Short to Ground
DTC B3873
B3873 00: Front Washer Relay Circuit
DTC B3875
B3875 00: Wiper High Speed Relay Circuit
DTC B3922
B3922 00: Front Wiper Function Select Circuit
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Wipers and Washers - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
The identification of any stored diagnostic trouble codes (DTCs) and their status
The use of the Diagnostic System Check will identify the correct procedure for diagnosing the
system and where the procedure is located.
DTC B3715
Diagnostic Instructions
Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
Review Strategy Based Diagnosis for an overview of the diagnostic approach.
Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC B3715 02
Front Wiper Relay Drive Circuit Short to Ground
Diagnostic Fault Information
Circuit
Short to
Ground
Open/High
Resistance
Short to
Voltage
Signal
Performance
WIPER SPEED Relay B+
1, 2
1, 2
-
-
Windshield Wiper Switch
Signal
B3922 00
1
1
-
Windshield Wiper Switch
High Signal
4
2
2
-
Windshield Wiper Motor Park
Switch Signal
3
3
-
-
WIPER CONTROL Relay
Control
B3715 02
1
4
-
WIPER SPEED Relay Control
4
2
B3875 00
-
Windshield Wiper Motor High
Speed Control
2
2
4
-
Windshield Wiper Motor Low
Speed Control
1
1
4
-
Windshield Wiper Switch Low
Reference
-
1, 2
1, 2
-
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Wipers and Washers - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Circuit/System Description
The body control module (BCM) monitors the control circuit of the wiper relay. The voltage
level should be low while the wiper relay is de-energized and near system voltage when the relay
is energized. After the BCM receives a low, intermittent, or mist signal from the wiper/washer
switch, it responds by applying battery voltage through the wiper relay control circuit to the coil
side of the relay, energizing the WIPER CONTROL relay.
Conditions for Running the DTC
This DTC can set only when the output is actively being requested by the BCM.
Conditions for Setting the DTC
If the BCM detects a short to ground in the wiper relay control circuit.
Action Taken When the DTC Sets
The BCM will not activate the output.
Conditions for Clearing the DTC
The current DTC will become history when the request for the output is removed or when
the condition for setting the fault is corrected.
The history DTC will clear after 50 consecutive ignition cycles without a fault present.
Reference Information
Schematic Reference
Wiper/Washer Schematics
Connector End View Reference
Windshield Wiper Motor
Ground
-
1, 2, 3
-
-
WIPER CONTROL Relay
Ground
-
1
-
-
1. Delay or Low Speed Wipers Inoperative
2. High Speed Wipers Inoperative
3. Wipers Do Not Park
4. Wipers Always ON
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Wipers and Washers - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
