Chery Tiggo 5 (T21). Manual - part 536

50–

15

50

Clearance between fender and headlight at A-14: 2.4 ± 1.0 mm

Clearance between hood and headlight at A-15: 6.5 ± 1.5 mm

Clearance between front bumper and headlight at A-16:



2.2 ± 1.2 mm

Clearance between front fog light cover and front bumper at
A-17: 0.5 ± 0.5 mm

RT21500380

2.4±1.0

FENDER

HEADLIGHT

HOOD

6.5±1.5

HEADLIGHT

RT21500330

2.2±1.2

FRONT BUMPER

HEADLIGHT

RT21500320

0.5±0.5

FRONT FOG LIGHT COVER

FRONT BUMPER

RT21500300

50–

16

50

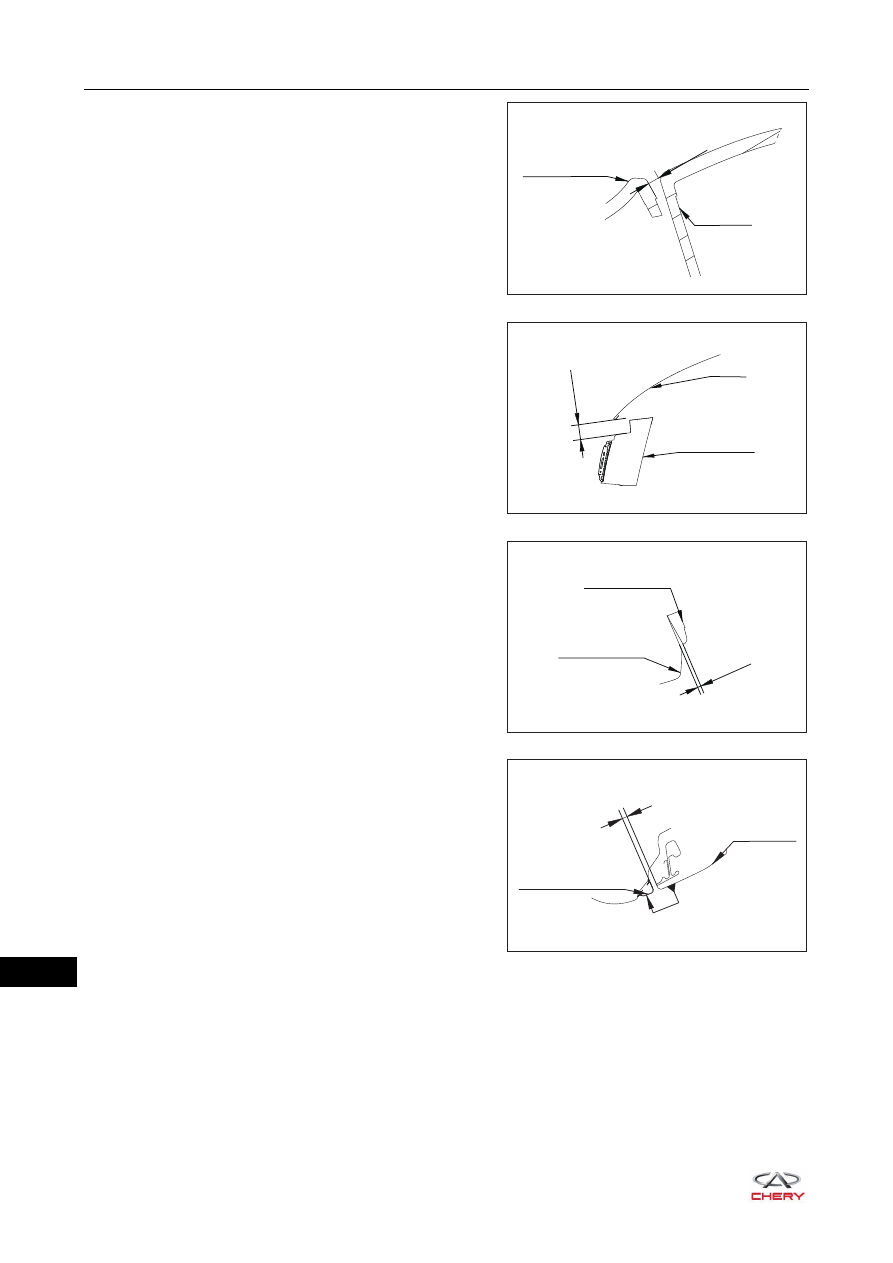

Clearance between radiator grille and headlight at A-18:



2.7 ± 1.0 mm

Clearance between radiator grille and hood at A-19:



6.4 ± 1.5 mm

Clearance between radiator grille and front bumper at A-20:
2.0 ± 1.0 mm

Clearance between trim panel garnish and rear view mirror
base at A-21: 5.0 ± 1.5 mm
Flush between trim panel garnish and rear view mirror base
at A-21: 0 ± 1.5 mm

RADIATOR GRILLE

2.7±1.0

HEADLIGHT

RT21500340

RT21500370

HOOD

RADIATOR GRILLE

6.4±1.5

RADIATOR GRILLE

FRONT BUMPER

2.0±1.0

RT21500360

TRIM PANEL GARNISH

REAR VIEW
MIRROR BASE

0±1.5

5.0±1.5

RT21500150

50–

17

50

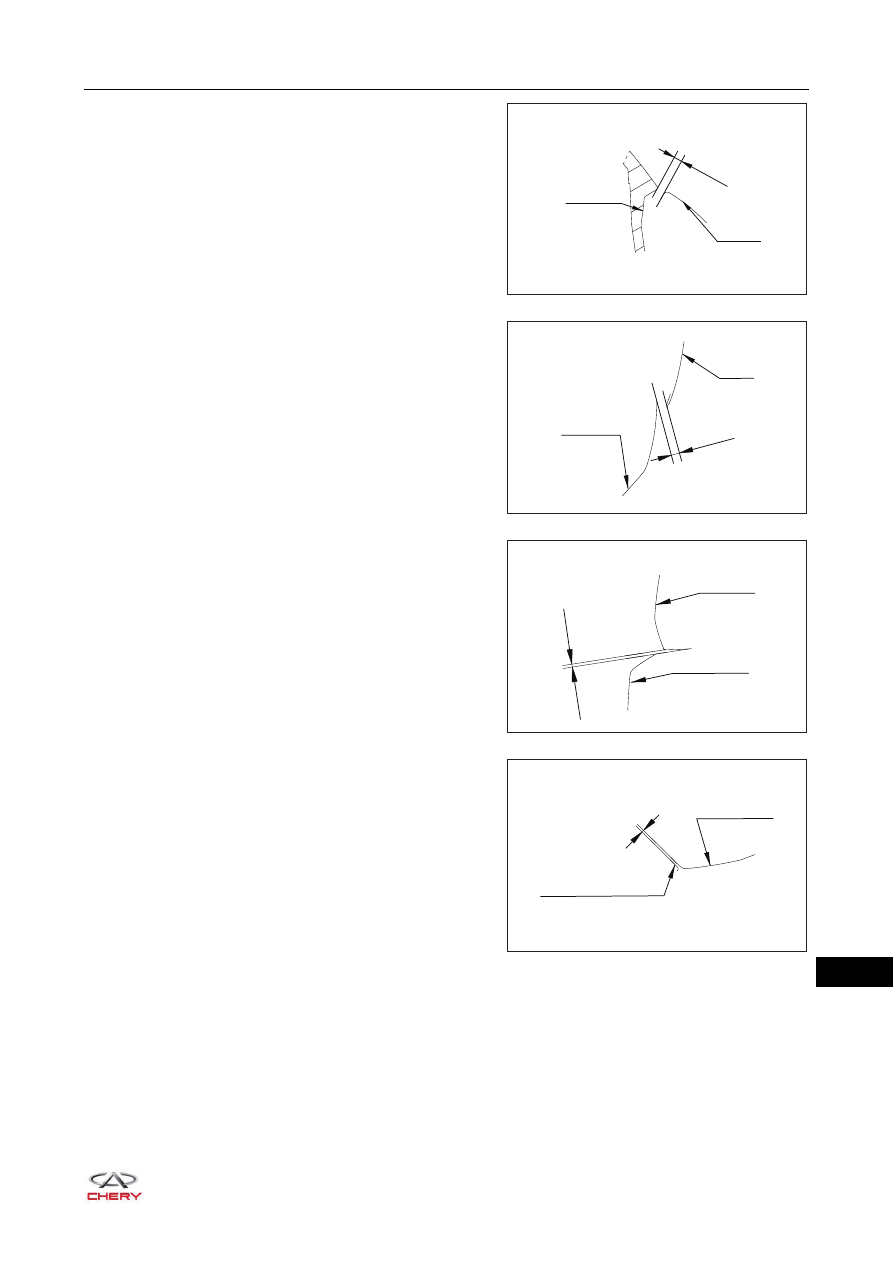

Clearance between front triangular block and rear view
mirror base at A-22: 4.0 ± 1.2 mm
Flush between front triangular block and rear view mirror
base at A-22: 0

 mm

Clearance between side body outer panel and fender at



A-23: 2.3 ± 1.2 mm
Flush between side body outer panel and fender at A-23:



0 ± 1.2 mm

Flush between rear view mirror base and front door weather
bar at A-24: 1.2 ± 1.5 mm

Clearance between front door handle and front door at A-25:
3.7 ± 1.0 mm

RT21500120

4.0±1.2

FRONT
TRIANGULAR BLOCK

REAR VIEW
MIRROR BASE

0-1.5

+1.0

+1.0
 -1.5

RT21500110

0±1.2

2.3±1.2

FENDER

SIDE BODY
OUTER PANEL

1.2±1.5

REAR VIEW
MIRROR BASE

FRONT DOOR
WEATHER BAR

RT21500170

FRONT DOOR

FRONT DOOR HANDLE

3.7±1.0

RT21500190

50–

18

50

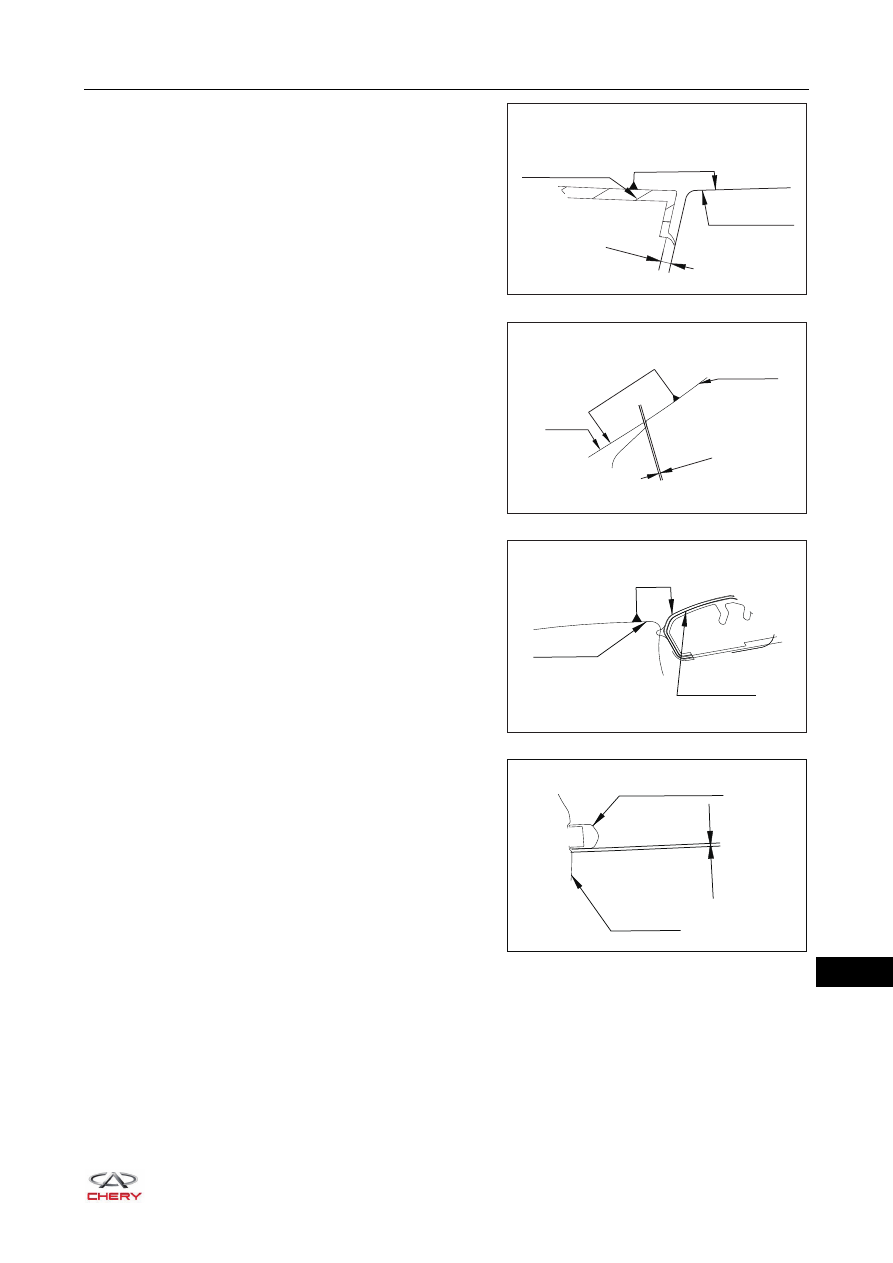

Clearance between front door handle and front door handle
base at A-26: 1.0 ± 0.5 mm
Flush between front door handle and front door handle base
at A-26: 0 ± 1.0 mm

Clearance between front wheel flare trim board and front
apron plate at A-27: 2.0 ± 1.0 mm

Clearance between fender and front apron plate at A-28:
0

 mm

Clearance between front door trim board and front apron
plate at A-29: 5.6 ± 1.0 mm
Flush between front door trim board and front apron plate at
A-29: 0 ± 1.0 mm

FRONT DOOR HANDLE

FRONT DOOR
HANDLE BASE

1.0±0.5

0±1.0

RT21500180

FRONT WHEEL FLARE TRIM BOARD

FRONT APRON PLATE

2.0±1.0

RT21500250

FENDER

FRONT APRON PLATE

0

0

+1.0

RT21500240

+1.0
  0

5.6±1.0

0±1.0

RT21500260

FRONT APRON PLATE

FRONT DOOR
TRIM BOARD
