Chery Tiggo 5 (T21). Manual - part 483

45–

10

45

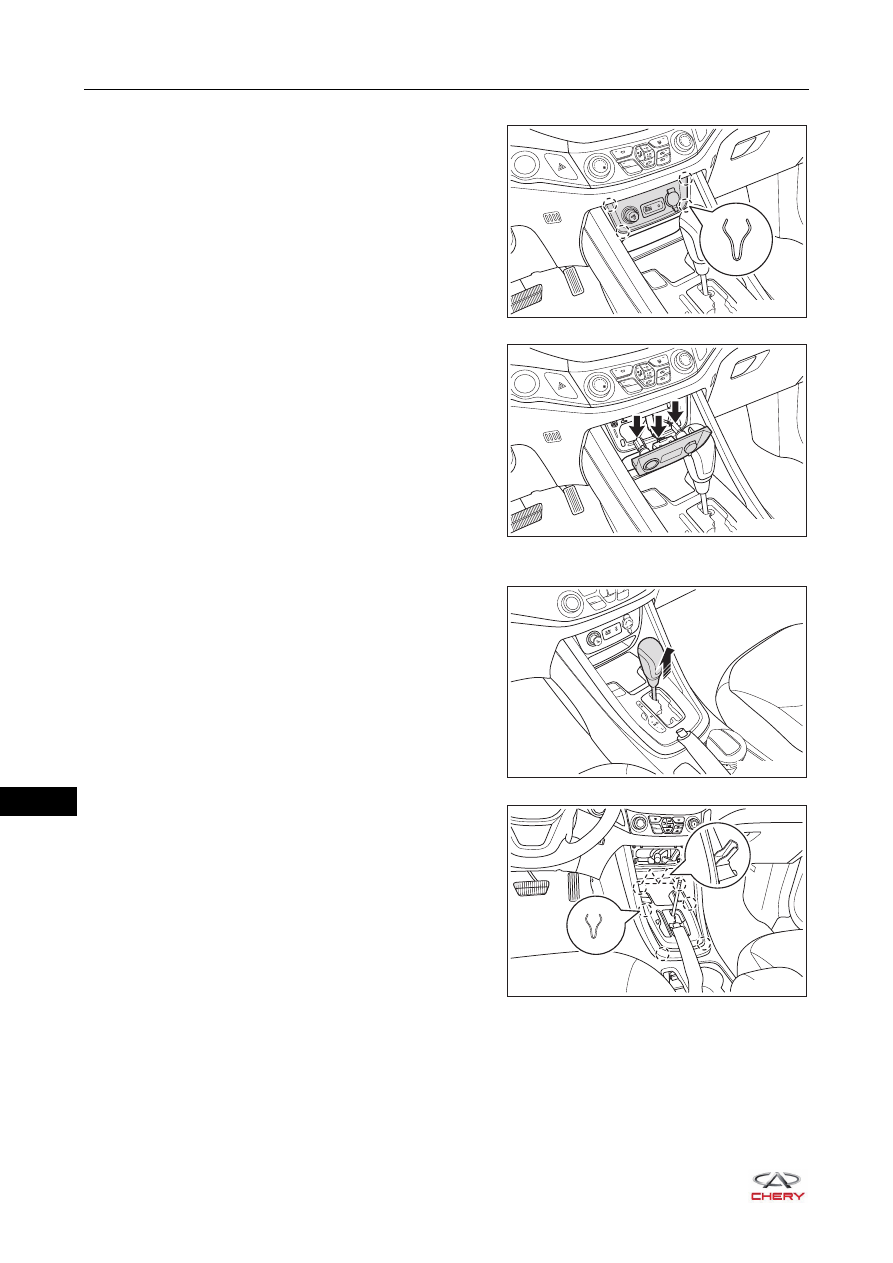

5. Remove the USB panel assembly.

a. Using a screwdriver wrapped with protective tape, pry

up the clips on USB panel assembly.

b. Disconnect the connectors (arrow) from USB panel

assembly, and remove the USB panel assembly.

6. Remove the gearshift cover plate assembly (for CVT model).

a. Pull out the shift knob in the direction of arrow as

shown in the illustration.

b. Using a screwdriver wrapped with protective tape, pry

up the clips on gearshift cover plate assembly.

AUX

iPod

POWER

OUTLET

12V   120W

A/C

OFF

RT21450060

A/C

OFF

RT21450070

R

S

RT21450080

S

P

R

N

MD

OFF

ON

A/C

RT21450090

45–

11

45

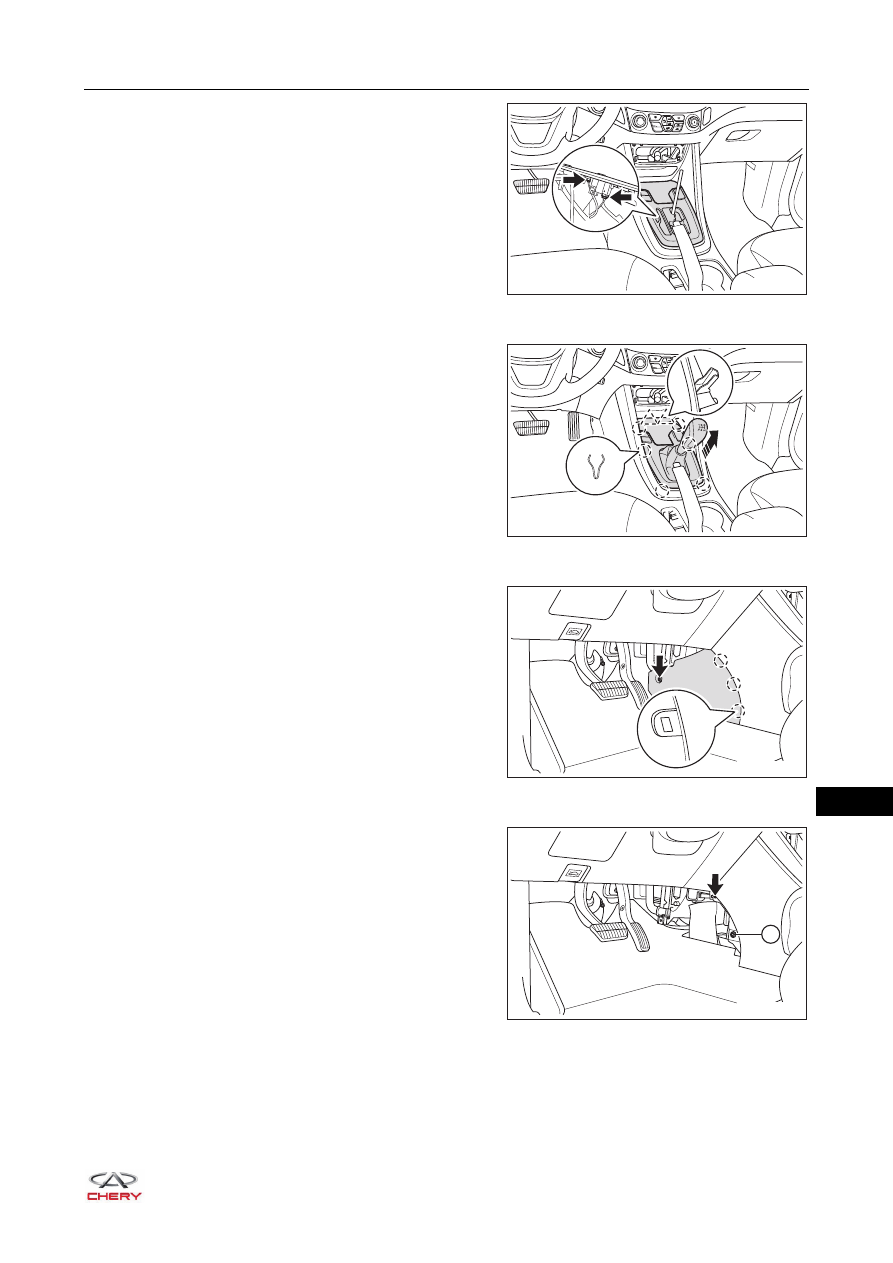

c. Disconnect the connectors (arrow) from gearshift

cover plate assembly, and remove the gearshift cover
plate assembly.

7. Remove the gearshift cover plate assembly (for MT model).

a. Using a screwdriver wrapped with protective tape, pry

up the clips on gearshift cover plate assembly.

b. Pull out the gearshift cover plate assembly in the

direction of arrow as shown in the illustration.

8. Remove the auxiliary fascia console front left protector (take left side as an example).

a. Remove the fixing bolt (arrow) from auxiliary fascia

console front left protector.



(Tightening torque: 5 ± 1 N·m)

b. Using a screwdriver wrapped with protective tape, pry

up the claws on auxiliary fascia console front left
protector, and remove the auxiliary fascia console
front left protector.

9. Remove the auxiliary fascia console assembly.

a. Remove the fixing screw (arrow) from the side of

auxiliary fascia console assembly (take left side as an
example).



(Tightening torque: 1.5 ± 0.5 N·m)

b. Remove the fixing bolt (1) from the side of auxiliary

fascia console assembly (take left side as an
example).



(Tightening torque: 5 ± 1 N·m)

S

P

R

N

MD

OFF

ON

A/C

RT21450100

OFF

ON

A/C

RT21450110

RT21450130

1

RT21450140

45–

12

45

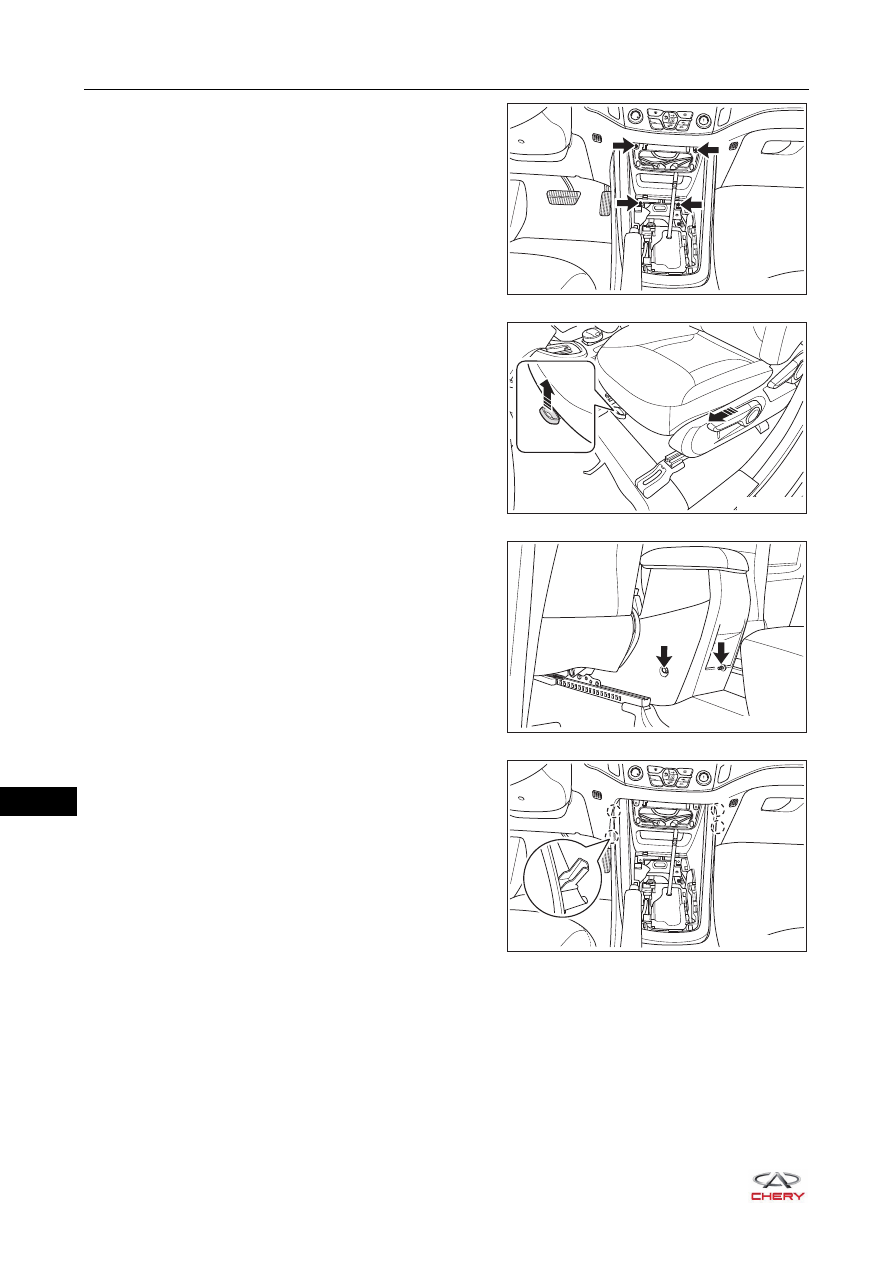

c. Remove 4 fixing screws (arrow) from front part of

auxiliary fascia console assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

d. Pull up the seat adjusting handle and move the front

seat assembly to the foremost position.

e. Remove 2 fixing bolts (arrow) from rear part of

auxiliary fascia console assembly.



(Tightening torque: 5 ± 1 N·m)

f. Using an interior crow plate, pry up the dowel pins on

the front part of auxiliary fascia console.

OFF

A/C

RT21450150

RT21460071

RT21450170

OFF

A/C

RT21450180

45–

13

45

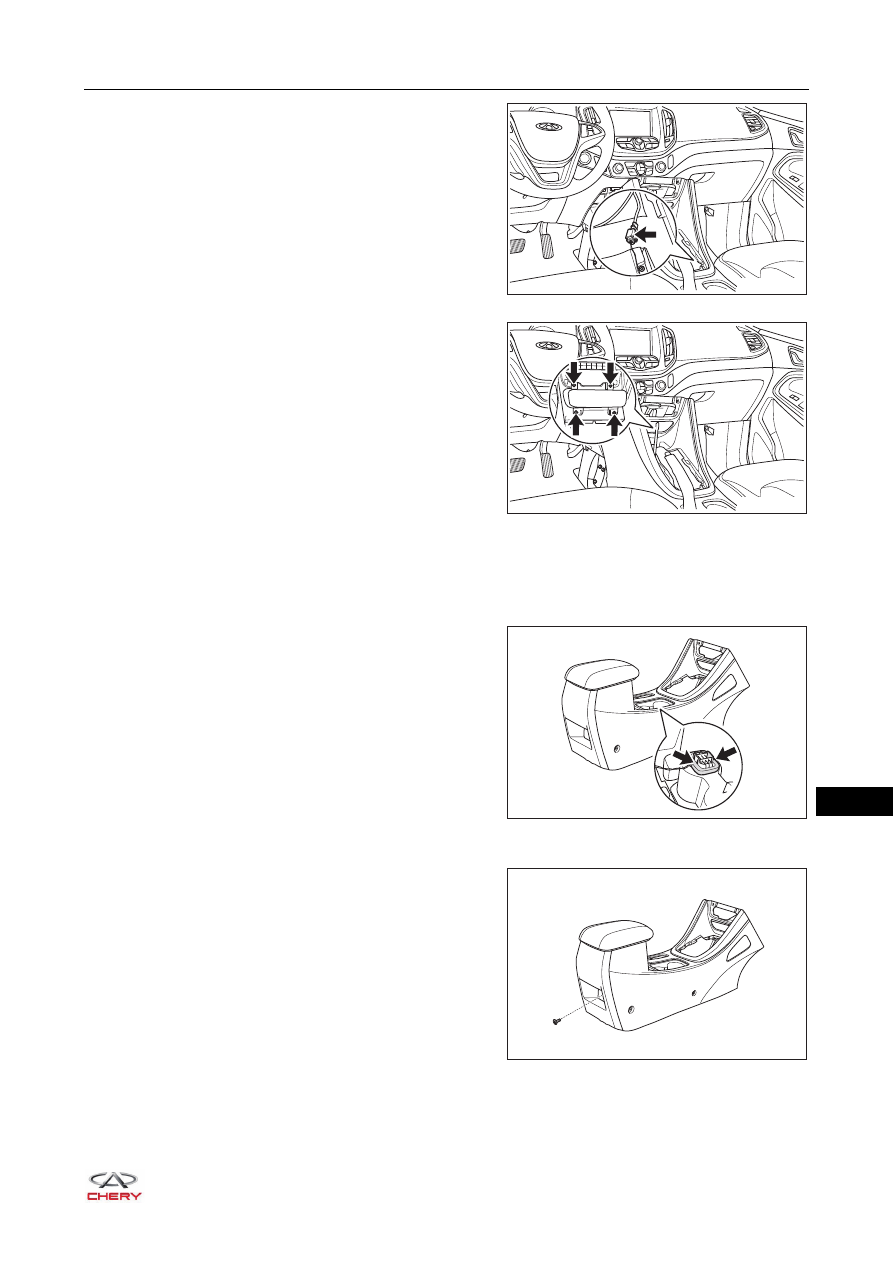

g. Disconnect the anti-theft coil connector (arrow).

h. Remove 4 fixing screws (arrow) from front storage

box.



(Tightening torque: 1.5 ± 0.5 N·m)

i. Remove the auxiliary fascia console assembly.

Disassembly

1. Remove the anti-theft coil (for CVT model).

a. Disengage the claws (arrow), and remove the anti-theft

coil.

2. Remove the auxiliary fascia console rear cover plate assembly.

a. Remove the fixing screw from auxiliary fascia console

rear cover plate assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

RT21450181

RT21450190

RT21450191

RT21450211
