Audio system mainly indicates radio receiver assembly. Primary function of radio receiver assembly is to
receive frequency modulation and amplitude modulation broadcast signals sent from broadcast stations, and
convert these signals into audio signal.
Radio receiver assembly consists of amplitude modulation tuner (AM) that receives the amplitude modulation
broadcast signal and frequency modulation tuner (FM) that receives the frequency modulation broadcast
signal.
Radio receiver assembly configuration in this model: no disc DVD assembly.

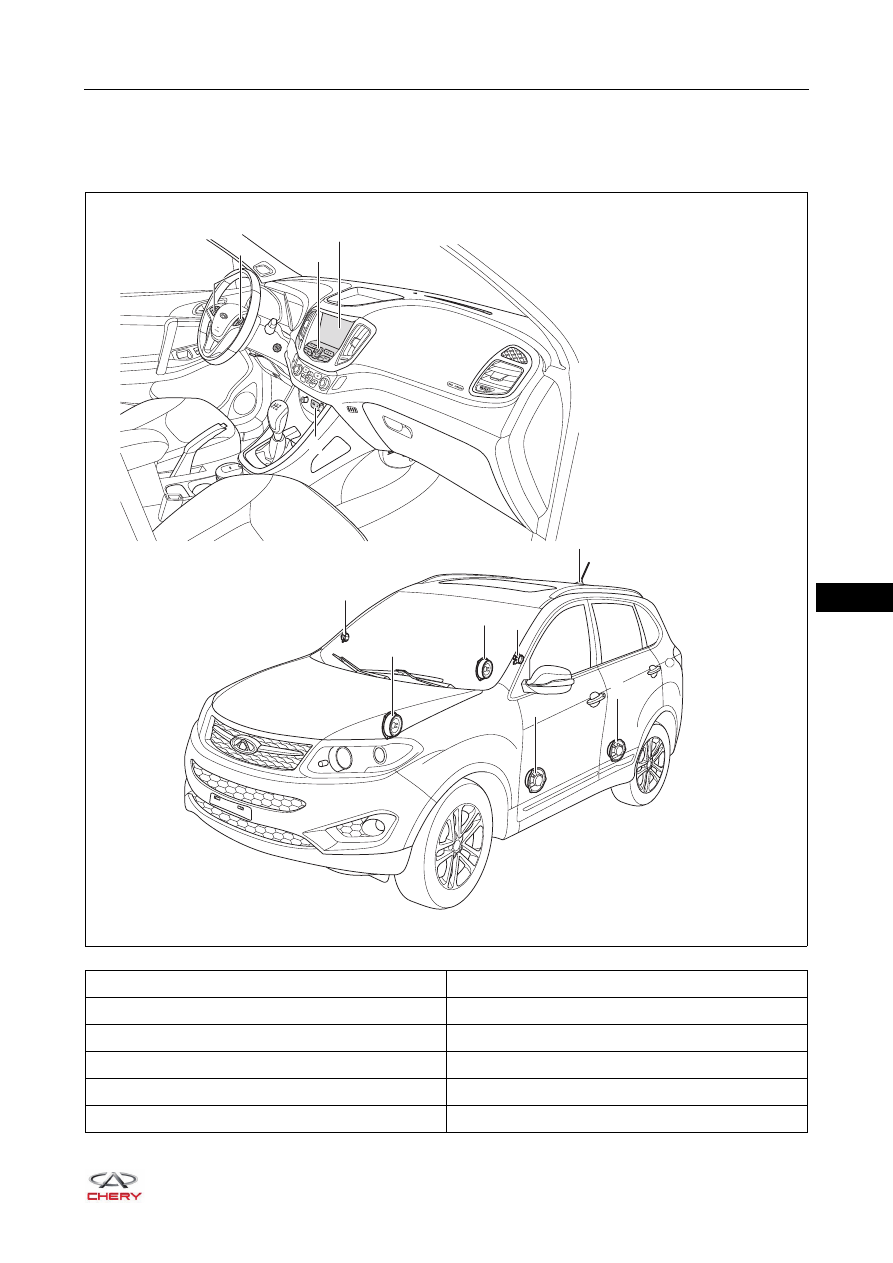

This vehicle is equipped with 6 speakers, which includes 2 tweeter assemblies and 4 woofer assemblies.

Operation

Essentially, radio receiver is a tuner. Radio receiver demodulates the radio frequency signal received from
antenna, and outputs the low power audio signal, which is amplified by inner amplifier circuit and converted
into original sound.

Specifications

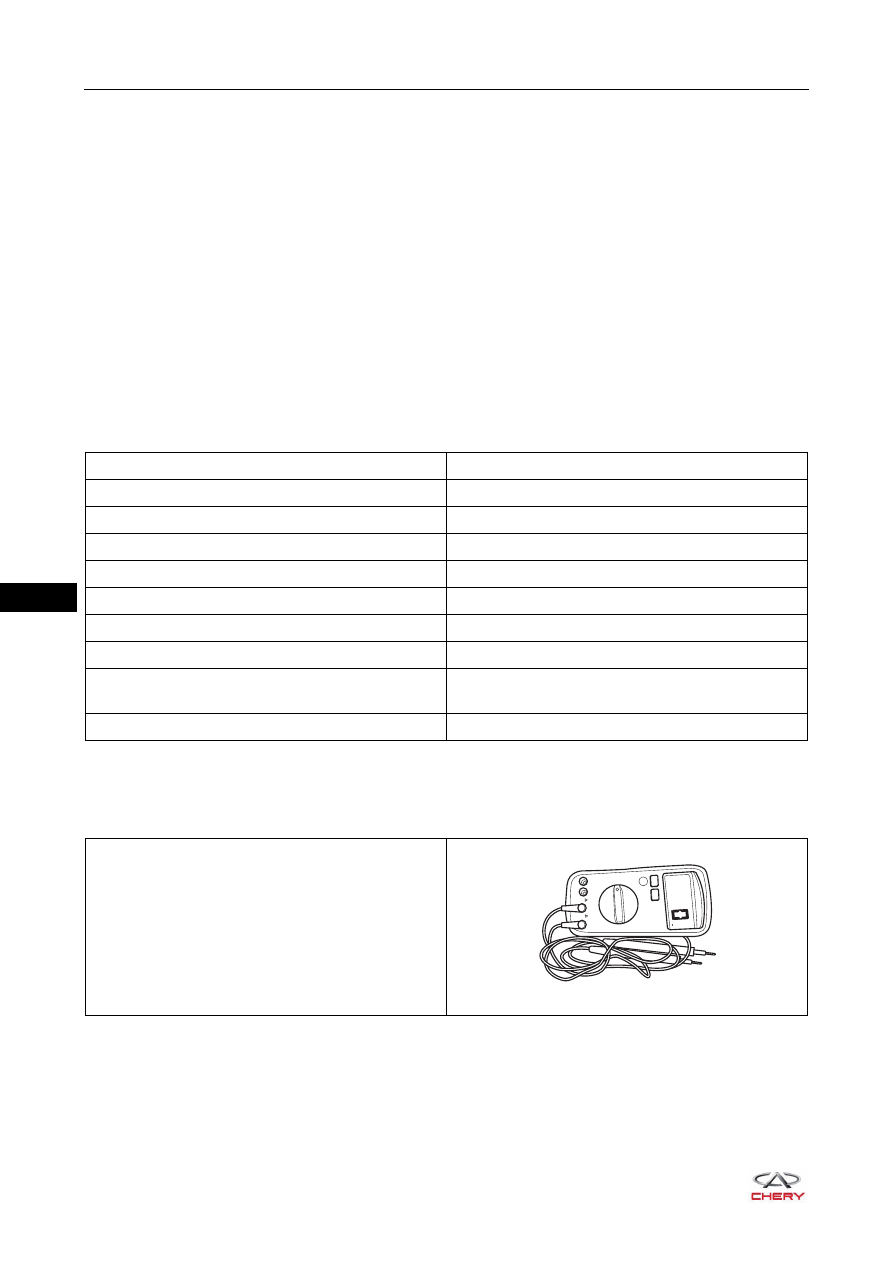

Torque Specifications

Tool

General Tool

Description

Torque (N·m)

No Disc DVD Assembly Fixing Screw

2 ± 0.5

Tweeter Assembly Fixing Screw

3 ± 0.5

Front Woofer Assembly Fixing Screw

2.5 ± 0.5

Rear Woofer Assembly Fixing Screw

2.5 ± 0.5

Antenna Assembly Fixing Nut

5 ± 1

No Disc DVD Control Panel Fixing Screw

2 ± 0.5

Wire Harness Fixing Screw

0.7 ± 0.2

Steering Wheel Quick Button Trim Cover Fixing
Screw

0.7 ± 0.2

Steering Wheel Quick Button Fixing Screw

0.7 ± 0.2

Digital Multimeter

RCH0000002
