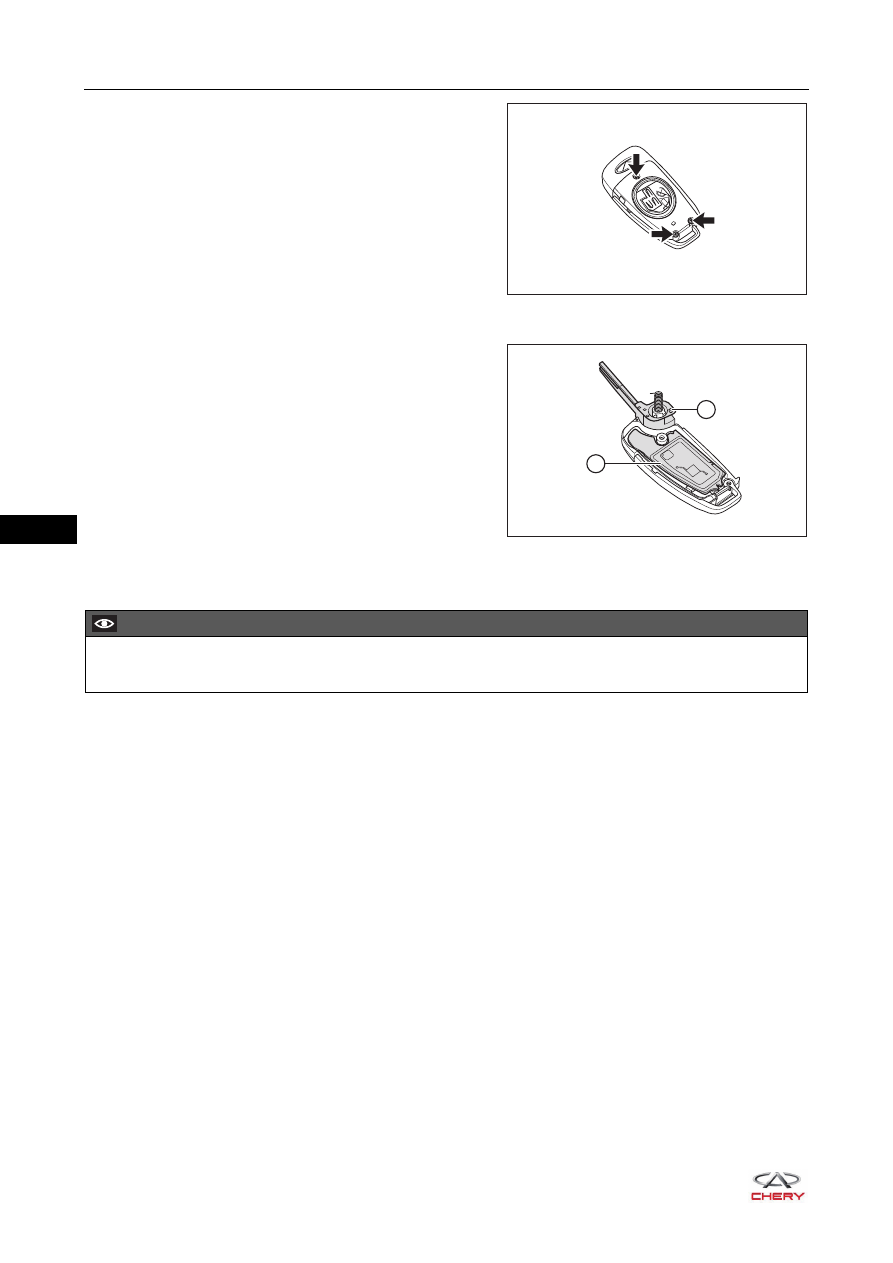

c. Remove 3 fixing screws (arrow) from wireless key

upper cover.



(Tightening torque: 0.4 ± 0.1 N·m)

d. Remove the wireless key upper cover.
e. Remove the wireless key billet (1).
f. Remove the wireless key chip (2).

Installation

Installation is in the reverse order of removal.

RT21370380

1

2

RT21370390

CAUTION

 Check that the wireless key operates properly after installing the wireless key.

1

38

INSTRUMENT CLUSTER

GENERAL INFORMATION

38-3

Description 38-3
Operation 38-4
Specification 38-4
Tools 38-4
Circuit Diagram

38-5

Instrument Cluster Terminal List

38-10

DIAGNOSIS & TESTING

38-11

Problem Symptoms Table

38-11

Diagnosis Tools

38-13

DTC Confirmation Procedure

38-13

Intermittent DTC Troubleshooting

38-13

Ground Inspection

38-14

Diagnosis Procedure

38-14

Diagnostic Trouble Code (DTC) Chart  38-16
B1100-13 38-17
B1100-16 38-17
B1100-17 38-17

B1101-11 38-21
B1101-15 38-21
B1103-00 38-25
B1104-41 38-28
U0100-87 38-29
U0101-87 38-29
U0129-87 38-29
U0131-87 38-29
U0140-87 38-29
U0151-87 38-29
U0167-87 38-29
U0214-87 38-29
U0073-88 38-29
U1300-55 38-41

ON-VEHICLE SERVICE

38-42

Instrument Cluster

38-42

Removal 38-42
Installation 38-43

38–

3

38

INSTRUMENT CLUSTER

GENERAL INFORMATION

Description

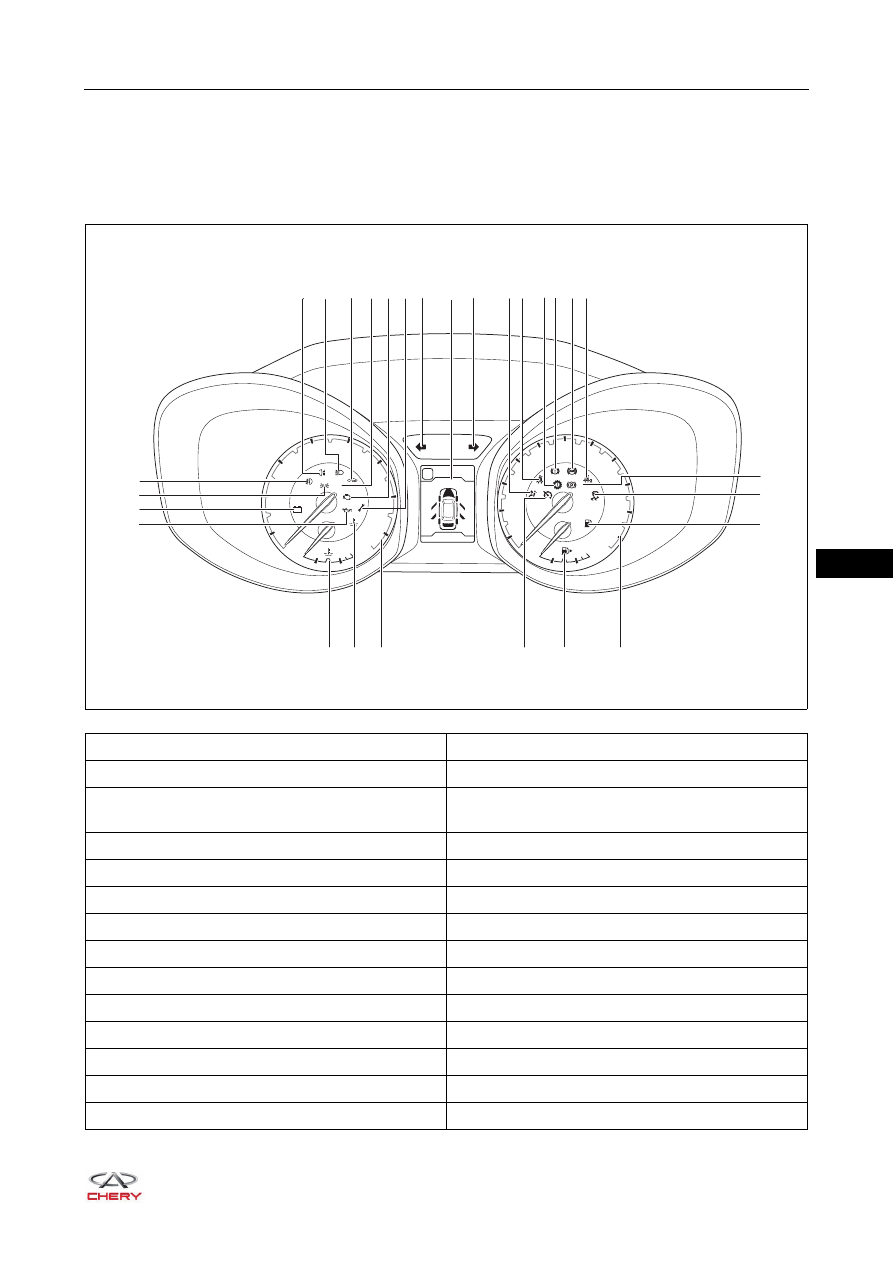

Instrument Cluster

1 - Left Turn Signal Indicator

2 - Multi-information Display

3 - Right Turn Signal Indicator

4 - SRS Warning Light

5 - Driver Seat Belt Reminder Light

6 - Transmission Malfunction Warning Light (for CVT

Model)

7 - Brake System Warning Light

8 - ABS Warning Light

9 - Front Passenger Seat Belt Reminder Light

10 - Parking Brake Indicator

11 - ESP OFF Indicator (if equipped)

12 - Low Fuel Level Warning Light

13 - Speedometer

14 - Fuel Gauge

15 - Cruise Indicator (if equipped)

16 - Tachometer

17 - High Coolant Temperature Warning Light

18 - Engine Coolant Temperature Gauge

19 - Low Engine Oil Pressure Warning Light

20 - Charging System Warning Light

21 - Position Indicator

22 - Front Fog Indicator

23 - Rear Fog Indicator

24 - Headlight High Beam Indicator

25 - Engine Immobilizer System Warning Light

26 - EPC Warning Light

27 - Engine Malfunction Warning Light

28 - Maintenance Indicator

RT21380010

0

C

X1000

rpm

0

1

2

3

4

5

6

7

8

H

EPC

E

km/h

20

40

60

80

100 120

140

160

180

200

220

F

-

+

OFF

P

08:30

123

km

1

25

24

23

3

4

2

26 27 28

21

22

19

15

6

10

5

7 8 9

11

12

14

13

18

16

17

20

38–

4

38

This vehicle is equipped with pointer type instrument cluster. The instrument cluster is a highly integrated
electronic instrument display system and mainly consists of engine coolant temperature gauge, tachometer,
fuel gauge, speedometer, multi-information display and warning indication symbols. The multi-information
display mainly displays vehicle information, which contains the following items: clock, trip, total mileage,
instantaneous fuel consumption and speed.

Operation

Instrument cluster is located above the upper left of instrument panel assembly, which is used to monitor and
display the operation status of each system and component in vehicle. Instrument cluster receives signals from
each sensor and switch, and displays the operation status of each system through meter, multi-information
display, indicator and warning lights. It also reminds and informs driver by flashing lights and sounding buzzer.
As a result, it will be helpful for driver to eliminate possible troubles in time, thus avoiding malfunctions or
accidents efficiently.

Specification

Torque Specification

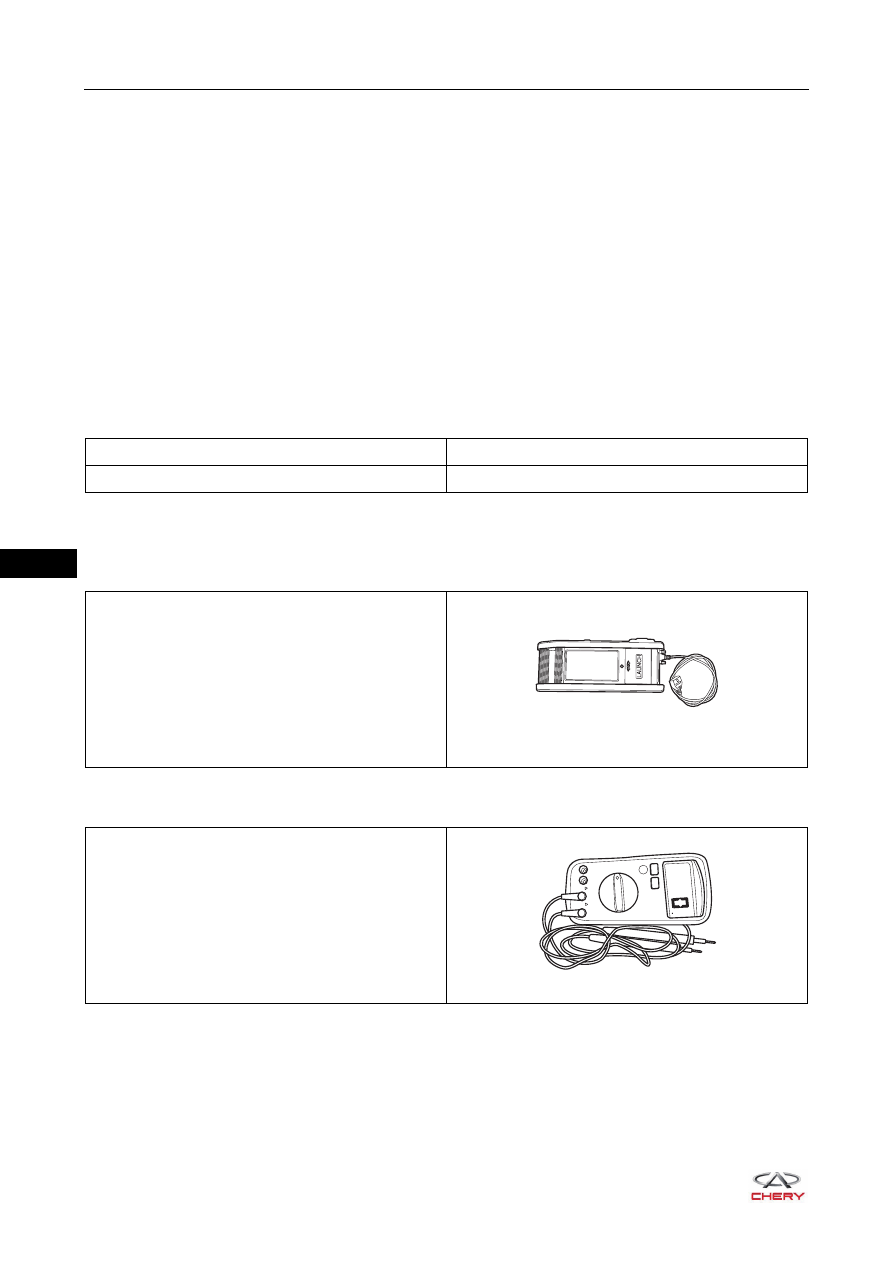

Tools

Special Tool

General Tool

Description

Torque (N·m)

Instrument Cluster Fixing Screw

1.5 ± 0.5

X-431 3G Diagnostic Tester

RCH0000001

ཽ⪔⊳䖜

Digital Multimeter

RCH0000002
