Installation

Installation is in the reverse order of removal.

Disposal

Always dispose of the airbag together with the vehicle which is equipped with supplemental restraint system.
Otherwise, the airbag will be in chemical and physical dangerous state. Failure to handle it properly will cause
personal injury. Do not dispose of airbag by oneself, and always contact the professional service department
to perform the disposal.

CAUTION

 Before installing the tightening bolts, always make sure that the airbag wire harness is not hold down or

stuck. Adjust if necessary and install it in place.

 Be sure to tighten fixing bolts to the specified torque during installation.
 When installing front passenger airbag, first slide the hook on one side into the locating hole in airbag

box, and then press in the hook on the other side firmly, making sure that hooks on both sides enter the
corresponding locating holes correctly.

 Always keep the vehicle power off during installation, and never install the front passenger airbag when

vehicle is powered on.

 During the installation of instrument panel body assembly, if installation cannot proceed due to contact of

front passenger airbag bracket and instrument panel crossmember assembly, hold the airbag slightly at
the opening of glove box assembly to install it in place.

 Check the SRS warning light after installation, and make sure that supplemental restraint system

operates normally.

32–

72

32

SRS Control Module Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.

3. Remove the auxiliary fascia console body assembly (

See page 45-9

).

4. Remove the SRS control module assembly.

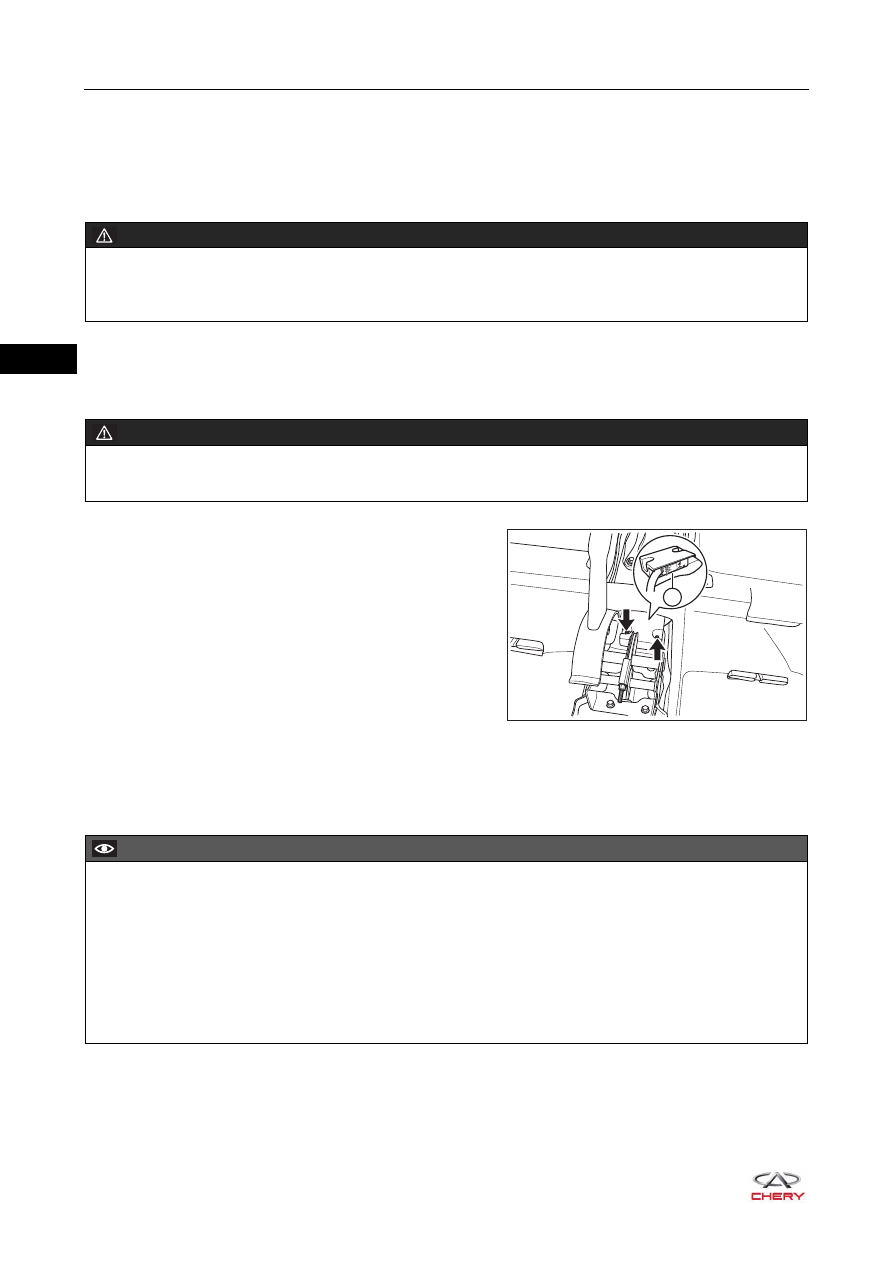

a. Disconnect the SRS control module assembly wire harness connector (1).

b. Remove 2 fixing nuts (arrow) between SRS control

module assembly and body.

(Tightening torque: 10 ± 1 N·m)

c. Remove the SRS control module assembly.

Installation

Installation is in the reverse order of removal.

WARNING

 Wait at least 90 seconds after disconnecting negative battery cable to disable supplemental restraint

system.

WARNING

 DO NOT damage the airbag wire harness when handling airbag wire harness connector.

RT21320150

1

CAUTION

 Be sure to tighten fixing nuts to the specified torque during installation.
 Always install the SRS control module assembly correctly in the direction of arrow on the SRS control

module assembly.

 DO NOT put any object between SRS control module assembly and installation surface.
 Always keep the vehicle power off during installation.
 Check the SRS warning light after installation, and make sure that supplemental restraint system

operates normally.

33–

3

33

SEAT BELT

GENERAL INFORMATION

Description

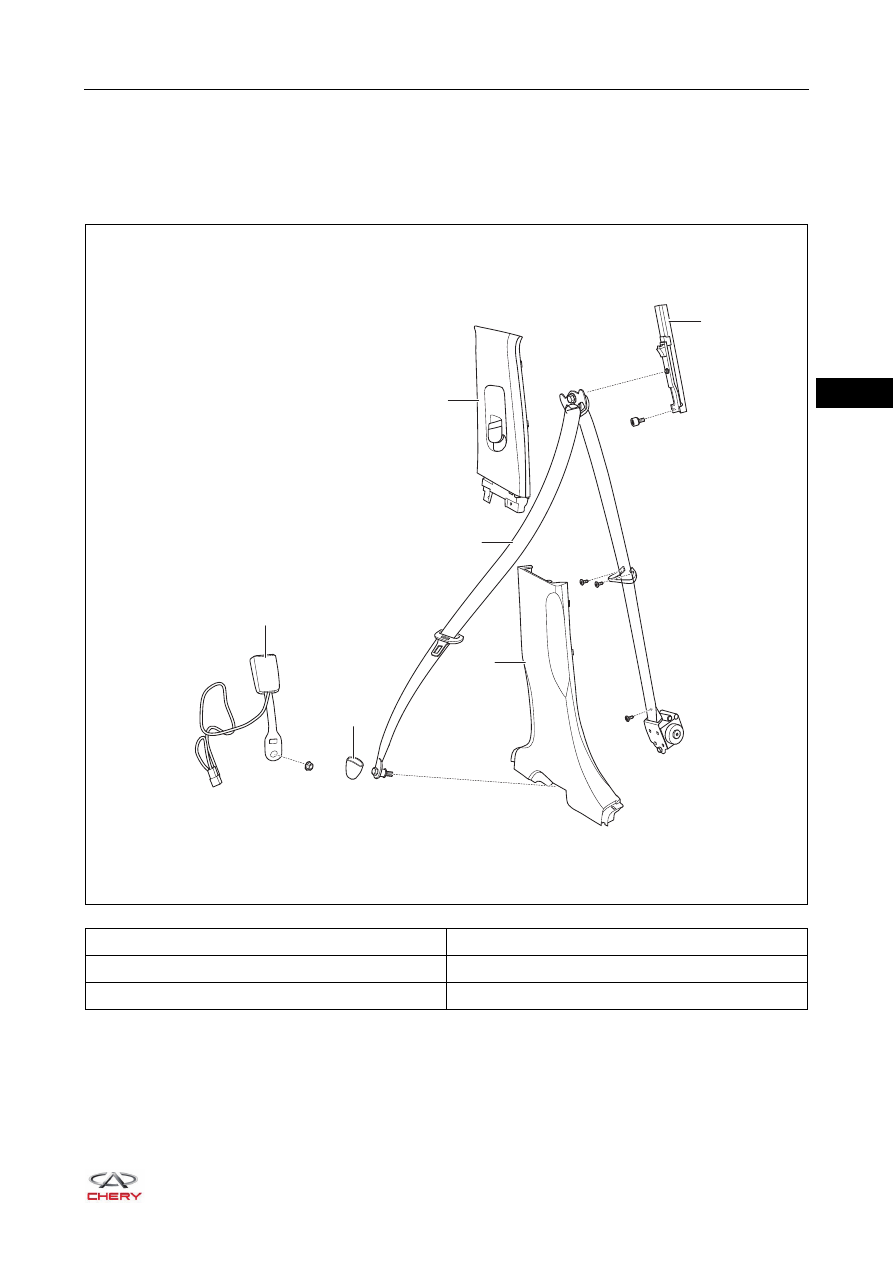

Front Seat Belt Assembly

1 - Height Adjuster Assembly

2 - B-pillar Upper Protector Assembly

3 - Front Seat Belt Assembly

4 - B-pillar Lower Protector Assembly

5 - Seat Belt Lower Bolt Protective Cap

6 - Front Seat Belt Buckle Assembly

RT21330010

1

4

2

3

6

5
