Chery Tiggo 5 (T21). Manual - part 346

31–

88

31

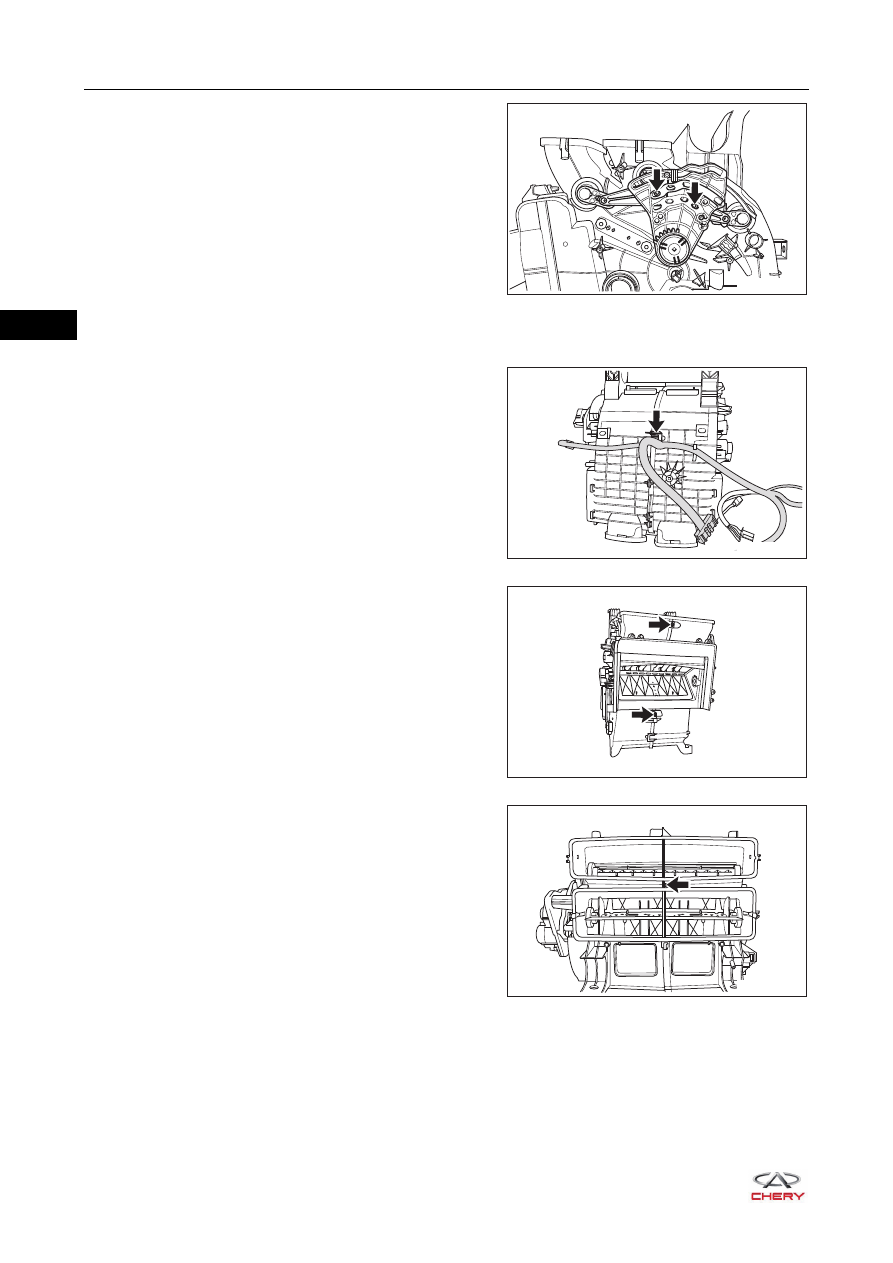

b. Remove 2 fixing screws (arrow) from the mode

damper adjustment mechanism set.



(Tightening torque: 2.5 ± 0.5 N·m)

c. Detach the mode damper adjustment mechanism set from the evaporator tank assembly carefully.

19.Remove the temperature/face/defroster/foot damper set.

a. Detach the A/C wire harness assembly (arrow) from

the evaporator tank assembly.

b. Remove 2 fixing screws (arrow) from the front part of

evaporator tank assembly.



(Tightening torque: 2.5 ± 0.5 N·m)

c. Remove the fixing screw (arrow) from the upper part

of evaporator tank assembly.



(Tightening torque: 2.5 ± 0.5 N·m)

RT21310630

RT21310640

RT21310650

RT21310660

31–

89

31

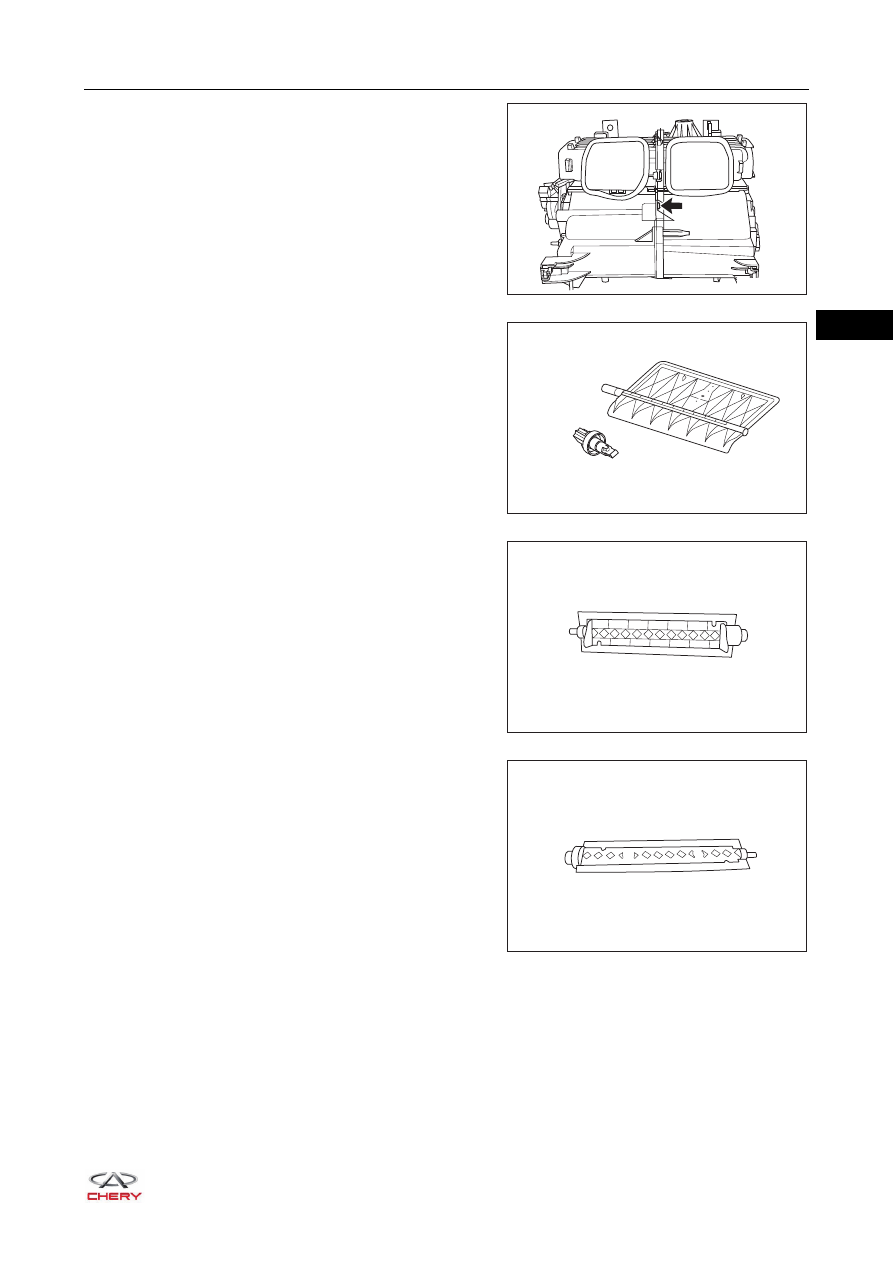

d. Remove the fixing screw (arrow) from the lower part of

evaporator tank assembly.



(Tightening torque: 2.5 ± 0.5 N·m)

e. Detach the fixing clips, separate the evaporator case,

and remove the temperature damper set.

f. Remove the face damper set.

g. Remove the defroster damper set.

RT21310670

RT21310680

RT21310690

RT21310700

31–

90

31

h. Remove the foot damper set.

Inspection

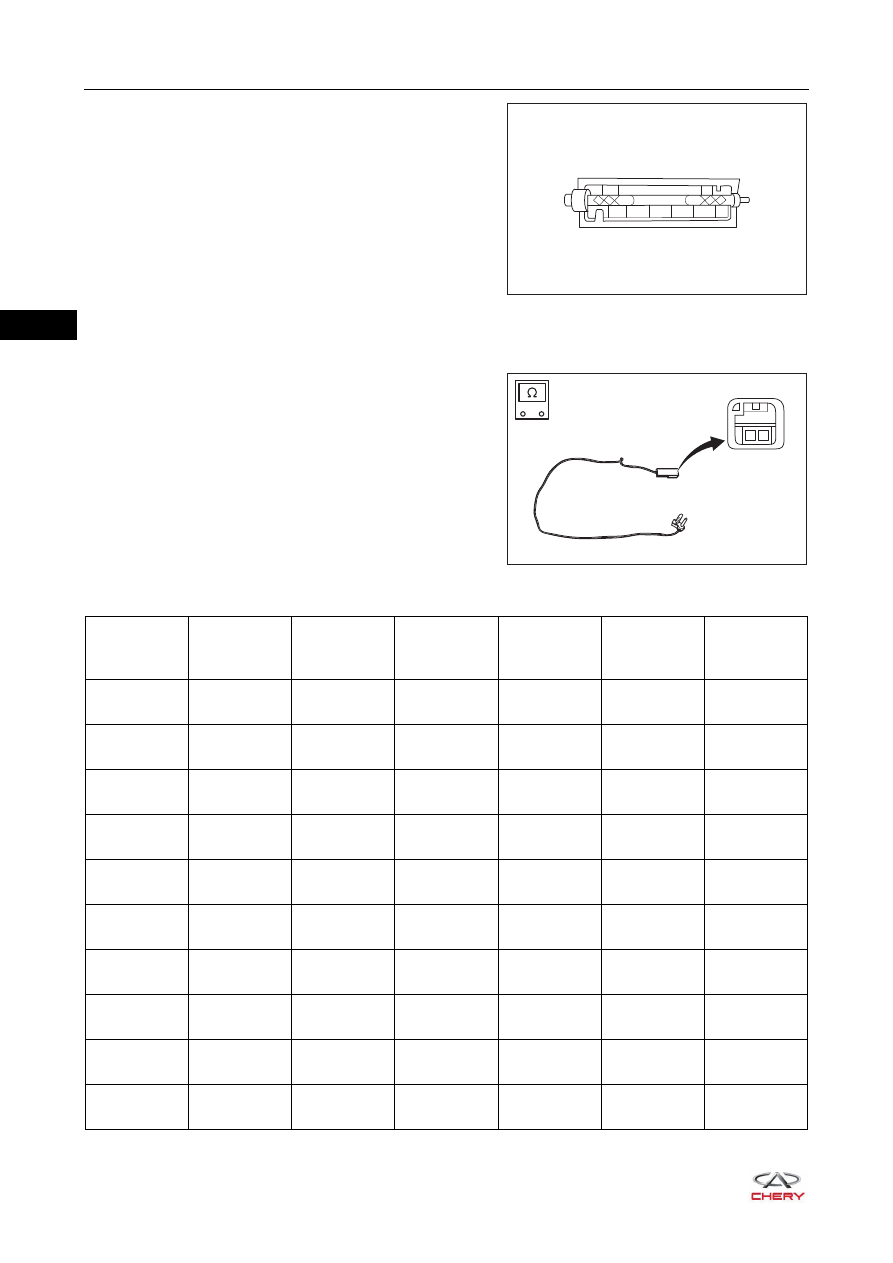

1. Check the evaporator temperature sensor.

a. Using the ohm band of digital multimeter, measure the

resistance of evaporator temperature sensor
according to the table below.

Standard Resistance

RT21310710

1 2

-

+

RT21310720

Multimeter

Connection

Temperature

(°C)

Specified

Condition

(Ω)

Temperature

(°C)

Specified

Condition

(Ω)

Temperature

(°C)

Specified

Condition

(Ω)

Terminal 1 -
Terminal 2

-40

45636

-8

8916

24

2294

Terminal 1 -
Terminal 2

-39

43408

-7

8516

25

2200

Terminal 1 -
Terminal 2

-38

41180

-6

8116

26

2125

Terminal 1 -
Terminal 2

-37

38953

-5

7716

27

2050

Terminal 1 -
Terminal 2

-36

36725

-4

7412

28

1975

Terminal 1 -
Terminal 2

-35

34498

-3

7107

29

1900

Terminal 1 -
Terminal 2

-34

32864

-2

6803

30

1825

Terminal 1 -
Terminal 2

-33

31230

-1

6498

31

1764

Terminal 1 -
Terminal 2

-32

29596

0

6194

32

1704

Terminal 1 -
Terminal 2

-31

27962

1

5922

33

1643

31–

91

31

Terminal 1 -
Terminal 2

-30

26328

2

5663

34

1583

Terminal 1 -
Terminal 2

-29

25117

3

5418

35

1522

Terminal 1 -
Terminal 2

-28

23906

4

5185

36

1473

Terminal 1 -
Terminal 2

-27

22695

5

4963

37

1424

Terminal 1 -
Terminal 2

-26

21484

6

4752

38

1375

Terminal 1 -
Terminal 2

-25

20273

7

4552

39

1326

Terminal 1 -
Terminal 2

-24

19367

8

4361

40

1277

Terminal 1 -
Terminal 2

-23

18461

9

4180

41

1237

Terminal 1 -
Terminal 2

-22

17554

10

4007

42

1197

Terminal 1 -
Terminal 2

-21

16648

11

3857

43

1156

Terminal 1 -
Terminal 2

-20

15742

12

3708

44

1116

Terminal 1 -
Terminal 2

-19

15058

13

3558

45

1076

Terminal 1 -
Terminal 2

-18

14374

14

3408

46

1043

Terminal 1 -
Terminal 2

-17

13689

15

3259

47

1010

Terminal 1 -
Terminal 2

-16

13005

16

3141

48

978

Terminal 1 -
Terminal 2

-15

12321

17

3023

49

945

Terminal 1 -
Terminal 2

-14

11800

18

2905

50

912

Terminal 1 -
Terminal 2

-13

11279

19

2787

51

885

Terminal 1 -
Terminal 2

-12

10758

20

2669

52

858

Terminal 1 -
Terminal 2

-11

10237

21

2575

53

830

Terminal 1 -
Terminal 2

-10

9716

22

2481

54

803

Multimeter

Connection

Temperature

(°C)

Specified

Condition

(Ω)

Temperature

(°C)

Specified

Condition

(Ω)

Temperature

(°C)

Specified

Condition

(Ω)
