Chery Tiggo 5 (T21). Manual - part 298

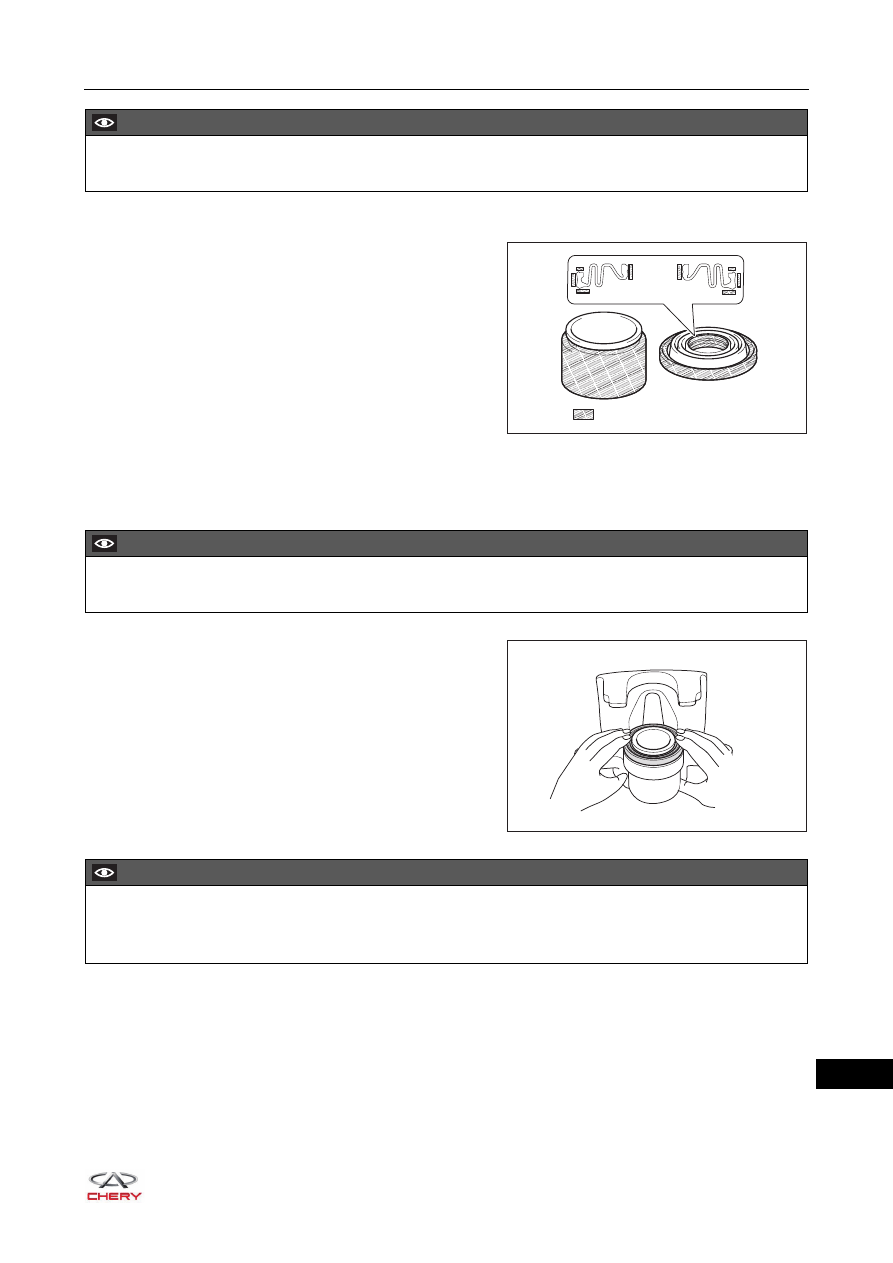

26–

47

26

2. Install the rear disc brake piston.

a. Apply a light coat of grease to the inner and outer

circumferences, and entire periphery of outer flange
top/bottom surfaces of new brake cylinder dust boot
as shown in the illustration.

b. Apply a light coat of grease to the entire outer

circumference (part contacting with the brake cylinder
dust boot and rear disc brake cylinder) of the rear disc
brake piston.

c. Install the brake cylinder dust boot onto the rear disc brake piston.

3. Install the brake cylinder dust boot.

a. Install the rear disc brake piston to the rear disc brake cylinder.

b. Install the brake cylinder dust boot to the brake

cylinder.

CAUTION

 Securely install rear disc brake piston seal ring into the rear ring groove of brake cylinder.

Grease

RT21260470

CAUTION

 DO NOT install piston forcibly to brake cylinder.

RT21260680

CAUTION

 Securely install brake cylinder dust boot into front ring groove of disc brake cylinder.
 DO NOT damage brake cylinder dust boot.

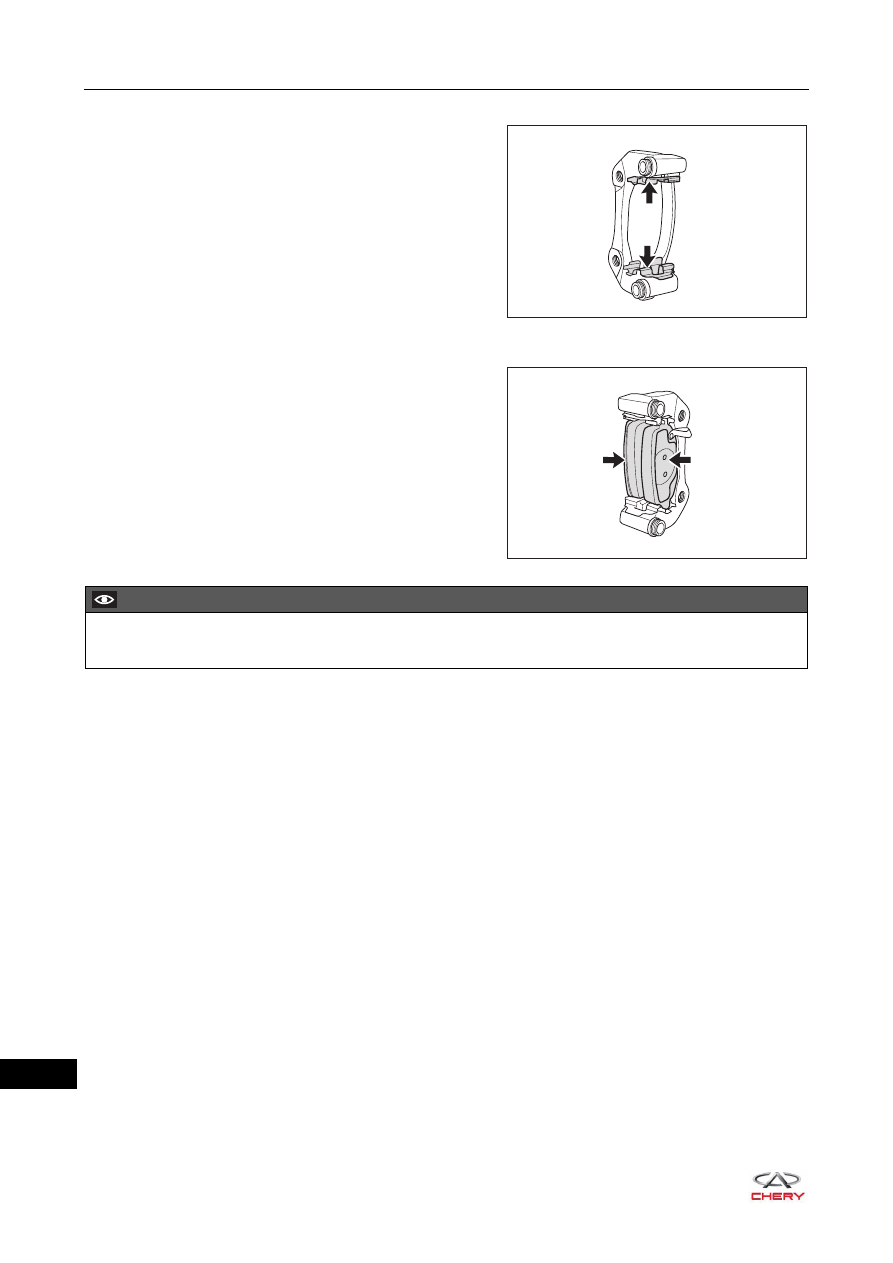

26–

48

26

4. Install the brake lining support gasket.

a. Securely install the upper and lower support gaskets

onto the brake caliper fixing bracket.

5. Install the rear brake lining.

a. Securely install the inner brake lining and outer brake

lining (arrow) onto the brake caliper fixing bracket.
Make sure they are clamped in place.

RT21260610

RT21260600

CAUTION

 Make sure the contact surface of lining and brake disc is free of oil and grease.

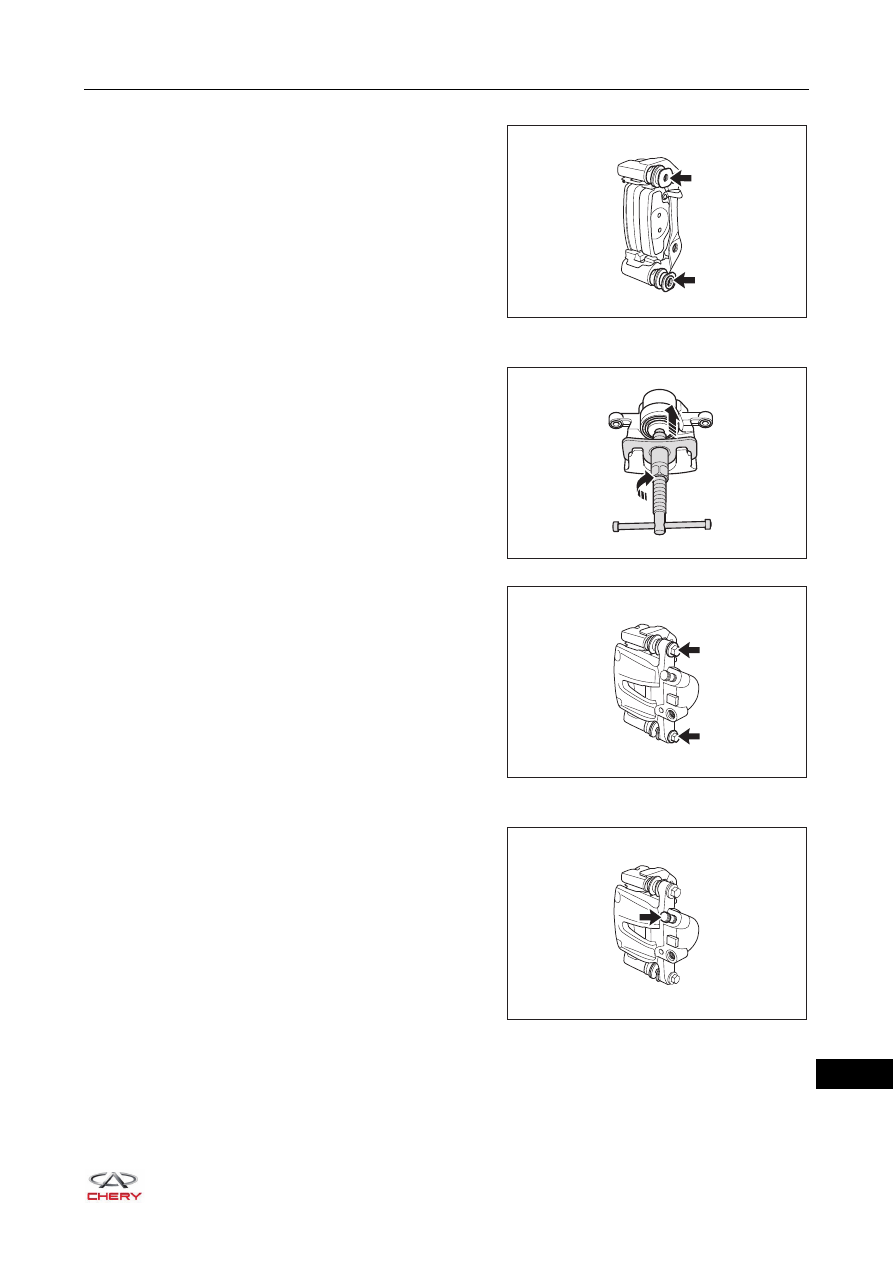

26–

49

26

6. Install the rear brake caliper locating bolt guide pin (w/ dust boot).

a. Apply a small amount of grease to the contact surface

between locating bolt guide pins and guide pin rubber
dust boots, and securely install the dust boots to the
brake caliper fixing bracket.

7. Install the brake cylinder assembly.

a. Using brake cylinder piston pressing tool, slightly

retract the brake cylinder piston (both sides).

b. Align the brake caliper locating bolts (arrow) with the

guide pin hole and securely install the brake cylinder
assembly.



(Tightening torque: 25 ± 3 N·m)

8. Install the bleeder plug (w/ bleeder plug cap).

a. Securely install the bleeder plug (w/ bleeder plug cap)

(arrow) to the rear brake caliper assembly.



(Tightening torque: 9 - 11 N·m)

RT21260590

RT21260690

RT21260580

RT21260570

26–

50

26

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure to tighten fixing bolts and nuts to the specified torque during installation.
 Before installing brake linings, completely retract brake caliper piston back into the bore of brake caliper.
 Depress brake pedal several times to secure the brake linings to brake disc in order to ensure safety

after installing the brake linings and before moving vehicle.

 Replace brake linings in pairs. DO NOT replace it alone.
 DO NOT install inner brake lining and outer brake lining reversely.
 Be sure to check brake system for leakage after installation. Repair or replace malfunctioning parts as

necessary.

 Be sure to perform bleeding procedures for brake system after installation.
 Be sure to add brake fluid to the proper level after installation.
