23–

7

23

Coupling Bolt Between Rear Part of Front Sub
Frame Welding Assembly and Body

180 ± 10

Coupling Bolt Between Front Stabilizer Bar
Assembly and Front Sub Frame Welding Assembly

25 ± 3

Coupling Bolt Between Lower Part of Rear Shock
Absorber Assembly and Rear Trailing Arm Assembly

45 ± 5

Coupling Nut Between Upper Part of Rear Shock
Absorber Assembly and Body

45 ± 5

Coupling Nut Between Rear Stabilizer Link Assembly
and Rear Suspension Lower Swing Arm Assembly

45 ± 5

Coupling Bolt Between Rear Shock Absorber
Assembly Fixing Bracket and Rear Trailing Arm
Assembly

80 ± 8

Coupling Bolt Between Rear Suspension Lower
Swing Arm Assembly and Rear Trailing Arm
Assembly

120 ± 10

Coupling Nut Between Rear Suspension Lower
Swing Arm Assembly and Rear Trailing Arm
Assembly

120 ± 10

Coupling Bolt Between Rear Suspension Upper
Swing Arm Assembly and Rear Trailing Arm
Assembly

120 ± 10

Coupling Nut Between Rear Suspension Upper
Swing Arm Assembly and Rear Trailing Arm
Assembly

120 ± 10

Coupling Bolt Between Rear Rubber Cushion
Assembly and Body

25 ± 5

Coupling Bolt Between Rear Suspension Upper
Swing Arm Assembly and Rear Sub Frame
Assembly

120 ± 10

Coupling Nut Between Rear Suspension Upper
Swing Arm Assembly and Rear Sub Frame
Assembly

120 ± 10

Coupling Bolt Between Rear Suspension Lower
Swing Arm Assembly and Rear Sub Frame
Assembly

120 ± 10

Coupling Nut Between Rear Suspension Lower
Swing Arm Assembly and Rear Sub Frame
Assembly

120 ± 10

Description

Torque (N·m)

23–

8

23

Coupling Bolt Between Rear Wheel Speed Sensor
Fixing Bracket and Rear Trailing Arm Assembly

23 ± 2

Coupling Bolt Between Parking Brake Cable Fixing
Bracket and Rear Trailing Arm Assembly

23 ± 2

Coupling Bolt Between Rear Brake Line Fixing
Bracket and Rear Trailing Arm Assembly

23 ± 2

Coupling Bolt Between Rear Trailing Arm Assembly
and Mounting Bracket

120 ± 10

Coupling Nut Between Rear Trailing Arm Assembly
and Mounting Bracket

120 ± 10

Coupling Nut Between Rear Stabilizer Link Assembly
and Rear Stabilizer Bar Assembly

45 ± 5

Rear Brake Line Fixing Plug

16 ± 2

Coupling Bolt Between Rear Stabilizer Bar Assembly
and Body

25 ± 3

Steering Tie Rod Locking Nut

55 ± 5

Steering Wheel Locking Nut

35 ± 5

Description

Torque (N·m)

23–

9

23

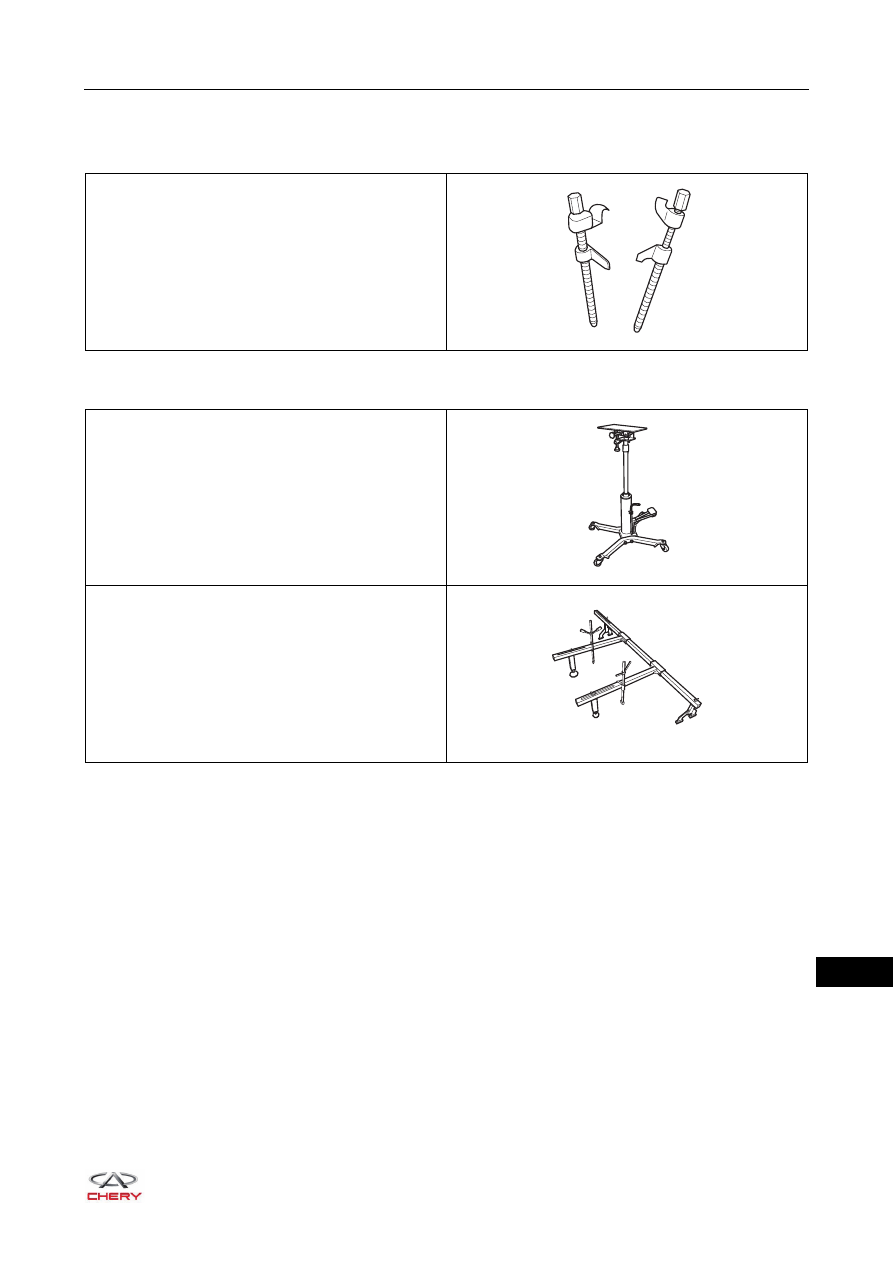

Tools

Special Tool

General Tools

Spring Compressor

RCH0000021

Transmission Carrier

Engine Equalizer

RCH0000005

RCH0000026

23–

10

23

DIAGNOSIS & TESTING

Problem Symptoms Table

HINT:
Use the table below to help determine the cause of the problem symptoms. Check each suspected area in
sequence. Repair or replace the faulty components, or adjust as necessary.

Front Suspension

Symptom

Suspected Area

See page

Vehicle pulls

Front tire (worn or improperly inflated)

24-7

Front wheel alignment (incorrect)

23-50

Control arm ball pin assembly (loose)

23-22

Steering tie rod (loose or worn)

29-21

Front hub bearing (excessively worn)

22-9

Front suspension components (excessively
worn or deformed)

23-12

Droop

Vehicle (overloaded)

-

Front coil spring (too soft)

23-15

Front shock absorber assembly (worn or
damaged)

23-12

Front suspension components (excessively
worn or deformed)

23-12

Sways/pitches

Front tire (worn or improperly inflated)

24-7

Front stabilizer bar assembly (bent or
broken)

23-24

Front shock absorber assembly (worn or
damaged)

23-12

Wheel shimmy

Front tire (worn or improperly inflated)

24-7

Front wheel (out of balance)

24-7

Front shock absorber assembly (worn or
damaged)

23-12

Front wheel alignment (incorrect)

23-50

Control arm ball pin assembly (loose)

23-22

Front hub bearing (excessively worn)

22-9

Steering gear (misaligned or damaged)

29-23

Abnormal tire wear

Front tire (improperly inflated)

24-7

Front wheel alignment (incorrect)

23-50

Front shock absorber assembly (worn or
deformed)

23-12

Front suspension components (worn or
deformed)

23-12
