Chery Tiggo 5 (T21). Manual - part 246

21–

Differential Planetary Gear

Removal

1. Remove the differential (

See page 17-22

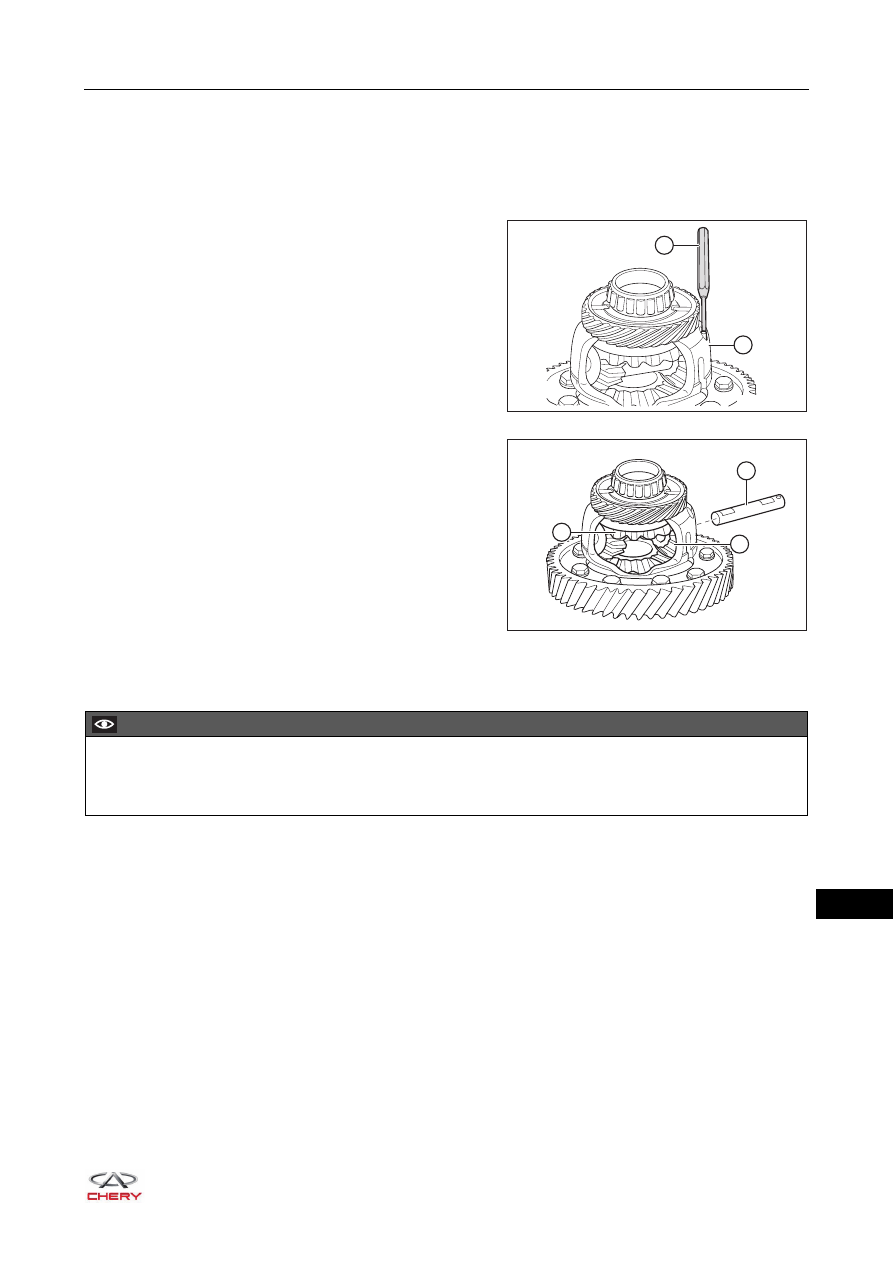

2. Remove the differential planetary gear.

a. Tap out the dowel pin (2) with a punch (1).

b. Remove the planetary gear shaft (1), planetary gear

(2) and drive shaft gear (3).

Installation

Installation is in the reverse order of removal.

Differential Parts Inspection

1. Clean all the components.
2. Check the following components for wear:

 Driven gear of final drive
 Planetary gear washer
 Drive shaft gear
 Planetary gear
 Planetary gear shaft
 Drive shaft gear washer

RA19200060

RT21210070

CAUTION

 Adjust clearance until the gear clearances of both sides are the same during installation.
 The drive shaft gears and planetary gears should operate normally after tapping in the dowel pin.

21–

22–

AXLE

GENERAL INFORMATION

Description

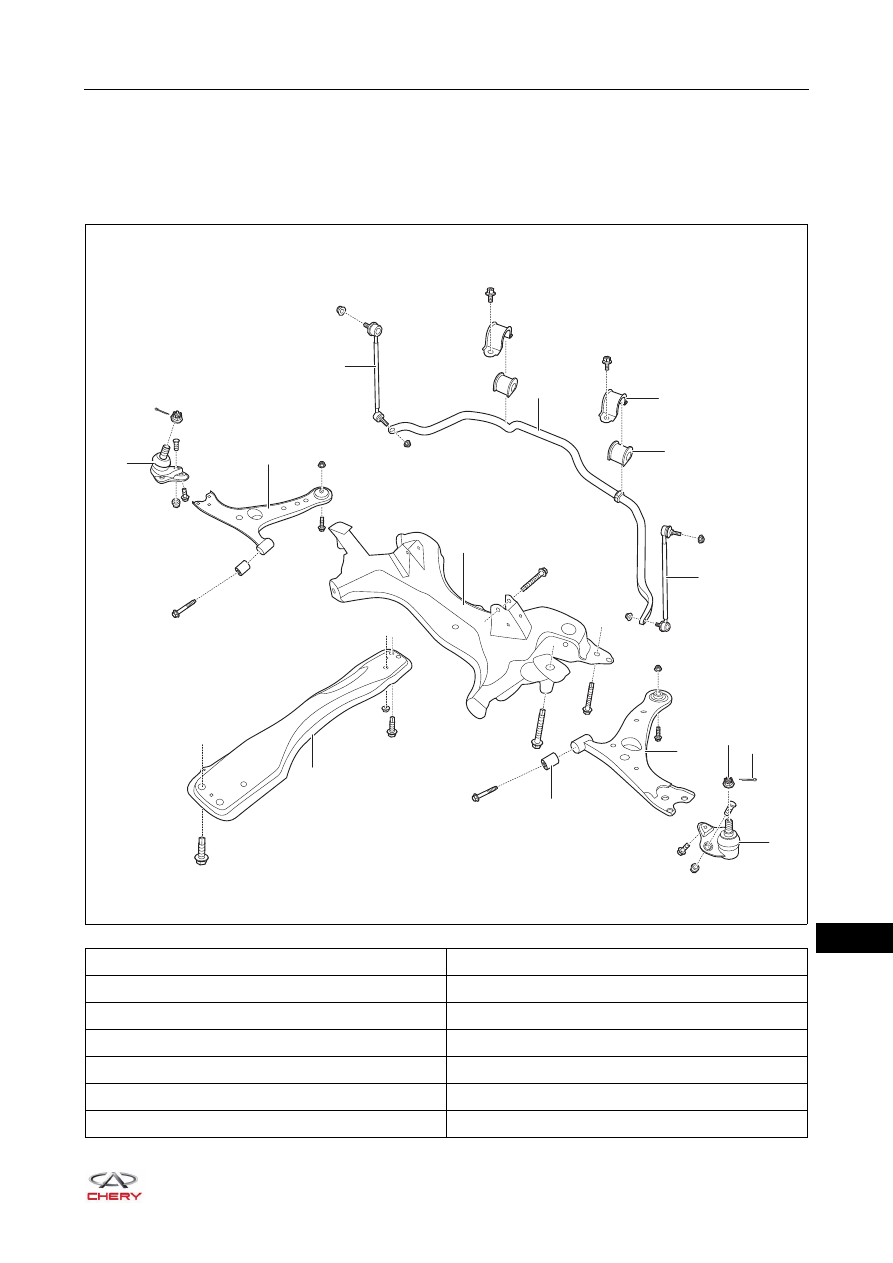

Front Axle

1 - Front Right Connecting Rod Assembly

2 - Front Stabilizer Bar

3 - Front Stabilizer Bar Retainer

4 - Front Stabilizer Bar Rubber Bushing

5 - Front Left Connecting Rod Assembly

6 - Front Left Control Arm Assembly

7 - Front Control Arm Ball Pin Assembly Locking Nut 8 - Front control Arm Ball Pin Lock Pin

9 - Front Left Control Arm Ball Pin Assembly

10 - Front Rubber Bushing Assembly

11 - Side Rail Welding Assembly

12 - Front Sub Frame Welding Assembly

13 - Front Right Control Arm Assembly

14 - Front Right Control Arm Ball Pin Assembly

×2

RT21220010
