18–

57

18

a. Use the diagnostic tester to read the data related to engine and transmission system speed sensor for

abnormality.

b. Transmission system should be normal.
c. Is the check result normal?

a. Using X-431 3G diagnostic tester, select Read Code.
b. Refer to "DTC Confirmation Procedure".
c. Is DTC P0730 still present?

Repair these DTCs fault

NG

3

Read data stream

OK

Repair fault

NG

4

Check for DTC

OK

Replace solenoid and wire harness
assembly

NG

System is normal

OK

18–

58

18

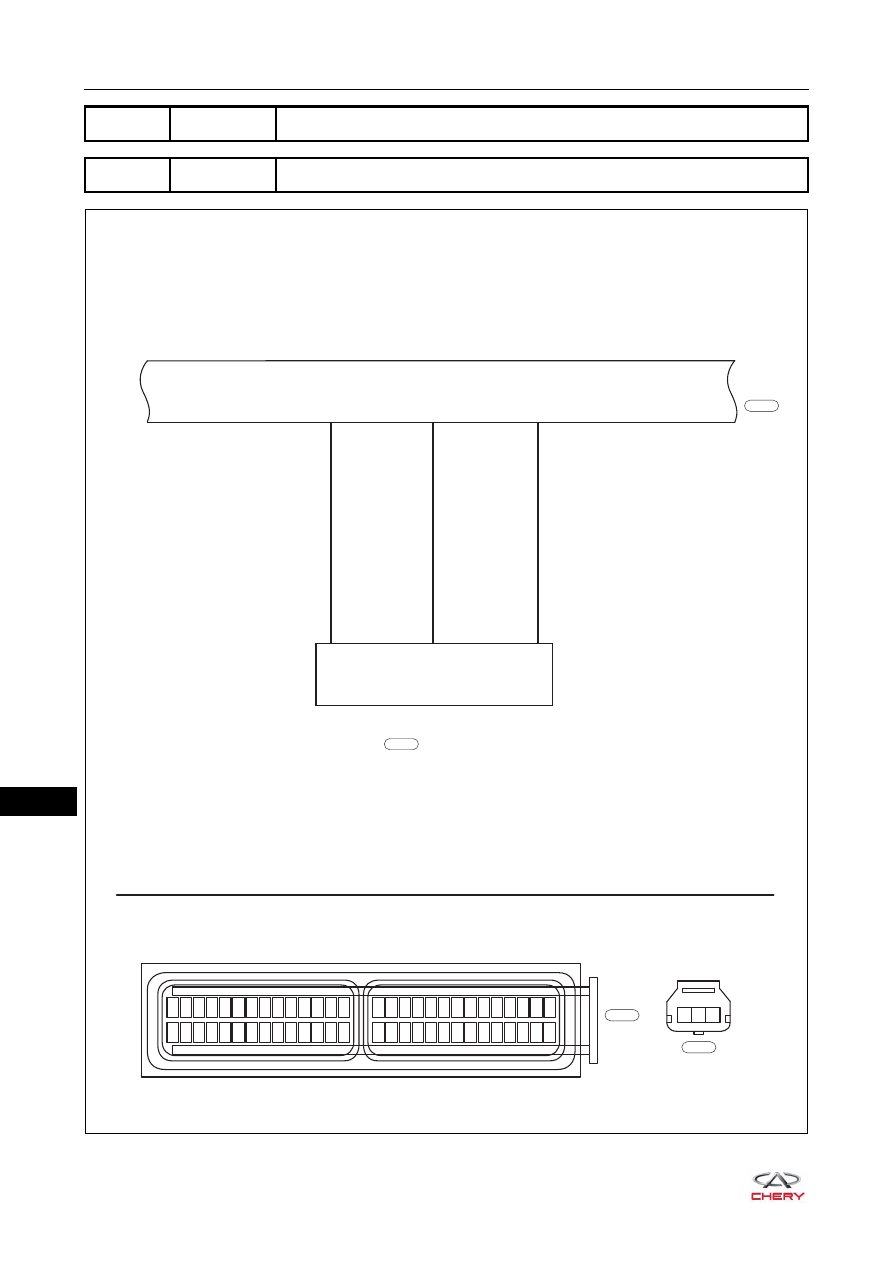

DTC

P0791

Intermediate Shaft Speed Sensor 'A' Circuit

DTC

P0792

Intermediate Shaft Speed Sensor 'A' Circuit Range

ET21180110

TCU

29 30 31 32 33 34 35 36 37 38 39 40 41 42

1 2 3 4 5 6 7 8 9 10 11 12 13 14

43 44 45 46 47 48 49 50 51 52 53 54 55 56

15 16 17 18 19 20 21 22 23 24 25 26 27 28

PRIMARY SHAFT
SPEED SENSOR

1

2

3

E-030

E-083

B

E-030

B

E-083

27

51

23

LB

GR

BGr

1

2

3

18–

59

18

DTC Confirmation Procedure:

Confirm that battery voltage is between 11 and 14 V before performing the following procedures.
 Turn ignition switch to LOCK.
 Connect X-431 3G diagnostic tester (the latest software) to Data Link Connector (DLC), and make it

communicate with vehicle electronic module by the data network.

 Turn ignition switch to ON.
 Using X-431 3G diagnostic tester to record and clear the DTCs stored in the TCU.
 Turn ignition switch to LOCK and wait for a few seconds.
 Turn ignition switch to ON, and then select "Read Code".
 If DTC is detected, the malfunction indicated by the DTC is current. Go to the diagnosis procedure - Step 1.
 If DTC is not detected, the malfunction indicated by the DTC is intermittent. Please refer to Intermittent

DTC Troubleshooting.

Diagnosis Procedure

HINT:
After the fault is eliminated, verify DTC and symptom again.

a. Turn ignition switch to LOCK.
b. Disconnect the primary shaft speed sensor connector.
c. Check if the primary shaft speed sensor connector is dirty, oxidized, loose or damaged.

DTC Code

DTC Definition

DTC Detection

Condition

DTC Set

Condition

Possible Cause

P0791

Intermediate Shaft
Speed Sensor 'A'
Circuit

Start engine and keep
it at following status for
at least 1 min: throttle
opening not less than
10%, at D gear, engine
speed higher than 800
rpm

The input speed
signal is higher
than the
allowable value
within a period

 Incorrect

installation of the
input speed sensor

 Signal circuit open

or short circuit

 Input speed sensor

power circuit poor
contact

 Input speed sensor

failure

 TCU signal

treatment circuit
failure

P0792

Intermediate Shaft
Speed Sensor 'A'
Circuit Range

Start engine and keep
it at following status for
at least 10 seconds:
throttle opening not
less than 10%, at D
gear, engine speed
higher than 800 rpm

The input speed
signal exceeds
the standard
value

1

Check wire harness connector

Repair fault

NG

OK

18–

60

18

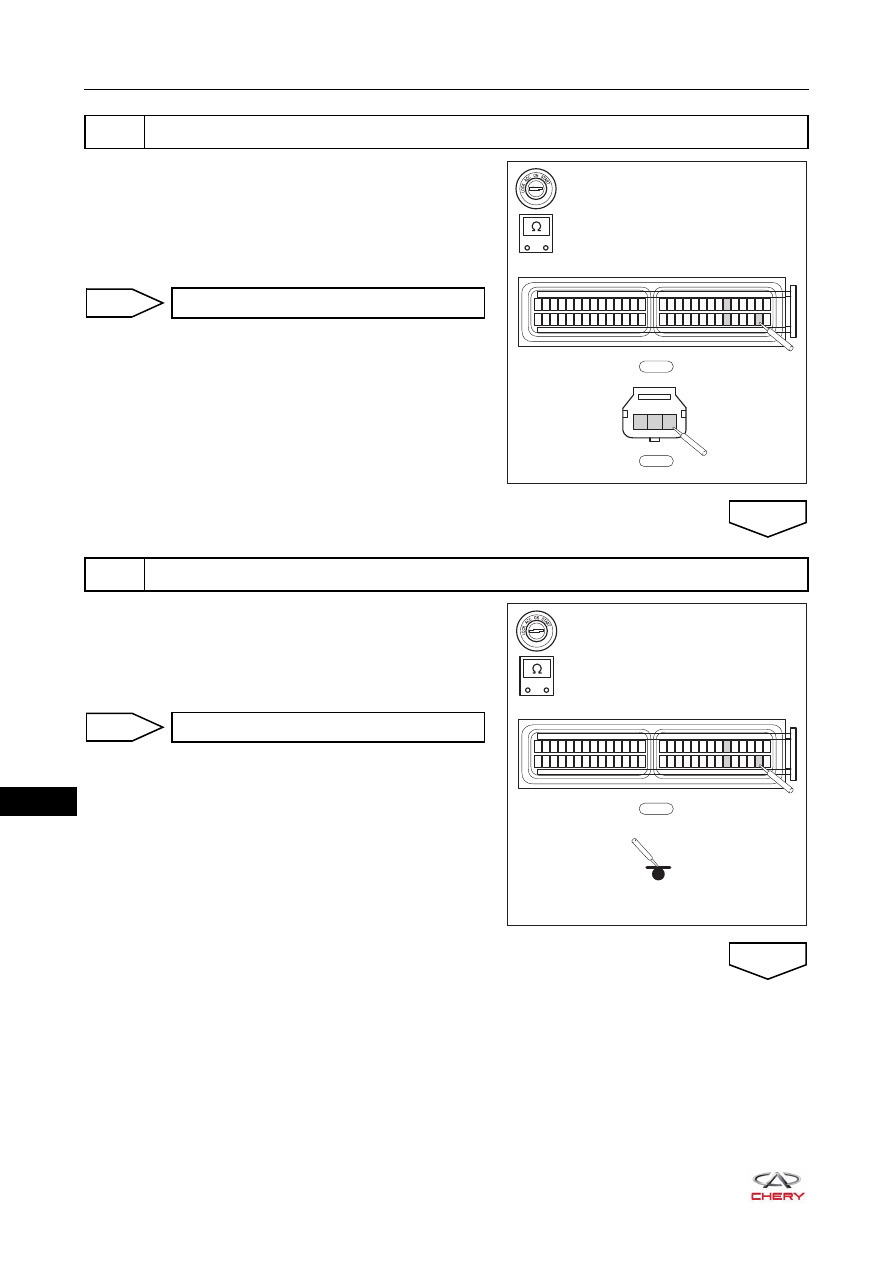

a. Turn ignition switch to LOCK and disconnect the negative

battery cable.

b. Disconnect the wire harness connectors E-030 and E-083.
c. Check for continuity between the terminals 23, 27 and 51

of wire harness connector E-030 and terminals 3, 1 and 2
of connector E-083.

a. Turn ignition switch to LOCK and disconnect the negative

battery cable.

b. Disconnect the wire harness connector E-030.
c. Check for continuity between the terminals 23, 27 and 51

of wire harness connector E-030 and ground.

2

Check TCU wire harness

RT21180980

E-030

29 30 31 32 33 34 35 36 37 38 39 40 41 42

1 2 3 4 5 6 7 8 9 10 11 12 13 14

43 44 45 46 47 48 49 50 51 52 53 54 55 56

15 16 17 18 19 20 21 22 23 24 25 26 27 28

-

+

E-083

1

2

3

Repair or replace failed circuit

NG

3

Check if TCU wire harness E-030 and ground is conductive

OK

RT21180990

E-030

29 30 31 32 33 34 35 36 37 38 39 40 41 42

1 2 3 4 5 6 7 8 9 10 11 12 13 14

43 44 45 46 47 48 49 50 51 52 53 54 55 56

15 16 17 18 19 20 21 22 23 24 25 26 27 28

-

+

Repair or replace failed circuit

NG

OK
