Installation

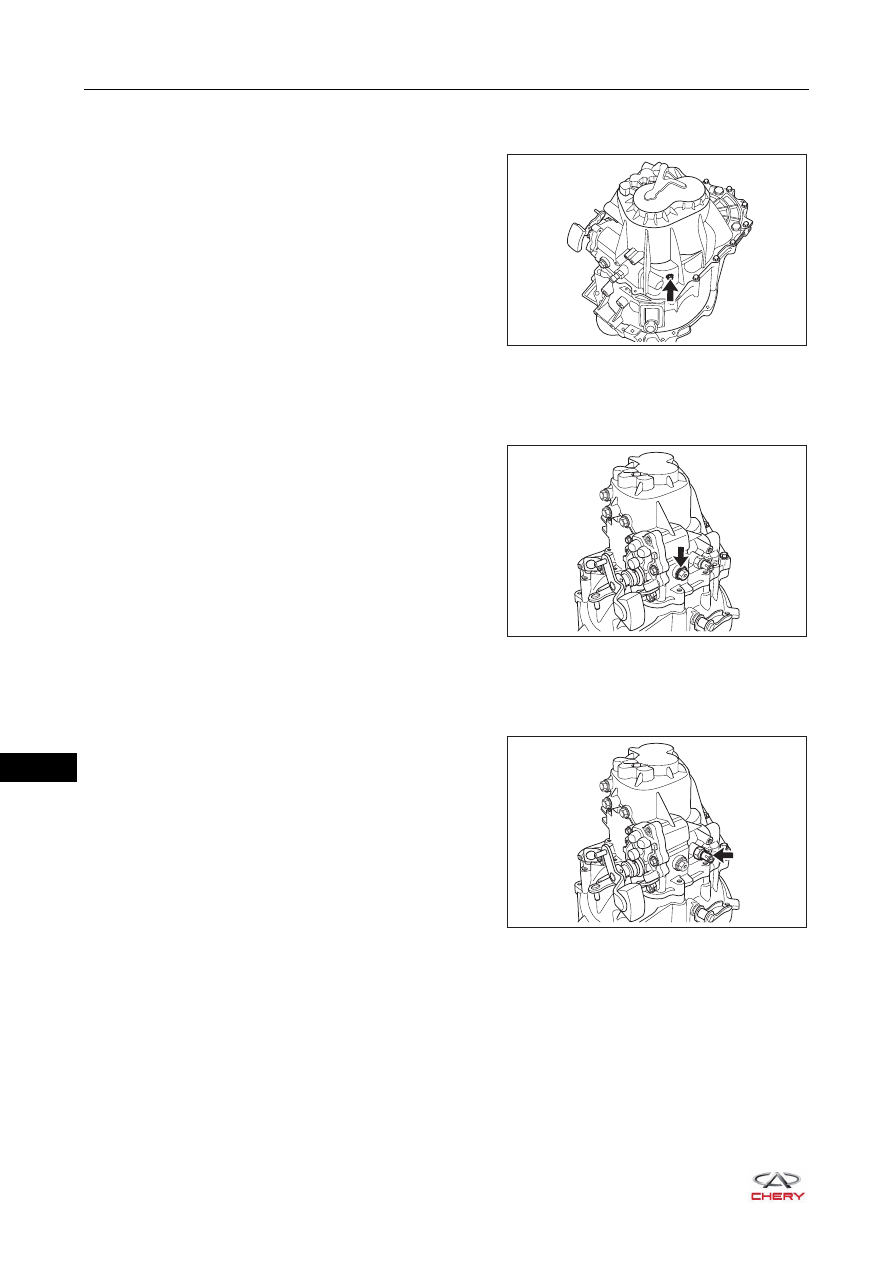

1. Install the reverse idler gear shaft locating bolt.

a. Install the reverse idler gear shaft locating bolt (arrow)

to the transmission case.



(Tightening torque: 40 ± 4 N·m)

2. Install the gear shift mechanism locating bolt.

HINT:
Apply thread adhesive to thread before installation.

a. Install the gear shift mechanism locating bolt (arrow)

to the transmission case.



(Tightening torque: 35 ± 5.25 N·m)

3. Install the back-up light switch.

HINT:
Apply thread adhesive to thread before installation.

a. Install the back-up light switch (arrow) to the

transmission case.



(Tightening torque: 20 ± 2 N·m)

RT21171080

RT21170180

RT21170190

17–

59

17

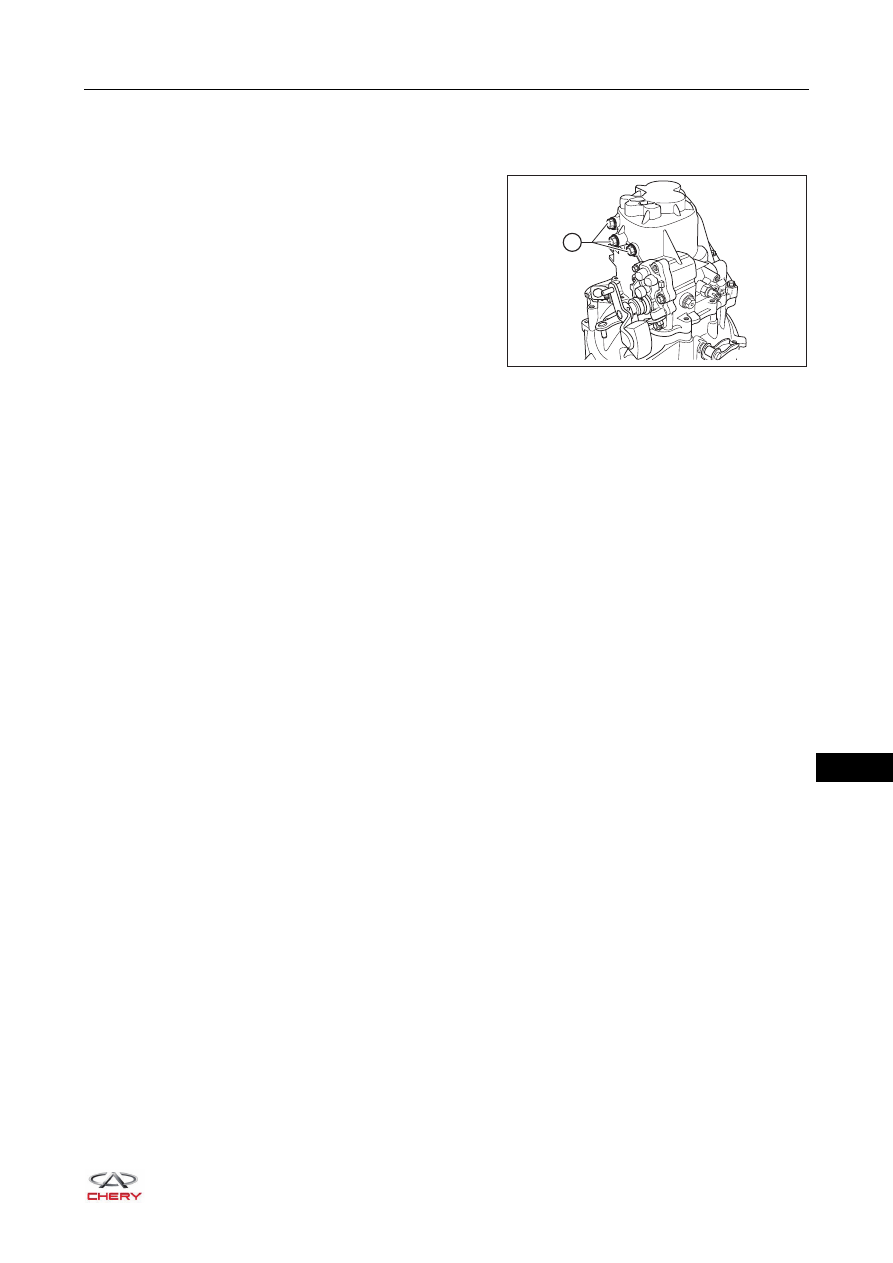

4. Install the shift shaft locating bolt.

HINT:
Apply thread adhesive to thread before installation.

a. Install the shift shaft locating bolts (1) to the

transmission case.



(Tightening torque: 35 ± 5.25 N·m)

1

RT21171070

17–

60

17

Transmission Case

Disassembly

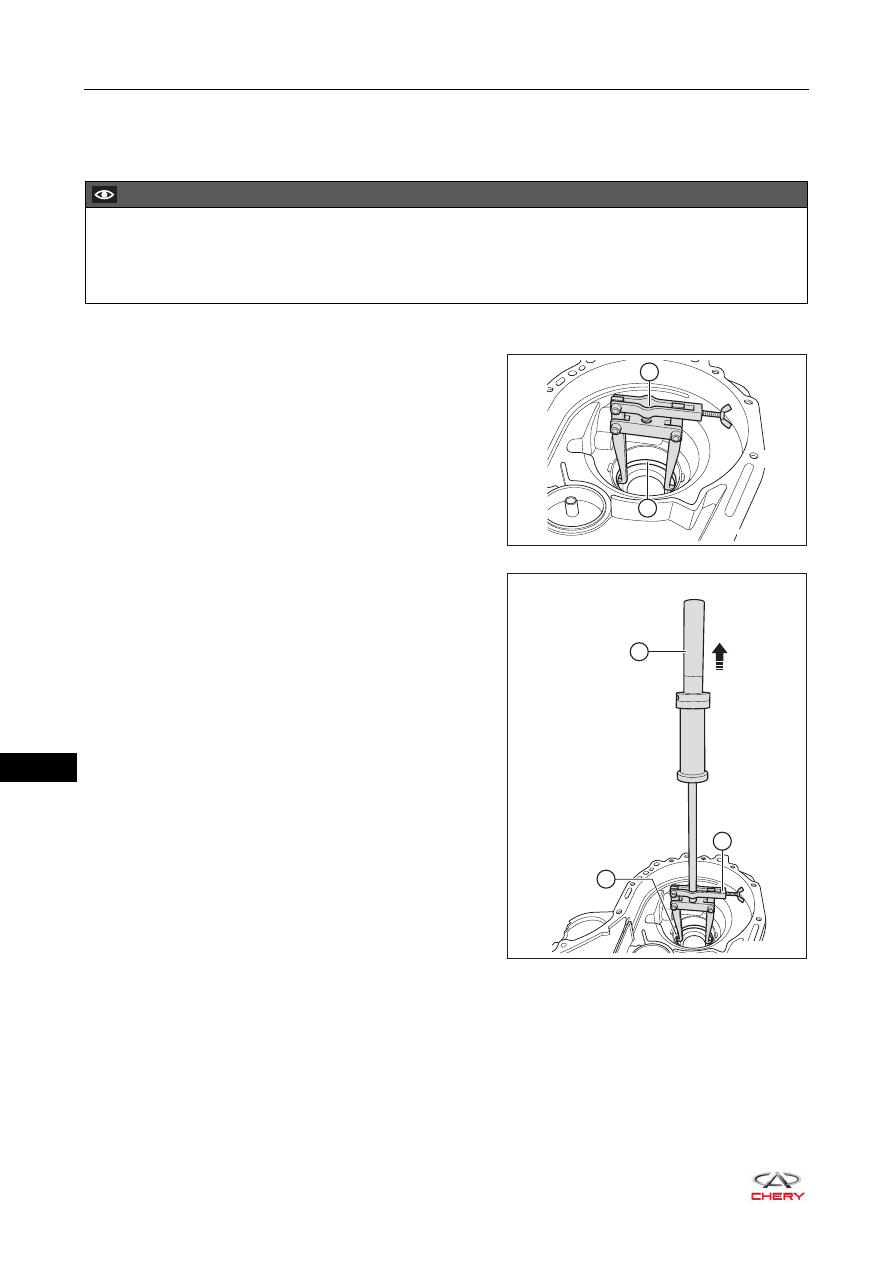

1. Remove the differential bearing outer race.

a. Secure the bearing outer race puller joint (1) to the

bearing outer race (2).

b. Install the puller (1) to the bearing outer race remover

(2), and pull out bearing outer race (3) with the puller.

CAUTION

 Use the same removal procedures for the differential bearing out race of transmission case and clutch

case and the oil seal.

 The oil seal cannot be reused. After removal, it must be replaced.

RT21171090

2

1

1

3

2

RT21172000

17–

61

17

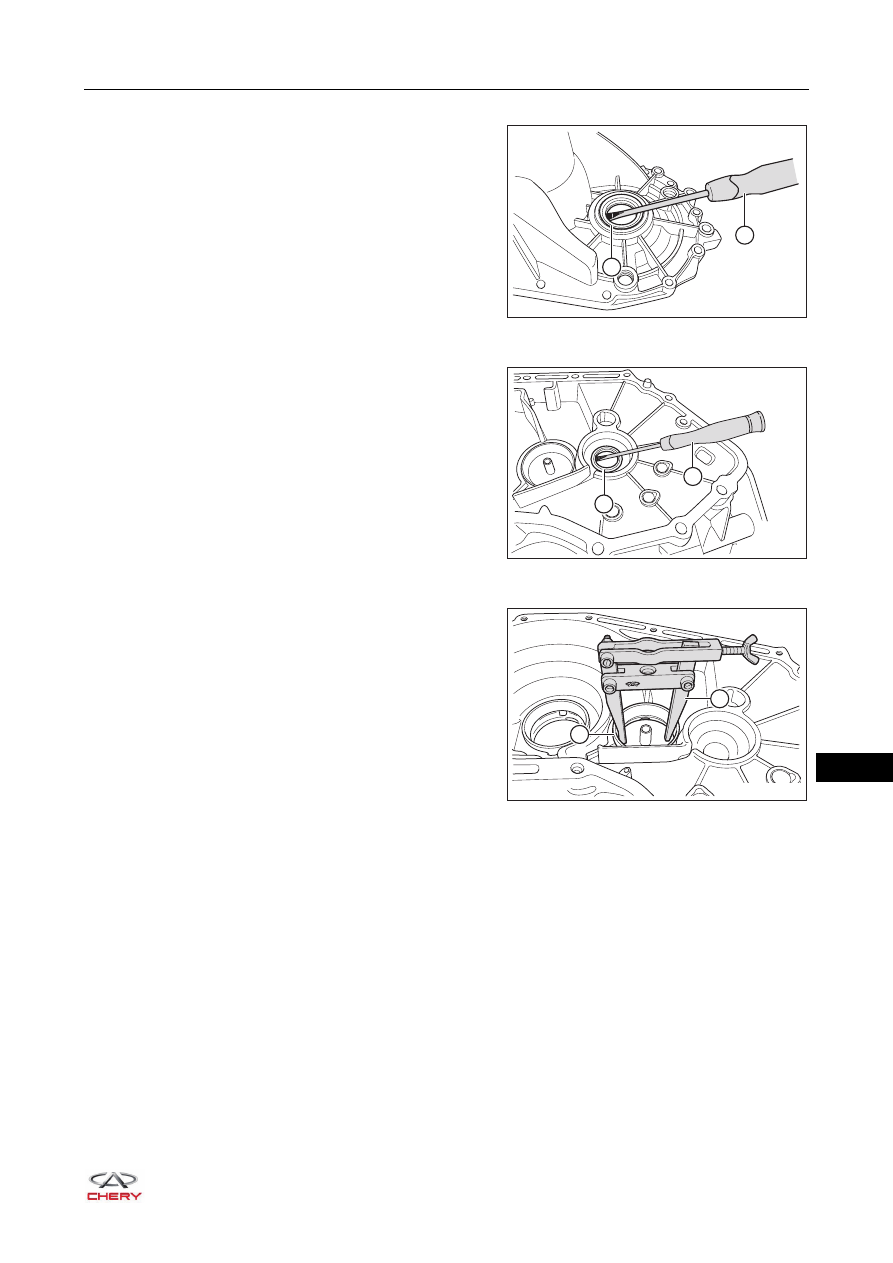

2. Remove the drive shaft oil seal.

a. Using a flat tip screwdriver (1), pry out the drive shaft

oil seal (2).

3. Remove the input shaft oil seal.

a. Using a flat tip screwdriver (1), pry out the input shaft

oil seal (2).

4. Remove the output shaft bearing outer race.

a. Secure the output shaft end bearing outer race puller

joint (1) to the output shaft bearing outer race (2).

1

2

RT21172010

1

2

RT21172020

1

2

RT21172030
