17–

42

17

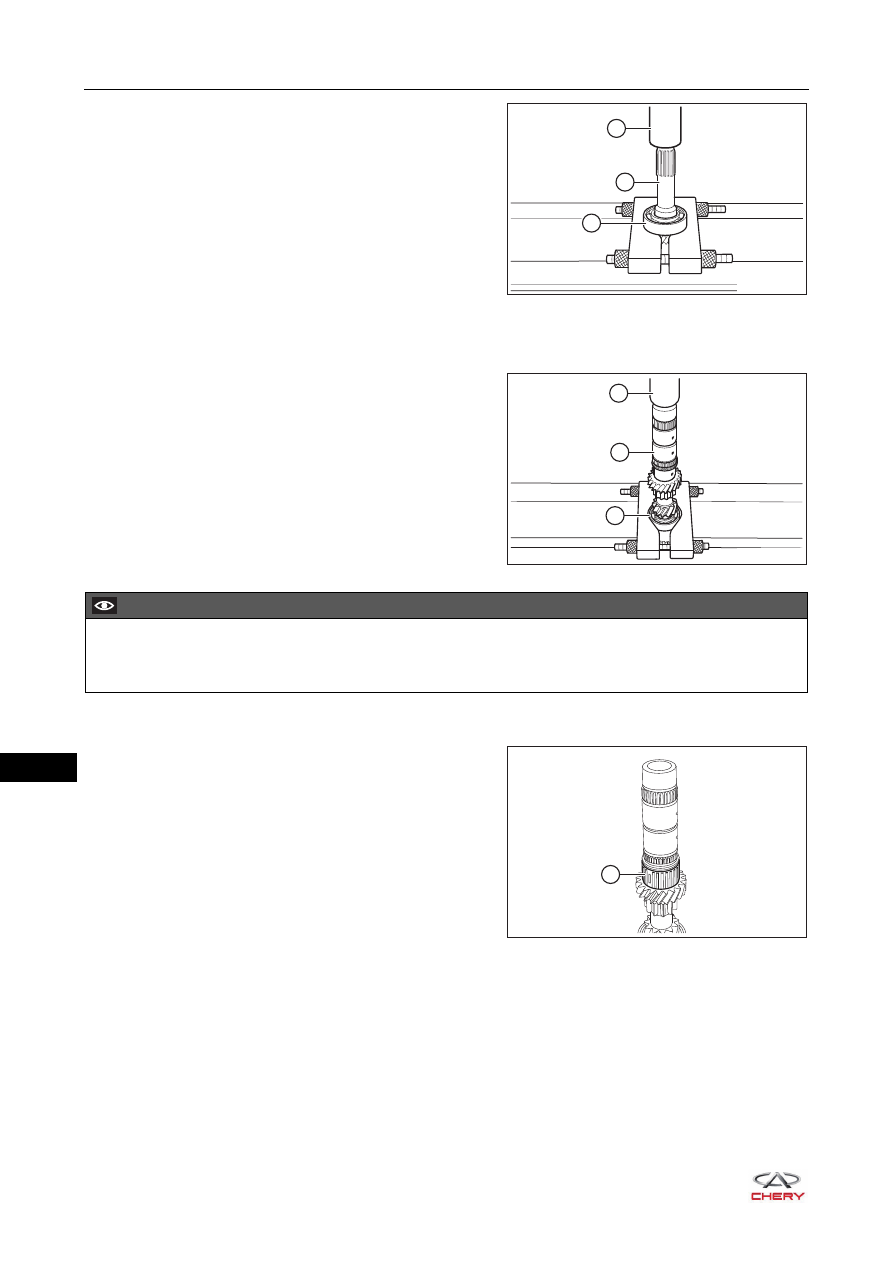

b. Using a hydraulic press (1), press the input shaft front

bearing (3) out of input shaft (2), and remove the input
shaft front bearing.

Assembly

1. Install the input shaft front bearing.

a. Using a hydraulic press (1), press the input shaft front

bearing (3) into input shaft (2).

2. Install the 3rd needle roller bearing.

a. Apply transmission oil to the needle roller bearing (1),

and install it to the input shaft.

1

2

3

RT21170670

RT21170680

1

2

3

CAUTION

 When pressing input shaft front bearing, make sure that pressure is applied to the bearing inner race as

the bearing may be damaged due to uneven force.

1

RT21170650

17–

43

17

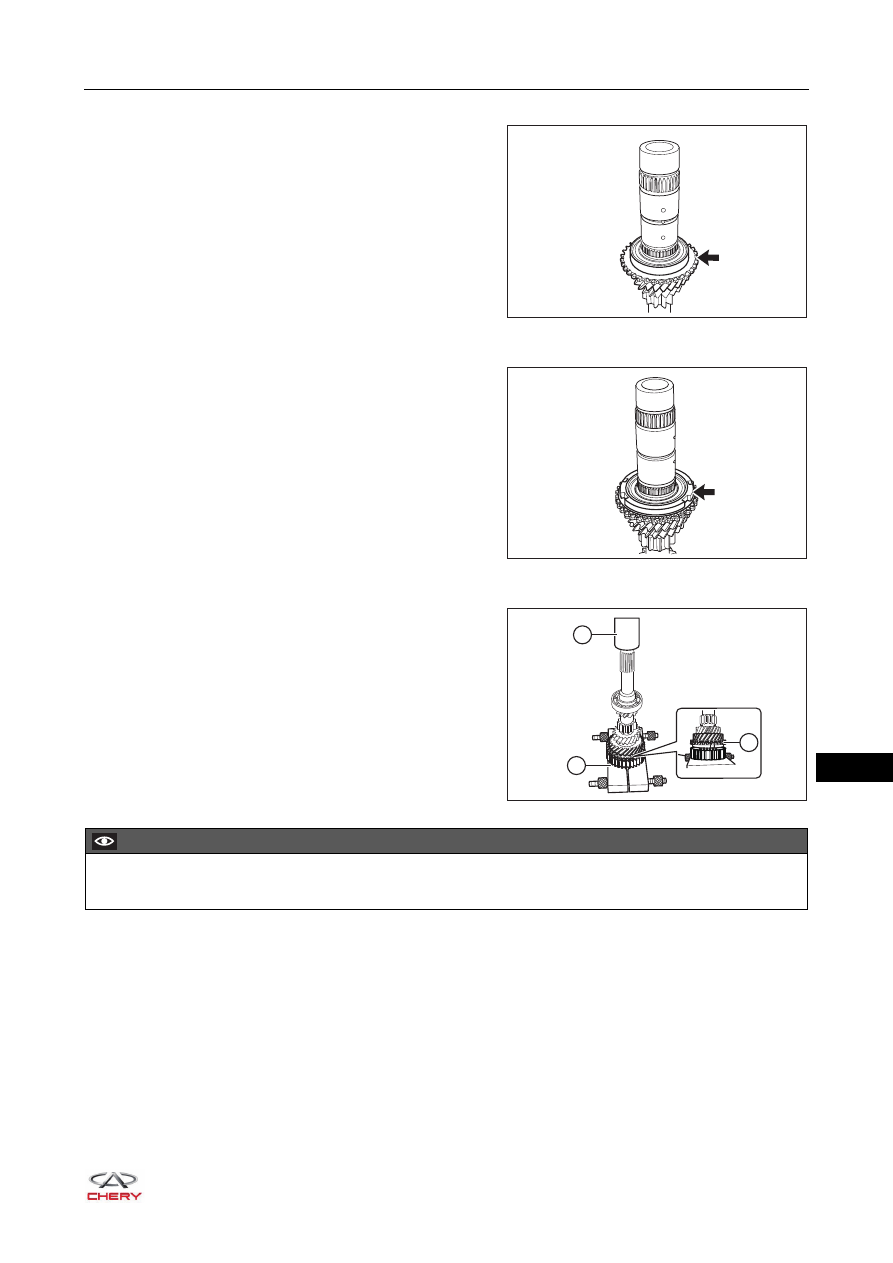

3. Install the 3rd drive gear.

a. Apply transmission oil to the 3rd drive gear (arrow),

and install it to the input shaft.

4. Install the 3rd synchronizer ring.

a. Apply transmission oil to the 3rd synchronizer ring

(arrow), and install it to the input shaft.

5. Install the 3rd-4th synchronizer gear.

a. Using a hydraulic press (3), press the 3rd-4th

synchronizer gear (1) into the input shaft.

RT21170690

RT21170700

2

3

1

RT21170710

CAUTION

 When pressing synchronizer gear, prevent the 3rd drive gear (2) from disengaging.

17–

44

17

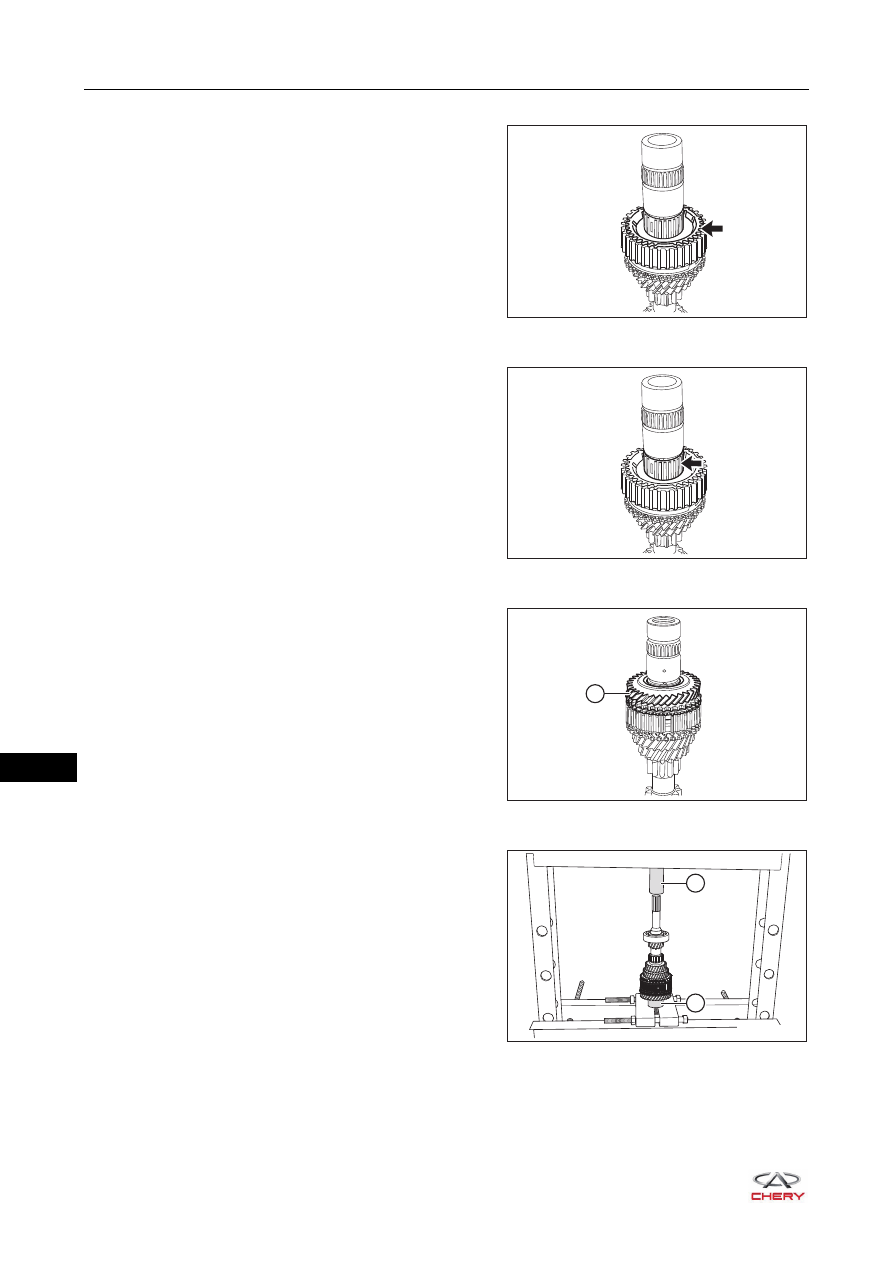

6. Install the 4th synchronizer ring.

a. Apply transmission oil to the 4th synchronizer ring

(arrow), and install it to the input shaft.

7. Install the 4th needle roller bearing.

a. Apply transmission oil to the 4th needle roller bearing

(arrow), and install it to the input shaft.

8. Install the 4th drive gear.

a. Apply transmission oil to the 4th drive gear (1), and

install it to the input shaft.

9. Install the 5th drive gear needle roller bearing bushing.

a. Using a hydraulic press (1), press the 5th drive gear

needle roller bearing bushing (2) into the input shaft.

RT21170610

RT21170600

RT21170720

1

1

2

RT21170730

17–

45

17

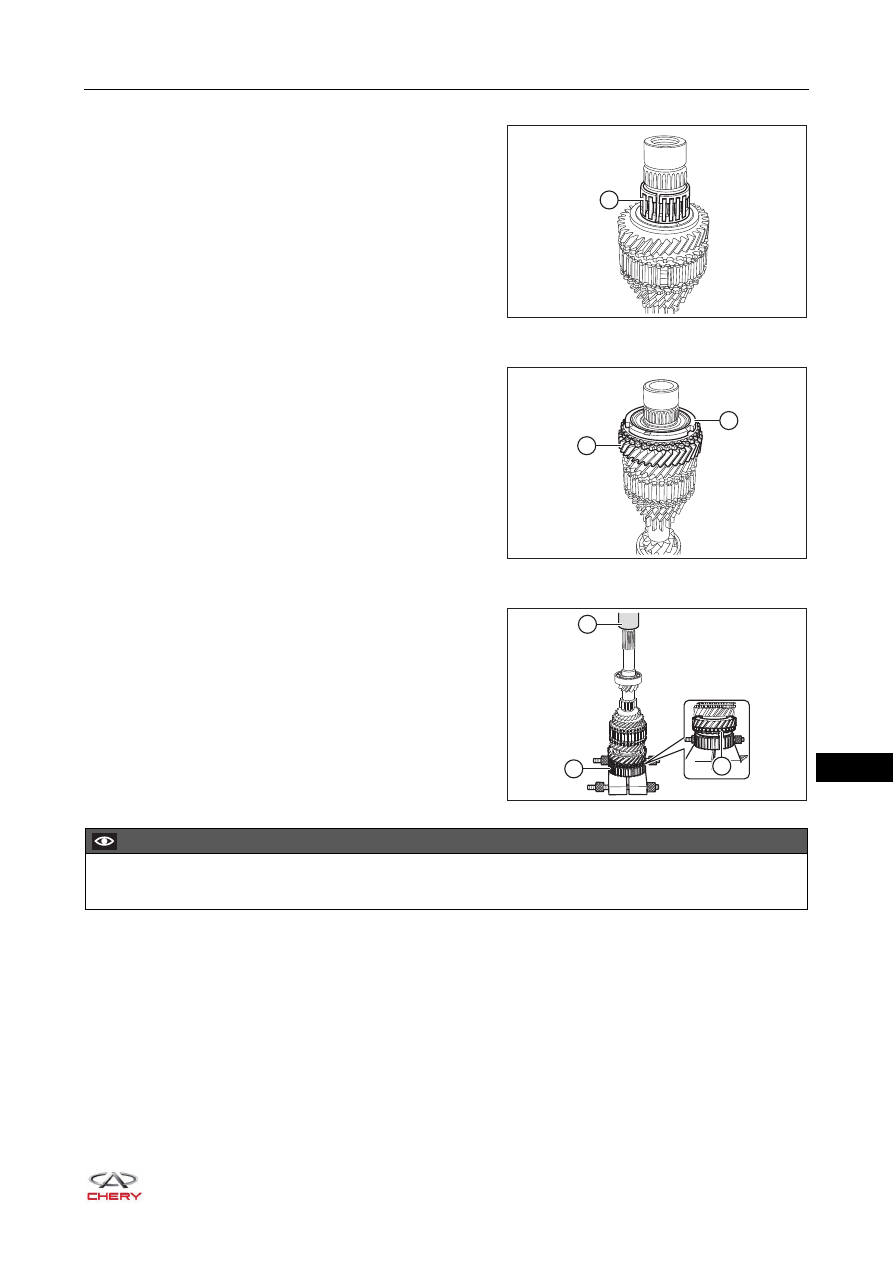

10.Install the 5th needle roller bearing.

a. Apply transmission oil to the 5th needle roller bearing

(1), and install it to the input shaft.

11.Install the 5th drive gear and 5th synchronizer ring.

a. Apply transmission oil to the 5th drive gear (1) and 5th

synchronizer ring (2), and install them to the input
shaft.

12.Install the 5th synchronizer gear hub.

a. Using a hydraulic press (3), press the 5th synchronizer

gear (2) and 5th synchronizer gear hub (1) together into
the input shaft.

1

RT21170570

2

1

RT21170740

3

1

2

RT21170750

CAUTION

 When pressing synchronizer gear hub, prevent the 5th drive gear from disengaging.
