Installation

Installation is in the reverse order of removal.

CAUTION

 Clean installation surface of oil cooler assembly.
 Replace fuel filter.
 Add engine oil to specified level.
 Check and add engine coolant.

13–

20

13

Oil Pan

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the engine lower protector assembly (

See page 48-29

).

4. Drain the engine oil (

See page 13-11

).

5. Remove the oil pan.

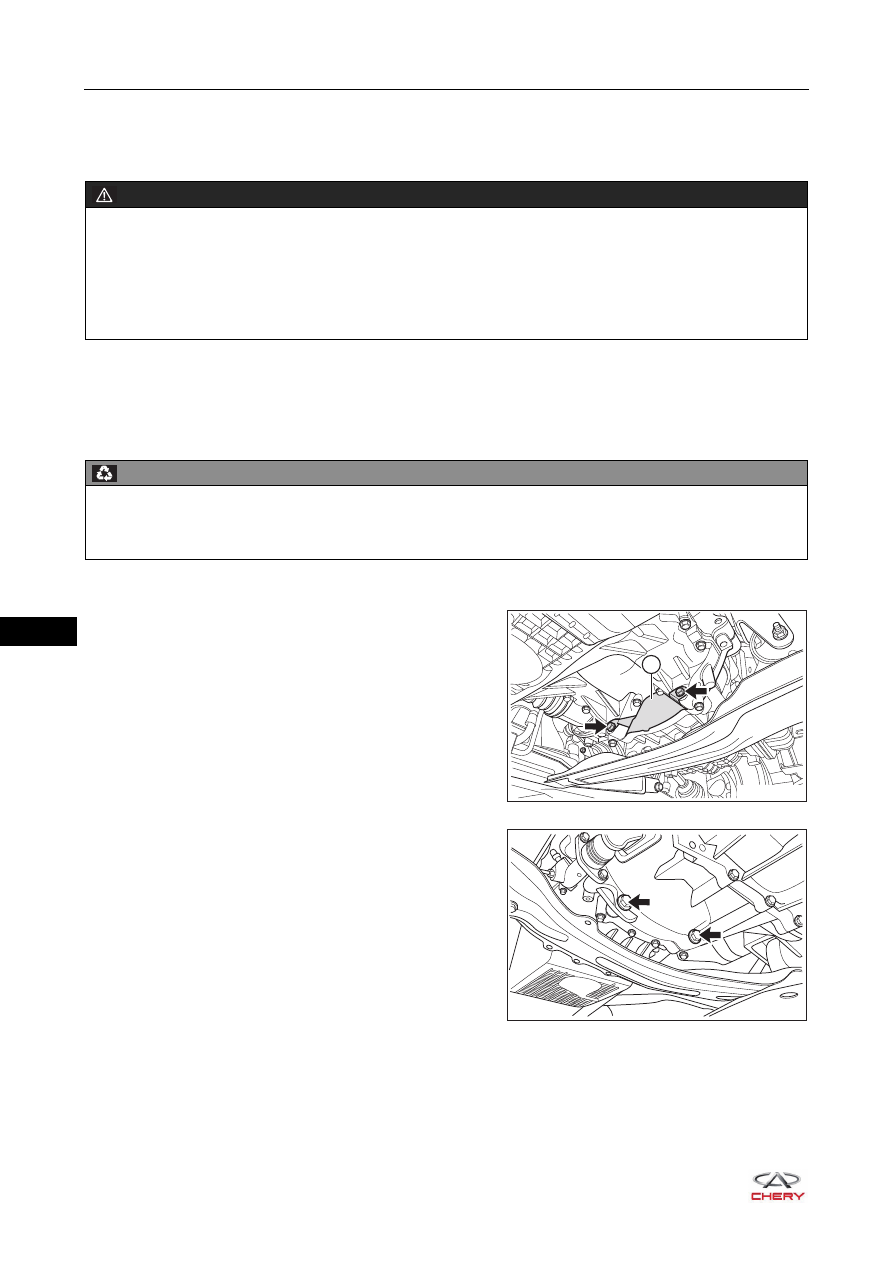

a. Remove 2 baffle plate fixing bolts (arrow), and remove

the baffle plate (1) (for CVT model).



(Tightening torque: 50 ± 5 N·m)

b. Remove 2 coupling bolts (arrow) between

transmission assembly and oil pan (for MT model).



(Tightening torque: 50 ± 5 N·m)

WARNING

 DO NOT drain engine oil and remove oil pan until engine cools down.
 Prolonged and repeated contact with engine oil will be harmful to your skin. If engine oil spills on your

skin, wash it off immediately with water. In addition, the used engine oil contains potentially harmful
contaminants, which may cause skin cancer. Therefore, always take proper skin protection measures
when performing vehicle service. DO NOT remove oil filter until engine cools down.

ENVIRONMENTAL PROTECTION

 Wasted engine oil should be handled by specialized department according to local laws and regulations.

Never discard it at will.

1

RT21130150

RT21130160

13–

21

13

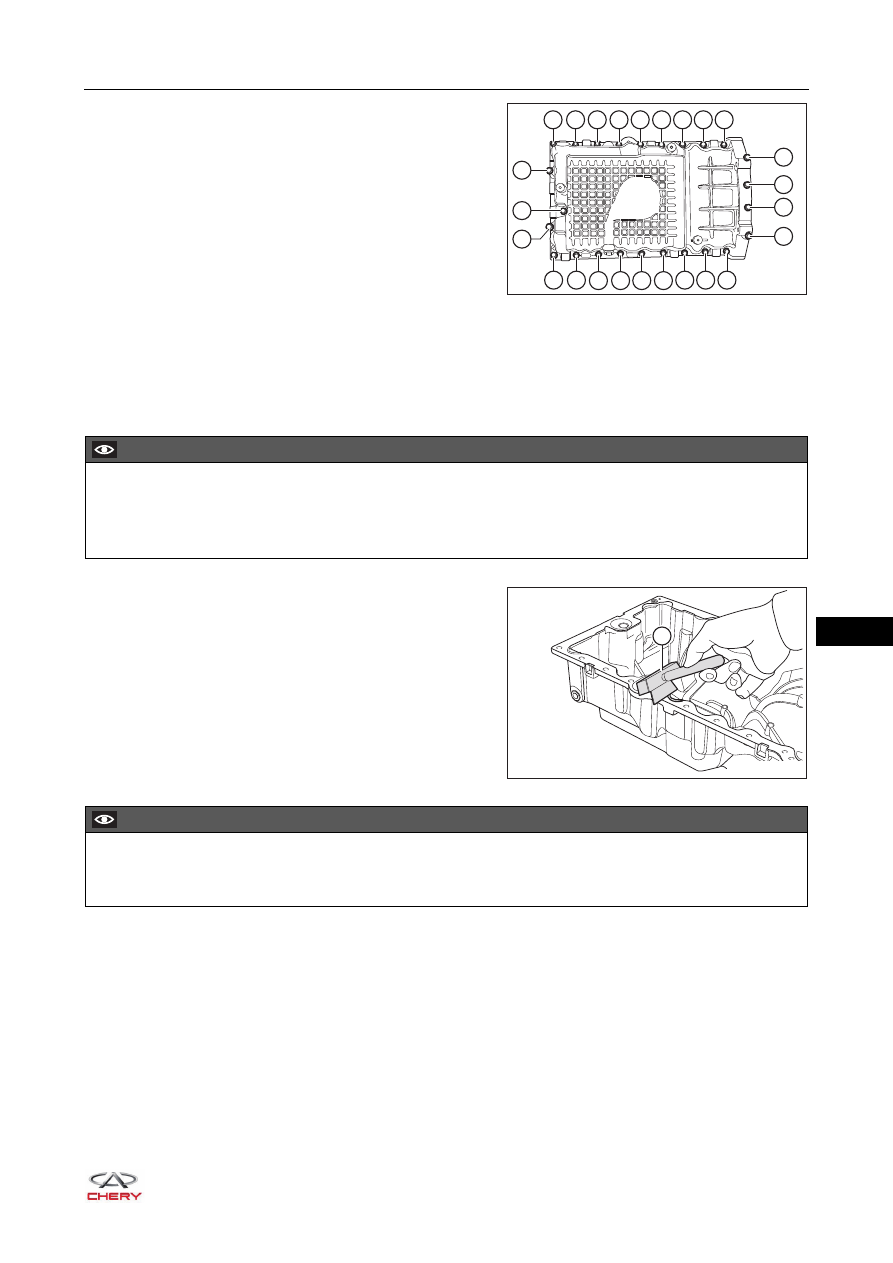

c. Loosen and remove the oil pan fixing bolts in the order

shown in the illustration.



(Tightening torque: 15 + 3 N·m)

d. Pry off the oil pan at specific prying locations on the oil pan with oil pan remover and scraper and

remove it.

HINT:
Because the seal gum is sealed between oil pan and cylinder block, never use hard objects, such as a
hammer, to tap it during removal, but it can be tapped slowly from left and right with a rubber hammer.

6. Remove the residual seal gum on oil pan with oil pan

remover and scraper (1).

2

6

3

7

15

10 14 25

11

1

8

4

5

9

19 12

13 20

18

17

16

21

22

23

24

RT21130170

CAUTION

 Be careful not to damage surrounding parts when removal.
 A transmission carrier can be used to support oil pan during removal, to prevent personal injury from

sudden dropping of oil pan.

1

RT21130180

CAUTION

 After removing seal gum with oil pan scraper, clean the cylinder block installation surface, thread hole

and oil pan with appropriate cleaner.

13–

22

13

Installation

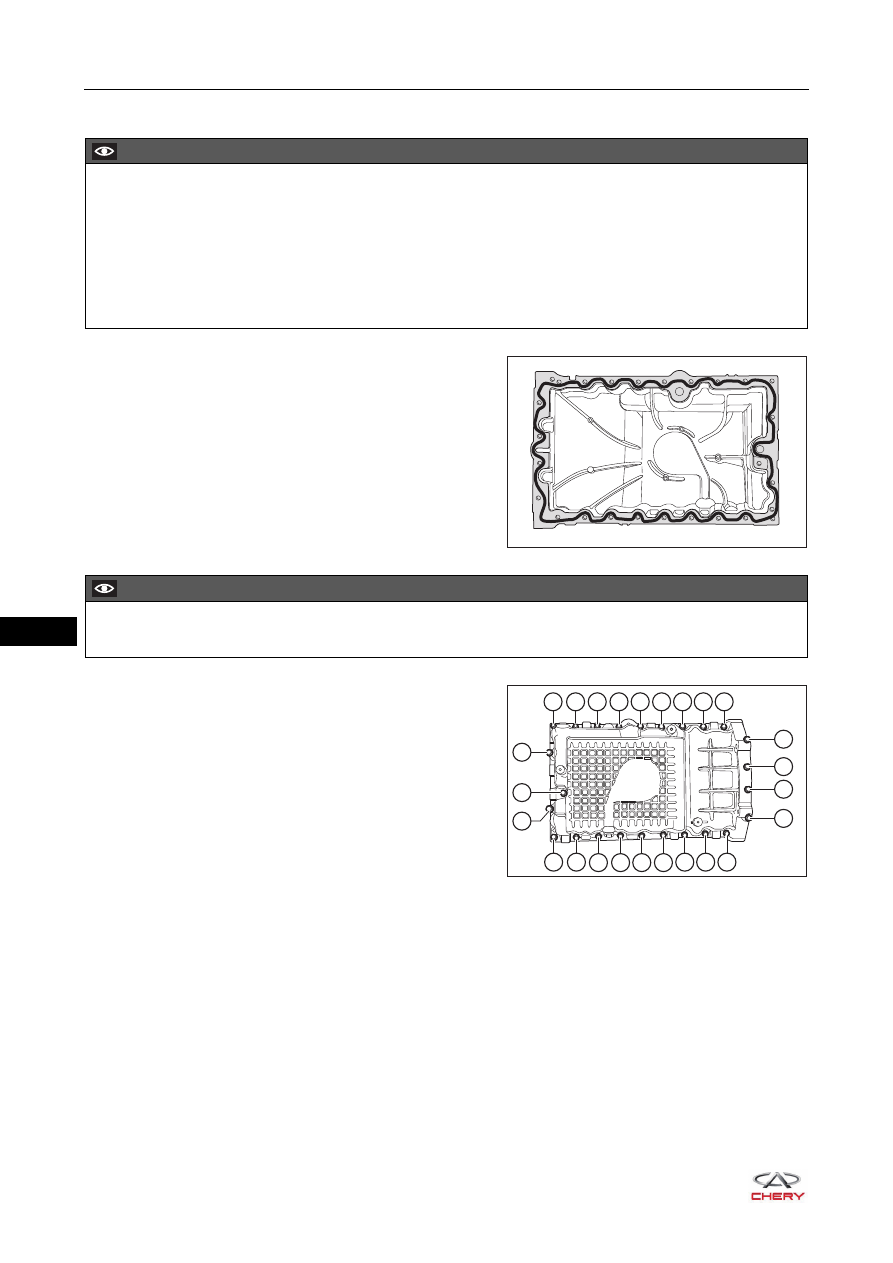

1. Uniformly apply seal gum to the oil pan installation

surface as shown in the illustration.
Recommended seal gum: Loctite 5910

2. Pre-tighten the oil pan fixing bolts until it is enough for

press fit, and then tighten the oil pan fixing bolts in the
order shown in the illustration.



(Tightening torque: 15 + 3 N·m)

3. Other installation procedures are in the reverse order of removal.

CAUTION

 When applying seal gum, check the type and expiration date of seal gum.
 Remove impurities, iron chips and residue of seal gum on oil pan.
 Remove oil stain and residue of seal gum on cylinder block and thread hole of oil pan.
 Seal gum should not be applied too thick; otherwise, it will overflow into oil pan due to squeezing, which

will block oil strainer.

 DO NOT add engine oil until seal gum becomes dry after installing oil pan.

RT21130190

CAUTION

 Seal gum should be applied to inside of oil pan mounting bolt hole.

2

6

3

7

15

10 14 25

11

1

8

4

5

9

19 12

13 20

18

17

16

21

22

23

24
