SQR484F ENGINE MECHANICAL

Tools

Special Tools

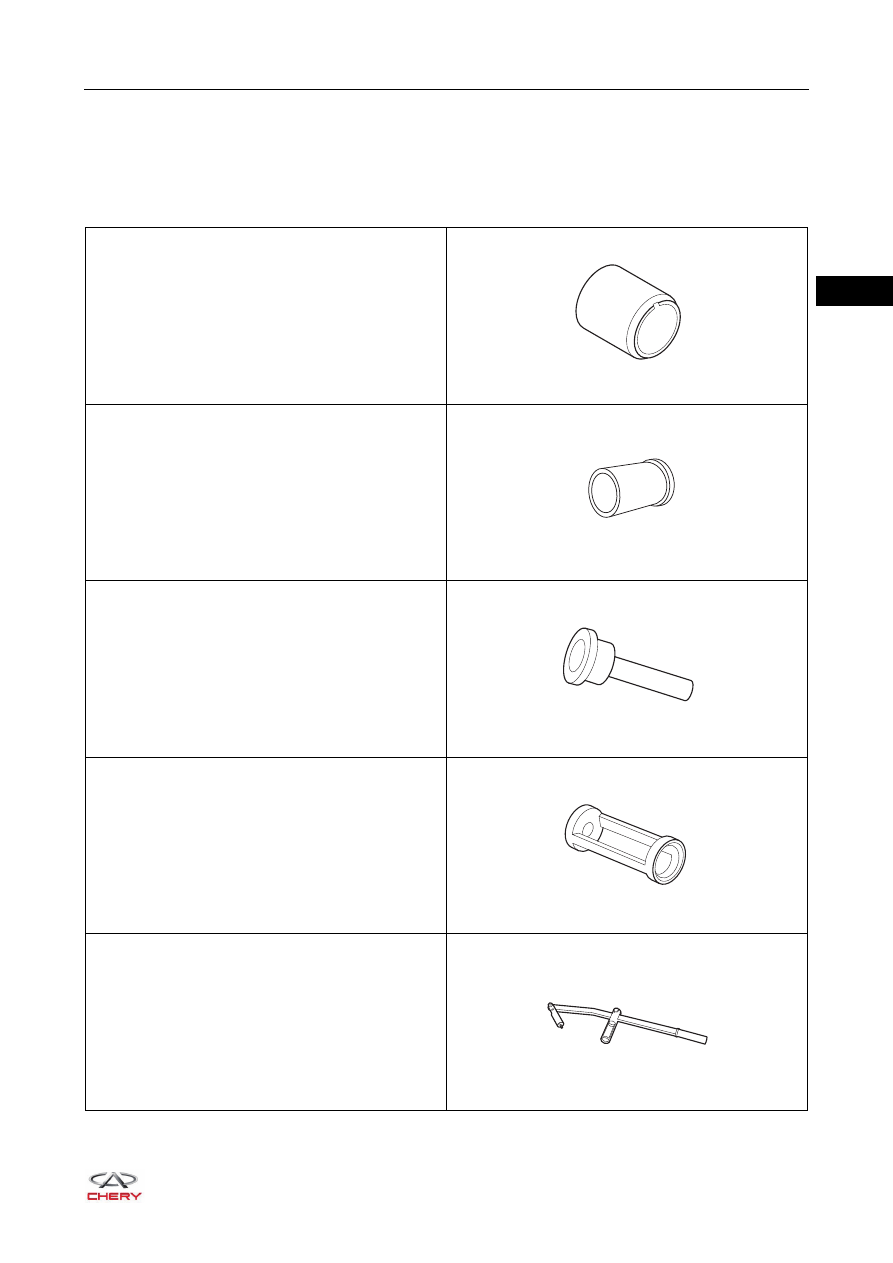

Crankshaft Front Oil Seal Guide Tool

Crankshaft Front Oil Seal Installer

Camshaft Oil Seal Installer

Valve Spring Compression Adapter

Valve Spring Compressor

RCH0000049

RCH0000067

RCH0000017

RCH0000050

RCH0000028

03–

6

03

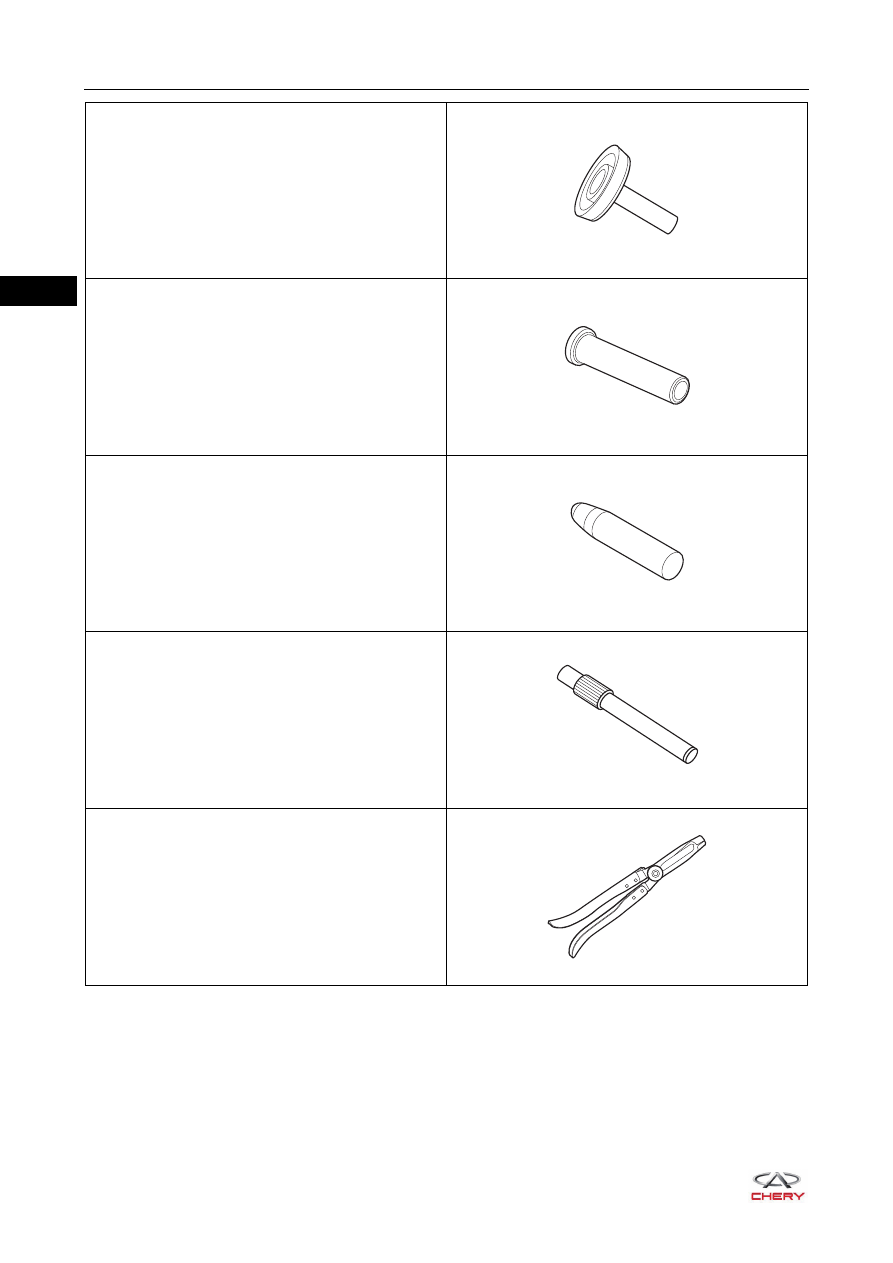

Crankshaft Rear Oil Seal Installer

Valve Oil Seal Installer

Valve Oil Seal Guide Sleeve

Clutch Pressure Plate Installer

Valve Oil Seal Remover

RCH0000031

RCH0000034

RCH0000035

RCH0000018

RCH0000037

03–

7

03

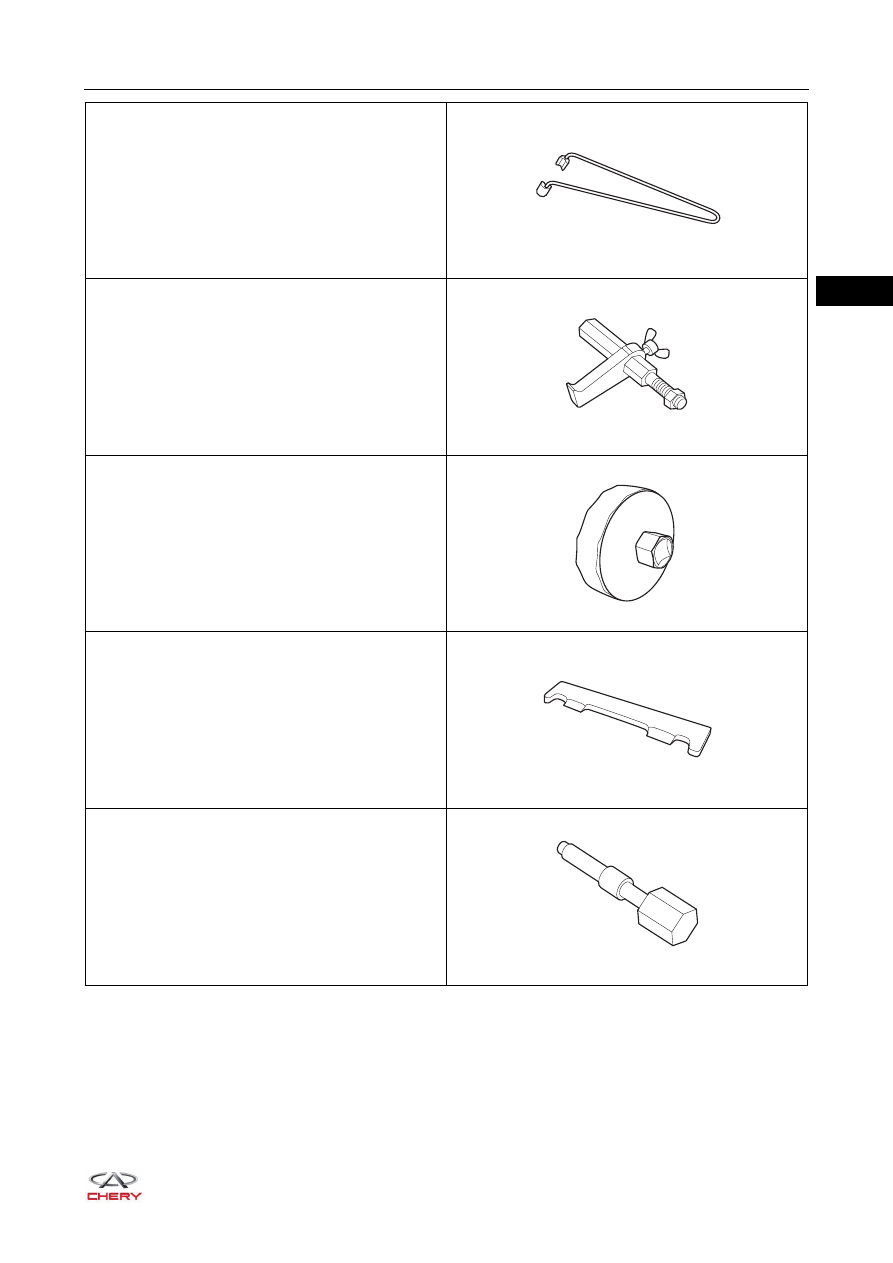

Valve Cotter Installer

Flywheel Holding Tool

Oil Filter Remover

Camshaft Timing Tool

Crankshaft Timing Tool

RCH0000029

RCH0000040

RCH0000054

RCH0000033

RCH0000027

03–

8

03

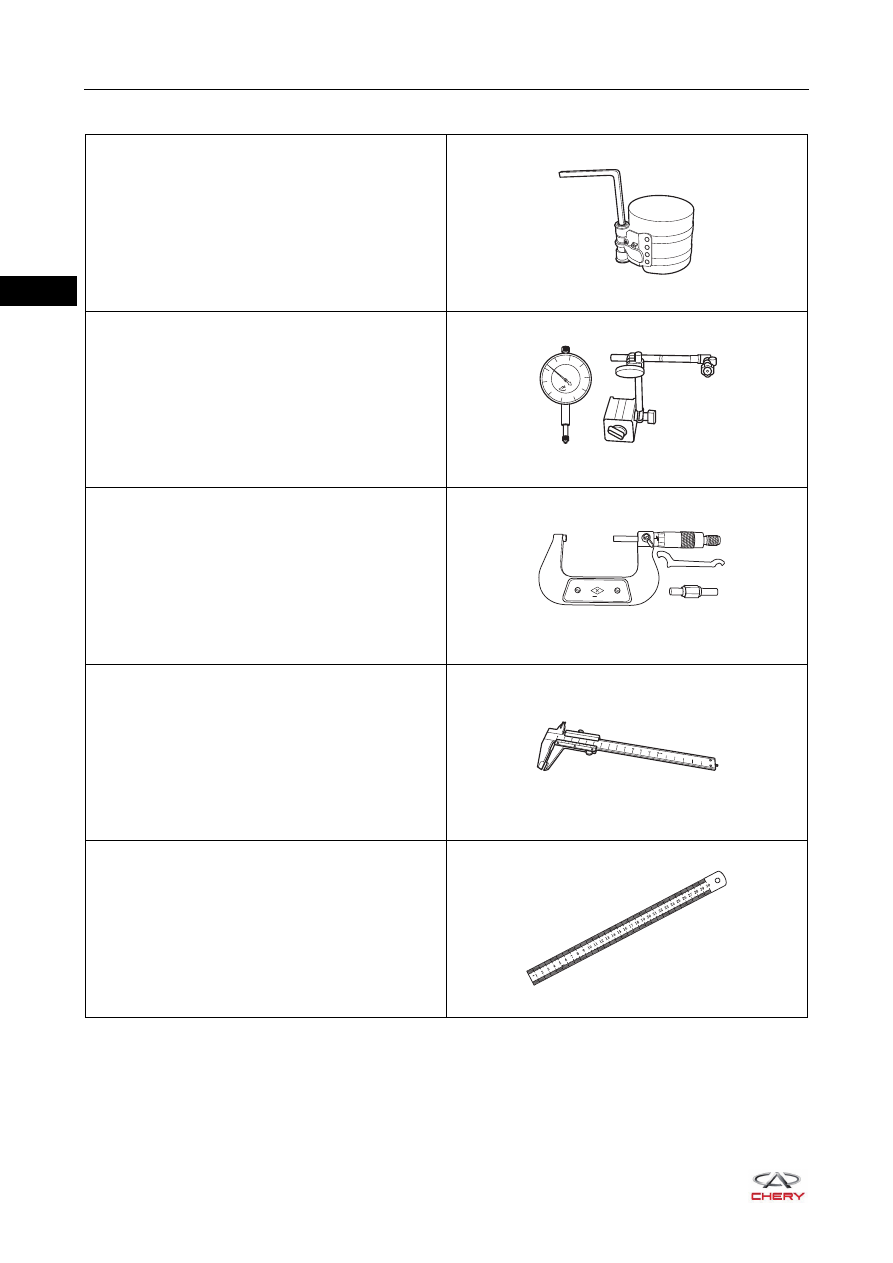

General Tools

Piston Installer

Dial Indicator and Magnetic Holder

Outer Diameter Micrometer

Vernier Caliper

Precision Ruler

RCH0000039

RCH0000023

0

10

20

30

40

50

60

70

80

90

0.01mm

75mm

50

50

1.5

1.0

5

0

RCH0000064

RCH0000019

RCH0000063
