Chery SQR 7160 sedan. Manual - part 72

The manual of 4HP14    A/T removing and installing                                                        CHERY AUTOMOBILE CO., LTD

3.8、Assembling clutch B and 2nd gear one-way overrun clutch.

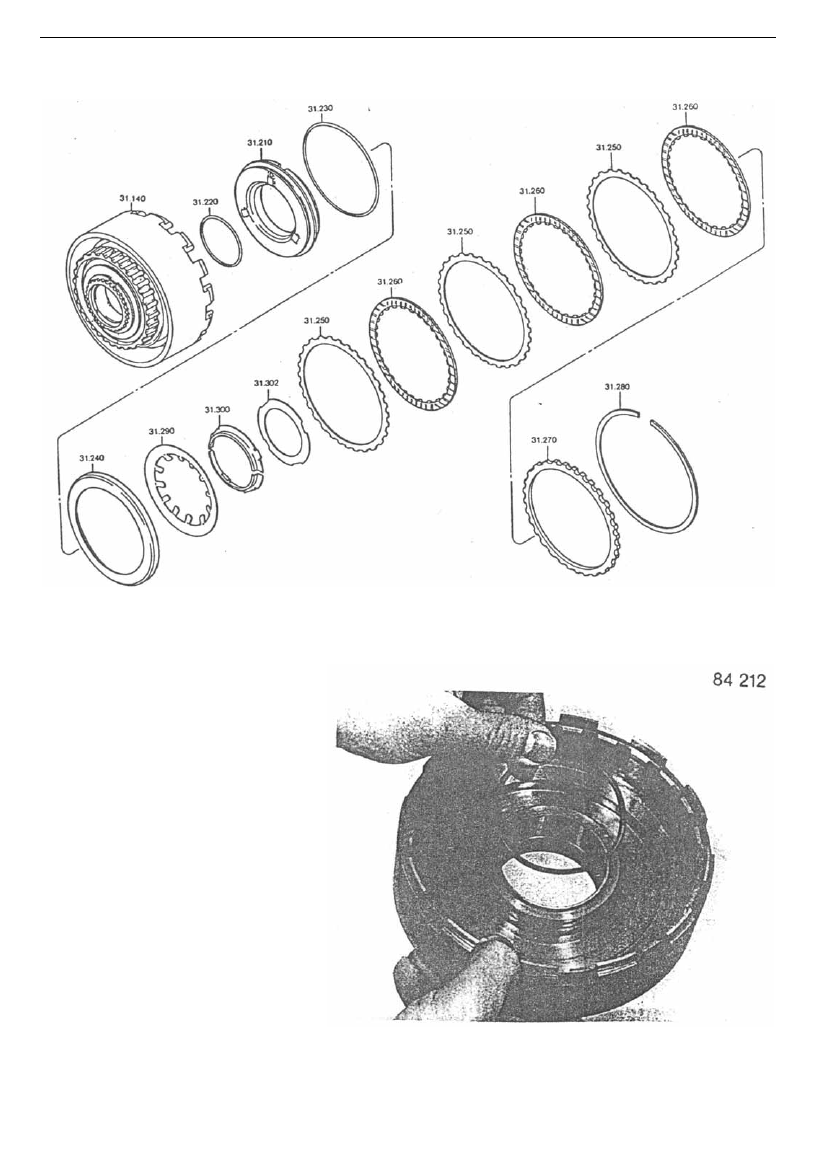

After applying lubricant to O-ring, install

O-ring 31 220 into clutch drum B 31 140.



-98-

The manual of 4HP14 A/T removing & installing                                                                CHERY AUTOMOBILE CO., LTD

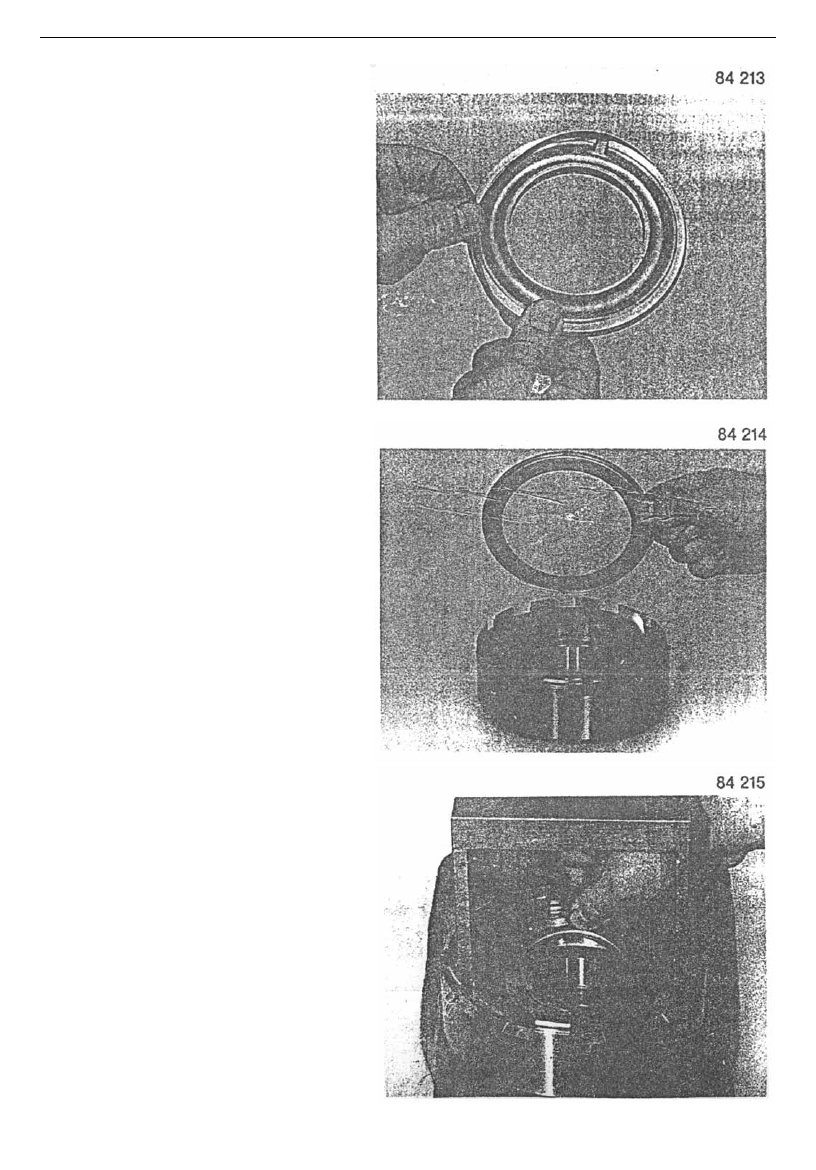

Install lubricated O-ring 31 230 into piston B 31

210.



























Install piston B into the clutch drum and install

one pressure ring on the piston.





















Install diaphragm spring 31 290 with special tool

and install thrust washer 31 302 and retainer ring

31 300.



-99-

The manual of 4HP14    A/T removing and installing                                                        CHERY AUTOMOBILE CO., LTD

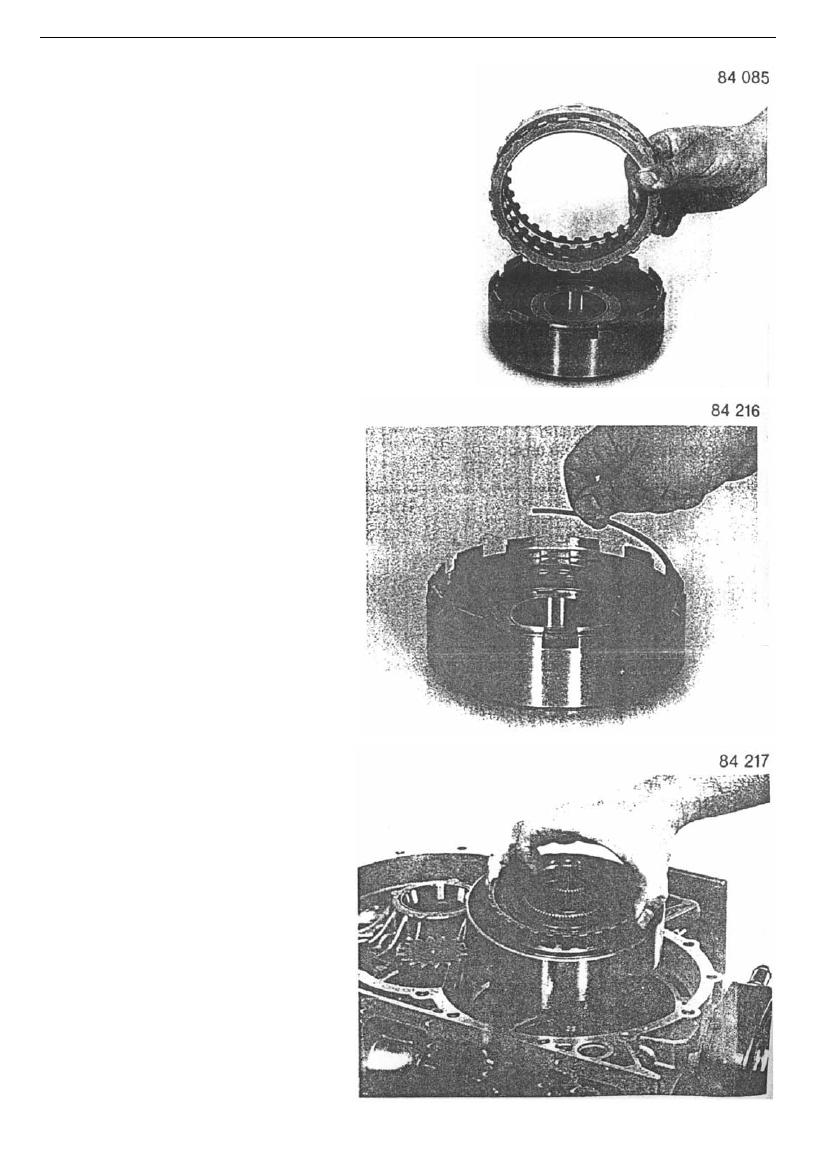

Install clutch B into the clutch drum. Install

retainer ring 21 250, and then install friction

plate 31 260 and outer teeth sheet steel 31 250

alternately.

























Install retainer ring 31 270 and snap ring 31

280 onto assembly top.



















Install clutch B assembly.

Shake clutch B to make its inner teeth properly

engaged with outer shell.

Clutch B drum outer teeth and clutch A drum

teeth shape engages. And there should be 1mm

clearance.













-100-
