Chery SQR 7160 sedan. Manual - part 10









Attachment II

Precautions on ABS

4 MUST ITEMS

1、Depress brake pedal and keep pedal depressed firmly to obtain enough and consecutive braking force for ABS

operating effectively.

2、To keep enough braking distance, when driving on a good road surface, at least 3 seconds braking time must be left for

front vehicle and a longer braking time must be left when driving on a bad road surface.

        3、Practice applying ABS brake beforehand,    get familiar with and have adaptability to pedal vibrating while ABS

operating. Both parking lot and square are good places for practicing applying urgent ABS braking.

4、Carefully read DRIVER MANUAL for a good understanding of operating items provided by the vehicle manufacturer

who install the ABS system.



4 NOT ITEMS

        1、DO NOT drive an ABS installed vehicle more careless than a vehicle without ABS. Even for an ABS installed

vehicle, a sharp cornering, fast way-changing way and other sharp steering operations are hazard and not recommended.

2、DO NOT depress brake pedal repeatedly. When driving an ABS installed vehicle, depressing pedal repeatedly will

cause ABS intermittent on, which will decrease braking efficiency and increase braking distance. Actually, ABS itself

increases and decreases brake force at a high-speed rate, and offers effective steering wheel control.

  3、DO NOT forget to turn steering wheel. ABS offers effective steering wheel control ability, but cannot automatically

carry out steering operation itself.

        4、  DO NOT be afraid of normal ABS hydraulic system operation sound and brake pedal vibrating whiling braking.

Such phenomenon is normal by which driver can feel ABS is operating.









33

CIRCUIT      Central Electrical Box Connector Position

FOREWORD

New style wiring harness is designed upon

chery sedan wiring harness-updating plan



approved by Chery Auto Co., LTD in July 2001. According to updated plan, concentrated control
in central electrical box is replaced with a nearby control method in design, enhancing circuit
performance, avoiding internal resistance and heat sources interference between electrical
devices and increasing the whole vehicle wiring harness reliability and endurance.

During updating, some structures and features on home and abroad famous brand name

vehicles are used for reference or equivalently taken as follows:

1. Adding whole vehicle electrical devices problem automatic safety-protect unit, which

ensure whole circuit system being cut off when sudden accident occurs to avoid possible fire
hazard or other injury from short problem.

2. Selecting a new central electrical box mainly used for whole vehicle control circuit, in

which there are 6 built-in mini relays, 24 type fuses, 3 intensive safety protect units and 58
external connecting points.

3. High current and power electrical devices are nearby controlled, such as fan and A/C

control circuit are directly completed at front compartment harness, shortening the current path.

Comparing with old wiring harness, main changes in wiring harness and electrical devices

are as follows:

Interior harness, front compartment harness, I/P (instrument panel) harness, battery positive

harness, central electrical box, two front and rear fog light switches instead of one switch on old
vehicle, and also relevant changes in ABS harness connector.

But control theory and whole vehicle harness routing mainly keep unchanged.

Only whole vehicle electrical devices theory illustrations are available in this manual and

there exists difference with actual electrical devices circuit. For convenience of compiling and
printing, some big circuits page are divided into several small pages, which will take
inconveniences when reading and therefore will require the user have a good command of
circuits on SQR710 sedan.

For compilers’ knowledge and time limits as well as rapid technology updating, some

errors and oversights are hard to avoid and kindly appreciate for users’ pointing out with the idea
of improving together. Electrical system are rapidly updated, therefore some new circuit are not
compiled on this manual on the time of publishing and will be supplemented timely.

This manual is compiled by Chang Yongjiu, Yao Shen and reference books are supplied by

product department.

                                                             Written by compilers

                                                                 November 2002





— 1 —

CIRCUIT   Central Electrical Box Connector, Pin And Function

TOTAL CONTENT

No.1  Central Electrical Box Fuse And Relay Position         (2 Pages)

No.2    Central Electrical Box Connector Position And Function    (3 Pages)

No.3    Circuit Manual Explanation                                                  (2 Pages)

No.4    Circuit                                                                                  (23 Pages)

No.5    ET Vehicle Circuit                                                                (25 Pages)





























— 2 —

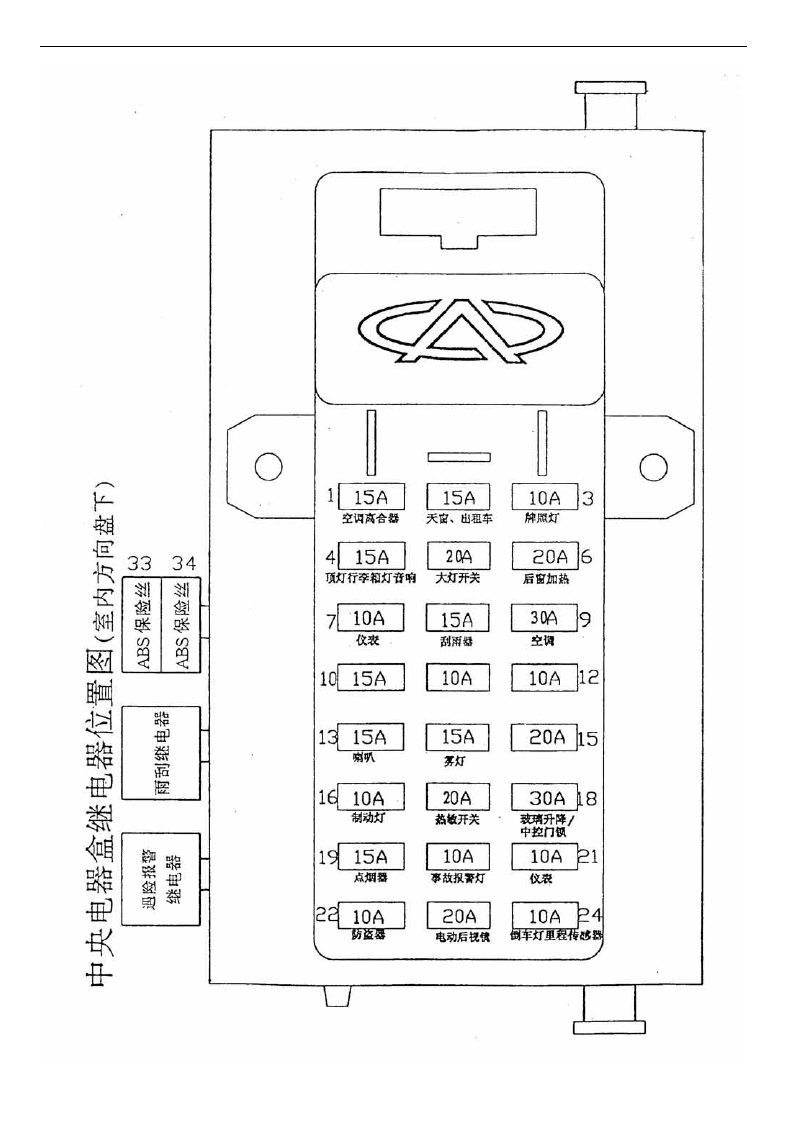

CIRCUIT      Central Electrical Box Connector Position
